Sanyo DS27830 User manual

AS
AS
Model No.:
No. de Modelo:
Node modele:
Color TV Owner’s Manual
Color TV Manual Del Propietario
Manuel d’instructions du télécouleur
“Read this manual before assembling
(or using) this product.”
Important Safety Instructions . . . . . . . . . . . . . . . 2
Welcome to the World of Sanyo . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Set-up and Connections . . . . . . . . . . . . . . . 4
Using the Audio / Video Input Jacks . . . . . . . . . . 5
Connecting a VCR or DVD Player . . . . . . . . . . 5
Using the Component Video and Audio Input Jacks 6
Connecting a DVD . . . . . . . . . . . . . . . . . . . . . . 6
Using the Audio Output Jacks . . . . . . . . . . . . . . 6
Connecting to a Stereo Amplifier . . . . . . . . . . . 6

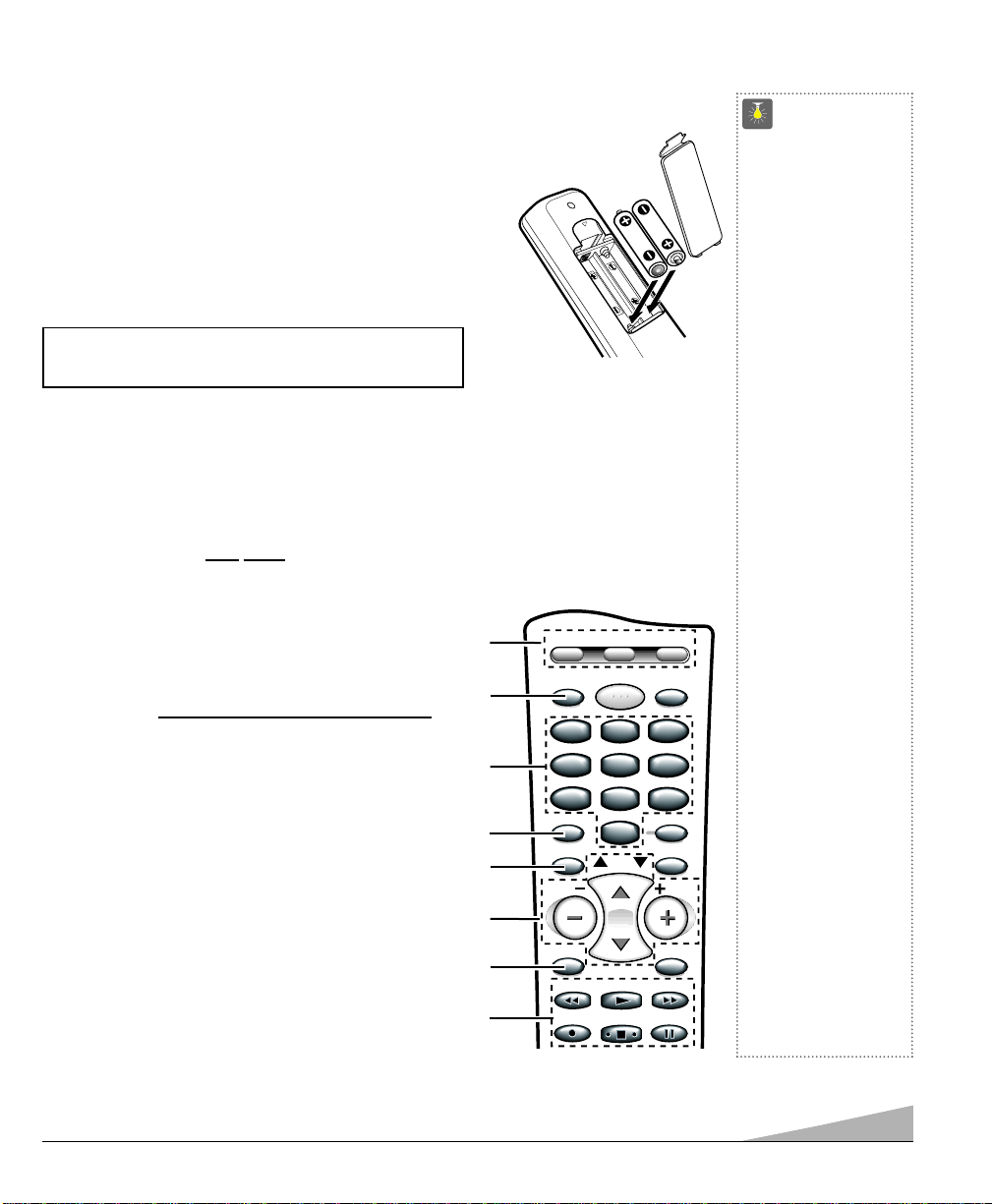

Using the Multimedia Remote Control . . . . . 7 ~ 11
Programming the Remote . . . . . . . . . . . . . . . 8
VCR / Cable Box Codes / DVD Codes . . . . . . . . 9
Keys Functions Chart . . . . . . . . . . . . . . . . . . 10
TV Adjustment and Setup
How to Operate the On-Screen Menu . . . . . . . 11
Setting the Clock . . . . . . . . . . . . . . . . . . . . . 11
Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . 11
Adjusting Picture/Sound . . . . . . . . . . . . . . . . 12
Setting the Initial Channel . . . . . . . . . . . . . . 12
Adding or Deleting a Channel . . . . . . . . 12 ~ 13
Adjusting Aspect Ratio . . . . . . . . . . . . . . . . . 13

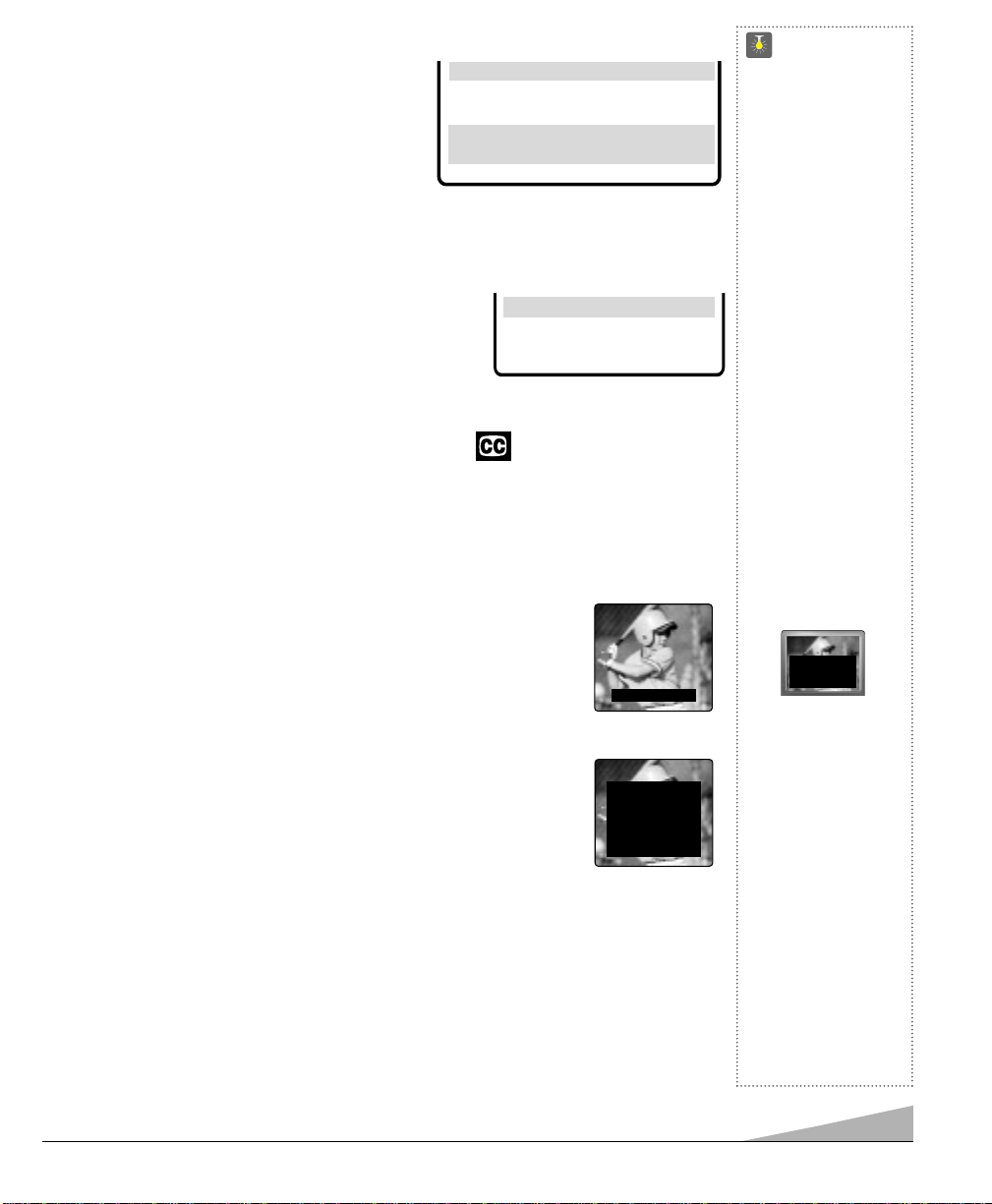

Closed-Captioning . . . . . . . . . . . . . . . . . . . . . . 13
Picture-In-Picture (PIP) Operation . . . . . . 14 ~ 16
BasicPIPOperation .....................16

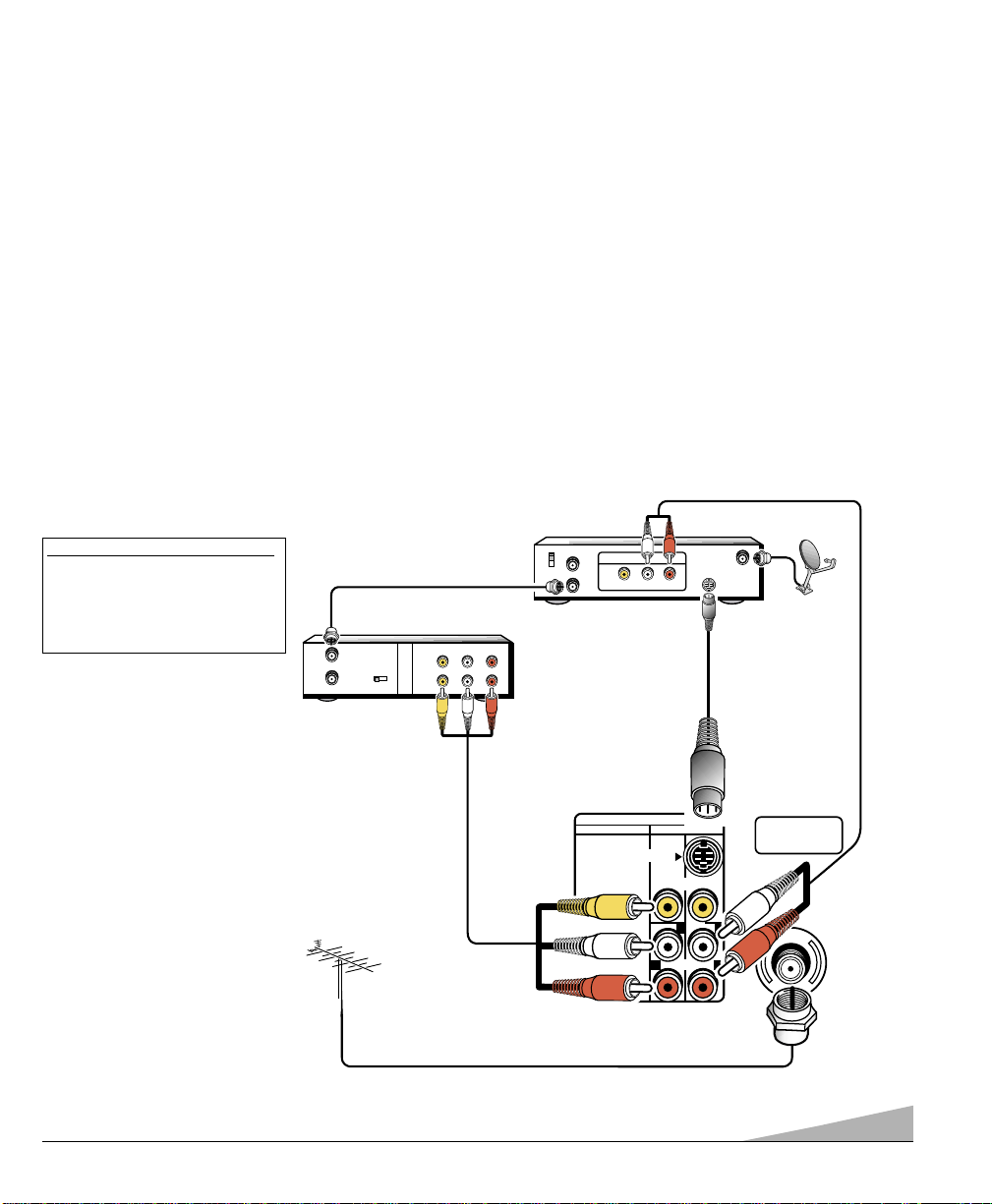

ConnectingaSatellite,VCR,andAntenna
totheTVforPIPOperation ................17
ConnectingaCableBoxandVCRtothe
TV for PIPOperation .....................18
V-Guide Operation (Parental Control) . . . . 17 ~ 18
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . 18
Helpful Hints (problems/solutions) . . . . . . . . . . 19
Warranty (Mexico) . . . . . . . . . . . . . . . . . . . . . 20
Warranty (U.S.A. and Canada) . . . . . . . . . . . . . 21
Child Safety Matters . . . . . . . . . . . . . . Back cover
ESPAÑOL . . . . . . . . . . . . . . . . 22 ~ 42
Contenido . . . . . . . . . . . . . . . . . . . . . . . . . . 22
FRANÇAIS . . . . . . . . . . . . . . . 43 ~ 63
Table des matières . . . . . . . . . . . . . . . . . . . 43
CONTENTS
TV screen image / Imagen de la
Pantalla del televisor/Image de
télévision © 2003 PhotoDisc, Inc.
DS27830
Printed in U.S.A. SMC, April 2003
Impreso en U.S.A. SMC, Abril 2003
Imprimé aux É.-U. SMC, avril 2003
Part No. / No. de Parte/
Node pièce : 1AA6P1P3824––
Service Code/Código de Servicio/
Code de service : 610 304 6846
Importado Por :
Comercializadora México
Americana, S. DE R.L. DE C.V.
Nextengo Nº 78
Col. Santa Cruz Acayucan
Del. Azcapotzalco, México D.F. C.P.
02770, RFC CMA 9109119L0
Telefono: 55-5328-3500
“As an ENERGY STAR®Partner, Sanyo
Manufacturing Corporation has determined
that this product meets the ENERGY STAR®
guidelines for energy efficiency.”

Positioning the appliance
1. Do not place your appliance on an unstable cart, stand, shelf or table.
Serious injury to an individual, and damage to the appliance, may result
if it should fall. Your salesperson can recommend approved carts and
stands or shelf and wall mounting instructions. An appli-
ance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
2. Slots and openings in the cabinet and in the back or bottom are
provided for ventilation. To ensure reliable operation of the appliance and
to protect it from overheating, these openings must not be blocked or
covered. The openings should never be covered with a cloth or other
material, and the bottom openings should not be blocked by placing the
unit on a bed, sofa, rug, or other similar surface. This appliance should
never be placed near or over a radiator or heat register. This appliance
should not be placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
3. Do not expose the appliance to rain or use near water . . . for example,
near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.
Hooking Up Outdoor Antenna
LIGHTNING PROTE TION FOR YOUR ANTENNA AND SET AS PER
NATIONAL ELE TRI AL ODE INSTRU TIONS.
4. If an outside antenna is connected to the receiver, be sure the antenna
system is grounded so as to provide some protection against voltage
surges and built up static charges. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead in
wire to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
An outside antenna system should not be located in the vicinity of over-
head power lines or other electric light or power circuits, or where it can
fall into such power lines or circuits. When installing an outside antenna
system extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
Plug in the power cord
5. This product should be operated only from the type of power source indi-
cated on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power
company. This product is equipped with a polarized alternating current
line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of this polarized plug.
Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
6. Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
Cleaning
7. Before cleaning,unplugtheunitfromthewalloutlet.Donotapplyliquidclean-
ers or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.
Service & Repair
8. Unplug the appliance from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating
instructions, adjust only those controls that are covered in the
operating instructions. Improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the appliance to normal operation.
9. Upon completion of any service or repair, request the service techni-
cian’s assurance that only Factory Authorized Replacement Parts that
have the same characteristics as the original parts were used, and that
routine safety checks have been performed to determine that the
appliance is in safe operating condition. Unauthorized substitutions may
result in fire, electrical shock, or other hazards.
10. Never add accessories that have not been specifically designed for use
with this appliance as they may cause hazards.
11. For added protection during a lightning storm, or when the set is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna. This will prevent damage to the set
due to lightning or power line surges.
12. Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
EXAMPLE OF ANTENNA GROUNDING A ORDING TO NATIONAL
ELE TRI AL ODE, ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANY-
ING THIS UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
AUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODU T AND IN THE OPERATING INSTRU TIONS. BEFORE
OPERATING THE PRODU T, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRU TIONS. RETAIN THIS
LITERATURE FOR REFEREN E. Follow all instructions...
“Note to CATV syste installer:
This re inder is provided to call the CATV syste installer’s attention to Article 820-40
of the NEC that provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding syste of the building, as close to
the point of cable entry as practical.”
NEC
- NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUNDING CONDUCTORS
(NEC SECTION 10-21)
GROUND CLAMPS
ANTENNA
DISCHARGE UNIT
(NEC SECTION 10-20)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
2

◆Trilingual On-Screen Menu
◆Automatic hannel Search
◆Auto Shut Off
◆losed- aptioning/Quikcap
◆3-Line Digital omb Filter
◆Aspect Ratio settings
◆Digital picture controls with
on-screen display
◆MTS stereo/dbx®/SAP Decoder
◆Auto Flesh Tone
◆olor Enhancer
◆Factory preset adjustments for
picture/sound
◆Front Surround Sound
◆Bass / Treble
◆Initial hannel
◆V-Guide (Parental ontrol)
◆XDS (Extended data service) station
call letters, title of show, ratings
◆Picture-In-Picture (PIP) with
QUIK FREEZE
◆480i omponent AV Input Jacks
◆Audio/Video In Jacks (2 sets, R/L)
◆Audio Out Jacks (Fixed)
◆S-Video In Jack
◆Auto lock
◆Sleep Timer (3 hours)
◆TV Reset
◆181 Channel Tuning System
VHF hannels 2-13
UHF hannels 14-69
able TV ( ATV) 1, 14-125
◆Automatic Fine Tuning
VHF and able hannels
◆Multimedia Remote Control
VCR/TV/AUX
Large low-in-the-Dark
basic operating keys
0~9 Numbered hannel Selection
hannel Scanning
Volume Mute
Power Recall
Display Sleep
aption Reset
Menu V-Guide
Input V R/DVD keys
PIP keys
PI TURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . . . . . . . . . . . . . . . . 27-inches
PI TURE RESOLUTION . . . . . . . . . . . . . . . . . . . . . . . 330 Lines
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700 Lines
ANTENNA INPUT . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . . . . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 watts
HORIZONTAL DIM. (Width) . . . . . . . . . . . . . . . 26.1 in. (664mm)
VERTI AL DIM. (Height) . . . . . . . . . . . . . . . . 24.7 in. (629mm)
DEPTH DIM. (Thickness) . . . . . . . . . . . . . . . . 21.3 in. (541mm)
WEIGHT (Approx.) . . . . . . . . . . . . . . . . . . . 72.0 lbs. (32.7 Kg.)
SOUND (2 Speakers) . . . . . . . . . . . . . . . . . . . . . . . . Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . . Built-in with 3W/ch
AUDIO/VIDEO INPUT JA KS . . . . . . . . . . . . . . . . . . . . Video Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Input (2 sets, R/L)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-Video Input
480i OMPONENT VIDEO
INPUT JA KS . . . . . . . . . . . . . . . . . Digital Input (Y, Pb, Pr)
AUDIO OUTPUT JA KS . . . . . . . . . . . . . Fixed, Audio Out (R/L)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(RCA Connectors)
CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the
user’s authority to operate the unit.
FEATURES
SPECIFICATIONS
3
Welcome to the World of Sanyo
Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling,
Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features.
Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032.
dbx®is a registered trademark of Carillon Electronics Corporation

BASIC SET-UP AND CONNECTIONS
4
CATV FRANCHISE NOTE:
Cable companies, like public
utilities, are franchised by
local government authorities.
To receive cable programs,
even with equipment which
is capable of receiving cable
channels, the consumer
must subscribe to the cable
company’s service.
QuickTips
■
The TV will automati-
cally select the correct
Antenna mode for the
type of RF signal you
connect.
■
TV will switch off
automatically after 15
minutes if there is no
signal reception (cable
out or station not
broadcasting .
Exception—When the
Video mode is selected,
the TV will not automati-
cally switch off when
signal reception has
stopped for 15 minutes.
■
If you move the TV to a
new location, press the
RESET key twice after
connecting the signal
and turning on the TV.
Need help?
Visit our Web site at
www.sanyoctv.com
or all 1-800-877-5032
UHF/VHF/CATV
75Ω
VIDEO AUDIO INPUT
COMPONENT AV2 AV1
S-VIDEO
VIDEO
(MONO)
AUDIO
R
L
RR
LL
Y
Pb
Pr
AUDIO
OUTPUT
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 L- -RAUDIOVIDEO
L- -RAUDIOVIDEO
FROM ANT.
OUT TO TV
IN
OUT
CONNECTING CABLE SERVICE, RF ANTENNA, OR SATELLITE DISH
RECEIVER TO TV ❶
❶❶
able Service RF Antenna
Satellite Receiver
TV Back
POSITIONING THE TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.
Audio/Video Input Jacks (AV1 / AV2)
onnect video equipment here (see
pages 5 ~ 6).
Note: S-Video connection will override
an AV1 video connection.
S-Video Input Terminal
To enhance video detail use the AV1
S-Video jack instead of the AV1 Video jack,
if available on your external equipment. (An
S-Video connection will override connection
to the AV1 video input jack. See page 5.)
Audio Output Jacks
onnect external audio equipment here
(see page 6).
INITIAL SET-UP
1. Install batteries in remote control, see page 7.
2. onnect signal, see below.
3. Plug in A power cord.
4. Press POWER key to turn on TV.
5. Follow on-screen instructions.
480i Component Video In Jacks
(Component 2, Y, Pb, Pr)
onnect digital video equipment here
(see page 6).
V R Back
Note: If you do not have a VCR
connect signal directly to TV 75
ohm jack.

5
CONNECTING A VCR OR DVD PLAYER
Switch off TV and external equipment before connecting cables. ( ables are not supplied.)
❶onnect V R, DVD Player, or other equipment’s Audio Video Out to the TVAudio Video
Input.
For Mono V R (Single Audio Jack) connect V R Audio Out to TV Audio (L) Input.
➀Optional
onnect DVD Player or other equipment’s S-Video Out to the TV S-Video In Jack.
Using the S-Video jack overrides the Video jack.
❷Press POWER to turn on the TV. Turn on external equipment also.
❸Press the INPUT key to select VIDEO1 or VIDEO2.
USING THE AUDIO/VIDEO INPUT JACKS
QuickTips
■
Make sure all cable
connectors are fully
seated on jacks.
■
Always match A/V
cables according to the
colors; RED for right
audio, WHITE for left
audio and YELLOW for
video.
■
A solid Blue screen
with the word VIDEO1
or VIDEO2, displayed
means that the Video
mode is selected, but
no signal is being
detected at the
Video jacks. Check
connections, turn on
external equipment.
Need help?
Visit our Web site at
www.sanyoctv.com
or all 1-800-877-5032
UHF/VHF/CATV
75Ω
VIDEO AUDIO INPUT
COMPONENT AV2 AV1
S-VIDEO
VIDEO
(MONO)
AUDIO
RR
LL
IN
OUT
A/V JACKS
L- -RAUDIOVIDEO
L- -RAUDIO
VIDEO
S-VIDEO OUT
RL
OUTPUT
AUDIO OUT
VIDEO OUT
RESETINPUT
POWER
VCR TV AUX
❶
Back View of V R
❷
Remote ontrol
TV AV Input
Jacks
DVD Player
①
①
What you will need for connections:
❶AV able – 1
OPTIONAL ONNE TION
①S-Video able – 1
①Audio able – 1
Press
INPUT key after
connecting cables. ❸
Table of contents
Languages:
Other Sanyo TV manuals

Sanyo
Sanyo C20LB18S User manual

Sanyo
Sanyo CE15LC4-B User manual

Sanyo
Sanyo 14MT1 User manual

Sanyo
Sanyo CAP3310TXN User manual

Sanyo
Sanyo C21ZM45 Installation guide

Sanyo
Sanyo DS24424 User manual

Sanyo
Sanyo LCD-32S10 User manual

Sanyo
Sanyo DS27510 User manual

Sanyo
Sanyo LCD-39XZ12F User manual

Sanyo
Sanyo DS19500 User manual

Sanyo
Sanyo CP14SE1K User manual

Sanyo
Sanyo C28WP1 User manual

Sanyo
Sanyo CT21MF2v User manual

Sanyo
Sanyo CE28D6-C User manual

Sanyo
Sanyo NET@ DP47460 User manual

Sanyo
Sanyo DS27820 User manual

Sanyo
Sanyo CPP2910 User manual

Sanyo
Sanyo 14MT2 User manual

Sanyo
Sanyo AVM-32F4, AVM32F9 User manual

Sanyo
Sanyo CP14G1 User manual
