Sargent 3828 Series Instruction Manual

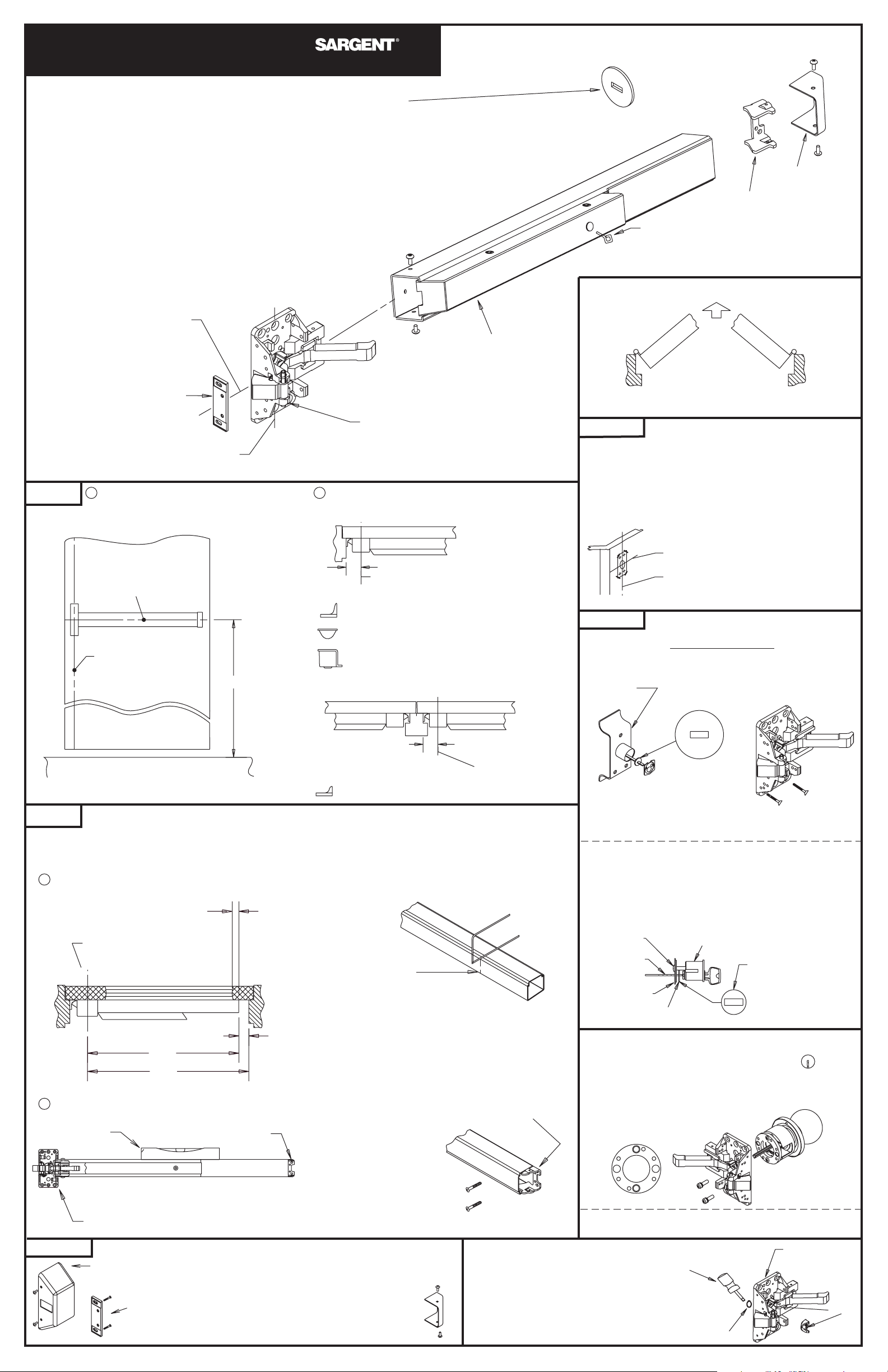

INSTRUCTIONS FOR INSTALLING
3828 SERIES RIM EXIT DEVICE
CAUTION!
BEFORE STARTING:
- INSTALL MULLION IF USED;
- DOOR SHOULD BE FITTED AND HUNG;
- CHECK BOX LABEL FOR SIZE OF EXIT DEVICE.
AVAILABLE STOCK LENGTHS:
LENGTH "E" - 32" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 24" WIDE.
LENGTH "F" - 36" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 30" WIDE.
LENGTH "G" - 48" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 36" WIDE.
DOOR
DOUBLE DOOR WITH 980 MULLION
SINGLE DOOR
DOOR DOOR
FIRST
FINISHED FLOOR
FOURTH
A7424 C
A
41"
VERTICAL
REFERENCE LINE
(C
LOF CHASSIS)
“A”
RAIL ASSEMBLY
“LOCK DOWN KEY”
TO OPERATE: DEPRESS PUSHRAIL;
INSERT HEX KEY AND TURN CLOCKWISE.
CENTER
CHASSIS
ASSEMBLY
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
HORIZONTAL
REFERENCE LINE
(C
LOF CHASSIS AND
RAIL ASSEMBLY)
HORIZONTAL
REFERENCE LINE
(C
LOF CHASSIS AND
RAIL ASSEMBLY)
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
VERTICAL
REFERENCE LINE
(C
LOF CHASSIS)
641 STRIKE SHOWN
MARK VERTICAL AND HORIZONTAL
REFERENCE LINES ON THE DOOR
BIDENTIFY TYPE OF INSTALLATION TO
DETERMINE LOCATION OF VERTICAL C
L
“A”
FOR DOORS WITH STILE RAIL MUST
OVERLAP STILE BY 1/2" MIN.
APPLY RAIL ASSEMBLY
CAUTION:
DO NOT CUT CLOSER THAN
3 1/2" FROM THE CONNECTING
ARM PIVOT IN THE PUSH RAIL
B
A
DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASSIS.
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
PLACE MOUNTING PLATE TIGHT
AGAINST RAIL AND ATTACH IT TO
THE DOOR WITH THREE #10
ROUND HEAD SCREWS
"X"
"Y"
1 3/4" MIN.
LEVEL
ATTACH RAIL ASSEMBLY TO THE CHASSIS
WITH TWO #8 TRUSS HEAD MACHINE SCREWS.
MOUNTING PLATE
HOLD DOWN PUSH RAIL,
CUT OFF AND DEBURR.
DETERMINE CUT OFF DIMENSION "X" BY SUBTRACTING 1 3/4" FROM DIMENSION "Y".
MARK CUT OFF POINT ON MOUNTING RAIL.
• CHECK BOX LABEL. IF CUTTING IS NOT REQUIRED PROCEED TO STEP "B".
• IF CUTTING IS REQUIRED, CONTINUE WITH STEP "A".
US PATENT No 268003
CANADIAN PATENT No RD1981
IMPORTANT:
1. FOR RIM CYLINDER APPLICATIONS:
INSTALL CYLINDER TAIL WASHER TO CYLINDER
TAIL PIECE. SEE STEP THREE FOR DETAILS.
2. CLEAR AWAY ANY RAISED PROJECTIONS
TO ALLOW EXIT DEVICE TO REST
ON FLAT SURFACE
OF THE DOOR.
FIFTH APPLY COVERS AND STRIKE
ATTACH COVER TO CHASSIS WITH
FOUR #8 TRUSS HEAD MACHINE SCREWS
ATTACH STRIKE WITH TWO OUTER
SCREWS AND TWO STAR WASHERS.
ADJUST FOR PROPER POSITION.
FOR EXIT ONLY APPLICATIONS
ATTACH END CAP TO
MOUNTING PLATE
WITH TWO COVER
SCREWS
RETAINING RING
SCREWDRIVER
CENTER CASE
CHASSIS
ASSEMBLY
CAM
USING RETAINING RING
PLIERS (NOT SHOWN) OR
SCREWDRIVER TO REMOVE
RETAINING RING FROM THE
CAM AND CAM FROM THE
CENTER CHASSIS ASSEMBLY
FOR FLUSH MOUNTING.
K-HTB APPLICATIONS
ATTACH CHASSIS
WITH FOUR #10
WOOD OR
MACHINE SCREWS
ATTENTION! SLIDE WASHER
OVER THE CYLINDER TAIL BEFORE
BACK PLATE INSTALLATION
KNOB TRIM APPLICATIONS
TRIM IS NON HANDED.
1. SCREW THE ROSE DOWN ALL THE WAY.
2. WITH KEYHOLE FACING DOWN, POSITION TRIM
IN CROSS BORE HOLE, AND ATTACH TO CHASSIS
WITH (2) #10-32 FILLISTER HD. MACHINE SCREWS.
OUT
THIRD APPLY HARDWARE
SECOND
**FOR LEVER TRIM APPLICATIONS, SEE INSTRUCTION
SHEET A7274 PACKED WITH LEVER TRIM.
THRUBOLT OUTSIDE
TRIM (IF USED) TO
CHASSIS
ATTENTION:
USE STANDARD SHIMS FOR
CENTER CHASSIS MOUNTING
FOR RIM CYLINDER ONLY APPLICATION
RIM CYLINDER
ASSEMBLY
MACHINE
SCREW
CYLINDER
TAIL PIECE
CYLINDER
BACK PLATE
CYLINDER TAIL WASHER
ATTENTION:
SLIDE CYLINDER TAIL
WASHER OVER THE
CYLINDER TAIL PIECE
BEFORE ATTACHING
CYLINDER BACK PLATE
TO THE DOOR
VR RIM
AL RM
HORIZONTAL REFERENCE LINE
(C
LOF CHASSIS AND RAIL ASSEMBLY)
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
APPLY TEMPLATE ON THE DOOR ALONG REFERENCE
LINES AND TAPE IT WITH SUPPLIED TAPE.
IF DOOR ALREADY HAS ANSI DOOR PREP
(161 CUT-OUT), OR HAS 2 1/8" DIA HOLE AT 2 3/4"
BACKSET, POSITION TEMPLATE OVER EXISTING
HOLE & MARK FOR 4 CHASSIS MOUNTING HOLES.
SPOT AND DRILL HOLES.
LEVEL RAIL AND FASTEN MOUNTING PLATE
MOUNTING BRACKET
PREPARE DOOR
RIGHT HAND
REVERSE BEVEL
LEFT HAND
REVERSE BEVEL
THIS EXIT DEVICE IS NON-HANDED
END CAP
WHEN CYLINDER IS USED -
IT MUST BE POSITIONED IN
THE MIDDLE OF TRIM, AS
ILLUSTRATED
CYLINDER
TAIL WASHER
IF USE 641 STRIKE DIM. "A"=2 1/4"
IF USE 641 STRIKE DIM. "A"=2 1/4"
IF USE 613 STRIKE DIM. "A"=1 3/4"
IF USE 642 STRIKE DIM. "A"=1 1/2"
© SARGENT Manufacturing Company

INSTRUCTIONS FOR INSTALLING
12-3828 SERIES RIM FIRE EXIT DEVICE
K-HTB APPLICATIONS
ATTENTION! SLIDE WASHER
OVER THE CYLINDER TAIL BEFORE
BACK PLATE INSTALLATION
US PATENT No 268003
CANADIAN PATENT No RD1981
CAUTION!
BEFORE STARTING:
- INSTALL MULLION IF USED;
- DOOR SHOULD BE FITTED AND HUNG;
- CHECK BOX LABEL FOR SIZE OF EXIT DEVICE.
AVAILABLE STOCK LENGTHS:
LENGTH "E" - 32" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 24" WIDE.
LENGTH "F" - 36" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 30" WIDE.
LENGTH "G" - 48" DOOR, NO CUT REQUIRED.
CAN BE CUT TO FIT DOORS DOWN TO 36" WIDE.
DOOR
DOUBLE DOOR WITH 12-980 MULLION
SINGLE DOOR
DOOR DOOR
OUT
RIGHT HAND
REVERSE BEVEL
LEFT HAND
REVERSE BEVEL
THIS EXIT DEVICE IS NON-HANDED
IMPORTANT:
1. FOR RIM CYLINDER APPLICATIONS:
INSTALL CYLINDER TAIL WASHER TO CYLINDER
TAIL PIECE. SEE STEP THREE FOR DETAILS.
2. CLEAR AWAY ANY RAISED PROJECTIONS
TO ALLOW EXIT DEVICE TO REST
ON FLAT SURFACE
OF THE DOOR.
FIRST
FINISHED FLOOR
FOR DOORS WITH STILE RAIL
MUST OVERLAP STILE BY 1/2" MIN.
FOURTH APPLY RAIL ASSEMBLY
CAUTION:
DO NOT CUT CLOSER THAN
3 1/2" FROM THE CONNECTING
ARM PIVOT IN THE PUSH RAIL
B
A
DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASSIS.
LEVEL RAIL AND FASTEN MOUNTING PLATE
FIFTH APPLY COVERS AND STRIKE FOR EXIT ONLY APPLICATIONS
THIRD APPLY HARDWARE
SECOND PREPARE DOOR
A
41"
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
PLACE MOUNTING PLATE TIGHT
AGAINST RAIL AND ATTACH IT TO
THE DOOR WITH THREE #10
ROUND HEAD SCREWS
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
2 1/4"
2 1/4"
ATTACH END CAP TO
MOUNTING PLATE
WITH TWO COVER
SCREWS
MOUNTING BRACKET
RAIL ASSEMBLY
ATTACH COVER TO CHASSIS WITH
FOUR #8 TRUSS HEAD MACHINE SCREWS
ATTACH STRIKE WITH TWO STRIKE
SCREWS AND ADJUST FOR PROPER
POSITION. DRILL AND TAP TWO ADDITIONAL
HOLES AND FASTEN STRIKE IN PLACE
THRUBOLT OUTSIDE
TRIM (IF USED) TO
CHASSIS
CENTER
CHASSIS
ASSEMBLY
"X"
"Y"
1 3/4" MIN.
VERTICAL
REFERENCE LINE
(C
LOF CHASSIS)
HORIZONTAL
REFERENCE LINE
(C
LOF CHASSIS AND
RAIL ASSEMBLY)
HORIZONTAL
REFERENCE LINE
(C
LOF CHASSIS AND
RAIL ASSEMBLY)
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
VERTICAL
REFERENCE LINE
(C
LOF CHASSIS)
HORIZONTAL REFERENCE LINE
(C
LOF CHASSIS AND RAIL ASSEMBLY)
VERTICAL REFERENCE LINE
(C
LOF CHASSIS)
WHEN CYLINDER IS USED -
IT MUST BE POSITIONED IN
THE MIDDLE OF TRIM, AS
ILLUSTRATED
LEVEL
ATTACH RAIL ASSEMBLY TO THE CHASSIS
WITH TWO #8 TRUSS HEAD MACHINE SCREWS.
MOUNTING PLATE
END CAP
649 STRIKE SHOWN
HOLD DOWN PUSH RAIL,
CUT OFF AND DEBURR.
APPLY TEMPLATE ON THE DOOR ALONG REFERENCE
LINES AND TAPE IT WITH SUPPLIED TAPE.
IF DOOR ALREADY HAS ANSI DOOR PREP
(161 CUT-OUT), OR HAS 2 1/8" DIA HOLE AT 2 3/4"
BACKSET, POSITION TEMPLATE OVER EXISTING
HOLE & MARK FOR 4 CHASSIS MOUNTING HOLES.
MARK VERTICAL AND HORIZONTAL
REFERENCE LINES ON THE DOOR
DETERMINE CUT OFF DIMENSION "X" BY SUBTRACTING 1 3/4" FROM DIMENSION "Y".
MARK CUT OFF POINT ON MOUNTING RAIL.
• CHECK BOX LABEL. IF CUTTING IS NOT REQUIRED PROCEED TO STEP "B".
• IF CUTTING IS REQUIRED, CONTINUE WITH STEP "A".
BIDENTIFY TYPE OF INSTALLATION TO
DETERMINE LOCATION OF VERTICAL C
L
RETAINING RING
SCREWDRIVER
CENTER CASE
CHASSIS
ASSEMBLY
CAM
USING RETAINING RING
PLIERS (NOT SHOWN) OR
SCREWDRIVER TO REMOVE
RETAINING RING FROM THE
CAM AND CAM FROM THE
CENTER CHASSIS ASSEMBLY
FOR FLUSH MOUNTING.
ATTACH CHASSIS
WITH FOUR #10
WOOD OR
MACHINE SCREWS
KNOB TRIM APPLICATIONS
TRIM IS NON HANDED.
1. SCREW THE ROSE DOWN ALL THE WAY.
2. WITH KEYHOLE FACING DOWN, POSITION TRIM
IN CROSS BORE HOLE, AND ATTACH TO CHASSIS
WITH (2) #10-32 FILLISTER HD. MACHINE SCREWS.
**FOR LEVER TRIM APPLICATIONS, SEE INSTRUCTION
SHEET A7274 PACKED WITH LEVER TRIM.
ATTENTION:
USE STANDARD SHIMS FOR
CENTER CHASSIS MOUNTING
FOR RIM CYLINDER ONLY APPLICATION
RIM CYLINDER
ASSEMBLY
MACHINE
SCREW
CYLINDER
TAIL PIECE
CYLINDER
BACK PLATE
CYLINDER TAIL WASHER
ATTENTION:
SLIDE CYLINDER TAIL
WASHER OVER THE
CYLINDER TAIL PIECE
BEFORE ATTACHING
CYLINDER BACK PLATE
TO THE DOOR
A7424 C
SPOT AND DRILL HOLES.
CYLINDER
TAIL WASHER
VR RIM
AL RM
© SARGENT Manufacturing Company
