7’SAS™“CARBODY”
SAS™FORKS
==================
OPERATORMANUAL
FORSAFELYLIFTING&MOVINGSALVAGECARS&
LIGHTTRUCKSFROMTHESIDE.

Operaons/Procedures/Forks/CAR BODY SAS FORKS Manual v2.pub 2/13/13 2/16/2013 2:50 PM Page 2
www.sasforks.com © 1995‐2013 S.A.S. of Luxemburg, Ltd. 1‐877‐SAS‐FORK
TABLE OF CONTENTS (Page 2)
SAS™ FORKS
·Letter to Owners, Managers, and Operators ..................................................................................... Page 3
·SAS FORKS Serial Number Location………………………………………………………………Page 2
·General Safety Guidelines & Precautions…………………………………………………………...Page 4
·SAS FORKS™ Installation Recommendations................................................................................ Page 5
·Pre-Operation Inspection ...............................................................................................................Page 6-7
·Operating Guidelines …………………….……………………………………………………. Page 8-11
·Limited Warranty ........................................................................................................................ Page 12-13
Appendix: ·Written test for using SAS FORKS™…………………………………………..Page 14-15
·Answer pages for written test.............................................................................. Page 16-17
·Documentation page of operator training………………………………………Page 18
·Daily Pre-Operation Inspection Sheet…………………………………………..Page 19

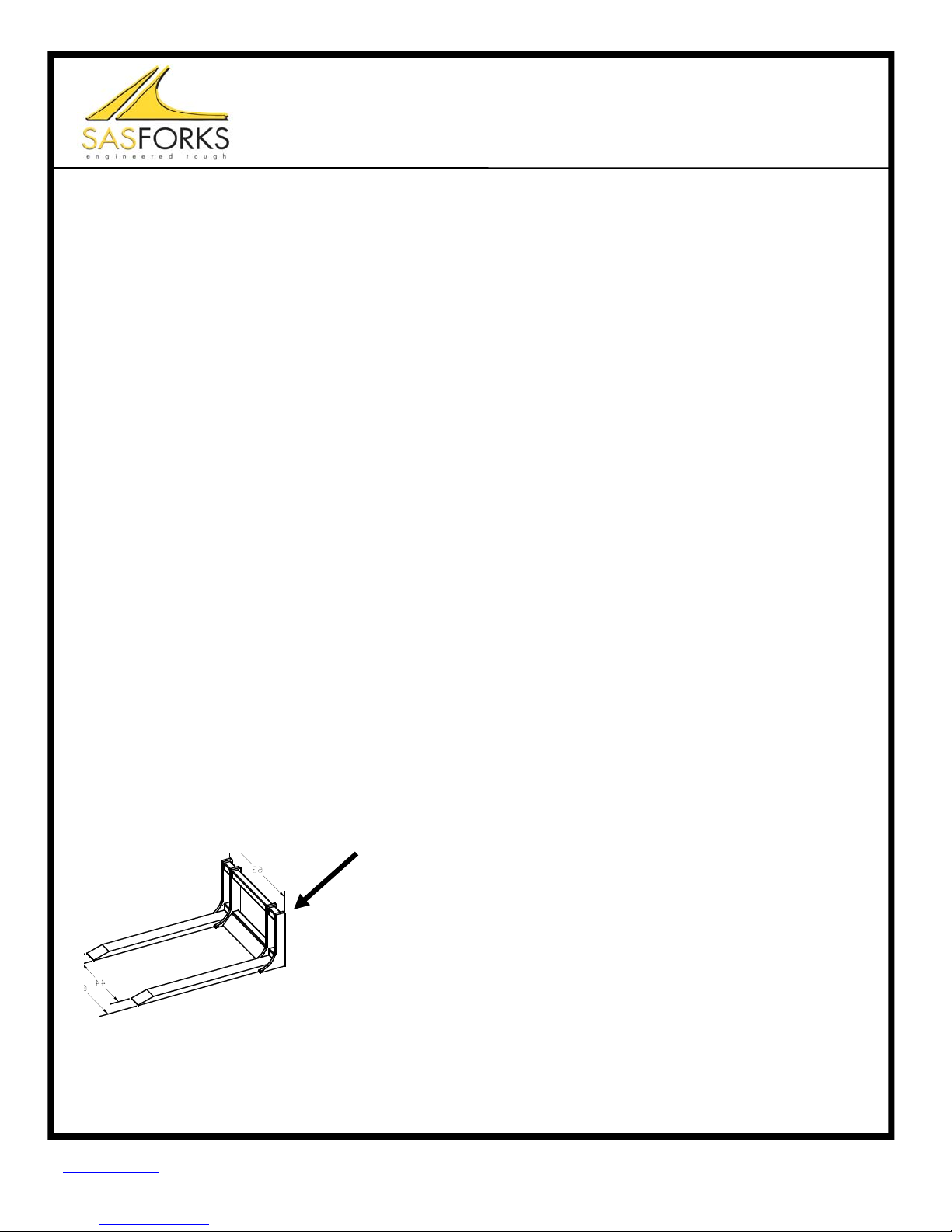

Serial Number:
When contacting SAS FORKS please have the Serial Number available.
Stamped in the steel of the left side of the carriage about 3” below the top.
Stamped in aluminum ID plate on the left side of the carriage.
S.A.S. of Luxemburg,Ltd. 133 Center Drive Hwy 54, PO Box 260, Luxemburg, WI 54217 USA
Phone: [phone] 1-877-SAS-FORK Fax: [phone] Web: www.sasforks.com

Operaons/Procedures/Forks/CAR BODY SAS FORKS Manual v2.pub 2/13/13 2/16/2013 2:50 PM Page 3
www.sasforks.com © 1995‐2013 S.A.S. of Luxemburg, Ltd. 1‐877‐SAS‐FORK
S.A.S. of Luxemburg,Ltd. 133 Center Drive Hwy 54, PO Box 260, Luxemburg, WI 54217 USA
Phone: [phone] 1-877-SAS-FORK Fax: [phone] Web: www.sasforks.com
TO THE OWNERS, MANAGERS, AND OPERATORS OF LOADERS EQUIPPED
WITH SAS™ FORKS
Safety is the most important issue in the workplace. Observing safety guidelines, equipment capacities and using
common sense will provide a work environment that is safe and efficient for employees, management and
customers. It is important that you and your operators read and understand the information included in this
manual. A key element to safe operation of this equipment is that all personnel are properly trained.
Personnel recommended to receive training: Operators and all others working in area where equipment will be
utilized
Safety warnings are highlighted through out this manual. Understanding the significance of these symbols is
important. The following is a definition of each symbol you will encounter in this manual.
The Caution symbol is intended to draw your attention to important safety information, a hazard or
precaution.
The Danger Symbol indicates a hazardous situation that if not avoided
will result in serious injury or death
The Warning Symbol indicates a hazardous situation that if not avoided
could result in serious injury or death
The Caution Symbol indicates a hazardous situation that if not avoided
could result in minor injury or potential property damage
The Notice Symbol indicates worst credible severity of harm is property damage.
The following information laid out in this Operator Manual for SAS FORKS™ is intended to be a guide only, and
is not meant to encompass all issues that may need to be addressed for your particular type of business operation.
If you encounter any additional information that would be helpful to us, or others, please contact us.
Thank you for your business,
SAS Ltd. Phone: Email:
S.A.S. OF LUXEMBURG, LTD. 920-845-2198 [email protected]
133 Center Dr Hwy 54 · PO Box 260
LUXEMBURG, WI 54217 USA
INTRODUCTION LETTER (Page 3)
SAS™ FORKS
·Proprietary Rights: All designs and other proprietary rights provided by S.A.S. of Luxemburg, Ltd. to Buyer are to
remain the property of S.A.S. of Luxemburg, Ltd., and Buyer shall honor all proprietary legends. Notice: The SAS
FORKS™, this operator manual, www.sasforks.com web site, the pictures, content, designs, forks, and likeness of such,
are property of S.A.S. of Luxemburg, Ltd. and are protected under all applicable Copyright, Trade Mark, Trade Dress,
and Pending Patent. No information, pictures, designs, or forks may be duplicated in part, entirety, or in likeness.

Operaons/Procedures/Forks/CAR BODY SAS FORKS Manual v2.pub 2/13/13 2/16/2013 2:50 PM Page 4
www.sasforks.com © 1995‐2013 S.A.S. of Luxemburg, Ltd. 1‐877‐SAS‐FORK
General Safety Guidelines and Precautions
SAS™ FORKS (Page 4)
Operation of equipment by un-qualified or un-trained individuals can result in serious
injury or death. Verify all operators have received proper training on operation of
this equipment.
Operation of equipment under the influence of illegal, prescribed or over the counter
drugs can result in potential injury or property damage. Consult your physician
before operation of this equipment while on medication.
Inspect the device and perform all preventative maintenance before operation at the
start of every shift. Failure to perform inspections or proper maintenance can result
in equipment failure resulting in serious injury or property damage.
Read operators manual and follow all safety procedures for the equipment this
device is attached to. Failure to follow Manufacturers recommendations can result
in serious injury and property damage or death.
This equipment has numerous moving components. Do not wear loose fitting cloth-
ing, rings, jewelry or other items that may become entangled in the device. Be aware
of resulting pinch points and keep clear during operation, inspection and mainte-
nance. Pinch points exist between the coupler and forks, coupler and wheel loader,
failure to keep clear while in operation can result in serious injury or death.
Do not exceed posted weight limits on equipment or loader. Exceeding rated
load limits will result in equipment damage, serious injury or death.
S.A.S. of Luxemburg,Ltd. 133 Center Drive Hwy 54, PO Box 260, Luxemburg, WI 54217 USA
Phone: [phone] 1-877-SAS-FORK Fax: [phone] Web: www.sasforks.com
Operation of equipment should only be performed by qualified and trained individuals. All persons operat-
ing or working in the area of operation should read this manual and a copy of this manual should be kept
with the equipment.
To be considered qualified you must:
Understand the written instructions supplied by the manufacturer of this device, the manufacturer
of the wheel loader, all company rules and any applicable OSHA regulations
Completed training including actual operation of the device.
Know and follow the safety rules and regulations of the jobsite.
Know and follow all guidelines outlined in this manual.

Operaons/Procedures/Forks/CAR BODY SAS FORKS Manual v2.pub 2/13/13 2/16/2013 2:50 PM Page 5
www.sasforks.com © 1995‐2013 S.A.S. of Luxemburg, Ltd. 1‐877‐SAS‐FORK
WHEEL LOADER RECOMMENDATIONS:
REMOVE YOUR “AUTOMATIC DUMP” FEATURE ON YOUR BUCKET LEVER.
The automatic dump feature was originally intended for loaders moving gravel in buckets and sub-
sequently dumping it into trucks. This is not a desired feature when moving vehicles with SAS
FORKS™. Have this automatic dump mechanism removed if your machine has one.
REMOVE YOUR “LOCK POSITION” AND “DETENT’ CONTROLS
Remove the lock position and detent controls on the up and down levers. These controls, if left
operable on your machine, could cause accidents by raising or lowering the load without the
operator being aware that the lever is engaged.
DIRECT PIN MOUNT TYPE SAS FORKS:
• Park wheel loader on firm level ground, • Set parking brake • Set attachment flat on ground
• Turn off wheel loader engine • Depressurize the wheel loader’s hydraulic system to release any
residual pressure and resulting tension on the wheel loader arms.
Failure to properly release residual hydraulic system
pressure may result in stored energy and undesired or unexpected
movement of wheel loader arms when pins are removed.
 Grease holes using a brush. Do not insert finger into pin hole opening, as there is a risk of a
pinch point and finger being severed.• Align holes on SAS Fork carriage with wheel loader
arm holes. • Grease pins • Insert pins & secure properly.• Start wheel loader and slowly move
attachment, while carefully watching for interference points. If any are found, “stops” may
need to be installed. Contact SAS Forks to discuss.
QUICK COUPLER MOUNT TYPE SAS FORKS:
• Align SAS Forks squarely to coupler & engage locking pins.
Locking pins must be fully engaged and secure prior to use.
Failure to properly secure coupler
locking pins will result in damage to
the forks and the coupler and forks may
fall off the coupler & drop load, risking
damage to the load and injury or death
to anyone in the area.
INSTALLATION GUIDELINES (Page 5)
SAS™ FORKS
S.A.S. of Luxemburg,Ltd. 133 Center Drive Hwy 54, PO Box 260, Luxemburg, WI 54217 USA
Phone: [phone] 1-877-SAS-FORK Fax: [phone] Web: www.sasforks.com
Installation of SAS FORKS™ should be completed by a professional knowledge-
able on your machine. The SAS FORKS™ were made specifically to fit the at-
tachment of your machine. Contact your wheel loader or forklift manufacturer, as
you deem necessary, depending on applicable rules or regulations, to obtain guidance or approval as may
be required prior to installation of this attachment. Avoid pinch points during installation as you may be
injured. Improper installation may cause damage to the loader.
