SASFORKS Crushing Forks User manual

Operations/Procedures/forks/ Engine Puller Claw Operator Manual//00-COVER.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
SAS CRUSHING
FORKS™ w/CLAW
ENGINE PICKER
OPERATOR MANUAL

TABLE OF CONTENTS
•Letter to Owners, Managers, and Operators.................................................................. Page 2
•Pre-Operation Inspection ............................................................................................... Page 3
•Skid Plate Inspection...................................................................................................... Page 4
•Operating Guidelines ..................................................................................................... Page 5
•Operating Guidelines pg 2 ............................................................................................. Page 6
•Operating Precautions.................................................................................................... Page 7
•Safety Information ......................................................................................................... Page 8
•General Operating Procedure......................................................................................... Page 9
•Loader Inspection Sheet................................................................................................. Page10
•Safety Warranty pg 1 ..................................................................................................... Page11
•Safety Warranty pg 2 ..................................................................................................... Page12
•Blade Replacement Sheet............................................................................................... Page13
•Claw Spare Parts Sheet.................................................................................................. Page14
•Claw Engine Puller Greasing Instruction Manual......................................................... Page15
•Proprietary Rights: All designs and other proprietary rights provided by S.A.S. of Luxemburg, Ltd. to Buyer
are to remain the property of S.A.S. of Luxemburg, Ltd., and Buyer shall honor all proprietary legends. Notice:
The SAS FORKS™, this operator manual, www.sasforks.com web site, the pictures, content, designs, forks, and
likeness of such, are property of S.A.S. of Luxemburg, Ltd. and are protected under all applicable Copyright,
Trade Mark, Trade Dress, and Pending Patent. No information, pictures, designs, or forks may be duplicated in
part, entirety, or in likeness.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//01-TABLE OF CONTENTS.doc 4/16/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 1

TO THE OWNERS, MANAGERS, AND OPERATORS OF LOADERS AND FORK
LIFTS EQUIPPED WITH SAS FORKS™
Safety is the most important issue in the workplace. Observing safety guidelines, equipment capacities and
using common sense will provide a work environment that is safe and efficient for employees, management
and customers. This operator manual has been assembled and sent to help you and your operators to move
products quickly and safely. It is important that you and your operators read and understand the information
included here in.
A key element in safely moving vehicles with SAS FORKS™ is that all necessary people are trained,
including:
•Machine Operators.
•Personnel working in the area of the operation of a machine equipped with SAS FORKS™
•Other individuals that Owners or Management of your company feel need to be trained.
Prior to using SAS FORKS™, ensure that all personnel that will use and/or work in the area of the
SAS FORKS™ read the following:
•Machine Manufacturer’s Operator Manual
•Operator Manual for Machines Equipped with SAS FORKS™ (This Manual)
•Identification Plate on the SAS FORKS™
We recommend that Management complete the following items prior to using SAS FORKS™ :
•Conduct a meeting with all personnel and an Experienced Machine Operator to review and discuss
safety, capacities, limitations, and proper operational procedures.
•Obtain a signature from each person acknowledging such training & file in their personnel file.
Daily workplace and operational safety is the responsibility of the Owners, Managers, and Operators.
•Knowledgeable & routine supervisory duties to ensure that safe operating practices are followed.
•Regular maintenance and inspection of the equipment, with documentation of such.
•Periodic meetings, reviewing operating guidelines, signed by all of the attending personnel.
The proceeding outline, and the following information laid out in this Operator Manual for SAS FORKS™
is intended to be a guide only, and is not meant to encompass all issues that may need to be addressed for
your particular type of business operation.
If you should encounter any additional information that would be helpful to us, or others, please contact us.
Thank you for your business, Phone: 1-877-SAS-FORK
Phone: [phone]
PAUL SECKER, President Brian Counts, Mechanical Engineer Phone: [phone]
S.A.S. OF LUXEMBURG, LTD. Adam Lindley, Sales Manager Fax: [phone]
133 Center Drive Hwy 54 •PO Box 260 E-Mail: [email protected]
LUXEMBURG, WI 54217 Web site: www.sasforks.com
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//02-FORK MANAGEMENT.doc 4/16/08
www.sasforks.co
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 2

DAILY PRE-OPERATION INSPECTION
Daily, pre-operation inspection is recommended to help the operator safely use SAS FORKS™. The list below
is a general summary. This is not meant to be an exhaustive list of items to inspect. Refer to the machine
manufacturer’s operator manual for additional items that may need to be inspected prior to machine operation.
It is the responsibility of the Owners and Operators to ensure safe operation of equipment in the field. Any
unsafe items should be professionally repaired prior to operation of machine. This pre-operation inspection
should be done on level ground, with the parking brake on.
1) CHECK YOUR HYDRAULIC FITTINGS AND HOSES.
Inspect each hydraulic fitting & hose to ensure it is not worn, kinked, cracked, swelling, or leaking.
Have any damaged part(s) replaced immediately.
Do not operate the machine if damage is found.
2) GREASE AND INSPECT ALL THE LINKAGE PINS.
Inspect each linkage pin to ensure properly fastened and the condition.
Grease each linkage pin and joint to ensure smooth operation and to reduce wear.
Do not operate machine if linkage pin or retaining plate of bolt is worn, loose or missing.
3) CHECK THE WELDS ATTACHING THE BLADES TO THE CARRIAGE.
There are four welds attaching each blade to the carriage (two on each side of each blade).
Each weld should be smooth with no cracks. Do not operate machine if a weld is showing any signs of
cracking. Refer to this manual for repair instructions.
4) CHECK THE SKID PLATES ON THE BOTTOM OF THE SAS FORKS™ CARRIAGE.
Please see page 4 for details.
Replace if less than 1/8” thick.
Order replacement skid plates by calling: U.S.A. Phone: [phone] or 1-877-SAS-FORK.
5) CHECK ROCKER PANEL BUMPER PADS ON THE SAS CRUSHING FORKS.™
IF SO EQUIPPED.
Replace if severely cracked, torn or missing.
To order replacement pads call SAS Forks @ USA Phone :[phone] or 1-877-SAS-FORKS
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//03-PRE-OPERATION INSPECTION.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 3

SAS FORKS™ SKID PLATE INSPECTION
MAXIMIZE SAS FORKS™ LIFE WITH SKID PLATE MAINTENCE
To get the maximum life from your SAS FORK™ carriage, always keep the skid plates on the
bottom. Periodic inspection of the skid plates is needed. Order factory replacement skid plates
from S.A.S. of Luxemburg, Ltd. when they are worn thin (about 1/8”).
Carriage Skid Plates: Failure to keep skid plates on the carriage will result in structural damage to
the carriage and could result in tearing out one or both blades and necessitating the purchase of a
new carriage. The “carriage” is also referred to as the “shoe”, as shown in the diagram below.
DO NOT MAKE UNAUTHORIZED WELDS TO SAS FORKS™
To prolong the life of the SAS FORK™ assembly, do not weld on the forks except as shown in
this diagram. If you need to make any other repairs on the SAS FORKS™, please contact S.A.S.
of Luxemburg, Ltd. Engineering and discuss the situation with them.
CONTACT US TO ORDER OR FOR QUESTIONS
Phone: 1-877-SAS-FORK (1-877-727-3675) or 920-845-2198
Fax: [phone] Email: [email protected]

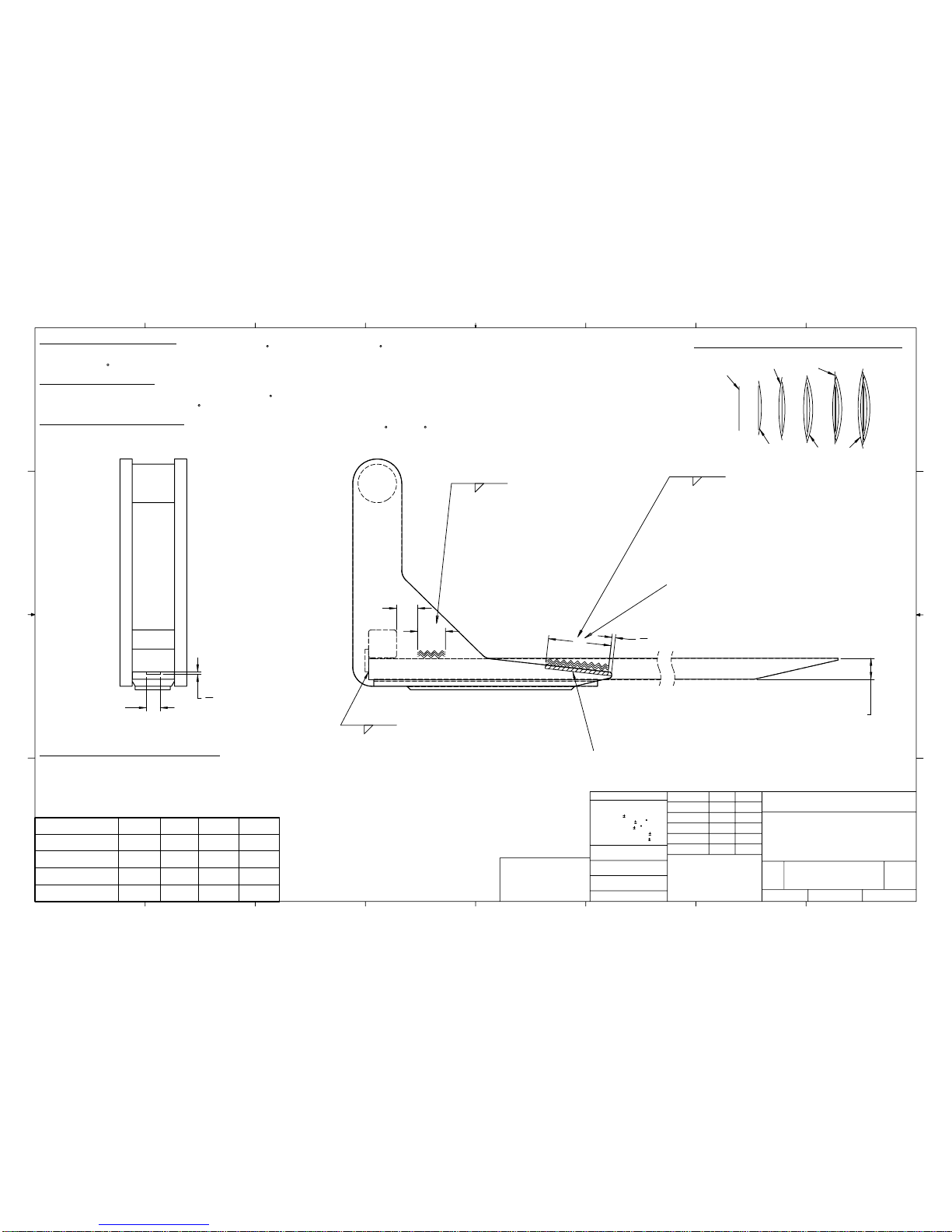

SKID PLATE DIAGRAM WITH INSTALLATION INSTRUCTIONS
NOTE: DO NOT WELD ALONG FRONT AND BACK OF SKID PLATES. ONLY SKIP WELD ALONG OUTSIDE EDGES.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//04-SKID PLATE INSPECTION.doc 4/16/08
www.sasforks.com
© 2000, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 4

OPERATING GUIDELINES FOR SAS FORKS™
1)ENTRY UNDER A VEHICLE:
Correct: The proper operation of the forks is to put the tapered portion of the fork blade parallel to the
ground and slide the fork blade under the car or truck.
Ground
⇑
[Heel]
When you approach a vehicle in this manner, the heel of the shoe (carriage) will actually be about 3 to 5
inches off the ground. At first this may seem that this is not the proper way to operate the forks,
however, it is correct.
TOO STEEP: Incorrect fork position:
When you put the tips on the ground and the heel (the back
of the fork) is 15 to 20 inches high, the angle of the blade
is so great that the vehicle cannot easily slide up on the
f
o
rk
b
la
de.
TOO FLAT: Incorrect fork position:
If you have the top surface of the blade parallel to the
ground as you go under a vehicle, you will tear up the
bottom of the vehicle being picked up.
CORRECT SAS FORK™ position:
The best possible angle of the forks to slide under a
vehicle is when the tapered surface of the blade is parallel
to the ground. The forks were designed, tested, and use-
proven to give you the fastest and easiest entry possible
using this method.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//05-OPERATION GUIDELINES PG2.doc 4/16/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 5

2) MAXIMUM LIFT HEIGHTS
All machines (loaders / fork lifts / fork trucks / etc.) have height lifting limitations. The identification
plate on your SAS FORKS™ specifies the maximum height a load may be lifted safely with SAS
FORKS™. (Some machine’s maximum lift height is only 8’)
Load Height limitations can usually be found:
•On the SAS FORKS™ identification plate
•In your machine manufacturer’s operator manual
•Identify the most restricted limitation and do not exceed it.
If your loader has an automatic lift detent, remove it or lock it out.
ITEM 3 APPLIES TO ARTICULATING LOADERS:
3) TURNING WHILE CARRYING A LOAD
While carrying a load on the forks, keep it low to the ground. It is not safe to turn (articulate) if the
load is more than 2 feet above the ground. When there is a need to raise a load in excess of 2 feet,
you must be sure that the turn is not in excess of 5°to the right or left. The best way to lift loads at
heights above 2 feet is to “line up” with the truck/trailer/semi/etc. before raising the load. When your
machine is lined up straight on with the truck/trailer/semi/etc. or what ever you are lifting to, you
should then lift the load and place it without turning the machine.
Do not turn (articulate) with a load in excess of 2 feet above the ground.
TIPS FOR BETTER RESULTS USING SAS FORKS™
BE CAREFULL IN RAINY OR SNOWY WEATHER:
a) Vehicles become slippery on the fork blades when wet or when ice or snow is on the blades. Tip the
blades back about 5°so the vehicle doesn’t slip off the end of the forks. Drive very slowly.
b) The road or yard surface can become very slippery because of ice and packed snow. Your machine
is very heavy and is difficult to stop if it begins to slide. You may run into other vehicles, a building,
or people and not be able to stop. Drive very slowly in this type of weather.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//06-OPERATION GUIDELINES PG3.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 6

SAS FORKS™ OPERATING PRECAUTIONS
1) PEOPLE AND PEDESTRIANS:
At all times you must be aware of the location of all people in the vicinity of your loader and the
vehicle you are transporting. You are responsible to maintain a safe operating distance from them.
A minimum recommended distance that all people must stay clear from an operating loader and
it’s vehicle load is 30 feet. This 30 feet must be maintained all the way around the loader and the
vehicle load. If a person comes within this safety zone, carefully bring the loader to a complete
stop and inform the person that they must stay at least 30 feet away for safety reasons.
2) BACKING SAFETY WARNING:
When backing up (reverse) with the loader/fork lift, a safety beep shall sound to warn all people
that you are backing up. If this safety beep is found inoperable at any time, it must be
immediately fixed prior to further use of the loader.
3) VEHICLES DROPPING, FALLING OR TIPPING OFF THE FORKS:
This could be extremely dangerous and costly event.
A vehicle falling on a person may cause serious injury or even death.
To prevent the vehicle from dropping, falling or tipping off the forks:
Pick up the vehicle on the forks evenly, centering the load on the forks from right to left.
Tip the blades back about 5°. This will prevent the vehicle from sliding off the end of the
forks. Drive the loader at a reasonable speed to prevent bouncing or jarring of the vehicle
on the forks, from bumps in the road.
To prevent injury in the case of a vehicle unexpectedly leaving the forks:
It is imperative that you maintain adequate clearance away from all people and pedestrians
at a minimum of 30 feet from the front, back and all sides of the loader and the vehicle on
the forks. If a person comes within this safety zone, carefully bring the loader to a
complete stop, lower the vehicle carried on the forks to the ground and inform the person
that they must stay at least 30 feet away for safety reasons.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//07-PRECAUTIONS.doc 4/16/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 7

SAS FORKS™ SAFETY INFORMATION
If your loader has an automatic dump feature, or detent raise features --disconnect it immediately.
WARNING: DO NOT ALLOW THE FOLLOWING CONDITIONS TO OCCUR. SERIOUS INJURY OR
DEATH COULD RESULT IF THE FOLLOWING CONDITIONS ARE ALLOWED.
1) Never raise the forks in excess of the recommended height above the ground. The load may suddenly
dump without any control or warning. The maximum recommended height for lifting loads will vary from 8’
to 11’ depending on the specific machine.
2) Never articulate the loader more than 5 degrees right or left with the load at a height of more than 2 feet
above ground. The loader could tip over.
3) Never pick up a unit weighing more than the rated load-see the load rating plate. The loader may tip over.
See the SAS FORKS™ identification plate for load limitations. Also refer to the machine manufacturer’s
serial plate for load and lift limitations. Adhere to the most restrictive limitation.
4) Never put the tips of the forks on the ground and raise the front wheels of the loader off the ground. Four
things will eventually happen: 1) The tips of your forks will eventually bend upward.
2) The loader may tip over.
3) The blade retaining welds may crack or break.
4) The blades will eventually crack from the bottom up.
5) Never lift a load and let someone walk or work under the forks. Anything could happen and the load may
drop crushing anyone under the load.
6) Never raise the forks to the maximum lifting height and point the
fork blades in the air. You could hit a power line and be electrocuted.
7) Never attempt to grease the fork pins when the machine is running, you could be crushed in the operating
linkage.
8) Never attempt to grease the fork pins when the forks are lifted up off the ground, you could be crushed if
the forks would drop to the ground.
9)Never operate the loader without the correct tire pressure in all tires. One soft tire could cause the loader to
tip over.
10)Never operate your machine with the automatic dump feature engaged or with the detent in the raise
position.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//08-FORK SAFETY INFORMATION.doc 4/16/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 8

GENERAL SAS FORK PRECAUTIONS
Recycling Important: Recycling, is our main business: The recycling of every component is important to
the Earth, to the Company’s bottom-line, and our jobs. Careful handling of all vehicles is very important,
so our company can achieve the maximum return from each vehicle we invested in.
General Information on Equipment Cost:
Loader/Fork Truck Investment $50,000 to $130,000 plus
SAS FORKS™ Equipment Investment $ 4,000 to $ 8,000 plus
One new loader tire Replacement Cost $ 800 to $ 1,600
Proceed carefully:•Watch your footing so you don’t slip off the loader when entering or exiting.
•Safety glasses are recommended to be worn at all times.
PRE-OPERATION INSPECTION:
a. Check the oil (fill as necessary).
b. Check the antifreeze (fill as necessary).
c. Check the tires for proper air pressure (cuts, holes, etc.).
d. Check the hydraulic fittings and hoses.
e. Check and grease the linkage pins.
f. Check the welds attaching the blades to the carriage.
g. Check the tips of the forks for upward bending.
h. Check the skid plates under carriage and under fork tips.
i. Unplug block heater (wrap cord up neatly and hang on hook on building or fence).
START ENGINE:
a. Allow the engine to warm up 5 minutes before use.
b. Check gauges for proper oil pressure, fuel level, etc.
Shut engine off immediately if you hear any unusual noises or if the gauges are indicating
something out of the normal operating range and notify your immediate supervisor.
BEFORE ENGAGING THE TRANSMISSION IN GEAR:
a. Visually check all around the loader/fork lift to be sure all people are clear.
b. Disengage the parking brake.
c. Lift the forks off the ground.
DURING USE OF MACHINE AND SAS FORKS™
Follow procedures and information in the Operator Manual for Machines Equipped with SAS FORKS™
WHEN FINISHED USING THE MACHINE:
a. Lower the forks to the ground
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//09-GENERAL.doc 4/16/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 9

Operations/Procedures/forks/ Engine Puller Claw Operator Manual//10-WHEEL LOADER DAILY INSPECTION SHEET.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 10

SAFETY
Buyer accepts the responsibility to (1) Ensure that all personnel that will use and/or work in the area of the purchased product will
read the safety ID plate and the Operator Manual For Machines Equipped With SAS FORKS™ and the Machine Manufacturer’s
Operators Manual, prior to use; and (2) Ensure that all personnel follow the safety guidelines outlined on these materials.
S.A.S. OF LUXEMBURG, LTD. IS NOT RESPONSIBLE FOR SAFETY IN THE FIELD.
GOALS OF THE S.A.S. OF LUXEMBURG, LTD. LIMITED WARRANTY PROCEDURE
•ASSURE MINIMUM CUSTOMER DOWNTIME by resolving the problem correctly on a timely basis.
•ASSURE END-USER CONFIDENCE while maintaining an equitable Warranty expense for both your company and SAS.
•PRODUCT IMPROVEMENT. We have an engineering staff ready to assist you. Call us at 1-877-SAS-FORK (1-877-727-3675)
Please call SAS before attempting any repair, modification, or questionable job applications.
LIMITED WARRANTY FOR SAS FORKS™
For products that S.A.S. of Luxemburg, Ltd. (SAS) manufactures, SAS warrants that such products conform to all specifications for
materials and workmanship for the period of time indicated below, after delivery, when used in compliance with the SAS FORKS™
Operator Manual.
PRODUCT TYPE LIMITED WARRANTY PERIOD ITEM COVERED
STANDARD HEAVY DUTY 15’ SAS FORKS™ 1 YEARS FROM ORIGINAL SHIP DATE CARRIAGE UNIT
STANDARD HEAVY DUTY 15’ BLADES 3 YEARS FROM ORIGINAL SHIP DATE FORK BLADE
ALL OTHER SAS FORKS™ (listed below) 1 YEAR FROM ORIGINAL SHIP DATE CARRIAGE UNIT
MEDIUM DUTY SHORT SAS FORKS™, HEAVY DUTY SHORT CRUSHING SAS FORKS™, THE CLAW™, SAS RAKE FORK,
MEDIUM DUTY LONG SAS FORKS™, EXTRA HEAVY DUTY LONG SAS FORKS™ , LIGHT DUTY LONG TUBULAR.
BLADES FOR ABOVE LISTED SAS FORKS™ 1 YEAR FROM ORIGINAL SHIP DATE FORK BLADE
FORGED FORKS 1 YEAR FROM ORIGINAL SHIP DATE CARRIAGE UNIT
FORGED FORK BLADES None, Not a SAS manufactured component. NA
SAS FORKS™ BUMPERS None NA
SKIDPLATES None NA
OTHER PRODUCTS NOT LISTED None, unless specified on face of original invoice NA
SAS does not warrant the products that it does not manufacture. Rather, all warranties, if any, for these products are supplied by the
manufacture. SELLER EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
CALL FOR WARRANTY CONSIDERATION: To be considered for warranty repairs or replacement buyer must notify SAS of any
warranty claim within 10 days after such claim arises, and prior to expiration of the warranty period and prior to the performance of
any repairs being done, otherwise buyer waives all rights to such claim.
•Obtain the serial number off the forks and call SAS at 1-877-SAS-FORK. Clearly describe the problem and the operation that was
taking place when it occurred.
•Buyer is to return defective assembly, freight prepaid, or photographic evidence clearly showing the problem area and details of
failure to SAS for review. When necessary, a factory representative may evaluate the problem in the field.
WHAT SAS WILL DO: SAS will examine the defective product, and the details of the failure. If SAS determines that the failure of
materials or workmanship was proven to be within the terms of this limited warranty, SAS will, at it’s option, repair or replace, FOB
the factory, in Luxemburg, WI, USA, the defective product. If the product cannot be returned to the factory, SAS may approve field
repair of defective product. SAS will approve an appropriate amount of hours and cost for the repair before authorizing repairs to
begin. No provisions will be made for incidental damages, mileage, travel time, overtime, downtime, or special freight charges.
Operations/Procedures/forks/ Engine Puller Claw Operator Manual//11-SAFETY WARRANTY PG1.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 11

Operations/Procedures/forks/ Engine Puller Claw Operator Manual//12-SAFETY WARRANTY PG2.doc 4/16/08
www.sasforks.com © 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 12
FORK BLADE LIMITED WARRANTY
•BENT FORK BLADES are a condition of operation error and are NOT a warranted condition. If you do bend a blade, call
1-877-SAS-FORK and a factory representative will assist you in the procedure for straightening the bent blade. The blades, under
most circumstances, can be straightened.
•BROKEN/CRACKED FORK BLADES must meet the following specifications to qualify for a broken blade replacement:
1) The tips of the blade must measure at least 90% of the original thickness at the originally designed length.
•The STANDARD 15’ HEAVY DUTY FORK BLADES are designed and shipped from the factory at one and one-half
(1 ½”) inches thick and one hundred and ninety two (192”) inches long.
•ALL OTHER BLADES ARE CUSTOM DESIGNED; Consult SAS for original fork blade design specifications.
2) The blades must not have been welded or ground in any manner other than for welding of factory approved skid pads.
3) The blades must not have an upward deflection of more than 1” per 10’ as measured from the tip. *
4) The blades must not be cracked from the bottom, or the crack must not originate from the bottom.*
*Both of the above conditions are caused from repeated down pressure. This is not a warrantable condition. See page 5 and 8
5) Refer to the ‘conditions that will void your warranty’
If the blade(s) break and the blades meet these conditions, the factory will ship you freight collect a new replacement blade at no
charge.
CARRIAGE UNIT LIMITED WARRANTY
•UPPER CARRAIGE UNIT FIT AND CONSTRUCTION: We guarantee our SAS FORKS™ to fit your machine as designed to
match the specifications you provided.
This is warranted against cracks in material, weldments, and factory machined areas.
•WEAR OF BASE PLATE LOWER CARRAIGE, which is structural material, voids the warranty. This is caused from not
maintaining skid plates under the carriage. See page 6.
•BROKEN/CRACKED LOWER CARRAIGE:
Cracking or breaking of the carriage unit from the bottom voids the warranty. This is caused from improper operation. Usually
caused by repeated down pressure and wheelies. This is not a warrantable condition. See pages 5 and 8.
CONDITIONS THAT WILL VOID YOUR WARRANTY: Failures, which in our determination were the result of:
•Improper installation.
•Misapplication - See SAS FORKS™ Operator Manual.
•Misuse or Improper operation – See SAS FORKS™ Operator Manual.
•Exceeding the weight and/or lift limitation posted on the Identification Plate attached the SAS FORKS™.
•Negligence or Failure to perform routine inspection and/or maintenance as outlined in the SAS FORKS™ Operator Manual.
•Unauthorized modification, welding, burning, grinding, installation of non-factory skid plates, etc. (other than specifically allowed
in the SAS FORKS™ Operator Manual or as provided in a written authorization directly from SAS factory Engineers.).
•Continued use after a malfunction of the hydraulic system in the forklift or loader.
•Accidental damage.
LIMITED WARRANTY REMEDIES: Buyer must notify SAS of any warranty claim within 10 days after such claim arises;
otherwise buyer waves all rights to such claim. Unless agreed otherwise in writing. Buyer’s sole remedy for breach of warranty is, at
seller’s option, the repair of the defect, or the providing of a replacement part F.O.B. seller’s office. Seller will not be responsible for
costs of dismantling or reassembling the product. Further, seller will not be liable for any direct, indirect, consequential, incidental, or
special damages arising out of a breach of warranty. These remedies are exclusive, and all other warranty remedies are excluded.
PROPRIETARY RIGHTS: All designs and other proprietary rights provided by SAS to Buyer are to remain the property of SAS, and
Buyer shall honor all proprietary legends. Buyer agrees not to copy the design of S.A.S.™ Forks.
LIMITATION OF LIABILITY: The seller’s price is based on the enforceability of this limitation of liability, and the buyer
understands that the price would be substantially higher without this limitation. Seller shall have no liability to buyer for lost profits
or for special, consequential, exemplary, or incidental damages of any kind, whether arising in contract, tort, product-liability, or
otherwise, even if advised of the potential damages in advance.
•In no event shall seller be liable to buyer for any damages whatsoever in excess of the contract price.
•In the event that any warranty or warranty remedy fails of its essential purpose, or is held to be invalid or unenforceable for any
reason, in consideration of the other provisions of this agreement, the parties understand and agree that all limitations of liability under
this provision will nevertheless remain in effect.
SEVERABILITY: Any legally unenforceable provision may be severed from this agreement, and the remaining terms and conditions
will be enforced as a whole.

6
5
4
3
2
1
C3
8"
BLADE THICKNESS A B C D
2 1/2" 5" 5" 2" 3"
3" 9" 4" 2" 3"
3 1/2" 11" 4" 2" 2"
4" 14" 3 1/2" 2" 2"
2.
WELD RIGHT & LEFT SIDES 3/4" WELD.
ON ENDS OF THESE WELDS)
(WELD AREA:
USE WRAP/BACKFILL WELD TECHNIQUE
SOMETIMES A SPACER BAR (3/16"x1/2"x9" CR1018) IS REQUIRED TO
•
TAKE UP THE SIDE SPACE IN THE FORK TO THE SHOE RELATIONSHIP.
WRAP/BACKFILL WELD TECHNIQUE:
B
WELD RIGHT & LEFT SIDES 1/2" WELD)
FOCUS PRE-HEAT & TEMP STICK CHECK AREA
1/2
RECOMMENDED PROCEDURE:
CUT OUT OLD BLADES WITH GRINDING WHEEL (DO NOT USE TORCH)1.
WELD "A" AREA.
(WELD AREA:
WELD "B" AREA.
ON WELD AREA "A" ONLY!
F FOR 1 1/2 HOURS
C
3/8
• USE SOFT FLAME ON WELDED AREA KEEPING TEMPERATURE BETWEEN 600 F & 850
TO THE INSIDE OF EACH FORK (R &L)
USUALLY ONLY ONE BAR IS REQUIRED PER FORK. PLACE THE ONE BAR
3.
WELD "C" AREA AT BOTTOM REAR OF SHOE AS SHOWN (NO PRE OR
PRE-HEAT "A" & "B" WELD AREA'S TOGETHER.
WRAP WELDED AREA WITH FIRE PROOF BLANKET & ALLOW TO COOL SLOWLY FOR 4-5 HOURS•
5. POST HEAT REQUIRED)-NOT A CRITICAL STRESS AREA OF THE BLADE.
4.
PRE-HEAT PROCEDURE:
THE PREHEAT TEMPERATURE SHOULD BE ABOVE 600 F & NOT TO EXCEED 850 F, TO AVOID THIS:
USE A SOFT FLAME AND DO NOT LEAVE UNATTENED•USE A 600 F TEMP STICK FREQUENTLY ON HEATED SURFACE UNTIL IT MELTS•
WELD PROCEDURE:
WELD WITH MET110 or MC100 IN AREA'S SHOWN•INTERPASS TEMPERATURES NOT TO EXCEED 850 F•DO NOT LET COOL UNDER 600 F•
POST-HEAT PROCEDURE:
3/4 A
BLADE THICKESS
0.03
REPRODUCTION IN PART OR AS A WHOLE
D
C
B
A
A
B
C
D
1
2
3
4
5
6
78
87654321
DO NOT SCALE DRAWING
CRUSHING BLADE REPLACEMENT-WELDING PROCEDURE
SHEET 1 OF 1
12/3/2007
STB
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:24WEIGHT: 2468.69
REV
DWG. NO.
B
SIZE
TITLE:
SAS OF LUXEMBURG, LTD
NAME DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
SEE BOM
FINISH
WITHOUT THE WRITTEN PERMISSION OF
MATERIAL
TWO PLACE DECIMAL 0.005
INTERPRET GEOMETRIC
PROPRIETARY AND CONFIDENTIAL
SAS OF LUXEMBURG, LTD IS PROHIBITED.
TOLERANCING PER: ANSI SPEC
THREE PLACE DECIMAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/16
ANGULAR: MACH 0.5
BEND 5
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
SAS OF LUXEMBURG, LTD. ANY
CRUSHING BLADE
REPLACEMENT/WELDING
PROCEDURE
BA1
2"
D

H~EXTEND-RIGHT
A~HYDRAULIC CYLINDER
~INCOMING LEFTC
~RETRACT-LEFTE
~EXTEND-LEFTG
~INCOMING-RIGHTD
F~RETRACT-RIGHT
M~CYLINDER FITTING
A
TWO PLACE DECIMAL
SAS OF LUX EMBURG, LTD IS PROHIBITED .
D
C
B
A
A
B
C
D
1
2
3
45
678
87654321
E
F
E
F
REV
SPARE PARTS
D
DO NOT SCALE DRAWING
SPARE PARTS
SHEET 1 OF 1
10/15/2007
BLC
UNLESS OT HERWISE SPECIFIED:
SCALE: NO WEIGHT: 3800
REV
DWG. NO.
D
SIZE
TITLE:
SAS OF LUXEMBURG, LTD
NAME DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
SEE BOM
TOLERANCING PER: ANSI SPEC
INTERPRET GEOMETRIC
FINISH
MATERIAL
PROPRIETARY AND CONFIDENTIAL
0.03
THREE PLACE DECIMAL 0.005
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/16
ANGULAR:MACH 0.5
BEND 5
THE INFORMAT ION CONTAINED IN THIS
DRAWING IS THE SO LE PROPERTY OF
SAS OF LUXEMBURG, LTD. ANY
REPRODUCTIONIN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
CLAW ENGINE PICKER
DESCRIPTION PART NUMBER ITEM
NUMBER
HYDRAULIC CYLINDER HY-CYL-04X14-207-496 A
PRESSURE RELIEF MANIFOLD BODY ~ HY-PREREL-BODY
CARTRIDGE ~ HY-PREREL-CARTRIDGE B
INCOMING HOSE-LEFT (W/FITTINGS) EP-CLAW-INC-L C
INCOMING HOSE-RIGHT (W/FITTINGS) EP-CLAW-INC-R D
RETRACT HOSE-LEFT (W/FITTINGS) EP-CLAW-RET-L E
RETRACT HOSE-RIGHT (W/FITTINGS) EP-CLAW-RET-R F
EXTEND HOSE-LEFT (W/FITTINGS) EP-CLAW-EXT-L G
EXTEND HOSE-RIGHT (W/FITTINGS) EP-CLAW-EXT-R H
"T" FITTING HY-871-FS-08 I
ADAPTER FITTING ON CYLINDER SIDE HY-848-FS-08X12 J
ADAPTER FITTING ON INCOMING SIDE HY-848-FS-12X12 K
90 DEGREE ADAPTER HY-879-FS-12 L
CYLINDER FITTING HY-849-FSO-08X08 M
UPPER CYLINDER PIN ASSEMBLY EP-CLAW-CYL PIN UP N
LOWER CYLINDER PIN ASSEMBLY EP-CLAW-CYL PIN LOW O
CLAW PIVOT PIN ASSEMBLY EP-CLAW-PIVOT PIN P
CLAW POINT-FEMALE W-EP-FEMALE TOOTH Q
CLAW POINT-MALE W-EP-MALE NOSE R
CLAW POINT-PIN W-EP-TOOTH PIN S
CLAW ASSEMBLY EP-REAR-CLAW T
HYDRAULIC KIT
INCLUDES ITEM NUMBERS B-M EP-CLAW-HYD KIT
~"T" FITTING
~ADAPTER FITTING
CYLINDER SIDE
J
B~PRESSURE RELIEF MANIFOLD
2 ~ CARTRIDGES
1 ~ BODY
~ADAPTER FITTING
INCOMING SIDE
I
K
L~90 DEGREE ADAPTER
R~CLAW POINT-MALE
~CLAW ASSEMBLYT
N~UPPER CYLINDER
PIN ASSEMBLY
~CLAW POINT-FEMALEQ
0~LOWER CYLINDER
PIN ASSEMBLY
P~CLAW PIVOT
PIN ASSEMBLY
S~CLAW POINT-PIN

Operations/Procedures/forks/ Engine Puller Claw Operator Manual/15-CLAW ENGINE PULLER GREASING INSTRUCTION SHEET.doc 4/15/08
www.sasforks.com
© 2004, 1987 S.A.S. of Luxemburg, Ltd. 1-877-SAS-FORK
Page 15
CLAW ENGINE PULLER GREASING INSTRUCTION MANUAL
GREASE HERE WITH
CLAW RAISED, BOTH
SIDES (SEE BELOW)
GREASE FOUR GREASE
ZERKS LOCATED ON
BOTH SIDES OF THE
HYDRAULIC CYLINDER,
BE SURE CLAW IS IN
LOWERED POSITION
GREASE TWO GREASE ZERKS LOCATED HERE,
BE SURE CLAW IS IN THE RAISED POSITION
