Chapter 1 General Information
ETC ONE PLUS Network Communicator
3
Table of Contents
Chapter 1 General Information .......................................4
Chapter 2 Installation ......................................................5
Mechanical Installation .................................................... 5
Wall Mounting.......................................................................... 6
DIN Rail Mounting.................................................................... 6
Add-On Module Mounting ......................................................... 7
Electrical Installation ....................................................... 8
Power Source Connection ......................................................... 8
Communication Port Connection ............................................... 8
Internet Connections .............................................................. 12
Chapter 3 Operating the ETC ONE PLUS ....................13
Controls and Indicators ................................................. 13
PROG Button ......................................................................... 13
LED Indicators ....................................................................... 13
Modes of Operation........................................................ 14
Operational Mode................................................................... 14
Program-Service Mode ........................................................... 14
Using the ETC ONE PLUS.............................................. 14
Slave Network Connection ...................................................... 14
Master Network Connections................................................... 14
ETC I Communication Setup ......................................... 15
ETC I COM1 setup.................................................................. 15
ETC I COM2 Ethernet setup .................................................... 16
ETC I COM2 GPRS setup......................................................... 18
Setting Up eXpertPower Client ................................................ 19
Using PAS Software....................................................... 20
Configuration Database .......................................................... 20
Setting up Communications .................................................... 20
Setting Up the ETC ONE PLUS................................................. 21
Authorization ......................................................................... 22
Chapter 4 Setting Up the ETC ONE PLUS ...................23
Changing the Password and Security .......................... 23
Changing Time and Date ............................................... 23
Configuring Local Time Settings .................................. 24
Configuring Device Routing Table................................ 25
Chapter 5 Upgrading Device Firmware........................26
Appendix Technical Specifications ..................................28

Chapter 1 General Information
Mechanical Installation
4
ETC ONE PLUS Network Communicator
Chapter 1 General Information
The ETC I Pass-through MODBUS gateway Communicator is a MODBUS
Master/Slave gateway that connects multiple serial RS-485/422 devices to the
Internet via a local Ethernet network or via public Cellular communication
network.
The Pass-through packet-forwarding gateway will transfer data from/to
ETHERNET or Cellular module to/from serial communication port COM1.
COM1 shall operate as a Client/Master and COM2, which is tied to Ethernet
or Cellular network, shall be configured with its IP address to route data server
to predefined MODBUS Slave devices (MODBUS address: from 1 to 31).
Features:
COM1 as RS-485 master ports for connecting slave devices to serial
networks
COM2 as Ethernet 10/100Base-T port communicating to the IP network
Or COM2 as CELLULAR modem port communicating to the IP network
Table top, DIN Rail or wall-mounting options
120/240V AC/DC or 12/24 VDC operation

Chapter 2 Installation
Mechanical Installation
ETC ONE PLUS Network Communicator
5
Chapter 2 Installation
Mechanical Installation
Refer to the figures provided in this section to properly perform the
mechanical installation.
Figure 2-1 ETC ONE PLUS Dimensions

Chapter 2 Installation
Mechanical Installation
6
ETC ONE PLUS Network Communicator
Wall Mounting
To mount the network communicator on the wall:
1. Position the device on the wall according to hole locations as shown in
figure 2-2
2. Affix the device using washers and nuts.
Figure 2-2 Surface mointing
DIN Rail Mounting
The ETC One Plus can be mounted on a standard 35-mm DIN rail as shown
in figure 2-3
Figure 2-3 DIN Rail mointing

Chapter 2 Installation
Mechanical Installation
ETC ONE PLUS Network Communicator
7
Add-On Module Mounting
Before Add-On Module installation ensure that all incoming power
sources are shut OFF. Failure to observe this practice can result in
serious or even fatal injury and damage to equipment.
1. Turn off the ETC One Plus (ETC I) power supply.
2. Remove the module connector cover from the ETC I to access the
module connector as shown in figure 2-4 below
Figure 2-1. ETC I module connector location
Figure 2-2. ETC I module assembly

Chapter 2 Installation
Electrical Installation
8
ETC ONE PLUS Network Communicator
Electrical Installation
The equipment installation shall conform to the following
instructions:
a) a switch or circuit-breaker shall be included in the building
installation;
b) It shall be in close proximity to the equipment and within easy
reach of the OPERATOR;
c) It shall be marked as the disconnecting device for the
equipment.
Before installing, ensure that all incoming power sources are
shut OFF. Failure to observe this practice can result in serious
or even fatal injury and damage to equipment.
Power Source Connection
Before connecting your device to the power source, check the label on the the
device to ensure that it is equipped with the appropriate power supply.
AC power supply: Connect the line wire to terminal L/+ and the neutral wire to
terminal N/-.
DC power supply: Connect the positive wire to terminal L/+ and the negative
wire to terminal N/-.
Figure 2-5 Power Source Connection
Communication Port Connection
Before installing the Communication Module, ensure that all
incoming power sources are shut OFF. Failure to observe this
practice can result in serious or even fatal injury and damage to
equipment.
Two communication ports are available on the ETC I:
COM1 (master): RS-485, devices side
COM2 (slave): network side
Ethernet 10/100BaseT
CELLULAR –2G/3G
RS-232 or RS-422/485

Chapter 2 Installation
Electrical Installation
ETC ONE PLUS Network Communicator
9
The COM1 –RS485 gateway port is used for connecting the ETC ONE PLUS
to the RS-422/RS-485 slave network with up to 32 devices. For device COM
port setup, see Communication Setup in Chapter 3.
The COM1 port can also be used as a slave port to communicate with PAS™.
COM1 RS-485 Connection
Figure 2-6 COM1 RS-485 2-Wire Connection

Chapter 2 Installation
Electrical Installation
10
ETC ONE PLUS Network Communicator

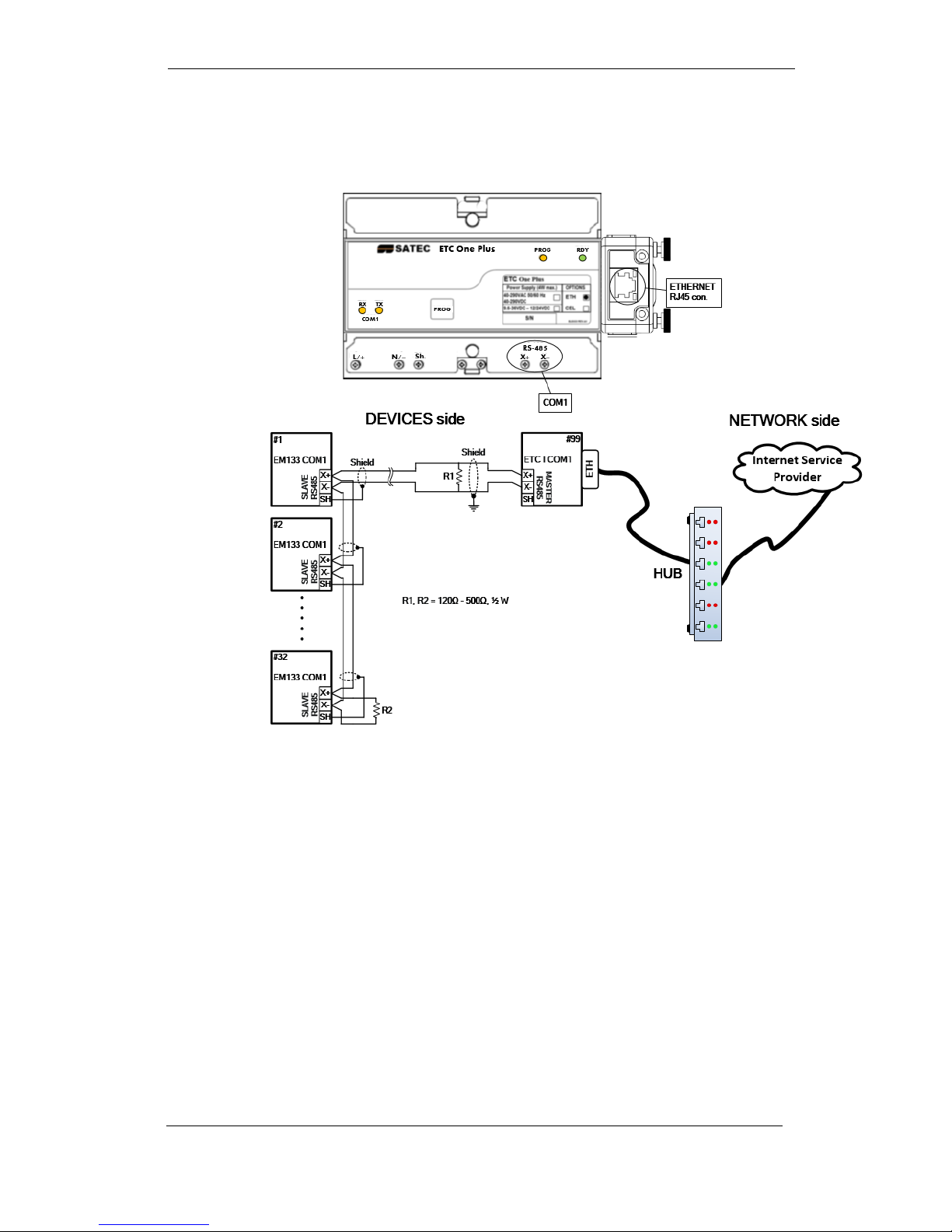

COM2 ETHERNET Connection
Plug the end of the Ethernet cable that came with your device into the wall
Ethernet jack or into the Ethernet hub jack, and the other end into the RJ45
jack at the front of the ETC ONE PLUS ETHERNET module.
Figure 2-7 Serial and Ethernet Connections

Chapter 2 Installation
Electrical Installation
ETC ONE PLUS Network Communicator
11
COM2 CELLULAR connection
Figure 2-8 Serial and Cellular (3G) Connections

Chapter 2 Installation
Electrical Installation
12
ETC ONE PLUS Network Communicator
Internet Connections
The ETC ONE PLUS is connected to the Internet either via a local Ethernet
network, or via public Cellular Network connection.
Connecting a device with the factory-set IP address to the Ethernet network can
disrupt communications if the IP address exists on the network. Change the IP address
in your ETC ONE PLUS as instructed in Section 4 before connecting a device to the
network.
See Internet Connections in Chapter 3 and configuring the Network in Chapter
5 for instructions on how to program your device for networking via Ethernet.

Chapter 3 Operating the ETC ONE PLUS

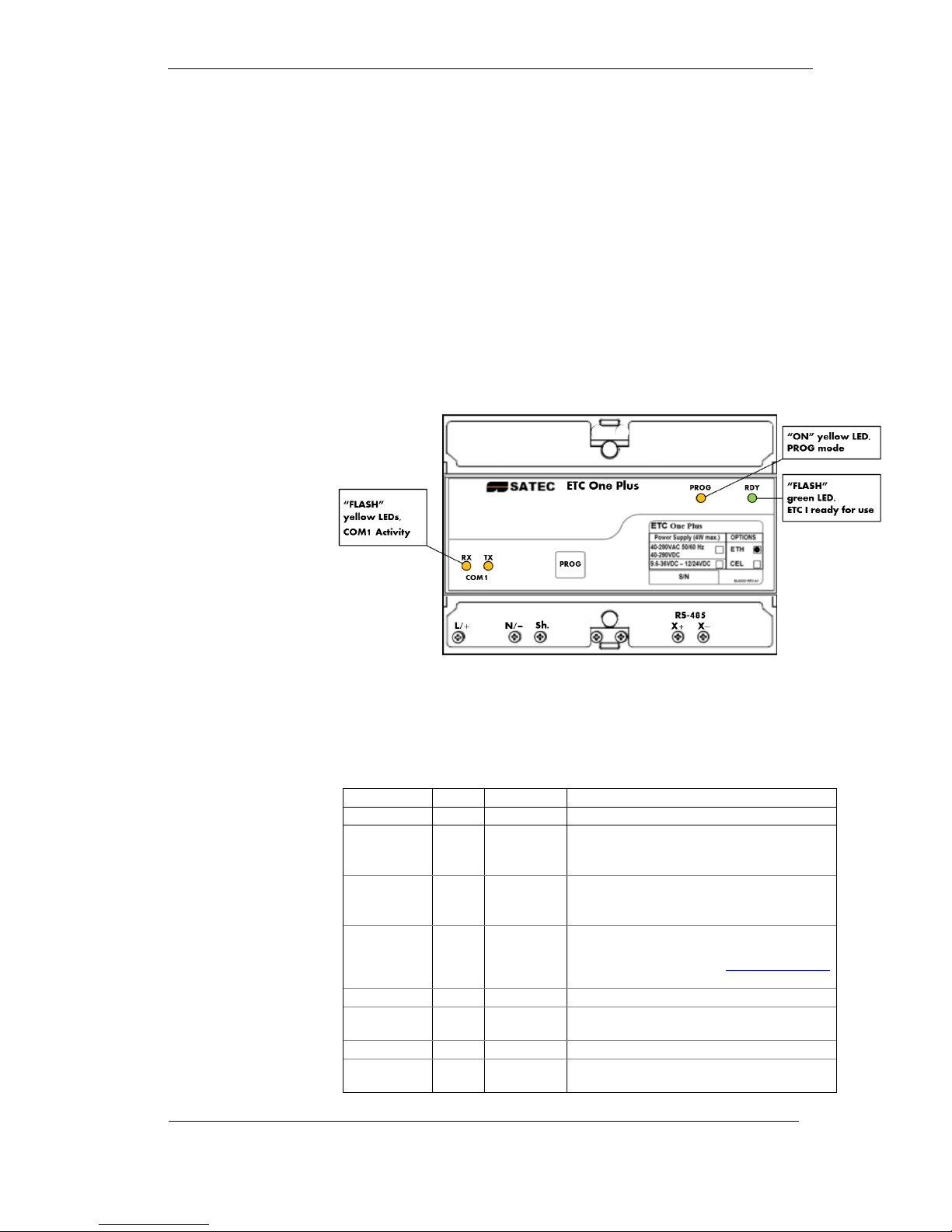

Controls and Indicators
ETC ONE PLUS Network Communicator
13
Chapter 3 Operating the ETC ONE PLUS
Controls and Indicators
PROG Button
The ETC ONE PLUS has a PROG Button that puts the device into program
mode for local servicing and programming.
To enter to PROGRAMMING mode, press the PROG button for at least 3
second during device “POWER UP”, until the PROG yellow LED turns ON
(see PAS in Chapter 4 for instructions).
To return to NORMAL mode from PROGRAMMING mode, press the PROG
button for at least 3 second until the PROG yellow LED turns OFF
LED Indicators
Figure 3-1 Indicator LEDs
The ETC ONE PLUS has three yellow device status LEDs and one green
device status LEDs that show the present device status and activity on
communication ports.
The ETC ONE PLUS has four status indicator LEDs that show present device
operation status and give diagnostics indication as described in table below.
LED Name
Color
Status
Description
RDY
Green
2 sec Off
After Power up or Reset, the LED is Off
Flashing
1/2 sec On,
1/2 sec Off
Device operational and is functioning
normally.
Flashing
2 flashes,
1 sec Off
Device is in the Service Mode and is not
operational.
On or Off
continuously
A critical error has occurred - the device is
not operational. Device servicing is required.
For more information, see Diagnostics Mode
below.
PROG
Yellow
Off
Device is in Normal operation mode
On
Device is in Programming/service operation
mode
COM1
Yellow
RX/TX Off
No communication activity on COM1 port
RX/TX
Flashing
Indicate communication activity on COM1
port

Chapter 3 Operating the ETC ONE PLUS
Modes of Operation
14
ETC ONE PLUS Network Communicator
Modes of Operation
Operational Mode
In the operational mode, the device services the Internet to serial gateway
connections from client applications, and the COM1 port operates in MASTER
mode allowing serial to network connections.
The ETC ONE PLUS in operational mode, the PROG LED is off.
Program-Service Mode
In program mode, the COM1 port operates as a service port that allows the
user to review or change settings in the device using PAS (see Using PAS in
Chapter 4 for more information).
To put the device into program mode, push PROG button during power up for
at least three seconds, until the PROG LED is on.
To leave program mode push PROG button for at least three seconds, until
the PROG LED is off.
Service mode is used for local device servicing and upgrading firmware
through PAS software.
In program-service mode, the Internet-to-serial gateway is not operational.
See Upgrading Device Firmware in Chapter 6 for instructions.
Using the ETC ONE PLUS
Slave Network Connection
Serial Network Connections
The ETC ONE PLUS is connected to serial RS-485 slave networks via the
COM1 gateway ports.
The COM1 is automatically set to master mode to operate as a gateway port,
in normal operation. See Configuring Serial Ports in Chapter 5 for information
on programming serial ports.
The communication protocol to be used for serial networking via the ETC ONE
PLUS is defined by the Network TCP service port setting. See Configuring the
Network in Chapter 5 for information on programming the ETC ONE PLUS
TCP service port.
Master Network Connections
Serial Network Connections
The ETC ONE PLUS is connected to serial RS-232/422/485 master networks
via the COM2 gateway port, using RS-232/422/485 communication module.
The COM1 is automatically set to master mode to operate as a gateway port,
in normal operation. See Configuring Serial Ports in Chapter 5 for information
on programming serial ports.
The communication protocol to be used for serial networking via the ETC ONE
PLUS is defined by the Network TCP service port setting. See Configuring the
Network in Chapter 5 for information on programming the ETC ONE PLUS
TCP service port.
Internet Connections
The ETC ONE PLUS provides a TCP server for master client connections on
the standard TCP ports: 502 (Modbus/TCP). The TCP server supports four
simultaneous client connections.

Chapter 3 Operating the ETC ONE PLUS
ETC I Communication Setup
ETC ONE PLUS Network Communicator
15
The TCP server can be accessed via a local Ethernet network or via Cellular
Internet connection using 3G cellular module through COM2 port.
ETC I Communication Setup
To configure the ETC I, press <PROG> button for 3 sec during device power
ON, until the <PROG> yellow LED s turned ON. Entering to programming
mode enables the user to configure the ETC I setup and/or to update the
firmware using the PAS Flash Downloader.
The <PROG> mode state forces the COM1 to be in MODBUS “Slave” mode
to enable device configuration with PAS through COM1 (MODBUS RTU).
To exit the programming mode dis-energize the device power and reenergize
it back. Make sure the yellow <PROG> Led is turned OFF.
ETC I COM1 setup
The ETC I COM1 port shall be configured as follows using PAS™:
1. Select Communication Setup
2. Select Serial Ports Setup
3. COM1 setup
Label
Parameter
Options
Default
Description
Protocol
Communicatio
ns protocol
MODBUS RTU,
MODBUS
RTU
The communications
protocol for the port
Interface
Port interface
RS485
RS485, RS232,
Modem,
GSM/GPRS,
RF
RS485
Not changeable;
Device
Address
Device
address
MODBUS:1-247
1
MODBUS Master
device address
Baud rate
Baud rate
2.4-115.2 kbps
19.2 kbps
The port baud rate
Data/Prty
Data format
and parity
7E, 8N, 8E
8N
7E data format should
not be used with the
Modbus RTU protocol
CTS
Clear to send
NA
RTS
Ready to send
NA

Chapter 3 Operating the ETC ONE PLUS
ETC I Communication Setup
16
ETC ONE PLUS Network Communicator
Label
Parameter
Options
Default
Description
Send Delay
Transmission
delay
0-1000 ms
5 ms
The minimum time
after the last request
character is received to
start the transmission.
Chr.Tmout
Inter-character
timeout
0-1000 ms
4 ms
The maximum time the
line is allowed to idle
before closing a
connection in the
Modbus RTU protocol
Port Mode
Client/Server
Client/Master
Server/Slave
Server/slave
To configure the ETC I,
it must be set to
Server/Slave
In normal use to be set
to Client/Master
RX Tmout
ETC I COM2 Ethernet setup
The ETC I COM2 setup shall be configured as follows depending on attached
communication module type The ETC I COM2 port shall be configured as
follows, using PAS™:
1. Select Communication Setup
2. Select Serial Ports Setup
3. COM2 setup
4. Select Ethernet interface in case of ETHERNET module
Ethernet Connections
To setup your Ethernet connections:
1. Define the network IP parameters via the ETC ONE PLUS Network
Setup. If you use the ETC ONE PLUS eXpertPower client connections
via the Ethernet network, define a non-zero default gateway address, so
the client connections will be directed to the Ethernet.

Chapter 3 Operating the ETC ONE PLUS
ETC I Communication Setup
ETC ONE PLUS Network Communicator
17
2. Define the TCP service port number for your application protocol.
Display Label
Parameter
Default
IP Address
Device IP Address
192.168.0.203
Subnet Mask
Network Subnet Mask
255.255.255.0
Def. Gateway
Network Default Gateway
192.168.0.1
TCP Service Port
502 = Modbus/TCP
502
NOTE:
If your ETC ONE PLUS has both the Ethernet and modem network interfaces,
the eXpertPower client uses one of these for connections to the
eXpertPowerTM server. The default Ethernet network gateway address
defines which one of the networks is used. If the default gateway address is
not defined (i.e., it is set to 0.0.0.0), the ETC ONE PLUS uses the dial-out
modem connection via your local Internet provider. If you defined the default
network gateway address, any call to the IP address, which is not included in
the address space of the both networks, is redirected to the default Ethernet
gateway.

Chapter 3 Operating the ETC ONE PLUS
ETC I Communication Setup
18
ETC ONE PLUS Network Communicator
ETC I COM2 GPRS setup
The ETC I COM2 setup shall be configured as follows depending on attached
communication module type The ETC I COM2 port shall be configured as
follows, using PAS™:
1. Select Communication Setup
2. Select Serial Ports Setup
3. COM2 setup
4. Select GSM/GPRS interface in case of 3G module

Chapter 3 Operating the ETC ONE PLUS
ETC I Communication Setup
ETC ONE PLUS Network Communicator
19
Parameter
Default
Description
Access Point Name (APN)
publicip.net.il
The mobile network APN name
User name
Username (if required)
Password
Password (if required)
GPRS mode
Server mode
Server or Client mode
Setting Up eXpertPower Client
The ETC I has an embedded eXpertPowerTM client that provides
communications with the eXpertPowerTM server –the SATEC proprietary
Internet services. Connections to the eXpertPowerTM server are handled on
a periodic basis.
To set up communications with the eXpertPowerTM server, the ETC I can be
configures as follows, using PAS™:
1. Select Communication Setup
2. Select Expertpower Client Setup
Parameter
Options
Default
Description
XPW Server IP Address
207.232.60.18
The IP address of the
eXpertPower server
XPW Server Port
0-65535
5001
The TCP service port of the
eXpertPower server
XPW Client Enabled
NO, YES
NO
Enables operations of the
eXpertPower client
Time to Next Session, min
1-99999
The time remaining to the
next connection session
Idle Timeout, min
1
configurable XPW
connection idle timeout via
Ethernet connections

Chapter 3 Operating the ETC ONE PLUS
Using PAS Software
20
ETC ONE PLUS Network Communicator
Using PAS Software
Supplemental PAS software that came with your ETC ONE PLUS can be used
for configuring the ETC ONE PLUS via the Internet or locally (in Programming
mode only).
See the “PAS Getting Started Guide” supplied on the installation CD for
information on how to install PAS on your PC.
Configuration Database
To communicate with the ETC ONE PLUS from PAS, create a site database
for your device. All communication and configuration data for your device will
be stored in this database. During configuration, store all setups to the site
database so that PAS recognizes device properties regardless of whether the
ETC ONE PLUS is online or offline.
To create a new database for your ETC ONE PLUS:
1. Select Configuration from the Tools menu, and then click the Sites button
on the right-hand side.
2. From the “Look in” box, select the directory where the new database will
be stored. By default, it is the “Sites” directory. Type a site name for your
device in the “File name” box, click New, and then click OK.
3. On the Instrument Setup tab, select “ETC ONE PLUS” in the “Model” box.
4. Set the device address to 99 unless you have changed the ETC ONE
PLUS default address in your device.
5. If you wish to add any comments for your device, type them into the
“Comment” box.
Setting up Communications
Communicating through the Ethernet
To communicate through the Ethernet port:
1. On the Instrument Setup tab, select Internet Site.
2. Click on the Connection tab.
3. Click on the “IP address” and type in the IP address that you defined in
Network Setup in your ETC ONE PLUS. The factory set default IP
address is 192.168.0.203.
