1. GUIDE
1.1 IMPORTANT SAFETY INSTRUCTIONS
Thank you for choosing our product. Before installation, we
would like to remind you some notes, which is very important
for operating safely and properly, as follows:
•Be sure to read this user manual before starting your opera-
tion.
•You must install the dish with correct direction and angle. If
the dish is not working properly, contact your local dealer.
•When the unit is suddenly moved to a hot area from a cold
area, it may cause some problems. In that case, turn o the
power, and turn on again after 1-2 hours.
• Keep meter placed in clean space with sucient ventilation.
•Do not cover the meter with or place it on a unit that emits
heat.
• Clean the case by a soft cloth with a little washing liquid.
• Do not remove the cover.
•Do not let the unit exposed to extreme heat, cold or humid
conditions.
• No liquids or any other materials to come inside of the unit.
1.2 UNPACKING
Open the package and make sure it includes all below items, if
any missing, please contact the reseller for replacement.
1. Digital Satellite Meter
2. User’s manual
3. Sillicon Rubber Case
4. Adaptor

2 3
English
No Description Function
14 RETURN RETURN KEY
15 A Right KEY
16 Z DOWN KEY
17 B Left KEY
18 Y Up KEY
19 Torch Switch
20 Compass Mechanical Compass
21 Torch Torch
22 Cover The battery cover
1.3 PRODUCT OVERVIEW & ILLUSTRATION
No Description Function
1 Power Switch Turn on/o meter
2 LNB IN Connect to satellite antenna cable
3 LCD Screen Video display
4 USB Port Connect to PC
5 DC Slot Connect to Adaptor Input
6 Digital tube Quality shows
7Power Power indicator light
8 22KHZ 22Khz indicator light
913V Verticalpolarization voltage output light
10 18V Horizontal polarization voltage output light
11 LOCK Signal lock indicator light
12 Charger Charger indicator light
13 OK OK key

4 5
English

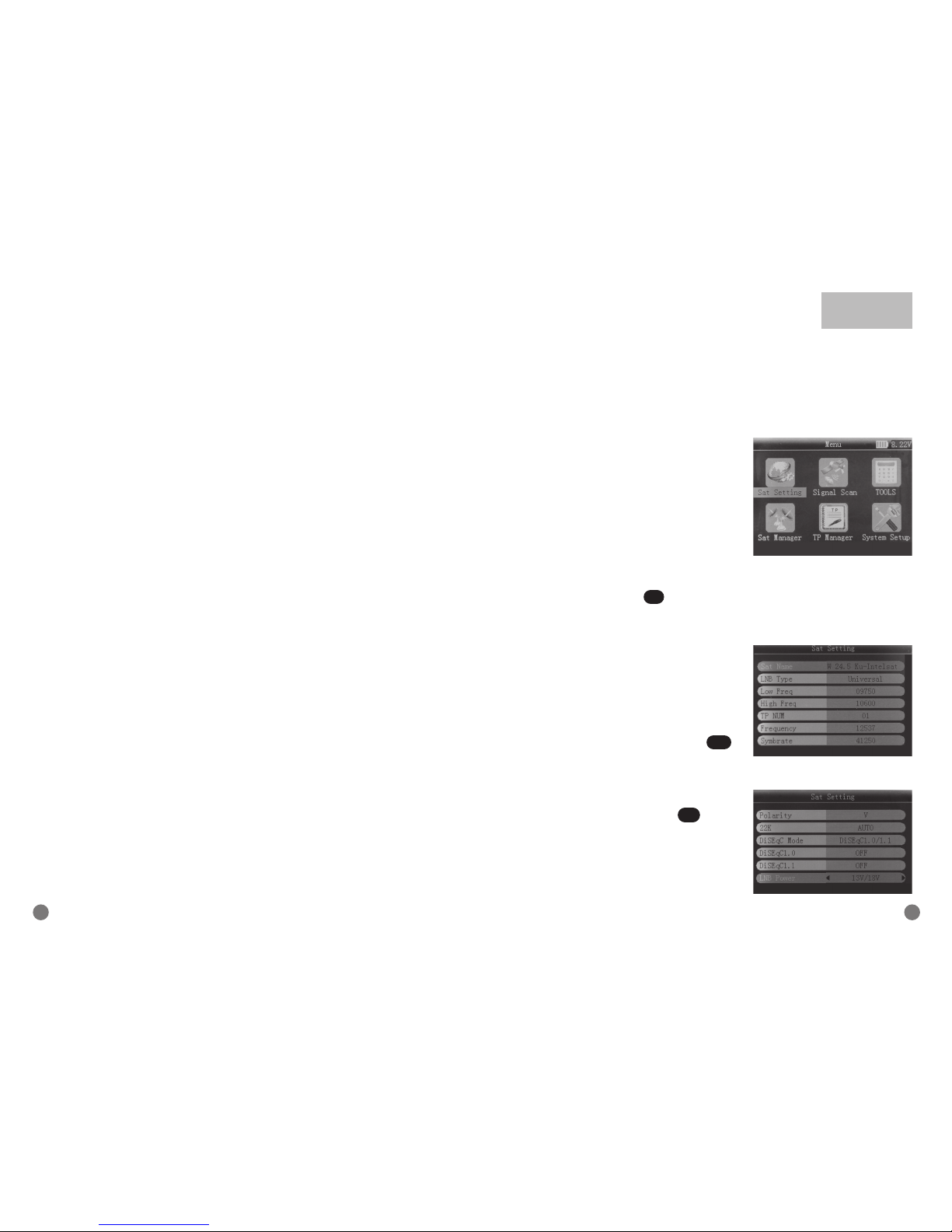

3. THE MENU OSD INSTRUCTION
If you have installed and connected the cables of the meter,
open the power switch, into the main menu.
• Sat Setting
• Signal Find
• Tools
• SAT Manager
• TP Manager
• System Setup
Press YZ key to move the cursor up or down in the menu in-
terface, then use OK to confirm a selection.
3.1 SAT SETTING
• Sat Name: press A B key to se-
lect satellite.
• LNB Type: press A B key to se-
lect LNB Type.
• Low Freq: press A B key to se-
lect Low Freq or press OK ,
then use the YZ key to input
the value.
• High Freq: press A B key to se-
lect Hi Freq or press OK , then
use the YZ key to input the
value.
• TP NUM: press A B key to se-
lect TP number.
2. OUTLINE
• Digital meter for signal strength and quality
• Sound and Light Alarm for Locking Signal
• Auto Calculate Angle of AZ, EL
• Supports DISEQC 1.0/1.1, 0/22khz Tone
• Beep Integrated
• LNB short protect
• Support mechanical compass
• 7.4V/800mAh Li-Ion Battery Included
• Software upgrade via USB port
• Easy to carry

6 7
English
then use YZ key to edit TP frequency.
Move the cursor to SR, we can press OK , then use YZ key to
edit Symbol rate.
Move the cursor to POL, we can press A B key to change ver-
tical or horizontal of polarization.
When all of settings are ok, we can check the LNB signal.
3.3 TOOLS
Press YZ key to move the cursor,
then press OK to select the op-
tion. Press YZ key to input value,
and press A B key to set east/
west or north/south. The bottom
of the screen can get the param-
eters of the satellite.
3.4 SAT MANAGER
• Add Satellite
• Edit Satellite
• Delete Satellite
Add Satellite: the setting refer to Antenna Setup.
Edit Satellite: press A B key to page up /down; then press YZ
key to select the satellite; press OK to edit satellite setting, re-
fer to Antenna Setup.
Delete Satellite: refer to Edit Satellite then press OK to delete
satellite.
• Frequency: Frequency of the current transponder, input the
value by using the YZ keys.
• Symbrate: symbol rate of the current transponder, input the
value by using the YZ keys.
• Polarity: press A B key to change vertical or horizontal of
polarization.
• 22K: press A B key to switch
the 22K tone; if you select uni-
versal type, the 22K setting is
AUTO.
• DiSEqC Mode: press A B key
to set the type of port as DiS-
EqC1.0/1.1 or Unicable.
• DisEqc type & Input: If we select DisEqc 1.0/1.1, we can press
A B key to set the port number. If select Unicable, we can
press A B key to select IF Channel, and use YZ key to input
Center Frequency.
• LNB Power: press A B key to switch LNB power on /o.
When all of settings are ok, press RETURN , then press OK for
save the edit.
3.2 SIGNAL SCAN
Move the cursor to SAT, we can
press A B key into satellite list,
then press YZ key to select sat-
ellite you want.
Move the cursor to F, we can
press A B key into TP list, then
press YZ key to select TP you
want. We can also press OK ,

8 9
English
4. TECHNICAL SPECIFICATION
TRANSMISSION STANDARDS
DVB-S/S2
SATELLITE INPUT/DEMODULATION
Connector Type F Type
Input Frequency 950 to 2150 MHz
Signal Input Level -65 to -25 dBm
Band Switch Control 22KHz
LNB Supply 13V/18V, IMax300mA
Demodulation Type QPSK /8PSK /16APSK
Symbol Rate 2<Rs<45Mband(SCPC/MCPC)
LCD FEATURES
LCD Type TFT Positive transflective
Number of Dots 240(RGB)*320
Active area (WxH) 36.72W * 48.96HMM2
DATA SERVICE PORT
Connector USB
Data protocol USB to RS-232
POWER SUPPLY
Li-Ion Battery 7.4V/800mAh
Adapter OUTPUT: DC12V/1A
INPUT: 100-240VAC 50/60Hz
Power consumption Max. 5W
PHYSICAL CHARACERSTICS
Size (W x D x H) 8x16x4(cm3)
Net Weight 0.25kg
3.5 TP MANAGER
• Add Transponder
• Edit Transponder
• Delete Transponder
Please refer to Satellite Setup.
3.6 SYSTEM SETUP
The first line is the Hardware serial number and the software
Version.
• Set Language: switch the sys-
tem language.
• Key Press Beep: switch the key
beep.
• Signal Lock Beep: switch beep
alarm.
• Flashlight: switch flashlight.
• Signal Strength: select the signal unit.
• Local longitude: set local longitude.
• Local latitude: set local latitude.
