SatKing SK-500A User manual

1
English
CONTENTS
1. GUIDE ..............................................................................................................2
1.1 IMPORTANT SAFETY INSTRUCTIONS ..................................................................................2
1.2 UNPACKING ..................................................................................................................................2
1.3 PRODUCT OVERVIEW& ILLUSTRATION ..............................................................................3
1.4 INSTALLATION OF METER .......................................................................................................4
2. OUTLINE ..........................................................................................................5
3. THE MENU OSD INSTRUCTION ......................................................................6
3.1 DVBT2 ...........................................................................................................................................6
3.2 DVBC .............................................................................................................................................8
3.3 CHANNEL.......................................................................................................................................9
3.4 SPECTRUM..................................................................................................................................10
3.5 MULTIMEDIA ...............................................................................................................................11
3.6 SYSTEM SETTING...................................................................................................................... 12
4. TECHNICAL SPECIFICATION ......................................................................... 15
5. TROUBLE SHOOTING .....................................................................................17

2
1. GUIDE
1.1 IMPORTANT SAFETY INSTRUCTIONS
Thank you for choosing our product. Before installation, we would like to
remind you some notes, which is very important for operating safely and
properly, as follows:
• Be sure to read this user manual before starting your operation.
• You must install the dish with correct direction and angle. If the dish is not
working properly, contact your local dealer.
• When the unit is suddenly moved to a hot area from a cold area, it may
cause some problems. In that case, turn o the power, and turn on again
after 1-2 hours.
• Keep meter placed in clean space with sucient ventilation.
• Do not cover the meter with or place it on a unit that emits heat.
• Clean the case by a soft cloth with a little washing liquid.
• Do not remove the cover.
• Do not let the unit exposed to extreme heat, cold or humid conditions.
• No liquids or any other materials to come inside of the unit.
1.2 UNPACKING
Open the package and make sure it includes all below items, if any missing,
please contact the reseller for replacement.
1. Digital Satellite Meter
2. User’s manual
3. AV cable
4. Car charger cable
5. Power Adaptor
6. Strap of carrying case
NOTE: Please refer to our actual configuration.

3
English
1.3 PRODUCT OVERVIEW& ILLUSTRATION
NO Description FUNCTION
1 LNB In Connect to satellite antenna cable
2 AV OUT Connect to AV port for TV
3 AV IN Connect to AV port for meter
4 USB Port Connect to USB memory
5 DC Slot Connect to adaptor input
6 Power Switch Turn on/o meter
7 Speaker Speaker integrated
8 Torch LED Night lighting
9 HD OUT Use HD cable to connect for TV
10 LCD TFT LCD Screen
11 Power Power indicator light
12 22KHz 22KHz indicator light
13 13V/18v Vertical /Horizontal polarization voltage output light
14 LOCK Signal lock indicator light
15 Charger (Note1) Charger indicator light
16 F1 Auxiliary function key
17 F2 Auxiliary function key
18 F3 Auxiliary function key
19 SCAN ‘Quick Search’menu shortcut key
20 AV-S(Note2) Switch AV mode: AV Normal; AV IN and AV out
21 NEVIGATION KEY Volume Control or move cursor, channel or change,
confirmetc

4
NO Description FUNCTION
22 MENU Show the main menu on the screen or jump back to
previous menu in sub-menu setting conditions
23 EXIT Escape from present menu and save the settings
24 0-9 Number key to select channels or enter programming
25 INFO INFO key
26 MUTE MUTE
27 Red & TTXT Red KEY & Teletext interface
28 Green & SUBT Green key & Subtitle interface
29 BLUE &AUDIO Blue key & Audio interface
30 Orange &TV/R Orange key & TV and radio switch
31 DC 12V output for extern equipment
32 DC 12V OUTPUT DC 12V output for extern equipment
33 HD IN HD signal input port
Note1: When the battery charged sucient, the charge indicator is going out. When
the battery is insucient, indicator flashing.
1.4 INSTALLATION OF METER

5
English
2. OUTLINE
• 3.5 Inch High Definition TFT LCD Screen
• Fully DVB-T/DVB-T2/DVB-C, MPEG-2/MPEG-4 compliant
• H.264 Hardware decoding
• Digital meter for signal strength and quality
• Supports scan of Auto,Manual
• Sound and Light Alarm for Locking Signal
• Speaker Integrated
• Support both AV out and AV in
• Support both HD out and HD in
• ANT short protect
• 7.4V/3000mAh Li-Ion Battery Included
• DC 12V output for monitor
• Software upgrade via USB port
• Easy to carry

6
3. THE MENU OSD INSTRUCTION
If you have installed and connected the cables to the receiver, pressing MENU
to display the Main Menu.
• DVB-T2
• DVB-C
• Channel
• Spectrum
• Multimedia
• System Setting
Press the keys of YZAB to move the cursor up or down in the menu
interface, then use OK to confirm a selection.
3.1 DVB-T2
Select DVB-T2, then press OK into the
Scan Setup.
3.1.1 COUNTRY SETTING
Press AB key to change the default country.
3.1.2 CHANNEL NO
Press AB key to change the channel number.
3.1.3 FREQUENCY
Frequency of the current channel, input the value by using the numeric keys.
3.1.4 BANDWIDTH
Press AB key to change the bandwidth, we can select 5, 6, 7 or 8M.
3.1.5 MODE
Press AB key to change the DVB standard, we have there types including T/

7
English
T2/T+T2, you can select one you want.
3.1.6 BEEP TONE
Press AB key to switch beep tone ON/OFF. If we open the beep tone, when
we enter into the search screen, the beep of lock alarm will open.
3.1.7 ANTENNA SETTING
Press AB key to change the antenna power, we have there types including
12v/18V/24v, you can select one you want.
3.1.8 ANTENNA SETTING
Press AB key to switch the antenna power ON/OFF .
3.1.9 QUICK SEARCH
In the Channel Find interface, press OK to
enter into the quick search.
• Ch Scan: Press OK/red key to search current
channel.
• Auto Scan : Press green key to auto blind
search the current channel.

8
• S/Q: Press orange key to enlarge showing of
the signal strength and quality.
• Constellation: Press the blue key into the
constellation.
3.2 DVB-C
Select DVB-C, then press OK into the Scan
Setup.
3.2.1 COUNTRY SETTING
Press AB key to change the default country.
3.2.2 CHANNEL NO
Press AB key to change the channel number.
3.2.3 FREQUENCY
Frequency of the current channel, input the value by using the number keys.
3.2.4 BEEP TONE
Press AB key to switch beep tone. If we open the beep tone, the beep of
lock alarm will open when we enter into the search screen.

9
English
3.2.5 QUICK SEARCH
Please refer to 3.1.9 QUICK SEARCH.

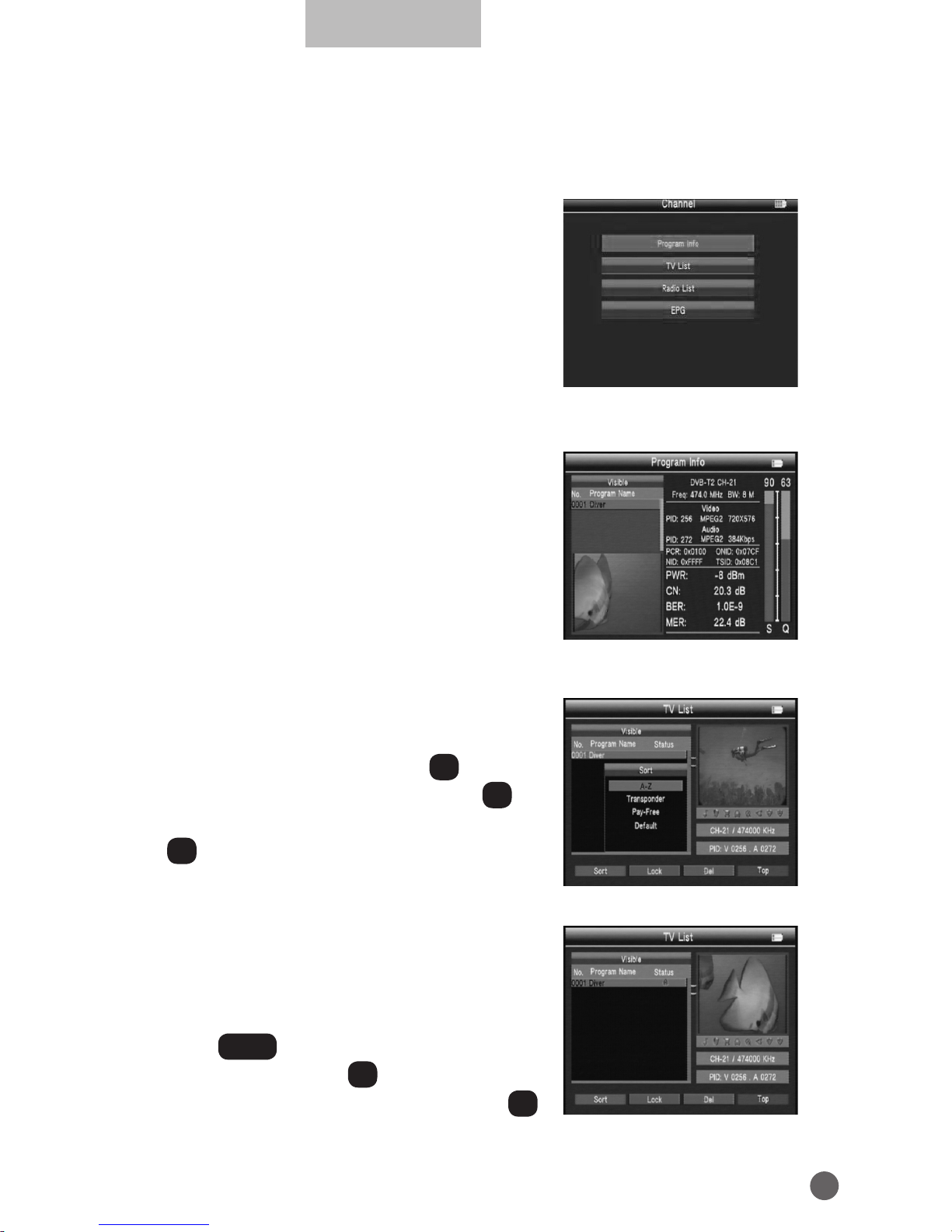

3.3 CHANNEL
We have four options in this menu.
3.3.1 PROGRAM INFO
When we receive signal, we can scan some
relative parameter information in this
interface.
3.3.2 TV LIST
• Sort
Press red key into the sort list. Use YZ key
to move the cursor, then press OK to select
the type of sort we want, then press OK to
confirm or move the cursor to “x” and press
OK to cancel.
• Lock
Press YZ key to the program that we want
to lock or unlock, then press green key to lock
or unlock the program. When we have dealt
with all the programs need to be processed,
press MENU , it will appear a comfirmation
message. Then press OK to confirm the
operation or select “x” by pressing OK to
cancel.

10
• Del
Press orange key to select “Delete Select” or
“Delete ALL”. Press YZ key to select the
program that we want to delete, then press
orange key, it will appear a “x“ label on the
program’s right side. When we have dealt
with all the programs need to be processed,
press MENU , it will appear a comfirmation
message. Then press OK to confirm the operation or select “x” by pressing OK
to cancel.
• Top
Press blue key to make a TV program you want on top.
3.3.3 RADIO LIST
Please refer to the operation of “TV List“.
3.3.4 EPG
Press YZ key to change program. If the
current program has EPG information, it will
appear on the right side of the window.
Press AB key to change the day of the EPG
information.
3.4 SPECTRUM
• TERRESTRIAL-SPECTRUM
• CABLE-SPECTRUM
3.4.1 TERRESTRIAL-SPECTRUM
When we enter into this interface, we can
pressAB key to scan some information
about spectrum in dierent frequency point.

11
English
• Full/Ch: Press red key to make all the frequency
points we can see on the window or to make
some frequency points on it.
• Zoom: Press green key to enlarge showing the
point you current select, and press again it will
be back.
• Locked: Press orange key to lock all the current
frequency points, and remain unchanged
unless you press again.
• Scan : When the frequency points have been locked, you can press blue key
to receive signal on a point.
3.4.2 CABLE-SPECTRUM
Please refer to Terrestrial-Spectrum.
3.5 MULTIMEDIA
Select Multimedia, then press OK into the
Multimedia.

12
• Movie
Will need to play the files in the USB and
insert it into the machine.
• Movie
Press red key to the mode option of play files and text encode, then press
MENU return.
Press green key to change the folder file viewing to detailed list.
Press orange key to change mode to big Icon browsing.
Press the arrow keys to move the cursor, then
press OK to enter the file.
In the play interface:
F1 Key: Normal play.
F2 Key: Pause.
F3 Key: Fast backward. Press F1 key return.
F4 Key: Fast forward. Press F1 key return.
• Music& Photo
Please refer to the Movie operating.
3.6 SYSTEM SETTING
• Country Setting
Press AB key to change the country
• OSD Language
Press AB key to change the OSD Language.
• TV Format

13
English
Press AB key to change the TV Format.
• Video Output
If we connect HDMI interface, we can press AB key.
• TV Resolution
On the basis of the Video Output choice, we can press AB key to change the
TV resolution.
• Digital Audio Output
Press AB key to change the LPCM or RAW format.
• Time Zone
Press AB key to change the Time Zone.
• Channel Lock
Press AB key to lock or unlock the channel setting. If select to lock, we
should input password “0000“ before channel setting.
• LCN
Press AB key to switch LCN ON/OFF.
• PWR Unit
Press AB key to change the PWR unit.
• Speaker
Press AB key to switch speaker ON/OFF.
• Flashlight
Press AB key to switch Flashlight ON/OFF.
• 12V
Press AB key to switch DC 12V output ON/OFF.
Note: If the shell is no 12V interface, without this feature
• KB-BackLight
Press AB key to switch delay time of back light.
• Upgrade
Will update the file into the USB, then insert
the machine. Press OK to update interface,
use the direction key to select update file,
and press OK to update.
Warning: Please don’t turn power o or pull
out the USB, otherwise it will damage the
machine’s software, and can’t boot again.
• Factory Setting
Press AB key, then press OK to confirm factory reset.
NOTE: if you set factory setting, all the user settings and the database will be
reset.

14
• System Info
In the system setting, press INFO to check
the system version.

15
English
4. TECHNICAL SPECIFICATION
TRANSMISSION STANDARDS
DVBT/T2/C
DVBT/T2/C INPUT/DEMODULATION
Connector Type Female Type
Input Frequency 48 to 862 MHz
Signal Input Level 79.5dBm (MAX)
ANT Supply 12V, 18V/24V Imax 100mA
Demodulation Type QPSK,16QAM.64QAM,256QAM
LCD FEATURES
LCD Type TFT Transmissive
Number of Dots 480(RGB) x272
Active area (WxH) 95.04x53.86 mm2
AV output interface
Connector Type 3.5 mm jack
Video Output CVBS
Audio Output Stereo Audio L/R output
HDMI output connecter
Format HDMI 1.3a
AV input interface
Connector Type 3.5 mm jack
Video Input CVBS
Audio Input Stereo Audio L/R input
AUDIO/VIDEO PROCESSING
Video decompression
MPEG2 MP@HL, MPEG1
Decoding,MPEG4 ASP@L5 HD
resolution,H.264 MP&HP@L4,HW JPEG
decoding
Resolving rate PAL25 frame@720*576,NTSC30
frame@720*480
Signal compatibility Support conversion for dierent video
formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box
conversion
Audio Decompression MPEG1 Layer I/II, MPEG2 Layer I/II
Audio Output Mode Stereo, Mono,R/L
DATA SERVICE PORT

16
Connector USB
Data Protocol USB2.0 interface
File Management System NTFS,FAT32,FAT16
File Format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
MICROPROCESSOR
Microprocessor NOVATEK
Clock Frequency 500MHz
POWER SUPPLY
LiIon Battery 7.4V/3000mAh(The machine behind
labeling
shall prevail)
Adapter OUTPUT :DC12V/1.5A, INTUPT
:100240VAC 50/60Hz(Will
be subject to actual configuration)
Power Consumption Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H) 9.5x15.5x4.5(cm3)
Net Weight 1kg

17
English
5. TROUBLE SHOOTING
Problem Possible Causes What To Do
No display light up Power switch is not
on Run out of batteries
Check to make sure power
on. Even on adapter
No sound or picture,
but the front panel
power light is ON.
AV IN jack insert, but no
video input Pull out AV IN cable
No sound or picture
The satellite dish is not
pointing at the satellite.
Adjust the dish. Check the
Signal Level in the Antenna
Setup Menu
Bad picture/Blocking
Error
No signal or weak signal
Check the cable connections.
LNB and other equipment
connected between the LNB
and the meter and adjust
the dish.
The satellite dish in not
pointing at the satellite
Adjust the dish.
Signal is too strong Connect a signal attenuator
to the LNB input
Satellite dish is too small Change to a larger dish
LNB noise factor too high Change to an LNB with
lower noise factor
The LNB is faulty Change the LNB
AV out No
picture(Video)
The system is connected
by SCART cable and TV is
not in AV mode.
Check the UHF channel fixed
in your system and tune the
UHF properly.
The key is not working
Out of battery Even on adapter
Key blocks make sure no blocks
between the front panel
Note: If you still cannot resolve the problem with above reference. Please
contact the local dealer or their after-sales service center.
