sauermann SI-AQ COMFORT User manual

SI-AQ COMFORT
USER MANUAL
MULTIFUNCTIONAL PORTABLE
INDOOR AIR QUALITY MONITOR
www.sauermanngroup.com
www. .com [e-mail]1.800.561.8187

Page 2 of 36
TABLE OF CONTENTS
CHAPTER 1 - TECHNICAL SPECIFICATIONS & SAFETY GUIDELINES ........................................... 3
CHAPTER 2 - INTRODUCTION..................................................................................................... 7
CHAPTER 3 - BASIC INSTRUMENT OPERATION.......................................................................... 9
CHAPTER 4 - POWER REQUIREMENTS ..................................................................................... 12
CHAPTER 5 - SENSORS -TECHNICAL ........................................................................................ 13
CHAPTER 6 - SI-AQ COMFORT SETUP ...................................................................................... 16
CHAPTER 7 - INTERNAL DATA STORAGE ................................................................................. 18
CHAPTER 8 - WIRELESS REMOTE PRINTER............................................................................... 20
CHAPTER 9 - CALIBRATION...................................................................................................... 22
CHAPTER 10 - SI-AQ PC SOFTWARE......................................................................................... 24
CHAPTER 11 - MAINTENANCE ................................................................................................. 29
CHAPTER 12 - SI-AQ COMFORT OPTIONS ................................................................................ 30
CHAPTER 13 - BASIC TROUBLESHOOTING ............................................................................... 32
CHAPTER 14 - REPLACEMENT PARTS....................................................................................... 33
www. .com [e-mail]1.800.561.8187

Page 3 of 36
CHAPTER 1
TECHNICAL SPECIFICATIONS & SAFETY GUIDELINES
SI-AQ COMFORT - AIR QUALITY MONITOR
1. PHYSICAL
Material: Blue ABS plastic case
Dimensions (monitor): 8.6 x 3.9 x 2 inches / 220 x 100 x 52 mm (H x W x D)
Weight: (monitor): 1.6 lbs. / 0.725 kg
Shipping Dimensions & Weight (monitor & all accessories): 8 lbs. / 3.6 kg
20 x 19 x 9” / 50.8 x 48.2 x 22.8 cm
2. POWER
12 Volt, 8 AH rechargeable Li-Ion battery pack
Operating time: 8 – 12 hours
110/240 VAC input, 12 V/2.5A fast charger
Charging time: 3 hours maximum
3. DISPLAY
2.6 x 1.4” 128 x 64 graphic, chip on glass (white backlit) LCD display.
Small and large fonts, plus inverted background color for help messages
Battery condition & charger operation indicator
4. WIRELESS REMOTE PRINTER (Optional)
High resolution, high speed, graphic thermal printer, with charger, prints:
A. current set of data
B. stored data
C. periodic data printouts
D. calibration history and external messages
5. INTERNAL INSTRUMENT PUMP
Continuous Air sample pump: high quality diaphragm pump with long life motor
Pump flow: 500 cc/min
6. MEMORY STORAGE
2000 Internal memory storage tags. A tag corresponds to a memory position
Each tag stores one complete set of data including all parameters measured and calculated
7. COMMUNICATIONS
Bluetooth®wireless: Class 1 (100m)
USB Cable
8. SOFTWARE
SI-AQ PC Software: Windows PC Software
9. GENERAL FEATURES
Recommended operating temperature: 23 to 113°F (-5 to +45 °C)
Recommended operating relative humidity: 15 to 85% RH
Recommended storage temperature: 14 to 122°F (-10 to +50°C)
Standards & directives: 2014/30/EU; 2014/35/EU Low voltage; 2014/53/EU; 2011/65/EU; 2012/19/EU
Supply voltage: 110-240 VAC
Frequency range: 50-60 Hz
Power rating: 15 W
Ingress protection (IP) rating: IP40
www. .com [e-mail]1.800.561.8187

Page 4 of 36
SENSORS
1. AIR QUALITY SENSORS – ELECTROCHEMICAL
SENSOR RANGE RESOLUTION ACCURACY*
CARBON MONOXIDE (CO) Std Range 0 - 200 ppm 0.1 ppm ±1 ppm of rdg, ±0.2 ppm
2. AIR QUALITY SENSORS – NON-DISPERSIVE INFRARED (NDIR) SENSORS
SENSOR RANGE RESOLUTION ACCURACY*
CARBON DIOXIDE (CO2) Std Range 0 - 5000 ppm 1 ppm 2% of rdg ±10 ppm
4. OTHER SENSORS
SENSOR RANGE RESOLUTION ACCURACY*
Temperature Type K (T1) 0 - 2000 ºF
0 - 1100 ºC
1 ºF
1 ºC
5 °F / 3 °C or 2% rdg
Ambient Temperature -40 – 257 ºF
-40 – 125 ºC
0.1 ºF
0.1 ºC
±0.4 °F (32 - 140 °F)
±0.4 °C (0 - 60 °C)
Relative Humidity 5 - 95% 0.1% ±2% RH
Differential Pressure** -40 to 40 inH2O
-100 to +100 mbar
0.1 inH2O
0.1 mbar
±1% rdg
Air Velocity 0 - 300 ft/s
0 - 91 m/s
1 ft/s
1 m/s
*Note: All Accuracies indicated above are under Laboratory Conditions
**Requires connection accessories, flexible tubes and connections available as option in the Si-AQ Kit Press. Diff.
www. .com [e-mail]1.800.561.8187

Page 5 of 36
MODEL SI-AQ COMFORT – SAFETY GUIDELINES
This section provides general rules which must be followed for product safety, avoiding personal injury,
damage to equipment and preserving the manufacturer’s warranty. Please take care to carefully
observe the following instructions.
A. PRODUCT SAFETY INSTRUCTIONS:
Do not operate the instrument outside of the parameters specified in the technical
specifications
Do not use or store the instrument together with any solvents
Do not block the two (2) exhaust ports in the back of the instrument
Do not expose the monitor to extreme hot or cold temperatures outside of the
stated range in this manual
Do not abuse the charger cord. Do not use power cord for carrying, pulling. Keep
cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled
cords can increase risk of electric shock
Only use the supplied, appropriate AC Charger
If the monitor enclosure is ever unscrewed and taken apart, avoid over-tightening
the screws that hold the two main enclosure pieces together.
Do not store or operate in dusty, dirty areas
Always use the monitor with care and use the instrument properly
Do not use force when disconnecting and reconnecting the Black external Temp, RH
and Pressure Sensor (see photo below)
Do not use instrument in the rain or high moisture areas to prevent water droplets
on the black external Temp, RH, and Pressure Sensor.
Remember to have the monitor checked and calibrated at least once a year to
ensure sensor accuracy and compliance with existing standards
Only accessories which meet the manufacturer’s specifications shall be used.
This device has been developed, produced and sold exclusively to trained and
qualified experts in the field of air quality monitoring. Appropriate training is
necessary in order to guarantee a riskless use of this instrument. Sauermann is not
responsible for any possible accidents during its use.
The device must not be used in ATEX zones according to applicable standards.
Do not use the device next to explosive gases, vapors, or dust.
Clean the product with a dry and clean cloth after each use.
To avoid any risk due to voltage on the surface of the probe, it is important that the
thermocouple is not subjected to a voltage.
The power to the instrument is turned off by disconnecting the external power
supply.
Do not use the device if it is damaged or if it operates abnormally. Inspect the
device before every use. In case of doubt, please contact Sauermann’s after-sales
service.
NOTE: Please take special care when performing Span Calibration of the monitor.
You cannot revert back to the factory setting after any adjustments!
NOTE: CO
2
should ALWAYS be Calibrated or Zeroed with a Cylinder of ZERO AIR.
Do Not Use Ambient Air for CO2sensor calibration.
www. .com [e-mail]1.800.561.8187

Page 6 of 36
DO NOT LIFT OR HANDLE THE
INSTRUMENT BY THE BLACK
EXTERNAL TEMP, RH, PRESSURE
SENSOR HOUSING! See photo below
B. ELECTROMAGNETIC COMPATIBLITY
Complies with EN61326-1, Portable Equipment
The Sauermann SI-AQ COMFORT Indoor Air Quality Monitor is a battery-operated Portable
device designed to be used by a qualified engineer/technician to make measurements in buildings
and residential facilities. For long-term testing, you may operate the unit connected to the supplied
charger by carefully following the product safety instructions in Section A above.
C. ESD Protection
In extreme cases or abnormal applications, Electrostatic Discharge can potentially cause serious
and immediate damage to the electronic circuits of the instrument.
D. BATTERY DISPOSAL & RECYCLING
Recycle all applicable material properly. Take faulty/depleted batteries to proper
collection/recycling centers
Dispose of batteries and the monitor according to statutory regulations. Do not
dispose of with regular household items. After the monitor’s useful life, please return
to your local authorized Sauermann’ distributor or send back to Sauermann directly.
We will ensure that it is disposed of in an environmentally friendly manner
www. .com [e-mail]1.800.561.8187

Page 7 of 36
CHAPTER 2
INTRODUCTION
A. UNPACKING THE INSTRUMENT & PARTS IDENTIFICATION
SAUERMANN SI-AQ COMFORT kits (excluding SI-AQ COMFORT-2) include as standard equipment:
•IAQ Monitor Model SI-AQ COMFORT with CO2, Temp, %RH, Dew point Temp, WBT,
Differential Pressure and Differential Temperature
•Battery charger / AC adaptor for the monitor
•USB Thumb Drive including Instruction Manual
•Internal Wireless Bluetooth®module
•Calibration Certificate
C. PROPER SAFE USE
1. Follow all the instructions in the SI-AQ COMFORT manual.
2. Do not block the two (2) exhaust ports in the back of the instrument housing.
3. Do not expose the monitor to extreme temperatures outside the stated range
4. Do not store or operate in dusty, dirty areas
5. Do not use instruments in the rain or high moisture areas to prevent water droplets on the
external Temperature and RH Sensor.
www. .com [e-mail]1.800.561.8187

Page 8 of 36
LIST OF ABBREVIATIONS
PARAMETERS
CO2Carbon Dioxide – NDIR measurement
CO Carbon Monoxide
Ta Ambient (room) Air Temperature
RH Percentage of Relative Humidity
DPt Dew Point Temperature
WBT Wet Bulb Temperature
VEL Air / Gas Velocity (measurement with optional pitot tube)
∆P Differential Pressure (with Velocity Probe turned OFF)
T1 Thermocouple Type K Temperature (T1 Input)
BAT Battery Life / Voltage
NA Parameter Not Available
UNITS
PPM Parts (of pollutant) per million
°F Temperature Measurement in Fahrenheit
°C Temperature Measurement in Celsius
"WC Inches of water (pressure measurement)
mmHg Millimeters of Mercury (pressure measurement)
"Hg Inches of Mercury (pressure measurement)
PSI Pounds per Square Inch (pressure measurement)
mmWC Millimeters of water (pressure measurement)
kPa KiloPascals (pressure measurement)
mbar Millibars (pressure measurement)
FPS Feet per second (gas / air velocity measurement)
MPS Meters per second (gas / air velocity measurement)
CMM Cubic meters per minute (gas / air velocity measurement)
CFM Cubic feet per minute (gas / air velocity measurement)
V Voltage (battery)
www. .com [e-mail]1.800.561.8187

Page 9 of 36
CHAPTER 3
BASIC INSTRUMENT OPERATION
The SI-AQ COMFORT is operated by the 9 button keyboard located on the front of the monitor.
•The POWER key turns the instrument on and off.
•The MEASURE key shows the currently measured parameters.
Displays the monitor’s currently measured data in either of two (2) fonts:
A. Small fonts (all data displayed simultaneously plus range indicated, battery
condition and time)
B. Large fonts (four data parameters displayed simultaneously)
Note: The SI-AQ COMFORT allows the user to ZOOM in and out of the screen by changing from
Small to Large Fonts using the MEASURE key. Press Measure key again to zoom back out.
•Four (4) keys will bring up separate Menus: SETUP, CALIB, STORE, & PRINT.
SETUP
Controls all customization parameters, such as measurement units, for the
monitor
CALIB
Controls calibration settings and zeroing of the monitor’s sensors.
STORE
Controls operation of the monitor’s internal data storage
PRINT
Executes print commands for the monitor’s optional remote Bluetooth®
printer
•The menus are navigated with the UP, DOWN, LEFT, RIGHT, & OK keys.
www. .com [e-mail]1.800.561.8187

Page 10 of 36
INSTRUMENT OPERATION OVERVIEW
SI-AQ COMFORT STARTING INSTRUCTIONS
1. Turn the SI-AQ COMFORT on by pressing the POWER key. The instrument’s internal pump will
immediately turn on and the SAUERMANN logo will appear. The instrument will begin to draw
in air from the center SAMPLE IN inlet “A” at the bottom of the unit.
2. If applicable, attach the optional probe and sampling line to the monitor.
3. Press the MEASURE key to view the Main Measuring Screen including ambient
temperature, barometric pressure, relative humidity and dew point. The toxic gas readings you
selected in your kit are also displayed: CO2& CO (CO will appear only if sensor was installed).
4. At initial startup, allow the CO2sensor up to 1 minute to warm up and stabilize.
The MEASURE key allows the user to toggle/zoom between a
small font and a large font screen.
The battery icon is displayed in the middle of the bottom line of
the display. Its condition is marked by the shaded fraction of the
icon. If the unit is powered by the battery charger a small “plug”
icon will replace the battery icon.
NOTE: When connecting the battery charger to the monitor
make sure that the “plug” icon appears on the MEASURE
screen. This ensures a proper power connection and charging of
the batteries.
5. If you are using the monitor for the first time, press the
SETUP key to set the appropriate parameters
(i.e.: measurement units) for your application. See Chapter 5 for an explanation of each
parameter.
6. All sensor readings shown on the screen indicate ambient measurements. To ZERO the gas
sensors, please see Calibration Chapter 9 of this manual.
7. To obtain a printout of the data displayed, press the PRINT key.
CO2: 920
PPM
CO: 0PPM
Ta: 79.1°F
RH: 46.9%
DPt:57.0°F ∆P: 0.0mb
_____________________
Sampling 12:45:00
NOTE: Depending on the options enabled for
your Si-AQ COMFORT some of the entries in
one or more of the displays shown above will
be blank if that option is not available.
APR 1 ‘14 12:45:00
Temperature Units: F
Measure Units: PPM
Pressure Units: inWC
Pumps: AUTO 750cc/m
Velocity Probe: OFF
Velocity Units: FPS
Duct Size: 0 in2
Display Contrast: 24
Baudrate: 115 kbps
Version: 1.02Li
Battery Charger Connected
Battery Empty
Battery Full
www. .com [e-mail]1.800.561.8187

Page 11 of 36
The cursor (reverse color) will point to:
Print Test Record
Press the OK key to execute a printout on the SI-AQ COMFORT’s optional Bluetooth®remote
printer.
8. Measured data can be stored in the monitor’s internal memory. Please refer to Chapter 7 for
more details about data storage.
www. .com [e-mail]1.800.561.8187

Page 12 of 36
CHAPTER 4
POWER REQUIREMENTS
The Sauermann SI-AQ COMFORT Indoor Air Quality Monitor is a battery-operated Portable device
designed to be operated by a qualified engineer/technician to make measurements in buildings and
residential facilities. For long-term testing please carefully follow the product safety instructions in
Chapter 1.
Power is supplied by a Li-Ion rechargeable battery pack. The battery pack will supply power to the
monitor for about at least 8 hours of continuous operation.
A 110 – 240 Volt AC charger having a 12 Volt DC / 2.5A output is supplied with the instrument. The
battery charger will fully charge the battery pack in three hours.
You can check the condition of the batteries at any time:
1. By pressing the MEASURE key, (small font screen) and observing the battery icon, located at
the bottom of the display.
2. By pressing the MEASURE key, (large font screen), the user can scroll all the way to the
end using the DOWN arrow key to observe the battery life shown in Voltage. When the
unit is operating on its internal batteries, the voltage displayed will vary from an initial 8.0 to
8.4 volts (fully charged) dropping slowly to approximately 7 volts (batteries nearly empty).
When the battery voltage drops to 7.1 volts a “low battery” warning will appear on the
display. Within a few minutes later the instrument will automatically turn off, to preserve the
remaining battery power for the sensor bias voltages.
Battery Charger Connected
Battery Full
Battery Empty
www. .com [e-mail]1.800.561.8187

Page 13 of 36
CHAPTER 5
SENSORS -TECHNICAL
The SI-AQ COMFORT Air Quality monitor’s sensors are grouped into three categories based on their
principle of operation:
1. Up to one (1) CO (Carbon Monoxide) electrochemical gas sensor
2. One (1) NDIR (infrared gas sensors) – CO2
3. Non-gas sensors (Temperature, Humidity, Pressure, and Velocity) sensors
The main section of the monitor houses all the electrochemical and NDIR gas sensors, battery pack,
and PC board. On the bottom of the unit, there is a black external sampling system for Ambient
Temperature and Relative Humidity.

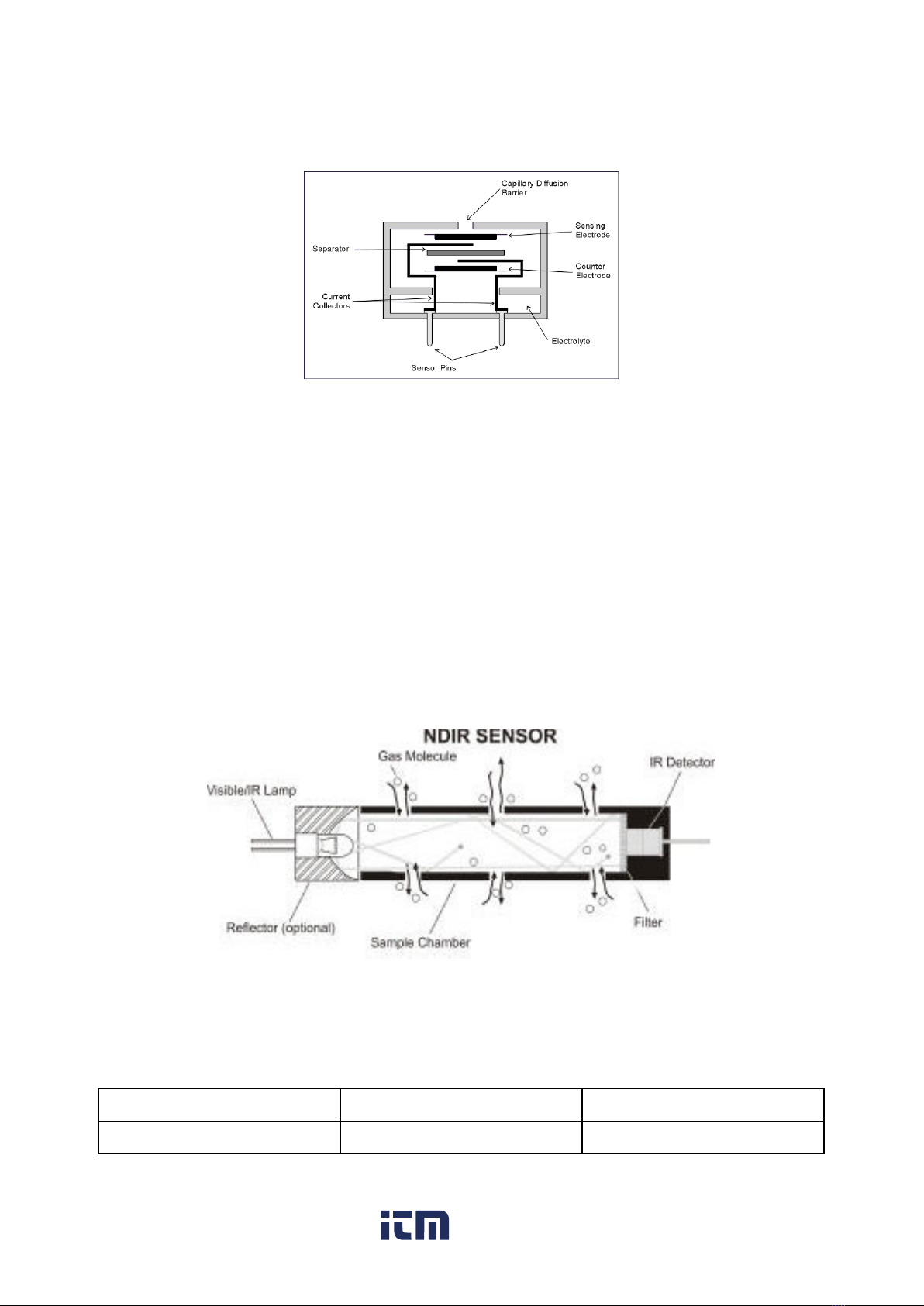

The figure below shows the internal manifold of the gas sensors inside the unit:
SENSOR LIST :
CO2
CO
www. .com [e-mail]1.800.561.8187

Page 14 of 36
1. ELECTROCHEMICAL SENSORS
All electrochemical sensors are mounted on fitted socket fittings for easy installation and removal.
The electrochemical sensor is described here:
Carbon Monoxide sensor (CO)
This is also a three-electrode sensor that responds to carbon monoxide. It is equipped with an inboard
filter to remove any interference from other acidic gases.
2. NDIR (INFRARED) SENSOR (CO2)
A non-dispersive infrared (or NDIR) sensor is a simple spectroscopic device most commonly used to
measure CO2in indoor air quality applications. The main components are an infrared source (lamp), a
sample chamber or light tube, a wavelength sample chamber, and the CO2gas concentration is
measured electro-optically by its absorption of a specific wavelength in the infrared (IR).
The SI-AQ COMFORT Air Quality Monitor is equipped with one standard NDIR infrared sensor capable
of CO2measurement (standard range: 0 – 5000 ppm).
The NDIR sensor have the following specifications:
GAS RANGE ACCURACY
CARBON DIOXIDE (CO2) 0 - 5000 ppm 2% of reading ±10 ppm
www. .com [e-mail]1.800.561.8187

Page 15 of 36
3. NON-GAS SENSORS
A. Ambient Temperature sensor
This is a NTC sensor located on the front panel of the monitor. The ambient temperature is
displayed on the MEASURE screen in either °F or °C. The dew point is calculated from the
ambient temperature and relative humidity. The dew point is displayed on the Small and
Large Font MEASURE screens as DPt.
B. Humidity sensor
This is a capacitive sensor located on the front panel of the monitor. The relative humidity is
displayed on the MEASURE screen in %RH (% Relative Humidity). The Wet Bulb is
calculated from the ambient temperature, relative humidity, and barometric pressure. The
wet bulb is displayed on the Large Font MEASURE screen only as WBT.
C. External temperature sensor (T1)
The thermocouple is located at the bottom right side of the monitor. It can be used with any
optional or separate Type K thermocouple probe and/or wire. The T1 temperature
measurements are displayed on the Large Font MEASURE screen only as T1.
D. Differential Pressure / Air Velocity sensor.
If the monitor comes with the Differential Pressure option and/or the air velocity option
(optional separate L-type Pitot tube and pressure tubing), the internal pressure sensor is a
very low range pressure sensor. The Velocity measurements are displayed on the MEASURE
screen only as VEL. Differential Pressure is displayed on the MEASURE screen only as ∆P.
Connecting Differential Pressure Hoses:
Connect Metal Hose Connections to either P+ or P- Connection as shown. P+ only will give
you Positive pressure; P- only will give you Negative pressure. Plug in both as shown below
for Differential Pressure. All single & differential readings are shown on main MEASURE
screen as ∆P.
SINGLE PRESSURE DIFFERENTIAL PRESSURE
www. .com [e-mail]1.800.561.8187

Page 16 of 36
CHAPTER 6
SI-AQ COMFORT SETUP
The SETUP MENU allows the operator to change the instrument’s parameters.
Every parameter listed on the SETUP MENU screen can be changed as follows:
a. Use the UP / DOWN keys to move the highlighted line to the parameter you wish to
change.
b. Press OK to edit the value. The parameter you have chosen will become highlighted on the
right side of the screen. This indicates that you are in edit mode.
c. Use the UP / DOWN keys until the desired value of the selected parameter appears on the
display.
d. Press the OK key to execute the change.
A more detailed explanation of each parameter follows:
1) DATE & TIME: The monitor’s internal clock is displayed in the format month-day-year, hour-minute-
second. Hours are always displayed using a 24-hour clock format.
2) TEMPERATURE UNITS: The UP / DOWN keys toggle between °F (Fahrenheit) and °C (Celsius). The
T1 temperature reading and ambient temperature will be displayed, printed, and saved in the
selected units.
3) PRESSURE UNITS: Pressure measurements can be shown in millibar (mbar), inches of water (inWC),
millimeters of water (mmWC), millimeters of mercury (mmHG), inches of mercury (inHG), pounds
per square inch (psi) or kilopascal (kPa).
1 mbar = 0.10 kPa = 0.40 inWC = 10.2 mmWC = 12.95 inHg = 0.75 mmHg = 1.45 PSI
APR 1 ‘14 12:45:00
Temperature Units: F
Measure Units: PPM
Pressure Units: mbar
Pumps: AUTO 750cc/m
Velocity Probe: OFF
Velocity Units: FPS
Duct Size: 0 in2
Display Contrast: 24
Baudrate: 115 kbps
Version: 1.02Li
www. .com [e-mail]1.800.561.8187

Page 17 of 36
4) VELOCITY & AIRFLOW UNITS: (Velocity Option) Select between feet per second (FPS), meters per
second (MPS), cubic feet per minute (CFM), or cubic meter per minute (CMM).
AIR VELOCITY AND DIFFERENTIAL PRESSURE CAN NOT BE MEASURED SIMULTANEOUSLY.
USER MUST CHOOSE ONE OR THE OTHER.
To change the selection, hit the SETUP key. Using the DOWN arrow key, scroll Down to VELOCITY
PROBE and hit OK. The OFF/ON selection will be highlighted. Use the Up & Down arrow keys to
change the selection from OFF to ON or vice versa. With the Velocity Probe Selection OFF, the SI-AQ
COMFORT will measure Differential Pressure (∆P) automatically. With the Velocity Probe Selection
ON, the SI-AQ COMFORT will measure Air Velocity (VEL) automatically. When you have your
selection chosen, hit the OK button and the entire Velocity Probe will be highlighted again. Hit the
MEASURE Button to get back to the Main Measurement screen once you are complete.
5) DUCT SIZE: (Velocity Option). Estimate the cross-section area of your Ducts in square inches (in2)
and set this value to obtain automatic & accurate Air Flow measurements in m/s or m3/min.
NOTE: When using the Velocity Feature on the SI-AQ COMFORT it is recommended to ZERO
the readings BEFORE using the Pitot tube to ensure proper Velocity measurements. See
Chapter 9 for instructions on Zeroing the SI-AQ COMFORT. (Zero Gas Sensors)
Connecting Pitot Tube: In air conditioning, heating and ventilating work, it is helpful to understand
the techniques used to determine air velocity. In this field, air velocity (distance traveled per unit of
time) is usually expressed in meters per second (m/s). By multiplying air velocity by the cross section
area of a duct, you can determine the air volume flowing past a point in the duct per unit of time.
Volume flow is usually measured in cubic meters per minute (m3/min). To make Air Velocity
measurements using the SI-AQ COMFORT, you will need to use the Optional 12” Pitot tube. Follow
Steps #5 & #6 above to (1) turn the Velocity Probe option ON (VEL will appear on the unit’s main
screen) and (2) set up your Duct Size. Connect the supplied hoses from the Pitot tube to the (-) and/or
(+) PRESSURE connections on the bottom of the SI-AQ COMFORT.
6) PUMP: Pump status is displayed:
a) AUTO - Automatic sample mode is selected
b) OFF - The internal Pump is turned off.
7) DISPLAY CONTRAST: Select the best value for viewing the LCD screen.
8) BAUDRATE: The communication speed for both the USB port and the Bluetooth®connection is set
here. The default setting is 115 kbps.
www. .com [e-mail]1.800.561.8187

Page 18 of 36
CHAPTER 7
INTERNAL DATA STORAGE
The STORE MENU allows the operator to store data and manage the internal storage tags.
The SI-AQ COMFORT has 2000 internal storage tags/memory spots. Each tag stores one complete set
of air quality data. There are two ways to store air quality data to the monitor’s buffer. You can either
store data by selecting the option STORE CURRENT DATA after pressing the STORE key, or
alternatively you can make use of the monitor’s capability of storing data automatically on a periodic
basis. You can set the time period between data storage. The STORAGE MENU shows the relevant
display lines for the storage options.
1. STORE CURRENT BUFFER: The monitor will store one set of data into the tag currently
selected. The index number and the name of this tag appear at the bottom of the screen.
2. SELECT BUFFER: Selecting this item will display an index of the monitor’s 2000 internal storage
tags. Tags that are used have an icon next to their index number. The selected storage tag is
indicated by the reverse color line. When data is stored, this pointer will automatically advance
to the next available tag. If you want to store data in a different location, use the UP, DOWN,
& OK keys to select a new tag. As you scroll up and down, tags containing data show their
date and time at the bottom of the display. Empty tags show the word empty.
3. START AVERAGE TEST: This will begin a period of data averaging, with the average values
stored periodically in successive memory tags. The interval between each storage cycle is
displayed below and can be set by the user. Once enabled, this line will read: STOP AVERAGE
TEST.
4. START PERIODIC: This will turn on the periodic store function. In this mode, the unit will
continuously store data at an interval displayed on the next line. Once enabled, this line will
read: STOP PERIODIC.
5. SELECT INTERVAL: The time between each store is set here. This can range from 10 seconds to
60 minutes.
6. REVIEW BUFFER: This choice allows you to view previously saved data. Press OK. The display
will switch to the data screen, with the data in the first tag displayed. The time and date when
Store Current Buffer
Select Buffer
Start Average Test
Start Periodic Store
Select Interval: 1m
Review Buffer
Name Buffers
Erase Buffers
00: TAG#00
www. .com [e-mail]1.800.561.8187

Page 19 of 36
the data was saved will appear at the bottom of the display. Use the UP / DOWN keys to
scroll through the tags.
7. NAME BUFFERS: This choice will take you to another screen
where you can rename one or more tags. This is useful if you
use several tags together to form a test series. Select the
starting test index with the UP / DOWN / LEFT / RIGHT
keys and press OK. Next, select the ending test index. The
cursor will move to the first character of the first tag’s name,
and the alphanumeric keyboard will appear. Use the UP /
DOWN / LEFT / RIGHT keys to navigate around the
keyboard and press OK to select the letter or number. For
lower-case letters, highlight shift and press OK, for symbols, highlight sym and press OK.
The arrows in the corner will move the cursor forward or backward through the tag’s name.
8. ERASE BUFFER: This option is used to erase stored data. Data that has been stored in the
monitor’s memory will be retained even after the instrument has been shut off and its batteries
removed. To erase the contents of a specific tag, use the UP / DOWN keys to move the arrow
to the desired tag. As you scroll up and down, tags containing data show their date and time
at the bottom of the display. Empty tags show the word empty. If you wish to erase all 1000 of
the monitor’s stored data, move the arrow to the entry ALL TAGS and press OK.
*** NAME BUFFERS ***
Starting Tag: 00
Ending Tag: 00
Name:xxxxxxxxxxxxxxxx
1 2 3 4 5 6 7 8 9 0 ◄
A B C D E F G H sym ►
I J K L M N O P shift
Q R S T U V W X Y Z
www. .com [e-mail]1.800.561.8187

Page 20 of 36
CHAPTER 8
WIRELESS REMOTE PRINTER
The SI-AQ COMFORT uses an optional wireless Bluetooth®remote printer. The
printer is powered by a rechargeable battery. An AC charger is supplied with the
printer.
First you must turn the printer on. Then press PRINT to scan and connect with your
wireless printer to establish communications between the monitor and the printer.
When you have connected successfully the printer’s green status light will turn on. Pressing the PRINT
key will now display the PRINT MENU.
The PRINT MENU allows the user to print test records.
PRINT TEST RECORD: This option will print a test record of the current air
quality parameters.
PRINT TEST LOG: This option begins a log of the following air quality
parameters: CO2, Temperature, %RH, Wet Bulb, Dew Point, and Carbon
Monoxide.
LOG INTERVAL: This selects the interval between each log entry. The interval can be set between 1 and
60 seconds.
PRINT BUFFER: This option is used to print data stored in the monitor’s memory. Each line corresponds
to one storage tag. Tags containing data show an icon next to the index number. When you scroll up
and down, the date (mm/dd) and time (hh/mm) when the data was stored appear at the bottom;
empty tags show the word “empty”. To print the contents of a specific tag, use the UP / DOWN keys
Print Test Record
Start Test Log
Log Interval: 60s
Print Buffer
Configure Record
Edit Customer Name
Calibration Record
Paper Feed On/Off
Mobile Printer...
Serial #: 000000
Company Name
TEST RECORD
AUG 1 ‘14 12:45:00
CO2: XX.X %
CO: XXXX PPM
T ambient: XXX ºF
RH: XX.X %
DPt: XXX ºF
WBT: XXXX ºF
BP: XXXX psi
VOC: XXX PPM
* WIRELESS PRINTERS *
Scan for printers
Press OK to search
* WIRELESS PRINTERS *
Device Found
Press OK to Connect
Device 1:001122334455
* WIRELESS PRINTERS *
Device Connected
Press OK to Continue
Device 1:001122334455
www. .com [e-mail]1.800.561.8187
