Savant DigiFlow 8000T User manual

2.0 Mechanic :
3.0 Application :
Mounting Method : Back Mount
Flowing Direction : Bi-Direction

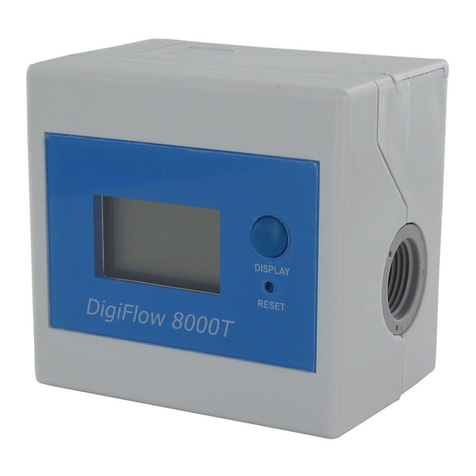

Savant DigiFlow 8000T, DigitalFilter Monitor and Flow Meter
Features :
Filter capacity life monitor, up to 99500 liters or 19900
gallons
Filter elapse time monitor, up to 720 days
Flow rate display, 0.95 – 13.2 lpm or 0.25 – 3.5 gpm
Near end of filter life alert
End of filter life alert
Battery operated, 2 AAA batteries
Low battery power alert
Automatic data memorized when battery power is off
Application :
Under sink water treatment system
Counter top water treatment system
Commercial water treatment system
Water dispenser
1.0 Electrical :
Operating Voltage : 3 DC Volts
Operating Current : 1.0 mA (work), 0.015 mA (sleep)

Materials : Sensor Body : Acetal Copolymer, TICONA M90
Turbine : Acetal Copolymer, TICONA M90
Stick of Turbine : #304 Stainless Steel
O-Ring : EPDM Rubber
Housing : ABS resin
5.0 Operation Guide
5.1 Install Batteries
Slide off the cover case of the battery room, and put into 2 AAAbatteries. Then slide the cover case
back.
5.2 Connecting Fitting
The specification of the DigiFlow 8000T connectors is 3/8” MNPT female. You could use any 3/8”
MNPT male connectors.
5.3 Setting Filter Capacity and Elapse Time Monitor
Keep pressing DISPLAY button, then press RESET button and release both of the buttons. The
DigiFlow 8000T will go into setting procedure. The digit will blink to notice you that the setting
procedure is on.
5.4 Setting Filter Capacity
Press DISPLAY button to choose the capacity value. The sequence is OFF - 0 – 100 – 200 –
300 …… 19800 – 19900 – OFF – 0 –100 (gallon model) and OFF - 0 –500 – 1000 --- 99500 –
OFF – 0 – 500 (Liter model). Then press RESET button to save the filter capacity value. Then go
into elapse timevalue setting.
5.5 Setting Filter Elapse Time
Press DISPLAY button to choose the elapse time value. The sequence is OFF - 0 – 30 – 60 –
90 ….…… 690 – 720 – OFF – 0 –30. Then press RESET to save the Timing. The setting
procedure is completed.
Right to Leftor Left to Right
Flow Rate : Max.4.10 gpm, 15.51 lpm
Min. 0.45 gpm, 1.70 lpm
4.0 General :
Temperature : 0 to 80 (32 to 176 )
Pressure : Max. 5.5 bar (80 psi)
Weight : 140 g (5.38 oz)
Accuracy : +/- 5%
Connection : 3/8 inch NPT Female

* Either of the capacity mode or elapse time will be disabled when you choose value as OFF.
** The setting procedure will be terminated, and go back to the original status if there is no input
for 10 seconds.
5.6 Operating
The DigiFlow 8000T will be automatically turn on when there is water flowing through the sensor.
It will automatically turn off in 10 seconds when there is no water flowing.
5.7 Mode Selection :
Press DISPLAY button is to display the status of the three modes of the DigiFlow 8000T.
1. Filter remaining capacity mode, 2. Filter remaining elapse time and 3. Flow rate.
5.8 Alert
5.8.1 Near End o Life Alert
When filter remaining capacity is less than 30 gallons (100 liters) or filter remaining elapse time is
less than 7 days, the buzzer will beep once and the digit will blink to notice user that the filter
cartridge is near its end of life.
5.8.2 End of Life Alert
When filter remaining capacity reaches 0 gallon (liter) or filter remaining time reaches 0 day, the
buzzer will beep twice and the digit will blink to notice user that the filter cartridge is in its end of
life, and out of function.
After change the filter cartridge, press RESET button. The DigiFlow 8000T will be reset to the
original filter remaining capacity and remaining elapse time value, and start monitoring filter again.
5.8.3 Low Battery Power Alert
When the battery power lower than normal working level, the buzzer will beep twice to notice and
the battery symbol on the screen will blink to notice user to change the battery. Once the batteries
are replaced, the alert will be released. The data will be kept in memory and stored back when user
replace the batteries.
