Savant Hst-studio46-2ch Quick reference guide

45 Perseverance Way, Hyannis, MA 02601

Savant® IP Audio Studio with Integrated Host

HST-STUDIO46-2CH | HST-STUDIO55-2CH

Deployment Guide

Document Number: 009-1839-01

Document Date: August 2019

Document Supports: da Vinci 9.1

009-1839-01 | 190801

Contents

1. Introduction ...............................................................................................................................................4

2. Equipment Overview.............................................................................................................................. 5

3. Wiring and Connections ....................................................................................................................... 7

3.1. IR Wiring ...............................................................................................................................................................................7

3.2. RS-232 Wiring.....................................................................................................................................................................7

3.3. Network Connection ....................................................................................................................................................... 8

3.4. Power .................................................................................................................................................................................... 8

4. Savant Music.............................................................................................................................................. 8

5. Installation ..................................................................................................................................................9

5.1. Bracket Selection.............................................................................................................................................................. 9

5.2. Bracket Installation .......................................................................................................................................................... 9

6. Blueprint......................................................................................................................................................11

6.1. Replacing a Host in a Conﬁguration ........................................................................................................................ 12

6.2. Adding a Host to the Layout Window..................................................................................................................... 13

6.3. IP Audio Soundbar..........................................................................................................................................................14

7. Web User Interface (Web UI).............................................................................................................15

7.1. Accessing the Web UI.................................................................................................................................................... 15

7.2. Status Tab...........................................................................................................................................................................16

7.3. Network Tab ......................................................................................................................................................................16

7.4. Inputs & Outputs Tab ..................................................................................................................................................... 17

Appendix: Network Requirements ..........................................................................................................18

009-1839-01 | 190801

Important Safety Information - Read First

Before installing, conﬁguring, or operating any equipment, Savant recommends

that each dealer, integrator, installer, etc. access and read all relevant technical

documentation. Savant technical documentation can be located by visiting

Savant.com. Vendor documentation is supplied with the equipment.

Read and understand all safety instructions, cautions, and warnings in this

document and the labels on the equipment.

Safety Statements

All safety instructions below should be read, understood, and applied under all

relevant circumstances when working with this equipment.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of any polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong is provided for your safety. If any provided

plug does not ﬁt into your outlet, consult an electrician for replacement of

the obsolete outlet.

10. Protect any power cord from being walked on or pinched; particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11. Use only attachments/accessories speciﬁed by the manufacturer, following

all relevant safety precautions for any such attachments/accessories.

12. Disconnect any outlet powered apparatus from its power source during

lightning storms or when unused for long periods of time.

13. Refer all servicing to qualiﬁed service personnel. Servicing is required

when the apparatus has been damaged in any way, such as a damaged

power supply cord or plug, liquid being spilled or objects having fallen into

the apparatus, the apparatus being exposed to rain or moisture, apparatus

having been dropped, or other failure to operate normally.

14. To completely disconnect equipment from AC mains power,

disconnect the power supply cord plug from the AC receptacle.

15. For applicable equipment, use the included power cord with the grounding

prong intact to insure proper grounding of the device.

16. For any hardwired or ﬁxed in-wall apparatus, carefully follow all wiring

diagrams and instructions. All electrical wiring and servicing should be

performed by a properly licensed electrician.

Safety Classiﬁcations In this Document

NOTE:Provides special information for installing,

conﬁguring, and operating the equipment.

IMPORTANT!

Provides special information that is critical to

installing, conﬁguring, and operating the equipment.

CAUTION!

Provides special information for avoiding situations

that may cause damage to equipment.

WARNING!

Provides special information for avoiding situations

that may cause physical danger to the installer, end

user, etc.

Electric Shock Prevention

ELECTRIC

SHOCK!

The source power poses an electric shock hazard

that has the potential to cause serious injury to

installers and end users.

ELECTRICAL

DISCONNECT:

The source power outlet and power supply input

power sockets should be easily accessible to

disconnect power in the event of an electrical hazard

or malfunction.

Weight Injury Prevention

WEIGHT INJURY!

Installing some of the Savant equipment requires two

installers to ensure safe handling during installation.

Failure to use two installers may result in injury.

009-1839-01 | 190801

1. Introduction

This guide will guide the installer through the process of installing, conﬁguring, and adding Savant IP Audio Studio with Integrated Host to a Blueprint

conﬁguration.

Before You Begin

Read through this document in its entirety and ensure that the following required items are available:

1. Unique ID (UID) of the Savant IP Audio Studio with Integrated Host...................................................................

2. Savant Development Environment (SDE/MacBook) ...................................................................................................

Requires da Vinci 9.1 or higher

3. AVB Ethernet network meeting Savants requirements (optional).........................................................................

See Appendix: Network Requirements

Deployment Steps

Follow these steps to successfully deploy Savant IP Audio Studio with Integrated Host. This page can be used as a checklist to record which steps have

been completed.

1. Review product speciﬁcations and connection details ..............................................................................................

See Equipment Overview

2. Install the Savant IP Audio Studio with Integrated Host............................................................................................

See Installation

3. Add the Savant IP Audio Studio with Integrated Host into a RacePoint Blueprint™ conﬁguration ..........

See Blueprint

009-1839-01 | 190801

2. Equipment Overview

The IP Audio Soundbar complements the Savant family of IP Audio and IP Video solutions for distributing audio over IP networks and is expertly

designed to provide a rich, detailed and immersive sound from your favorite sources. It is also part of the Savant from source to speaker audio

distribution platform: a scalable network audio architecture over AVB/TSN and includes integrated Class-D ampliﬁers

Box Contents and Speciﬁcations

Refer to the Quick Reference Guide for this product located on the Savant Customer Community for Box Contents and Speciﬁcations.

Front Panel

AFront Tweeters

(2) 25 mm Vifa XT Super Audio Tweeters

- HST-STUDIO55-2CH-00

(2) 25 mm Vifa DX Super Audio Tweeters

- HST-STUDIO46-2CH-00

Midrange/

Woofers

(4 or 6) 89 mm Long Throw Carbon Fiber

Midrange/Woofers

Side and Bottom Panel

Stage Tweeters (2) 19mm Stage Tweeters

BMounting Slide (2) Sliding mounting slides

IP-STUDIO46-2CH-00

IP-STUDIO55-2CH-00

009-1839-01 | 190801

Rear Panel

(3) IR Ports

Uses 6-pin IR Connectors to send IR signals to control devices

with an IR input or IR receiver via an IR ﬂasher (5V tolerant only).

See IR Wiring section for important

precautions regarding IR functionality before making any

connections.

RS-232

(2) RS-232 Ports

Uses 6-pin Screw down plug-in connection. Transmits and receives

serial data to and from serial controllable devices. For pin-out

information, refer to the RS-232 Wiring section below.

Ethernet

8-pin RJ-45 port

10/100 Base-T auto-negotiating port.

Supports Audio Video Bridging (AVB).

Ethernet

ResetStatus

Digital Audio

IRRS232

GND

100-240 V~ 50-60 HZ 2.2A

IP Audio Soundbar

GFE

DPower 100/240V AC (50/60 Hz)

EStatus LED

Green Blinking: Embedded system is ready, but no communication has been established with the host.

Green: Host has established communications with the embedded system.

Red Blinking: Embedded ﬁrmware is running, but has not received a DHCP IP Address.

Red: Host has determined the ﬁrmware needs to be updated, but a problem occurred during the process that will initiate a reset.

Amber Blinking: Embedded system has a valid link local IP Address and is connecting to the host.

Amber: Host is updating the embedded ﬁrmware.

O: Embedded processor is resetting, or is powered up, and is booting the embedded

ﬁrmware.

Hardware Failure: If a hardware failure occurs, the status LED indication will be interrupted every three seconds with a solid red

indication. For example, if the LED is blinking green when a hardware failure occurs, the LED will alternate between blinking

green and solid red at three-second intervals.

FReset

Resets the network.

Hold Reset Button for 5 seconds while powered On to clear static IP Address settings. Status LED will rapidly blink red when

reset is complete.

GDigital Audio

Digital optical audio inputs (TOSLINK).

Supports up to 192kHz/24-bit digital audio in; PCM stereo format only.

009-1839-01 | 190801

3. Wiring and Connections

The Savant IP Audio Soundbar control connections send data to control a device and receive data to display current status on the user interfaces or trigger

a system action. Each port type may support multiple protocols that are determined by the logical connection within Blueprint.

3.1. IR Wiring

IR connections are made using a 6-pin screw down plug-in

connector supplied with the controller. The stripped wire slips into

the rear of the connector and the screws are used to lock the wire in

hole.

IMPORTANT! Read precautions below before proceeding!

–All IR emitters must be installed 15 feet (4.6 meters) or less from

the chassis or receiver being controlled.

–Use of 3rd party ﬂashing IR emitters with Talk Back is not

recommended. These types of emitters can draw voltage away

from the IR signal which degrades the IR performance.

Use white stripe

for Positive (+)

Pin IR 1

Pin IR 1 +

Pin IR 2

Pin IR 2 +

432

165

Pin IR 3

Pin IR 3 +

NOTE: The Control Connector installs with the screws facing down. On the device

the pins are in the reverse order.

To connect wires into terminal block connector:

1. Remove power if power is applied.

2. Pull to remove the connector from the rear of the controller.

3. With a small ﬂat bladed screwdriver, turn the screws on the top

of connector counterclockwise until the silver crimps in the front

open enough to slide the wire into the square slot.

4. Strip the ends of each wire to ¼ inch. Using the diagram to the

left, insert the stripped wires into the proper slots.

5. Turn the screws clockwise until the screw tightens around each

wire. Tug on the wire a bit to verify it is installed securely. There

should no bare wires protruding from the rear of the connector.

6. Plug terminal block back into the rear of the controller.

3.2. RS-232 Wiring

RS-232 connections are made using a 6-pin screw down plug-in

connector supplied with the controller. The stripped wire slips into the

rear of the connector and the screws are used to lock the wire in hole.

Pin GND 1

Pin TX 1

Pin RX 1

Pin GND 2

432

165

Pin TX 2

Pin RX 2

NOTES:

- Wire colors shown do not represent any standard.

- The Control Connector installs with the screws facing down. On the device

the pins are in the reverse order.

To connect wires into the terminal block connector:

1. Remove power if power is applied

2. Pull to remove the terminal block from rear of the controller.

3. With a small ﬂat bladed screwdriver, turn the screws on the top of

the terminal block counterclockwise until the silver crimps in the

front open enough to slide the stripped wires into the square slots.

4. Insert one of the stripped wires from the devices being controlled

into its respective slot on the terminal block. Refer to the diagram.

5. Turn the screw clockwise until the silver crimp tightens around the

wire. Tug on the wire a bit to verify the wires are installed securely.

Make sure a minimal amount of bare wire is exposed to prevent

contact between adjacent wires.

6. Repeat for each wire till all wires are installed and plug terminal

block back into the rear of the controller.

7. Reapply power.

009-1839-01 | 190801

3.3. Network Connection

The Savant IP Audio devices use a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port also supports Audio Video Bridging

(AVB) or Time Sensitive Networking (TSN) over Ethernet (AVB/TSN, IEEE 802.1). Up to forty ﬁve IP Audio devices can be connected using AVB/TSN

compliant switching. For more information on this, see Appendix: Network Requirements.

3.4. Power

The IP Audio Soundbar has a AC Power connection.

SURGE PROTECTION!

Use a surge-protected circuit for all components and power supplies requiring 100/240V (AC 50/60 Hz) source power.

ELECTRICAL DISCONNECT!

The source power outlet and power supply input power sockets should be easily accessible to disconnect power in the event of an electrical hazard

or malfunction.

4. Savant Music

The IP Audio Studio with Integrated Host has a single stream of Savant Music. This allows the use of popular music streaming services such as Pandora or

Spotify (streaming music service fee may apply). For a full list of supported services, see Savant Media Server/Savant Music Supported Streaming Services

on the Savant Customer Community.

The service is generated in Blueprint. The streaming services are managed in the Savant Pro App.

009-1839-01 | 190801

5. Installation

The included install brackets are designed to be used with the VESA Mounting points on Flat Panel Televisions. The Installer MUST verify that the TV Mount/

Stand can hold the excess weight of the Soundbar. The Soundbar can be mounted above or below a TV.

5.1. Bracket Selection

The choice of bracket is based on the thickness of the TV. Ideally the Soundbar should be ﬂush with the front of the TV.

TV Thickness Bracket Extension Minimum wall mount depth

0.9 - 1.2 in C-Shape None 1.1 in

1.9 - 2.8 in C-Shape 50 mm 1.1 in

2.7 - 3.6 in C-Shape 70 mm 1.1 in

2.1 - 2.5 in L-Shape None None

3.0 - 4.0 in L-Shape 50 mm None

3.8 - 4.7 in L-Shape 70 mm None

5.2. Bracket Installation

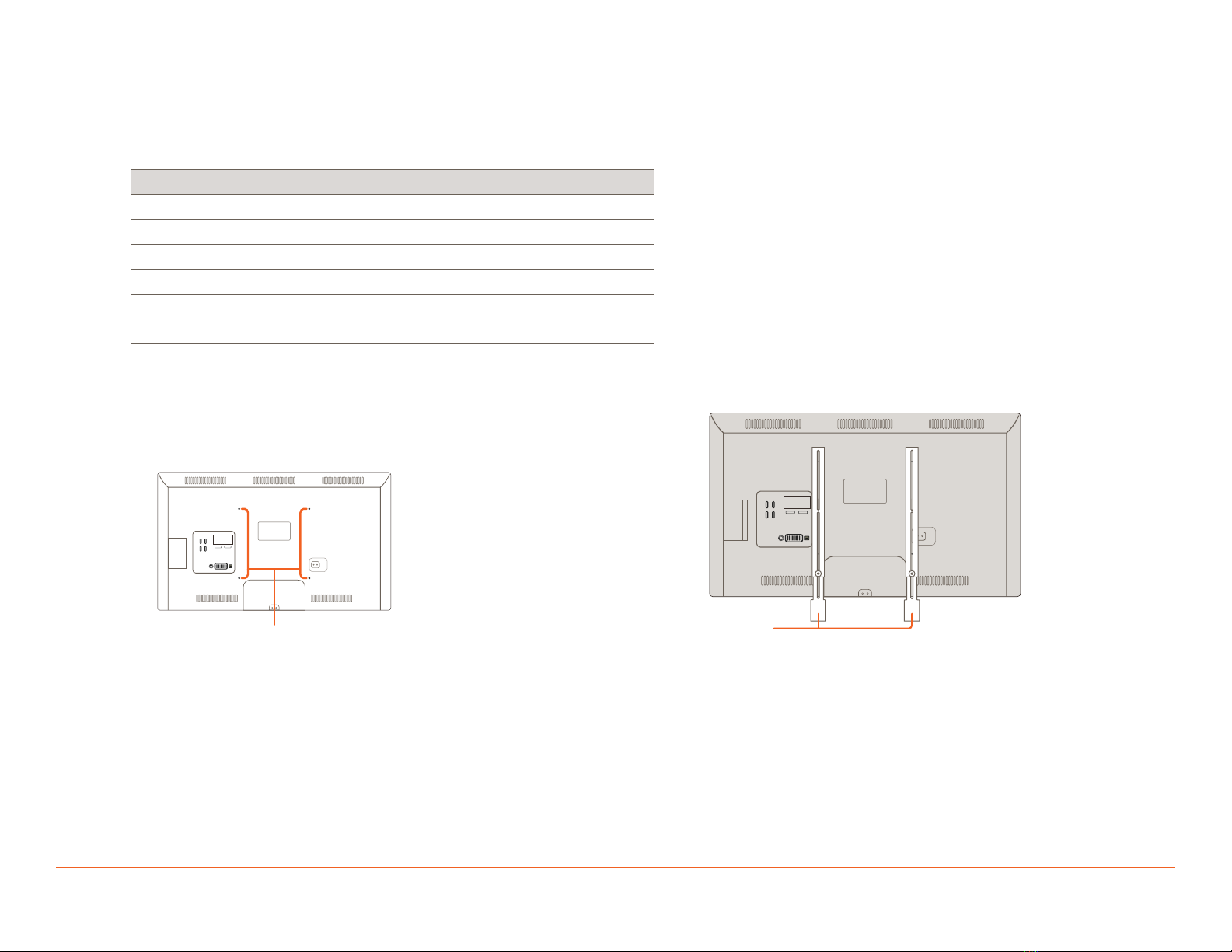

1. Remove the TV from the Mount/Stand.

NOTE: This may require two people.

2. Place the TV display side down on a soft non-abrasive surface.

3. Remove any existing Mounting bracket and screws from the

VESA mounting points.

VESA

mounting points

4. Choose the desired Mounting Bracket (use the Bracket Selection

table on the previous page). Find the screws that ﬁt the TV’s

VESA mounting points.

5. Attach the Mounting Bracket to the TV. The Soundbar brackets

should be between the TV and the TV mount.

Brackets

Aligned with the VESA mounting points

009-1839-01 | 190801

6. Adjust the length of the brackets

7. Attach the optional extension brackets if needed.

8. Attach the Soundbar.

Optional Extension Bracket

L-Shape Bracket shown here

9. Reattach to the TV mount/stand.

UMB Stabilzers

In cases where the VESA mounting points are narrowly spaced or non

VESA compliant use of the UMB Stabilizers is suggested.

1. Locate a section of the TV’s chassis as close to the end of the

Slider Arm that is ﬂat enough to mount the stabilizer foot,

preferably close to the edge of the TV.

2. Clean the intended attachment area on the TV chassis with an

alcohol wipe to remove any latent grease.

3. To install the Slider Arm, ﬁrst screw one of the Stabilizer Nuts onto

the thread, close to the swivel base. Place the assembly underneath

the Slider Arm and insert the threads through the Arm slot

4. Once in place, peel the red backing ﬁlm o of the base and stick

ﬁrmly to the TV chassis.

5. Install the second nut onto the threads and tighten both in place to

hold the speaker brackets in the correct placement.

Back of the TV

Mounting Bracket

UMB Stabilizer

6. Break o the any additional thread of the stabilizer with a pair of

pliers.

009-1839-01 | 190801

6. Blueprint

Hosts are automatically added when a new conﬁguration is opened, however, they are not placed onto the Layout Window. A host must be placed onto the

Layout Window in order for it to used within the system. The IP Audio Studio with Integrated Host must be placed in Blueprint twice to be used as a Host

and as a Soundbar. There are two dierent proﬁles for the device. Use the HST-STUDIO proﬁle for the Host and the IP-STUDIO proﬁle in the user zone for

the Soundbar functions. Both proﬁle use the same UID.

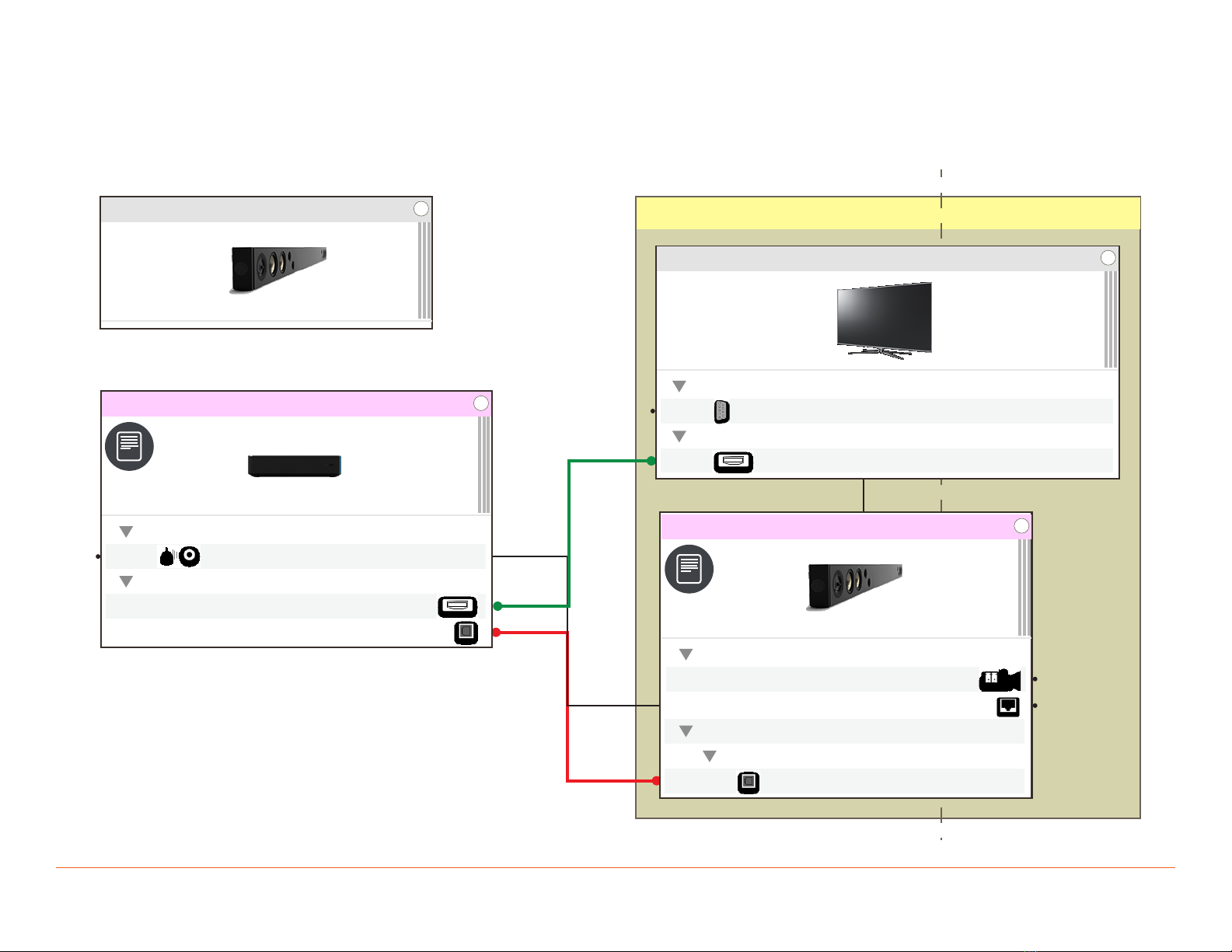

Below is a simple Blueprint example of a conﬁguration.

Family Room

Cable TV

Control Ports

DIGITAL AUDIO OUT (Digital Optical)

HDMI OUT (HDMI)

Outputs

Savant Host

IP SoundBar

RS-232 1

Control Ports

Assigned Inputs

Digtial Audio In 1 (Digital Optical)

IR(Serial PWM) Output 1

Audio Input 1

HD TV

Control Ports

Inputs

HDMI IN (HDMI)

RS232C IN

009-1839-01 | 190801

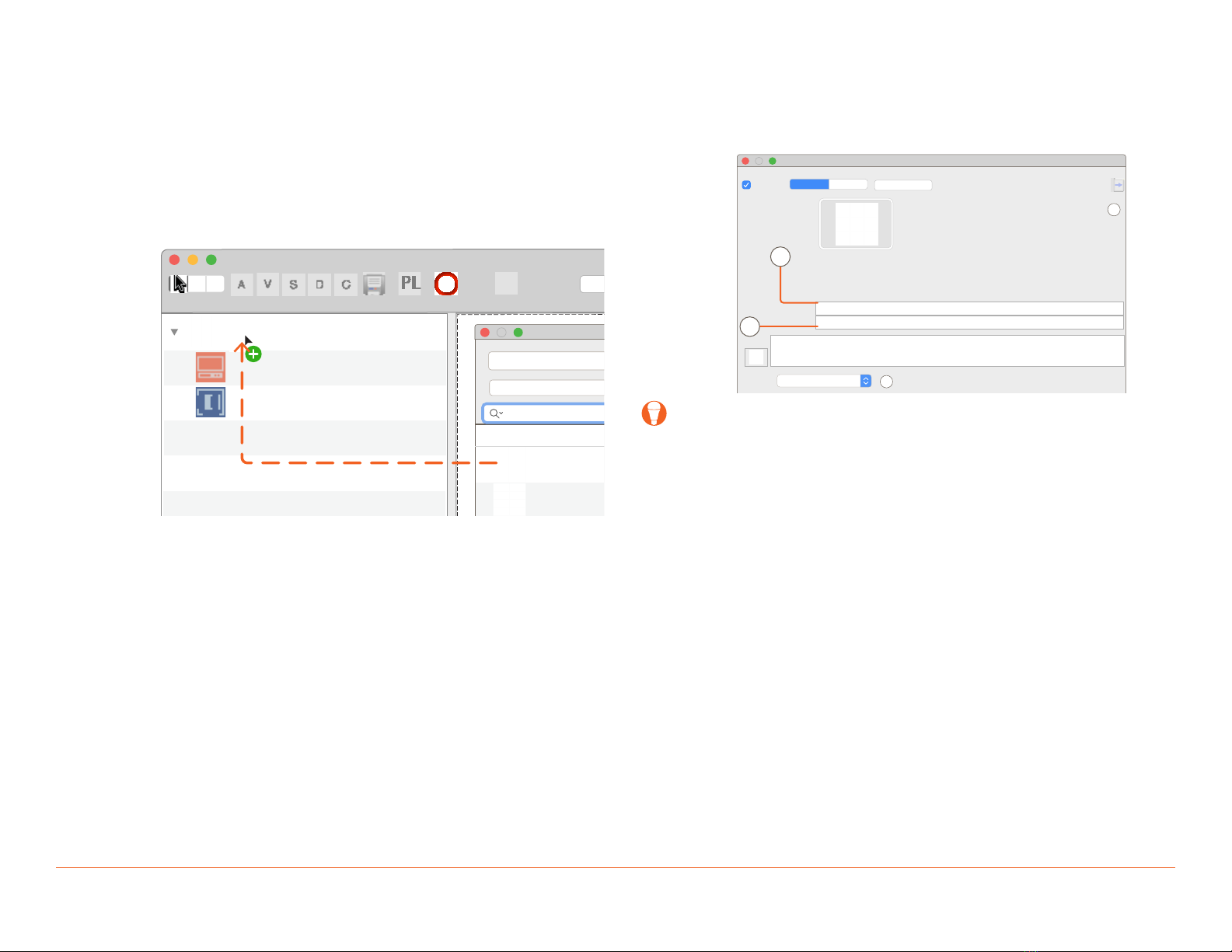

1. In an open Blueprint conﬁguration, open the Component Library

by navigating to:

View > Show Component Library

2. Enter Host into the Search ﬁeld.

3. Select the HST-STUDIO proﬁle in the list and drag it onto the

host in the left side room list.

Savant Host

Shared Equipment

Room 1

Tool Palette Layer Filter License State

Update All UI Screens

Save Generate Services

Components

All Components

All Manufacturers

Host

Components

Savant

HST-STUDIO (HST-STUDIO46-2CH-00...

Savant

Pro Host (SVR-5100S)

4. Select Replace when prompted.

5. At the top of the Room List, select the host and drag it onto the

Layout Window.

6. Enter a unique Device Name and the Savant UID for the host.

The Savant UID is used to identify the host on the network so

that a conﬁguration may be uploaded.

A. Select the Host in the Layout Window and open the

Inspector by navigating to:

View > Show Inspector

B. Enter a Device Name that is unique to the system.

Inspecting “Savant Host”

Data I/Os

Screens

Device Hide Details

D 1.8

Edit

Class:

Manufacturer:

Model:

Device Name:

Savant UID:

Notes:

Show:

Savant Host

Savant

HST-STUDIO

Dresden45 Host

TIPS:

–Savant recommends using the customer’s last name and a number

unique to the customer followed by Host.

Example: Dresden45 Host

–Host names over 20 characters can cause some communication

issues.

C. Enter the Savant UID for the host.

6.1. Replacing a Host in a Conﬁguration

There are a variety of Host types that can be used when a new conﬁguration is created. If a dierent Host type exists in the conﬁguration, follow these

steps to replace the existing Host with an IP Audio Studio with Integrated Host.

009-1839-01 | 190801

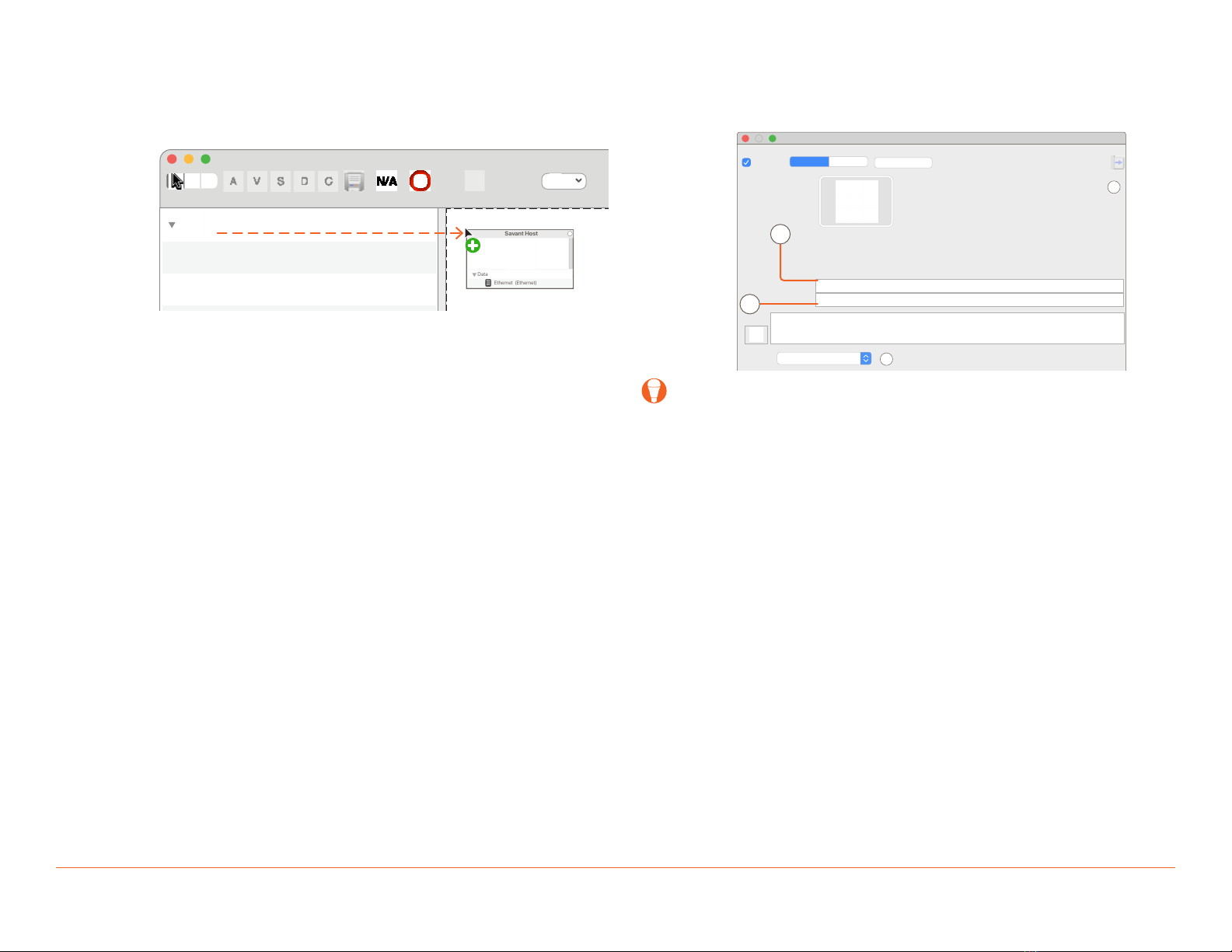

1. In an open Blueprint conﬁguration, select the host at the top of

the Room List and drag it onto the Layout Window.

Savant Host

Data

Ethernet (Ethernet)

Savant Host

Shared Equipment

Room 1

Tool Palette Layer Filter License State Update All UI ScreensSave Generate Services

2. Enter a unique Device Name and the Savant UID for the host.

The Savant UID is used to identify the host on the network so

that a conﬁguration may be uploaded.

D. Select the host in the Layout Window and open the

Inspector by navigating to:

View > Show Inspector

6.2. Adding a Host to the Layout Window

This section is used if a conﬁguration has the HST-STUDIO as its default Host.

Follow the steps below:

E. Enter a Device Name that is unique to the system.

Inspecting “Savant Host”

Data I/Os

Screens

Device Hide Details

D 1.8

Edit

Class:

Manufacturer:

Model:

Device Name:

Savant UID:

Notes:

Show:

Savant Host

Savant

HST-STUDIO

Dresden45 Host

TIPS:

–Savant recommends using the customer’s last name and a number

unique to the customer followed by Host.

Example: Dresden45 Host

–Host names over 20 characters can cause some communication

issues.

F. Enter the Savant UID for the host.

009-1839-01 | 190801

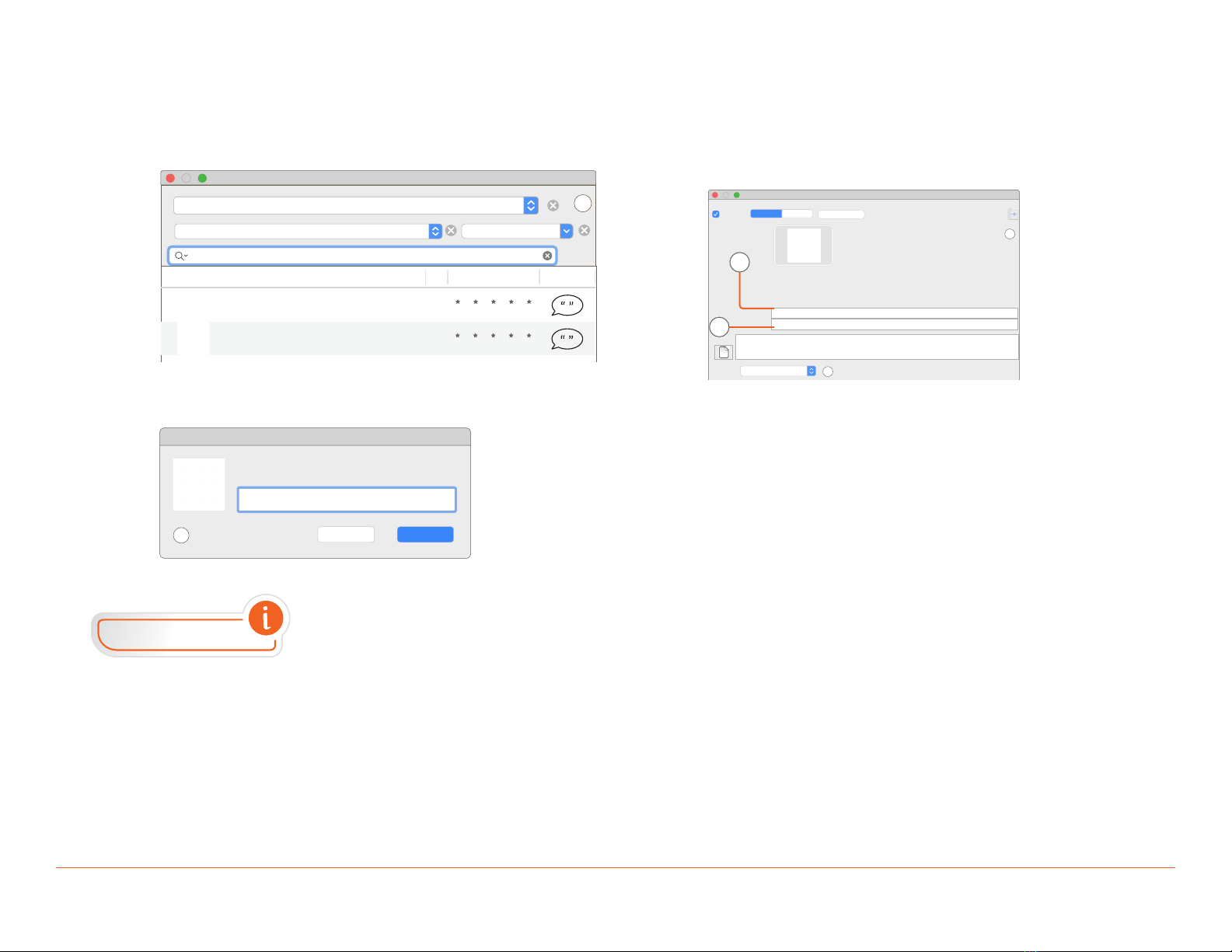

In an open Blueprint conﬁguration do the following:

1. Click Show Library.

2. Search for IP-STUDIO.

Components

All Control Types

All Components

All Manufacturers

IP-STUDIO

Components TL Rating Comment

Savant

IP-STUDIO46-2CH

Savant

IP-STUDIO55-2CH

3. Select the Soundbar model being used and drag into a User

zone.

4. Name the device.

Enter a unique name for the component

IP Soundbar

Cancel Create

5. Place the Soundbar in the Layout window.

6. Select the Soundbar.

7. Open Inspector.

8. Enter UID.

Inspecting “Savant Host”

Data I/Os

Screens

Device Hide Details

D 1.8

Edit

Class:

Manufacturer:

Model:

Device Name:

Savant UID:

Notes:

Show:

Savant Host

Savant

HST-STUDIO

Dresden45 Host

6.3. IP Audio Soundbar

This example shows adding an IP Audio Soundbar proﬁle to a Blueprint conﬁguration. This section is required in order to use the Soundbar features in

the conﬁguration.

LEARN MORE

For more information on using the IP Audio Studio with Integrated Host in a system with other AVB devices see the Savant IP Audio Speaker and

Soundbar Deployment Guide or the Savant IP Audio Deployment Guide on the Savant Customer Community.

009-1839-01 | 190801

7. Web User Interface (Web UI)

In addition to Blueprint, the IP Audio devices have a Web UI. This allows control of setting and audio connections. It can be used in troubleshooting.

7.1. Accessing the Web UI

In order to access the Web UI, the IP Address of the IP Audio device is needed. This can be obtained from System Monitor, rpmEmbScanner, or any

network scanning software.

1. On the SDE, open a Web Browser and enter the address of the switch in the address bar:

Syntax: http://[IP Address of Switch]

10.0.100.50

Favorites

iCloudSavantGoogleApple

2. Once opened, login credentials will be required:

User Name: RPM

Password: RPM

Your password will be sent unencrypted.

User Name

Password

Remember this password

Cancel Log In

3. Select Go To Audio Controller Page.

10.0.100.50

Go To Audio Controller Page

Go To Lighting Page

NOTE: For information on the Lighting Page, see the System Monitor Reference Guide section on WiFi Lighting on the Savant Customer Community.

009-1839-01 | 190801

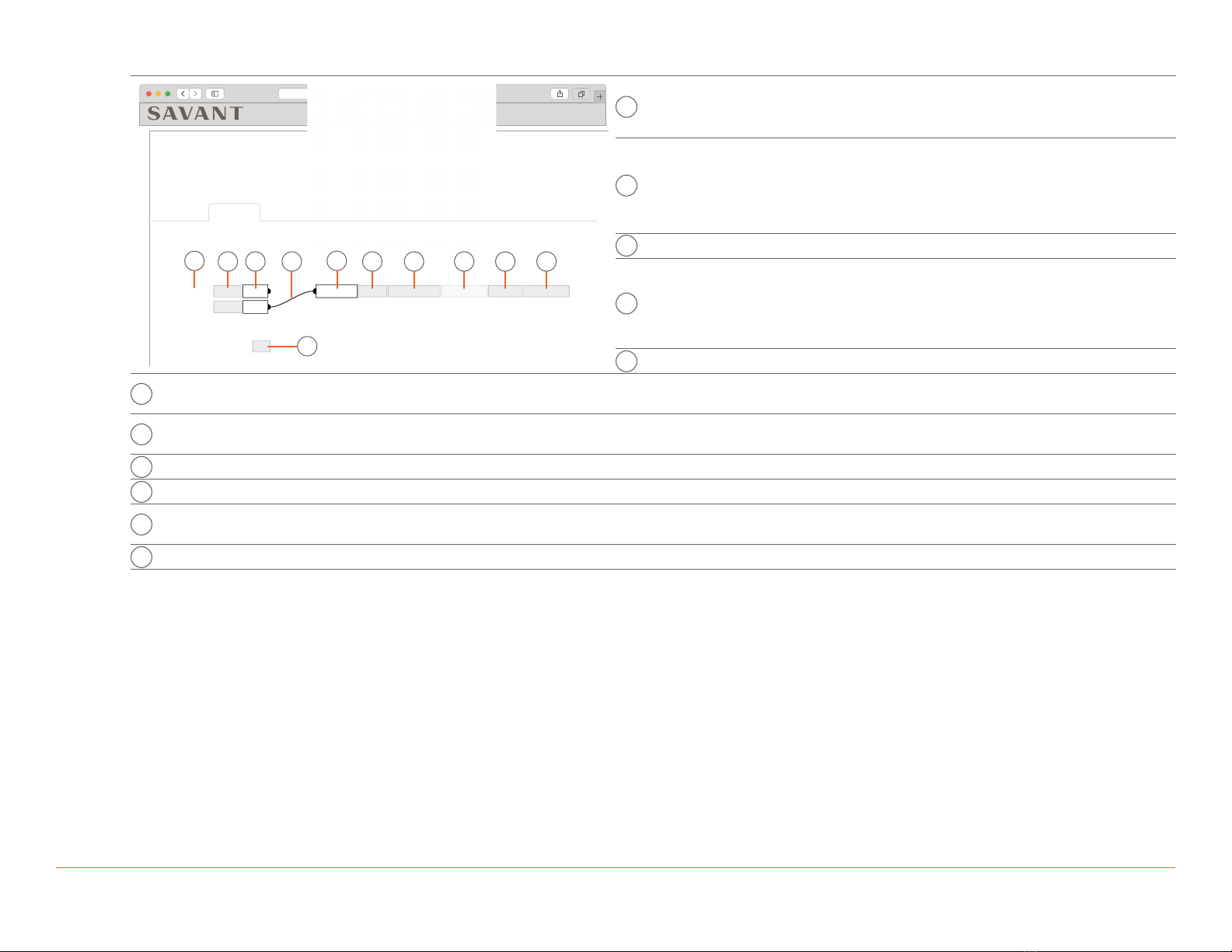

7.2. Status Tab

10.0.100.50

46-Inch Host Soundbar, HST-STUDIO46-2CH

Status Network Inputs & Outputs

Status

Savant ID

IP Address

Firmware Version

Uptime

001AAE0000000000

10.0.100.50

9.1:62

0 days 2 hours 53 minutes

Restart

EDC

ASavant ID UID of the device.

BIP Address Current assigned IP Address.

CFirmware Version Current Firmware Version number.

DUptime Amount of time the unit has been powered without a

restart.

ERestart Restarts the software of the unit.

7.3. Network Tab

10.0.100.50

46-Inch Host Soundbar, HST-STUDIO46-2CH

Status Network Inputs & Outputs

Network

DHCP

IP Address

Subnet Mask

Router 10.0.100.1

Apply & Restart

Static

255.255.255.0

0.0.0.0

Revert

AIP Address

Conﬁguration DHCP (Dynamic Host Conﬁguration Protocol) or Static.

IP Address

Displays the current IP Address and allows for entry.

This is automatically assigned when item A is set to

DHCP.

CSubnet Mask Subnet mask of the network. This is automatically

assigned when item A is set to DHCP.

DRouter IP Address of the network router. This is also known as

Gateway or Default Gateway.

ERevert Select to erase entered settings and revert back to

saved settings.

FApply & Restart Select to apply entered settings, and restart the device.

NOTE: Setting the IP address to a static address from the WebUI will automatically set the DNS for the Host to 8.8.8.8 and 8.8.4.4 (Google).

009-1839-01 | 190801

7.4. Inputs & Outputs Tab

10.0.100.50

46-Inch Host Soundbar, HST-STUDIO46-2CH

Status Network Inputs & Outputs

Inputs & Outputs

Digital In

Media Server

0 dB

Subwoofer Configution

0 dB







Connector Trim

Sub

Stereo LR Pass-Through 0/0 msProcess Volume -40

Delay

JIHGF

AConnector Type

Digital Input (TosLink) or Media Server.

NOTE: Audio paths that originate from a dierent AVB

device do not show here.

Channel Trim

Adjusts the gain of the input from -10 dB to +10 dB.

For testing or troubleshooting use. Changes made

in the WebUI aect local outputs only, and are over

written during system startup. To permanently adjust

trim settings, apply the changes in System Monitor.

Input List List of the inputs on the device.

I/O Connection

Indicator

Active connections are represented by a black line

between the input and output. To connect an input to

an output manually from the WebUI, click and drag

to draw the connection between the black dot on the

input to the black dot on the output.

EOutput List List of the outputs on the device.

FOutput Channels Toggle between Stereo and Mono by clicking in this ﬁeld. Mono Summing combines the left and right input signal

into a single speaker channel output.

GLeft/Right Channel swap Toggle between LR Pass-Through and LR Swap. If the Soundbar is mounted on top of a TV or is other wise

ﬂipped over this will reverse the Left and Right Channels.

HProcess Toggle between Process or Pass-Through, this feature is disabled on the IP Audio Studio devices.

IDelay Adjustable delay per channel from 0 - 160ms.

JVolume Adjusts the volume level of the output channel. For speaker outputs, the possible adjustment range is dierent

on the various IP Audio devices these changes are made in 1dB increments.

KSubwoofer Conﬁguration Toggle on or o. If on it enables a ﬁxed high pass ﬁlter at 80Hz.

009-1839-01 | 190801

Appendix: Network Requirements

Savant requires the use of business class/commercial grade network equipment throughout the network to ensure the reliability of communication between

devices. These higher quality components also allow for more accurate troubleshooting when needed.

Device Network Connections

Connect all Savant devices to the same local area network (LAN) or subnet as the host. Savant recommends not implementing any type of trac or packet

shaping in your network topology for the Savant devices as this may interfere with performance.

AVB Requirements

Savant requires a AVB/TSN Compliant Switch.

Managing IP Addresses

To ensure that the IP Address will not change due to a power outage, a static IP Address or DHCP reservation should be conﬁgured. Savant recommends

using DHCP reservation within the router. By using this method, IP Addresses for all devices can be managed from a single UI avoiding the need to access

devices individually.

Setting a Static IP Address

Setting a Static IP Address can be done in the Web UI on the Network Tab.

Setting DHCP Reservation

Setting DHCP reservation varies from router to router. Refer to the documentation for the router to conﬁgure DHCP reservation.

Network Changes

Savant recommends performing one of the following steps to refresh the IP connection after connecting to a new network, changing routers, or if the IP

Address range is changed in the current router. This will reset any IP connection and ensure that the host is communicating with the network correctly.

Cycle Power

–Disconnect the IP Video device from the power source.

–Wait 15 seconds and then reconnect.

Hot Plug the Ethernet (LAN) Connection

–Disconnect the Ethernet (LAN) connection from the device.

–Wait 15 seconds and then reconnect.

009-1839-01 | 190801

Important Notice

Disclaimer

Savant Systems, LLC. reserves the right to change product speciﬁcations without notice, therefore, the information presented herein shall not be construed

as a commitment or warranty.

Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages

resulting from the performance, furnishing, reliance on, or use of this material.

Patents

Certain equipment and software described in this document is protected by issued and pending U.S. and foreign patents.

All products and services are trademarks or registered trademarks of their respective manufacturer.

this document is prohibited without the permission of Savant Systems.

Trademarks

TrueCommand, TrueControl, and the Savant logo are trademarks of Savant Systems, LLC.

AirPlay, Apple, AirPort Express, AirPort Extreme, Apple TV, Apple Remote Desktop, FireWire, iMac, iTunes, iPad, iPad mini, iPad Air, iPhone, MacBook, Mac

and OS X are trademarks or trade names of Apple Inc. iOS is a trademark of Cisco®. Android, Google, Google Play, and other Google marks are trademarks

of Google, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance®. HDMI® is a trademark of HDMI Licensing, LLC. MOTU® is a registered trademark of
