Savant® IP Audio Studio with Integrated Host and Grille - Black Quick Reference Guide
HST-STUDIOxxBG-2CH-xx
Product Specific Contents
IP Audio Studio SoundBar 46 [HST-STUDIO46BG-2CH]
(1) Soundbar (093-3100-xx)
(1) Standard Grille (093-3225-xx)
IP Audio Studio SoundBar 55 [HST-STUDIO55BG-2CH]
(1) Soundbar (093-3102-xx)
(1) Standard Grille (093-3226-xx)
Universal Box Contents
(2) 6-Pin Control Connector (028-9352-xx)
(1) Power Cord (064-0480-xx)
(1) Install Kit (075-0256-xx)
(1) Pair of White Gloves (099-0348-xx)
(2) Wall Mounting Bracket (071-1130-xx)
(1) 3mm Allen Wrench (015-0222-xx)
(8) M5x10mm hex screw (039-0440-xx)
(4) 25mm Washer 5mm ID (039-0437-xx)
(2) 50x90 Bracket Extension (071-1112-xx)
(2) 70x90 Bracket Extension (071-1113-xx)
(2) 6-pin Control Connector (028-9352-xx)
(2) Plastic Feet (073-1030-xx)
(2) Rubber Pads for Feet (073-0014-xx)
(1) Product Regulatory Insert (009-1950-xx)
Optional Accessories (sold separately)
–Soundbar TV Mount Hardware (MNT-STUDIO-TV-xx)
–Custom Grilles matched to Flat Panel TV
Front Panel
HST-STUDIO46BG-2CH-xx
HST-STUDIO55BG-2CH-xx
A B
AFront Tweeters
STUDIO46:
(2) 25 mm Vifa DX Super Audio Tweeters
STUDIO55:
(2) 25 mm Vifa XT Super Audio Tweeters
B
Midrange/
Woofers
(4 or 6) 89 mm Long Throw Carbon Fiber
Midrange/Woofers
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight
Height 4.67 in (11.87 cm) with grille
Width STUDIO46 with grille 45.4” (11.53cm)
STUDIO55 with grille 54.1” (137.41cm)
Depth 2.77 in (7.04 cm) with grille
Weight
Shipping:
STUDIO46 22.6 lb (10.3 kg)
STUDIO55 29.3 lb (13.3 kg)
Power
Input Power 100/240V AC (50/60 Hz)
Maximum Power
Draw 250W
Networking
Supported
Standard IEEE 802.1 AVB/TSN switches
Operating Parameters
Frequency
Response 80 Hz - 40 kHz +/- 3 dB
Sensitivity 89 dB @ 2.83V/1 meter
Regulatory
Safety and
Emissions
FCC Part 15B CE Mark C-Tick UL
RoHS Compliant
Minimum Support Requirements
Software
Release
da Vinci 9.1

IP Audio Studio with Integrated Host QRG | 009-1835-02 45 Perseverance Way, Hyannis, MA 02601
Copyright 2020 Savant Systems, Inc | 201103 2 of 2 Savant.com | 508.683.2500

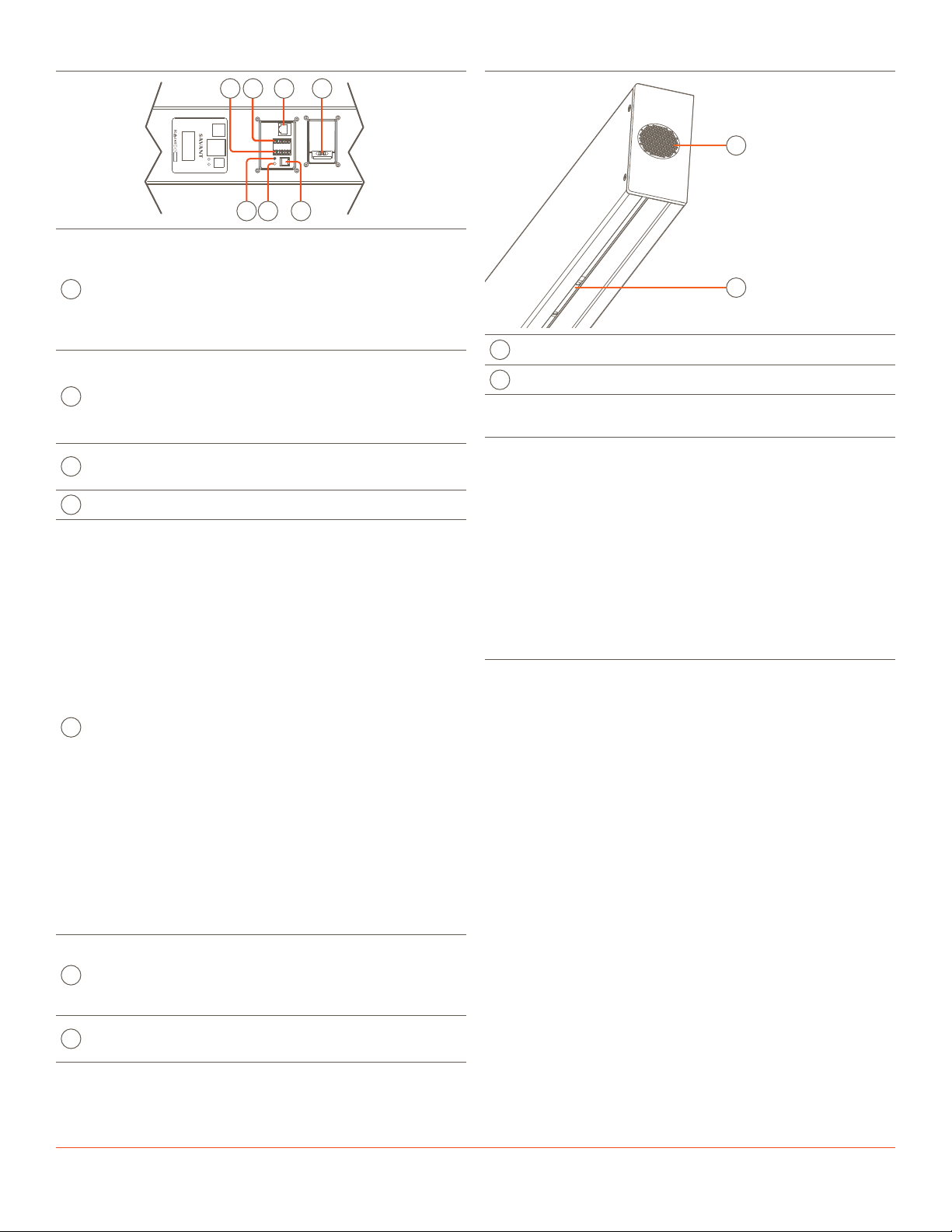

Rear Panel
Ethernet
ResetStatus
Digital Audio
In
IRRS232
GND
TX
RX
GND
TX
RX
2
1
-
1
+
-
2
+
-
3
+
100-240 V~ 50-60 HZ 2.2A
IP Audio Soundbar
G
F
E
D
C
B
A
AIR
(3) IR Ports
Uses 6-pin IR Connectors to send IR signals
to control devices with an IR input or IR
receiver via an IR flasher (5V tolerant
only). See the Savant® IP Audio Products
with Integrated Host Deployment Guide
for important precautions regarding IR
functionality before making any connections.
BRS-232
(2) RS-232 Ports
Uses 6-pin Screw down plug-in connection.
Transmits and receives serial data to and
from serial controllable devices. For pin-
out information, refer to the RS-232 Wiring
section below.
CEthernet
8-pin RJ-45 port
10/100 Base-T auto-negotiating port.
Supports Audio Video Bridging (AVB).
D
Power 100/240V AC (50/60 Hz)
E
Status LED
Green Blinking: Embedded system is ready,
but no communication has been established
with the host.
Green: Host has established communications
with the embedded system.
Red Blinking: Embedded firmware is running,
but has not received a DHCP IP Address.
Red: Host has determined the firmware
needs to be updated, but a problem
occurred during the process that will initiate
a reset.
Amber Blinking: Embedded system has a
valid link local IP Address and is connecting
to the host.
Amber: Host is updating the embedded
firmware.
O: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure
occurs, the status LED indication will be
interrupted every three seconds with a
solid red indication. For example, if the LED
is blinking green when a hardware failure
occurs, the LED will
alternate between blinking green and solid
red at three-second intervals.
FReset
Resets the network.
Hold Reset Button for 5 seconds while
Powered On to clear network settings. Status
LED will rapidly blink red when reset is
complete.
GDigital Audio In
Digital optical audio inputs (TOSLINK).
Supports up to 192kHz/24-bit digital audio
in; PCM stereo format only.
Side and Bottom Panel
A
B
AStage Tweeters (2) 19mm Silk Tweeters
BMounting Slide (2) Captive M5 threaded bracket
Wall Mount
NOTE: Make all wiring connections to soundbar before mounting to
brackets.
1. Using appropriate fasteners to support the weight of the soundbar,
ax wall mounting brackets to the wall, allowing sucient space
between brackets to ensure stability.
2. If utilizing the included bracket extensions, connect to wall
mounting brackets using M5x10mm screws.
3. Align the captive M5 threaded brackets inside soundbar mounting
slide with position of wall mounting brackets.
4. Attach soundbar by threading M5x10mm screws through wall
brackets and into the soundbar captive mounting slide brackets
Plastic Feet
1. Align the captive M5 threaded brackets in the soundbar mounting
slide beneath the center speakers of right and left side channels.
2. Secure plastic feet to the captive brackets using M5x190mm
screws.
3. Remove wax paper from the adhesive backing on included rubber
pads and attach one to each of the plastic feet.
For more information on installing this SoundBar see the Savant IP
Audio Studio with Integrated Host Deployment Guide on the Savant
Customer Community.
