Sawyer 206K Series User manual

Model No. Description Weight
206K-110 Battery Ready / 110v Electric Band Crawler 10 lbs. 4.53 kg.
206K-
22 0 Battery Ready / 220v Electric Band Crawler 10 lbs. 4.53 kg.
FEATURES AND BENEFITS
• Industrial grade, brushless motor for durability and long life
• Battery-powered, using a DeWalt style 20v battery
(not included)
• Intelligent speed control with a range that allows for flame
or plasma cutting
• Extension cords and plugs are water, arctic, and flame
resistant
• Durable cast aluminum motor mount increases rigidity
• High visibility yellow polymide control box with integrated
handle
• Shielded magnet included on the control box for
attachment to pipe during use
MOTOR KIT INCLUDES
• Brushless Motor
• Control Box
• Extension Cord
• Mounting Bracket
• AC Adapter
918-834-2550 sawyermfg.com
Battery
Ready
Motor Kit
BEVELING ACCESSORIES
Model 206K
ESTIMATED SHIPPING WEIGHT
OVERVIEW
Increase cut quality and productivity
with Sawyer’s Battery Ready Motor Kit.
This kit converts a manual band crawler
into an electric motor drive that is AC or
battery powered - using a 20 volt DeWalt
style battery. This is a simple upgrade
that includes a mounting bracket and
connector to connect to the crawler.
Follow us on social media and watch product
videos on our YouTube channel Sawyer Mfg
*Baery not included

918-834-2550 sawyermfg.com
7
10
6
5
1 2
4
3
8
11
9
12
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Dewalt Style 20V Baery
AC Adapter for Cordless Yellow Box
Cordless Yellow Box Controller w/ Electronics
Yellow Box Cable with Plug
Connector Cable - 15 Foot
Brushless Motor Cable with Plug
Sawyer Brushless Motor
Output Sha For Brushless Motor
Screw for Motor Mount (Qty. 4 Req.)
Connector for Motorizing Kit
Transmission Motor Mount
Connector for Flexible Drive Sha
Worm Sha Assembly
Beveling Transmission / Crawler Body
LED Light
525-76
525-71
4TX
525-74
525-72
525-75
525-70
29EJ
515-35
114J-2
114S
93B-1
4DA
206A
Part No. Part No.Part Name Part NameNo. No.
LED Light Colors:
Blue – When the knob is at zero and in forward or reverse – Shows Power is on
Green – Bright for first 5 seconds and then dims when above 0 speed on the knob
Red – Speed control has sensed caution so has stopped the unit. Make sure all items are clear for restart.
Switch needs to be set back to the middle to restart when ready
Assembly Instructions
Converting Model 206A (Manual) Crawler to Electric
1. Remove Flexible Drive Shaft from Crawler
2. Remove Connector (12). Do NOT remove Worm Shaft
Assembly (13)
3. Fit Mount (11) over end of Worm Shaft (13), up to front
of Crawler Body (14)
4. Connector (10), fits through hole in Mount (11), and over
end of Worm Shaft (13), and is screwed into front end of
Crawler Body (14) - hand tight
5. Insert Output Shaft (8) of Drive Motor (7) into end of
Worm Shaft Assembly (13). You will probably have to
grasp one of the Drive Wheels with your hand or pliers
and rotate it slowly while gently pushing in on the Drive
Motor (7) until you feel the key in the end of the Worm
Shaft Assembly (13) line up with the key-way in the
Drive Motor Output Shaft (8). The Drive Motor should
slide into place
6. Bolt Drive Motor (7) to Mount (11)
7. Snug-up Connector (10)
8. Connect up electrics
** Align arrows on connectors. Failure to do so can cause
damage to pins and void warranty

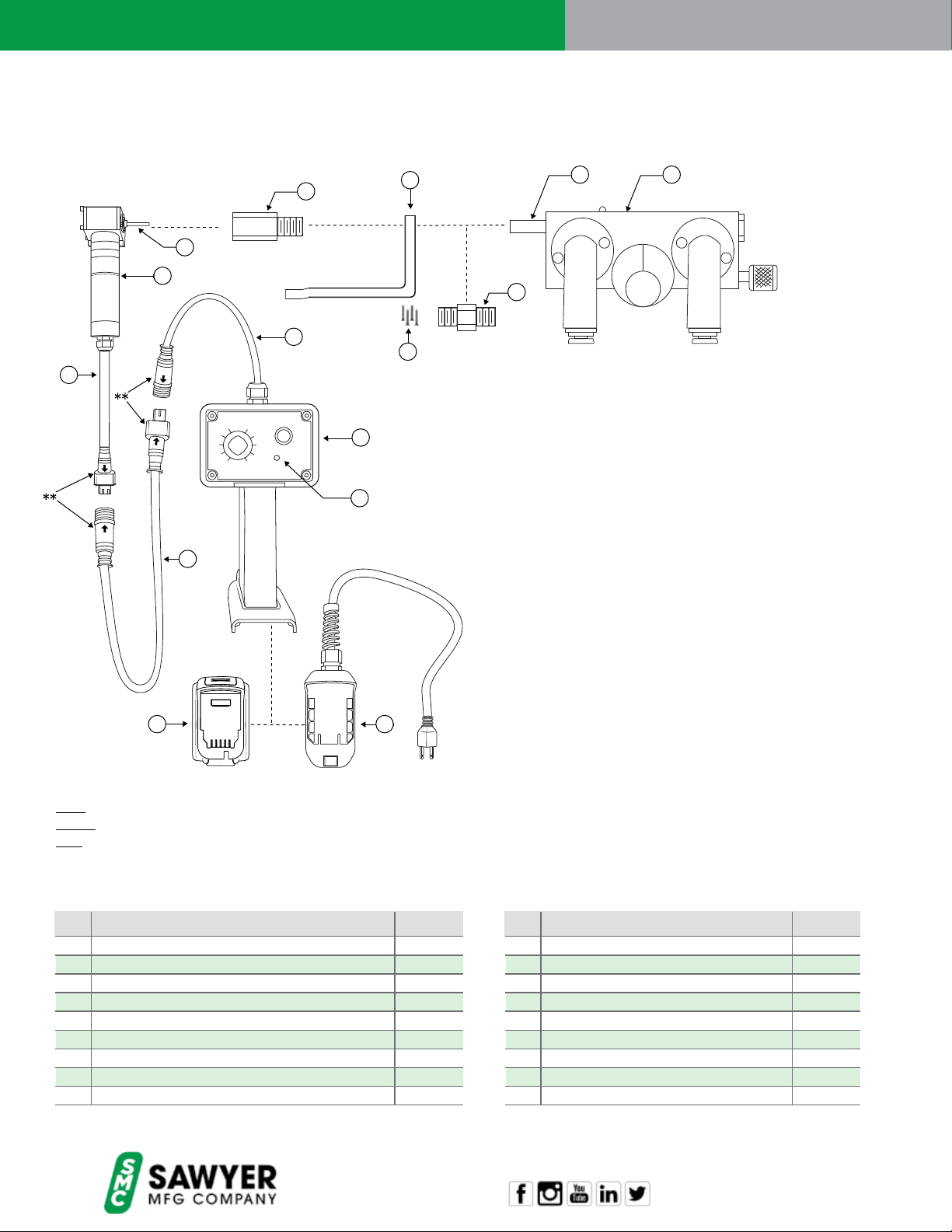

Motorized Crawler Parts List
Model 206K
Battery Ready Motor Kit
918-834-2550 sawyermfg.com
13 14
