Saxby Lighting 13937 User manual

Reflex Mirror Light
13937

Thank you for purchasing this light fitting.
Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Please retain these instructions for future reference.
Warning
Voltage: 240V 50Hz a.c.
Lamp: 2 x 15W T8
IP rating: 44
Specification
Layout
This product has special protection
against the ingress of moisture
and is manufactured to meet IP44
standards
This product is suitable for use in
Zone 2 and outside Zones of a
bathroom. See diagram.
If this unit is being fitted in
a room containing a bath or
shower, a 30mA RCD must be
used in accordance with IEE
regulations.
OUTSIDE ZONES
ZONE
2
ZONE
1
0.6m
0.6m
2.25m
Ceiling
500.0mm
490.0mm
660.0mm
700.0mm
55.0mm
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of the connections.
Always use the correct type and wattage bulb. Using the incorrect wattage bulb will damage the bulb and ballast.
When changing a bulb, always switch off at the mains and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
This product is not suitable for dimming.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
This product should not be fitted to PIR circuits or short duration timed switches. Should you wish to connect this
unit to a timed system please consult the manufacturer before installation.

You have correctly identified the wires.
The connections are tight.
No loose strands have been left out of the connection block.

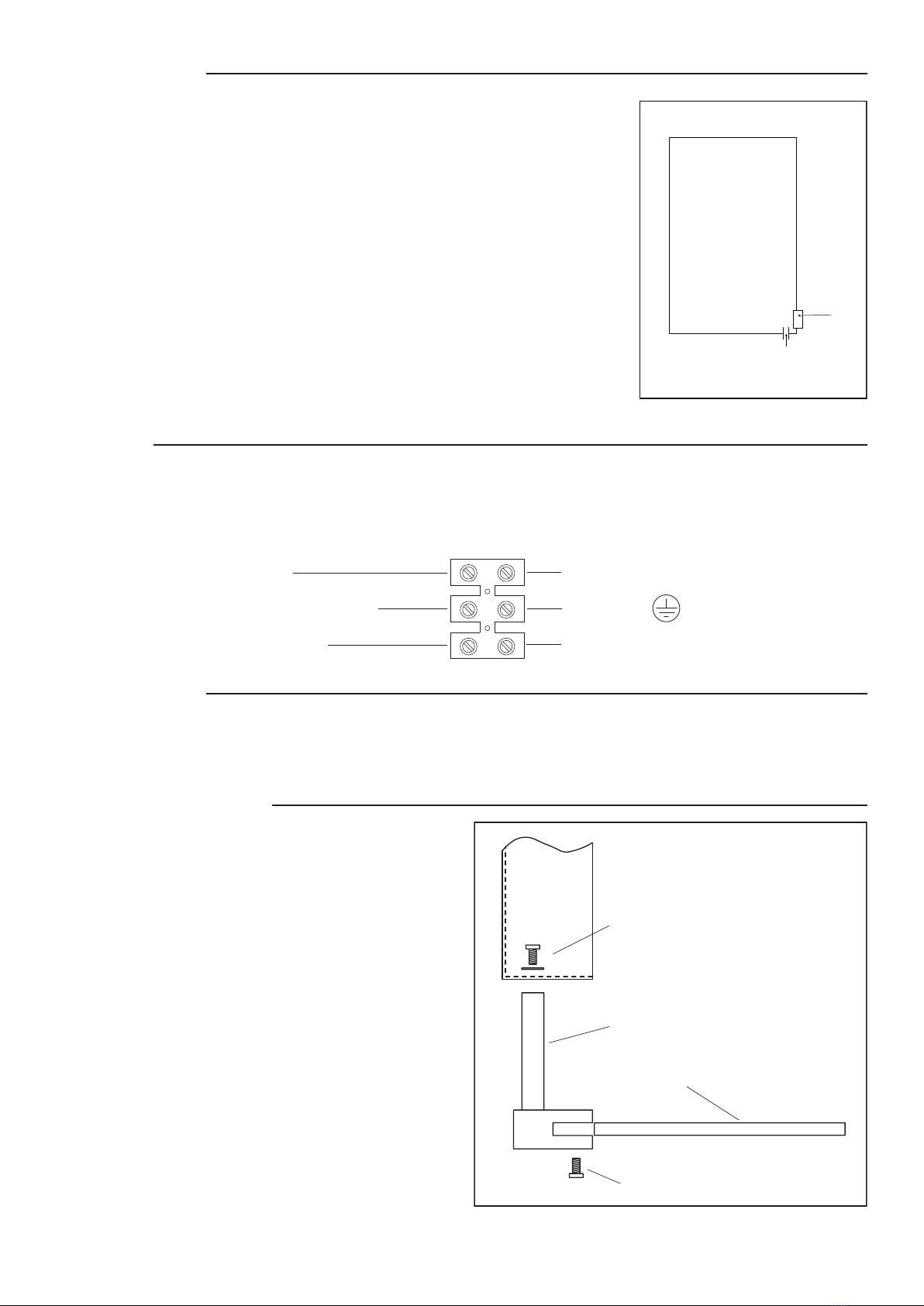

Wiring
Check That
Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect to
the connection block inside the product in the following way:
NEUTRAL
EARTH (GREEN/YELLOW)
SWITCHED LIVE
BLUE (N)
GREEN/YELLOW
BROWN (L)
SUPPLY LIGHT FITTING
Existing fittings must be completely removed before installation of a new
product. Before removing the existing fitting, carefully note the position of
each set of wires.
1. Remove the wall back from the product by removing the side fixing screws
and rubber washers.
2. Carefully pierce a small hole in the rubber grommet in the centre of the wall
back to allow the cable to pass through.
3. Ensure the drain hole is at the base of the wall back, and that the correct
orientation is followed. Take care not to trap or damage any concealed wiring.
4. Ensure the wall is capable of holding the weight of the product. Take care to
avoid damaging any concealed wiring and pipes. The correct fixings should be
used for brick, cavity walls or plasterboard.
5. Fix into position. Take care not to trap the supply wire.
Commissioning
Installation
Wall mount
this way
up only
Switch
Drain hole must
be at the bottom
Rectangle Mirror
6. Unpacktheshelfsupportsandglassshelfandset
aside.Locatethexingholesfortheshelfatthe
bottomofthemirror.
7. Positiononeoftheshelfsupportsunderthexing
holesandtthescrewandwasherintoplace.Tighen
withngersrsttoavoidcrossthreadingtheshelf
support.
8. Fitthesecondshelfsupportinthesameway.Ensure
thattheyarefacingtherightway.
9. Loosentheplasticgrubscrewsandslidetheglass
shelfintoplace.Adjustthepositionoftheshelf
supportssoitsitsproperly.
10. Tightenthexingscrewsandwashers
11. Ensurethattherubbersealingisinplace.Fitthe
mirroroverthewallback.
12. Rettherubberwashersandsidescrews.
13. Ensurethatitisttedcorrectlytostoptheingress
ofmositure.
14 . Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Plastic Grub Screw
Glass Shelf
Shelf Support
Fixing Screw & Washer

Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Live Voltages may be present in this unit even when turned of or when completely disconnected.
For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Saxby Lighting Ltd. BH23 3PE
Recycling Advice
Safety Information
Iss.1 06122010
Themirrormustbereplacedimmediatelyshouldtheglassshieldbecomecrackedordam-
aged.Thisttingmustnotbeusedwithouttheglassshieldinplace.
Replace Cracked
Shade
Fitting / Replacing Bulbs
We recommend cleaning with a soft dry cloth.
Do not use solvents or abrasive cleaners as these could damage the finish.
Mirror parts - Wash in warm water or just use a damp cloth. Do not use abrasive materials as these will damage
the finish.
Care and Cleaning
When changing a bulb, always switch off at the mains and allow
the bulb to cool before handling. Used bulbs should not be
disposed of with household waste. Please recycle where facilities
exist. Always use the correct type and wattage bulb. Using the
incorrect wattage bulb will damage the bulb and ballast.
T8 15W MAX
