SAY YEAH 800W User manual

SAY YEAH 800W Electric Scooter
Not for under 13 year old
Read this manual completely before riding your electric trike

Contents
1. Introduction
2. Main Technical Parameters
3. Scooter Structure
4. Fast Installation
5. Charging the battery
6. Safety
7. Maintenance
8. Operation Tips
9. Warm Remind
1. Introduction

Dear users, in order to ensure good performance of this scooter and for your safety and others
safety, please read this manual carefully before using.
This scooter is for people above 13 years old, people under this age is not allowed to use in case
of safety.
Do wear helmet and other protective clothing to protect yourself.
Routine maintenance, scooter operation knowledge are provided in this manual, please carefully
read it over to have a better understanding on how to handle the scooter, any improper operation
may damage to your scooter and risk users’ safety.
Product will continue to be updated and improved on technical and performance.
1). Please carefully check all parts and make sure they are all in good condition before riding to
guarantee your ride safety, please contact your dealer immediately if you see any problem.
2). Please observe urban traffic laws, not allowed to bring people; should slow down and increase
braking distance when you brake to ensure safety on lots of rain and snow and slippery roads .
3).The scooter is water resistant and ok for rain and snow, but cannot be immersed into water,
when water flooded electric parts, the vehicle will cause a short circuit and damage the internal
electronics. Please take attention on this.
4). The battery was used as a safe source of energy, but the battery compartment of the two metal
contacts cannot be touched with wet hands and can not be in contact with the metal, otherwise it
will have a greater short-circuit current and cause accidents. Please note.
5). Do not disassemble parts for replacement, please purchase standard parts from distributor.
6). For the safety of others and prevent your scooter from unnecessary damage, please do not lend
your scooter to other people not know how to operation.
7). Do not use high-pressure water or strong water current to wash.

2. Main Technical Parameters
Motor: 800W DC
Battery: 12Ah, 3pcs, Lead-acid battery
Voltage: 36V
Charging time: 6H
Max speed; 35km/h:
Single Distance: 25-30km (weight, road, wind speed, temperature and
other factors)
Frame: Steel
Brakes: front/rear disc brake
Tire Type: 3.00-4
Net weight: 34kgs
Max loading capacity: 100kgs
Packing size: 105.5*31.5*41CM

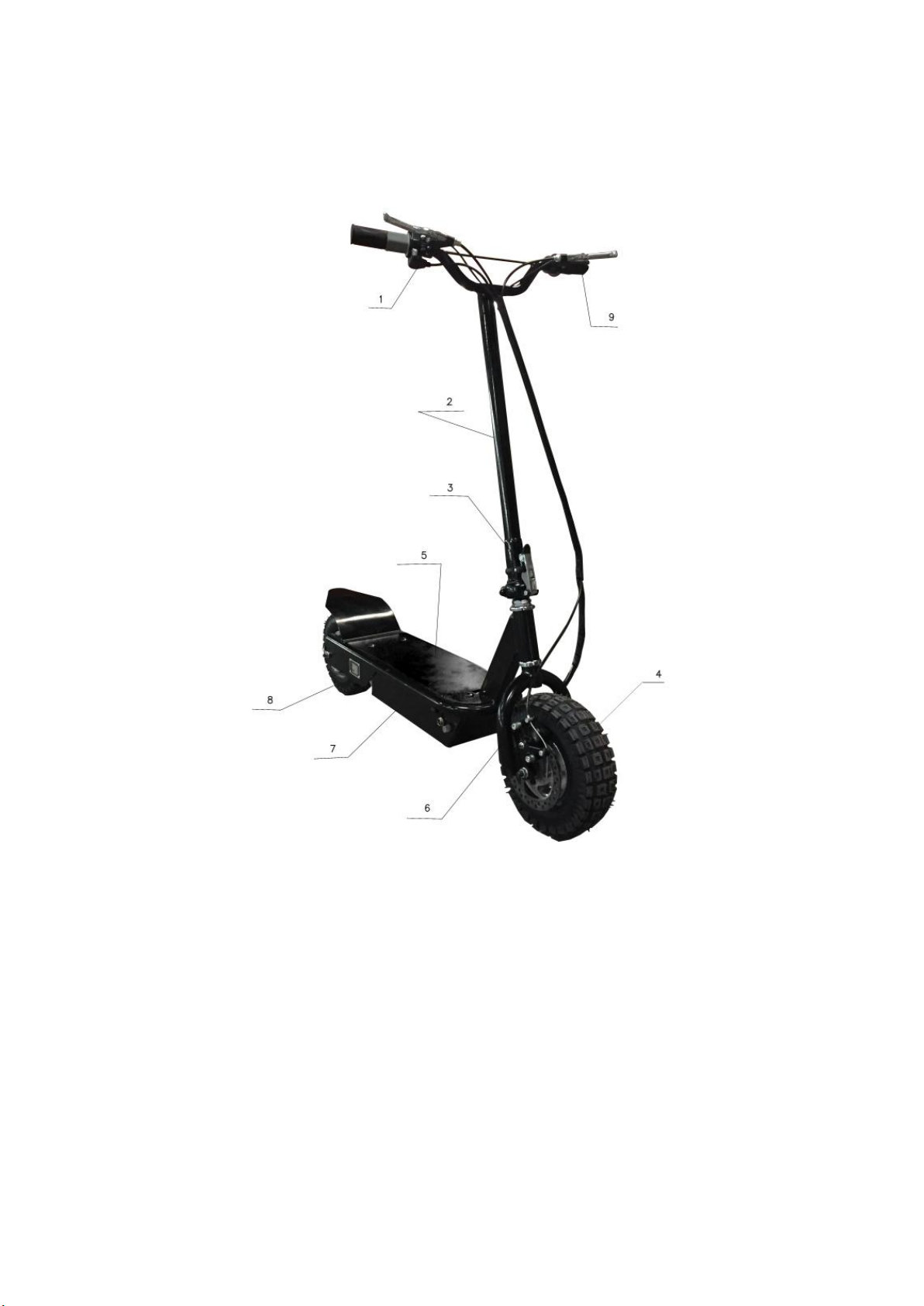

3.Scooter Structure
1. Turn speed 7. Battery
2. Front Pole 8. Rear wheel
3. Lock 9. Brake
4. Front wheel
5. Footboard
6. Front fork

4. Fast Installation

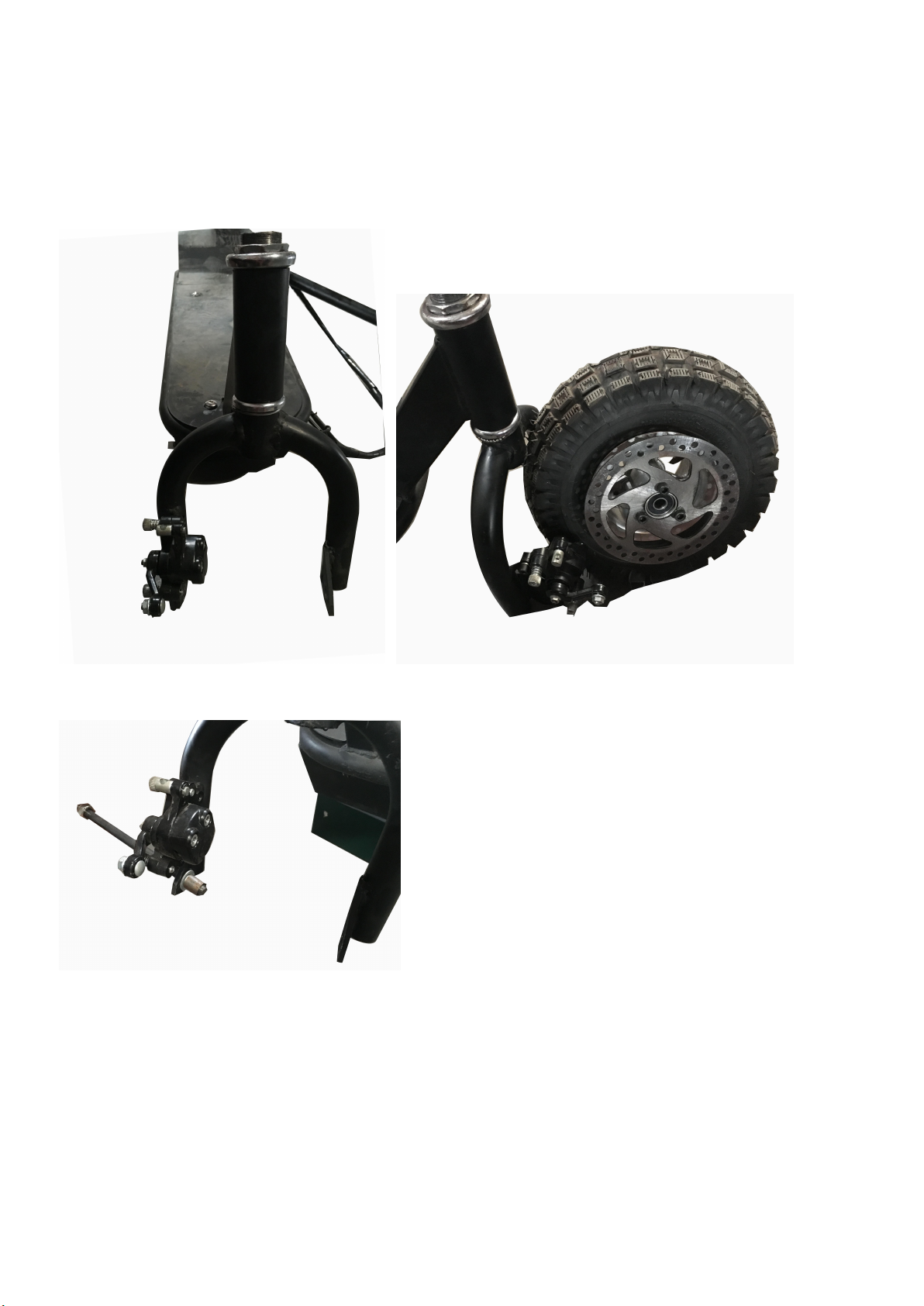

1.First turn front fork, let the disc brake in front. And put front wheel, keeping
disc brake parts on same side.
2.Cross axle from disc brake, put spacer and shorter spacer pipe.

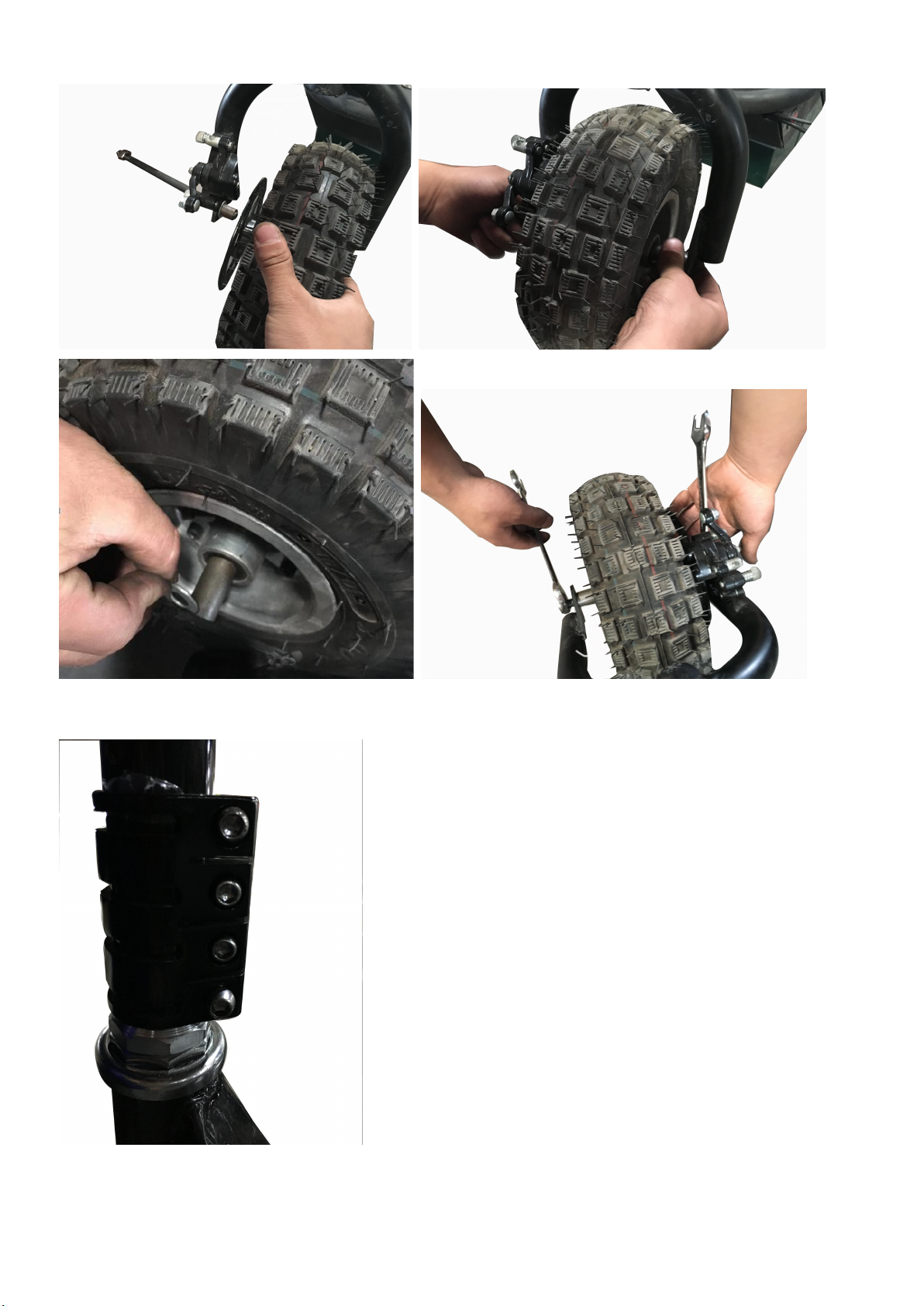

3.Install front wheel, crossing longer spacer pipe and spacer. Screwing nuts on
the sides.

4. Install front pole. Screw four screws.
5. Assemble handlebar. Make two screws tightly.

5.Charging the battery
Before you ride the scooter for the first time, it is advised that the unit is to be fully charged(4-6 hours)
and fully discharged(ride until the battery gauge indicates low battery) for at least three cycles to
maximize the efficiency of the battery. After that, you should continue to charge the battery frequently,
at least once every 30days to prolong the battery lifespan.
IMPORTANT

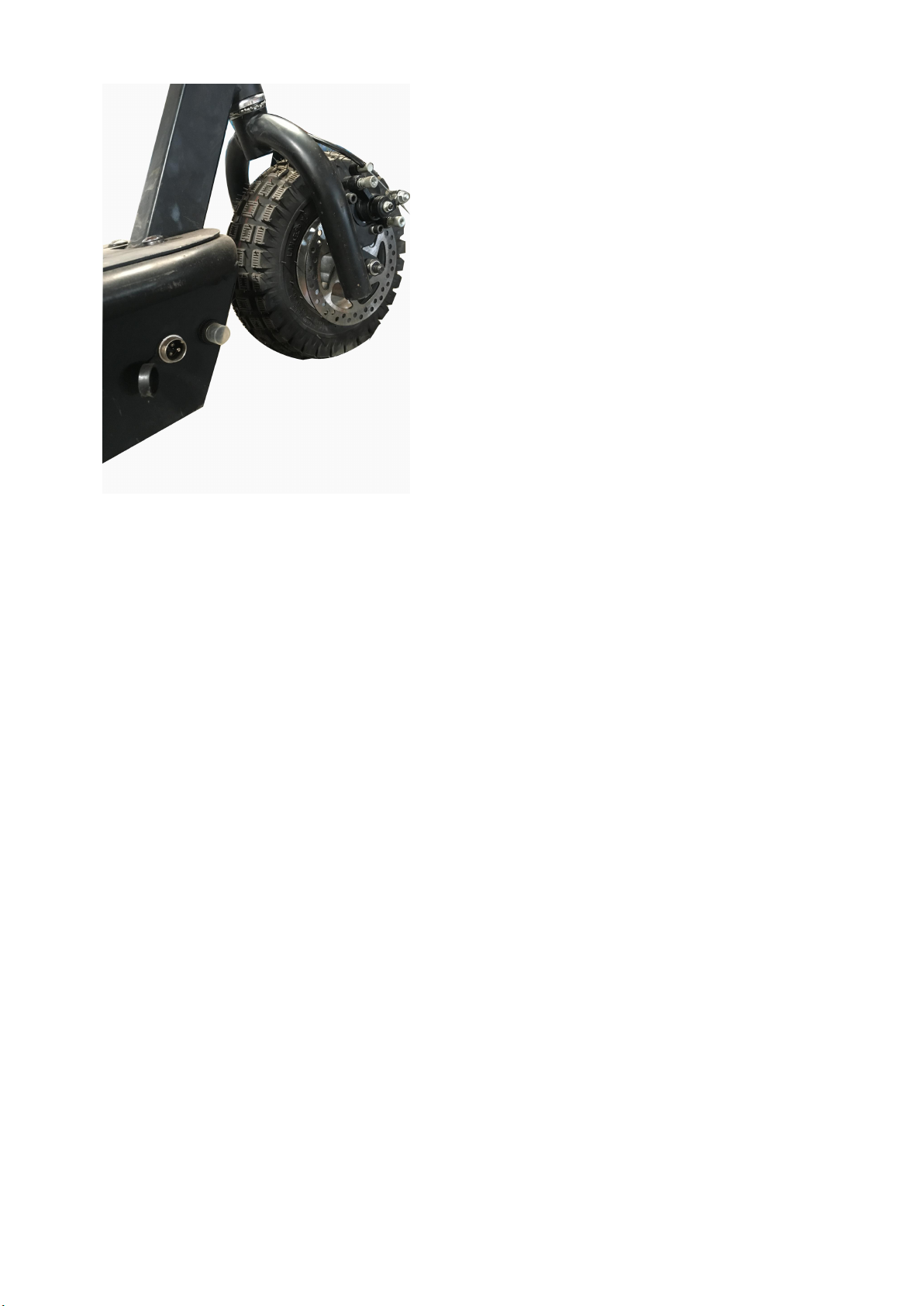

The battery can be charged directly in the scooter.
a. Attach one end of the charger to the scooter charging hole(make sure there is no water in the
hole)
b. Attach plug to power socket
c. Red light of the charger on indicate it is charging
d. When red light turns to green, battery is full
e. Disattach the plug from the socket first and then remove another end from scooter charge hole

6.Safety
1). Attention on Electric Scooter
a). Put it in a safe place where children cannot reach when charging
b).Do not drive it if power not full as it is of no enough energy to support loading and
easy to fall and get hurt, and also harm to battery life
c). It is dangerous to use non-original charger or battery maybe damaged and do not
use our charger to charge other types of batteries.
d). Do not disassemble the charger because the charger contains high-voltage circuit
e). Prevent liquid and metal particles penetrate inside the charger when using and
store, beware of falling and impact to avoid damage
f). Please use the charger in dry, ventilated environments and do not affix anything on
the charger while charging
g). Please stop charging immediately and sent charger and battery to the dealership
for repair if there is smell odor or the temperature is too high in the process of charging

2).Safety Checks Before Riding
a). check the battery's voltage and be sure it is in normal condition
b). check the front wheel and rear wheel, the handle bar, the fold bar to make use all
parts are tightened and all bolts are in tight condition
c). check the reliability of the brake system
3). Safety Parking
a). Please turn the power off when you get off the scooter to walk by to prevent
unintentional touch on the dynamic acceleration in case the scooter suddenly goes
forwarder and lead accident happened
b). Please turn off the power when you stop riding and please make regular
maintenance and cleaning to keep your scooter in top condition
c). Please store your scooter away from the raining
7.Maintenance
1. A periodic self-test project
a).Front and rear wheel's nuts in the correct position and tightly
b).The tire tread whether badly worn, whether cracking. Various parts of the
connection whether ok, brake lines zipper whether be used in lubrication
condition .
c).Electrical system is in good condition
d).Suspension fork's screws in the correct position

2. Cleaning Instructions
a) Prohibit rinse by water to avoid accidents because of internal electronic components
and circuit caused by wetting
b) Use a mild detergent; wipe the surface with a rag at the dirt, then wipe with cadres.
c) Prohibit to the oiling the rear brake and tire
3. Maintenance and Adjustment
a) Always check the handlebar if get loose.
b) Always check the performance of the brakes whether good and timely adjustments.
8. Operation Tips
1). Knowledge of Battery
a) It is Lead-acid battery, there is no depth of discharge problems
b) The reason insufficient to charge: not timely charge after use, charging hard
in cold condition, there is no delay charging, bad electrical connections
c) If do not use the scooter for long time, the lead-acid battery should be fully
charged to storage, full charge and discharge once every two months.
d) Excessive charging cause: did not follow the charging instruction causes the
battery excessive water loss and dry

e) The driving distance will be reduced 0.4kms when temperatures drop every
1℃(at 25 ℃basis) in winter, so please pay attention to adjust the drive
distance and the charging time.
2).Tips to Have a Longer Driving Distance
For the reasons of scooter with short mileage are summarized as follows:
a) Operation reason, the tightness of the scooter's brake system leads to
inappropriate short mileage.
b) Too heavy load or over load with cargo, please note max loading is 120kgs,
over loading even cause burning of motor
c) Drive on different road conditions, frequent braking and speed up fast
d) Cold weather cause the battery capacity decreased, resulting in shorter
mileage.
e) Excessive speed of the scooter caused current increase, so lower mechanical
efficiency resulting in mileage shortened.
In view of the above reasons, we advice a few of
the following suggestions:
a) In accordance with standard debugging brake system, enables the brake
system to work with best state. Normal load shall not exceed 120Kg
b) Under the premise of ensuring safety, should minimize the frequent braking,
starting, instant acceleration what caused by electricity waste on the driving
way. Save energy to achieve the purpose of improving mileage.
c) When the speed of the scooter in the 20 ~ 22Km / h, the mileage can reach 24

~ 27kms in the winter, the mileage can reach 30kms in the summer.
9. Warm Remind
1) Have a good habit of daily timely charge, battery should be charged to
precede the minimum allowable voltage to make it more durable. So have
a daily habit of timely charge is very important. Have your scooter
recharged when the battery is in lower power and before storage.
2) Almost all types of batteries will be affected by the environment. In general,
the better performance of the battery discharge is in a higher temperature,
battery power may drop by a third when the temperature drops to 0 ℃.
So It is normal that the mileage reduces per charge when winter comes or
in cold areas. When the temperature roses to above 20 ℃, it recovers to its
normal capacity naturally.
3) Do not insert metal objects (such as wires, keys, etc.) into or come into the
battery 's contactor on the positive and negative outputs when you remove
the battery to avoid causing a short circuit sparks
4) The scooter is rain and snow resistant, but cannot be immersed into water. If
water goes to battery and other electric parts, it will cause a short circuit
and damage the internal electronics. Please be attention.
5) Do not disassemble parts for replacement. You may lose your warranty and
bear the loss if you disassemble parts for replacement with none
unauthorized parts. Especially on electric parts, if not match together, it is
very dangerous and risk your safety.

Please contact your local dealer or authorized service center if there is any
problem
6) Prohibit using the chargers and other accessories not from our company.
Our Company will not be responsible for such accident occurred
7) Minors, the old and pregnant women is not allowed to drive this scooter
8) Disassemble or modified the scooter with none unauthorized people will
lead your scooter unsafe hazards, danger
9) Check and make sure the brakes, handlebar locking, fold bar, wheels
reliability and in good condition before riding to avoid accidents.
10) Do not hang things on the handlebars when driving in case loose gravity and
cause accident.
11) Prohibit to put battery near the fire, avoid closing to flammable and
corrosive gases
12) Do not disassemble the battery box to avoid damage to the internal parts.
Do not damage the label on the battery box or make you lose your
warranty.
13) The scooter single person riding, over loading may cause burning of motor
and also risk safety
14) Do not insert metal objects (such as wires, keys, etc.) into or come into the
battery 's contactor on the positive and negative outputs to avoid causing
the damage of the battery and danger

DO NOT RETURN TO STORE
For service, Create Online, Trouble Ticket
http://www.hpusscooters.com/support/
