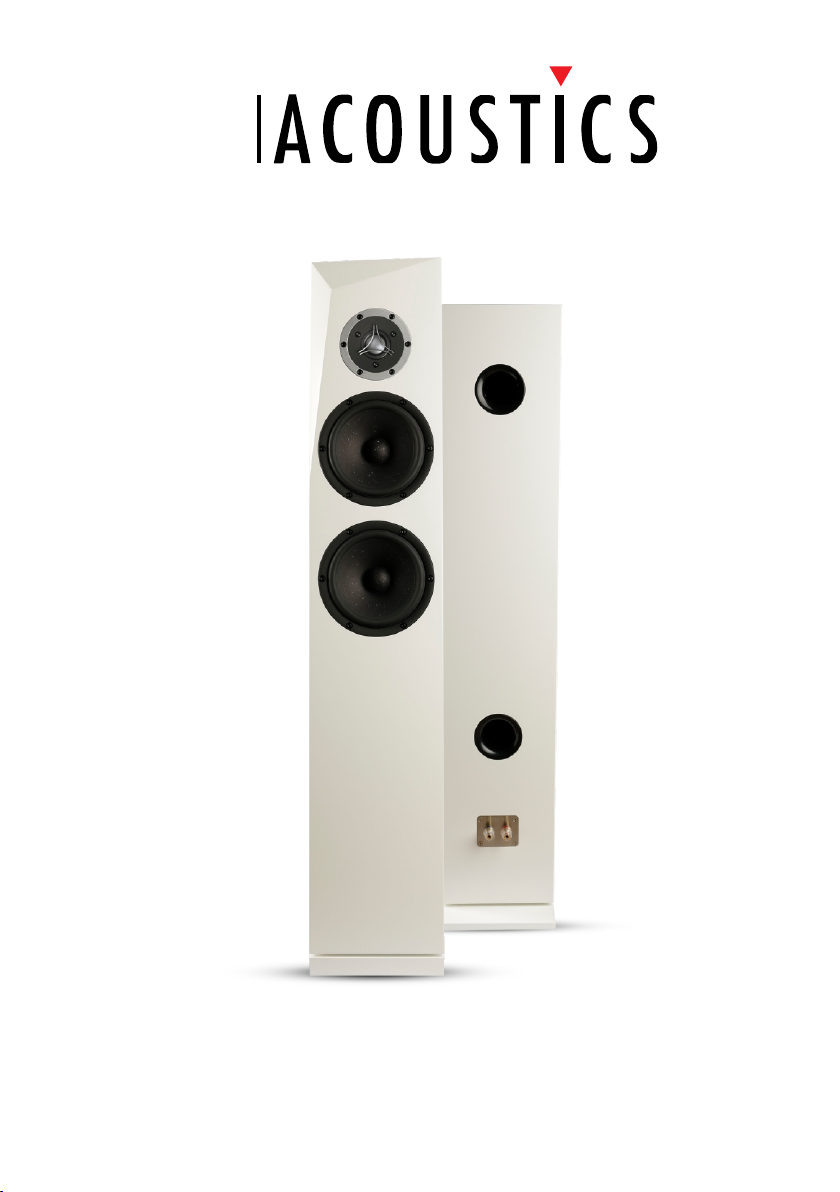

SB Acoustics Rinjani-Be User manual
Rinjani-Be | User Manual
SB
1 Rinjani-Be | User Manual
Technical Specications:
Drive Units:
Cabinet:
18 mm MDF
Dimensions (H x W x D) : 1009 x 190 x 464 mm / 45.87 x 12.41 x 20.47 inch
Net Weight (pair):
- Cabinet only : 18.49 kg / 40.76 lb
- Full assembly : 22.42 kg / 49.43 lb
Special Features:
- Advanced high-end drivers.
- Faceted bafe for reduced high frequency diffraction.
- Inclined bafe for correct time alignment of drivers (allowing for simpler cross-over design).
- Wedge shaped inner rear walls behind midwoofer for reduced direct reections.
- Internal bracing to reduce and distribute cabinet vibrations and hence lower sound coloration.
- Dual ports for distribution of unwanted pipe resonances.
- Inclined inner bottom for reduction of standing waves.
- Solid single-wiring binding posts.
42-30000 Hz +/-3 dB
89 dB
4Ω
107 dB
50-200 W
2300 Hz
2½-way Floor Stand
Bass reex
35.5 Hz
Frequency range :
Sensitivity (2.83V / 1m) :
Nominal impedance :
Max SPL :
Recommended amplier :
Cross-over frequency :
Speaker type :
Enclosure type :
:
Port tuning frequency
- High frequency driver :
- Low frequency drivers :
SATORI TW29BN / TW29BN-B
(Beryllium Tweeter)
2 x 6½” SATORI MW16P-8 / MW16PNW-8
(Advanced Midwoofer)
Rinjani-Be | User Manual 2
100
95
90
85
80
75
70
65
60
55
50
45
40
80
73
67
60
53
47
40
33
27
20
13
7
0
dB
Ohm
20 50 100 200 500 1k 2k 5k 10k 20kHz

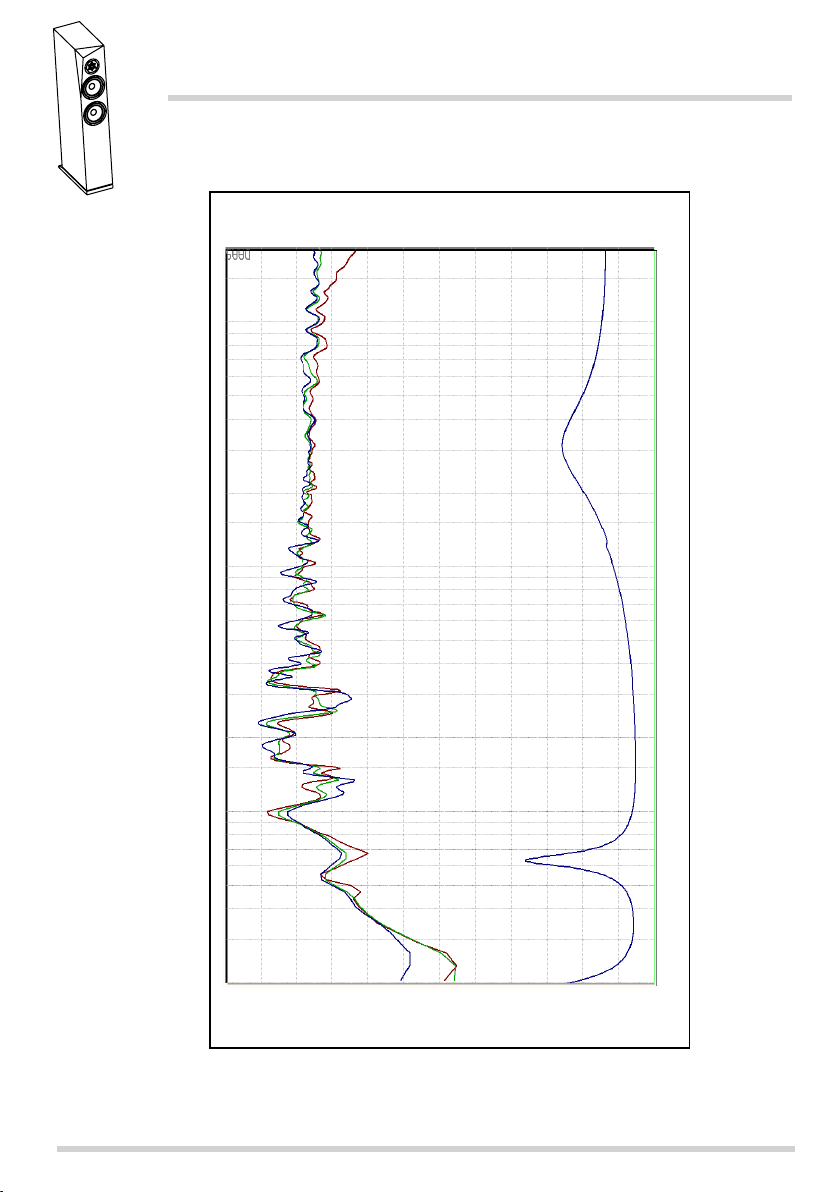

Frequency Response ( Rinjani-Be )
Response Curve :
(Blue) : on axis ( Green ) : 15° off-axis ( Red ) : 30° off-axis------ ------ ------

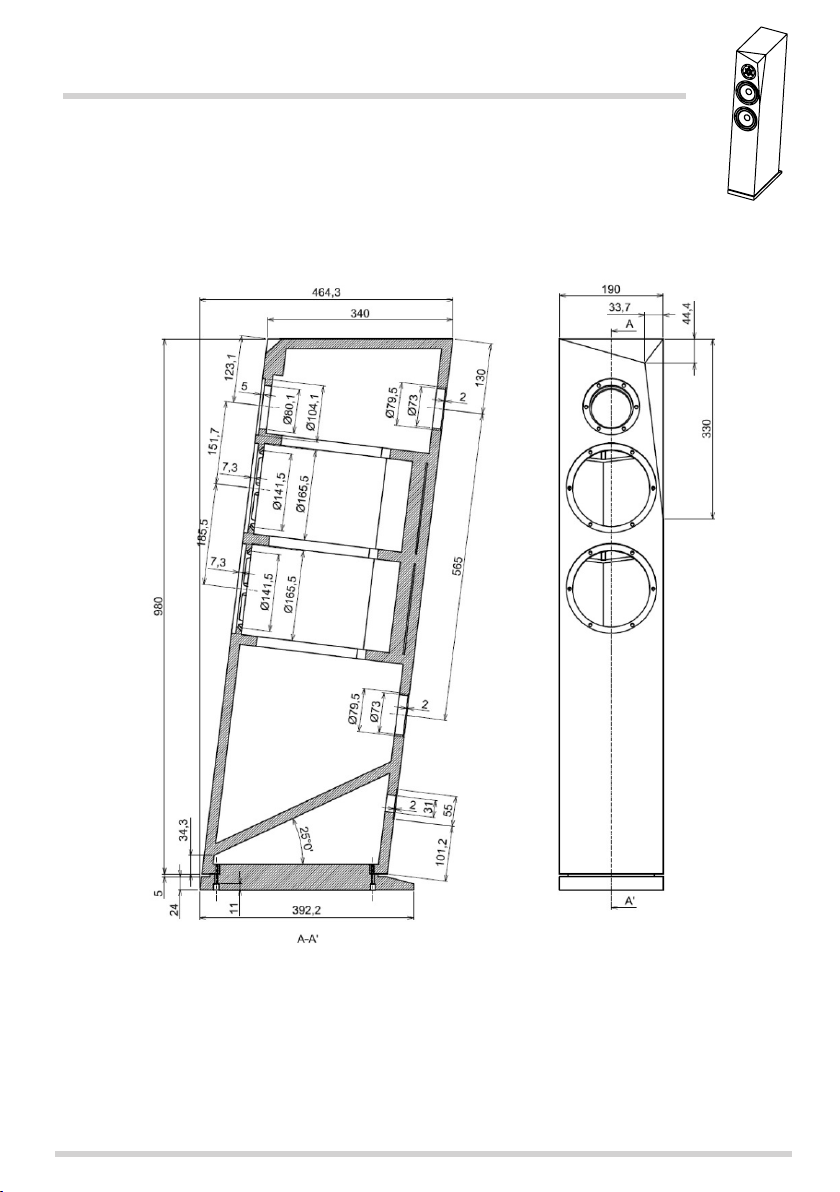

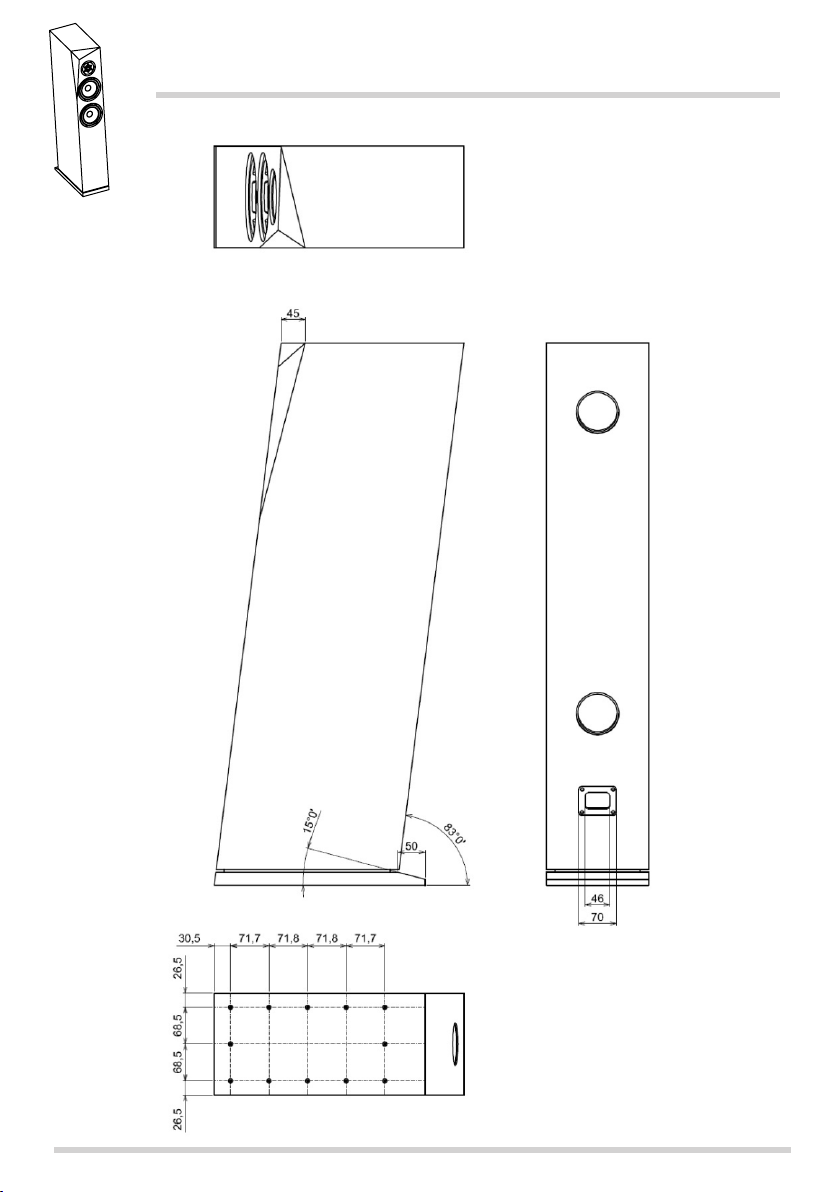

Mechanical Drawing (dimensions in mm)
3 Rinjani-Be | User Manual
Rinjani-Be | User Manual 4
5 Rinjani-Be | User Manual

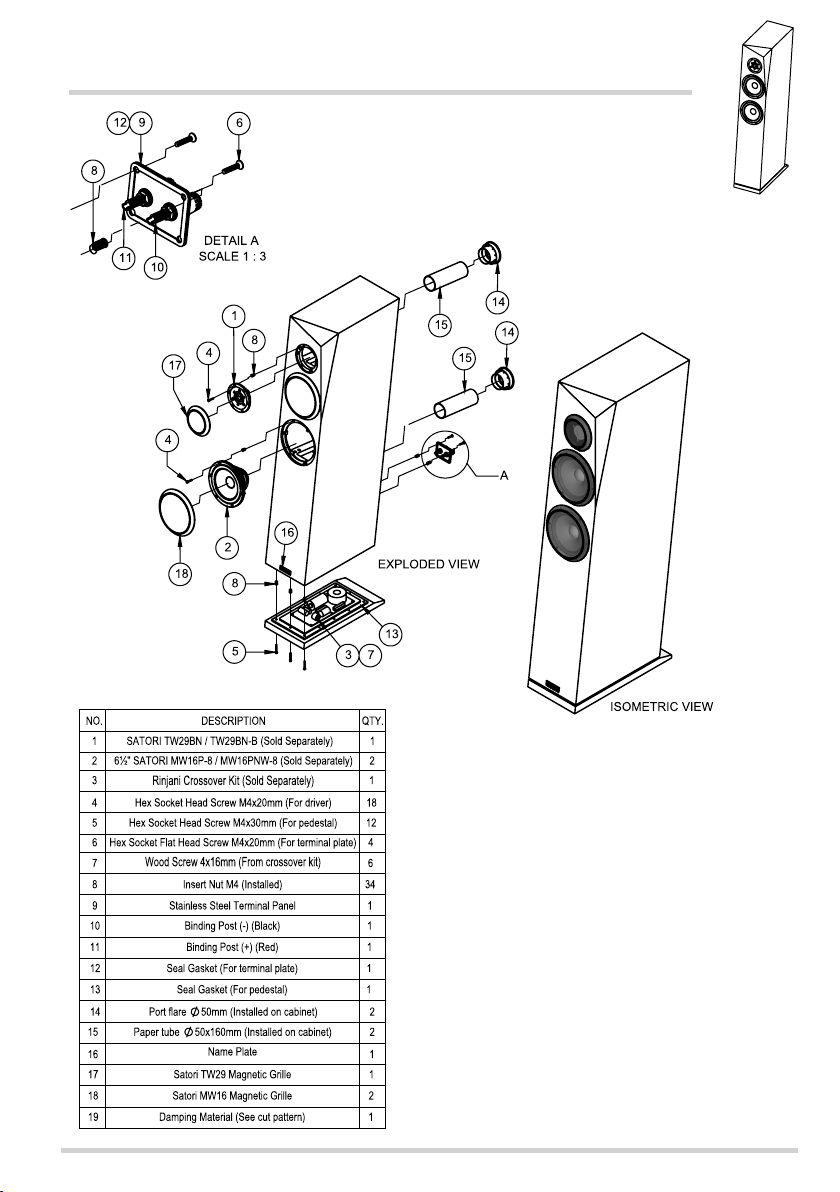

RINJANI KIT - EXPLODED VIEW
Rinjani-Be | User Manual 6

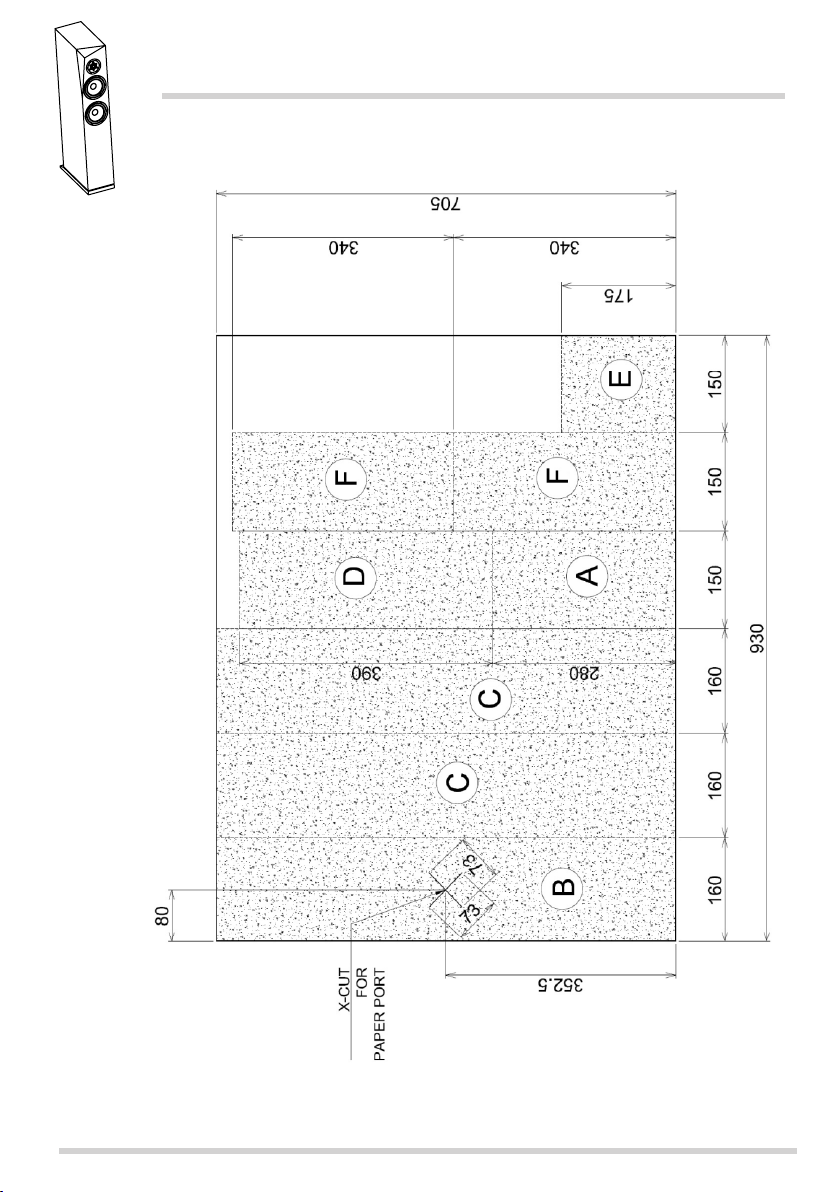

Damping Material Cut Pattern (dimensions in mm)
7 Rinjani-Be | User Manual

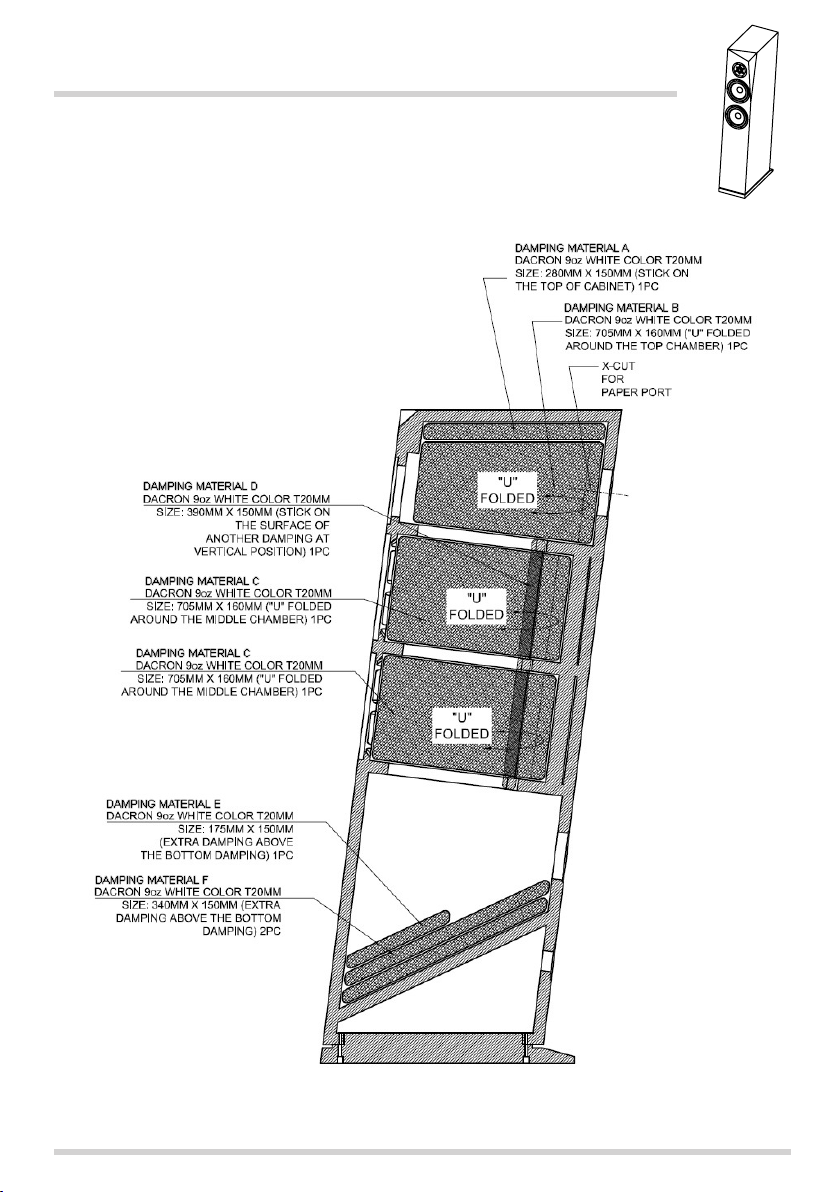

Damping Material Position (dimensions in mm)
Rinjani-Be | User Manual 8
Crossover Schematic ( Rinjani-Be )
Tweeter
IN R1
1
2
5.6 Ω / 10 W
3.9 µF / MKP
0.68 mm / Ø0.5 mm
C1 L1L1
R2
0.68 mm / Ø0.5 mm
3.9 Ω / 10 W
C2
L2
R3
Midwoofer
TW29BN
MW16P-8
Low woofer
68 µF / Bipolar
1 mH / Ø1.6 mm
5.6 Ω / 10 W
C3
L3
3.3 mH / Ø1.4 mm
R4
1.5 Ω / 10 W
C4
27 µF / MKP
4.7 µF / MKP
MW16P-8
9 Rinjani-Be | User Manual
Parts List (each cabinet):
- High frequency driver SATORI TW29BN / TW29BN-B (sold separately) ...............
- Low frequency driver 6½” SATORI MW16P-8 / MW16PNW-8 (sold separately) ..
- Rinjani crossover kit (sold separately) ...............................................................
- Hex socket screw M4 x 20mm (for drivers) ........................................................
- Hex socket screw M4 x 30mm (for pedestal) ....................................................
- Countersunk screw M4 x 20mm (for terminal plate) ........................................
- Wood screw 4 x 16 mm for crossover (from crossover kit) ...............................
- Insert nut M4 (Installed ) ..................................................................................
- Stainless Terminal plate ....................................................................................
- Binding post .....................................................................................................
- Seal gasket (for terminal plate) .........................................................................
- Seal gasket (for pedestal, installed on cabinet) .................................................
- Port are (installed on cabinet) .........................................................................
- Port paper tube (installed on cabinet) ..............................................................
- Damping ..........................................................................................................
- Name plate .......................................................................................................
- Tweeter grille ....................................................................................................
- Woofer grille .....................................................................................................
Tools Needed:
- Hex key 3mm size (for driver screw).
- Hex key 2.5mm size (for terminal plate screw).
- Philips screwdriver no. 2 (for crossover screw).
- Hot melt glue gun(for attaching the damping and sealing the wire hole).
1 pc
2 pcs
1 pc
18 pcs
12 pcs
4 pcs
6 pcs
34 pcs
1 pc
1 pair
1 pc
1 pc
2 pcs
2 pcs
1 pc
1 pc
1 pc
2 pcs
Rinjani-Be | User Manual 10
Assembly Instructions:

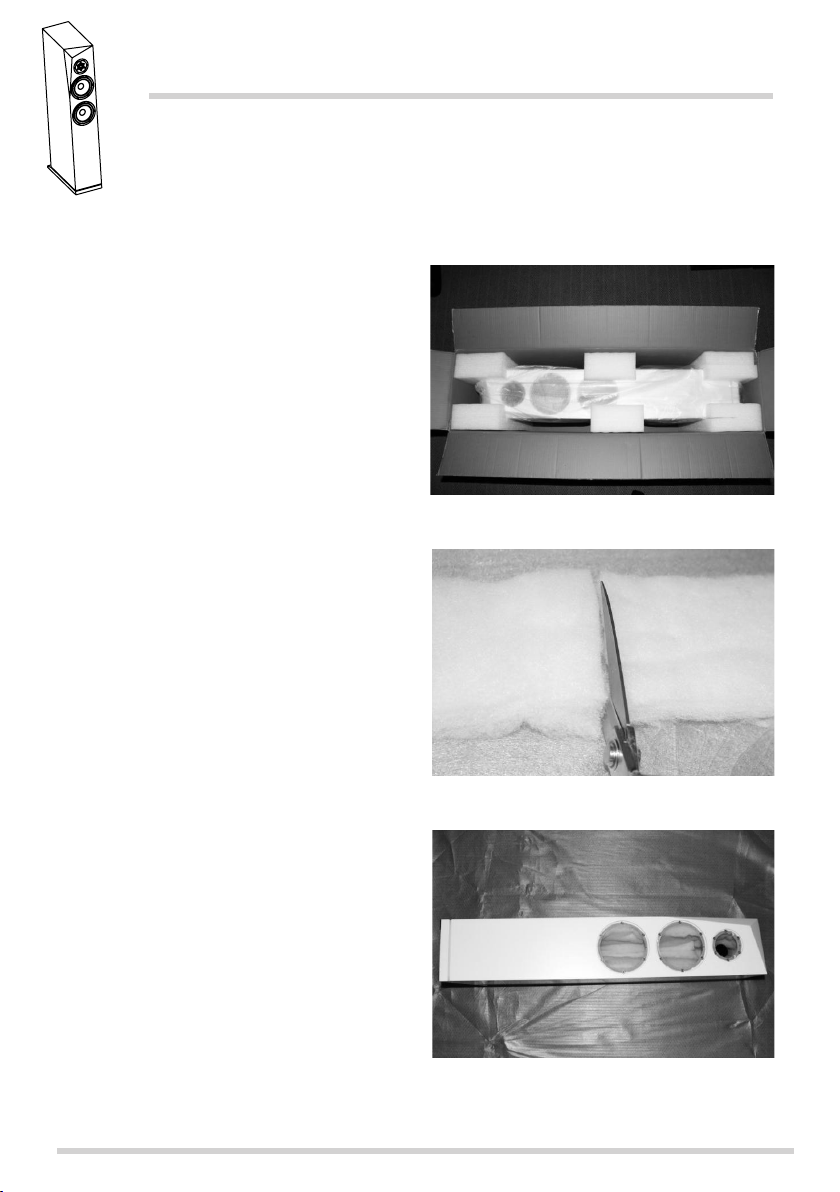

1. Unpack the cabinet from
the packaging and take out
the raw damping material
from inside the cabinet.
2. Cut the raw damping material
to 8 pieces of damping according
to the cutting diagram.
3. Place each damping piece into
the cabinet according to the
position diagram. Add a bit of
glue if needed to hold the
damping in place.
11 Rinjani-Be | User Manual

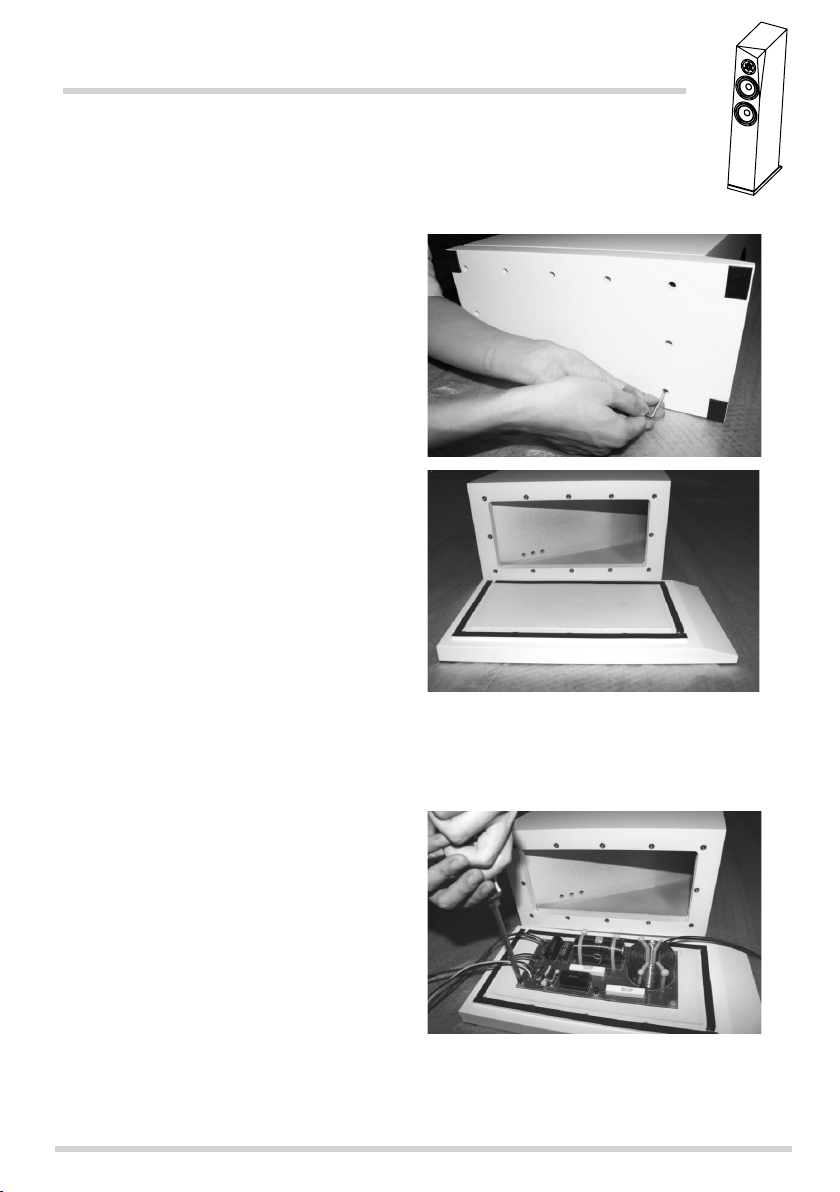

4. Detach the pedestal
by removing the four screws
in each corner.
5. Place the crossover on top
of the pedestal, with the
orientation of the input cable
towards the rear terminals
and the speaker wires towards
the front panel.
12 Manual | Rinjani-Be Kit
4. Detach the pedestal by loosen
the four screws in each corner
5. Place the crossover on top of
the pedestal, then put the input
cable towards the rear terminal
side and the speaker wire towards
the front panel
13 Rinjani-Be | User Manual

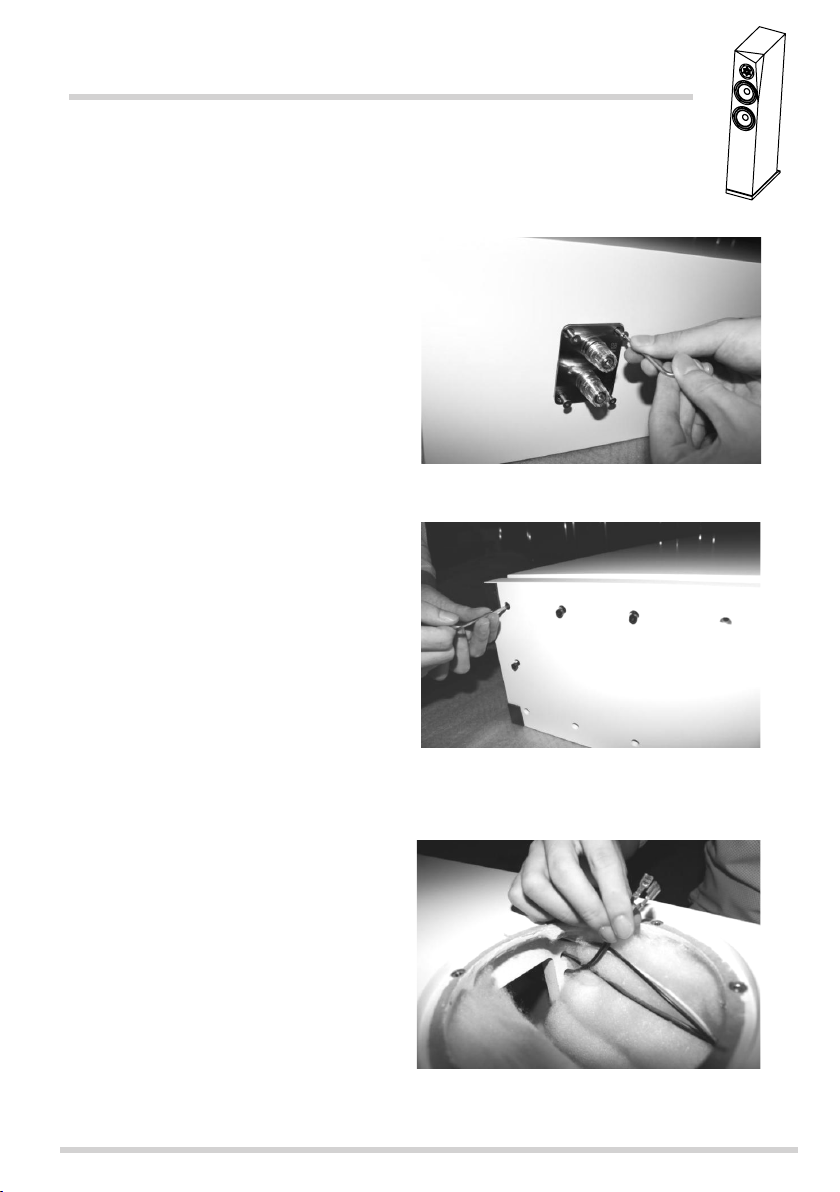

9. Mount the terminal panel
into the terminal hole at
the rear.
10. Mount the pedestal to
the cabinet using all
12 screws.
11. Pull the three pairs of
cables through the holes
in each cabinet bracing.
Rinjani-Be | User Manual 14

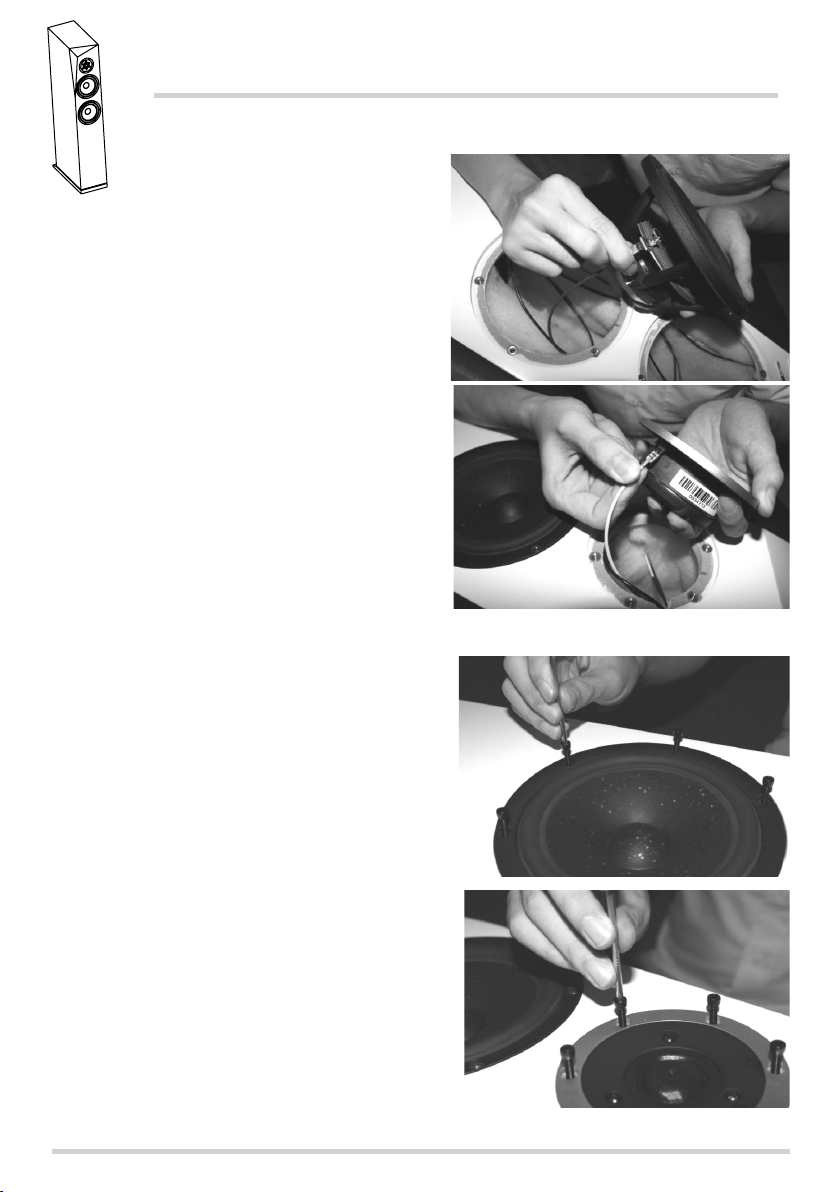

12. Hook up the cables to
the woofers and tweeter
terminals.
13. Mount the drivers to
the cabinet and carefully
tighten the screws.
14. Reapeat the steps for the
other speaker and you have
completed your SB ACOUSTICS
Rinjani-Be speakers.
Time to listen!
Rev.0: (07.06.21)
