SB Acoustics Sasandu User manual

SB
Sasandu | User Manual

1 Sasandu | User Manual
Technical Specications :
Drive Units:
Cabinet:
15mm, 18mm, 25 mm MDF
Dimensions (H x W x D) : 1100 x 230 x 615 mm / 43.30 x 9.05 x 24.21 inch
Special Features:
32-32000 Hz +3/-6 dB
89 dB
4Ω
108 dB
100-200 W
480 Hz & 2800 Hz
3-way Floor Stand
Bass reex (woofers), sealed (midrange)
32 Hz
Frequency range :
Sensitivity (2.83V / 1m) :
Nominal impedance :
Max SPL :
Recommended amplier :
Cross-over frequencies :
Speaker type :
Enclosure type :
:
Port tuning frequency
- High frequency driver
- Mid frequency driver
- Low frequency drivers
SATORI TW29BN-B-8 or ( ) TW29BN-8 29 mm beryllium dome
6.5" SATORI MR16P-4 or (advanced midrange)MR16PNW-4
2 x 7.5" SATORI MW19P-8 or (advanced midwoofer)MW19PNW-8
- Advanced high-end drivers.
- Non-parallel cabinet walls.
- Facets and optimized tweeter position for reduced diffraction.
- Slanted internal partition for reduction of standing waves.
- Inclined bafe for time alignment of drivers.
- Large low compression midrange cavity.
- Large low noise vent.
- Strategic internal bracing and damping.
- Solid single-wiring binding posts.
Net Weight (pair):
- Cabinet only : 28.5 kg / 62.83 lb
- Full assembly : 32.5 kg / 71.65 lb

Sasandu | User Manual 2
Response Curve :
(Blue) : on axis ( Green ) : 15° off-axis ( Red ) : 30° off-axis------
------ ------
100
95 90 85 80 75 70 65 60 55 50 45 40
dB
Ohm
Frequency Response
20 30 50 100 200 300 500 1k 2k 3k 5k 10k 20k 40kHz
80.0 73.3 66.7 60.0 53.3 46.7 40.0 33.3 26.7 20.0 13.3 6.7 0.0

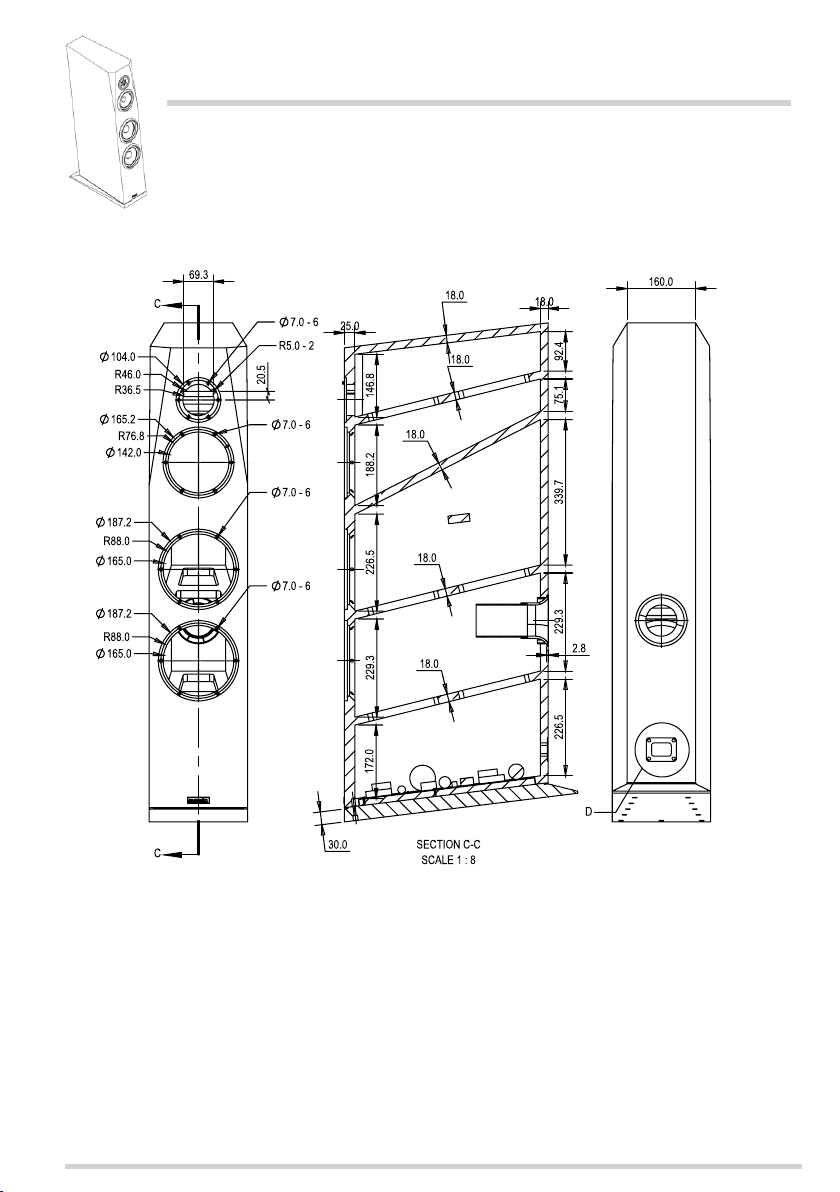

Mechanical Drawing (dimensions in mm)
3 Sasandu | User Manual

Sasandu | User Manual 4

5 Sasandu | User Manual

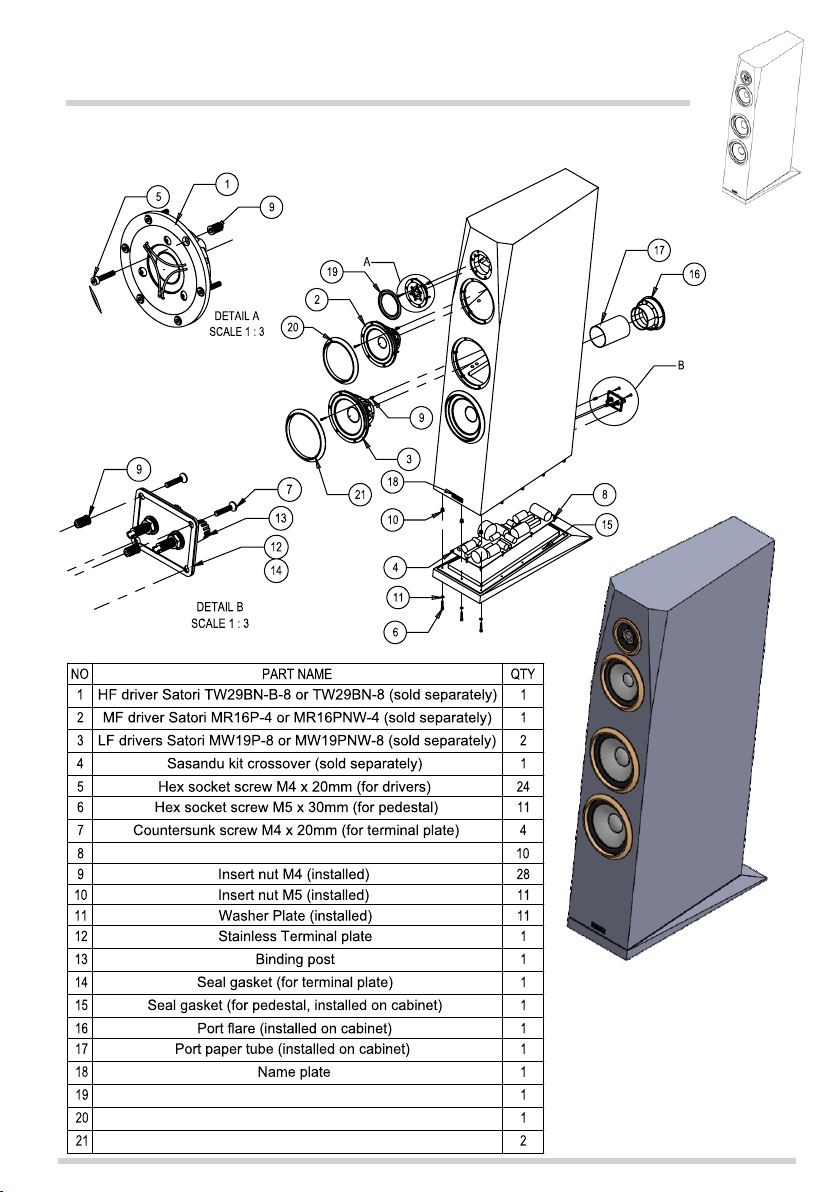

SASANDU - EXPLODED VIEW
Tweeter grille
Midrange grille
Woofer grille
Wood screw 4 x 16 mm for crossover (from crossover kit)

Sasandu | User Manual 6

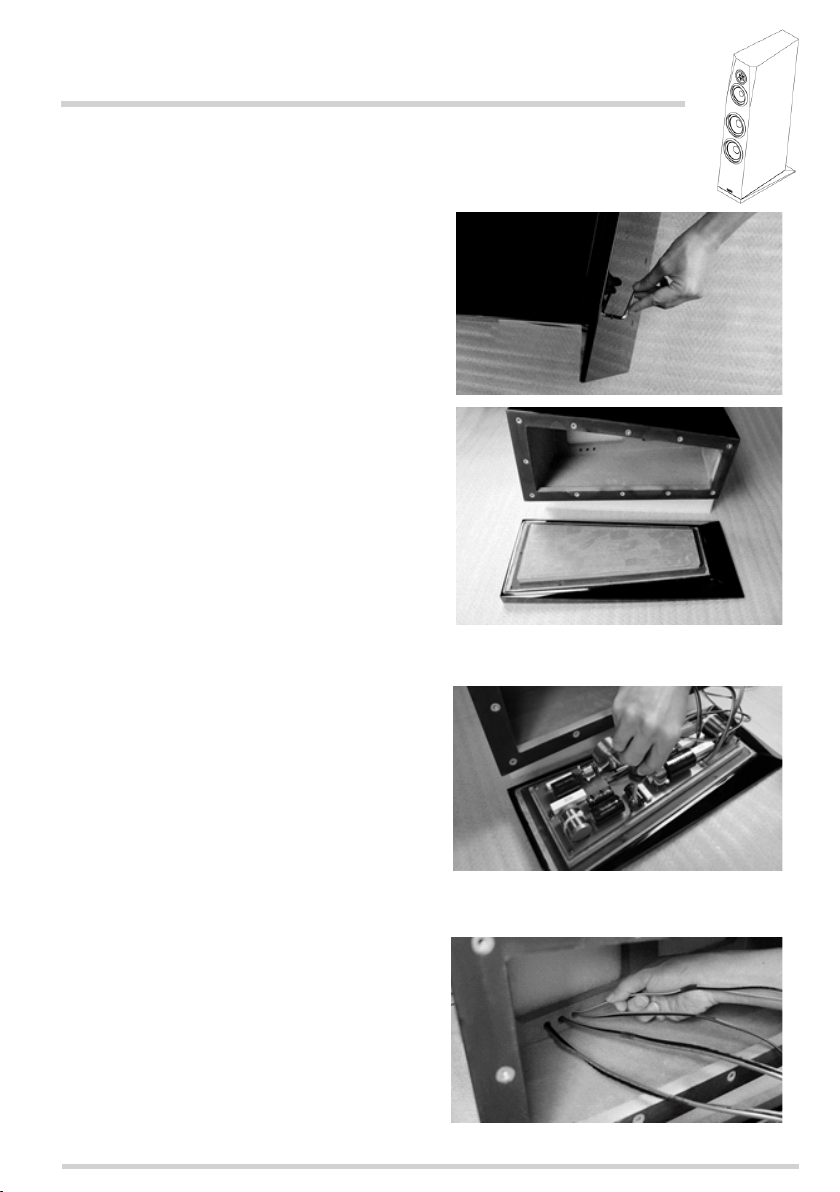

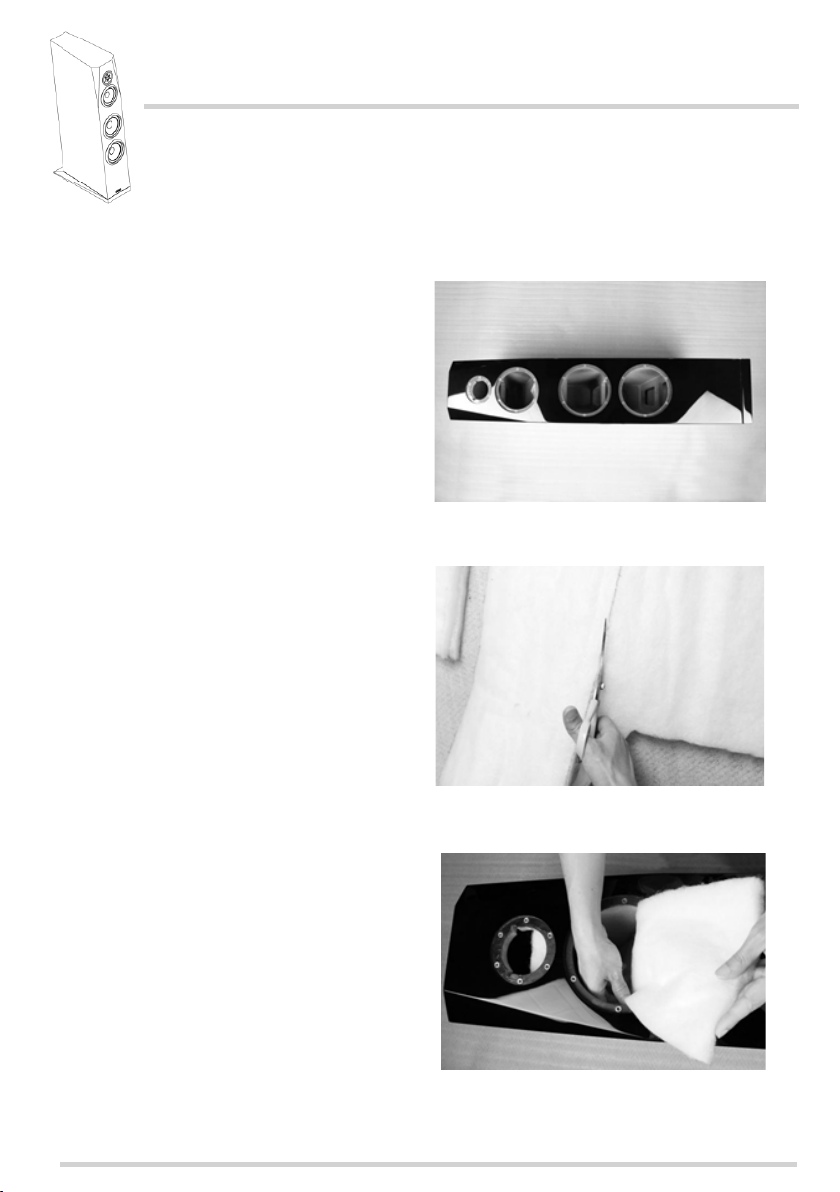

7 Manual | Sasandu Kit

Manual | Sasandu Kit 8

9 Manual | Sasandu Kit
Damping Material Position (dimensions in mm)
