SB Acoustics Satori Rinjani User manual

SB Acoustics Rinjani
User Manual
Mechanical drawing (left side)

Damping position and size

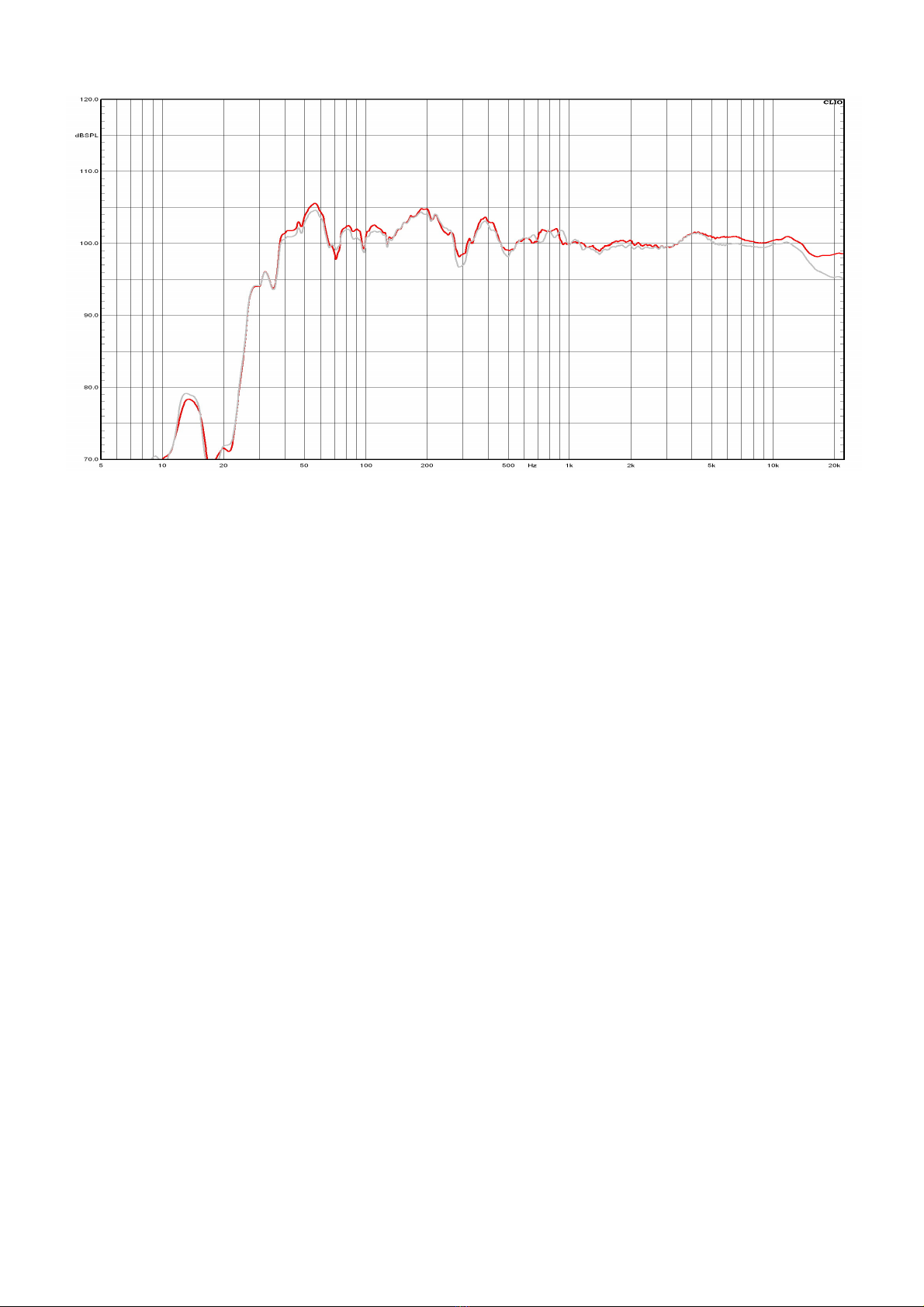

Frequency response
____ 0°On axis
____ 15°Off axis
Technical specification
Frequency range : 42-25000 Hz +/- 3dB
Sensitivity : 89 dB/ 2.83V
Nominal impedance: 4 Ω
Max SPL: 107 dB
Recommended amplifier: 50-200 W
Cross-over frequency: 3000 Hz
Speaker type: 2½-way Floor Stand
Enclosure type: Bass reflex
Port tuning frequency: 35.5 Hz
Drive Units:
- High frequency driver: Satori TW29R (29 mm soft ring dome)
- Low frequency drivers: 2 x 6½" Satori MW16P-8 (advanced midwoofer)
Cabinet: 18mm MDF
Dimensions (H x W x D): 100.9 x 19 x 46.4 cm / 45.87 x 12.41 x 20.47 inch
Net weight:
- Cabinet only = 18.49 kg / 40.76 lb
- Full assy = 22.42 kg / 49.43 lb
Special Features:
•Advanced high-end drivers
•Facets on top of cabinet for reduced high frequency diffraction
•Inclined baffle for correct time alignment of drivers (allowing for simpler cross-over design)
•Wedge shaped inner rear walls behind midwoofer for reduced direct reflection
•Internal bracing to reduce and distribute cabinet vibrations and hence lower sound coloration
•Dual ports for distribution of unwanted pipe resonances
•Inclined inner bottom for reduction of standing waves
•Solid single-wiring binding posts

Assembling instruction
Part list (each cabinet):
Screw Hex M4 x 30mm (for pedestal) 12 pcs
Screw Hex M4 x 20mm (for drivers) 18 pcs
Screw JFL M4 x 20mm (for terminal plate) 4 pcs
Stainless Terminal plate 1 pc
Binding post 1 pair
Port flare (installed on cabinet) 2 pcs
Port paper tube (installed on cabinet) 2 pcs
Damping (installed on cabinet) 1 set
Rubber feet (installed on cabinet) 4 pcs
Tools needed:
Hex key 3mm size (for driver and pedestal screw)
Hex key 2.5mm size (for terminal plate screw)
Philips screwdriver no. 2 (for crossover screw)
Soldering iron + tin (for soldering input wire to terminal)
Hot melt glue gun (for sealing the wire hole)
1. Take out the cabinet from the packaging
2. Open the safety foam sheet.

3. Detach the pedestal by loosing the four screws in
each corner.
4. Place the crossover on the center section of
pedestal. Then put the input cable towards the rear
terminal side and the speaker wire towards the front
panel.
5. Pass the three pair of the speaker wire through
each holes on the bottom panel of the cabinet.

6. Seal all the cable holes with hot melt glue
7. Pull out the input cable through the terminal hole
then solder it to the terminal binding post
8.Mount the terminal panel into the terminal hole at
the back side
9. Mount the pedestal back to the cabinet then
tighten it by screwing in each holes ( 12 pcs screws
totally )

10. Pull the three pair of cables through the holes in
each each cabinet bracing
11. Hook up the cable to the woofer and tweeter
terminal
12. Mount the driver to the cabinet and screw them

1
1
2
2
3
3
4
4
D D
C C
B B
A A
Title
Number RevisionSize
A4
Date: 03-May-17 Sheet of
File: D:\My Documents\..\SBA Rinjani.SchDoc Drawn By:
L1
0.2mH/0.7mm
Red R1
1.8ohm/10W
Tweeter
TW29R
Low woofer
MW16P-8
Black
Yellow
Black
+
+
-
-
C1
6.8uF/400V
R2
1.5ohm/10W
C2
3.9uF/400V
L2
1mH/1.6mm
C3
33uF/100V
L3
3.3mH/1.4mm
Red
1
2
IN
CON2
Black
SBA Satori Rinjani
Mid woofer
MW16P-8
Black
+
-
Blue
! Reverse Polarity

A
1
EXPLODED VIEW
2
3
4
8
4
5
8
7
13
14
14
15
15
16
17
18
ISOMETRIC VIEW
DETAIL A
SCALE 1 : 3
6
8
9
10
11
12
NO. PART NUMBER QTY.
1 SATORI TW29R-B (Sold separately) 1
2 6½" SATORI MW16P-8 (Sold separately) 2
3 Rinjani Kit Crossover (Sold separately) 1
4 Hex Socket Screw 4x20mm (For driver) 18
5 Hex Socket Screw 4x30mm (For pedestal) 12
6 Countersunk Screw 4X20mm (For terminal plate) 4
7 Wood Screw 4x16mm (From kit crossover) 6
8 Insert Nut M4 (Installed) 34
9 Stainless Steel Terminal Panel 1
10 Binding Post (-) (Black) 1
11 Binding Post (+) (Red) 1
12 Seal Gasket (For terminal plate) 1
13 Seal Gasket (For pedestal) 1
14 Port flare d:50mm (Installed on cabinet) 2
15 Paper tube d:50mm L:160mm (Installed on cabinet) 2
16 Name Plate 1
17 Grille for tweeter 1
18 Grille for woofer 2
19 Damping Material (See cut pattern) 1
REVISION NOTE REV NO DATE DRAWN CHECKED
-
HADI S SUHARYANTO ARIS S
-:-
RINJANI
-
-
1
-
A4
-
REFERENCE
DIMENSION
NO QTY DESCRIPTION
Explode Drawing
SCALE :
CV. SINAR BAJA ELECTRIC
TITLE :
APPROVED BY DRAWN BY CHECKED BY
MATERIAL / COLOR
MODEL :
PART NO :
APPROVED BY
SOEGIONO
I
FOR R&D PURPOSE ONLY
July 21, 2017

A
1
2
3
4
8
4
5
8
7
13
14
14
15
15
16
17
18
ISOMETRIC VIEW
DETAIL A
SCALE 1 : 3
6
8
9
10
11
12
RINJANI KIT - EXPLODED VIEW
NO. PART NUMBER QTY.
1 SATORI TW29R-B (Sold separately) 1
2 6½" SATORI MW16P-8 (Sold separately) 2
3 Rinjani Kit Crossover (Sold separately) 1
4 Hex Socket Screw 4x20mm (For driver) 18
5 Hex Socket Screw 4x30mm (For pedestal) 12
6 Countersunk Screw 4X20mm (For terminal plate) 4
7 Wood Screw 4x16mm (From kit crossover) 6
8 Insert Nut M4 (Installed) 34
9 Stainless Steel Terminal Panel 1
10 Binding Post (-) (Black) 1
11 Binding Post (+) (Red) 1
12 Seal Gasket (For terminal plate) 1
13 Seal Gasket (For pedestal) 1
14 Port flare d:50mm (Installed on cabinet) 2
15 Paper tube d:50mm L:160mm (Installed on cabinet) 2
16 Name Plate 1
17 Grille for tweeter 1
18 Grille for woofer 2
19 Damping Material (See cut pattern) 1
