SCAC STS60-23BV User manual

PART NO. 03532
PRINTED 9/2022
PRINTED IN USA
© 2022
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
Congratulations on owning a Scag Sprayer/Spreader! This manual contains the
operating instructions and safety information for your Scag Sprayer/Spreader.
Reading this manual can provide you with assistance in maintenance and
adjustment procedures to keep your machine performing to maximum
efciency. The specic models that this book covers are listed on the inside
cover. Before operating your machine, please read all the information
enclosed.
OPERATOR’S
MANUAL
SPRAYER/
SPREADER
Models: STS60-23BV

WARNING
FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT
IN SERIOUS INJURY OR DEATH.
• Read this manual completely as well as other manuals that came with your sprayer/
spreader.
• DO NOT operate on steep slopes. To check a slope, attempt to back up it. If the
machine can back up the slope without the wheels slipping, reduce speed and use
extreme caution.
• Under no circumstances should the machine be operated on slopes greater than 15
degrees. ALWAYS FOLLOW OSHA APPROVED OPERATION.
• Weight in the storage tanks and hopper will transfer when on a slope, this may
cause a loss of traction or increased risk of a roll-over.
• When operating with a heavy load, reduce speed and allow sufficient braking
distance. Use extra caution on slopes.
• Liquid loads shift during operation, especially while turning, going up or down
slopes, sudden changes in speed or while driving over rough surfaces. Shifting
loads can cause the machine to tip over.
• Stay two machine widths away from slopes, drop offs, ditches, water,retaining walls,
avoid any slope exceeding 15 degrees.
• DO NOT operate on wet grass. Wet grass reduces traction and steering control.
• Keep all shields in place.
• Before performing any maintenance or service, stop the machine, remove the spark
plug wire(s), and remove the ignition key.
• If a mechanism becomes clogged, stop the engine before cleaning.
• Keep hands, feet, and clothing away from power-driven parts.
• Keep others off the machine (only one person at a time).
REMEMBER - YOUR SPRAYER/SPREADER IS ONLY AS SAFE AS THE
OPERATOR!
HAZARD CONTROL AND ACCIDENT PREVENTION ARE DEPENDENT UPON THE AWARENESS,
CONCERN, PRUDENCE, AND PROPER TRAINING OF THE PERSONNEL INVOLVED IN THE
OPERATION, TRANSPORT, MAINTENANCE, AND STORAGE OF THE EQUIPMENT.
This manual covers the operating instructions and illustrated parts list for:
STS60-23BV with a serial number of V9800001 to V9899999
Always use the entire serial number listed on the serial number tag when referring to this product.

I
R
Table of Contents
Table of Contents
NOTES.............................................................................................................................................................. IV
SECTION 1 - GENERAL INFORMATION...................................................................................1
1.1 INTRODUCTION...........................................................................................................................................1
1.2 DIRECTION REFERENCE ...........................................................................................................................1
1.3 SERVICING THE ENGINE AND DRIVE TRAIN COMPONENTS.................................................................1
1.4 SYMBOLS ....................................................................................................................................................2
SECTION 2 - SAFETY INFORMATION ......................................................................................3
2.1 INTRODUCTION...........................................................................................................................................3
2.2 SIGNAL WORDS ..........................................................................................................................................3
2.3 BEFORE OPERATION CONSIDERATIONS................................................................................................3
2.4 TESTING THE SAFETY INTERLOCK SYSTEM ..........................................................................................5
2.5 OPERATION CONSIDERATIONS................................................................................................................5
2.6 MAINTENANCE CONSIDERATIONS & STORAGE ....................................................................................7
2.7 USING A SPARK ARRESTOR.....................................................................................................................8
2.8 SPARK IGNITION SYSTEM .........................................................................................................................8
2.9 CHEMICAL HAZARDS ................................................................................................................................8
2.10 SAFETY AND INSTRUCTIONAL DECALS.............................................................................................10
SECTION 3 - SPECIFICATIONS ..............................................................................................12
3.1 ENGINE ......................................................................................................................................................12
3.2 ELECTRICAL .............................................................................................................................................12
3.3 SPRAYER/SPREADER ..............................................................................................................................12
3.4 HYDRAULIC SYSTEM ...............................................................................................................................13
3.5 WEIGHTS AND DIMENSIONS ...................................................................................................................13
3.6 PRODUCTIVITY .........................................................................................................................................13
SECTION 4 - OPERATING INSTRUCTIONS ...........................................................................14

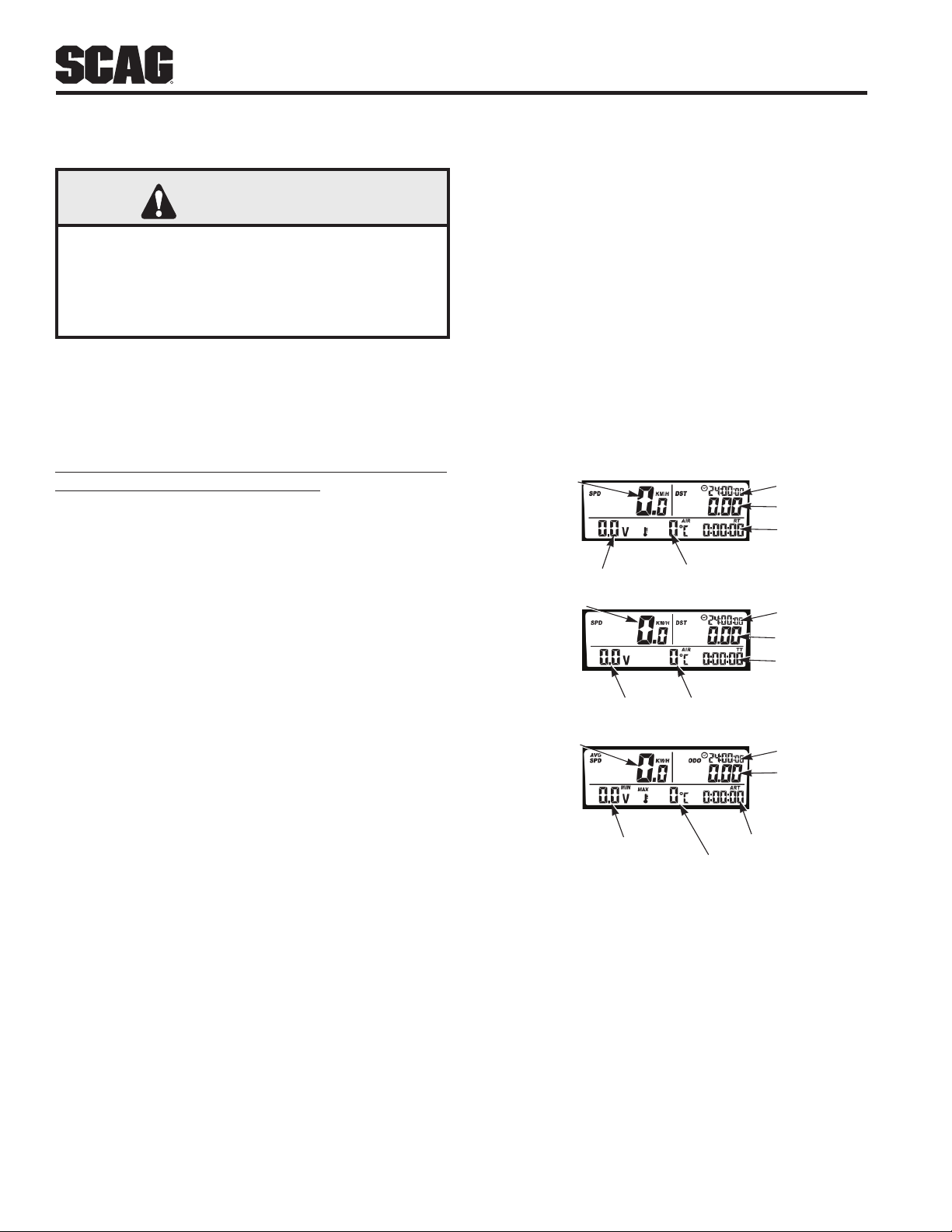

4.1 DIGITAL DISPLAY INSTRUMENT IDENTIFICATION................................................................................14
4.2 CONTROLS IDENTIFICATION ..................................................................................................................16
4.3 SAFETY INTERLOCK SYSTEM ................................................................................................................17
4.4 TESTING THE SAFETY INTERLOCK SYSTEM ........................................................................................17
4.5 INITIAL RUN-IN PROCEDURES................................................................................................................18
4.6 STARTING THE ENGINE ...........................................................................................................................18
4.7 GROUND TRAVEL AND STEERING .........................................................................................................19
4.8 OPERATING THE SPRAYER .....................................................................................................................20
4.9 OPERATING THE SPRAYER TANK VALVES ............................................................................................21
4.10 OPERATING THE SPRAYER BOOM .......................................................................................................22
4.11 OPERATING THE SPRAY WAND ............................................................................................................22
4.12 OPERATING THE SPREADER ................................................................................................................23
4.13 HILLSIDE OPERATION............................................................................................................................26
4.14 PARKING THE MACHINE ........................................................................................................................27

II
R
Table of Contents
4.15 AFTER OPERATION ................................................................................................................................27
4.16 REMOVING CLOGGED MATERIAL ........................................................................................................27
4.17 MOVING MACHINE WITH ENGINE STOPPED .......................................................................................27
4.18 RECOMMENDATIONS FOR SPRAYING .................................................................................................27
4.19 RECOMMENDATIONS FOR SPRAYING WITH THE SPRAY WAND.......................................................28
4.20 RECOMMENDATIONS FOR SPREADING ..............................................................................................28
4.21 RECOMMENDATIONS FOR SPREADING AND SPRAYING AT THE SAME TIME................................28
SECTION 5 - ADJUSTMENTS .................................................................................................29
5.1 PARKING BRAKE ADJUSTMENT ............................................................................................................29
5.2 TRAVEL ADJUSTMENT.............................................................................................................................29
5.3 THROTTLE CONTROL AND CHOKE ADJUSTMENTS ............................................................................31
5.4 BELT ADJUSTMENTS ...............................................................................................................................31
5.5 BELT ALIGNMENT.....................................................................................................................................31
5.6 OPERATOR CUSHION REMOVAL ............................................................................................................31
5.7 CALIBRATING THE SPRAYER..................................................................................................................32
5.8 CALIBRATING THE SPREADER...............................................................................................................33
5.9 ADDING SPRAY MIXTURE........................................................................................................................35
5.10 SPREADING CHART ...............................................................................................................................36
BASED OFF OF 5 MPH ...................................................................................................................................36
ALL DIAL SETTINGS SHOULD BE USED AS A BASE, MANUAL CALIBRATION IS BEST .......................36
5.11 SPRAY NOZZLE CHART (AI TEEJET)
AI110025 (lavendar) nozzle (0.34 US Gallons per 1,000 sq/ft) are installed as standard equipment
All calculations based off of 100" effective spray width (All 5 Nozzles Activated) .............................................37
SECTION 6 - MAINTENANCE..................................................................................................41
6.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS ......................................................41
6.2 LUBRICATION............................................................................................................................................42
6.3 HYDRAULIC SYSTEM ...............................................................................................................................44
6.4 ENGINE OIL ...............................................................................................................................................45
6.5 ENGINE FUEL SYSTEM ............................................................................................................................46
6.6 ENGINE AIR CLEANER.............................................................................................................................47
6.7 BATTERY - ELECTRIC START MODELS..................................................................................................47
6.8 DRIVE BELTS.............................................................................................................................................48
6.9 TIRES..........................................................................................................................................................48
6.10 BODY ........................................................................................................................................................48
6.11 SPRAYER MAINTENANCE .....................................................................................................................48
6.12 SPREADER MAINTENANCE...................................................................................................................51

III
R
Table of Contents
SECTION 7 - ILLUSTRATED PARTS LIST ..............................................................................53
7.1 SCAG APPROVED ATTACHMENTS AND ACCESSORIES......................................................................53
SPRAYER BOOM ASSEMBLY ........................................................................................................................54
SPRAYER SYSTEM .........................................................................................................................................56
220# HOPPER ASSEMBLY .............................................................................................................................58
SHEET METAL COMPONENTS ......................................................................................................................60
STEERING CONTROLS...................................................................................................................................62
FUEL SYSTEM.................................................................................................................................................64
HYDRAULICS AND ENGINE COMPONENTS ................................................................................................66
ELECTRICAL SYSTEM ...................................................................................................................................68
HYDRAULIC PUMP..........................................................................................................................................70
SPRAYER PUMP..............................................................................................................................................72
REPLACEMENT DECALS AND INFORMATION PLATES .............................................................................74
STS ELECTRICAL SCHEMATIC .....................................................................................................................76
LIMITED WARRANTY - TURF STORM SPRAYER/SPREADER.................................... INSIDE BACK COVER

IV
R
Table of Contents
NOTES

1
R
Section 1
1.1 INTRODUCTION
Your sprayer/spreader was built to the highest standards
in the industry. However, the prolonged life and maximum
efficiency of your sprayer/spreader depends on you
following the operating, maintenance and adjustment
instructions in this manual.
If additional information or service is needed, contact your
Scag Power Equipment Dealer.
We encourage you to contact your dealer for repairs. All
Scag dealers are informed of the latest methods to service
this equipment and provide prompt and efficient service in
the field or at their service shop. They carry a full line of
Scag service parts.
THE REPLACEMENT OF ANY PART ONTHIS PRODUCT
BY OTHERTHANTHE MANUFACTURER'S AUTHORIZED
REPLACEMENT PART MAY ADVERSELY AFFECT THE
PERFORMANCE, DURABILITY OR SAFETY OF THIS
PRODUCT.
USE OF OTHER THAN ORIGINAL SCAG REPLACEMENT
PARTS WILL VOID THE WARRANTY.
When ordering parts, always give the model and serial
number of your sprayer/spreader. The serial number plate
is located where shown in Figure 1-1.
Serial Number
Plate Location

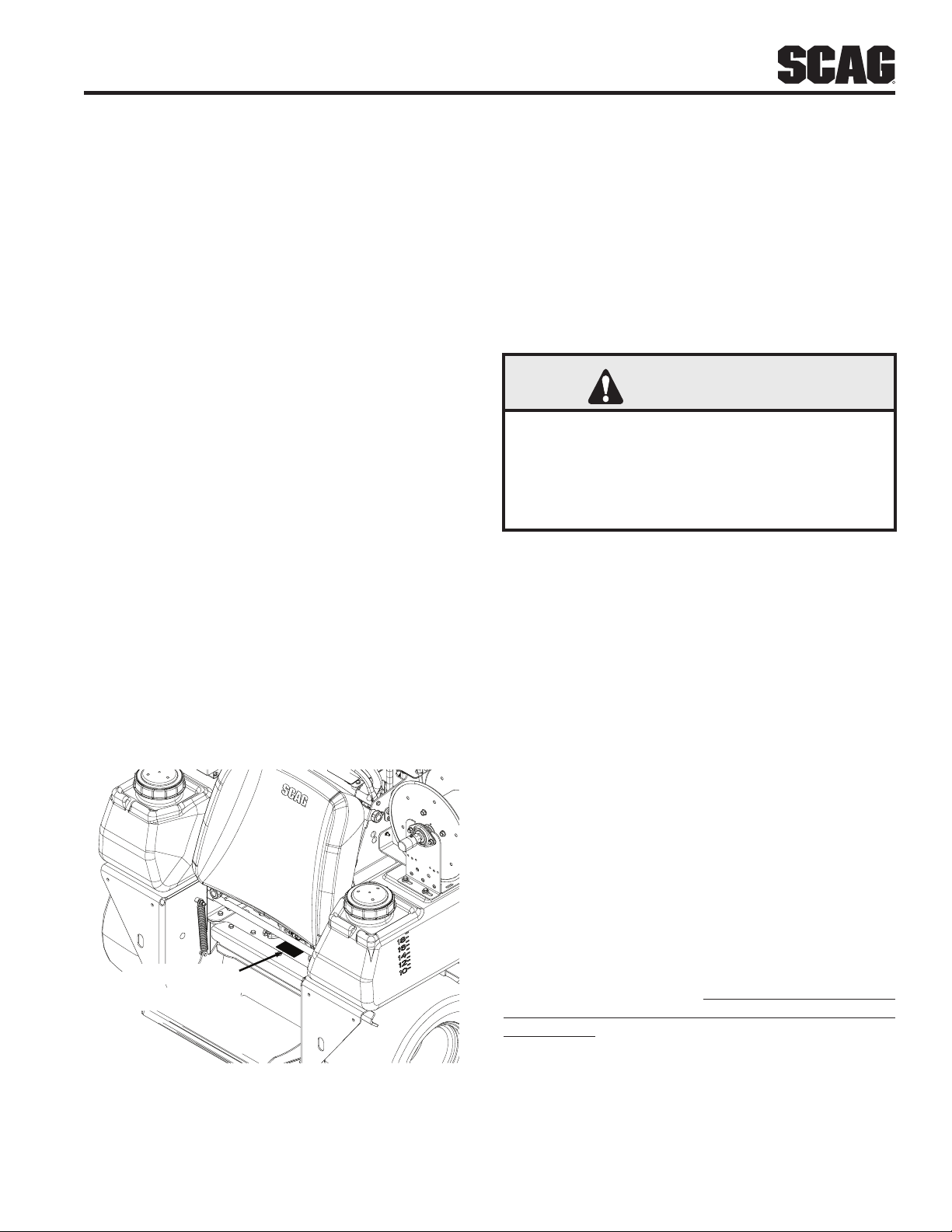

Figure 1-1. Sprayer Spreader Serial Number Location
GENERAL INFORMATION
USE ONLY SCAG APPROVED ATTACHMENTS AND
ACCESSORIES.
Attachments and accessories manufactured by companies
other than Scag Power Equipment are not approved for use
on this machine. See Section 8, Paragraph 7-1. Be aware
that using attachments with the mower may affect stability.
Be sure to follow the directions found in the operator's
manual.
WARNING
For pictorial clarity, some illustrations and figures
in this manual may show shields, guards or plates
open or removed. Under no circumstances should
your sprayer/spreader be operated without these
devices in place.
All information is based upon product information available
at the time of approval for printing. Scag Power Equipment
reserves the right to make changes at any time without
notice and without incurring any obligation.
1.2 DIRECTION REFERENCE
The “Right” and “Left”, “Front” and “Rear” of the machine
are referenced from the operator’s right and left when
standing in the normal operating position and facing the
forward travel direction.
1.3 SERVICING THE ENGINE AND DRIVE
TRAIN COMPONENTS
The detail servicing and repair of the engine, hydraulic
pumps, and sprayer pumps are not covered in this manual;
only routine maintenance and general service instructions
are provided. For service of these components during
the limited warranty period, it is important to contact your
Scag dealer or find a local authorized servicing agent of
the component manufacturer. Any unauthorized work done
on these components during the warranty period may void
your warranty.

2
R
Section 1
1.4 SYMBOLS
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Choke Hour meter/Elapsed Operating Hours
Parking Brake Keep Bystanders Away
On/Start Transmission
Off/Stop Spring Tension on Idler
Falling Hazard Oil
Fast Thrown Object Hazard
Continuously Variable - Linear Slow
481039S
Pinch Point Read Operator's Manual

3
R
Section 2
2.1 INTRODUCTION
Your machine is only as safe as the operator. Carelessness
or operator error may result in serious bodily injury or death.
Hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper
training of the personnel involved in the operation, transport,
maintenance and storage of the equipment. Make sure
every operator is properly trained and thoroughly familiar
with all of the controls before operating the machine. The
owner/user can prevent and is responsible for accidents or
injuries occurring to themselves, other people or property.
READ THIS OPERATOR’S MANUAL BEFORE
ATTEMPTING TO STARTYOUR MACHINE. MAKE SURE
THAT EVERYONE KNOWS WHERE THE MANUAL IS
LOCATED AND KEEP A RECORD OF EACH EMPLOYEE
THAT HAS READ THE MANUAL.
A replacement manual is available from your authorized
Scag Service Dealer or by contacting Scag Power
Equipment, Service Department at P.O. Box 152, Mayville,
WI 53050 or contact us via the Internet at www.scag.com.
The manual for this machine can be downloaded by using
the model and serial number or use the contact form to
make your request. Please indicate the complete model
and serial number of your Scag product when requesting
replacement manuals.
2.2 SIGNAL WORDS
This symbol means “Attention! Become Alert! Your
Safety is Involved!" The symbol is used with the following
signal words to attract your attention to safety messages
found on the decals on the machine and throughout this
manual. The message that follows the symbol contains
important information about safety. To avoid injury and
possible death, carefully read the message! Be sure to fully
understand the causes of possible injury or death.
SIGNAL WORD:
It is a distinctive word found on the safety decals on the
machine and throughout this manual that alerts the viewer
to the existence and relative degree of the hazard.
DANGER
The signal word “DANGER” denotes that an extremely
hazardous situation exists on or near the machine that
could result in high probability of death or irreparable injury
if proper precautions are not taken.
WARNING
The signal word “WARNING” denotes that a hazard exists
on or near the machine that can result in injury or death if
proper precautions are not taken.
CAUTION
The signal word “CAUTION” is a reminder of safety practices
on or near the machine that could result in personal injury
if proper precautions are not taken.
Your safety and the safety of others depends significantly
upon your knowledge and understanding of all correct
operating practices and procedures of this machine.
2.3 BEFORE OPERATION
CONSIDERATIONS
WARNING
Check all hydraulic connections for tightness.
Inspect all hydraulic hoses and / or lines to ensure
they are in good condition before operating.
1. NEVER allow children to operate this machine. Do
not allow adults to operate this machine without
proper instructions.
2. Do not operate without the required state fertilizer
applicator license or other applicable licenses (vary
by state).
SAFETY INFORMATION

4
R
Section 2
3. Do not spray when children and/or others are
present. Keep children out of the spraying area and
in the watchful care of a responsible adult other than
the operator. Be alert and turn machine off if a child
enters the area.
4. DO NOT allow children to ride or play on the
machine, it is not a toy.
5. Keep keys stored in a safe location when the mower
is not in use; i.e. where they are inaccessible to
children.
6. Clear the area to be sprayed of objects that could be
contaminated with chemicals.
7. DO NOT carry passengers.
8. DO NOT operate the machine under the influence of
alcohol or drugs.
9. If the operator(s) or mechanic(s) cannot read
English, it is the owner's responsibility to explain this
material to them.
10. DO NOT wear loose fitting clothing. Loose clothing,
jewelry or long hair could get tangled in moving
parts. Do not operate the machine wearing shorts;
always wear adequate protective clothing including
long pants. Wear eye protection, gloves and any
other personnel protection equipment (PPE) that are
required by some local ordinances and insurance
regulations.
WARNING
Always wear hearing protection. Operating this
machine over prolonged periods of time can
cause loss of hearing.
11. Keep the machine and attachments in good
operating condition. Keep all shields and safety
devices in place. If a shield, safety device or decal
is defective or damaged, repair or replace it before
operating the machine.
12. Fuel is flammable; handle it with care. Fill the fuel
tank outdoors. Never fill it indoors. Use a funnel or
spout to prevent spillage. Clean up any spillage
before starting the engine.
13. DO NOT add fuel to a running or hot engine. Allow
the engine to cool for several minutes before adding
fuel. Never fuel indoors or inside enclosed trailers.
14. DO NOT start the engine until any spilled fuel has
been cleaned up or has evaporated.
15. Keep flammable objects (cigarettes, matches, etc.),
open flames and sparks away from the fuel tank and
fuel container. Use only approved containers.
16. Equipment must comply with the latest requirements
per SAE J137 and/or ANSI/ASAE S279 when driven
on public roads.
17. Make sure all hydraulic fluid connections are tight
and all hydraulic hoses and lines are in good
condition before starting the machine.
WARNING
This machine is equipped with an interlock system
intended to protect the operator and others from
injury. This is accomplished by preventing the
engine from starting unless the parking brake
is engaged, the steering control levers are in the
neutral position and the operator is in the operator
position.The interlock system shuts off the engine
if the operator leaves the operator platform with
the steering control levers not in the neutral
position and the parking brake not engaged.
18. Be sure the interlock switches are functioning
correctly.
19. Make sure to handle all chemicals according to the
manufacturers directions.
20. Use proper protective equipment to protect yourself
from chemical exposure (rubber boots, respirator,
chemical resistant gloves, and safety glasses/
goggles). Do not store protective equipment with or
near chemicals.
21. Do not operate this machine if the proper chemical
safety information/equipment is not present.
22. When preparing to work on the sprayer or spreader
system, make sure to thoroughly flush the system
(refer to manufacturer's recommendations for
neutralizing the chemical).
23. Always follow the chemical manufacturer's
instructions for application and safety.
