SCAN 1002 User guide

1001/1002
UK SCAN
ASSEMBLY AND INSTRUCTION MANUAL SCAN 1001/1002
UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 1001/1002

SCAN 1001 WC SCAN 1001 BSSCAN 1001 BB
SCAN 1002 WC SCAN 1002 BSSCAN 1002 BB
1001/1002
2
You have purchased a product by one of Europe’s leading manufacturers of
wood-burning stoves, and we are sure that you will have years of pleasure from your
purchase. To make the best possible use of your stove, it is important that you
follow our advice and instructions.
Read through this Assembly and Instruction Manual carefully before you start to
assemble your stove.
UK SCAN
CONGRATULATIONS
ON YOUR NEW SCAN
BUILT-IN STOVE

3
CONTENTS
¬¬TECHNICAL DATA 4
Installation 4
Safety 4
The Clean Air Act 1993 and Smoke Control Areas 4
Technical data and dimensions 5
Dimension sketch Scan 1001 6
Dimension sketch Scan 1002 7
Type plate 8
Product registrationumber 8
¬¬ASSEMBLY 9
Tools needed for mounting of the insert 9
Loose parts 9
Additional accessories 9
Disposal of packaging 9
Load-bearing foundation 9
Floor plate 10
Convection air 10
Existing chimney and pre-fabricated element chimney 10
Connection between built-in stove and steel chimney 10
Requirements for chimney 10
Internal installation in non-flammable material 10
Trims and doors 11
Gasket 11
Distance to furniture 11
Safety distance 11

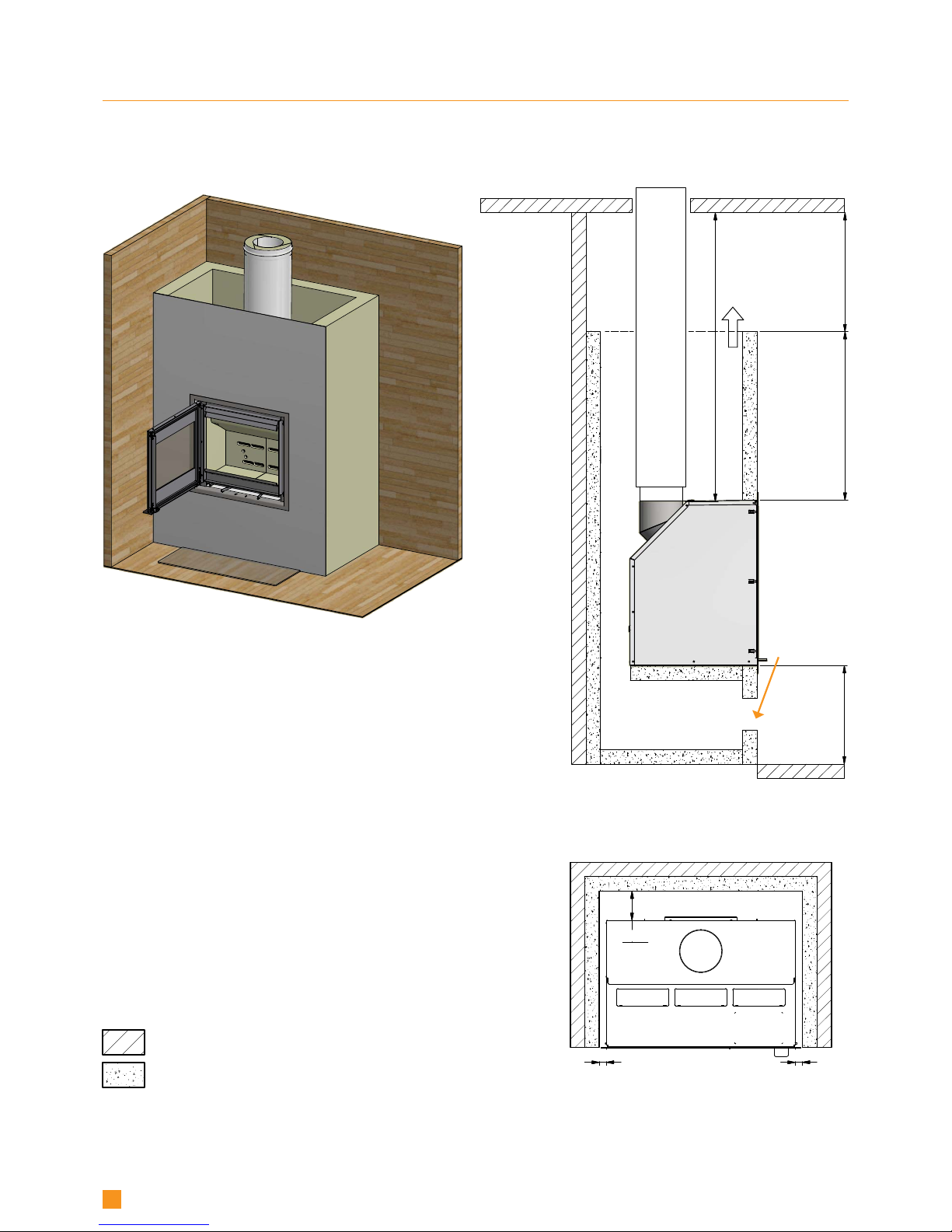

Building into flammable material with fire wall 12
Operating the door 15
Remove packaging 15
Fitting the flue connection piece 17
Fresh air intake 17
Closed combustion system 17
Mounting of external air supply 18
Fitting without the convection connection pieces 20
Fitting the convection connection pieces 20
Fitting the cassette 21
Mount the insert in the cassette 24
Mounting of the trim 25
Indicator for regulation of air supply 26
Mounting of convection grate 27
Mounting of combustion chamber 28
¬¬INSTRUCTIONS FOR USE 30
CB-technology (Clean Burning) 30
Baffle plate 30
Primary air 30
Secondary air 30
¬¬INSTRUCTIONS FOR HEATING 31
Environmentally friendly operation 31
Lighting 31
Using the stove in various weather conditions 31
Continuous operation 32
Warning about over-firing 32
Firing in the spring or autumn 32
The function of the chimney 32
General notes 32
Chimney fire 32
¬¬HANDLING OF THE FUEL 33
Selecting wood/fuel 33
Preparation 33
Storing 33
Moisture 33
Use of the following as fuel is illegal 33
Calorific value of the wood 33
¬¬MAINTENANCE 34
Sweeping the chimney and cleaning the stove 34
Checking the stove 34
Servicing 34
Combustion chamber lining 34
Gaskets 34
Painted surfaces 34
Cleaning the glass 35
Removing the baffle plate and the baffle unit 35
Disposal of stove parts 35
¬¬TROUBLESHOOTING 36
¬¬WARRANTY 37
Smoke Control Area air supply requirements 38

4
YOU GET THE BEST USE OF
THE STOVE BY USING
A TOP-DOWN
LIGHTING METHOD
SEE
"INSTRUCTIONS FOR HEATING"
PLEASE NOTE!
TECHNICAL DATA
INSTALLATION
¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local
building regulations as well as the information provided in this Assembly and Instructions Manual.
¬ When you install any kind of fireplace or stove, you must inform the local building and housing authorities. In addition
you are obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning.
¬ To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan
dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to www.scan.dk.
SAFETY
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as
intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case
if parts that are necessary for the operation and safety of the stove are dismantled or removed.
THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS
Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area.
It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke
control area. It is also an offence to acquire an "unauthorized fuel" for use within a smoke control area unless it is used in an "ex-
empt" appliance ("exempted" from the controls which generally apply in the smoke control area).
The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to authorize smokeless fuels or ex-
empt appliances for use in smoke control areas in England. In Scotland and Wales this power rests with Ministers in the devolved
administrations for those countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981, applies in Northern
Ireland. Therefore it is a requirement that fuels burnt or obtained for use in smoke control areas have been "authorized" in Regu-
lations and that appliances used to burn solid fuel in those areas (other than "authorized" fuels) have been exempted by an Order
made and signed by the Secretary of State or Minister in the devolved administrations.
¬ Further information on the requirements of the Clean Air Act can be found here: www.smokecontrol.defra.gov.uk
¬ Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke
control areas and you can contact them for details of Clean Air Act requirements”
¬ The secondary air valve has been modified, so that is does not close completely but has an opening corresponding to the posi-
tion used at the lowest emission test.
¬ You can use any type of wood as fuel.
¬ This stove has been recommended as suitable for use in smoke control areas when burning wood.

5
TECHNICAL DATA AND DIMENSIONS
Scan 1001 – Test in compliance with EN 13229
CO Emission at 13% O20,07 %
CO Emission at 13% O2879 mg/Nm3
Dust @ 13% O212 mg/Nm3
Nox@ 13% O242 mg/Nm3
Efficiency 82 %
Energy efficiency index 109,9
Energy efficiency class A+
Nominel output 7 kW
Chimney temperature EN 13229 220 °C
Temperature in flue conn. piece 264 °C
Amount of smoke 7,4 g/sek
Sub-pressure EN 13229 12 Pa
Recommended sub-pressure in
connecting piece 16-18 Pa
Required combustion air supply 19,8 m3/h
Fuel Wood
Fuel consumption 2,2 kg/h
Amount of fuel required to light 1,7 kg
Amount of fuel, max. 3 kg
Materials
Steel plate
galvanised sheet
Vermiculite
Chamotte
Robax glass
Surface treatment Senotherm
Max. wood length Scan 1001 50 cm
Max. wood length Scan 1002 65 cm
Weight Scan 1001 ca. 107 kg
Weight Scan 1002 ca. 124 kg
Connecting piece internal diameter 144 mm
Connecting piece external diameter 148 mm
Approval type Intermittent
fuelling*
Scan 1002 – Test in compliance with EN 13229
CO Emission at 13% O20,07 %
CO Emission at 13% O2864 mg/Nm3
Dust @ 13% O29 mg/Nm3
Nox@ 13% O291 mg/Nm3
Efficiency 82 %
Energy efficiency index 109,9
Energy efficiency class A+
Nominel output 8 kW
Chimney temperature EN 13229 208 °C
Temperature in flue conn. piece 250 °C
Amount of smoke 7,9 g/sek
Sub-pressure EN 13229 12 Pa
Recommended sub-pressure in con- 16-18 Pa
Required combustion air supply 22 m3/h
Fuel Wood
Fuel consumption 2,3 kg/h
Amount of fuel required to light 1,9 kg
Amount of fuel, max. 4 kg
* Intermittent operation in this context means normal use of a
wood-burning stove. In other words, you should let the fire die
down until only the embers are left before refuelling.
Scan 1001-1002 is produced in accordance with type approv-
al for the product, which also covers the product’s Assembly
and Instruction Manual.
The Declaration of Performance (DoP) is available from www.
scan.dk

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001001_stregtegning.idw
91001001_stregtegning
Målskitse
22-06-2018 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
688
623105
325
566
438
107
92
650
125
130
Min590
Min 670
Min
450
489
563
570
D
A
B
C
6
DIMENSION SKETCH SCAN 1001
ATop outlet
BRear outlet
CCentre external air supply, rear side
DCentre of external air supply, bottom
All measures are in mm
C

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1002\91002001_stregtegning.idw
91002001_stregtegning
Målskitse
25-06-2018 KEN
Scan 1002
VÆGT:
AREAL:
N/A
N/A
400
105
838
623
438
800
200
130
570
92
489
563
Min590
Min
450
Min820
566
D
A
B
C
7
DIMENSION SKETCH SCAN 1002
ATop outlet
BRear outlet
CCentre external air supply, rear side
DCentre of external air supply, bottom
All measures are in mm

100100000 100200000
Scan 1001
Insert fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13229 EC no. 91001600
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Klasse 2
Certificate/Standard
EN 13229
300-ELAB-1588-NS
Approved by
Teknologisk Institut
Teknologisk Institut
Dust at 13% O2: 12 mg/Nm³
Flue gas temperature: 220°C
Nominal heat output: 7 kW
Efficiency: 82%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to heat insulation:
Side: 25 mm - Back: 100 mm - Top: 800 mm - Bottom: 400 mm
Minimum insulation:
CO emission at 13% O2:
See assembly- and instructions manual
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 11-2012
0,07% 879 mg/Nm³
Schweiz
Germany
LRV 11
BStV 1
VKF
300-ELAB-1588-EN
Teknologisk Institut
Teknologisk Institut
Scan 1002
Insert fired by solid fuel
Standard:
Fuel type:
Operation type:
The appliance can be operated in a shared flue.
Country
EN 13229 EC no. 91002600
Wood
Intermittent
EUR
Norway
Classification
Intermittent
Klasse 2
Certificate/Standard
EN 13229
300-ELAB-1664-NS
Approved by
Teknologisk Institut
Teknologisk Institut
Dust at 13% O2: 9 mg/Nm³
Flue gas temperature: 208°C
Nominal heat output: 8 kW
Efficiency: 82%
Scan A/S DK 5492 Vissenbjerg
Minimum distance to heat insulation:
Side: 25 mm - Back: 100 mm - Top: 800 mm - Bottom: 450 mm
Minimum insulation:
CO emission at 13% O2:
See assembly- and instructions manual
Follow assembly- and instructions manual.
Use only recommended fuels.
Montage- und Bedienungsanleitung beachten.
Verwenden Sie nur empfohlene Brennstoffe.
1000 11-2012
0,07% 864 mg/Nm³
Schweiz
Germany
LRV 11
BStV 1
VKF
300-ELAB-1624-EN
Teknologisk Institut
Teknologisk Institut
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001002.idw
91001002
Ovn påpalle
28-03-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001002.idw
91001002
Ovn påpalle
28-03-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
8
Type plate Scan 1001 Type plate Scan 1002
Product registration number Scan 1001 Product registration number Scan 1002
Product registration number
Type plates
PRODUCT REGISTRATIONUMBER
All Scan built-in stoves are provided with a product registration number. Please make a note of this number at the rear page of
this manual; you will always need to quote it when contacting your dealer or Scan A/S.
TYPE PLATE
All Scan built-in stoves are fitted with a type plate that specifies the approval standards and the distance to flammable materials.

9
ASSEMBLY
TOOLS NEEDED FOR MOUNTING OF THE INSERT
¬ Spirit level ¬ Cutting nippers
¬ Cross tip screwdriver ¬ Flat head screwdriver
¬ Ø10 wall drill ¬ Open-end spanner
LOOSE PARTS
The trim is delivered on the wood pallet together with the insert.
In the insert’s combustion chamber you will find the following loose parts
¬ Baffle plates ¬ Burn chamber plates (side and rear)
¬ Bricks for the bottom of the burn chamber ¬ Log guard
¬ Glove
¬Bag containing loose parts:
4 x self-tapping screws 4.2 x 6.5 mm 8 x 3 mm black self-adhesive gasket (2 m)
(for fastening the sleeve Ø100 mm) (Ø100 mm sleeve, connecting piece and cassette)
4 x rawlplugs10 x 50 mm (for fastening the cassette) 4 x torx screws M6 x 50 (for fastening the cassette)
4 x discs Ø6.5 / Ø16 x 1.1 (for fastening the cassette) 2 pins for the lower smoke deflector plate
Indicator for the regulation of the air supply Ø100 mm sleeve with flange
Torx key 5 mm Screw M5x6 (United Kingdom)
ADDITIONAL ACCESSORIES
¬ Convection adaptors Ø149 mm (see page 20)
¬ Convection grates (See page 26)
DISPOSAL OF PACKAGING
Your Scan built-in stove may come supplied with the following packaging:
Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral
product or sent for recycling.
Polystyrene top Send for recycling or waste disposal.
Foam Send for recycling or waste disposal.
Plastic bags Send for recycling or waste disposal.
Stretch/plastic film Send for recycling or waste disposal.
LOAD-BEARING FOUNDATION
All items in our product range come under the category of lightweight fireplaces and stoves and do not normally require any
reinforcement of the beam structure. They can be positioned on ordinary beams/floor.
You should of course make sure that the foundation on which the stove is positioned can indeed support the weight of the stove
and, where applicable, a steel chimney, if you have opted for this solution.

10
FLOOR PLATE
If you are placing the stove on a flammable floor, you must comply with the national and local regulations on the size of any
non-flammable subsurface required to cover the floor around the stove.
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove.
The floor plate’s function is to protect the floor and flammable material against any sparks that may occur.
CONVECTION AIR
The covering must contain holes for convection air. Convection means that there is an air circulation ensuring that the heat is
equally distributed in the room. It is important that the demands concerning convection areas are observed.
¬ Min. area for ingoing convection air: 350 cm2 ¬ Min. area for outgoing convection air: 500 cm2
If there is not enough convection air, the covering may be damaged.
Convection air grids are available as an accessory.
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY
If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-
ney sweep, for advice. These experts will also let you know if your chimney needs renovating.
¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the
relevant chimney type.
CONNECTION BETWEEN BUILT-IN STOVE AND STEEL CHIMNEY
Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney. This ensures that the
chimney will match your wood-burning stove.
REQUIREMENTS FOR CHIMNEY
The chimney must have a diameter of min. 148 mm and be labelled T400 and G for soot testing. The length must be min. 4,5
metres.
If you opt to connect the bulit-in stove with an elbow pipe, you should use a curved elbow, as this gives a better draught.
If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the
horizontal part can be cleaned through here.
The requirements to the chimney and the flue pipe in terms of safety distances must be met.
¬ Choosing the wrong length or diameter of steel chimney could impair functionality.
¬ Always comply exactly with the instructions provided by the steel chimney supplier.
INTERNAL INSTALLATION IN NON-FLAMMABLE MATERIAL
When building or fitting into structures that do not contain flammable materials, a minimum distance of 10 mm must be main-
tained between the brickwork and the convection hood. This is to prevent cracks in the brickwork caused by the expansion of the
metal while the stove is heating.

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001036.idw
91001036
Pakning påsvøb
11-05-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
11
TRIMS AND DOORS
Trims and doors are fitted when the surfaces of the surround have been treated.
GASKET
Gasket 0,75 m is mounted on the inside of the cassette as shown.
DISTANCE TO FURNITURE
Distance to furniture from glass: Scan 1001: 1300 mm. / Scan 1002: 1400 mm.
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove.
The stove is NOT to be built into flammable materials without the use of a fire wall!
SAFETY DISTANCE
European, national and local regulations concerning safety distances for wood-burning stoves must be complied with.
Gasket

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001054.idw
91001054
Uisoleret skorsten
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
400
600
850
420
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001055.idw
91001055
Uisoleret røgrør
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
100
25 25
450
250
1300
800
Min. 350 cm2
Min. 500 cm2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001029.idw
91001029
Lille glasgulvplade
02-05-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
* *
*
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1005\91005029.idw
91005029
Uisoleret røgrør
03-05-2018 KEN
Scan 1005
VÆGT:
AREAL:
N/A
N/A
100
15 15
450
200
1450
800
Scan 1001: 1300 / Scan 1002: 1400*
12
BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL
Cavities are not to be
filled out with
insulation material!
Installation with an un-insulated elbow pipe
Lower
convection
opening
Upper
convection
opening
These cover plates must be
removed when installing into
flammable material protected
by insulation
Flammable materials
Floor plate
Distance to furniture from glass
Floor
Ceiling
Flammable material
Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick
or other material with corresponding fireproof and
insulating abilities
All distances are in mm.
All distances are minimum distances
* Applies for all installations
Chimney

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001043.idw
91001043
Konstruktion/omramning mod loft
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
400
850
420
Min. 350 cm2
Min. 500 cm2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001056.idw
91001056
Isoleret røgrør
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
100
25 25
13
BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL
Cavities are not to
be filled out with
insulation material!
Installation with an insulated, vertical flue pipe
- structure/surround to ceiling
Lower
convection
opening
Upper
convection
opening
The distance to fire wall (brick) depends on the use
of an insulated flue pipe with min. 30 mm insulation
all the way down to the insert
Floor
Ceiling

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001049.idw
91001049
Indbygning i åben omramning
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
500
900
420
1400
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001050.iam
91001050Åben indbygning Scan 1001
15-11-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
Min. 350 cm2
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 80\90580001.idw
90580001
Opstillingsafstand, hjørne, Scan 1008 03-03-2017
sr
Scan 80
Weight: Area:
N/A N/A
350mm
25 mm
25mm
Møbleringsafstand: 800 mm.
Brandbart materiale
Brandmur
F.eks. 50 mm. Jøtul firewall
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001056.idw
91001056
Isoleret røgrør
21-06-2018 KEN
Scan 1001
VÆGT:
AREAL:
N/A
N/A
100
25 25
14
BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL
Flammable material
Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick
or other material with corresponding fireproof and
insulating abilities
All distances are in mm.
All distances are minimum distances
Convection opening
When building or fitting into a structure/sur-
round that is open at the top, the convection
holes can be omitted. However, you should
note that no top plate must be placed on the
structure
Installation with an insulated, vertical flue pipe
- open structure/surround
Lower
convection
opening
Floor
Ceiling

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001003.idw
91001003
Afmontage låge
28-03-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001003.idw
91001003
Afmontage låge
28-03-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
1
15
OPERATING THE DOOR
REMOVE PACKAGING
Check that the built-in stove is not damaged before installing it.
Scan 1001/1002 is delivered secured to the pallet. It is recommended that you remove the door and take all loose parts out of
the combustion chamber before unscrewing the stove from the pallet; this will facilitate the mounting of the insert.
Dismount the combustion air box. This box is only needed, if the insert is to be connected with external air supply, see page 18.
2The door should be banged shut, as on a car.
Grip the handle (hold in a horizontal position)
and bang the door shut
1Push down the handle and the door will open
Combustion air box
Pointed screw
Screw
and
spring
To remove the door:
Loosen the pointed screw,
remove the screw and the
spring and lift off the door

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001007.idw
91001007
Afmontage røgstuds
17-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001008.idw
91001008
Afmontage ovn fra svøb
17-04-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\11001900-Manual.iam
11001900-Manual
27-03-12 BC
VÆGT:
AREAL:
N/A
N/A
4
2
3
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\11001900-Manual.iam
11001900-Manual
27-03-12 BC
VÆGT:
AREAL:
N/A
N/A
16
REMOVE PACKAGING
Remove the two screws securing
the cassette to the pallet
Dismount the connecting piece:
Loosen (not dismount) the flange nuts
holding the connecting piece inside the
stove. Push the connecting piece in the
direction of the arrow and remove it
Lift the insert free from the grip holes in
the front and pull it out of the cassette

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001025.idw
91001025
Montage røgstuds
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001025.idw
91001025
Montage røgstuds
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001025.idw
91001025
Montage røgstuds
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001025.idw
91001025
Montage røgstuds
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001025.idw
91001025
Montage røgstuds
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
17
FITTING THE FLUE CONNECTION PIECE
The insert is prepared for a top flue outlet from the factory, but the connection piece can be turned around for a rear outlet.
Mount the connecting piece on the insert, after it has been placed in the cassette.
4 x flange nuts M6
Mount the gasket 3 x 8 mm at the edge of the flange of the connecting piece. Fasten the connecting piece with the flanged nuts
Gasket
FRESH AIR INTAKE
In a well-insulated house, the air used up by the burning process has to be replaced. This particularly applies to houses with
mechanical ventilation. There are different ways of making sure that an air exchange takes place. The most important thing is to
ensure that there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close
to the wood stove as possible, and you must be able to close it when you are not using the wood stove.
National and local building regulations must be followed with regard to the connection of fresh-air intake.
CLOSED COMBUSTION SYSTEM
You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home.
External combustion air is connected through a ventilation pipe via the wall or floor.
It must be possible to shut off the ventilation pipe with a valve, when the stove is not in use. Minimum Ø 100 mm ventilation pipe,
maximum length: 6metres with a maximum of 3 bends. We recommend smooth steel pipes.
NOTE: if the stove has a fresh air connexion or closed combustion, the ventilation pipe must be open, when the stove
is in use!

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001020.idw
91001020
Kassette
24-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001037.idw
91001037
Ekstern forbrænding bag påsvøb
15-05-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001038.idw
91001038
Montage forbrændingsluftkasse
15-05-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
1
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001032.idw
91001032
Frisklufttilførsel bund af ovn
07-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
18
MOUNTING OF EXTERNAL AIR SUPPLY
To dismount the cover plates for the Ø100 mm sleeve, use an ordinary screwdriver as shown below. Tilt the screwdriver and
loosen the cover plates.
External air supply on
the rear of the cassette
External combustion air on
the bottom of the cassette
4 x self-tapping screws 4.2 x 6.5 mm
Mount the Ø100 sleeve
MOUNTING OF EXTERNAL AIR SUPPLY ON THE REAR OF THE CASSETTE
Hitch the combustion air box on the
rear plate of the cassette.
This box must always be mounted
when connecting the insert with
external air supply.
Mount the insert in the cassette
(see page 21)

A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001033.idw
91001033
Pakning friskluft bund
08-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001032.idw
91001032
Frisklufttilførsel bund af ovn
07-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001038.idw
91001038
Montage forbrændingsluftkasse
15-05-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
1
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001032.idw
91001032
Frisklufttilførsel bund af ovn
07-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001034.idw
91001034
Friskluftdæksel under ovn
08-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001034.idw
91001034
Friskluftdæksel under ovn
08-05-2012 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
3
4
19
MOUNTING OF EXTERNAL AIR SUPPLY THROUGH THE BOTTOM OF THE CASSETTE
Mount 0.5 m gasket round the
flange of the sleeve Ø 100 mm
Turn the insert over and remove the cover plate at the bottom.
Mount the insert in the cassette (see page 23)
Cover plate
4 x self-tapping screws 4.2 x 6.5 mm
Mount the Ø100 sleeve
Hitch the combustion air box on the
rear plate of the cassette.
This box must always be mounted
when connecting the insert with
external air supply

NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001022.idw
91001022
Afmontage konvektionsdækplader
25-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001023.idw
91001023
Hul i svøb for konvektion
25-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001046.idw
91001046
Afmontage dækplader i topplade
30-10-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001047.idw
91001047
Konvektionshuller i topplade
30-10-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001046.idw
91001046
Afmontage dækplader i topplade
30-10-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001022.idw
91001022
Afmontage konvektionsdækplader
25-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
1
2
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001024.idw
91001024
Montage konvektionsstudse
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
I:\Udvikling\TEGNING\DSA 11\90084033.idw
90084033
Montage af konvektionsstudse
05-10-2009 BC
Scan DSA 11
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001024.idw
91001024
Montage konvektionsstudse
26-04-12 BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
20
FITTING THE CONVECTION CONNECTION PIECES
Convection connection pieces Ø149 mm
To dismount the cover plates for the convection adaptors, use an slotted screwdriver as shown below. Tilt the screwdriver and
loosen the cover plates.
Fastening points Cassette without cover plates
6 x Allen screws M4x10
6 x Flange nuts M4
Fit and tighten the cassette, see "Fitting the cassette".
When the cassette has been tightened, fit the convection connection pieces. Fit these and tighten them through the hole for the
flue connection piece.
FITTING WITHOUT THE CONVECTION CONNECTION PIECES
The cover plates in the top plate can be removed in order to reduce the temperature on the wall above the insert. If the insert is
built into an existing fireplace the cover plates are not to be removed.
To dismount the cover plates for the convection air, use a slotted screwdriver as illustrated below. Tilt the screwdriver down-
wards and loosen the cover plate. Fit and tighten the cassette, see "Fitting the cassette".
Cassette without cover plates
in the top plate
(ACCESSORY)
