EdilKamin KLIK Quick start guide

KLIK
EN Installation, use and maintenance page 2
PELLET STOVE

2
ENGLISH
The undersigned EDILKAMIN S.p.A., with registered office in
Via Vincenzo Monti 47 - 20123 Milan (Italy) - Tax ID Code and
VAT number 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stove mentioned below complies with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVE, bearing the brand
EDILKAMIN, model KLIK
SERIAL NO.: Rating plate reference
Performance declaration: (DoP - EK n° 171):
Rating plate reference
Moreover, the company hereby declares that:
the EVIA wood pellet stove satisfies the requirements of the
following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
Safety information 4
Dimensions 5
Technical data 6
Unpacking 7
Cover 9
Installation 10
Instructions for use 14
Maintenance 18
Troubleshooting 20
CONTENTS
USER/INSTALLER
The original language of this manual is Italian

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we ask you to read this manual
carefully, in order for you to be able to make the most of all
its functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of this manual
This manual is addressed to:
• those who will use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing them with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
ATTENTION:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Identification of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
First ignition (commissioning), in Italy, by an
authorised technician is required by UNI 10683, and is
recommended in all countries to ensure best results from
the product.
This consists of:
• checking the installation documents (declaration of
conformity) and the quality of the installation itself;
• calibrating the product to suit its actual application
• providing explanations to the end user and issuing
the complementary documentation (first ignition -
commissioning certificate).
Having the appliance commissioned properly ensures that it
will operate to best effect and in complete safety.
Commissioning is required for activation of the Edilkamin
manufacturer warranty. The warranty is only valid in the
country where the product was bought.
If the appliance is not commissioned by an authorised
technician, Edilkamin will not provide warranty service. See
the warranty booklet for details. The above terms do not
affect the dealer’s legal responsibility for the legal warranty.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by people,
including children, with limited physical, sensory
and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for indoor use and in
areas with normal humidity conditions.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to the
warranty certificate inside the product: specifically,
neither Edilkamin nor the retailer are liable for
damage resulting from incorrect installation or
maintenance.
Safety risks may be caused by:
• installation in non-suitable settings, in particular
those that are subject to fire risks. DO NOT
INSTALL THE PRODUCT IN AREAS SUBJECT TO
THE RISK OF FIRE.
• Contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH HOT PARTS and,
when the stove is switched off and still hot, always
wear the glove supplied.
• contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• Use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH. Serious risk of
burns, damage and injury.
• Use of fuel other than wood pellets. DO NOT BURN
WASTE MATTER, PLASTIC OR MATERIALS OTHER
THAN WOOD PELLETS IN THE COMBUSTION
CHAMBER. The product may become soiled, the
flue may catch fire, and environmental damage
may ensue.
• Cleaning the combustion chamber when hot.
DO NOT CLEAN THE COMBUSTION CHAMBER
WITH A VACUUM CLEANER WHILE IT IS HOT. You
could damage the vacuum-cleaner and risk the
emission of smoke in the room.
• Cleaningthefumesductwithcleaningproducts.DO
NOT CLEAN THE PRODUCT WITH FLAMMABLE
PRODUCTS. Risk of fire or blowback.
• cleaning the glass pane while hot or with unsuitable
cleaning products. DO NOT CLEAN HOT GLASS
WITH WATER. ONLY USE RECOMMENDED
GLASS CLEANING PRODUCTS. Risk of cracking
and permanent, irreparable damage to the glass.
• The storage of flammable materials at a distance
which is less than the safe distances listed in
this manual. DO NOT PLACE LAUNDRY ON
THE APPLIANCE. DO NOT PLACE DRYING
RACKS WITHIN THE SAFETY CLEARANCE. Keep
flammable fluids away from the appliance. Fire
hazard.
• Blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• Use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE IT AS
A SUPPORT. Risk of damage and injury.
• Use of the stove with the combustion chamber
door open. DO NOT USE THE PRODUCT WITH
ITS DOOR OPEN.
• Incandescent material projected from the open
door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
If you have doubts, please do not take any action, but
contact the dealer or the installer.
For reasons of safety, read the user instructions
included in this manual.
Connect the product to electricity supply only after
having completed its assembly and mounted the
cladding. Otherwise there is a risk of having "live"
electrical parts exposed.
USER/INSTALLER

5
ENGLISH

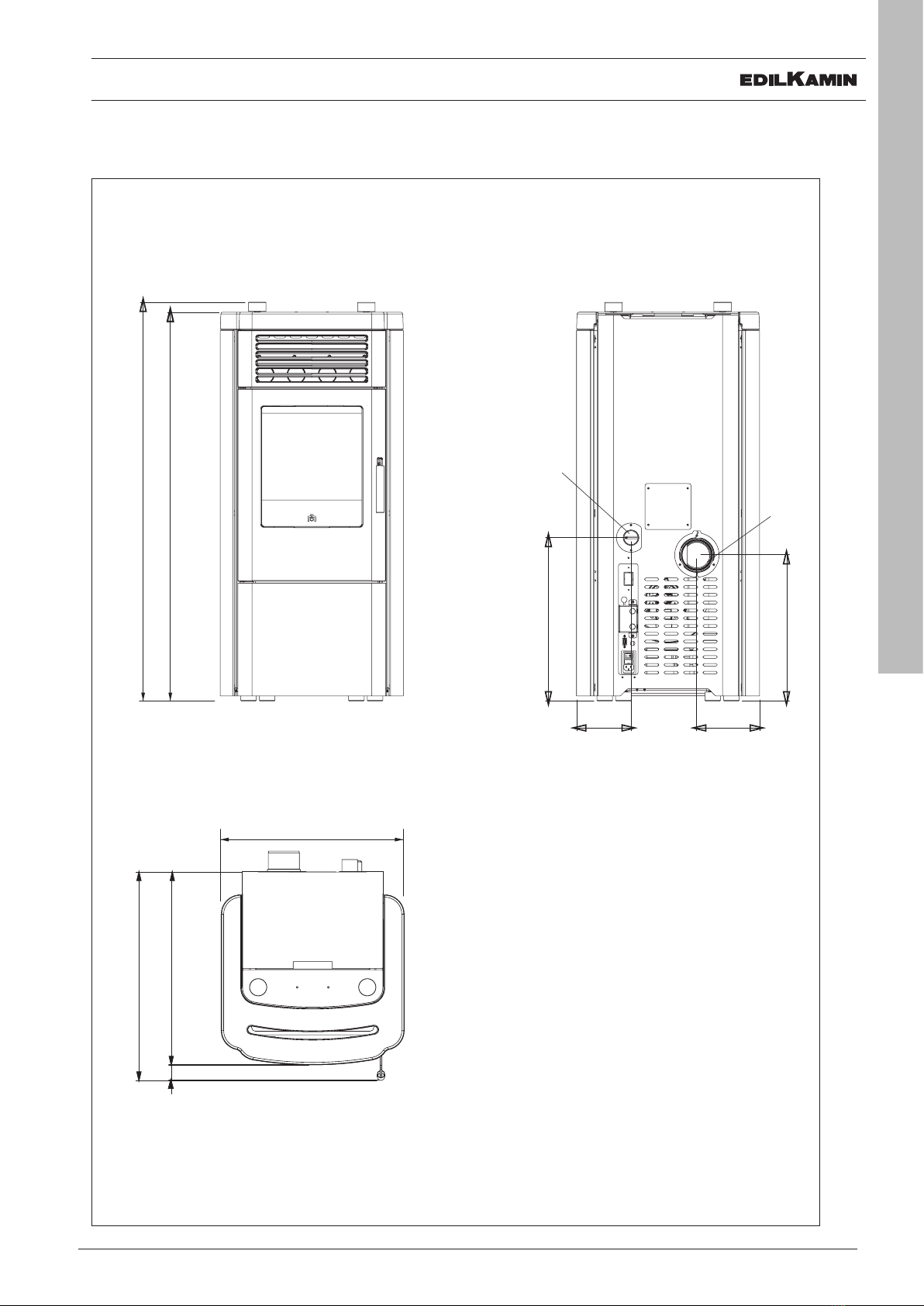

DIMENSIONS
KLIK - DIMENSIONS (cm)
Ø 4 cm
Combustion air
Ø 8 cm
Smoke outlet
100
42
49,5
53,5
4
37,5
102,5
1614
47
USER/INSTALLER

6
ENGLISH
The above data is for guidance only and was measured during certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
TECHNICAL CHARACTERISTICS in accordance with 14785
KLIK
Nominal power Reduced power
Available power 8,3 3,5 kW
Yield 90,0 91,1 %
CO emissions at 13% O20,004 0,021 %
Fumes temperature 166 122 °C
Fuel consumption* 1,9 0,8 kg/h
Tank capacity 17 kg
Draw 12 10 Pa
Autonomy 9 21 ore
Heatable volume * 215 m3
Fume duct diameter (top as standard, female) 80 mm
Air intake duct diameter (male) 40 mm
Weight including packaging 140 kg
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements in this sheet and the installation instructions for the product
Nominal power
KLIK
Fumes temperature at smoke outlet 210 °C
Minimum draw 0,01 Pa
Fumes flow rate 4,6 g/s
*A calorific value of 4.8 kW/Kg has been used to calculate consumption
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
ELECTRICAL SPECIFICATIONS
Power supply 230 Vac +/- 10% 50 Hz
Mean power absorbed 50 - 80 W
Power absorbed in stand by 15 W
Power absorption during ignition 300 W
Protection rating Fuse 4 AT, 250 Vac 5x20
TECHNICAL DATA
USER/INSTALLER

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
INSTALLER
Package materials such as plastic and
films my be dangerous for children.
Suffocation hazard.
Keep packages away from children.

8
ENGLISH
UNPACKING
UNPACKING
The delivery consists of two packages:
• one (1) containing the structure of the stove with the side panels already fitted;
• one (2) with the top
The package with the stove contains:
• warranty certificate,
• glove,
• this manual,
• small parts for the top (2 rubber grommets, 3 screws and three caps for the screws)
• power cable.
TO REMOVE THE STOVE FROM THE PALLET
Unscrew the screws to remove the front and rear
brackets
INSTALLER

9
ENGLISH
UNPACKING
POSITIONING THE TOP
The only component that is not fitted is the top.
Screw on the rubber grommets, the screws and the rubber caps.
Then, position the top.
INSTALLER

10
ENGLISH
INSTALLATION
INSTALLER
REMARKS ON INSTALLATION
Note that:
• installation must be carried out by authorised
technical personnel;
• the appliance must be installed and operated
in compliance with local and national law and
European regulations. The applicable Italian
regulation is UNI 10683;
• if installed in a condominium, the appliance must
be approved by the administrator.
Here are a few general instructions, although these do
not obviate the need to comply with local regulations
and do not affect the installer's liability for the
installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 25 m3
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draught.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
Protection from heat and safety
clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides and back of 10 cm
from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be appropriately insulated.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for this type of optional.
Positioning the product
The product is designed to operate in all climate
conditions. In special circumstances, such as strong
wind, the safety devices may intervene to switch the
appliance off.
Contact the authorised Edilkamin Technical Assistance
Centre.

11
ENGLISH
INSTALLATION
INSTALLER
FLUE SYSTEM
(Fumes duct, flue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
expelled in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
FUMES DUCT, FLUE
The fumes duct (which connects the combustion
chamber smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue);
• be routed vertically for the most part;
• have no downwards sloping sections;
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky;
• be made of material rated fire reaction class A1 per
UNI EN 13501 or analogous national regulations;
• be certified, with a chimney plate if metal;
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid-
point of its length.
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct:
• may not be made of flexible metal material;
• must be insulated, if routed through unheated
areas or outdoors;
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited or there is risk of fire, or that cannot be
inspected;
• must enable the recovery of soot and be open for
inspection;
• must have a maximum of 3 bends with a maximum
angle of 90°;
• if there is a horizontal section, it can have a
maximum length of no more than 3 metres,
depending on the draw. Note, in any case, that
long sections encourage the accumulation of dirt
and are harder to keep clean.

12
ENGLISH
INSTALLATION
INSTALLER
THE FLUE:
Further to the general prescriptions for the fumes duct
and flue, the flue:
• must only be used for discharging fumes
• must be correctly sized to satisfy the requirements
for fume discharging (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1,5
• must normally be at least 1,5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferably have a collection chamber for
non-combusted matter and condensation.
• if pre-existing, must be clean, to prevent the fire
hazard.
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
• must be anti-downdraught
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney.
EXTERNAL AIR INTAKE
In general, we suggest two ways to ensure a proper
flow of combustion air.
Indirect air intake
Install an air outlet at floor level with an effective surface
area (net of the screen or other protections) of at least
80 cm2(10 cm in diameter).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake**
Install an air intake with an effective size (net of the
mesh or other protective equipment) that is at least
equal to that of the air intake at the back of the product.
Connect the air intake to the appliance’s air intake with
a pipe that may also be flexible.
Increase the diameter of the pipe if the pipe is not
smooth: assess any load loss.
We recommend that it does not exceed 1 metre in
length or include any bends.
The air maybe drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the air pressure in the adjacent room is never
lower than that of the outdoor pressure;
• the adjacent room is not a garage, subject to fire
hazard, a bathroom or a bedroom;
• the adjacent room is not a shared room in the
condominium.
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
** Direct connection to the air intake will not make the
product airtight.
It is therefore necessary to additionally ensure an
air intake from within the room where the product is
installed (i.e. for cleaning the glass)

13
ENGLISH
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.

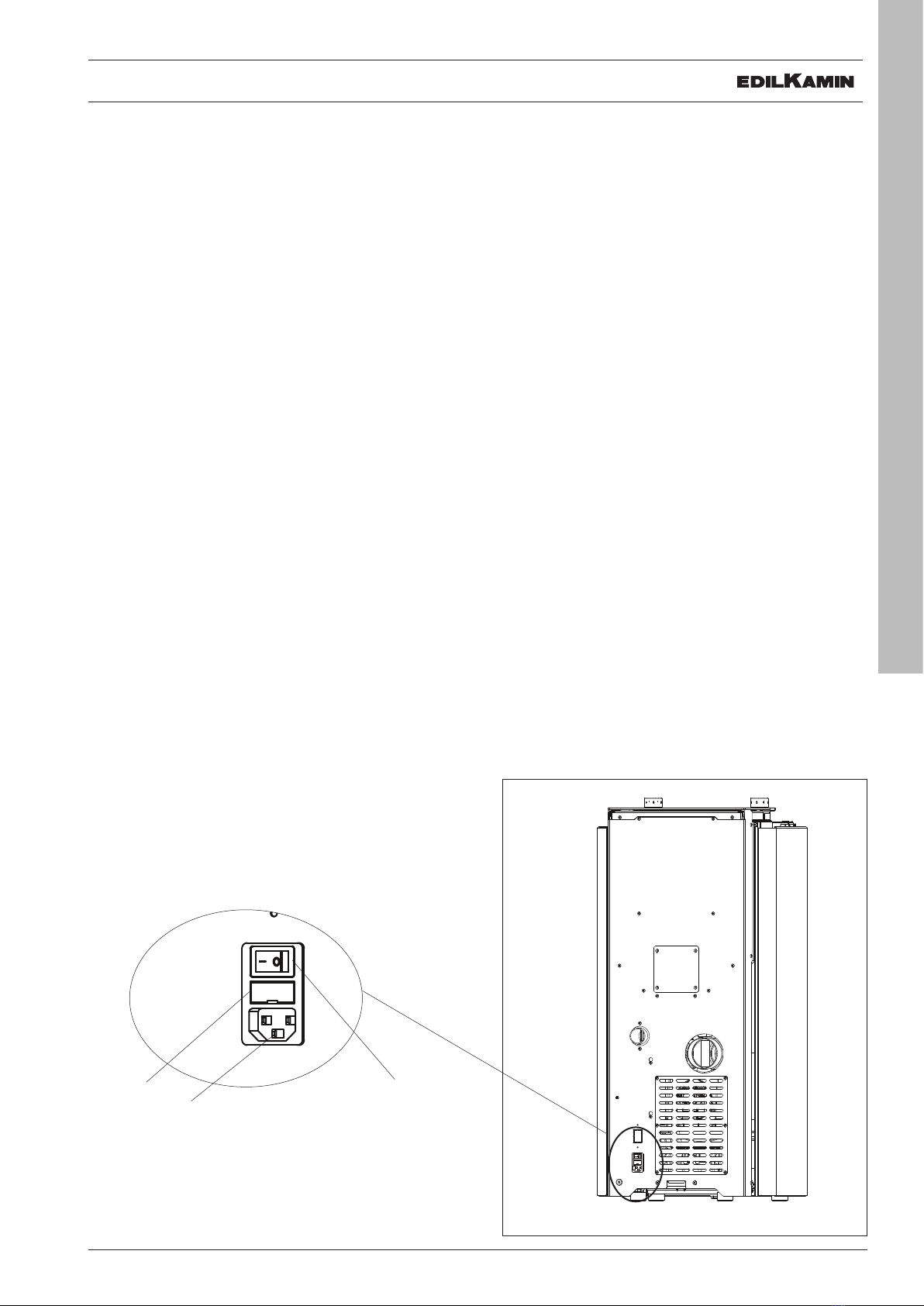

Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
INSTALLATION
switch
fuse
compartment power supply
INSTALLER

14
ENGLISH
FIRST IGNITION (COMMISSIONING) PHASES
• Make sure you have read and understood this
• manual
• Remove all flammable materials from the appliance
• (manuals, labels, etc.). In particular remove any
• labels from the glass
• Make sure the technician has carried out first
• ignition for the product
• The first ignition (with pellet tank loaded for the first
time) might fail. In this case, wait for the stove to
switch off completely and empty the burning pot.
Then turn the left-hand (power) knob to position 0
for 5 seconds. Once the signal LEDs have gone
out, repeat the ignition.
When the stove is hot, DO NOT REST the
bag of pellets on the upper grille.
Use the glove provided when loading the
stove while it operates and is therefore hot
to the touch.
Take care not to touch the fume
exhaust pipe when hot.
FUEL
Use Class A1 wood pellets conforming to the UNI
EN ISO 17225-2 standard or similar local regulations
envisaging, for example, products with the following
characteristics:
diameter 6 mm
length 3-4 cm
humidity <10%
For reasons of safety and environmental compatibility,
DO NOT burn, among other, plastic, painted wood,
coal or bark.
Do not use the stove as an incinerator.
Caution
Using fuels other than those specified can
damage the appliance.
USER INSTRUCTIONS
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.
USER
*
LOADING THE PELLETS INTO THE TANK
To access the tank, open the lid*.

15
ENGLISH
USER INSTRUCTIONS
USER
OPERATION
Description. The access to and adjustment of these
functions is described below:
Mode Size settings
MANUAL
(POWER)
• power level (from 1 to 3) with
consequent level of automatic
ventilation
DELAY • time after which the stove
comes on.
The stove also has the following supplementary
functions.
Function What it does
RELAX enables natural convection mode (fan
off), thus reducing the power
TURBO this activates the stove to maximum
power and maximum ventilation.
OPTIONAL CONNECTIONS
The technician can supply, on request:
external thermostat, telephone dialler, wi-fi for
connection to the logic board.

16
ENGLISH
INTERFACE.
On the top of the stove you will find the following components:
• left-hand knob: this allows you to regulate the power, set the RELAX and TURBO functions, and switch the stove
off (position 0);
• right-hand knob: this allows you to set a delayed ignition (from 2 to 12 hours after).
• LED signalling PELLETS RUNNING OUT (after about half-an-hour the appliance will go out)
• LED signalling CLEAN (the appliance switches off and, when the appliance is off and cold, you need to perform
ordinary maintenance;
• if there is a problem, contact your service technician)
SPECIFICA TECNICA
Nome:
Rev:
Data:
Pagina
KLIK
2.0
09/03/2018
3 / 6
Esempio di interfaccia (indicativo)
Temperature di funzionamento garantite
 funzionamento continuo: 80 °C
 temperatura di picco: 90 °C
Dimensioni indicative interfaccia
 400x70 mm
Tipo di connessione con scheda di gestione
 connettore unico tipo edge a perforazione di isolante (6 poli)
4 COMPORTAMENTO DELLA MACCHINA
4.1 Richiesta di calore
La richiesta di calore viene effettuata da ingresso ambiente, configurabile tramite
parametro come Sonda_Ambiente o Termostato_Ambiente.
USER INSTRUCTIONS
USER

17
ENGLISH
REMOTE CONTROL - OPTIONAL
The service technician can install a remote control on
the appliance.
THE REMOTE CONTROL WILL ONLY GIVE
COMMANDS WHEN THE POWER KNOB IS TURNED
TO POSITION 0.
WHEN IN THE OTHER POSITIONS, IT WILL ONLY
DISPLAY THE STATUS OF THE APPLIANCE.
To move the control functions from the knob to the
remote control, you need to move towards switching
the appliance off.
USER INSTRUCTIONS
USER

18
ENGLISH
DAILY MAINTENANCE
(To be performed always when the LED
that signals that the burning pot needs to
be cleaned comes on)
These operations must be done with the product off,
cold and preferably disconnected from the mains.
A suitable vacuum cleaner is required.
The entire procedure takes just a few minutes.
MAINTENANCE
• Do not dump the cleaning residue into the pellet
tank.
• Once it is refitted, make sure that the ash tray
is properly placed in its housing, to avoid glass
breakage when closing.
• Make sure that the grate is properly placed in its
housing after maintenance operations, if not, the
stove may have ignition problems.
Disconnect the product from the power supply.
Failure to service the product properly will prevent it from working properly.
Any problems due to failure in servicing the stove will void the warranty.
Using the stove without cleaning
the grate can cause the gas in the
combustion chamber to ignite and
detonate.
1. Open the combustion chamber door (P).
2. Vacuum clean the compartments inside the
combustion chamber.
3. Clean and remove the burning pot.
V
V
C
P
USER

19
ENGLISH
MAINTENANCE
SEASONAL MAINTENANCE
(to be carried out by the technical
assistance centre)
This consists of cleaning the stove inside and out.
If the product is used intensively, we
recommend cleaning the fumes duct and
flue every 3 months.
You should clean the chimney system at least once a
year (check local regulations for details).
If you fail to regularly clean and inspect the system,
there is an increased risk of the chimney pot catching
fire.
We recommend against using compressed air to
clean the combustion air inlet.
SUMMER SHUTDOWN
During the period of disuse, keep the stoves doors,
hatches and lids closed.
We recommend emptying out the pellet tank.
SPARE PARTS
For any spare parts, contact your dealer or technician.
Using non-original spare parts may damage the
appliance and relieves Edilkamin of all liability for
damage resulting such use.
Do not make unauthorised modifications.
DISPOSAL
At the end of its service life, dispose of the product as
required by regulations.
USER
In accordance with art. 26 of Legislative Decree no.
49 of 14th March 2014, “Implementation of Directive
2012/19/UE on the disposal of electrical and electronic
devices (RAEE)”.
The crossed-out dustbin symbol displayed on
equipment or its packaging indicates that the product
at the end of its life must be collected separately from
other waste.
At the end of its useful life, the user should therefore
deliver the product to a suitable local sorted collection
centre for electrical and electronic devices.
Sorted collection for recycling, treatment and
environmentally compatible scrapping contributes to
the prevention of negative effects on the environment
and health, and promotes the re-use and recycling of
the materials of which the equipment is made.

20
ENGLISH
If problems occur, the product shuts itself off automatically.
Do not disconnect from the power supply.
If the appliance has switched off with the knob in position 1, 2, 3, RELAX or TURBO.
To re-start the appliance, allow the switch off procedure to be completed, then move the knob to position 0 for at least
five seconds, after which the signalling LEDs should go out.
At this point, it is possible to proceed with the normal use of the stove.
If the product signals a fault with the knob in position 0 (while switching off).
To re-start the appliance, allow the switch off procedure to be completed, then move the knob to a position other than
0 for at least five seconds, after which the signalling LEDs should go out.
At this point, it is possible to proceed with the normal use of the stove.
If it blocks again, contact the service technician.
Before starting the product up again, check the reason for the shutdown and CLEAN the
burning pot.
The product is equipped with a safety valve but, if the burning pot is not cleaned regularly
as explained above, ignition may involve a small detonation. If white smoke forms in the
combustion chamber for a long time, disconnect the mains supply and wait 30 minutes
before opening the door and emptying out the burning pot.
TROUBLESHOOTING
USER
