SC&T TTP414HD User manual

Smart Cabling & Transmission Corp. V1.0
C
Twisted Pair Passive Series
User Manual
Model : TTP414HD
4 Port HD-TVI/AHD/HDCVI/CVBS Video Balun

1
User Manual
TTP414HD
Introduction
TTP414HD is a 4 port video balun that uses twisted-pair cables to send HD-TVI/ AHD/ HDCVI/ CVBS for up to
400M, with up to 4K (8MP) resolution.
Features
Resolution up to 4K (8MP)
Signal extension up to 400M over UTP CAT5e/6.
Male BNC to terminal block design.
No power required.
Built-in ESD, EFT (impulse noise) and transient protection.

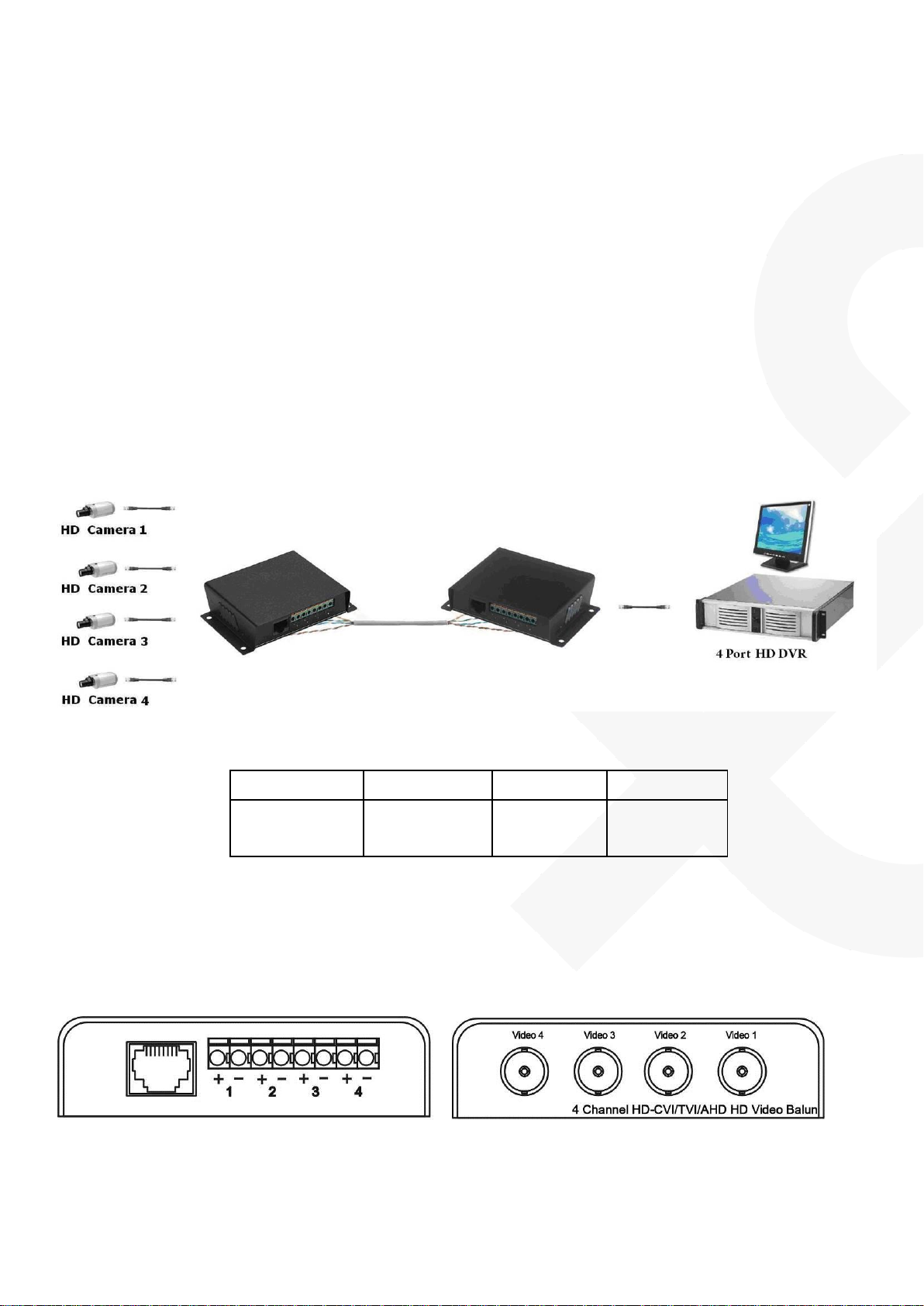

Installation View
HD-TVI/AHD/HDCVI/CVBS Video Balun Distance Chart
HD-TVI
AHD
HDCVI
CVBS
1080P 250M
5MP 200M
1080P 250M 4MP
200M
1080P 300M
5MP 200M
300M
The distance may effected by the quality of cable, camera, DVR. This installation should be made by a
qualified service person and should conform to all local codes.
Panel View
Front View Rear View

2
User Manual
TTP414HD
RJ-45 Jack Pin Define
NOTE : These devices is reversible, BNC connector ＝RJ45
This installation should be made by a qualified service person and should conform to all local codes.
Cable
Use high quality CAT5e UTP or CAT6 UTP cable. The max working distance is 300M.
The distance may effected by the quality of cable, camera, DVR.
Caution
1. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio
equipment, high voltage.
2. Must use same video format camera to avoid any interference.

3
User Manual
TTP414HD
Specification
ITEM NO.
TTP414HD
Support
Video Format
HD-TVI, AHD, HDCVI, CVBS
Max. Video Resolution
5MP
Transmission Distance
300M
Bandwidth
50Hz to 60MHz (-3dB)
Ports & Interfaces
Video Input/ Output
4 x BNC (1V p-p, 75Ω)
Link Interface
1 x 8-Pin Terminal (UTP), 1 x RJ45
Protection
ESD Protection
30 KV(Air)，15 KV (Contact), IEC 61000-4-2
EFT Protection
40A(5/50ns), IEC 61000-4-4
Lightning Protection
2A (8/20μs), IEC 61000-4-5
Response Time
<1 nS
Ambient Temperature
Operation
0 to 55℃
Storage
-20 to 85℃
Humidity
Up to 95%
Physical Characteristics
Dimensions
110 x 80.6 x 26.3mm
Weight
195g
