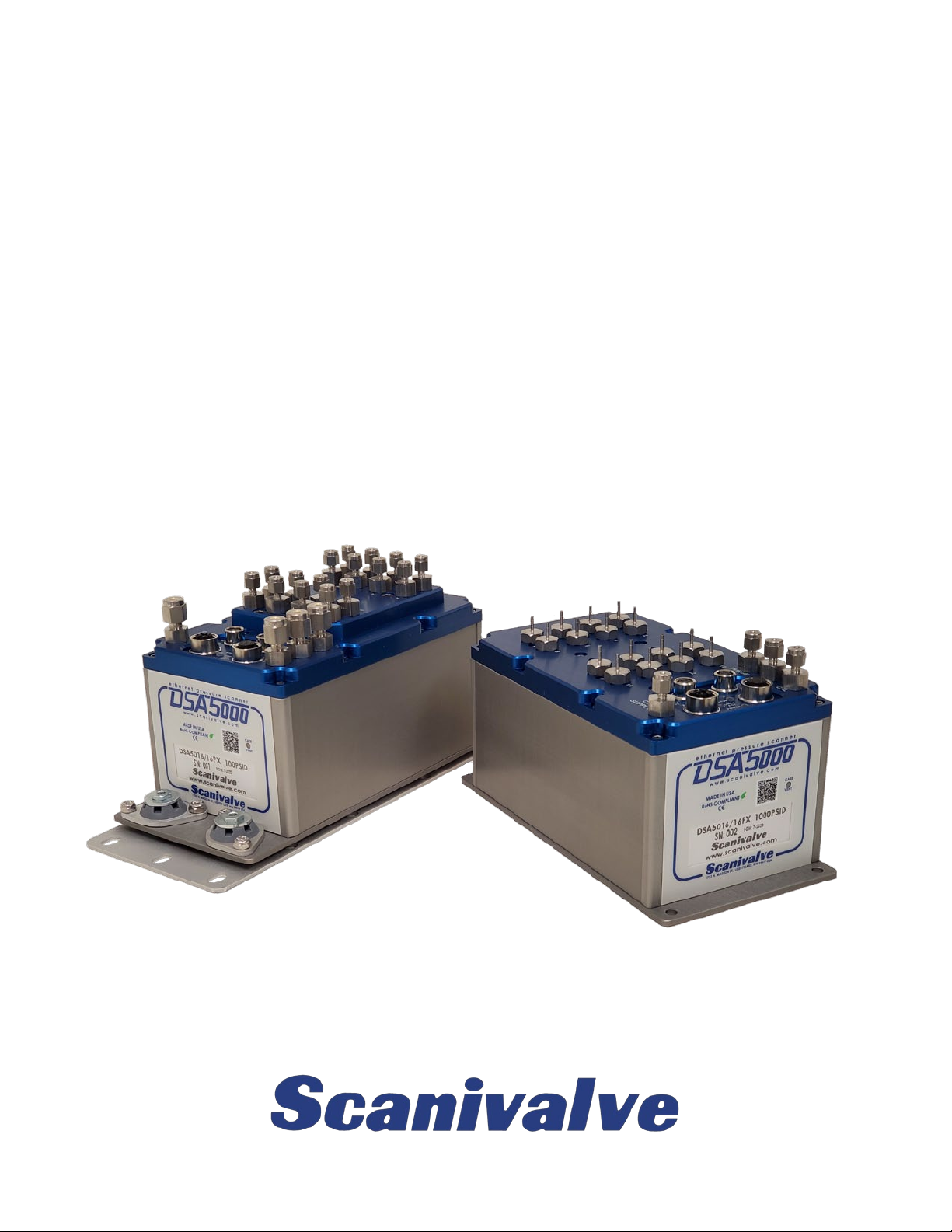

Scanivalve DSA5000 Operation manual

DSA5000 Series Pressure
Scanner
Digital Sensor Array
Operation and Service Manual
Software Version 1.00

iv
DSA5000
iv
Product
Preface
PREFACE
Warnings, Cautions, and Notes
The WARNING! symbol indicates that danger of injury to persons and the environment and/or con-
siderable damage (mortal danger, danger of injury) could occur if the respecve safety precauons
are not taken.
The CAUTION! symbol indicates danger to the system and material if the respecve safety precau-
ons are not taken.
The ESD note symbol indicates that proper precauons for handling Electrostac Sensive Devices
need to be taken when performing the related operaon. This includes the use of grounded work
surfaces and personal wrist straps to prevent damage to sensive electronic components.
Warranty
Scanivalve Corporaon, Liberty Lake, Washing-
ton, hereaer referred to as Seller, warrants to the Buyer
and the rst end user that its products will be free from
defects in workmanship and material for a period of twelve
(12) months from date of delivery. Wrien noce of any
claimed defect must be received by Seller within thirty
(30) days aer such defect is rst discovered. The claimed
defecve product must be returned by prepaid transporta-
on to Seller within ninety (90) days aer the defect is rst
discovered. Seller’s obligaons under this Warranty are
limited to repairing or replacing, at its opon, any product
or component part thereof that is proven to be other than
as herein warranted.
Surface transportaon charges covering any
repaired or replacement product or component part shall
be at Seller’s expense; however, inspecon, tesng and
return transportaon charges covering any product or com-
ponent part returned and redelivered, which proves
not to be defecve, shall be at the expense of Buyer or the
end user, whomever has returned such product or compo-
nent part.
This Warranty does not extend to any Seller product
or component part thereof which has been subjected to
misuse, accident or improper installaon, maintenance or
applicaon; or to any product or component part thereof
which has been repaired or altered outside of Seller’s facili-
es unless authorized in wri ng by Seller, or unless such
installaon, repair or alteraon is performed by Seller; or
to any labor charges whatsoever, whether for removal and/
or reinstallaon of the defecve pro duct or component
part or otherwise, except for Seller’s labor charges for
repair or replacement in accordance with the Warranty.
Any repaired or replacement product or component part
thereof provided by Seller under this Warranty shall, upon
redelivery to Buyer, be warranted for the unexpired poron
of the original product warranty.
THIS WARRANTY IS IN LIEU OF AND EXCLUDES ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, ARISING

v
DSA5000
v
Product Preface
v
BY OPERATION OF LAW OR OTHERWISE, INCLUDING THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, AND IN NO EVENT SHALL
SELLER BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
In the event of a failure:
1) Nofy Scanivalve Corporaon, Customer Service
Department. Include model number and serial number.
On receipt of this informaon, service data or shipping
instrucons will be forwarded. This may be transacted by
telephone or e-mail.
2) On receipt of shipping instrucons, forward the
pro duct, transportaon prepaid. Repairs will be made and
the product returned.
3) All shipments should be made via “Best Way.”
The product should be shipped in the original packing con-
tainer or wrapped in protecve material and surrounded by
a minimum of four (4) inches of a shock absorbing material.
Trademarks ® and Copyrights ©
Scanivalve is a registered trademark of Scanivalve Corpora-
on.
LabVIEW® is a registered trademark of Naonal Instru-
ments.
All other brand and product names are trademarks or regis-
tered trademarks of their respecve companies.
Packaging for Shipment
If the product must be shipped, whether being returned
to Scanivalve or relocated to another locaon, it must be
packaged properly to minimize the risk of damage. The
recommended method of packing is to place the instru-
ment in a container, surrounded on all sides with at lease
four inches of shock aenuang material such as Styrofoam
peanuts.
Important Notice
Please note that the product specicaons and other
informaon contained in this manual are subject to change
without noce. Scanivalve Corporaon makes an eort and
strives to provide complete and current informaon for the
proper use of the equipment. If there are any quesons
regarding this manual or the proper use of the equipment,
contact Scanivalve Corporaon.
Contact Information
If there are any quesons or concerns regarding any Scani-
valve product, please do not hesitate to contact us at the
following:
Scanivalve Corp.
1722 N. Madson Street
Liberty Lake, WA 99019
Telephone: [phone] [phone]
Fax: [phone]
[e-mail]
www.scanivalve.com
Scanivalve Corporaon is an ISO 9001:2015 cered
company.

vi
DSA5000
vi
Table of Contents
[INTENTIONALLY LEFT BLANK]

vii
DSA5000
vii
Table of Contents
TABLE OF CONTENTS
PREFACE iv
Warnings, Cauons, and Notes iv
Warranty iv
Trademarks ® and Copyrights © v
Packaging for Shipment v
Important Noce v
Contact Informaon v
Section 1: Specifications 1
DSA5000 1
DSA5000 Pressure Ranges and Accuracies 2
Section 2: Introduction 5
General Descripon 5
Module Overview 5
DSA5000 Pneumac Conguraons 6
DSA5000 Standard 16Px 6
DSA5000 Dual Range 16DR 6
DSA5000 True Dierenal 8DPx 6
DSA5000 Individual Reference 16IR 7
DSA5000 Dual Range, True Dierenal 8DDR 7
DSA5000 Absolute 16APx 7
DSA5000 Dual Range Absolute 16ADR 8
DSA5000 Quick-Disconnect (QD) Header 8
Environmental Consideraons 9
Section 3: operation 11
Unpack & Inventory 11
Mounng 11
Warm-up 11
Communicaons 11
Serial Communicaons 12
Ethernet Communicaons 12
Scanivalve Synchronous Ethernet Communicaons 12
Seng Up an Ethernet Connecon 12
Using a Stac IPv4 address 13
DSA Network Conguraons 13
Isolated Network 13
Integrated with System Network 14
Sub-Network with Gateway 14
Client/Host Opons 14
PC - Web Server 14
PC - TCP/IP 14
PC - UDP 14
PC - ScanTel 14

viii
DSA5000
viii
Table of Contents
PC - DSA5000Link 14
PC - HyperTerminal 14
Scanning 15
Scan Rate 15
Scan Duraon 15
Scan Data Format 15
Scan Data Units 15
Starng a Scan 15
Scanning with an External Trigger 15
Seng up an External Frame Trigger 16
Seng up an External Scan Trigger 16
Scan-on-Startup Opon 16
Scan Data Output Methods 16
ASCII TCP Scan Data Transfer 16
Binary TCP Scan Data Transfer 17
FTP Scan Data Transfer 17
UDP Scan Data Transfer 17
IEEE1588v2 Precision Time Protocol 17
PTP Triggered Scan 18
Zero Oset Calibraons 18
Dierenal Modules 18
Absolute Modules 19
Purging 19
Freon Applicaon Operaons 20
Web Server 21
Web Server: Main Display 22
Web Server: Scan 23
Web Server: File Browser 25
Scanivalve Synchronous Ethernet 27
Overview 27
Section 4: Hardware 29
Pneumac Connecons 29
Making Bulged Tubulaon Connecons 30
Making compression ng connecons 30
Making Scanivalve Quick-Coupler connecons 30
Pressure Measurement (Px) Ports 31
Calibraon (CAL) Port 31
Reference (REF) Port 31
Control Supply (CTL SUPPLY) Port 31
Purge Supply (PRG) Port 31
Quick-Disconnect Input Header 31
Valvestate and Solenoids 32
Control 1 (CLT1) Solenoid 32
Control 2 (CTL2) Solenoid 32
Purge Control (PRGCTL) Solenoid 33
Electrical Connecons 33
Power/Serial/Trigger connecon 33
Ethernet Connecon 34
Scanivalve SSEP I/O Connecons 34

ix
DSA5000
ix
Table of Contents
Section 5: Software 36
Overview 36
DSA Commands 36
DSA5000 Buer Descripon 37
DSA Data Output Denions 37
Host to DSA Command Packet 37
DSA to Host ASCII Packet 37
ASCII Scan Data Examples 38
Unformaed ASCII 38
Formaed ASCII 38
Comma Separated Variable ASCII 38
Binary Scan Data Formats 39
Command Format 40
General Commands 41
DSA Firmware Version 41
Status 41
Scan 41
Stop 42
List 42
Save 42
Load Conguraon 43
File Contents 43
Error 43
Clear 44
Flash Directory Contents 44
Delete File 44
Format Flash 45
Reboot 45
Scan Variables 46
Scan Rate (RATE) 46
Frames Per Scan (FPS) 47
ASCII Formang (FORMAT) 47
Scan Units (UNITS) 48
Trigger (TRIG) 49
Calibraon Commands 50
Quick-Zero Oset Calibraon (CALZ) 50
Manual Quick-Zero Oset Calibraon (MCALZ) 51
Quick-Zero Oset Barometric Calibraon (CALB) 51
UDP Variables 52
List UDP Sengs (LIST UDP) 52
UDP Output Control (UDP) 52
UDP Output Desnaon (IPUDP) 52
FTP Variables 54
List FTP Sengs (LIST FTP) 54
FTP Output Control (FTP) 54
FTP User Name (USERFTP) 55
FTP Password (PASSFTP) 55
FTP IP Address (IPFTP) 55
FTP File Name Prex (FILEFTP) 56
IP Variables 57
List IP Sengs (LIST IP) 57

x
DSA5000
x
Table of Contents
IP Address (IP) 57
Subnet Mask (SUBNET) 57
Ethernet MAC Address (MAC) 58
Default Gateway (GW) 58
Idencaon Variables 60
Serial Number (SN) 60
Model Number (MODEL) 60
LABEL (LABEL) 61
Nominal Pressure Range (NPR) 61
Miscellaneous Variables 63
Error Log (ERRORLOG) 63
Return Prompt Conguraon (PROMPT) 63
Sensor Excitaon Polarity (XITE) 64
Precision Time Protocol Variables (LIST PTP) 65
LIST Precision Time Protocol Sengs (LIST PTP) 65
PTP Enable (PTPEN) 65
PTP Stascal Output (STAT) 65
Scan Start Time (SST) 66
Scan Start Date (SSD) 67
UTC Oset (UTCOFFSET) 68
Max Oset From Master Tolerance (MAXOFM) 68
PTP (Precision Time Protocol) Commands 69
Grandmaster UTC Oset 69
Internal Time 69
PTP Stascs 70
Current PTP Oset 70
Valve Control Commands 72
Valvestate 72
Solenoid 1 Control 72
Solenoid 2 Control 73
Solenoid 3 Control 73
Conversion Table Commands 75
List Conversion Table 75
Delete Coecients 75
List Delta 75
Set Delta Point 76
List Temperature Points 77
Set Temperature Point 77
List Programmable Gain Sengs 78
Set Programmable Gain 79
List Points Table 79
Set Conversion Point 80
Convert Conversion Point 80
Section 6: Maintenance 82
Calibraon 82
Full Calibraons 82
Field Calibraons 82
Zero Oset Calibraon 82
Temperature Compensated Pressure Conversion 82
Special Procedures 83
DSA Firmware Installaon 83

xi
DSA5000
xi
Table of Contents
DSA Coecient Upload 85
Changing the IP Address 86
Formang the Memory 86
DSA5000 Shock Mount Kit Installaon 87
DSA5000 General Checkout Procedure 89
Appendix 91
Appendix A: Engineering Unit Conversion Constants 91
Appendix B: Data Matrix 92
Appendix C: DSA Valve Logic 93
Standard Dierenal Valve Logic 94
True Dierenal Valve Logic 95
Individual Reference Valve Logic 96
Absolute Valve Logic 97
Appendix D: Soware Change Log 98

xii
DSA5000
xii
Section 1: Specifications
[INTENTIONALLY LEFT BLANK]

1
DSA5000
1
Section 1: Specifications
DSA5000
SECTION 1: SPECIFICATIONS
DSA5000
DSA Base Size:
Width (W) 3.875” [98.43mm]
Height* (H) 3.732” [94.79mm]
Length (L) 7.625” [193.68cm]
Oponal Size Addions:
QD Header H + 0.093” [2.36mm]
Shock Mount kit H + 0.315” [8.00mm]
L + 2.875” [73.03mm]
*Fings will add to overall height. Due to the various ng sizes, overall height may vary.
Weight**:
DSA Base 5.45lbs [2.47kg]
QD Header 0.40lbs [181g]
Shock Mount Kit 0.56lbs [254g]
**Fings will add to overall weight. Due to the various ng sizes, overall weight may vary.
Number of Pressure Inputs:
Standard 16
True Dierenal 8
Base Input Fing: 5/16”x24 female thread
(SAE J1926-1
†
)
† SAE J1926-1 is equivalent to ISO 11926-1 for 5/16” x 24 o-ring sealing straight thread ngs.
Input Fing Kit Opons:
SS Tubulaons 0.042”, 0.063”, 0.125”
Compression 1/16” or 1/8”
Quick-Coupler Scanivalve 063
Control Pressure Requirements: 90-120psi
I/O and Mang Connectors:
Ethernet 1Gb M12, X-Code, 8-pin
Power M12, A-Code, 8-pin
Ring Ethernet (In/Out) M8, A-Code, 4-pin
Power Requirements:
DSA5000 w/o Heater 9 to 36Vdc @ 12W
DSA5000 w/Heater 20 to 36Vdc @ 85W
Communicaons:
Ethernet IEEE802.3
TCP/IP HTTP, Telnet, FTP
UDP/IP
Precision Time Protocol IEEE1588-2008v2
Scanivalve Synchronous Ethernet Protocol (SSEP)
Maximum Data Acquision Rate‡
ASCII 1kHz (samples/chan/sec)
Binary 5kHz (samples/chan/sec)
‡ Maximum data output may vary based on network limitaons
Typical Communicaons Rate:
Ethernet 1 Gbits/sec
RS232 9600 BAUD
Operang Temperature:
Without Heater 0 to 70 °C
With Heater -55 to 70 °C
Compensated Range: 0 to 72 °C
Total Thermal Error: Less than ±0.001% FS
Humidity:
Operaon 5 to 95% RH, Non-Condensing
Storage 5 to 95% RH, Non-Condensing
Shock & Vibraon: MIL-STD-810G, Cat 24
Shock 10G
Vibraon 10G
Acceleraon: 10G
Media: Gasses compable with
Silicon, Silicone, Gold,
Alumina Ceramic, Nylon Plasc,
Aluminum, Stainless Steel,
and Buna-N O-rings
Ingress Protecon: IP67
Standards: CE & RoHS v3

2
DSA5000
2
Section 1: Specifications
Full-Scale Pressure
Range1Proof
Pressure2
Burst
Pressure3
Maximum
Reference
Pressure
Dierenal Module Absolute Module
Measurement Range4% Full-Scale
Error5
Measurement
Range4% Full-Scale Error5
PSI kPa PSIG -PSI to +PSI PSIA w/ CALB w/o CALB
0.145 1
8 psi 10 psi 5 psi
-0.145 0.145 ±0.20
0.36 2.48 -0.36 0.36 ±0.15
16.89 -1 1 ±0.10
2.5 17.24
10 psi 15 psi 10 psi
-2.5 2.5 ±0.05
534.47 -5 5
±0.04
15 103.4 45 psi 75 psi 45 psi
-15
15
0
15 ±TBD ±TBD
30 206.8 90 psi
150 psi
90 psi 30 30 ±TBD ±TBD
50 344.7 125 psi 125 psi 50 50 ±TBD ±TBD
100 689.5 250 psi 300 psi
250 psi
100 100 ±TBD ±TBD
250 1724 650 psi 750 psi 250 250 ±TBD ±TBD 300 2086 800 psi 900 psi 300 300 ±TBD ±TBD 500 3447
1250 psi 1500 psi
500
±0.05750 5171 750
1000 6895 1000
1 Standard ranges available. Custom ranges may be available, but may not adhere to the stated accuracies. Please consult Scanivalve for more informaon. 2 Proof Pressure is the maximum pressure that may be applied without changing the performance or characteriscs of the pressure sensors. 3 Burst Pressure is the maximum pressure that may be applied without physically damaging the unit. 4 Modules cannot be used to measure pressure beyond 110% of the listed measurement range or custom calibrated range. 5 Including linearity, hysteresis, and repeatability.
DSA5000 Pressure Ranges and Accuracies

3
3
Section 1: Specifications
DSA5000
88.27 3.475
94.79 3.732
193.68
7.625
98.43 3.875
CASE
VENT
96.28 3.790
102.80
4.047
266.70 10.500
CONFIGURED WITH OPTIONAL QUICK-DISCONNECT (QD) HEADER AND SHOCK MOUNT KIT
8.89 .350
98.43 3.875
6X .250 6.35 X .438 11.11
MOUNTING HOLES
38.10 1.500
247.65
9.750
38.10 1.500
LED STATUS
INDICATORS
82.55 3.250
181.61
7.150
4X
.209 5.31
MOUNTING HOLES
POWER/SERIAL/TRIGGER
INPUT
GIGABIT ETHERNET
CONNECTOR
"RING" ETHERNET
CONNECTORS
(IN AND OUT)
NOTES:
ALL DIMENSIONS IN INCHES [MM].
1.
STANDARD MODULE CONFIGURATION
Figure 1.1 - DSA5000 Outline Drawing

4
DSA5000
4
Section 1: Specifications
[INTENTIONALLY LEFT BLANK]

5
DSA5000
5
Section 2: Introduction
SECTION 2: INTRODUCTION
General Description
The Digital Sensor Array (DSA) is a stand-alone electronic
pressure scanner which can accept up to 16 pneumac
inputs. The module is specically designed for use in
applicaons where long calibraon intervals, simple
operaon, and high accuracy pressure measurements are
required. Each DSA incorporates 16 discrete, temperature
compensated, piezoresisve pressure sensors, a 24-bit
Analog-to-Digital converter and RTD per sensor, and a
microprocessor. Each pressure sensor is characterized
over pressure and temperature. This informaon is stored
in EEPROM memory and enables the module to directly
output temperature corrected pressure data in engineering
units.
The sensors within each DSA5000 series module are
arranged in groups of eight (8). Each block of eight (8) sen-
sors has its own calibraon valve. This calibraon valve has
four (4) modes of operaon and allows the DSA module to
perform measurement, calibraon, and purge funcons.
The four (4) modes are:
• Measurement
• Calibrate
• Isolate
• Purge
The calibraon valve is operated using an externally sup-
plied control pressure and three (3) normally closed,
internal solenoids which are controlled digitally in the DSA
soware. A single control pressure source of 90-120 psi
control pressure is required to properly operate the inter-
nal valves. The DSA calibraon valve ulizes “Normally Px”
valve logic where the valves default to measurement mode
when no control pressures are applied or when all integral
solenoids are o (closed).
Module Overview
The DSA5000 is a highly customizable 16 channel pressure
scanner that can be customized to t and adhere to many
dierent applicaons and requirements. All pneumac and
hardware conguraons will operate using the same so-
ware commands, and oer temperature corrected pressure
data output directly in engineering units.
The DSA5000 base is an aluminum, splash resistant enclo-
sure that provides electronic connecons and open-thread
pneumac connecons. The DSA can be congured in any
of the following pneumac conguraons:
• Standard or Common Dierenal, 16Px
• Dual Range, Standard Dierenal, 16DR
• True Dierenal, 8DPx
• Individual Reference, 16IR
• Dual Range, True Dierenal, 8DDR
• Absolute, 16APx
• Dual Range Absolute , 16ADR
All DSA modules will have isolated channel inputs for each
transducer installed. Most pneumac conguraons will
also include pneumac connecons (when applicable) for:
• Calibraon port, CAL
• Reference port, REF
• Purge Supply port, PRG
• Control Supply port, CTL Supply
Each DSA is installed with three (3) internal pneumac sole-
noids. These solenoids orchestrate the applicaon of the
control pressure supply, which can place the DSA into one
(1) of the four (4) modes. These solenoids are controlled
digitally from the DSA’s internal soware using soware
commands.
The pneumac inputs on the DSA5000 base model are
5/16”x24 female thread matching the SAE J1926-1 stan-
dard. The SAE J1926-1 is equivalent to ISO 11926-1 for
5/16”x24 o-ring sealing, straight thread ngs. While
these threaded ngs are standard, Scanivalve allows the
user to select the pneumac terminaon of these ports
with a DSA5000 Fing Kit. These ng kits can be installed
into the female threaded ngs and can provide one of
the following terminaon opons:
• Bulged Stainless Steel Tubulaons
• Brass and Stainless Steel Compression Fings
• Scanivalve’s Quick-coupler 063 Fing
Individual ngs or ng kits can be purchased sepa-
rately to have an assortment of opons on hand for quick
changes or a variety of pneumac connecons per module.
As an opon, no ngs or ng kit can be supplied with
a DSA to allow a user to install their own ngs using the
5/16”x24 female threads.
In addion to the dierent pneumac input opons,
DSA5000 modules can be congured with a Quick-Dis-
connect (QD) input header. This QD input header opon
creates a removable header for all pressure inputs chan-
nels 1 through 16. This allows all plumbing to the Px input
measurement ports to be disconnected at one me and
swapped with another module or header. This is ideal for
pre-plumbing models or test arcles without the DSA5000

6
DSA5000
6
Section 2: Introduction
present, or for changing modules without having to change
plumbing.
For pressure measurement applicaons where the ambi-
ent temperature around the DSA is to extend below the
temperature compensated range of the DSA module, the
DSA can be equipped with internal heaters to regulate the
internal temperature. This provides measurement stability
when the module is subjected to temperatures below 0°C
in ight test, wind turbines, or other sub-zero applicaons.
For pressure measurement applicaons where a high shock
or vibraon environment is a consideraon, the DSA5000
can be equipped with a Shock Mount Kit. The shock mount
kit can be removed or installed in the eld. This shock
mount’s base plate matches the footprint and mounng
layout of the legacy DSA3218. This makes the shock mount
a great opon if replacing legacy DSA3218s in the eld.
DSA5000 Pneumatic Configurations
The DSA5000 is available in 7 basic pneumac congura-
ons.
DSA5000 Standard 16Px
The DSA5000 Standard 16Px module provides 16 channels
of the same pressure range sensors. These 16 pressure
transducers are congured into two (2) groups of eight (8)
each. Each group of eight (8) transducers shares a common
calibraon valve and a common reference manifold. Single
range modules e the two reference manifolds together,
and the two calibraon valves together internally to pro-
vide the user with a single reference and a single calibraon
port. In this conguraon, all pressure values provided by
the sensors will be a ‘dierenal’ pressure value between
the Px Inputs and the common reference port. If the
common reference port is le open to atmospheric pres-
sure, the pressure values at the Px ports will be a ‘gauge’
measurement value. Figure 2.1 depicts the top panel of a
DSA5000 Standard 16Px.
Figure 2.1 - DSA5000 Standard 16Px Top View
DSA5000 Dual Range 16DR
The DSA5000 Dual Range 16DR module is available as a
dual pressure range module, oering eight (8) channels
of one pressure range and eight (8) channels of a dier-
ent pressure range. Like a standard DSA5000, each group
of eight (8) transducers share a common calibraon valve
and a common reference manifold. However, in dual range
modules the reference manifolds and the calibraon valves
are not ed together internally, and a separate reference
and calibraon port are provided on the top of the module
for each range. These ports are labeled CAL H and REF H
(high, channels 9-16), and CAL L and REF L (low, channels
1-8). Standard conguraon will place the lower pressure
range in the “low” side, channels 1-8. This can be altered at
the customers request. Figure 2.2 depicts the top panel of a
DSA5000 Dual Range 16DR module.
Figure 2.2 - DSA5000 Dual Range 16DR Top View
DSA5000 True Differential 8DPx
For true dierenal pressure measurement applicaons,
the DSA5000 can be congured with eight (8) true dier-
enal pressure transducers. They are arranged into two (2)
groups of four (4) transducers. Each transducer will have
a discrete input for the posive and negave side of the
transducer for a true dierenal pressure measurement
between two points. Like the DSA5000 Standard 16Px, each
group of transducers has a dedicated calibraon valve that
allows the input pressures to be blocked o during any
calibraon, including a zero oset calibraon (CALZ). In
calibrate mode, the reference ports will all be manifolded
to a single reference port. Figure 2.3 depicts the top panel
of a DSA5000 True Dierenal 8DPx module.

7
DSA5000
7
Section 2: Introduction
Figure 2.3 - DSA5000 True Differential 8DPx Top
View
DSA5000 Individual Reference 16IR
For true dierenal pressure measurement applicaons
where the internal calibraon valve is not required to
control the reference pressure, the DSA5000 Individual
Reference 16IR provide two (2) discrete inputs for each
sensor (posive and negave), and 16 channels total (32
total inputs). A calibraon valve is provided for each group
of eight (8) sensors; however, unlike the DSA5000 Stan-
dard 16Px or True Dierenal 8DPx modules, a separate
reference port is provided for all sixteen (16) transducers
which are not controlled by the internal calibraon valves.
This means that a zero oset calibraon (CALZ) must be
performed with no pressure applied to the module, and
calibraons must be performed using an external manifold
to e all reference ports together. Figure 2.4 depicts the
top panel of a DSA5000 Individual Reference 16IR module.
NOTE: The Individual Reference 16IR cannot be congured
with the Quick-Disconnect (QD) header opon.
Figure 2.4 - DSA5000 Individual Reference 16IR
Top View
DSA5000 Dual Range, True Differential 8DDR
For true dierenal pressure measurement applicaons
where two pressure ranges are required, the DSA5000 Dual
Range, True Dierenal 8DDR provides two (2) ports for
each sensor, and 8 channels total (16 total inputs). They are
arranged into two (2) groups of four (4) transducers. Each
group can be of a dierent pressure range. A calibraon
valve is provided for each group of four (4) sensors. Similar
to the True Dierenal module, each group of transduc-
ers has a dedicated calibraon valve that allows the input
pressures to be blocked o during any calibraon, includ-
ing a zero oset calibraon (CALZ). In calibrate mode, the
reference (negave inputs) will be shorted to a single refer-
ence port per group. Like the Dual Range 8DR module, the
common ports are labeled CAL H and REF H (high, channels
5-8), and CAL L and REF L (low, channels 1-4). Standard con-
guraon will place the lower pressure range in the “low”
side, channels 1-8. This can be altered at the customers
request. Figure 2.5 depicts the top panel of a DSA5000 Dual
Range, True Dierenal 8DDR module.
NOTE: The Dual Range, True Dierenal 8DDR cannot be
congured with the Quick-Disconnect (QD) header.
Figure 2.5 - DSA5000 Dual Range, True
Differential 8DDR Top View
DSA5000 Absolute 16APx
The DSA5000 Absolute 16APx module can be used for abso-
lute pressure measurement when equipped with absolute
pressure transducers. A calibraon valve is provided for
each group of eight (8) sensors (no reference port). All six-
teen (16) transducers are ed a single calibraon port. An
absolute module will provide pressure values as an abso-
lute value. Figure 2.6 depicts the top panel of a DSA5000
Absolute 16APx pressure module.

8
DSA5000
8
Section 2: Introduction
Figure 2.6 - DSA5000 Absolute 16APx Top View
DSA5000 Dual Range Absolute 16ADR
The DSA5000 Dual Range Absolute 16ADR module can be
used for absolute pressure measurement, oering eight (8)
channels of one pressure range and eight (8) channels of a
dierent pressure range. Like a standard absolute DSA5000,
each group of eight (8) transducers share a common cali-
braon valve. However, in absolute dual range modules
the calibraon valves are not ed together internally, and
separate calibraon ports are provided on the top of the
module (no reference ports). They are labeled CAL H (high,
channels 9-16)and CAL L (low, channels 1-8). Standard con-
guraon will place the lower pressure range in the “low”
side, channels 1-8. This can be altered at the customers
request. Figure 2.7 depicts the top panel of a DSA5000 Dual
Range Absolute 16ADR pressure module.
Figure 2.7 - DSA5000 Absolute, Dual Range
16ADR Top View
DSA5000 Quick-Disconnect (QD) Header
DSA5000 modules can be ordered with the Quick-Discon-
nect (QD) header opon. When this opon is added, the
DSA5000’s input connecons will be on a single, removable
header that can be quickly separated from the DSA5000.
This allows for quick test setup changes or module swaps,
and minimizes both me and leak liabilies.
Figure 2.8 - Quick Disconnect (QD) Header
This opon works great for applicaons where:
• Plumbing from the test arcle or model must be
done prior to installaon of the pressure module.
Plumbing can be xed to the removable header, and
installed on the module when ready for tesng. This
allows the module to be stored in a safe locaon
when working with models or test arcles prior to
tesng.
• Module changes are required oen, whether
switching pressure ranges using the same inputs,
or when changing out modules for roune main-
tenance or calibraons. Modules sent to the
calibraon lab will typically not require the remov-
able input header which can stay xed to the test
arcle.
• Modules are shared between mulple facilies.
Plumbing from dierent test xtures can remain in
place with separate headers and modules can easily
be moved from one test staon to another. This also
benets facilies that use dierent input ngs.
For instance: 1/8” Compression ngs in Area A,
and 0.063” Tubulaons at Area B. Each header can
be equipped with the appropriate input ng kit.
The Px inputs on the header retain the same 5/16”x24
female threads, and each ng can be installed with any
variety of available ngs. The QD header opon is avail-
able for all pneumac conguraons except individual
reference (16IR) or true dierenal, dual range (8DDR)
modules. Figures 2.8 through 2.12 show the top view for
the QD header conguraon opons.
Separate QD input headers can be purchased separately to
supplement the one provided with a purchased module. A
blank QD header can be purchased to cover the input ports
on the DSA for storage, transport, and protecon. A blank-
ing adaptor can also be purchased to cap the QD header.
