Schaffner Ecosine Active Sync Operating manual

Schaffner EMV AG
Nordstrasse 11e |4542 Luterbach |Switzerland |Main [phone] |schaffner.com
USER AND INSTALLATION MANUAL
Ecosine Active Sync

1/188 User and Installation Manual Ecosine Active Sync
Revision: 2.1 (January 2023)
English version (original instructions)
The most current edition of these instructions and possible translations (PDF format) can be obtained
from your contact at the Schaffner organization or at schaffner.com/downloads.
Document name:
User and Installation Manual Ecosine Active Sync rev2.1.pdf
This document is valid for
Firmware package version: V01.01.04 or higher
Content of the firmware package:
Power module firmware: V03.02.06 or higher
Sync module firmware: V04.01.05 or higher
(For firmware version, see parameter P010)
Meaning of firmware version number:
V XX.xx.xx –hardware release, downwards incompatible
V xx.XX.xx –function version
V xx.xx.XX –small compatible changes

Ecosine Active Sync User and Installation Manual 2/188
Table Of Contents
1Version History ................................................................................7
2Introduction......................................................................................9
2.1 Purpose ............................................................................................................ 9
2.2 Additional Resources...................................................................................... 9
2.3 Naming convention ......................................................................................... 9
3General Safety Notes and Installation Guidelines for harmonic
filters....................................................................................................10
3.1 Important Information ................................................................................... 10
3.2 General Installation Notes ............................................................................ 10
3.3 Safety Notes and Regulations...................................................................... 10
4General Safety Notes and Installation Guidelines for AHF
accessories .........................................................................................11
4.1 Important Information ................................................................................... 11
4.2 General Installation Notes ............................................................................ 11
4.3 Safety Notes and Regulations...................................................................... 11
5Environmental Conditions / Exclusion of warranty.....................12
6Ecosine Active Sync Product Line Overview...............................14

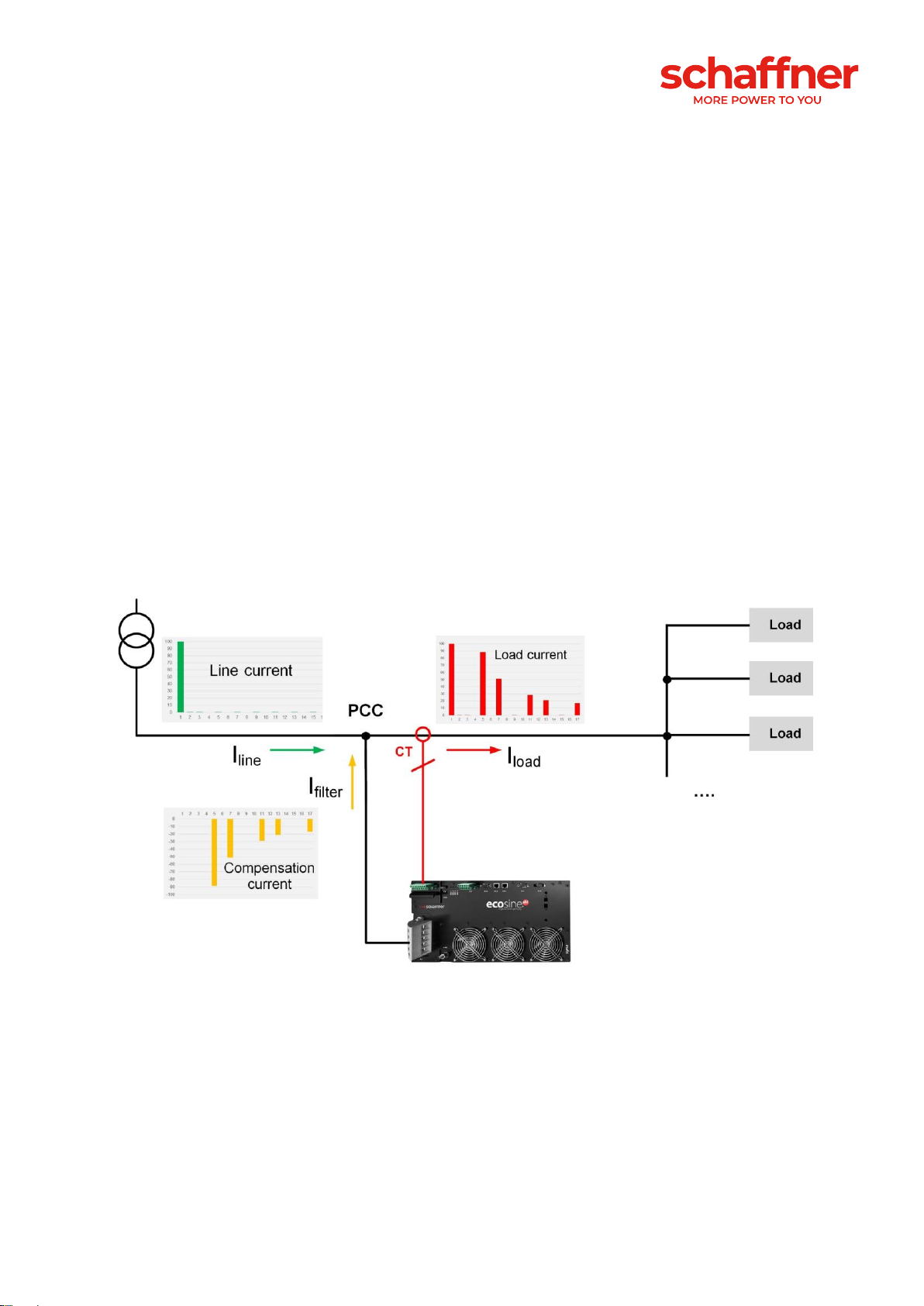

6.1 Principle of operation.................................................................................... 14
6.2 Ecosine active sync system configuration ................................................. 15
6.2.1 Ecosine active sync power module FN3530 and FN3531 .................................................. 16
6.2.2 Ecosine active sync power module FN3540 and FN3541 .................................................. 17
6.2.3 Ecosine active sync Double Power Pack (DPP) FN3532 and FN3542 .............................. 18
6.2.4 Ecosine active sync cabinet version (cabinet + power modules)........................................ 20
6.3 Ecosine active sync cabinet version type code information..................... 21
6.4 Technical specification ecosine active sync power module versions...... 24
6.5 Technical specification ecosine active sync cabinet versions ................. 25

3/188 User and Installation Manual Ecosine Active Sync
6.6 Maximum output current by harmonics order ............................................ 26
6.7 Temperature derating of ecosine active sync power module.................... 27
6.8 Temperature derating of ecosine active sync cabinet version.................. 27
6.9 Sync Module SYNC300A............................................................................... 28
6.9.1 Technical specification for Sync module SYNC300A.......................................................... 29
6.9.2 Mechanical dimensions of SYNC300A................................................................................ 30
6.10 Sync Module SYNC300X ............................................................................ 30
6.11 Ecosine active sync HMI............................................................................ 31
6.12 Ecosine active sync display module......................................................... 32
6.12.1 RS485 communication ........................................................................................................ 33
6.12.2 AHF parameters and INI file................................................................................................ 33
6.12.3 Event log and LOG file ........................................................................................................ 33
6.12.4 Load and save AHF parameter set ..................................................................................... 33
7Mechanical Installation Guidelines...............................................34
7.1 Pre-Installation Guidelines ........................................................................... 34
7.1.1 Receiving ecosine active sync ............................................................................................ 34
7.1.2 Transportation and unpacking of power modules ............................................................... 34
7.1.3 Lifting................................................................................................................................... 35
7.1.4 Important note for installation.............................................................................................. 35
7.2 Mechanical installation of ecosine active sync power module ................. 36
7.2.1 Dimensions of an ecosine active sync power module......................................................... 36
7.2.2 Ecosine active sync power module mounting options......................................................... 38
7.3 Mechanical installation of ecosine active sync DPP.................................. 39
7.3.1 Dimensions of ecosine active sync DPP............................................................................. 39
7.3.2 Mounting options of ecosine active sync DPP .................................................................... 39
7.4 Mechanical installation inside customer cabinet........................................ 41
7.4.1 Customer cabinet requirements .......................................................................................... 41
7.4.2 Cooling requirements of customer cabinet.......................................................................... 41
7.5 Mechanical data of ecosine active sync cabinet version........................... 43
7.5.1 Dimensions of ecosine active sync cabinet version............................................................ 43
7.5.2 Cooling requirements of ecosine active sync cabinet versions........................................... 45
8Electrical Installation Guidelines..................................................46
8.1 Protection (Fuses, Breakers)........................................................................ 46
8.2 Installation with power factor correction (PFC) systems........................... 46

Ecosine Active Sync User and Installation Manual 4/188
8.3 Power Module electrical installation............................................................ 47
8.3.1 Connecting terminal locations ............................................................................................. 47
8.3.2 Connection of AC Mains...................................................................................................... 53
8.4 Sync Module electrical installation.............................................................. 54
8.4.1 Connecting terminal location............................................................................................... 54
8.4.2 Interconnection between Sync Module and Power Modules .............................................. 56
8.5 Ecosine active sync cabinet version electrical installation....................... 57
8.5.1 Connecting terminal locations ............................................................................................. 57
8.5.2 Connection of AC Mains...................................................................................................... 59
8.6 Connection of current transformers............................................................ 60
8.6.1 Connection of 3-phase 3-wire devices CT secondary output 5A........................................ 61
8.6.2 Connection of 3-phase 3-wire devices CT secondary output 1A........................................ 61
8.6.3 Connection of 3-phase 4-wire devices CT secondary output 5A........................................ 62
8.6.4 Connection of 3-phase 4-wire devices CT secondary output 1A........................................ 62
8.7 Current transformers specifications and cable selection.......................... 63
8.8 Current transformer specification for UL conformity................................. 66
8.9 Connection and verification of current measurements.............................. 66
8.9.1 CT connection for operation of single ecosine active sync power module ......................... 66
8.9.2 CT connection for operation of double power pack (DPP) ecosine active sync ................. 69
8.9.3 CT connection for operation of the sync module and multiple ecosine active sync power
modules 73
8.9.4CT connection for parallel operation of several ecosine active sync power modules without
sync module....................................................................................................................................... 77
8.9.5 Grounding of the current transformers ................................................................................ 81
8.9.6 Checking current transformers rotating field ....................................................................... 82
8.9.7 Checking current transformers phase assignment.............................................................. 83
8.10 HS-Bus connection (master-slave configuration).................................... 85
9Monitoring, and commissioning...................................................88
9.1 HMI functions................................................................................................. 88
9.1.1 Main screen......................................................................................................................... 88
9.1.2 Devices screen.................................................................................................................... 89
9.1.3 Parameter menu.................................................................................................................. 91
9.1.4 Parameter screens.............................................................................................................. 92
9.1.5 Parameter set backup and restore...................................................................................... 94
9.1.6 Event log.............................................................................................................................. 97
9.1.7 Oscilloscope measurement................................................................................................. 99
9.1.8 HMI settings....................................................................................................................... 102
9.1.9 Changing language of the HMI and AHF .......................................................................... 106
9.1.10 HMI accounts and passwords ........................................................................................... 106

5/188 User and Installation Manual Ecosine Active Sync
9.2 Display module functions........................................................................... 109
9.2.1 Boot window...................................................................................................................... 109
9.2.2 Home window.................................................................................................................... 109
9.2.3 Main menu......................................................................................................................... 110
9.3 Ways of Software Commissioning............................................................. 114
9.3.1 Commissioning via Ethernet.............................................................................................. 114
9.3.2 Commissioning via display module ................................................................................... 114
9.4 Commissioning procedure ......................................................................... 114
9.4.1 Common steps for all configurations................................................................................. 114
9.4.2 Single power module or asynchronous operation............................................................. 115
9.4.3 Double Power Pack (DPP) operation................................................................................ 117
9.4.4 Sync module operation (with SYNC300A installed).......................................................... 118
9.5 Status message ........................................................................................... 122
9.6 Error message.............................................................................................. 124
10 Parameter List ...........................................................................125
10.1 Parameter list of power module .............................................................. 126
10.1.1 Power module parameter group P0XX, P1XX: Measurements and information (read only)
126
10.1.2 Power module parameter group P2XX, P3XX: Commissioning parameters.................... 131
10.1.3 Power module parameter group P4XX: Compensation settings....................................... 134
10.1.4 Power module parameter group P6XX: Error message.................................................... 137
10.1.5 Power module parameter group P7XX: Transients........................................................... 138
10.1.6 Power module parameter group P8XX: FFT measurement.............................................. 138
10.2 Parameter list of sync module................................................................. 140
10.2.1 Sync module parameter group P0XX, P1XX: Measurements and information (read only)
140
10.2.2 Sync module parameter group P2XX and P3XX: Commissioning parameters ................ 143
10.2.3 Sync module parameter group P4XX: Compensation settings......................................... 149
10.2.4 Sync module parameter group P6XX, P7XX: Error message........................................... 152
10.2.5 Sync module parameter group P8XX: FFT measurement................................................ 153
10.2.6 Sync module parameter group P9XX: cabinet related values .......................................... 154
11 AHF Viewer Software.................................................................155
11.1 Requirements and Setup ......................................................................... 155
11.2 Connections.............................................................................................. 156
11.2.1 Connection via RS485....................................................................................................... 156
11.2.2 Direct connection via Ethernet .......................................................................................... 158
11.2.3 Connection via RS485 to ethernet adapter....................................................................... 160

Ecosine Active Sync User and Installation Manual 6/188
12 AHF Firmware Update Tool.......................................................167
12.1 Usage......................................................................................................... 167
12.2 Select serial port....................................................................................... 167
12.3 Search for devices.................................................................................... 168
12.4 Communication configuration................................................................. 171
12.5 Load firmware package............................................................................ 172
12.6 Upload Firmware....................................................................................... 173
13 Maintenance...............................................................................174
14 Abbreviation ..............................................................................175
15 Index of Figures.........................................................................176
16 Index of Tables ..........................................................................179
17 Appendix A: References...........................................................180
18 Appendix B ................................................................................181
18.1 Commissioning after longer storage ...................................................... 181
18.2 Type Plate of ecosine active sync........................................................... 182
19 Appendix C: Calculation example............................................183
19.1 Commutation notches.............................................................................. 183
19.1.1 Commutation notches calculation example 1.................................................................... 185
19.1.2 Commutation notches calculation example 2.................................................................... 186
19.1.3 Commutation notches calculation example 3.................................................................... 187

7/188 User and Installation Manual Ecosine Active Sync
1 Version History
Revision
Date
Description
1.0
February 2018
Initial version
1.1
March 2018
Added index of figures, index of tables
Optimized chapters order and content
Updated LED indication table and parameters list
1.2
May 2018
Added Figure 7-3 dimension of drill pattern for wall mount
Revised Group P4XX
1.3
June 2018
Added Appendix 17.2 Type Plate of ecosine active sync.
Corrected control response time from 300 µs (AHF Gen I) to 100 µs.
Corrected height of cabinet in chapter 6.5 to: 2328mm (including top Fan
and socket).
Replaced P203 (not used) by P559 in chapter 9.5.
1.4a
September 2018
Corrected description of X11 connector (valid for FW V03.01.02 or
higher)
1.5
March 2019
Added Sync Module (SYNC300A)
- Technical specification
- Electrical connection
Updated Firmware of power module information to V03.01.07 or higher
1.6
July 2019
- Updated Label and technical specification of power modules with UL.
- Updated parameters table of power modules for V03.02.03.
- Updated commissioning procedure with sync module.
- Changed description of P320 settings in chapter 8.2 (with new
Firmware V03.02.03 and higher, P320: Total current parallel = 120A
for master and slave modules)
1.7
October 2019
Introduction of the new firmware Update Tool software replacing the
bootloader in chapter 0
Additional information regarding the usage of the sync module
Update of terminal X11 description in Table 15
Update of the parameters lists for power module
Addition of the parameters lists for sync module
Additional details in the commissioning procedure
Additional appendix with calculation examples
Several minor corrections across the whole document
1.8
December 2019
Chapter 6.10: add description of SYNC300X
Chapter 8.7: more detail about CT secondary connection
Chapter 9.2.3: addition of screenshots of the display module interface
Chapter 10: update of the parameters lists of power module and sync
module
Chapter 0: updated instruction for AHF Firmware Update Tool V2.1.0.3
- introduction of the new firmware package
Minor corrections and clarification across the document

Ecosine Active Sync User and Installation Manual 8/188
2.0
December 2022
Introduction of the HMI with Chapter 9.1 and other mention across the
document.
Chapter 6.2: Addition of HMI in product code and update cabinet
versions table.
Chapter 6.6: addition of chapter. Maximum current by harmonic order
Chapter 8.9.6: Correction of some wrong parameter number
Chapter 10: Update of parameter list according to latest firmware
Chapter 11.2 first paragraph and Table 27: Error in service port
terminal number X15 -> X13
Chapter 11.2: New chapter with instruction to connect ecosine active
sync to an ethernet network (information previously maintained in a
separate document)
Document template updated to reflect the new Schaffner branding
Minor corrections and clarification across the document
2.1
January 2023
Cover picture updated
Table 2 split in two, versions with Sync module and without. Versions
order improved.
Adding missing values in Table 6 and Table 10
Drawing updated in Figure 7-8
Chapter 8.3.1 Additional information for powering the HMI.
Minor corrections and clarification across the document

9/188 User and Installation Manual Ecosine Active Sync
2 Introduction
2.1 Purpose
The ecosine active sync User and Installation Manual provides information for unpacking, installation
and commissioning of the active harmonic filter and describe mechanical and electrical installation of
the filter power module and cabinet version. It contains basic information about parameters and
communication as well as troubleshooting information.
The instructions are intended for use by qualified personnel. Reading and following these instructions
is mandatory. Particular attention needs to be given to the general safety notes and installation
guidelines (cautions and warnings)! always keep these instructions available with the filter(s).
Installation of the ecosine active sync filter, inspections for proper operation, and certain
troubleshooting measures may only be performed by qualified personnel. All other measures may be
performed by people who have read these instructions.
2.2 Additional Resources
The Schaffner group does provide a number of additional resources available at schaffner.com to
understand power quality in general and product in particular.
The ecosine active sync filter maintenance instruction provides information on maintenance and
testing for field service technicians, as well as disassembly and assembly instructions for wear parts.
2.3 Naming convention
In this document the acronym AHF, standing for Active Harmonic Filter, is often used in the text for
easier reading. It refers to the ecosine active sync power module, Double Power Pack (DPP) or
cabinet system.

Ecosine Active Sync User and Installation Manual 10/188
3 General Safety Notes and Installation Guidelines
for harmonic filters
3.1 Important Information
These general safety notes refer to the group of power quality filters including
active and passive harmonic filter (AHF, PHF), AC line chokes and output
filters. Do not attempt to install, operate, maintain or inspect power quality
filters until you have read through the safety notes and installation guidelines
as well as installation manual and product specification. Do not use any
Schaffner product until you have a full knowledge of the equipment, safety
notes and installation guidelines. The same applies to all warnings placed on
the filters. Please ensure that those are not removed and their legibility is not
influenced by external factors.
The following symbols, terms and designations are used in these general
safety notes and installation guidelines:
Label
Description
Follow these instructions to avoid hazardous
conditions which could cause minor or
moderate injury or may cause damages to the
unit.
Follow these instructions to avoid hazardous
conditionsn which could result in death or
serious injury.
Indicates content to be noted by the reader.
3.2 General Installation Notes
▪Please read and follow the safety and application notes below.
▪Carefully inspect the shipping container and the product prior to
the installation. In case of visual damage, don’t install the filter
and file a claim with the freight carrier involved.
▪Filters may be heavy. Follow the instructions for lifting heavy
equipment defined by your company.
▪Use an appropriately sized threaded bolt for every mounting
hole/slot provided by the filter flange. The strength class of the
bolt must be determined by the installer, depending upon filter
weight and the material of the mounting surface.
▪Connect the filter to the protective earth (PE) terminal(s).
▪Remove all line side power, then connect the phase terminal(s)
and neutral terminal (if any) of the filter. The filter label may also
indicate LINE (grid side terminals) and LOAD (power electronics
terminals).
▪For the electrical connection of the filter terminals, apply the
torques recommended on the filter label and/or in the published
filter datasheets.
▪Cable or busbar cross sections have to be chosen in accordance
with national and international electric codes and applicable
product standards governing the equipment that will incorporate
the power quality filters and the equipment in use.
▪Some filters provide additional terminals, e.g. for over-
temperature monitoring. These features have to be properly
used before energizing the filter. If uncertain, please consult your
local Schaffner representative.
▪Active Harmonic Filters (AHF) are working with current
transformers (CTs which are a 3rd party product and which are
typically installed in electrical equipment with lethal high voltage
levels. Before attempting to install CTs read the CT installation
safety page provided by the CT manufacturer. Always consider
transformer as a part of the circuit to which it is connected, and
do not touch the leads and terminals or other parts of the
transformer unless they are known to be grounded.
▪In order to get the maximum benefit out of your power quality
filter, please also consult aditional user manuals, installation
manuals, whitepaper and other material, published in the
download section of www.schaffner.com. These additional
guidelines provide helpful hints for equipment related topics as
well as technical knowledge.
3.3 Safety Notes and Regulations
1. Label on equipment
2. Safety note category
Safety note regulations
Equipment installation, start-up, operation and
maintenance (if any) have to be carried out by
a trained and certified electrician or technician,
who is familiar with safety procedures in
electrical systems. Non-qualified persons are
not allowed to use, install, operate or maintain
PQ filters!
High voltage potentials are involved in the
operation of power quality equipment. Always
remove power before handling energized parts
of the filter, and let ample time elapse for the
capacitors to discharge to safe levels (<42V).
Residual voltages are to be measured both
line to line and line to earth.
Correct protective earthing of the equipment
must be established and the user must be
protected against supply voltage in
accordance with applicable national and local
regulations. Always practice the safety
procedures defined by your company and by
applicable national electric codes when
handling, installing, operating or maintaining
electrical equipment.
Some product may include EMC filters which
may cause leakage currents to ground.
Always connect the filter to protective earth
(PE) first, then continue with the wiring of
phase/neutral terminals. When
decommissioning the filter, remove the PE
connection at the end.
Using the direct OFF setting in AHF does not
disconnect the equipment from mains and is
thus not to be used as a safety switch.
Follow the general installation and
environmental condition notes closely. Ensure
that cooling slots (if any) are free from
obstructions that could inhibit efficient air
circulation. Operate the filter within its
electrical, mechanical, thermal and ambient
specifications at all times.
Power quality filters are lossy electrical
components. Parts/surfaces of the equipment
may get hot under load operating conditions.
At altitudes above 2000m, please contact
Schaffner prior to installation.
Filter suitability for a given application must
ultimately be determined by the user (the party
that is putting the filter into operation) on a
case by case basis. Schaffner will not assume
liability for any consequential downtimes or
damages resulting from use of filters outside
their specifications.
In case of uncertainty and questions please
contact your local Schaffner partner for
assistance (details per region available at
www.schaffner.com).

11/188 User and Installation Manual Ecosine Active Sync
4 General Safety Notes and Installation Guidelines
for AHF accessories
4.1 Important Information
These general safety notes refer to accessories for Active Harmonics Filters
(AHF). Do not attempt to install, operate, maintain or inspect any Schaffner
product and accessories until you have read through the safety notes and
installation manual and reach full knowledge of the equipment. The same
applies to all warnings placed on the products. Please ensure that those are
not removed and their legibility is not influenced by external factors.
The following symbols, terms and designations are used in these safety notes
and installation guidelines:
Label
Description
Follow these instructions to avoid hazardous
conditions which could cause minor or
moderate injury or may cause damages to the
unit.
Indicates content to be noted by the reader.
4.2 General Installation Notes
▪Please read and follow the safety and application notes below.
▪Carefully inspect the shipping box and the product prior to the
installation. In case of visual damage, don’t install the product and file a
claim with the freight carrier involved.
▪Use appropriately sized screw and bolt and respect tightening torque
when provided in order to avoid any potential damage to the product
and surrounding equipment.
▪Carefully follow the assembly instruction to ensure a proper installation
of the sealing which will ensure to achieve the advertised IP code
protection level.
▪Connect the product to the ground terminal(s) when present.
▪Remove all line side power when connecting the product.
▪Check the DC power supply voltage before connecting powered
accessories, inappropriate voltage could damage the product
permanently.
▪To get the maximum benefit out of your AHF accessories, please also
consult the latest version of the complete AHF user and installation
manual, published in the download section of www.schaffner.com.
4.3 Safety Notes and Regulations
1. Label on equipment
2. Safety note category
Safety note regulations
Follow the general safety notes and
environmental condition closely. Ensure that
the hot air from the power equipment are not
impacting the accessories proper operation.
Operate the product within its electrical,
mechanical, thermal and ambient
specifications at all times.
At altitudes above 2000m, please contact
Schaffner prior to installation.
Passwords for products with software
Some accessories run with a software. This
software is protected by one or several
passwords to ensure that no third party might
get access to the operating system or
advanced functionalities restricted to certain
group of users. The accessories with software
are always delivered with default passwords
from factory. The customer is responsible to
change all passwords during commissioning
and to store them safely. Schaffner will not be
able to assist into the restoration of lost
passwords or data following the loss of
password. In extreme case the accessory
software would need to be return to Schaffner
for a complete factory reset and will need to
be commissioned again.
Failing to change the default passwords, to set
safe enough passwords and to store them
properly might result in unintended access to
the device, to all devices connected to it or
any device connected to the same network.
Schaffner will decline all responsibilities for
any unintended access.
Updates for product with software
Regularly new software might be made
available by Schaffner to correct bug and
update security fix from the operating system
and front-end user interface. The user must
ensure to always use the latest version
available. Customer and partners will be
informed by a product change notification for
all new software release.
Schaffner will not be liable for any damage
resulting from operating the product with older
version of the software.
Modifications of products
Hardware and corresponding software of the
accessories must never be modified,
damaged, downgraded to a previous version
or exploited maliciously in order to change the
intended behavior of the product, bypass
programmed safety check and/or use it for any
other purpose than what is intended by
Schaffner.
Schaffner will not be liable for any damage
resulting from any deliberate or undeliberate
hardware and/or software modification as well
as using the product with older version of the
software.
Input/output and communications
Some accessories offer several input/output
and communications ports. Before connecting
the product to any other device, network or
communication device, the user must ensure
the compatibly of the device connected. For IT
equipment, with the help from the IT
administrator when relevant, the user must
ensure that all security practices regarding IT
communication are respecting the end user
and/or local operator IT security and privacy
policies.
In case of uncertainty and questions please
contact your local Schaffner partner for
assistance (details per region available at
www.schaffner.com).

Ecosine Active Sync User and Installation Manual 12/188
5 Environmental Conditions / Exclusion of warranty
This document classifies groups of environmental parameters and their severities to which ecosine
active sync harmonic filters are subjected when mounted for stationary use at weather protected
locations under use conditions, including periods of erection work, down time, maintenance and repair.
The lifetime of electronic equipment is depending on the environmental conditions they are exposed
to. Especially in harsh environments lifetime is reduced due to the corrosiveness of the atmospheric
environment. Generally, corrosion in micro or power electronics depends on several factors such as
the package type, materials involved, assembly processes, moisture, inorganic and organic
contaminants, atmospheric pollutants, temperature, thermal stress and electrical bias. To increase the
lifetime Schaffner provides all ecosine active sync filters with the ability to work within pollution degree
2 (PD2) and does use coated PCB’s according to IEC61721-3-3. Schaffner standard PCB construction
complies with class 3C2. Please carefully read the provided information and check if your application
fulfills the required specifications as Schaffner expressly points out that the manufacturer's
warranty shall lapse with immediate effect if ecosine active sync harmonic filters are
transported, stored, installed or operated outside their published specifications.
Important
Ecosine active sync harmonic filters (AHF) listed below are IP20 or IP54
devices to be installed in an environment in compliance with the
requirements named in this document.
All active harmonic filters (AHF) must be installed in a clean, dry location,
e.g. in sufficiently ventilated or airconditioned electric cabinets or closed
electric rooms. Contaminants such as oils, liquids, corrosive vapors,
abrasive debris, dust and aggressive gases must be kept out of the filter
enclosure.
WARNING: Conductive dust may cause damage to
ecosine active sync harmonic filters. Ensure that
installation site of ecosine active sync is free of
conductive dust.
Products
FN3530/31 series, 3-wire filters, 380-480VAC, models 60A
FN3540/41 series, 4-wire filters, 380-415 VAC, models 60A
FN3532 series, 3-wire filters, 380-480VAC, models 120A
FN3542 series, 4-wire filters, 380-415VAC, models 120A
FN3545 series, 3/4-wire filters, models 60…300A
SYNC300A, optional sync module for ecosine active sync
SYNC300X, optional sync module for ecosine active sync without CT
module
Overvoltage class
(EN50178)
Ecosine active sync are designed according to EN 50178 overvoltage
class III

13/188 User and Installation Manual Ecosine Active Sync
Storage environmental
specifications
(IEC 60721-3-1, EN50178)
Climate conditions for storage class 1K3:
•Temperature range: -25°C to +55°C
•Relative humidity: < 95%, no condensation
•Atmospheric pressure: 70KPa to 106KPa
Transportation environmental
specifications
(IEC 60721-3-2, EN50178)
Climate conditions for transport class 2K3:
•Temperature range: -25°C to +70°C
•Relative humidity: < 95%, no condensation
•Atmospheric pressure: 70KPa to 106KPa
•Vibrations according to IEC 60068-2-6
•Shocks according to IEC 60068-2-27
Operation environmental
specifications
(IEC 60721-3-3, EN50178)
Climate conditions for operation class 3K3:
•Temperature range:
▪Power module: 0°C to +50°C
▪Cabinet: 0°C to +40°C
•Relative humidity: < 95%, no condensation
•Atmospheric pressure: 70KPa to 106KPa
Degree of pollution
(IEC 61010, EN50178)
Pollution conditions for operation class PD2
Corrosive levels
(IEC 60721-3-3)
Corrosive levels for storage, transport and operation Class 3C2(3):
•Applies to locations with normal levels of contaminants,
experienced in urban areas with industrial activities
•Levels:
Environmental parameter
Units(1)
Class 3C2(2)
Mean value
Max value
Sea salt
Salt mist
Sulphur dioxide
ppm
cm3/m3
0.3
0.11
1.0
0.37
Hydrogen sulfide
ppm
cm3/m3
0.1
0.071
0.5
0.36
Chlorine
ppm
cm3/m3
0.1
0.034
0.3
0.1
Hydrogen chloride
ppm
cm3/m3
0.1
0.066
0.5
0.33
Hydrogen fluoride
ppm
cm3/m3
0.01
0.012
0.03
0.036
Ammonia
ppm
cm3/m3
1.0
1.4
3.0
4.2
Ozone
ppm
cm3/m3
0.05
0.025
0.1
0.05
Nitrogen oxides
ppm
cm3/m3
0.5
0.26
1.0
0.52
(1)The values given in cm3/m3 have been calculated from the values given in mg/m3 and refer
to a temperature of 20 °C and a pressure of 101,3 kPa. The table uses rounded values.
(2)Mean values are expected long-term values. Maximum values are limit or peak values,
occurring over a period of time of not more than 30 min per day.
(3)IEC 60721-3-3 is only applied to the coated PCB covered areas and not the entire device.
The unprotected areas, such as connections, terminations and exposed magnetics, may not
survive these exposure levels over time.

Ecosine Active Sync User and Installation Manual 14/188
6 Ecosine Active Sync Product Line Overview
6.1 Principle of operation
Ecosine active sync filters are used for harmonic current mitigation, reactive current compensation
(both inductive and capacitive) and phase unbalance correction and optimization. The filter units can
be integrated into systems and applications as a centrally installed filter unit to mitigate all application
related harmonics or can be combined with frequency converters and motor drives to turn standard
converters and motor drives into low harmonic solutions.
Ecosine active sync filters are connected in parallel to the load and do steadily monitor all 3-phase line
currents (simplified schematic in Figure 6-1). Harmonic currents and reactive power components are
reliably detected and processed in an ultra fast digital control structure. By generating and actively
imposing currents in the opposite phase shift, unwanted harmonic and reactive currents are reliably
mitigated. By using the latest generation of 3-level IGBT technology ultra fast (real time) feeding is
possible with lower losses compared to older generation active harmonic filters. Build-in LCL-filter
technology ensures that neither the switching frequency (16 kHz) nor DC components are imposed
into the mains. Operation is possible independent of the source, thus the use of the filter in generator
or transformer supply applications is feasible. Connected loads can be of various nature, e.g.
individual non-linear loads or groups of non-linear loads.
Figure 6-1 Principle of operation of the ecosine active sync harmonic filter

15/188 User and Installation Manual Ecosine Active Sync
6.2 Ecosine active sync system configuration
With the below listed power module variants, optional kits and cabinet variants it is possible to build
tailored ecosine active sync filters and systems. Schaffner offers power modules, optional kits and
cabinets independently or ready to use filter systems integrated in cabinets.
In the following the designations of ecosine active sync systems and options are introduced.
Table 1 Ecosine active sync power modules versions and options
Designation
Description
FN3530
Power Module 380-480 VAC 3-wire
FN3531
Power Module 380-480 VAC 3-wire with CT Module
FN3540
Power Module 380-415 VAC 4-wire
FN3541
Power Module 380-415 VAC 4-wire with CT Module
FN3532
DPP Double Power Pack 120A 380-480 VAC 3-wire
FN3542
DPP Double Power Pack 120A 380-415 VAC 4-wire
CTM
Current Transformer Module
SYNC300A
Sync module for ecosine active sync with CT module
SYNC300X
Sync module for ecosine active sync without CT module
AHF HMI 7”
HMI color touch screen 7” for AHF
Display
Display module
Patch Cable Set
Patch cable set sync module
Ethernet Adapter
Ethernet adapter kit to connect ecosine active sync to an ethernet network
KITIP21
Ecosine active sync IP21 cover KIT

Ecosine Active Sync User and Installation Manual 16/188
6.2.1 Ecosine active sync power module FN3530 and FN3531
FN3530 and FN3531 ecosine active sync power modules are 3-phase 3-wire power modules with 60A
of mitigation current. FN3530 and FN3531 are applied to 3-phase network without neutral line.
FN3530 power modules do not have the CT module included whereas FN3531 power modules come
with the CT module included.
FN3530/31
Number of phases (system
input)
3-phase 3-wire
Mains frequency
50/60 Hz ± 3 Hz
Mains voltage
380VAC to 480VAC± 10%
Inverter topology
3-level NPC topology, IGBT
Switching frequency
16 kHz
Response time
<100 µs
Harmonic mitigation
performance
Up to the 50th harmonic
Total harmonic current
distortion THDi
< 5%
Power factor correction
cosφ = -0.7 … 1 … 0.7
(inductive and capacitive
compensation)
Mitigation current
60Arms
Dimensions of a single unit
440 mm × 420 mm × 222mm (w × d
× h)

17/188 User and Installation Manual Ecosine Active Sync
6.2.2 Ecosine active sync power module FN3540 and FN3541
FN3540 and FN3541 ecosine active sync power modules are 3-phase 4-wire power modules with 60A
of mitigation current. FN3540 and FN3541 are applied to 3-phase network with neutral line. FN3540
power modules do not have the CT module included whereas FN3541 power modules come with the
CT module included.
FN3540/41
Number of phases (system
input)
3-phase 4-wire
Mains frequency
50/60 Hz ± 3 Hz
Mains voltage
380VAC to 415VAC± 10%
Inverter topology
3-level NPC topology, IGBT
Switching frequency
16 kHz
Response time
<100 µs
Harmonic mitigation
performance
Up to the 50th harmonic
Total harmonic current
distortion THDi
< 5%
Power factor correction
cosφ = -0.7 … 1 … 0.7
(inductive and capacitive
compensation)
Rated phase mitigation current
60Arms
Rated neutral conductor
mitigation current
180Apk
Dimensions of a single unit
440 mm × 420 mm × 222mm (w × d
× h)

Ecosine Active Sync User and Installation Manual 18/188
6.2.3 Ecosine active sync Double Power Pack (DPP) FN3532 and FN3542
FN3532 and FN3542 are so called Double Power Packs consisting of two ecosine active sync power
modules. FN3532 is applied to 3-phase 3-wire networks without neutral wire. FN3542 is applied to 3-
phase 4-wire network with neutral wire. Both DPP packages will always include two power modules (3-
wire or 4-wire) and will work in master-slave architecture. That’s why only one CT module and only
one display module is needed and will be included in the package. Communication between the
modules is realized via a high-speed bus.
FN3532
Number of phases (system
input)
3-phase 3-wire
Mains frequency
50/60 Hz ± 3 Hz
Mains voltage
380VAC to 480VAC± 10%
Inverter topology
3-level NPC topology, IGBT
Switching frequency
2x16kHz interleaved
(32kHz effective)
Response time
<100 µs
Harmonic mitigation
performance
Up to the 50th harmonic
Total harmonic current
distortion THDi
< 5%
Power factor correction
cosφ = -0.7 … 1 … 0.7
(inductive and capacitive
compensation)
Rated phase mitigation
current
60Arms
Dimensions of a single unit
440 mm × 420 mm × 222mm (w
× d × h)

19/188 User and Installation Manual Ecosine Active Sync
FN3542
Number of phases (system
input)
3-phase 4-wire
Mains frequency
50/60 Hz ± 3 Hz
Mains voltage
380VAC to 415VAC± 10%
Inverter topology
3-level NPC topology, IGBT
Switching frequency
2x16kHz interleaved
(32kHz effective)
Response time
100 µs
Harmonic mitigation
performance
Up to the 50th harmonic
Total harmonic current
distortion THDi
< 5%
Power factor correction
cosφ = -0.7 … 1 … 0.7
(inductive and capacitive
compensation)
Mitigation current
120A
Rated neutral conductor
mitigation current
180Apk
Dimensions of a single unit
440 mm × 420 mm × 222mm
(w × d × h)
