USER AND INSTALLATION MANUAL
Ecosine Max Passive Harmonic Filters

1/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
Revision: 03 (July 2023)
English version (original instructions)
The most current edition of this document (PDF format) and official translations can be obtained from
your contact of the Schaffner organization or at schaffner.com on the product page.
Other technical documentation of our products is also available in the download area of our website
schaffner.com.
Document name:
User and Installation Manual Ecosine Max Passive Harmonic Filters rev03.pdf
Valid for Ecosine Max Passive Harmonic Filters version:
FN3470/FN3471 (50 Hz) for 380–415 VAC
FN3480/FN3481 (50 Hz) for 440–480 VAC
FN3472/FN3473 (60 Hz) for 380–415 VAC
FN3482/FN3483 (60 Hz) for 440–480 VAC
Version history
Revision
Date
Description
01
February 2020
Initial version
02
October 2020
Tables formatting in the whole document (table pasted as picture from
datasheet were converted to real editable table to allow a better
translation of the document and possible future updates)
Typo corrections. Better harmonization of technical terms within the
document and between products line
Sections 3.1 to 3.4 specification of insulation class SCH-155(F)
removed (mistake from document), all versions use insulation class
SCH-200(N)
Section 3.6.1 Table 20 addition of cross section in AWG/kcmil and
updated according to UL requirement.
Section 3.6.2 added for trap disconnect jumper terminals cables
requirement.
Section 3.6.3 added - auxiliary cables requirement.
Section 3.8 added –thermal switch specifications.
Section 3.9 Table 24 addition of part for reference cabinets (line 6 to 8)
Section 3.10 new requirement for cooling, including air flow, air inlet and
additional pictures for proper opening requirement at the bottom and
back of the cabinet.
03
July 2023
Document template updated to reflect the new Schaffner branding.
Minor corrections and clarification across the document
Section 3.5.2 current derating by altitude, new calculation.
Addition of Figure 12 and Figure 13 drawings of J versions.
Section 5.3 addition of pictures for J versions.
Section 8.3.5 added for more clarification about the switch circuit
breaker selection and installation for J versions Ecosine Max.
WARNING: Section 8.3.6 important correction regarding the sizing of
the capacitor contactor used with the J versions of Ecosine Max.

User and Installation Manual Ecosine Max Passive Harmonic Filters 2/66
i. Ecosine Max Passive Harmonic Filters
Ecosine Max product highlights
Schaffner Ecosine Max Passive Harmonic Filters are configurable products which provide a tailored
solution to each specific problem of current harmonics mitigation of 3-phase non-linear loads.
The eight product lines, FN3470/FN3471, FN3480/FN3481, FN3472/FN3473 and FN3482/FN3483 are
applicable for low voltage 50 Hz and 60 Hz systems and they are particularly suitable for AC and DC
motor drives, battery chargers and other power electronics applications with 6-pulse front-end rectifiers.
Ecosine Max Passive Harmonic Filters technology represents an evolution of the previous generations
of passive harmonic filters and introduces following aspects of novelty:
│Ecosine Max is designed for the most demanding harmonic mitigation tasks. Ecosine
Max filters FN3470/71, FN3472/73, FN3480/81 and FN3482/83 can be applied to drives with
or without DC-link choke present, different THDi @ rated power can be achieved, as shown in
the following table. The new generation Ecosine Max filters guarantee compliance with the
toughest requirement of IEEE-519 and other stringent international power quality standards.
Table 1 Ecosine Max product variants and performance
FN3470
FN3471
FN3480
FN3481
FN3472
FN3473
FN3482
FN3483
Grid frequency
50Hz
60Hz
Nominal operating voltage
3x380-415VAC
3x440-480VAC
3x380-415VAC
3x440-480VAC
For 6-pulse diode rectifier
without DC-link choke
<5%
THDi
<8%
THDi
<5%
THDi
<8%
THDi
<5%
THDi
<8%
THDi
<5%
THDi
<8%
THDi
For 6-pulse diode rectifier
With 4% DC-link choke
3.5%
THDi
<5%
THDi
3.5%
THDi
<5%
THDi
3.5%
THDi
<5%
THDi
3.5%
THDi
<5%
THDi
▪Ecosine Max demonstrates superior partial load performance. The excellent performance
of Ecosine Max filters not only reflect on mitigating harmonic current and bringing the THDi down
to 5% (diode rectifiers @ rated power), but also introducing minimum reactive power, even at
partial or no-load condition. The displacement power factor remains at cosφ >0.98 @ 50% load.
▪Most compact open frame design for cabinet integration. The upgraded version of the
Schaffner power quality simulator SchaffnerPQS3 (pqs.schaffner.com) provides the possibility
to simulate Ecosine Max Passive Harmonic Filters within an electrical system. It furthermore
offers quick and accurate performance checks.
This user manual is intended to support designers, installers, and application engineers with filter
selection, installation, application, and maintenance. It provides helpful solutions to overcome harmonics
mitigation challenges and answers frequently asked questions.
If you require additional support, please feel free to contact Schaffner or our local partner.

3/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
ii. Performance Guarantee
By selecting and installing the appropriate Ecosine Max Passive Harmonic Filters in a variable frequency
AC drive application (variable speed drive application) within our published technical specifications, we
guarantee that the input current distortion will be less than or equal to 5% THDi for standard Ecosine
Max series filters at rated power. Ecosine Max filters can also provide similar performance in other drive
applications such as constant torque, DC drives or other phase controlled rectifiers, e.g. SCR drives,
but actual THDi levels can vary by load and/or speed and/or firing angle of thyristors and therefore
cannot be guaranteed. Consult Schaffner or our local representative for assistance when applying
ecosine filters on these types of equipment.
iii. Minimum system Requirements
The guaranteed performance levels of this filter will be achieved when the following system conditions
are met:
▪Type of load: Any 3-phase equipment with front-end six-pulse diode rectifier, with or without
DC-link choke
▪Type of source: 3-phase power line without neutral
▪Line impedance: <3% (calculated for the rated filter power)
▪Line frequency: 50 Hz ±1 Hz (FN3470/71, FN3480/81), 60 Hz ±1 Hz (FN3472/73, FN3482/83)
▪Line voltage: Nominal line voltage ±10%
▪Line voltage unbalance: <1%
▪Line voltage distortion: THDv <2%
If a properly sized and installed filter fails to meet the 5% THDilevel, Schaffner will provide the necessary
application engineering support or filter replacement at no charge.
iv. Important user notice
Schaffner Ecosine Max Passive Harmonic Filters are designed for the operation on the input (grid) side
of power electronic equipment with six-pulse rectifier front-end in balanced three-phase power systems,
like typically used in AC or DC motor drives and high power DC supplies. Filter suitability for a given
application must be determined by the user on a case-by-case basis. Schaffner will not assume liability
for any consequential downtimes or damages resulting from use or application of ecosine filters outside
of their specifications. Ecosine filters are not designed for single-phase or split-phase applications.

User and Installation Manual Ecosine Max Passive Harmonic Filters 4/66
i. General Safety Notes and Installation Guidelines
(Cautions and Warnings)
Important Information
These general safety notes refer to the group of power quality filters including
active and passive harmonic filter (AHF, PHF), AC line chokes and output filters.
Do not attempt to install, operate, maintain or inspect power quality filters until
you have read through the safety notes and installation guidelines as well as
installation manual and product specification. Do not use any Schaffner product
until you have a full knowledge of the equipment, safety notes and installation
guidelines. The same applies to all warnings placed on the filters. Please ensure
that those are not removed and their legibility is not influenced by external
factors.
The following symbols, terms and designations are used in these general safety
notes and installation guidelines:
Label
Description
Follow these instructions to avoid hazardous
conditions which could cause minor or
moderate injury or may cause damages to the
unit.
Follow these instructions to avoid hazardous
conditions which could result in death or
serious injury.
Indicates content to be noted by the reader.
General Installation Notes
▪Please read and follow the safety and application notes below.
▪Carefully inspect the shipping container and the product prior to
the installation. In case of visual damage, don’t install the filter and
file a claim with the freight carrier involved.
▪Filters may be heavy. Follow the instructions for lifting heavy
equipment defined by your company.
▪Use an appropriately sized threaded bolt for every mounting
hole/slot provided by the filter flange. The strength class of the bolt
must be determined by the installer, depending upon filter weight
and the material of the mounting surface.
▪Connect the filter to the protective earth (PE) terminal(s).
▪Remove all line side power, then connect the phase terminal(s)
and neutral terminal (if any) of the filter. The filter label may also
indicate LINE (grid side terminals) and LOAD (power electronics
terminals).
▪For the electrical connection of the filter terminals, apply the
torques recommended on the filter label and/or in the published
filter datasheets.
▪Cable or busbar cross sections have to be chosen in accordance
with national and international electric codes and applicable
product standards governing the equipment that will incorporate
the power quality filters and the equipment in use.
▪Some filters provide additional terminals, e.g. for over-
temperature monitoring. These features have to be properly used
before energizing the filter. If uncertain, please consult your local
Schaffner representative.
▪Active Harmonic Filters (AHF) are working with current
transformers (CTs which are a 3rd party product and which are
typically installed in electrical equipment with lethal high voltage
levels. Before attempting to install CTs read the CT installation
safety page provided by the CT manufacturer. Always consider
transformer as a part of the circuit to which it is connected, and do
not touch the leads and terminals or other parts of the transformer
unless they are known to be grounded.
▪In order to get the maximum benefit out of your power quality filter,
please also consult aditional user manuals, installation manuals,
whitepaper and other material, published in the download section
of www.schaffner.com. These additional guidelines provide
helpful hints for equipment related topics as well as technical
knowledge.
Safety Notes and Regulations
1. Label on equipment
2. Safety note category
Safety note regulations
Equipment installation, start-up, operation and
maintenance (if any) have to be carried out by
a trained and certified electrician or technician,
who is familiar with safety procedures in
electrical systems. Non-qualified persons are
not allowed to use, install, operate or maintain
PQ filters!
High voltage potentials are involved in the
operation of power quality equipment. Always
remove power before handling energized parts
of the filter, and let ample time elapse for the
capacitors to discharge to safe levels (<42V).
Residual voltages are to be measured both line
to line and line to earth.
Correct protective earthing of the equipment
must be established and the user must be
protected against supply voltage in accordance
with applicable national and local regulations.
Always practice the safety procedures defined
by your company and by applicable national
electric codes when handling, installing,
operating or maintaining electrical equipment.
Some product may include EMC filters which
may cause leakage currents to ground. Always
connect the filter to protective earth (PE) first,
then continue with the wiring of phase/neutral
terminals. When decommissioning the filter,
remove the PE connection at the end.
Using the direct OFF setting in AHF does not
disconnect the equipment from mains and is
thus not to be used as a safety switch.
Follow the general installation and
environmental condition notes closely. Ensure
that cooling slots (if any) are free from
obstructions that could inhibit efficient air
circulation. Operate the filter within its
electrical, mechanical, thermal and ambient
specifications at all times.
Power quality filters are lossy electrical
components. Parts/surfaces of the equipment
may get hot under load operating conditions.
At altitudes above 2000m, please contact
Schaffner prior to installation.
Filter suitability for a given application must
ultimately be determined by the user (the party
that is putting the filter into operation) on a case
by case basis. Schaffner will not assume
liability for any consequential downtimes or
damages resulting from use of filters outside
their specifications.
In case of uncertainty and questions please
contact your local Schaffner partner for
assistance (details per region available at
www.schaffner.com).

5/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
Table of Contents
1Ecosine Max Passive Harmonic Filters designation .....................8
1.1 Distinguishing between series....................................................................... 8
1.2 Explanation of Ecosine Max designation ...................................................... 9
2Filter selection................................................................................11
2.1 Filter selection tables FN3470/FN3471 (50 Hz, 3×380 … 415 VAC)............ 13
2.2 Filter selection table FN3480/FN3481 (50 Hz, 3×440 … 480 VAC).............. 15
2.3 Filter selection table FN3472/FN3473 (60 Hz, 3×380 … 415 VAC).............. 17
2.4 Filter selection table FN3482/FN3483 (60 Hz, 3×440 … 480 VAC).............. 19
3Filter description............................................................................21
3.1 General electrical specifications FN3470/FN3471 (50 Hz filters)............... 21
3.2 General electrical specifications FN3480/FN3481 (50 Hz filters)............... 22
3.3 General electrical specifications FN3472/FN3473 (60 Hz filters)............... 23
3.4 General electrical specifications FN3482/FN3483 (60 Hz filters)............... 24
3.5 Additional electrical specifications.............................................................. 25
3.5.1 Clearance derating by altitude............................................................................................. 25
3.5.2 Current derating by altitude................................................................................................. 25
3.6 Cable cross-section requirement................................................................. 25
3.6.1 Power terminals................................................................................................................... 25
3.6.2 Trap disconnect jumper terminals ....................................................................................... 28
3.6.3 Auxiliary terminals ............................................................................................................... 28
3.7 Earth terminals screw and torque................................................................ 28
3.8 Thermal protection switch specifications ................................................... 29
3.9 Cabinet specifications................................................................................... 29
3.10 Cooling requirement................................................................................... 31
3.10.1 Additional requirement for cooling....................................................................................... 33
3.11 Mechanical frame sizes.............................................................................. 35
3.12 Ecosine Max Passive Harmonic Filters footprint..................................... 36
3.13 Filter performance ...................................................................................... 38

User and Installation Manual Ecosine Max Passive Harmonic Filters 6/66
3.14 Functional diagram..................................................................................... 40
3.14.1 Filter configuration............................................................................................................... 40
3.14.2 Filter configuration -E0XXJXX............................................................................................. 41
4Ecosine Max filters schematics and working principle...............42
5Filter appearance and elements....................................................43
5.1 Mechanical design of FN3470/80/72/82 (with load choke present)............ 43
5.2 Mechanical design of FN3471/81/73/83 (without load choke present) ...... 45
5.3 Mechanical design of filters with trap disconnect jumper terminal option
46
6Performance estimation using SchaffnerPQS.............................48
7Filter application ............................................................................49
8Filter installation ............................................................................50
8.1 Step 1: Visual inspection .............................................................................. 50
8.2 Step 2: Mounting............................................................................................ 51
8.2.1 Fixation................................................................................................................................ 52
8.2.2 Screws and bolts selection.................................................................................................. 53
8.2.3 Filter placement................................................................................................................... 53
8.3 Step 3: Wiring................................................................................................. 55
8.3.1 Verify safe disconnection of all line side power................................................................... 55
8.3.2 Carefully connect protective earth (PE) cable to adequate earth potential close to ecosine
filter 55
8.3.3 Connect PE cable of Ecosine filter...................................................................................... 55
8.3.4 Connect Ecosine main terminals to the respective phase on the line and load/rectifier..... 56
8.3.5 Install an external switch circuit breaker (J versions only).................................................. 57
8.3.6 Install external capacitive current control............................................................................ 57
8.3.7 Connect monitor switch TS- TS’.......................................................................................... 58
8.3.8 Connect auxiliary switch AS- AS’ ........................................................................................ 58
8.3.9 Install and connect the switch remote operator................................................................... 59
8.3.10 Fuses................................................................................................................................... 60
9Filter maintenance .........................................................................62
9.1 Maintenance schedule .................................................................................. 62

7/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
9.2 Power capacitors........................................................................................... 63
9.2.1 Storage of capacitors .......................................................................................................... 63
9.3 Electrical connections................................................................................... 63
10 Trap circuit disconnect...............................................................64
11 Troubleshooting..........................................................................65
12 Abbreviation ................................................................................65

User and Installation Manual Ecosine Max Passive Harmonic Filters 8/66
1 Ecosine Max Passive Harmonic Filters designation
1.1 Distinguishing between series
The main difference between FN3470 (FN3472, FN3480 FN3482) and FN3471 (FN3473, FN3481,
FN3483) is the filter configuration, which is clearly shown in Figure 1 and Figure 2 below. FN3470,
FN3472, FN3480 and FN3482 filters contain 3 chokes, which enables them to handle the toughest
harmonic mitigation task and to achieve very high performance (5% THDi). FN3471, FN3473, FN3481
and FN3483 contain 2 chokes, they are optimal choice if the THDi requirement is lower or for drives with
DC-link choke present. The performance of all product variants at different drive setup can be found in
Table 1.
Figure 1 Filter configuration of FN3470, FN3472, FN3480 and FN3482
Figure 2 Filter configurations for FN3471, FN3473, FN3481 and FN3483

9/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
1.2 Explanation of Ecosine Max designation
Ecosine Max is part of the new generation of Schaffner passive harmonic filter. Starting from Schaffner
Ecosine Evo series, a designation system, which contains 4 sections connected with ‘-’ was introduced.
Ecosine Max series, due to its open frame design aimed at cabinet installation, is not offering all options
that could be found in Ecosine Evo series but share the same designation system with an X for
unavailable options.

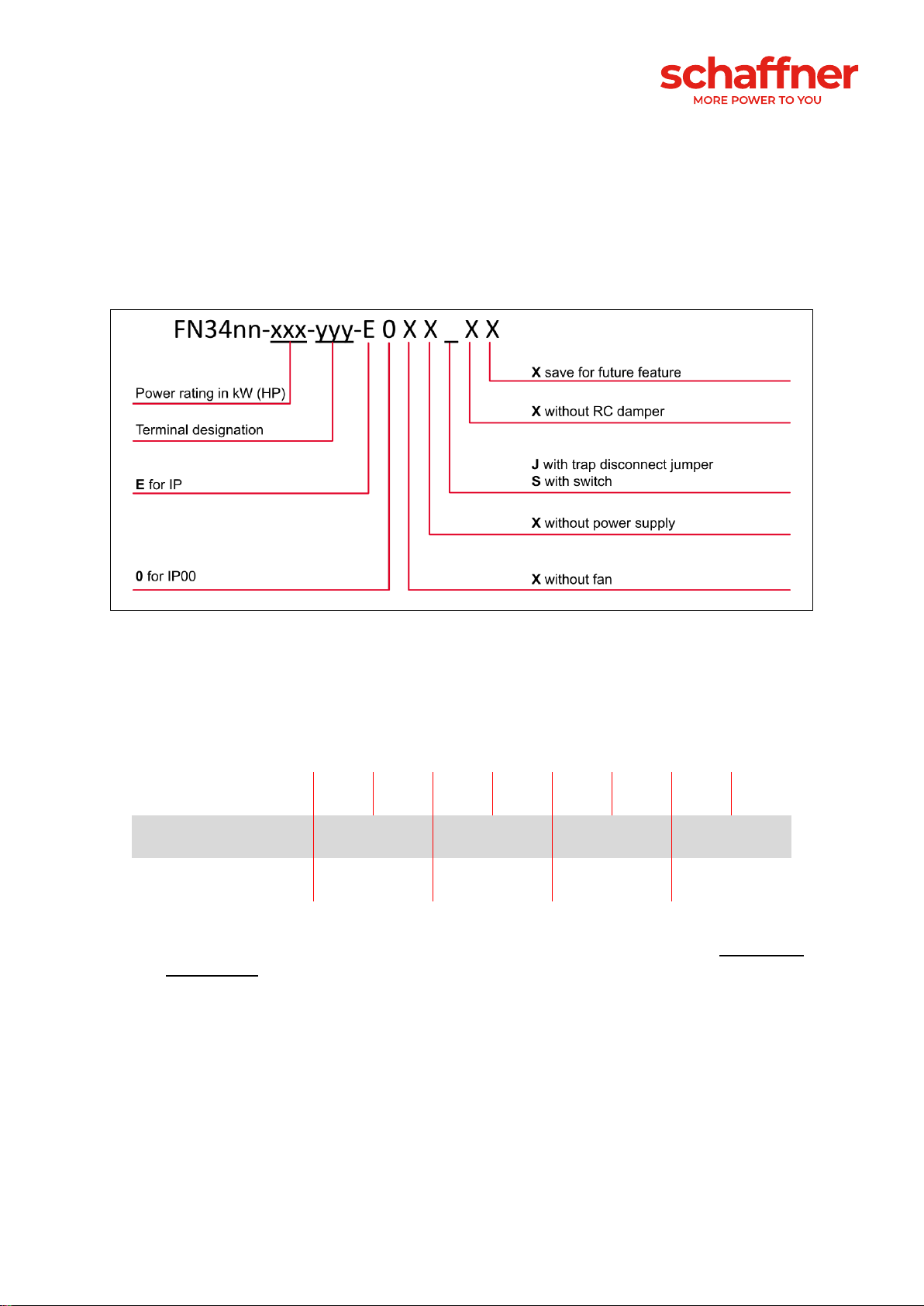

Figure 3 Ecosine Max designation
|The first part of the designation ‘FN34nn-xxx-yyy-_ _ _ _ _ _ _’ distinguishes between the
eight Ecosine Max filter series.
Table 2 operating frequency and nominal voltage per filter type
FN3470
FN3471
FN3480
FN3481
FN3472
FN3473
FN3482
FN3483
Operating frequency
50 Hz
50 Hz
60 Hz
60 Hz
Nominal operating voltage
3x 380 to 415 VAC
3x 440 to 480 VAC
3x 380 to 415 VAC
3x 440 to 480 VAC
|The second part of the designation ‘FN34nn-xxx-yyy-_ _ _ _ _ _ _’ indicates the motor drive
power rating, in kW for 50 Hz filters and in HP for 60 Hz filters. Please note that Ecosine Max
filters are not using current rating in the designation.
|The third part of the designation ‘FN34nn-xxx-yyy-_ _ _ _ _ _ _’ indicates the power terminal
type. For Ecosine Max all filters are equipped with busbar terminals (-99).
||The fourth part of the designation ‘FN34nn-xxx-yyy- E0XX_XX’ contains seven slots. This
designation format is shared with Ecosine Evo series, however the Ecosine Max series
doesn’t offer all the options of evo series, the only relevant option is the 5th slot, designating
the presence of a switch (S) or a trap disconnect jumper module (J) for installing a switch pro-
vided by customer themselves.
|Schaffner offers Power Quality Simulator SchaffnerPQS3 (pqs.schaffner.com) to select and
verify the most suitable Ecosine Max filter for your application.

User and Installation Manual Ecosine Max Passive Harmonic Filters 10/66
Examples of Ecosine Max filter designations:
FN3470-315-99-E0XXSXX: Filter for 50 Hz, 380–415 V AC grid, motor drive power rating 315kW, open
frame (IP 00), filter contains trap disconnect switch module. Filter is expected to achieve 5% THDi for
drives without DC-link choke, or 3.5% THDi for drives with 4% DC-link choke.
FN3481-400-99-E0XXJXX: Filter for 50 Hz, 440–480 V AC grid, motor drive power rating 400kW, open
frame (IP 00), filter contains trap disconnect jumper module. Filter is expected to achieve 8% THDi for
drives without DC-link choke, or 5% THDi for drives with 4% DC-link choke.
FN3482-500-99-E0XXSXX: Filter for 60 Hz, 440–480 V AC grid, motor drive power rating 500HP, open
frame (IP 00), filter contains trap disconnect switch module. Filter is expected to achieve 5% THDi for
drives without DC-link choke, or 3.5% THDi for drives with 4% DC-link choke.

11/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
2 Filter selection
Ecosine Max Passive Harmonic Filters need to be carefully selected and configured to enjoy maximum
benefits. Schaffner advices to verify the selection by using the Schaffner Power Quality Simulator tool
SchaffnerPQS3, available at pqs.schaffner.com.
Step 1: Grid frequency
Determine, whether the system in consideration will be operated in a 50 Hz or 60 Hz electricity grid, and
select the corresponding filter series according to the following table:
50 Hz grid
Europe, Middle East, parts of Asia, parts of South America
FN3470/FN3471
FN3480/FN3481
60 Hz grid
North and Central America, parts of Asia, parts of South America
FN3472/FN3473
FN3482/FN3483
Note: a 50 Hz filter will not provide satisfying harmonics mitigation in a 60 Hz grid, and vice versa.
Step 2: Grid voltage
Verify that the grid configuration is suitable for standard Ecosine Max Passive Harmonic Filters
according to the following table:
50 Hz grid
Nominal voltage 380–415 V AC
TN, TT, IT configuration
50 Hz grid
Nominal voltage 440–480 V AC
TN, TT, IT configuration
60 Hz grid
Nominal voltage 380–415 V AC
TN, TT, IT configuration
60 Hz grid
Nominal voltage 440–480 V AC
TN, TT, IT configuration
Step 3: Rectifier type, presence of DC-link choke in drive
Refer Table 1 for filter performance.
Step 4: Rectifier/Drive input power
The individual filter must be selected with respect to the rectifier/motor drive input power in kW
respectively in HP. It is important to match rated filter power as close as possible with the effective input
power of the rectifier/drive.
Note that if the rectifier/drive is being operated very close to its rated power, then the filter can be
selected by the motor drive’s nominal power rating. However, if the drive will be operated e.g. at only
66% of its rated power, then a smaller filter should be selected in order to get maximum harmonics
mitigation performance and the optimum in terms of cost, size, and weight. In that case the customer is
responsible to ensure that ecosine passive harmonic filter will be operated within specification. This is
particularly important in terms of overload.

User and Installation Manual Ecosine Max Passive Harmonic Filters 12/66
Please refer to the following examples:
Example 1:
Power line rating: 400 V, 50 Hz
Drive rating: 380–500 V, 50–60 Hz, 355 kW, 727 A, B6-diode rectifier without DC-link choke
Required THDi @ rated power: 5%
Planned rectifier/drive input real power: 355kW (100% of drive rating)
Recommended filter: Type FN3470-355-99
Example 2:
Power line rating: 400 V, 50 Hz
Drive rating: 380–500 V, 50–60 Hz, 355 kW, 559 A, B6-diode rectifier with an 4% DC-link choke
Planned rectifier/drive input real power: 355 kW (100% of drive rating)
Required THDi @ rated power: 5%
Recommended filter: Type FN3471-355-99
Example 3:
Power line rating: 480 V, 50 Hz
Drive rating: 440–480 V, 50–60 Hz, 400 kW, 700 A, B6-diode rectifier without DC-link choke
Planned rectifier/drive input real power: 400kW (100% of drive rating)
Required THDi @ rated power: 10%
Recommended filter: Type FN3481-400-99
Example 4:
Power line rating: 480 V, 60 Hz
Drive rating: 380–500 V, 50–60 Hz, 400 HP, 537 A, diode rectifier
Planned rectifier/drive input real power: 400 HP (100% of drive rating)
Required THDi @ rated power: 10%
Recommended filter: Type FN3483-400-99
Oversizing of passive harmonic filters is not recommended because of the inherent lower harmonic mitigation per-
formance at partial load as well as higher cost, size, and weight.
Please refer to sections 2.1 to 2.4 for proper filter selection.

13/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
2.1 Filter selection tables FN3470/FN3471 (50 Hz, 3×380 … 415
VAC)
Table 3 FN3470 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[A]
[kg]
FN3470-250-99-E0XXSXX
250
435
376
3029
250
270
Busbar
S10
FN3470-315-99-E0XXSXX
315
655
475
3295
250
295
Busbar
S10
FN3470-355-99-E0XXSXX
355
727
538
3527
300
320
Busbar
S12
FN3470-400-99-E0XXSXX
400
808
608
4617
400
426
Busbar
L10
FN3470-500-99-E0XXSXX
500
985
766
4475
400
510
Busbar
L12
*Motor drive input current without harmonic filter.
Table 4 FN3470 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[kg]
FN3470-250-99-E0XXJXX
250
435
376
3029
270
Busbar
S10
FN3470-315-99-E0XXJXX
315
655
475
3295
295
Busbar
S10
FN3470-355-99-E0XXJXX
355
727
538
3527
320
Busbar
S12
FN3470-400-99-E0XXJXX
400
808
608
4617
426
Busbar
L10
FN3470-500-99-E0XXJXX
500
985
766
4475
510
Busbar
L12
*Motor drive input current without harmonic filters.

User and Installation Manual Ecosine Max Passive Harmonic Filters 14/66
Table 5 FN3471 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[A]
[kg]
FN3471-250-99-E0XXSXX
250
435
376
0.082
1974
250
240
Busbar
S08
FN3471-315-99-E0XXSXX
315
655
475
0.065
2226
250
270
Busbar
S08
FN3471-355-99-E0XXSXX
355
727
538
0.058
2346
300
292
Busbar
S08
FN3471-400-99-E0XXSXX
400
808
608
0.051
3501
400
362
Busbar
L08
FN3471-500-99-E0XXSXX
500
985
766
0.041
3195
400
410
Busbar
L08
*Motor drive input current without filter.
**FN3471 filters can be applied for drives with and withoutLdc. 8% THDi (@ rated power) is achieved when FN3471
is applied to drives without Ldc, while 5% THDi (@rated power) is achieved when there is a 4% Ldc present in the
drive.
Table 6 FN3471 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[kg]
FN3471-250-99-E0XXJXX
250
435
376
0.082
1974
240
Busbar
S08
FN3471-315-99-E0XXJXX
315
655
475
0.065
2226
270
Busbar
S08
FN3471-355-99-E0XXJXX
355
727
538
0.058
2346
292
Busbar
S08
FN3471-400-99-E0XXJXX
400
808
608
0.051
3501
362
Busbar
L08
FN3471-500-99-E0XXJXX
500
985
766
0.041
3195
410
Busbar
L08
*Motor drive input current without filter.
**FN3471 filters can be applied for drives with and withoutLdc. 8% THDi (@ rated power) is achieved when FN3471
is applied to drives without Ldc, while 5% THDi (@rated power) is achieved when there is a 4% Ldc present in the
drive.

15/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
2.2 Filter selection table FN3480/FN3481 (50 Hz, 3×440 … 480 VAC)
Table 7 FN3480 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[A]
[kg]
FN3480-315-99-E0XXSXX
315
565
393
3278
250
270
Busbar
S10
FN3480-355-99-E0XXSXX
355
630
442
3343
250
328
Busbar
S10
FN3480-400-99-E0XXSXX
400
701
499
3584
300
366
Busbar
S12
FN3480-500-99-E0XXSXX
500
856
629
4356
400
385
Busbar
L10
FN3480-560-99-E0XXSXX
560
947
705
4536
400
410
Busbar
L12
*Motor drive input current without harmonic filter.
Table 8 FN3480 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[kg]
FN3480-315-99-E0XXJXX
315
565
393
3278
270
Busbar
S10
FN3480-355-99-E0XXJXX
355
630
442
3343
328
Busbar
S10
FN3480-400-99-E0XXJXX
400
701
499
3584
366
Busbar
S12
FN3480-500-99-E0XXJXX
500
856
629
4356
385
Busbar
L10
FN3480-560-99-E0XXJXX
560
947
705
4536
410
Busbar
L12
*Motor drive input current without harmonic filter.

User and Installation Manual Ecosine Max Passive Harmonic Filters 16/66
Table 9 FN3481 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[A]
[kg]
FN3481-315-99-E0XXSXX
315
564
393
0.094
2223
250
250
Busbar
S08
FN3481-355-99-E0XXSXX
355
630
444
0.083
2274
250
272
Busbar
S08
FN3481-400-99-E0XXSXX
400
701
501
0.074
2403
300
288
Busbar
S08
FN3481-500-99-E0XXSXX
500
856
630
0.059
3240
400
376
Busbar
L08
FN3481-560-99-E0XXSXX
560
947
709
0.053
3256
400
385
Busbar
L08
* Motor drive input current without harmonic filter.
** FN3481 filters can be applied for drives with and without Ldc. 8% THDi (@ rated power) is achieved when
FN3481 is applied to drives without Ldc, while 5% THDi (@ rated power) is achieved when there is a 4% Ldc pre-
sent in the drive.
Table 10 FN3481 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[kg]
FN3481-315-99-E0XXJXX
315
564
393
0.094
2223
250
Busbar
S08
FN3481-355-99-E0XXJXX
355
630
444
0.083
2274
272
Busbar
S08
FN3481-400-99-E0XXJXX
400
701
501
0.074
2403
288
Busbar
S08
FN3481-500-99-E0XXJXX
500
856
630
0.059
3240
376
Busbar
L08
FN3481-560-99-E0XXJXX
560
947
709
0.053
3256
385
Busbar
L08
* Motor drive input current without harmonic filter.
** FN3481 filters can be applied for drives with and without Ldc. 8% THDi (@ rated power) is achieved when
FN3481 is applied to drives without Ldc, while 5% THDi (@ rated power) is achieved when there is a 4% Ldc pre-
sent in the drive.

17/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
2.3 Filter selection table FN3472/FN3473 (60 Hz, 3×380 … 415 VAC)
Table 11 FN3472 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[A]
[kg]
FN3472-280-99-E0XXSXX
209
280
472
327
2832
200
245
540
FN3472-315-99-E0XXSXX
235
315
537
375
3200
200
270
595
FN3472-355-99-E0XXSXX
265
355
595
420
3451
250
295
650
FN3472-400-99-E0XXSXX
300
400
656
469
3404
250
320
705
FN3472-480-99-E0XXSXX
358
480
773
563
4173
300
385
849
*Motor drive input current without harmonic filter.
Table 12 FN3472 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current
Rated filter input current
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[W]
[kg]
FN3472-280-99-E0XXJXX
209
280
472
327
2832
245
540
FN3472-315-99-E0XXJXX
235
315
537
375
3200
270
595
FN3472-355-99-E0XXJXX
265
355
595
420
3451
295
650
FN3472-400-99-E0XXJXX
300
400
656
469
3404
320
705
FN3472-480-99-E0XXJXX
358
480
773
563
4173
385
849
*Motor drive input current without harmonic filter.

User and Installation Manual Ecosine Max Passive Harmonic Filters 18/66
Table 13 FN3473 filter selection table for models with circuit breaker
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[A]
[kg]
FN3473-280-99-E0XXSXX
209
280
472
325
0.074
2085
200
220
485
FN3473-315-99-E0XXSXX
235
315
537
374
0.066
2145
200
245
540
FN3473-355-99-E0XXSXX
265
355
595
418
0.058
2382
250
270
595
FN3473-400-99-E0XXSXX
300
400
656
467
0.052
2223
250
295
650
FN3473-480-99-E0XXSXX
358
480
772
561
0.044
3057
300
360
794
* Motor drive input current without harmonic filter.
** FN3473 filters can be applied for drives with and without Ldc. 8% THDi (@ rated power) is achieved when
FN3473 is applied to drives without Ldc, while 5% THDi (@ rated power) is achieved when there is a 4% Ldc
present in the drive.
Table 14 FN3473 filter selection table for models with trap disconnect jumper
Filter
Rated load power @ 400V /50 Hz
Motor drive input current*
Rated filter input current
Required Ldc for 5% THDi**
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[Arms]
[Arms]
[mH]
[W]
[kg]
FN3473-280-99-E0XXJXX
209
280
472
325
0.074
2085
220
485
FN3473-315-99-E0XXJXX
235
315
537
374
0.066
2145
245
540
FN3473-355-99-E0XXJXX
265
355
595
418
0.058
2382
270
595
FN3473-400-99-E0XXJXX
300
400
656
467
0.052
2223
295
650
FN3473-480-99-E0XXJXX
358
480
772
561
0.044
3057
360
794
* Motor drive input current without harmonic filter.
** FN3473 filters can be applied for drives with and without Ldc. 8% THDi (@ rated power) is achieved when
FN3473 is applied to drives without Ldc, while 5% THDi (@ rated power) is achieved when there is a 4% Ldc
present in the drive.

19/66 User and Installation Manual Ecosine Max Passive Harmonic Filters
2.4 Filter selection table FN3482/FN3483 (60 Hz, 3×440 … 480 VAC)
Table 15 FN3482 filter selection table for models with circuit breaker
Filter
Rated load power@ 480 V/60 Hz
Motor drive input current*
Rated filter input current
Typical power losses @ 40°C
Circuit breaker rated current
Weight
Terminal
Frame size
[kW]
[HP]
[Arms]
[Arms]
[W]
[A]
[kg]
[lbs]
FN3482-350-99-E0XXSXX
260
350
472
327
2832
200
245
540
Busbar
S10
FN3482-400-99-E0XXSXX
300
400
537
375
3200
200
270
595
Busbar
S10
FN3482-450-99-E0XXSXX
335
450
595
420
3451
250
295
650
Busbar
S10
FN3482-500-99-E0XXSXX
370
500
656
467
3404
250
320
705
Busbar
S12
FN3482-600-99-E0XXSXX
450
600
773
563
4173
300
385
849
Busbar
L10
*Motor drive input current without harmonic filter.
Table 16 FN3482 filter selection table for models with trap disconnect jumper
Filter
Rated load power@ 480 V/60 Hz
Motor drive input current*
Rated filter input current
Typical power losses @ 40°C
Weight
Terminal
Frame size
[kW]
[HP]
[Arms]
[Arms]
[W]
[kg]
[lbs]
FN3482-350-99-E0XXJXX
260
350
472
327
2832
245
540
Busbar
S10
FN3482-400-99-E0XXJXX
300
400
537
375
3200
270
595
Busbar
S10
FN3482-450-99-E0XXJXX
335
450
595
420
3451
295
650
Busbar
S10
FN3482-500-99-E0XXJXX
370
500
656
467
3404
320
705
Busbar
S12
FN3482-600-99-E0XXJXX
450
600
773
563
4173
385
849
Busbar
L10
*Motor drive input current without harmonic filter.
