Schneeberger MR4S User manual

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite1/25
MR4S Spare Parts and Modification Instruction
Proof of Change MR4S Spare Parts:
20181008
MR 4S 25 SCR1 changed from M4x30 to M4x32, STP-CD removed
DEML/FF
DEML/TD
20181008
MR 30 4S added
DEML/FF
DEML/TD
20180301
Change of Spare Parts added
DEML/FF
DEML/TD
20171211
Document generated
DEML/FF
DEML/TD
20171211
Structure of Document generated
HTMLGen
Date
Text of the Amendment
Author
Release
Proof of Change MR4S Modification Instruction:
20180219
Change of Spare Parts moved to MR4S Spare Parts
DEML/FF
DEML/TD
20180219
Change of Spare Parts added
DEML/FF
DEML/TD
20180202
Document generated
DEML/FF
DEML/TD
20180201
Structure of English Document generated
HTMLGen
Date
Text of the Amendment
Author
Release

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite2/25
Inhalt
1MR4S Spare Parts............................................................................................................... 3
Introduction Spare Parts MR4S...............................................................................31.1
Front Plate and Front Panel....................................................................................41.2
Front Plate, Front Panel and Metal Wiper...............................................................61.3
Front Plate, Front Panel and Additional Wiper ........................................................81.4
Front Plate, Front Panel, Additional Wiper and Metal Wiper .................................101.5
Front Plate, Front Panel and Lubrication Plate......................................................121.6
Front Plate, Front Panel, Lubrication Plate and Metal Wiper.................................141.7
Front Plate, Front Panel, Lubrication Plate and Additional Wiper..........................161.8
Front Plate, Front Panel, Lubrication Plate, Additional Wiper and Metal Wiper.....181.9
Change of Spare Parts..........................................................................................201.10
1.10.1 Change of Cross Wiper............................................................................. 21
2MR4S Modification Instruction......................................................................................... 22
Mounting of Accessories.......................................................................................222.1
Modification from Standard to Separate Lubricant Distribution .............................232.2

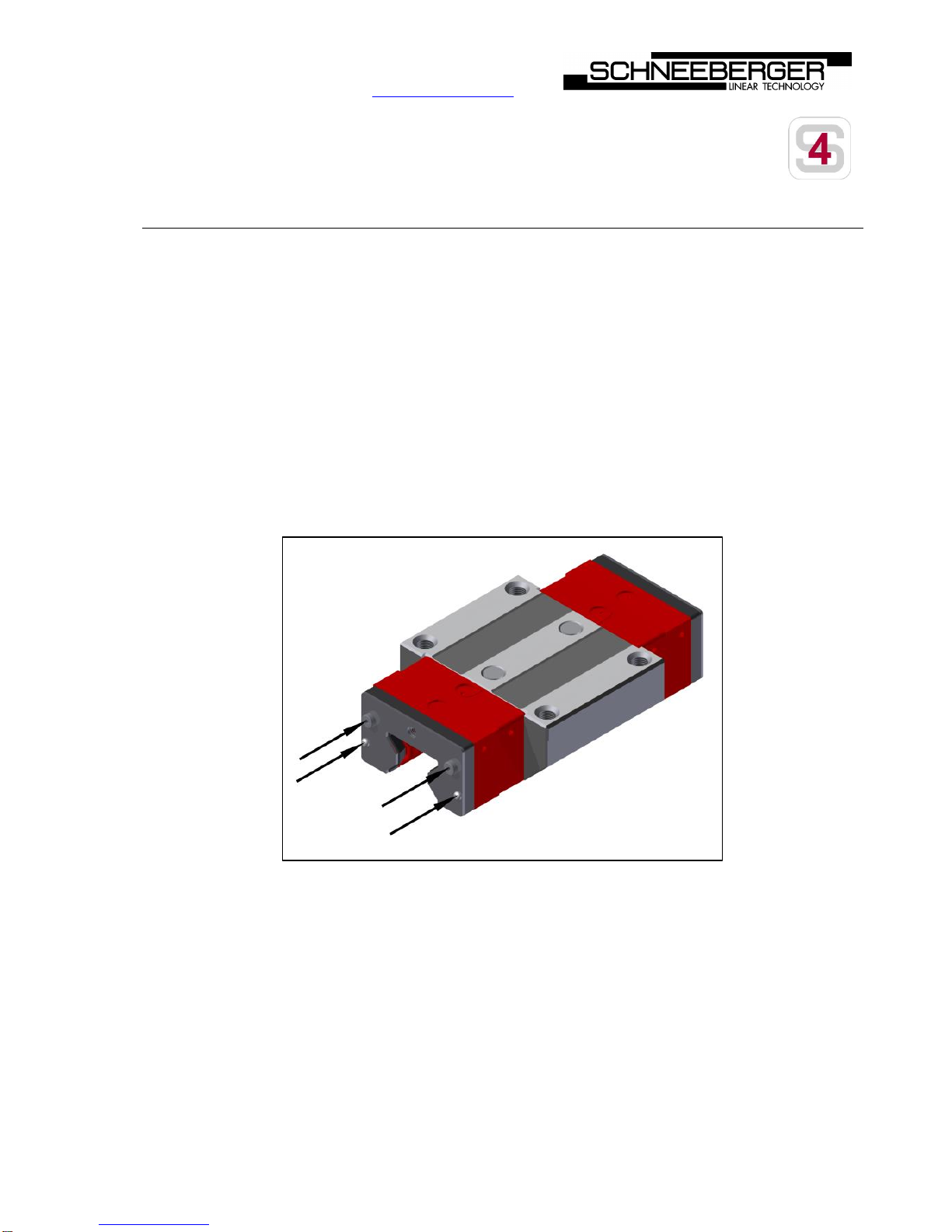

Modification of the Lubrication Connections..........................................................242.3
2.3.1 Standard Lubricant Distribution .................................................................... 25
2.3.2 Separate Lubricant Distribution .................................................................... 25

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite3/25
1 MR4S Spare Parts
Introduction Spare Parts MR4S1.1
This chapter gives an overview of all MR4S spare parts. These are related to the added accessories.
Combinations of accessories:
front plate (STP)+ front panel (FRB)
+ metal wiper (ASM)
+ additional wiper (ZCV)
+ additional wiper (ZCV) + metal wiper (ASM)
+ lubrication plate (SPL)
+ lubrication plate (SPL) + metal wiper (ASM)
+ lubrication plate (SPL) + additional wiper (ZCV)
+ lubrication plate (SPL) + additional wiper (ZCV) + metal wiper (ASM)
Spare Parts are the front plate, the front panel, all accessories and the corresponding screws.
In the following subchapters the spare parts of MR 4S were listed, related to the added accessories. The
graphics in the sections show exemplary a carriage of type A. By way of illustration, the accessories are added
to the front and back side of the carriage. It is also possible to use different combinations of accessories at
both sides of the carriage.
In general, all accessories can be used for standard-carriages, carriages with AMSA3B/AMSD3B and
carriages with AMSABS 3B.
In addition, the changing of MR4S spare parts is listed.

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite4/25

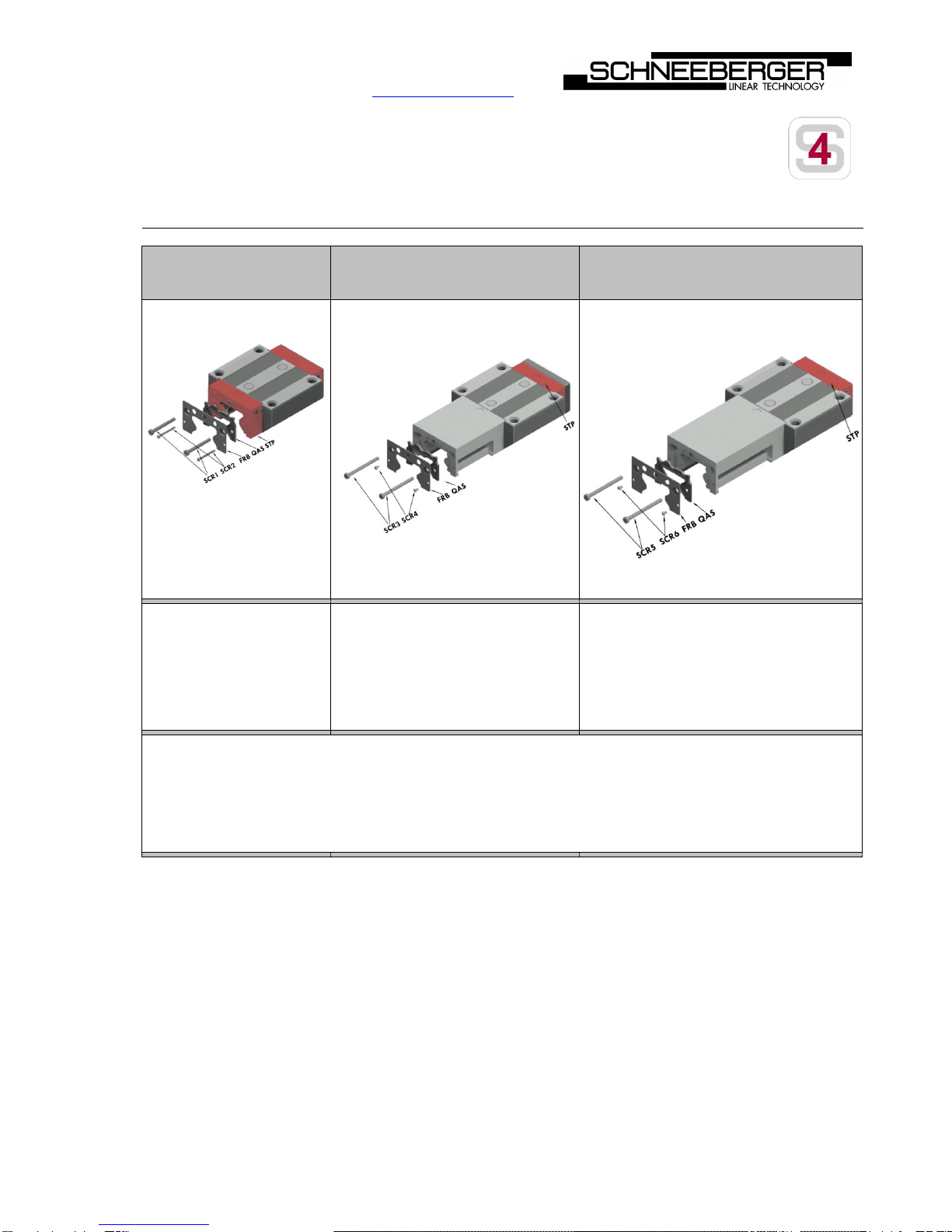

Front Plate and Front Panel1.2
MR4S carriage
MR4S carriage with AMSA
3B/AMSD 3B
MR4S carriage with AMSABS 3B
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR1: upper screw
SCR2: lower screw
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR3: upper screw
SCR4: lower screw
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR5: upper screw
SCR6: lower screw
* Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite5/25
Spare Part
25
30
35
45
55
65
STP-Z
580 106 510
580 106 856
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 857
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
580 106 596
580 105 421
580 105 691
580 105 425
580 106 045
QAS
580 105 819
580 106 598
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 349
(Schraube
SCR-M4X16
Polyfleck
DIN 7984)
580 100 409
(Schraube
SCR-M4x20
Polyfleck DIN
7984)
580 100 409
(Schraube SCR-
M4x20 Polyfleck
DIN 7984)
580 100 450
(Schraube
SCR-M5x25-
Polyfleck DIN
7984)
580 100 491
(Schraube
SCR-M6x25
Polyfleck DIN
ISO7984)
580 100 508
(Schraube
SCR-M6x30
Polyfleck DIN
7984)
SCR2
580 106 289
(Schraube
SCR-M2x18
ISO 7380-1
Torx)
580 106 852
(Schraube
SCR-M2x22
ISO 7380-1
Torx)
580 106 286
(Schraube SCR-
M2,5x23
ISO7380-1 Torx)
580 106 292
(Schraube
SCR-M3x25
ISO7380 Torx
T10)
580 106 294
(Schraube
SCR-M3x28
ISO7380-1
Torx)
580 106 296
(Schraube
SCR-M3x32
ISO7380-1
Torx)
SCR3
580 105 567
(Schraube
SCR-M4x23
Polyfleck
DIN
ISO7984)
580 100 432
(Schraube SCR-
M4X25 Polyfleck
DIN 7984)
580 106 713
(Schraube
SCR-M5x20-
Polyfleck DIN
7984)
580 106 714
(Schraube
SCR-M6x20
Polyfleck DIN
ISO7984)
580 100 491
(Schraube
SCR-M6x25
Polyfleck DIN
ISO7984)
SCR4
580 106 193
(Schraube
SCR-M2x5
ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)
SCR5
580 105 577
(Schraube
SCR-M4x42
DIN
ISO7984)
580 100 575
(Schraube SCR-
M4X45
POLYFLECK DIN
7984)
580 100 576
(Schraube
SCR-M5X40
Polyfleck DIN
7984)
580 100 555
(Schraube
SCR-M6x40
Polyfleck DIN
7984)
580 105 579
(Schraube
SCR-M6x48
DIN ISO7984)
SCR6
580 106 193
(Schraube
SCR-M2x5
ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)
580 106 195
(Schraube
SCR-M3x5
ISO7380 Torx
T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite6/25

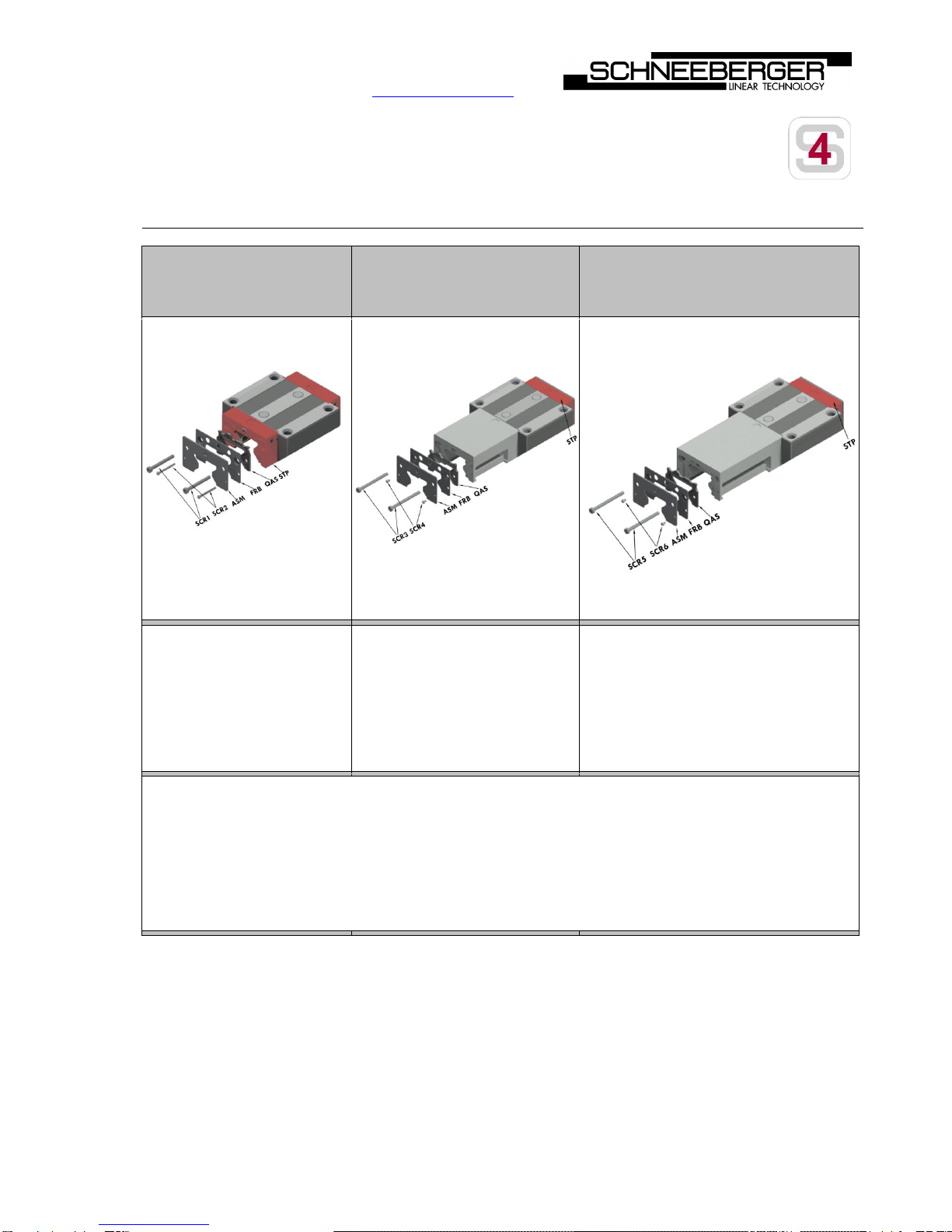

Front Plate, Front Panel and Metal Wiper1.3
MR4S carriage with metal
wiper (ASM)
MR4S carriage with AMSA
3B/AMSD 3B and metal wiper
(ASM)
MR4S carriage with AMSABS 3B and
metal wiper (ASM)
ASM: metal wiper *
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR1: upper screw
SCR2: lower screw
ASM: metal wiper *
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR3: upper screw
SCR4: lower screw
ASM: metal wiper *
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR5: upper screw
SCR6: lower screw
* In case of AMS-rail, the metal wiper ASM-A must be used.
** Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite7/25
Spare Part
25
30
35
45
55
65
STP-Z
580 106 510
580 106 856
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 857
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
-
580 105 421
580 105 691
580 105 425
580 106 045
ASM
580 102 619
-
580 102 620
580 102 621
580 102 622
580 102 623
ASM-A
580 106 596
580 104 030
580 103 596
580 103 458
580 104 004
QAS
580 105 819
580 106 650
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 409
(Schraube
SCR-M4x20
Polyfleck DIN
7984)
-
580 100 432
(Schraube
SCR-M4X25
Polyfleck
DIN 7984)
580 100 473
(Schraube SCR-
M5x30 Polyfleck
DIN 7984)
580 100 540
(Schraube SCR-
M6x35 Polyfleck
DIN ISO7984)
580 100 540
(Schraube SCR-
M6x35 Polyfleck
DIN ISO7984)
SCR2
580 106 289
(Schraube
SCR-M2x18
ISO 7380-1
Torx)
580 106 598
580 106 286
(Schraube
SCR-
M2,5x23
ISO7380-1
Torx)
580 106 293
(Schraube SCR-
M3x26 ISO7380-
1 Torx)
580 106 295
(Schraube SCR-
M3x30 ISO7380
Torx T10)
580 106 297
(Schraube SCR-
M3x33 ISO7380-
1 Torx)
SCR3
580 105 567
(Schraube
SCR-M4x23
Polyfleck DIN
ISO7984)
580 100 409
(Schraube
SCR-M4x20
Polyfleck DIN
7984)
580 100 427
(Schraube
SCR-M4x30
Polyfleck
DIN 7984)
580 100 450
(Schraube SCR-
M5x25-Polyfleck
DIN 7984)
580 100 491
(Schraube SCR-
M6x25 Polyfleck
DIN ISO7984)
580 100 508
(Schraube SCR-
M6x30 Polyfleck
DIN 7984)
SCR4
580 106 193
(Schraube
SCR-M2x5
ISO7380
Torx T6)
580 106 852
(Schraube
SCR-M2x22
ISO 7380-1
Torx)
580 106 283
(Schraube
SCR-M2,5x5
ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
SCR5
580 100 575
(Schraube
SCR-M4X45
POLYFLECK
DIN 7984)
580 100 394
(Schraube
SCR-M4X50
DIN 7984
8.8)
580 100 577
(Schraube SCR-
M5X45 Polyfl.
DIN 7984 8.8)
580 100 579
(Schraube SCR-
M6X45 Polyfleck
DIN 7984)
580 100 581
(Schraube SCR-
M6X55 Polyfleck
DIN 7984)
SCR6
580 106 193
(Schraube
SCR-M2x5
ISO7380
Torx T6)
580 106 283
(Schraube
SCR-M2,5x5
ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite8/25
Front Plate, Front Panel and Additional Wiper1.4
MR4S carriage with additional
wiper (ZCV)
MR4S carriage with AMSA
3B/AMSD 3B and additional
wiper (ZCV)
MR4S carriage with AMSABS 3B and
additional wiper (ZCV)
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR1: upper screw
SCR2: lower screw
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR3: upper screw
SCR4: lower screw
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR5: upper screw
SCR6: lower screw
* Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite9/25
Spare Part
25
30
35
45
55
65
STP-Z
580 106 510
580 106 856
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 857
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
-
580 105 421
580 105 691
580 105 425
580 106 045
ZCV
580 104 277
-
580 104 278
580 104 279
580 104 280
580 104 281
QAS
580 105 819
580 106 596
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 432
(Schraube
SCR-M4X25
Polyfleck
DIN 7984)
580 106 647
580 100 427
(Schraube
SCR-M4x30
Polyfleck DIN
7984)
580 100 469
(Schraube
SCR-M5x35-
Polyfleck DIN
7984)
580 100 555
(Schraube
SCR-M6x40
Polyfleck DIN
7984)
580 100 579
(Schraube SCR-
M6X45
Polyfleck DIN
7984)
SCR2
580 106 290
(Schraube
SCR-M2x25
ISO7380-1
Torx)
580 106 598
580 106 291
(Schraube
SCR-M2,5x30
ISO7380-1
Torx)
580 106 296
(Schraube
SCR-M3x32
ISO7380-1
Torx)
580 106 298
(Schraube
SCR-M3x35
ISO7380 Torx
T10)
580 106 300
(Schraube SCR-
M3x38
ISO7380-1
Torx)
SCR3
580 100 427
(Schraube
SCR-M4x30
Polyfleck
DIN 7984)
580 100 427
(Schraube
SCR-M4x30
Polyfleck DIN
7984)
580 100 573
(Schraube
SCR-M4X35
Polyfleck DIN
7984)
580 100 473
(Schraube
SCR-M5x30
Polyfleck DIN
7984)
580 100 508
(Schraube
SCR-M6x30
Polyfleck DIN
7984)
580 100 540
(Schraube SCR-
M6x35 Polyfleck
DIN ISO7984)
SCR4
580 106 281
(Schraube
SCR-M2x10
ISO7380
Torx T6)
580 106 253
(Schraube
SCR-M2x28
ISO 7380-1
Torx)
580 106 284
(Schraube
SCR-M2,5x10
ISO7380 Torx
T8)
580 106 288
(Schraube
SCR-M3x12
ISO7380 Torx
T10)
580 106 287
(Schraube
SCR-M3x10
ISO7380 Torx
T10)
580 106 287
(Schraube SCR-
M3x10 ISO7380
Torx T10)
SCR5
580 100 394
(Schraube
SCR-M4X50
DIN 7984
8.8)
580 106 345
(Schraube
SCR-M4X55
DIN 7984 A2)
580 100 578
(Schraube
SCR-M5X50
Polyfl. DIN
7984 8.8)
580 100 580
(Schraube
SCR-M6X50
DIN 7984 ISO
4762)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
SCR6
580 106 281
(Schraube
SCR-M2x10
ISO7380
Torx T6)
580 106 284
(Schraube
SCR-M2,5x10
ISO7380 Torx
T8)
580 106 288
(Schraube
SCR-M3x12
ISO7380 Torx
T10)
580 106 287
(Schraube
SCR-M3x10
ISO7380 Torx
T10)
580 106 287
(Schraube SCR-
M3x10 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite10/25

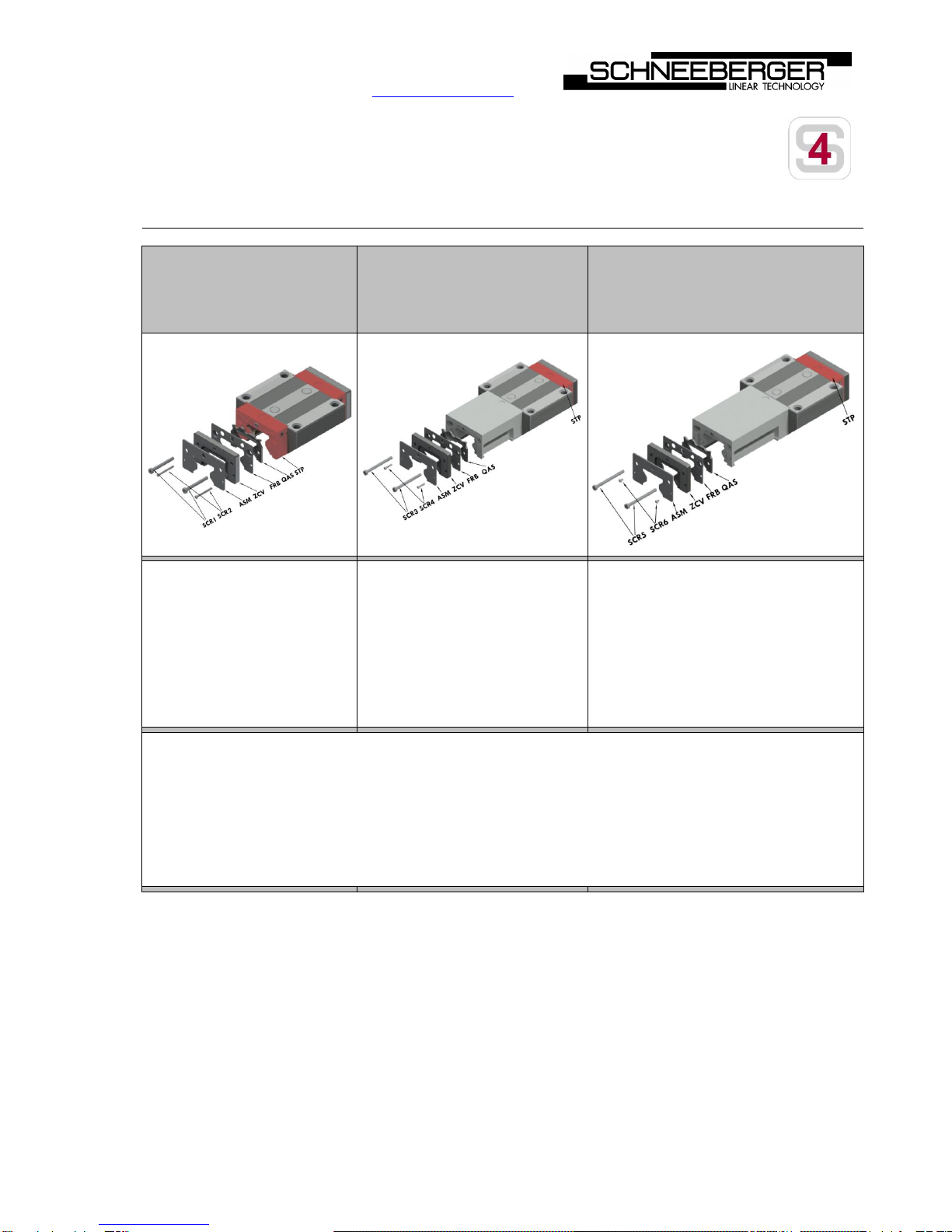

Front Plate, Front Panel, Additional Wiper and Metal Wiper1.5
MR4S carriage with,
additional wiper (ZCV) and
metal wiper (ASM)
MR4S carriage with AMSA
3B/AMSD 3B and additional
wiper (ZCV) and metal wiper
(ASM)
MR4S carriage with AMSABS 3B and
additional wiper (ZCV) and metal wiper
(ASM)
ASM: metal wiper *
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR1: upper screw
SCR2: lower screw
ASM: metal wiper *
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR3: upper screw
SCR4: lower screw
ASM: metal wiper *
ZCV: additional wiper
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR5: upper screw
SCR6: lower screw
* In case of AMS-rail, the metal wiper ASM-A must be used.
* Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite11/25
Spare Part
25
30
35
45
55
65
STP-Z
580 106 510
580 106 856
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 857
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
-
580 105 421
580 105 691
580 105 425
580 106 045
ZCV
580 104 277
-
580 104 278
580 104 279
580 104 280
580 104 281
ASM
580 102 619
580 106 596
580 102 620
580 102 621
580 102 622
580 102 623
ASM-A
580 106 647
580 104 030
580 103 596
580 103 458
580 104 004
QAS
580 105 819
580 106 650
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 427
(Schraube
SCR-M4x30
Polyfleck
DIN 7984)
-
580 105 568
(Schraube
SCR-M4x32
Polyfleck DIN
ISO7984)
580 100 469
(Schraube SCR-
M5x35-Polyfleck
DIN 7984)
580 100 555
(Schraube
SCR-M6x40
Polyfleck DIN
7984)
580 100 579
(Schraube SCR-
M6X45 Polyfleck
DIN 7984)
SCR2
580 106 290
(Schraube
SCR-M2x25
ISO7380-1
Torx)
580 106 598
580 106 291
(Schraube
SCR-
M2,5x30
ISO7380-1
Torx)
580 106 297
(Schraube SCR-
M3x33 ISO7380-
1 Torx)
580 106 299
(Schraube
SCR-M3x37
ISO7380-1
Torx)
580 106 301
(Schraube SCR-
M3x40 ISO7380
Torx T10)
SCR3
580 100 573
(Schraube
SCR-M4X35
Polyfleck
DIN 7984)
580 100 427
(Schraube
SCR-M4x30
Polyfleck DIN
7984)
580 100 573
(Schraube
SCR-M4X35
Polyfleck DIN
7984)
580 100 473
(Schraube SCR-
M5x30 Polyfleck
DIN 7984)
580 100 508
(Schraube
SCR-M6x30
Polyfleck DIN
7984)
580 100 540
(Schraube SCR-
M6x35 Polyfleck
DIN ISO7984)
SCR4
580 106 282
(Schraube
SCR-M2x12
ISO7380
Torx T6)
580 106 253
(Schraube
SCR-M2x28
ISO 7380-1
Torx)
580 106 285
(Schraube
SCR-
M2,5x12
ISO7380
Torx T8)
580 106 288
(Schraube SCR-
M3x12 ISO7380
Torx T10)
580 106 288
(Schraube
SCR-M3x12
ISO7380 Torx
T10)
580 106 288
(Schraube SCR-
M3x12 ISO7380
Torx T10)
SCR5
580 106 345
(Schraube
SCR-M4X55
DIN 7984
A2)
580 106 345
(Schraube
SCR-M4X55
DIN 7984 A2)
580 100 578
(Schraube SCR-
M5X50 Polyfl.
DIN 7984 8.8)
580 100 580
(Schraube
SCR-M6X50
DIN 7984 ISO
4762)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
SCR6
580 106 282
(Schraube
SCR-M2x12
ISO7380
Torx T6)
580 106 285
(Schraube
SCR-
M2,5x12
ISO7380
Torx T8)
580 106 288
(Schraube SCR-
M3x12 ISO7380
Torx T10)
580 106 288
(Schraube
SCR-M3x12
ISO7380 Torx
T10)
580 106 288
(Schraube SCR-
M3x12 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite12/25

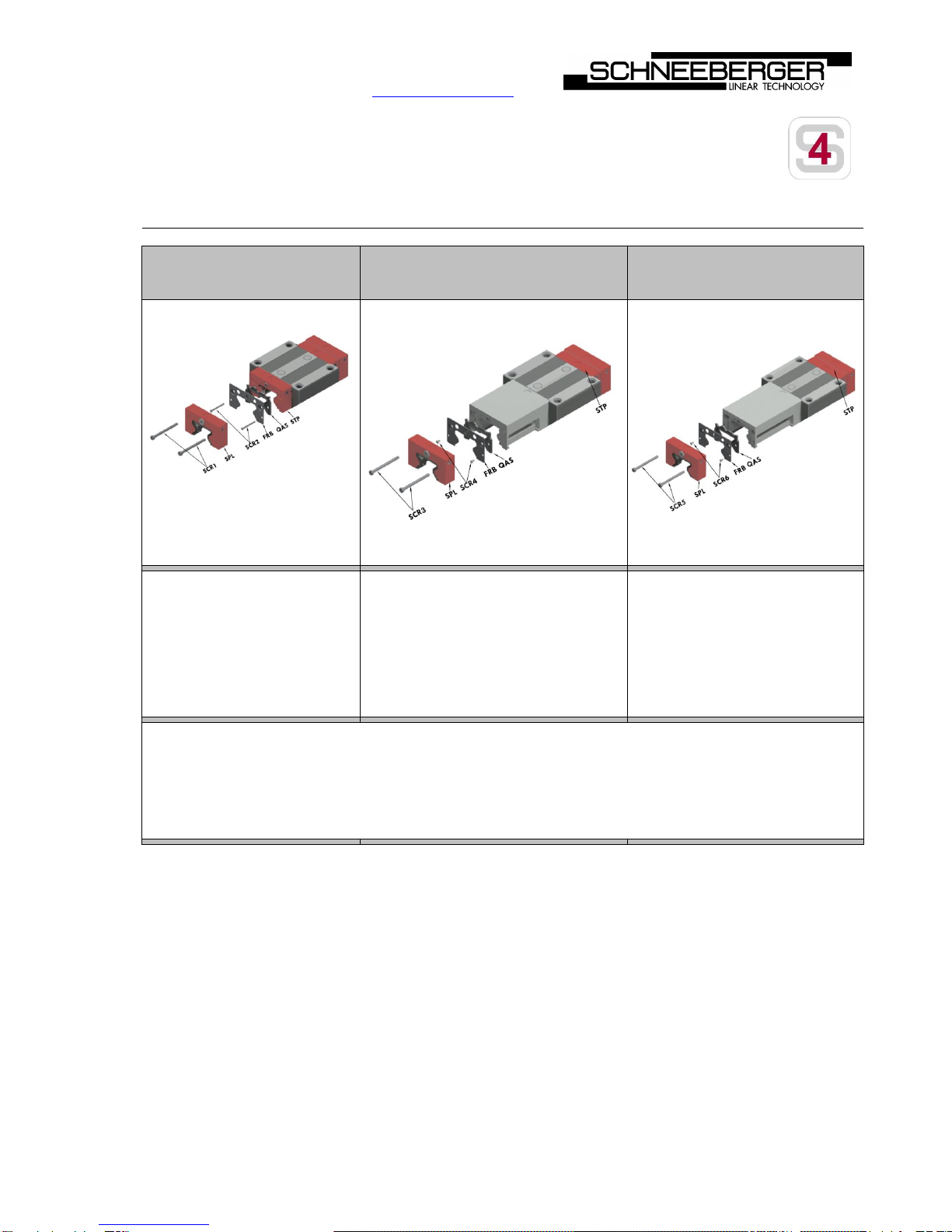

Front Plate, Front Panel and Lubrication Plate1.6
MR4S carriage with lubrication
plate (SPL)
MR4S carriage with AMSA 3B/AMSD
3B and lubrication plate (SPL)
MR4S carriage with AMSABS 3B
and lubrication plate (SPL)
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR1: upper screw
SCR2: lower screw
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR3: upper screw
SCR4: lower screw
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate *
SCR5: upper screw
SCR6: lower screw
* Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite13/25
Spare Part
25
35
45
55
65
STP-Z
580 106 510
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
580 105 421
580 105 691
580 105 425
580 106 045
SPL
580 090 076
580 090 146
580 090 180
580 090 227
580 090 270
QAS
580 105 819
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 427
(Schraube SCR-
M4x30 Polyfleck
DIN 7984)
580 105 576
(Schraube SCR-
M4x37 Polyfleck
DIN ISO7984)
580 100 577
(Schraube SCR-
M5X45 Polyfl.
DIN 7984 8.8)
580 100 580
(Schraube SCR-
M6X50 DIN 7984
ISO 4762)
580 100 581
(Schraube SCR-
M6X55 Polyfleck
DIN 7984)
SCR2
580 106 289
(Schraube SCR-
M2x18 ISO
7380-1 Torx)
580 106 286
(Schraube SCR-
M2,5x23
ISO7380-1 Torx)
580 106 292
(Schraube SCR-
M3x25 ISO7380
Torx T10)
580 106 294
(Schraube SCR-
M3x28 ISO7380-
1 Torx)
580 106 296
(Schraube SCR-
M3x32 ISO7380-
1 Torx)
SCR3
580 100 573
(Schraube SCR-
M4X35
Polyfleck DIN
7984)
580 100 574
(Schraube SCR-
M4x40 Polyfleck
DIN 7984)
580 100 576
(Schraube SCR-
M5X40 Polyfleck
DIN 7984)
580 100 555
(Schraube SCR-
M6x40 Polyfleck
DIN 7984)
580 100 580
(Schraube SCR-
M6X50 DIN 7984
ISO 4762)
SCR4
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
SCR5
580 106 345
(Schraube SCR-
M4X55 DIN
7984 A2)
580 106 347
(Schraube SCR-
M4x65 DIN
ISO7984)
580 100 481
(Schraube SCR-
M5x60 Poly-
Fl.DIN 7984 8.8)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
580 106 349
(Schraube SCR-
M6X75 DIN 7984
A2)
SCR6
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite14/25
Front Plate, Front Panel, Lubrication Plate and Metal Wiper1.7
MR4S carriage with
lubrication plate (SPL) and
metal wiper (ASM)
MR4S carriage with AMSA
3B/AMSD 3B and lubrication plate
(SPL) and metal wiper (ASM)
MR4S carriage with AMSABS 3B and
lubrication plate (SPL) and metal
wiper (ASM)
ASM: metal wiper *
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR1: upper screw
SCR2: lower screw
ASM: metal wiper *
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR3: upper screw
SCR4: lower screw
ASM: metal wiper *
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR5: upper screw
SCR6: lower screw
* In case of AMS-rail, the metal wiper ASM-A must be used.
** Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite15/25
Spare Part
25
35
45
55
65
STP-Z
580 106 510
580 106 072
580 106 480
580 106 076
580 106 765 (applies
also to CD)
STP-ST
580 106 511
580 106 073
580 106 481
580 106 077
580 106 766 (applies
also to CD)
FRB
580 105 817
580 105 421
580 105 691
580 105 425
580 106 045
SPL
580 090 076
580 090 146
580 090 180
580 090 227
580 090 270
ASM
580 102 619
580 102 620
580 102 621
580 102 622
580 102 623
ASM-A
580 104 030
580 103 596
580 103 458
580 104 004
QAS
580 105 819
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 105 568
(Schraube SCR-
M4x32 Polyfleck
DIN ISO7984)
580 105 577
(Schraube
SCR-M4x42
DIN ISO7984)
580 100 578
(Schraube SCR-
M5X50 Polyfl.
DIN 7984 8.8)
580 100 581
(Schraube SCR-
M6X55 Polyfleck
DIN 7984)
580 100 583
(Schraube SCR-
M6X65 Polyfleck DIN
7984)
SCR2
580 106 289
(Schraube SCR-
M2x18 ISO
7380-1 Torx)
580 106 286
(Schraube
SCR-M2,5x23
ISO7380-1
Torx)
580 106 292
(Schraube SCR-
M3x25 ISO7380
Torx T10)
580 106 294
(Schraube SCR-
M3x28 ISO7380-1
Torx)
580 106 296
(Schraube SCR-
M3x32 ISO7380-1
Torx)
SCR3
580 100 574
(Schraube SCR-
M4x40 Polyfleck
DIN 7984)
580 100 575
(Schraube
SCR-M4X45
POLYFLECK
DIN 7984)
580 100 577
(Schraube SCR-
M5X45 Polyfl.
DIN 7984 8.8)
580 100 579
(Schraube SCR-
M6X45 Polyfleck
DIN 7984)
580 100 581
(Schraube SCR-
M6X55 Polyfleck DIN
7984)
SCR4
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube
SCR-M2,5x4
ISO7380 Torx
T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-M3x5
ISO7380 Torx T10)
SCR5
580 106 346
(Schraube SCR-
M4X60 DIN
7984 A2)
580 106 347
(Schraube
SCR-M4x65
DIN ISO7984)
580 106 350
(Schraube SCR-
M5x65 DIN
7984 A2)
580 100 583
(Schraube SCR-
M6X65 Polyfleck
DIN 7984)
580 106 352
(Schraube SCR-
M6X80 DIN 7984
verzinkt)
SCR6
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube
SCR-M2,5x4
ISO7380 Torx
T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-M3x5
ISO7380 Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite16/25

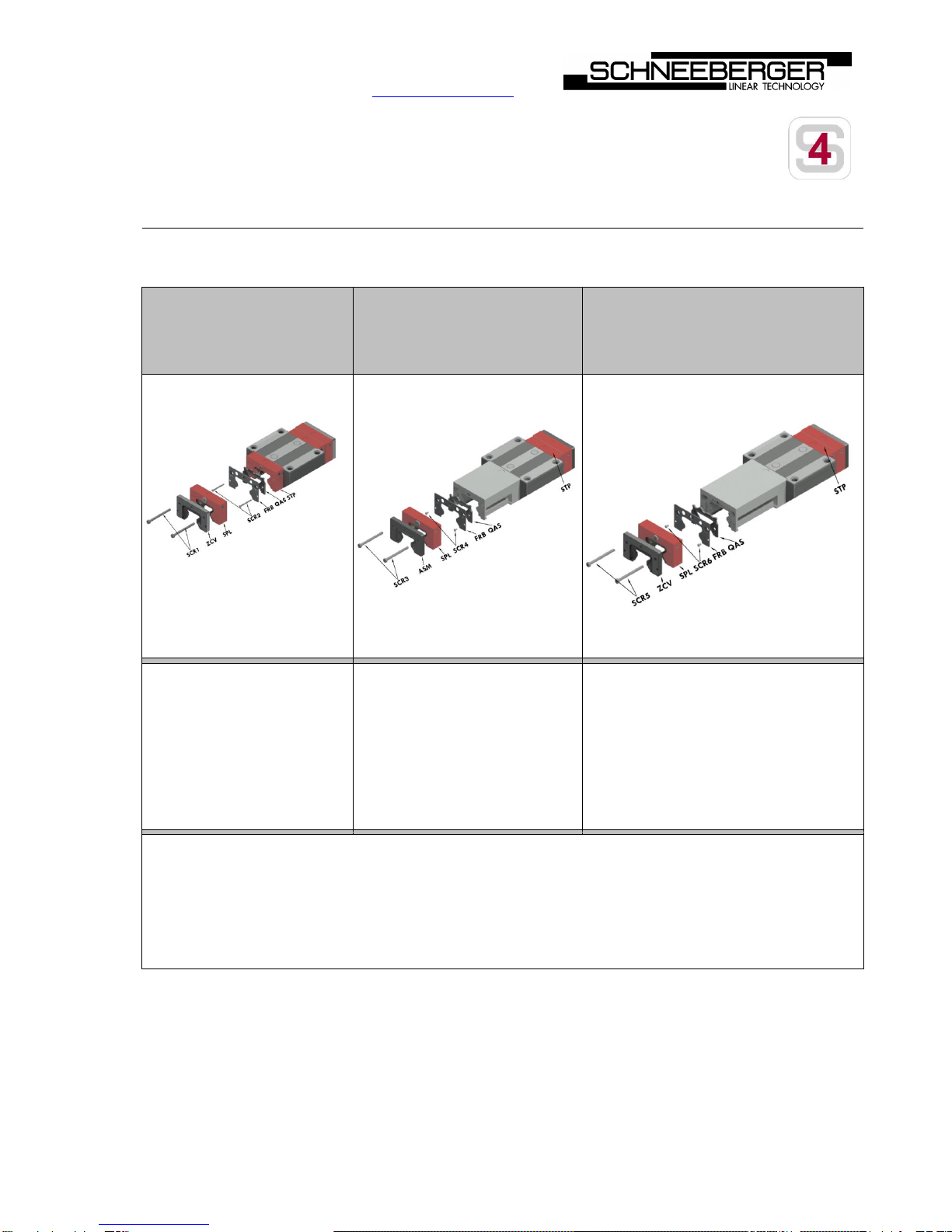

Front Plate, Front Panel, Lubrication Plate and Additional Wiper1.8
MR4S carriage with
lubrication plate (SPL) and
additional wiper (ZCV)
MR4S carriage with AMSA
3B/AMSD 3B and lubrication
plate (SPL) and additional wiper
(ZCV)
MR4S carriage with AMSABS 3B and
lubrication plate (SPL) and additional
wiper (ZCV)
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR1: upper screw
SCR2: lower screw
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR3: upper screw
SCR4: lower screw
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR5: upper screw
SCR6: lower screw
* Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite17/25
Spare Part
25
35
45
55
65
STP-Z
580 106 510
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
580 105 421
580 105 691
580 105 425
580 106 045
SPL
580 090 076
580 090 146
580 090 180
580 090 227
580 090 270
ZCV
580 104 277
580 104 278
580 104 279
580 104 280
580 104 281
QAS
580 105 819
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 574
(Schraube
SCR-M4x40
Polyfleck DIN
7984)
580 105 578
(Schraube SCR-
M4x48 DIN
ISO7984)
584 101 364
(Schraube SCR-
M5X55 DIN
Polyfleck 7984)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
580 100 565
(Schraube SCR-
M6X70 DIN 7984
verzinkt)
SCR2
580 106 289
(Schraube
SCR-M2x18
ISO 7380-1
Torx)
580 106 286
(Schraube SCR-
M2,5x23
ISO7380-1 Torx)
580 106 292
(Schraube SCR-
M3x25 ISO7380
Torx T10)
580 106 294
(Schraube SCR-
M3x28 ISO7380-1
Torx)
580 106 296
(Schraube SCR-
M3x32 ISO7380-
1 Torx)
SCR3
580 100 575
(Schraube
SCR-M4X45
POLYFLECK
DIN 7984)
580 106 345
(Schraube SCR-
M4X55 DIN 7984
A2)
580 100 578
(Schraube SCR-
M5X50 Polyfl. DIN
7984 8.8)
580 100 580
(Schraube SCR-
M6X50 DIN 7984
ISO 4762)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
SCR4
580 106 193
(Schraube
SCR-M2x5
ISO7380 Torx
T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
SCR5
580 106 347
(Schraube
SCR-M4x65
DIN ISO7984)
580 106 712
(Schraube SCR-
M4x75 DIN
ISO7984)
580 102 957
(Schraube SCR-
M5X70 DIN 7984
A2)
580 100 565
(Schraube SCR-
M6X70 DIN 7984
verzinkt)
580 106 353
(Schraube SCR-
M6X85 DIN 7984
A2)
SCR6
580 106 193
(Schraube
SCR-M2x5
ISO7380 Torx
T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite18/25
Front Plate, Front Panel, Lubrication Plate, Additional Wiper and Metal1.9 Wiper
MR4S carriage with
lubrication plate (SPL),
additional wiper (ZCV) and
metal wiper (ASM)
MR4S carriage with AMSA
3B/AMSD 3B and lubrication plate
(SPL), additional wiper (ZCV) and
metal wiper (ASM)
MR4S carriage with AMSABS 3B and
lubrication plate (SPL), additional
wiper (ZCV) and metal wiper (ASM)
ASM: metal wiper *
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR1: upper screw
SCR2: lower screw
ASM: metal wiper *
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR3: upper screw
SCR4: lower screw
ASM: metal wiper *
ZCV: additional wiper
SPL: lubrication plate
FRB: front panel
QAS: cross wiper
STP: front plate **
SCR5: upper screw
SCR6: lower screw
* In case of AMS-rail, the metal wiper ASM-A must be used.
** Version depending on the desired lubrication option and the type of carriage (STP - X):
X: Z (standard lubrication); ST (separate lubrication)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite19/25
Spare Part
25
35
45
55
65
STP-Z
580 106 510
580 106 072
580 106 480
580 106 076
580 106 765
(applies also to
CD)
STP-ST
580 106 511
580 106 073
580 106 481
580 106 077
580 106 766
(applies also to
CD)
FRB
580 105 817
580 105 421
580 105 691
580 105 425
580 106 045
SPL
580 090 076
580 090 146
580 090 180
580 090 227
580 090 270
ZCV
580 104 277
580 104 278
580 104 279
580 104 280
580 104 281
ASM
580 102 619
580 102 620
580 102 621
580 102 622
580 102 623
ASM-A
580 104 030
580 103 596
580 103 458
580 104 004
QAS
580 105 819
580 105 126
580 105 703
580 105 125
580 106 047
SCR1
580 100 574
(Schraube SCR-
M4x40 Polyfleck
DIN 7984)
580 105 578
(Schraube SCR-
M4x48 DIN
ISO7984)
584 101 364
(Schraube SCR-
M5X55 DIN
Polyfleck 7984)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
580 100 565
(Schraube SCR-
M6X70 DIN 7984
verzinkt)
SCR2
580 106 289
(Schraube SCR-
M2x18 ISO
7380-1 Torx)
580 106 286
(Schraube SCR-
M2,5x23
ISO7380-1 Torx)
580 106 292
(Schraube SCR-
M3x25 ISO7380
Torx T10)
580 106 294
(Schraube SCR-
M3x28 ISO7380-
1 Torx)
580 106 296
(Schraube SCR-
M3x32 ISO7380-
1 Torx)
SCR3
580 100 575
(Schraube SCR-
M4X45
POLYFLECK
DIN 7984)
580 106 345
(Schraube SCR-
M4X55 DIN 7984
A2)
580 100 578
(Schraube SCR-
M5X50 Polyfl. DIN
7984 8.8)
580 100 581
(Schraube SCR-
M6X55 Polyfleck
DIN 7984)
580 100 582
(Schraube SCR-
M6X60 verzinkt
DIN 7984)
SCR4
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
SCR5
580 106 347
(Schraube SCR-
M4x65 DIN
ISO7984)
580 106 712
(Schraube SCR-
M4x75 DIN
ISO7984)
580 102 957
(Schraube SCR-
M5X70 DIN 7984
A2)
580 106 349
(Schraube SCR-
M6X75 DIN 7984
A2)
580 106 353
(Schraube SCR-
M6X85 DIN 7984
A2)
SCR6
580 106 193
(Schraube SCR-
M2x5 ISO7380
Torx T6)
580 106 194
(Schraube SCR-
M2,5x4 ISO7380
Torx T8)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)
580 106 195
(Schraube SCR-
M3x5 ISO7380
Torx T10)

Schneeberger GmbH
Gräfenau
D-75339 Höfen / Enz
Deutschland
Tel. ++49 (0)7081 782-0
Fax ++49 (0)7081 782-124
Internet www.schneeberger.com
QFO_#00132
G:\DEML\E_Entwicklung(TD)\EDOK_Dokumentation\EDOK_MR4S\EDOK_MR4S_Dokumente\EDOK_MR4S_Dokumente_Umbau_Ersatzteile_E_V02.docx
Seite20/25
Change of Spare Parts1.10
Spare Parts:
front plate(STP)
cross wiper(QAS)
front panel (FRB)
lubrication plate (SPL)
additional wiper (ZCV)
metal wiper (ASM)
screws
Screws with screw lock have to be used.
For changing the spare parts, the upper and lower screws have to be removed (see figure). Screws are also
defined as spare parts.
In the following step, components which are in front of the damaged spare part, must be removed. Then the
damaged part could be changed.
When using an ASM metal wiper, the gap between the ASM and the rail profile must be adjusted. The gap
should be as equal as possible.
After changing the spare part, the carriage can be reassembled.
