Linea
The Bestseller

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 2of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
The latest version of this instruction ma-
nual is available from the manufacturer or
can be downloaded directly from our
homepage using the QR code provided.
Before using your new Linea seat for the
first time, please read this manual
carefully and observe the guidelines and
notes.
We wish you much pleasure with your new Linea seat and may you always have a
good trip!
Your Schnierle team
Content
1. Guideline and introduction................................................................................... 3
1.1. Intended use............................................................................................................................. 3
1.2. Product specific data.......................................................................................................... 3
1.3. Introduction/notes ............................................................................................................... 3
1.4. Use of the instruction manual........................................................................................ 3
2. Putting into operation, control, service/maintenance and care ...................... 4
2.1. Putting into operation......................................................................................................... 4
2.2. Checks........................................................................................................................................ 5
2.3. Service and maintenance ................................................................................................ 5
2.4. Care.............................................................................................................................................. 5
2.4.1. Belt/restraint system...................................................................................................... 5
2.4.2. Seat .......................................................................................................................................... 5
3. Operation of the Linea seat................................................................................. 6
3.1. Head restraints....................................................................................................................... 6
3.2. Safetey belts........................................................................................................................... 6
3.3. Child safety systems –ISOFIX & Top-Tether (optional)..................................7
3.3.1. ISOFIX attachment ...........................................................................................................7
3.3.2. Top-Tether attachment.................................................................................................7
3.4. Arm rests (optional) ............................................................................................................ 8
3.5. Fold up seat cushion (optional)..................................................................................... 8
3.6. Handles (optional) ................................................................................................................ 9
4. Product information and dimensions................................................................. 9
4.1. Product description............................................................................................................. 9
4.2. Variants/versions/options............................................................................................... 9
4.3. Scope of application.........................................................................................................10
4.4. Dimensions............................................................................................................................10
4.5. Load limits..............................................................................................................................10
5. Notes on disposal ................................................................................................11

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 3of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
1. Guideline and introduction
1.1. Intended use
•The intended use for your seat is sitting while driving for the purpose of passenger
transport. Of couse, the seat can also be used as such when the vehicle is stationary.
•All use cases varying from the intended use can cause damages and functional errors,
which can affect safe use of your seat.
•Not complying the descriptions contained in this instruction manual may adversely
affect your warranty. Hermann Schnierle GmbH does not accept any warranty or liability
for resulting damage in the event of improper assemly, use and repair.
•Any change to the standard condition (e.g. by retrofitting of non-original retrofit and
spare parts from Hermann Schnierle GmbH) may invalidate the tested and approved
condition. Funtions may be impaired, endangering your safety. For this reason every
structural modification to the seat is strictly prohibited unless this has been expressly
approved in writing in advance by Hermann Schnierle GmbH.
Caution
N
ote
: Schnierle seating systems may only be used in combination with the mat-
ching Schnierle leg and floor systems!
Do not climb on the seat, this may damage your seat.
Do not use the seat for transporting loads.
1.2. Product specific data
•Please refer to your order and the delivery note for the scope of delivery according to
the variant you have selected and ordered, see also 4.2.P. 10
1.3. Introduction/notes
This instruction manual provides you with all information you need for safe and efficient use
of your seat.
You are obliged to comply with the applicable laws and regulations of the country in which
you are located. These may differ from the information in this instruction manual.
The operating instructions of the vehicle and body manufacturers must also be observed.
•The latest version of this instruction manual is available from the manufacturer or can
be downloaded directly from our homepage using the QR code provided.
•The instruction manual must be read in full before putting into operation.
•Always keep the instruction manual and the QR code provided within easy reach in case
of need, they should be carried in the vehicle and be accessible to the driver at all times.
•If the seat is passed on to a third party, the instruction manual must be passed on too.
•We reserve the right to make changes due to further developments that serve technical
progress and the resulting deviations from the standard seat.
1.4. Use of the instruction manual
•In this instruction manual all options and features available for this model are described.
Some descriptions may not apply due to the model variant selected.
•The table of contents at the beginning of this instruction manual helps you to orientate
yourself quickly.
•Directional indications such as left/right or front/rear always refer to the direction
of travel.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 4of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
•Danger, warning and attention
Danger
Warning
Caution
Texts marked with
Danger indicate a risk of
serious injury. Failure to
comply this warning may
endanger life.
Texts marked with
Warning indicate risks of
accident and injury. Failure
to observe the descriptions
may result in injury.
Texts marked with Caution
indicate possible damage to
your Schnierle product.
Failure to follow the
description may result in
damage to the product.
•Symbols
Warning – relevant to safety
Top-Tether fixing lugs
Page references (Means see page…)
2. Putting into operation, control, service/maintenance and care
•Regular inspections, maintenances and care are important and necessary for the opera-
tional and road safety as well as the value retention of your seat.
•When installing or removing the seat, it is essential to follow the vehicles
manufacturer’s instructions.
•The seat should only be installed, maintained and repaired by specialist staff.
Any country-specific regulations and installation instructions of the vehicle manufactu-
rer must be taken into account. The country-specific installation regulations can be
obtained from the body or vehicle manufacturer.
•Make sure that no liquids get into the interior of the vehicle, the seat is not water proof
and should therefore be protected from splash water.
2.1. Putting into operation
•Improper installation may result in injuries or material damages and the function of the
seat or attached parts cannot be guaranteed.
•Remove the packaging material (cardboard boxes, foils, etc.) completely before using
the seat and dispose it properly.
Danger
To avoid the risk of accidents, check that all functions of your seat are in place before
putting it into operation.
The seat, in particular safety-relevant assemblies (e.g. safety belts, belt buckle, head
restraints) should also be checked for damage, strength and function before driving
(see also 2.2. Checks).

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 5of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
2.2. Checks
Warning
Regularly check the restraint system (Recommended: Before each journey).
Check that the seat belt is not cut, damaged or frayed and has not been contaminated
with dirt, oil or chemicals.
Check that the metal and plastic parts are not worn, broken or damaged.
Check all fitting parts like screws, nuts etc. for tightness.
Check the anchorages of the shoulder straps for correct position and the shoulder
straps themselves for correct function. When putting on the seat belt, a clicking
sound must be heard (engaged in the belt buckle).
To avoid the risk for accidents, it must be checked if all adjustment devices are enga-
ged before operating the vehicle.
2.3. Service and maintenance
•The maintenance of your seat with restraint system must be carried out by an authori-
sed specialist company (e.g. body manufacturer) at the same time as the regular vehicle
maintenance, but after 1 year at the latest, unless otherwise described.
•If defects are found during the inspections (e.g. screw connection loose, parts damaged,
belt frayed…), these must be repaired immediately and exclusively by competent per-
sons (e.g. authorised repair shop of the body manufacturer).
•After an accident, the affected restraint belts must be replaced. Furthermore the seat,
the seat attachment and the seat components have to inspected by qualified specialist
staff after an accident.
•The restraint belts and the belt buckle integrated in the seat are replaceable.
Replacment is only possible after prior approval by Hermann Schnierle GmbH
(by trained and qualified personnel).
•Modification or retrofitting work on the seats from Hermann Schnierle GmbH may only
be carried out by authorised specialist repair shops, trained personnel or after approval
by Hermann Schnierle GmbH, taking into account the applicable work instructions and
country-specific regulations.
In case of improper installation, there is a risk of injury or material damage and the func-
tion of the seat or the attached components cannot be guaranteed.
2.4. Care
General: Dirt can impair the function of your restraint system and the seat, therefore keep
both clean and avoid contaminations if possible!
2.4.1. Belt/restraint system
•Clean the belt straps with mild, neutral soap and water when necessary.
•After cleaning, pull out the webbing completely. Note that the belt may only be retracted
after it is completely dry.
2.4.2. Seat
•Regular contamination should be cleaned with a vacuum cleaner. In the case of heavier
contamination, these can be cleaned using commercially available upholstery, leather or
plastic cleaners. The compatibility should be tested prior on concealed, smaller surfaces.
Please follow the instructions of the cleaning agent manufacturer.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 6of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
•Upholstery does not have to be detached and removed from the seat frame for care.
Furthermore, the seat must not be cleaned of dirt with unsuitable cleaners (e.g. high-
pressure cleaners etc.).
•When cleaning the upholstered surfaces, avoid soaking the upholstery.
3. Operation of the Linea seat
3.1. Head restraints
Your Linea seat has a head restraint integrated into the seat.
3.2. Safetey belts
Danger

Fasten seat belts before every journey. People, who are not wearing seat belts endan-
ger themselves and other passengers in the event of an accident.
•The seat belts are designed for only one person at a time.
•Child safety systems see 3.3. P. 7
•Check all components of the safety belt system for damages and proper function.
•Loose or bulky clothing will impair the tight fit of the seat belt. Do not place objects such
as e.g. purses or mobile phones between the seat belt and the body.

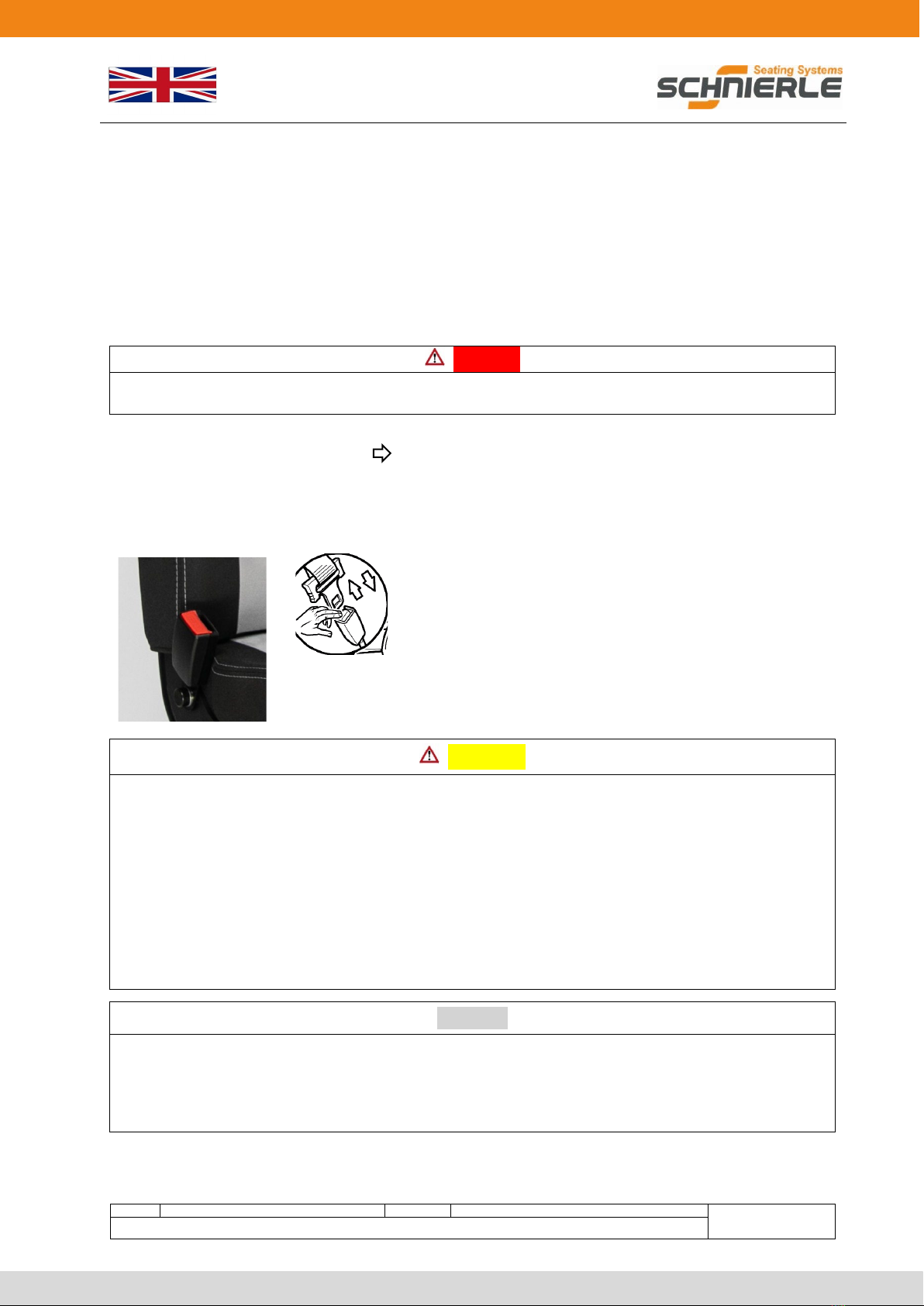

Safety belt:
Pull the belt webbing out of the retractor, place it
untwisted over the body and insert the buckle
tongue into the buckle until you hear it click into
place. Make sure that the belt is tight against the
body while driving. The belt buckle may only be
released by pressing the the seat belt buckle
after the vehicle has come to a complete stand-
still and with the engine switched off.
Warning

Objects and loads must not be secured by the belt system. This can cause injuries by
objects flying around and damage your belt system.
Improper operation and self-performed removal or installation (only permitted by
authorised specialist workshops) can cause loss of function and thus endangering of
the passengers.
Do not run the seat belt over hard or fagile objects in the pockets and clothing.
Putting on the safety belt during pregnancy:
The webbingrunning over the pelvis must run as low as possible over the pelvis to
avoid pressure on the abdomen.
Caution
Do not place any loads on the belt buckle. This can cause damages and impair the
function.
Do not insert any objects into the belt buckle, as this may impair the function or lead to
loss of function.
To release the belt
buckle, press the
red button.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 7of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
3.3. Child safety systems –ISOFIX & Top-Tether (optional)
The seat supports the following fixing types for child safety systems:
Three point safety belt, ISOFIX and Top-Tether.
Note:
When using a child safety system, please always follow the instructions for use, installation
and operation provided by the respective manufacturer.
Always make sure that local and national regulations are followed. In some countries,
the use of child safety systems is prohibited on certain seats.
3.3.1. ISOFIX attachment
The ISOFIX connection consists of two retaining brackets with a thickness of 6 mm,
which are located in the gap between the backrest and the seating surface.

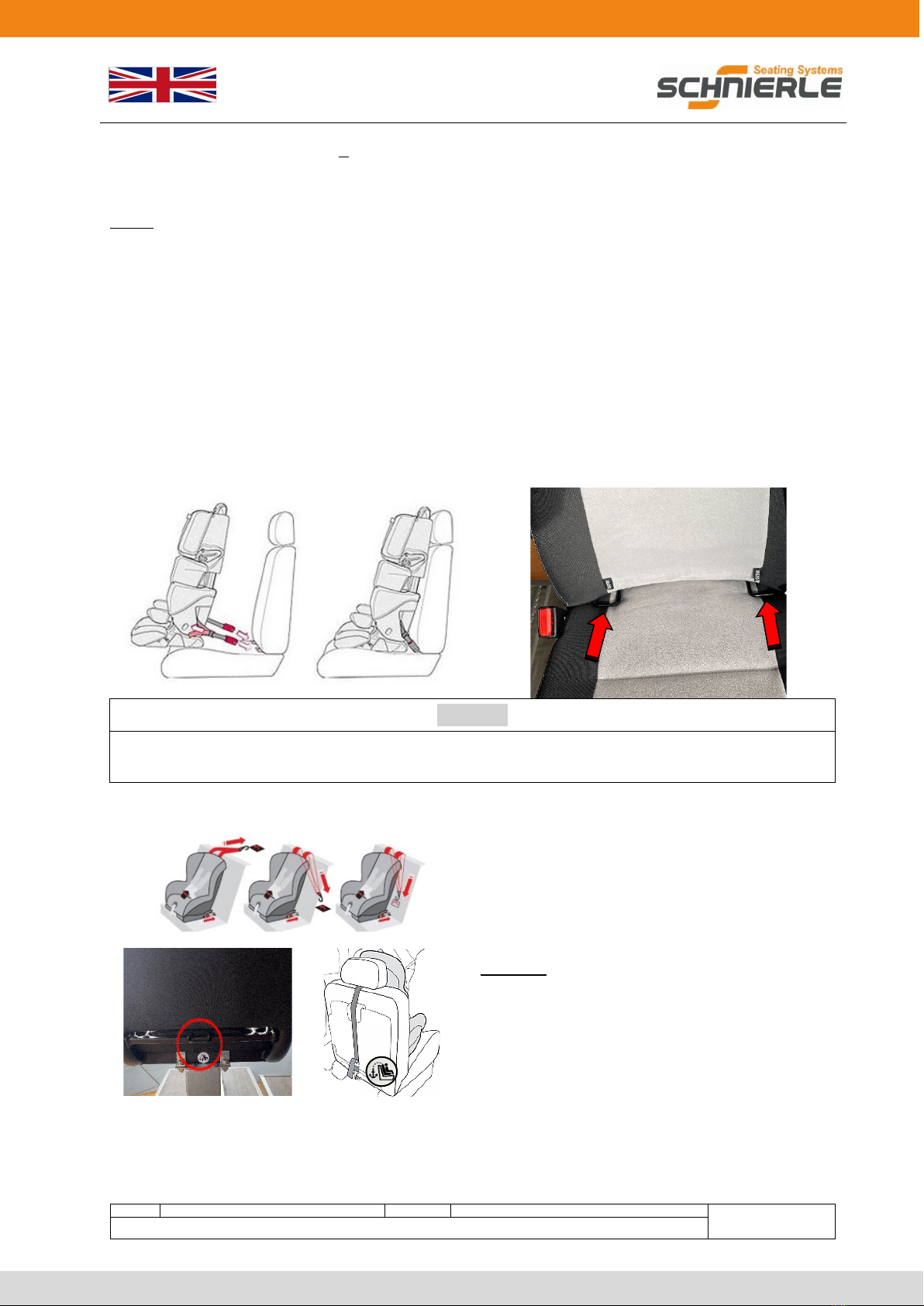

The fastening system attached to the child seat is hooked into the retaining brackets
(see pictures).
For details on fastening, please refer to the instruction manual of the child seat
manufacturer.
Caution

Additional to the ISOFIX attachments, always use either a Top-Tether strap or
a support leg.
3.3.2. Top-Tether attachment
Top-Tether
This is an additional strap, which is run over
the backrest and attached to a bracket on
the seat with a hook and then tensioned.
Caution: Please follow the exact instruc-
tions of the respective child seat manufac-
turer.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 8of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
3.4. Arm rests (optional)
Caution
Only use arm rests as such and never use them as a shelf or seat aid!
Arm rests can be folded upwards if required.
3.5. Fold up seat cushion (optional)
Warning
Do not stow any objects under the seats.
Attention when folding down the seat cushion, do not reach under the seat cushion or
into the swivel axle, there is a risk of crushing.
Only fold the seat cushion when crushing of others is impossible.
Make sure that the folding area of the seat cushion is always free to avoid collisions
with people and objects.
Warning: risk of crushing
Beim Klappen der Armlehnen nicht an den Anschraubpunkt der Armlehnen greifen.
Betätigen Sie die Armlehnen nur, wenn Quetschen anderer Personen
ausgeschlossen ist.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 9of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
Push the seat cushion down or pull it up to fold.
3.6. Handles (optional)
Caution
The handle only serves as such, it is not allowed to use it as a fixing or fastening point!
Do not pull and tug on the grab handle!
Handle on backrest
Side handle
4. Product information and dimensions
4.1. Product description
•Rigid back
•Integrated headrest
•Fully protected 3-point belt
•TÜV tested M1 and TÜV tested installation variants
4.2. Variants/versions/options
Scope of delivery according to selected and ordered variant (see order/delivery note).
•Handle
•ISOFIX with Top-Tether

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 10 of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
•Arm rests
•4-point belt
•Fold up seat cushion
•Safety belt warning system
•Special fabrics at extra charge
4.3. Scope of application
Passenger compartment in minibuses and vans.

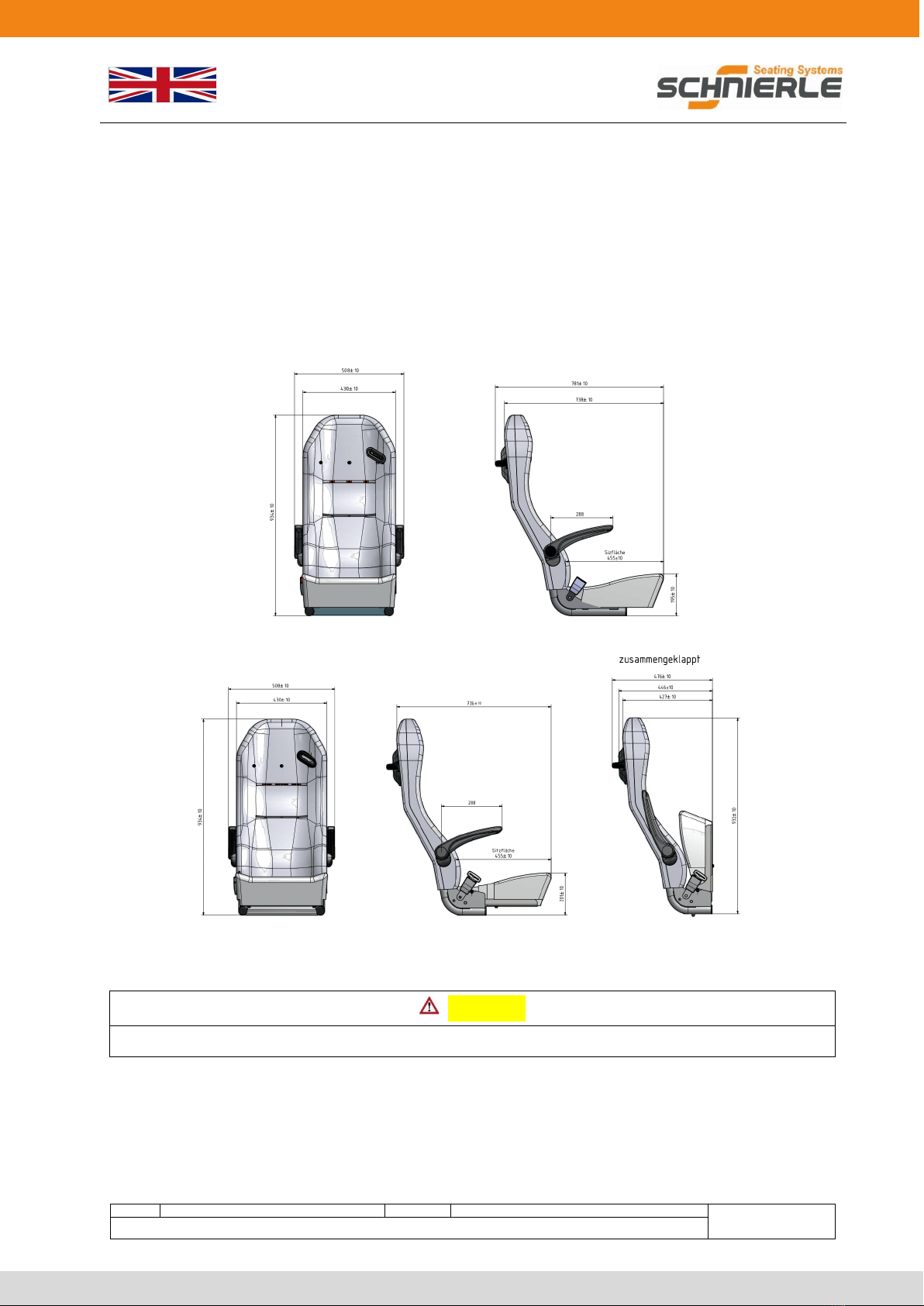

4.4. Dimensions
4.5. Load limits
Do not load the seat with more than 150 kg!
Warning
Overloading could damage your seat and possibly cause safety defects.

Instruction manual
Name:
BA-KD-002 -Instruction manual Linea
Revision:
03 – 02.01.2023
Page 11 of 11
©
Copyright by Hermann Schnierle GmbH, Dieselstrasse 43, 86368 Gersthofen
5. Notes on disposal
In general it is possible to dispose your seat through your vendor.
When disposing yourself, please follow the disposal regulations of your country; these
may differ from table below.
Care must be taken to ensure that the waste is disposed of properly and in an environ-
mentally friendly manner.
Disposal
packaging
Cardboard, wood (e.g. pal-
let), foils;
Disposal as cardboard (paper waste)/wood
waste/foil waste
Disposal in-
dividual
components
Cover Disposal as residual waste
Plastic parts and upholstery Disposal as plastic waste (according to label-
ling and type of plastic)
Metal components Disposal as scrap iron
Belt straps Disposal as plastic waste – Polyester
Buckle & tongue Disposal as residual waste
Imprint:
Hermann Schnierle GmbH
Dieselstr. 43
86368 Gersthofen
Tel: [phone]
E-Mail: [email protected]
www. schnierle.de
Managing Director: Martin Schnierle, HRB Augsburg 7256
The information contained in this publication corresponds to the status stated below. Hermann Schnierle GmbH reserves the
right to make changes to the technology, equipment and form of our products compared to the information in this publication
as well as changes to this publication itself.
