SCHUNK AGE-F-XY 31-80 User instructions

Translation of the original manual
Compensation unit
AGE-F-XY 31-80
Assembly and Operating Manual
Superior Clamping and Gripping

Imprint
2 02.02|AGE-F-XY 31-80|en
Imprint
Copyright:
This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely
supplied to our customers and operators of our products and forms part of the product.
This documentation may not be duplicated or made accessible to third parties, in particu-
lar competitive companies,
without our prior permission.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 0389002
Edition: 02.02 |23/01/2017|en
© SCHUNK GmbH & Co. KG
All rights reserved.
Dear customer,
congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for
the highest precision, top quality and best service.
You are going to increase the process reliability of your production and achieve best
machining results – to the customer's complete satisfaction.
SCHUNK products are inspiring.
Our detailed assembly and operation manual will support you.
Do you have further questions? You may contact us at any time – even after purchase.
Kindest Regards
Yours SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 – 134
D-74348 Lauffen/Neckar
Tel. [phone]
Fax [phone]
[email protected]
www.schunk.com

Table of Contents
02.02|AGE-F-XY 31-
80|en
3
Table of Contents
1
About this manual .................................................................................................... 4
1.1
Warnings................................................................................................................... 4
1.1.1
Key words...................................................................................................... 4
1.1.2
Symbols ......................................................................................................... 4
1.2
Applicable documents .............................................................................................. 5
2
Basic safety notes .................................................................................................... 6
2.1
Intended use............................................................................................................. 6
2.2
Not intended use...................................................................................................... 6
2.3
Environmental and operating conditions................................................................. 6
2.4
Product safety........................................................................................................... 7
2.4.1
Protective equipment ................................................................................... 7
2.4.2
Constructional changes................................................................................. 7
2.5
Personnel qualification............................................................................................. 7
2.6
Using personal protective equipment...................................................................... 8
2.7
Notes on particular risks........................................................................................... 9
3
Warranty................................................................................................................. 10
4
Scope of delivery ..................................................................................................... 10
5
Accessories.............................................................................................................. 10
5.1
Sensors.................................................................................................................... 10
6
Technical data ......................................................................................................... 11
7
Assembly and settings ............................................................................................. 12
7.1
Assembly example.................................................................................................. 12
7.2
Mechanical connection .......................................................................................... 13
7.3
Setting the stop in order to limit stroke................................................................. 14
7.4
Adjusting, removing and replacing the return spring for units built before June 2016...... 16
7.5
Removing and replacing the return spring for units built beginning in June 2016 ............. 17
7.6
Programmable magnetic switch (MMS-P) ............................................................. 18
8
Troubleshooting ...................................................................................................... 20
8.1
Module does not move? ........................................................................................ 20
8.2
Magnetic switch (MMS) does not work / cannot be adjusted .............................. 20
9
Maintenance ........................................................................................................... 21
9.1
Maintenance interval ............................................................................................. 21
9.2
Lubricants/Lubrication points (basic lubrication) ................................................. 21
9.3
Disassemble the module ........................................................................................ 22
9.4
Maintaining and assembling the module............................................................... 23
10
Assembly drawing ................................................................................................... 24

About this manual
4 02.02|AGE-F-XY 31-80|en
About this manual
This instruction is an integral part of the product and contains im-
portant information for a safe and proper assembly, commission-
ing, operation, maintenance and help for easier trouble shooting.
Before using the product, read and note the instructions, especial-
ly the chapter "Basic safety notes".
Warnings
The following key words and symbols are used to highlight dan-
gers.
Key words
DANGER
Dangers for persons.
Non-compliance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons.
Non-compliance may cause irreversible injury or death.
CAUTION
Dangers for persons.
Non-observance may cause minor injuries.
NOTICE
Information about avoiding material damage
Symbols
Warning about a danger point
Warning about hand injuries
General mandatory sign to prevent material damage
1
1.1
1.1.1
1.1.2

About this manual
02.02|AGE-F-XY 31-
80|en
5
Applicable documents
• General terms of business *
• Catalog data sheet of the purchased product *
• Assembly and Operating manuals of the accessories *
The documents marked with an asterisk (*) can be downloaded on
our homepage www.schunk.com.
1.2

Basic safety notes
6 02.02|AGE-F-XY 31-80|en
Basic safety notes
Intended use
The product was designed for mechanical adjustment and storing
a positioning point of workpieces or objects.
The product is intended for installation in a machine/system. The
requirements of the applicable guidelines must be observed and
complied with.
The product may be used only in the context of its defined applica-
tion parameters (6, Page 11).
The product is designed for industrial use.
To use this unit as intended, it is also essential to observe the
technical data and installation and operation notes in this manual
and to comply with the maintenance intervals.
Not intended use
It is not intended use if the product is used, for example, as a
pressing tool, stamping tool, lifting gear, guide for tools, cutting
tool, clamping device or a drilling tool.
• Any utilization that exceeds or differs from the appropriate use
is regarded as misuse.
Environmental and operating conditions
• Ensure that the module and the top jaws are adequately di-
mensioned according to the application
• Ensure that the environment is clean. Observe the mainte-
nance and lubrication intervals "Maintenance intervals" (9.1,
Page 21)
• Ensure that the environment is free of splashing water and va-
pors, and also of abrasive dust and process dust. Excepted are
modules that are designed especially for contaminated en-
vironments.
2
2.1
2.2
2.3

Basic safety notes
02.02|AGE-F-XY 31-
80|en
7
Product safety
Dangers arise from the product, if:
• the product is not used in accordance with its intended purpose.
• the product is not installed or maintained properly.
• the safety and installation notes are not observed.
Avoid any manner of working that may interfere with the function
and operational safety of the product.
Wear protective equipment.
NOTE
More information is contained in the relevant chapters.
Protective equipment
Provide protective equipment per EC Machinery Directive.
Constructional changes
Making constructional changes
Attachments and modifications, constructional changes and sub-
sequent work, e.g. additional threads, drill holes and safety devic-
es may impair the operation and safety or damage the product.
• Constructional changes may only be done with SCHUNK's per-
mission.
Personnel qualification
Inadequate qualifications of the personnel
If the personnel working with the product is not sufficiently quali-
fied, the result may be serious injuries and significant property
damage.
• All work may only be performed by qualified personnel.
• Before working with the product, the personnel must have read
and understood the complete assembly and operating manual.
• Observe the national safety regulations and rules and general
safety instructions.
2.4
2.4.1
2.4.2
2.5

Basic safety notes
8 02.02|AGE-F-XY 31-80|en
The following personal qualifications are necessary for the various
activities related to the product:
Due to their technical training, knowledge and experience, trained
electricians are able to work on electrical systems, recognize and
avoid possible dangers and know the relevant standards and regu-
lations.
Pneumatics specialists have been trained for this particular area of
responsibility and know the relevant standards and regulations.
Hydraulic specialists have been trained for this particular area of
responsibility and knows the relevant standards and regulations.
Due to its technical training, knowledge and experience, qualified
personnel is able to perform the delegated tasks, recognize and
avoid possible dangers and knows the relevant standards and reg-
ulations.
Instructed persons were instructed by the operator about the del-
egated tasks and possible dangers due to improper behaviour.
Due to its technical training, knowledge and experience, service
personnel of the manufacturer is able to perform the delegated
tasks and to recognize and avoid possible dangers.
Using personal protective equipment
When using this product, observe the relevant industrial safety
regulations and use the personal protective equipment (PPE) re-
quired!
• Use protective gloves, safety shoes and safety goggles..
• Observe safe distances.
Trained electrician
Pneumatics specialist
Hydraulic specialist
Qualified personnel
Instructed person
Service personnel of
the manufacturer
2.6

Basic safety notes
02.02|AGE-F-XY 31-
80|en
9
Notes on particular risks
Generally valid:
• Remove the energy supplies before installation, modification,
maintenance, or adjustment work.
• Make sure that no residual energy remains in the system.
• Do not move parts by hand when the energy supply is connected.
• Do not reach into the open mechanism or the movement area
of the unit.
• Perform maintenance, modifications, and additions outside the
danger zone.
• Secure the product during all operations against uncontrolled
activation.
• Take a precautionary approach by maintenance and disassembly.
• Only specially trained staff should disassemble the product.
WARNING
Risk of injury due to unexpected movement of the ma-
chine/system!
• Switch off the energy supply.
WARNING
Risk of injury from falling objects or module falling!
• Follow the assembly instructions.
• Provide protective equipment to prevent objects or the mod-
ule from falling, such as processed workpieces, tools, chips,
fragments, rejects.
2.7

Accessories
10 02.02|AGE-F-XY 31-80|en
Warranty
If the product is used as intended, the warranty is valid for 24
months from the ex-works delivery date under the following con-
ditions:
• Intended use in 1-shift operation
• Observe the mandatory maintenance and lubrication intervals
• Observe the environmental and operating conditions
Parts touching the work piece and wear parts are not part of the
warranty.
Scope of delivery
The scope of delivery includes
• Compensation unit with spring return AGE-F-XY in the version
ordered
Accessories
A wide range of accessories are available for this product
For information about which accessories can be used with the ap-
propriate product version see catalog.
Sensors
Overview of the compatible sensors
Designation
Type
Programmable magnetic switch
MMS22
• Exact type designation of the compatible sensors see catalog.
• Informationen über die Handhabung von Sensoren unter
www.de.schunk.com oder bei den SCHUNK-Ansprechpartnern.
3
4
5
5.1

Technical data
02.02|AGE-F-XY 31-
80|en
11
Technical data
Size
31
40
63
80
Recommended workpiece weight [kg]
1.5
4.0
12.5
32.3
Max. payload / load capacity F pull [N]
100
200
300
2800
Max. payload / load capacity F pressure [N]
200
500
3000
12000
Weight [kg]
0.123
0.23
0.78
3.13
Max. return force [N]
Version - 1
Version - 2
Version - 3
2.0
3.5
7.0
3.0
5.0
7.0
20.0
32.0
45.0
70.0
130.0
190.0
Noise emission [dB(A)]
≤ 70
Ambient temperature [°C]
Min.
Max.
5
80
More technical data are included in the catalog data sheet. Which-
ever is the latest version.
6

Assembly and settings
12 02.02|AGE-F-XY 31-80|en
Assembly and settings
Assembly example
Assembly on the robot arm
1
Robot arm
3
Mounting screws for adapter
plate
2
Adapter plate with interface
according to DIN 9409
(optionally to be provided by
SCHUNK or by the customer)
4
AGE-F-XY compensation
element
5
Handling device, e.g. gripper
6
Mounting screws for gripper
• An interface plate with a hole pattern for locating holes is op-
tionally available.
• The adapter plate is screwed with the robot and AGE-F-XY (see
catalog for mounting data).
• The handling device is fastened directly to the AGE-F-XY.
• The pneumatic connection and electric cables are fastened,
bundled, and mounted with strain relief so that the greatest
possible freedom of movement is available during use.
7
7.1

Assembly and settings
02.02|AGE-F-XY 31-
80|en
13
Mechanical connection
WARNING
Breakage due to faulty assembly possible!
Observe max. screw-in depth on robot-side and on tool-side.
The values apply to the whole mounting surface to which the
product is mounted .
Requirements for levelness of the mounting surface (Dimensions in mm)
Diameter
Permissible unevenness
< 100
< 0.02
> 100
< 0.05
Possibilities of assembly
Mounting material
Item
Mounting
AGE-F-XY
31
40
63
80
Y
Thread diameter and
max. screw-in depth Y tool-side [mm]
M2,5x7
M3x8
M4x8
M5/M6x
10
X
Thread diameter and
max. screw-in depth X tool-side [mm]
M3x5
M3x5
M5/M6x
9
M8x12/2
0
Z
Max. srew-in depth Z, robot-side [mm]
6
6
9
13
31
DIN 4762 cylindrical screw
Tightening torque [Nm]
M2,5
0,75
M3
1,27
M5
5,9
M8
24,6
Diameter of the cylindrical pins
for mounting the module [mm]
Ø2
Ø3
Ø4
Ø6
1 Use two cylindrical pins to fasten the module via the provided
fixing holes.
2 Tighten the mounting screws (31) using an Allen key.
7.2
Levelness of the
mounting surface
Mounting

Assembly and settings
14 02.02|AGE-F-XY 31-80|en

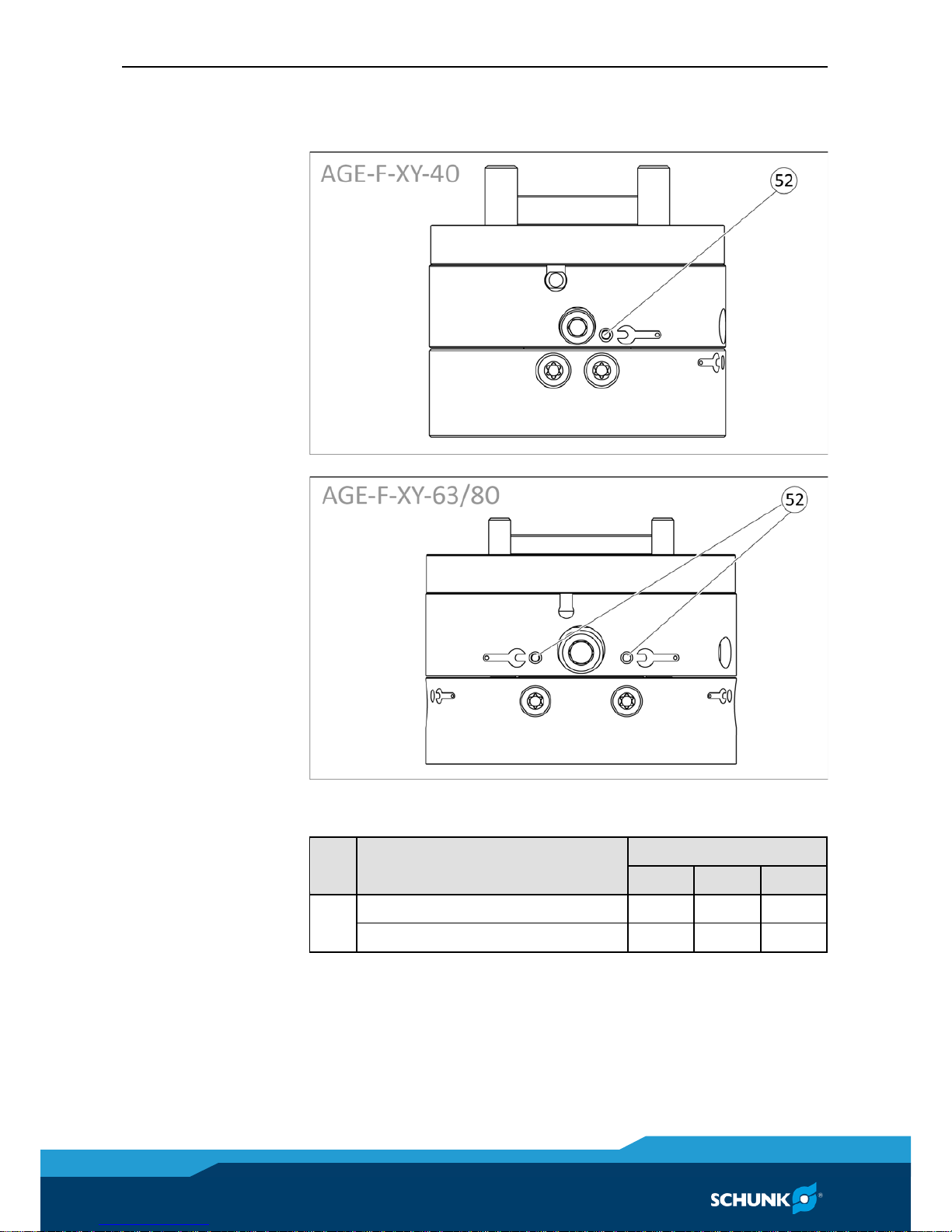

Setting the stop in order to limit stroke
Setscrew (52) to limit stroke for AGE-F-XY-40
Setscrew (52) to limit stroke for AGE-F-XY-63/80
Dimensions of setscrew (52)
Item
Designation
AGE-F-XY
40
63
80
52
Thread diameter
M3
M4
M4
Minimum length [mm]
12
12
18
7.3

Assembly and settings
02.02|AGE-F-XY 31-
80|en
15
NOTICE
The setscrew can fall into the housing if it is screwed in too far.
The compensation unit may jam.
• Observe the minimum length of the setscrew.
1 Remove the setscrew (52) using a hexagon socket wrench.
NOTE
Limiting the stroke is not provided in the AGE-F-XY 31.
Insert setscrew or
screw.

Assembly and settings
16 02.02|AGE-F-XY 31-80|en
Adjusting, removing and replacing the return spring for units
built before June 2016
The unit comprises 4 compression springs
for the return position function. The units are set ex-works in ac-
cordance with the catalog values.
These force values can still be modified slightly on the unit by ad-
justing the setscrews (50).
NOTE
If the setscrews are screwed-in too far, this will cause the unit to
jam (springs on block). This can be recognized if the unit is no
longer performing the complete stroke or is no longer moving.

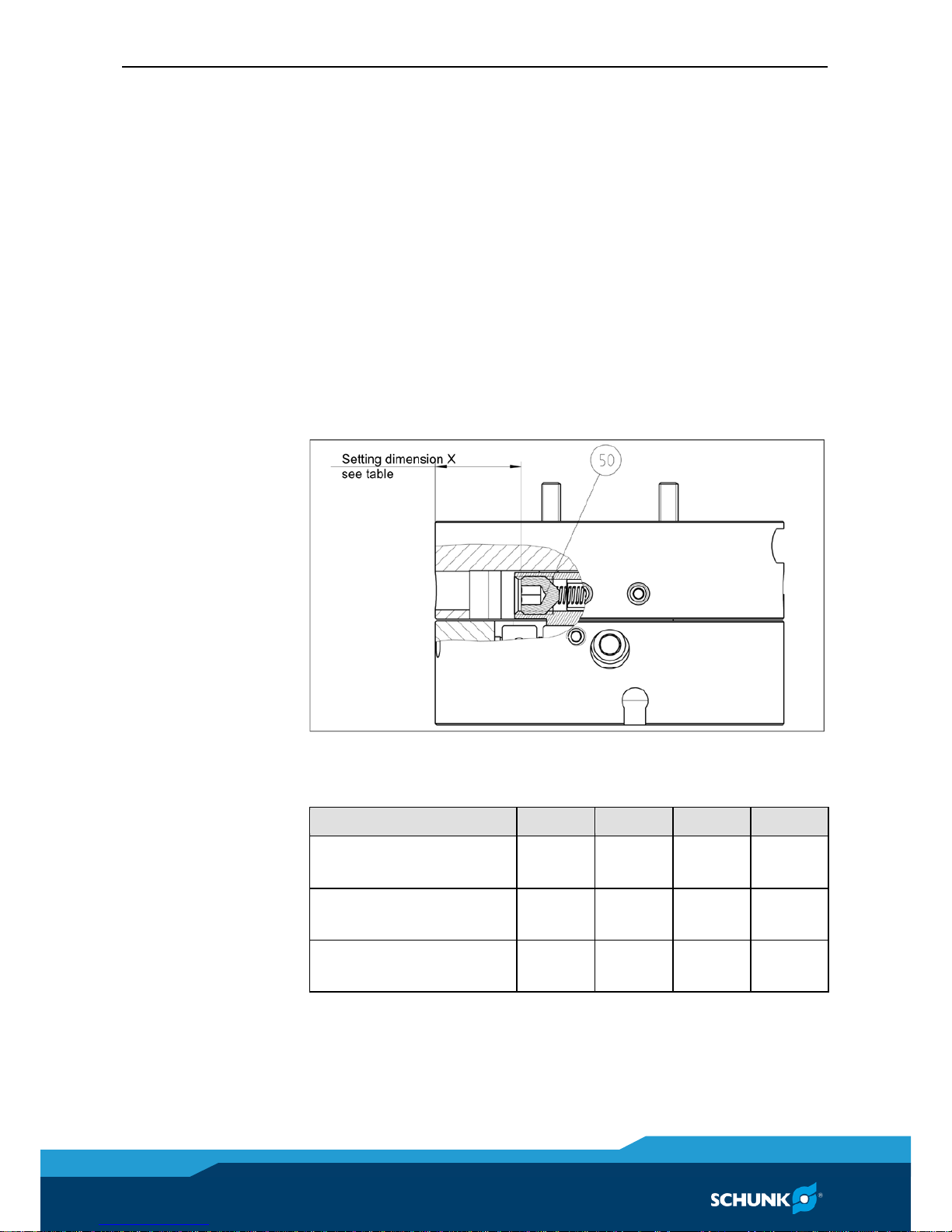

Setting dimension for the setscrew
The units are delivered ex-works with the following setting dimen-
sions for the setscrews:
Size
31
40
63
80
Setting dimension for
Version 1 [mm]
10+0.2
13.5+0.2
17.7+0.2
18.5+0.2
Setting dimension for
Version 2 [mm]
10+0.2
12.5+0.2
17.2+0.2
18.5+0.2
Setting dimension for
Version 3 [mm]
9.3+0.2
12.5+0.2
15.2+0.2
18.5+0.2
The catalog values have been ascertained in this basic setting.
7.4
Adjusting

Assembly and settings
02.02|AGE-F-XY 31-
80|en
17
Position of the position numbers(10, Page 24):
1 Remove the setscrews (50).
2 Remove the spring sleeve (4) and take out the springs (15).
As standard, three springs are available for each size. Special
springs on request.
The new springs are assembled in the reverse order.
Pay attention to correct lubricating.(9.2, Page 21)
Removing and replacing return springs for units built
beginning in June 2016
The unit comprises 4 compression springs for the return position
function.
As of June 2016, the unit's spring force values can no longer be ad-
justed.
Replacing the springs
Position of the position numbers(10, Page 24):
1 Remove the setscrews (50).
2 Remove the spring sleeve (4) and take out the springs (15).
As standard, three springs are available for each size. Special
springs on request.
The new springs are assembled in reverse order.
Pay attention to correct lubricating. (9.2, Page 21)
Removing / Replacing
7.5
Removing / Replacing

Assembly and settings
18 02.02|AGE-F-XY 31-80|en
Programmable magnetic switch (MMS-P)
Programmable magnetic switch MMS-P 22

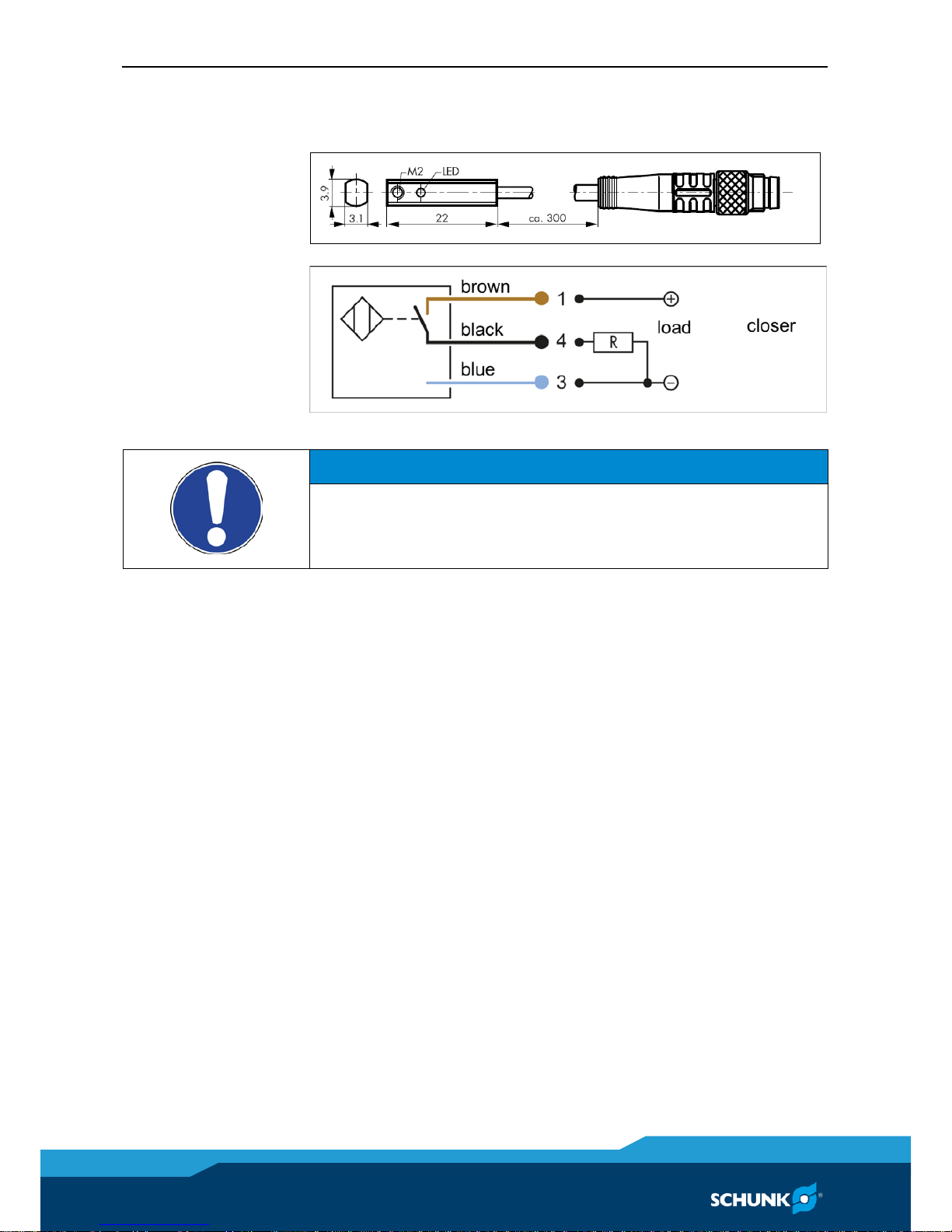

Connection diagram
NOTICE
Sensor can be damaged during assembly.
• Do not exceed the maximum tightening torque of 10 Ncm for
the setscrews.
NOTE
Ferromagnetic material changes the switching positions of the
sensor. For example: Ada
pter plate made of ordinary steel.
At ferromagnetic adapter plates:
• The module must firstly be mounted on the adapter plate
• Then, the positions of the magnetic switch have to be set
NOTE
• Do not use the sensor as a safety component.
• Do not pull on the cable of the sensor.
• Secure the cable and connection plug so that they are not
taught and cannot move during operation.
• Do not exceed the permitted bending radius of the cable.
• Do not allow the sensor to come into contact with hard objects
and chemicals (e. g., nitric acid, chromic acid and sulfuric acid).
7.6

Assembly and settings
02.02|AGE-F-XY 31-
80|en
19

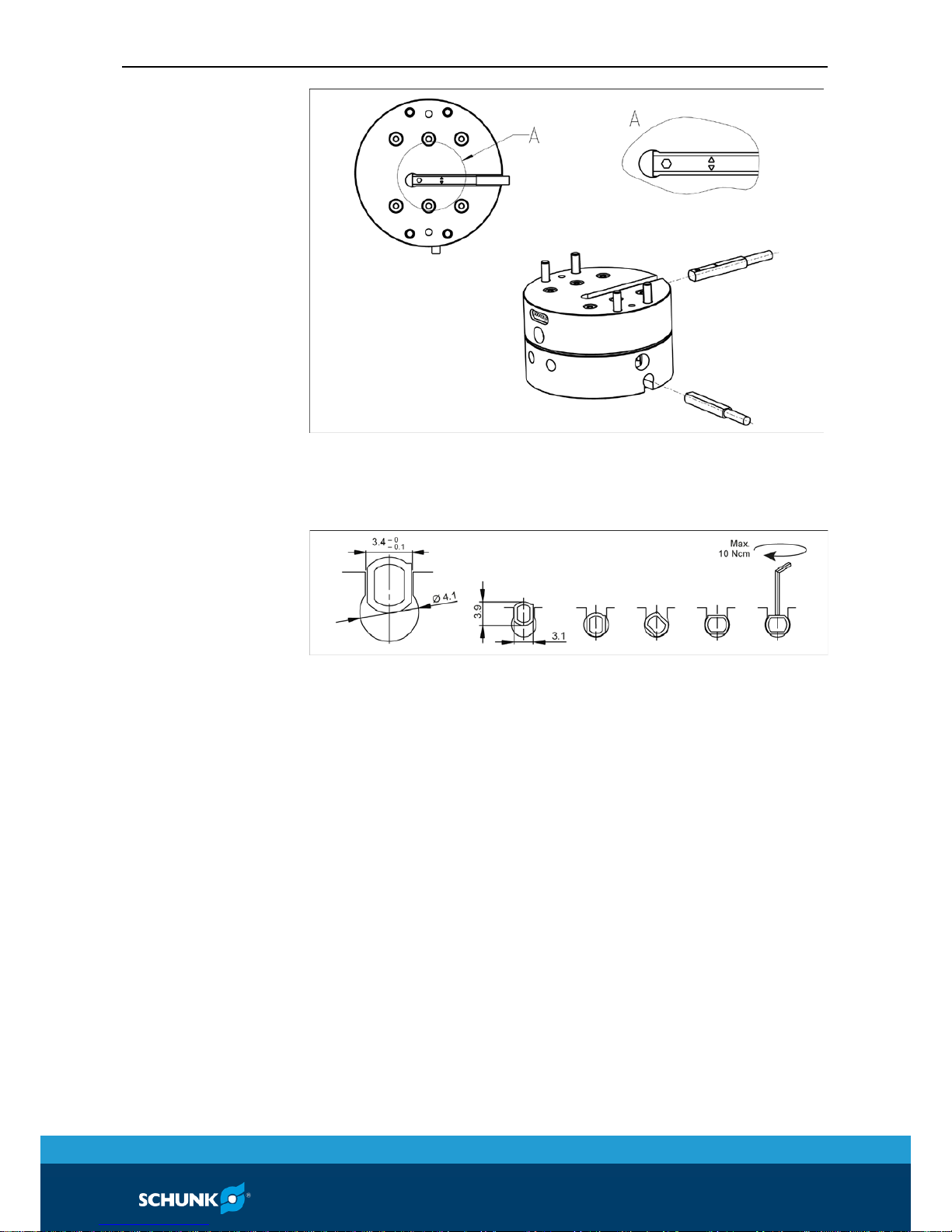

Position of the MMS magnetic switch - stop position (A)
The MMS magnetic switches are mounted and adjusted equally for
each axis movement:
Assembly instructions
1 Screw in the sensor
OR
Insert sensor axially into the groove until the required signal is
present.
2 Fix the sensor with an Allen wrench.

Troubleshooting
20 02.02|AGE-F-XY 31-80|en
Troubleshooting
Module does not move?
Possible cause
Corrective action
Setscrew/stop screw screwed in too deep
Use a shorter stop screw (

7.3, Page 14)
Setscrew for spring adjustment screwed in
too far
Turn back the setscrew (50) (

7.4, Page 16)
Magnetic switch (MMS) does not work / cannot be adjusted
Possible cause
Corrective action
Steel screws used for fastening the compen-
sation unit
Replace steel screws with high-alloyed
screws
Mounting plates, angle brackets etc. from
magnetizable materials
Check, replace with nonmagnetizable parts
– perhaps use aluminum or plastic
8
8.1
8.2
