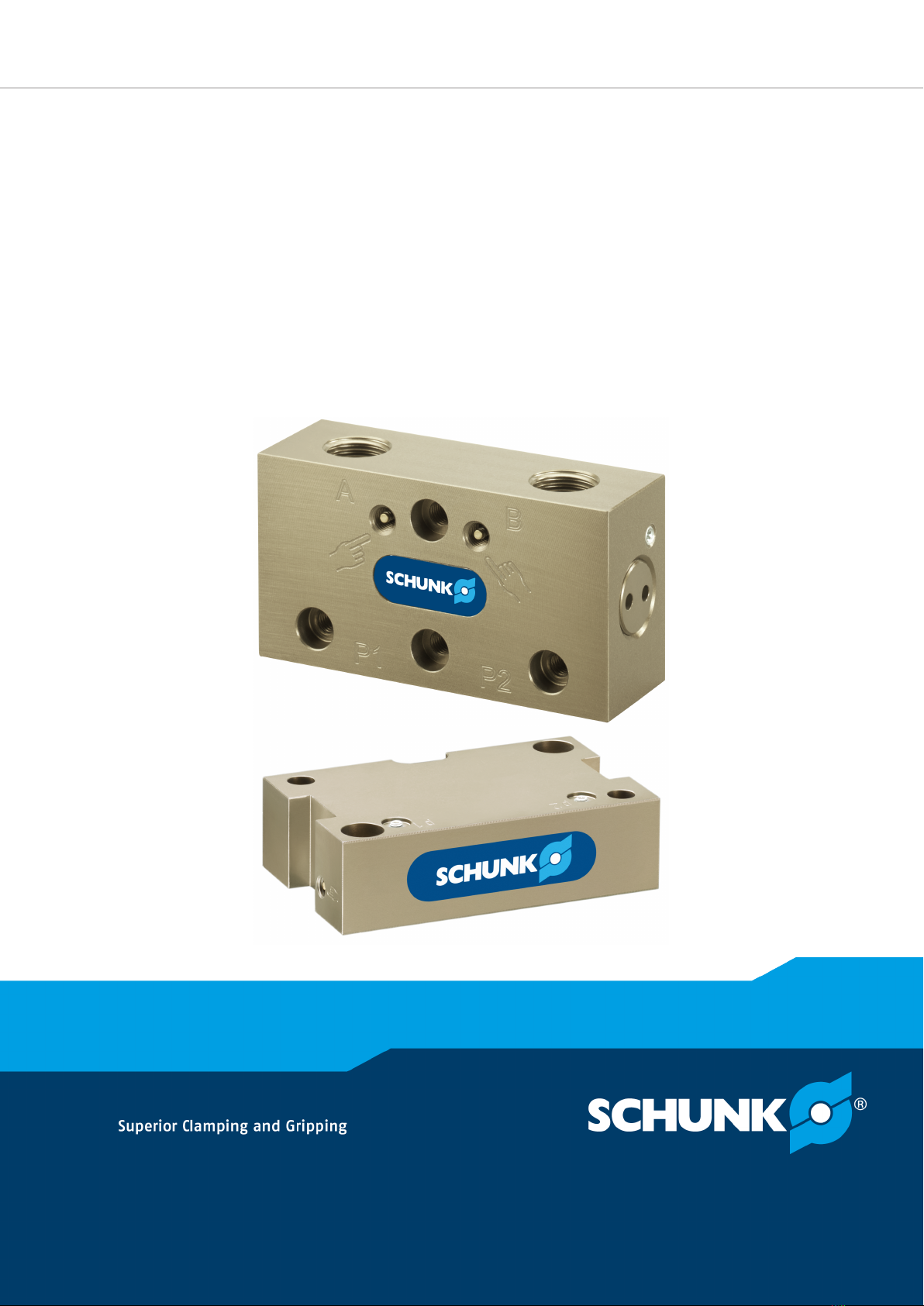

SCHUNK SDV-P User instructions

Translation of the original manual
Assembly and Operating Manual
SDV-P / SDV-P-E / SDV-P-E-P
Pressure maintenance valve

Imprint
2
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
Imprint
Copyright:
This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights
reserved. Any reproduction, processing, distribution (making available to third parties),
translation or other usage - even excerpts - of the manual is especially prohibited and
requires our written approval.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 389561
Version: 06.00|02/04/2019|en
© SCHUNK GmbH & Co. KG
All rights reserved.
Dear Customer,
thank you for trusting our products and our family-owned company, the leading
technology supplier of robots and production machines.
Our team is always available to answer any questions on this product and other solutions.
Ask us questions and challenge us. We will find a solution!
Best regards,
Your SCHUNK team
SCHUNK GmbH & Co. KG
Spann- und Greiftechnik
Bahnhofstr. 106 – 134
D-74348 Lauffen/Neckar
Tel. [phone]
Fax [phone]
[email protected]
schunk.com

Table of contents
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
3
Table of contents
1 General.................................................................................................................... 4
1.1 About this manual ................................................................................................ 4
1.1.1 Presentation of Warning Labels ...............................................................4
1.1.2 Applicable documents ..............................................................................4
1.1.3 Variants.....................................................................................................5
1.2 Warranty .............................................................................................................. 5
1.3 Scope of delivery .................................................................................................. 5
2 Basic safety notes ................................................................................................... 6
2.1 Intended use......................................................................................................... 6
2.2 Ambient conditions and operating conditions .....................................................6
2.3 Product safety ...................................................................................................... 7
2.3.1 Protective equipment...............................................................................7
2.3.2 Constructional changes ............................................................................7
2.4 Personnel qualification......................................................................................... 7
2.5 Notes on particular risks....................................................................................... 8
3 Technical data.......................................................................................................... 9
4 Description .............................................................................................................10
5 Assembly ................................................................................................................11

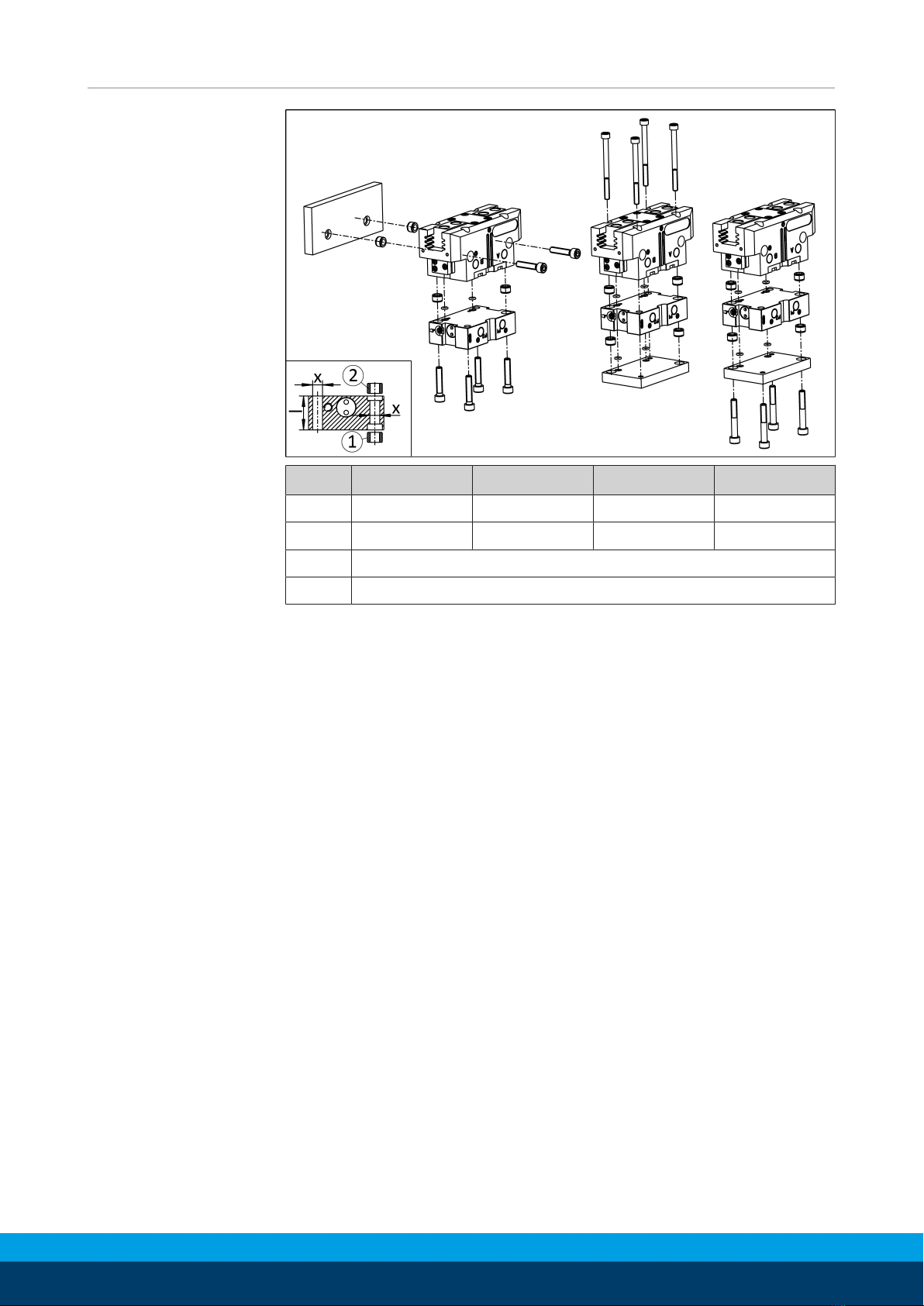

5.1 Mechanical connection ...................................................................................... 11

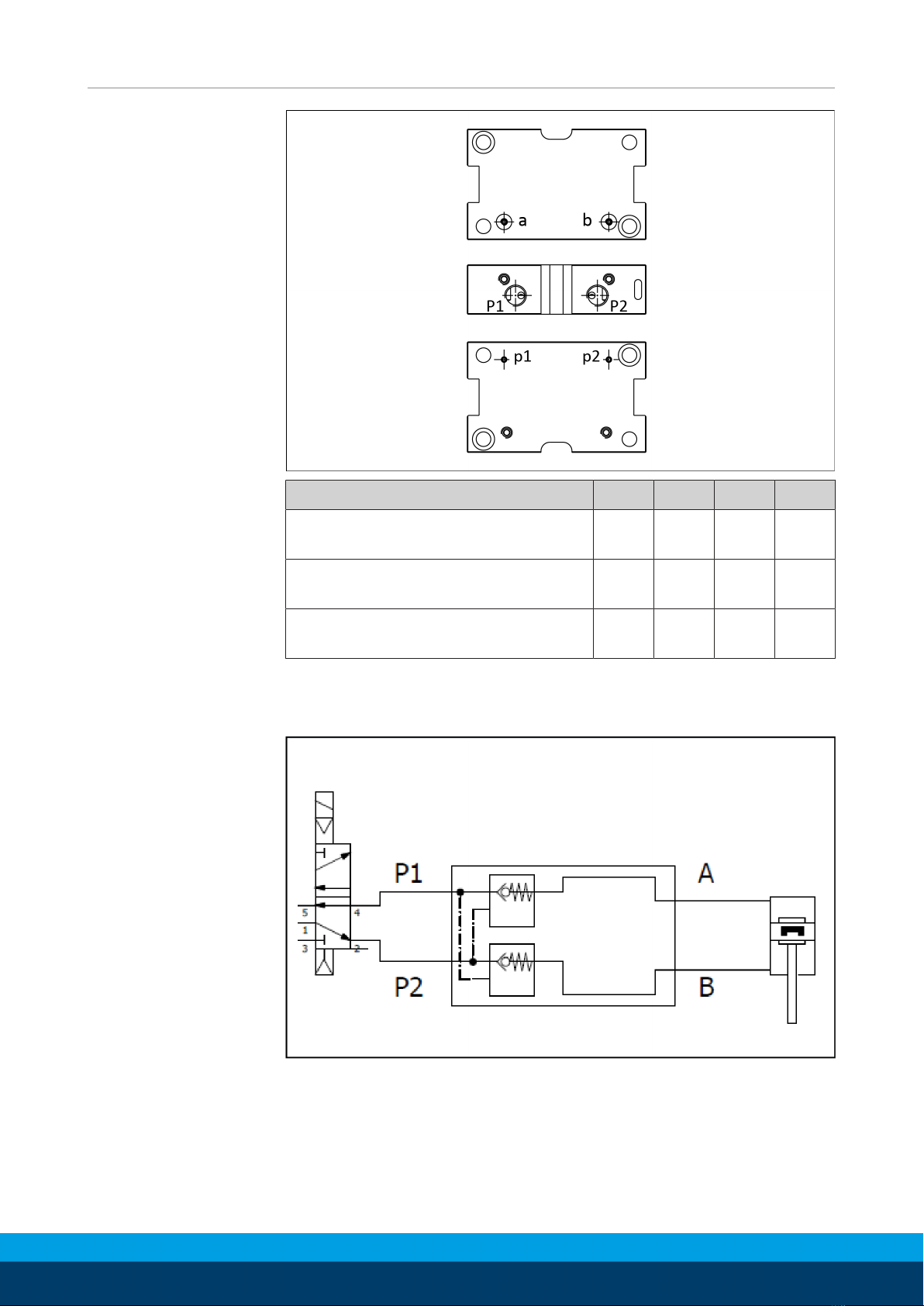

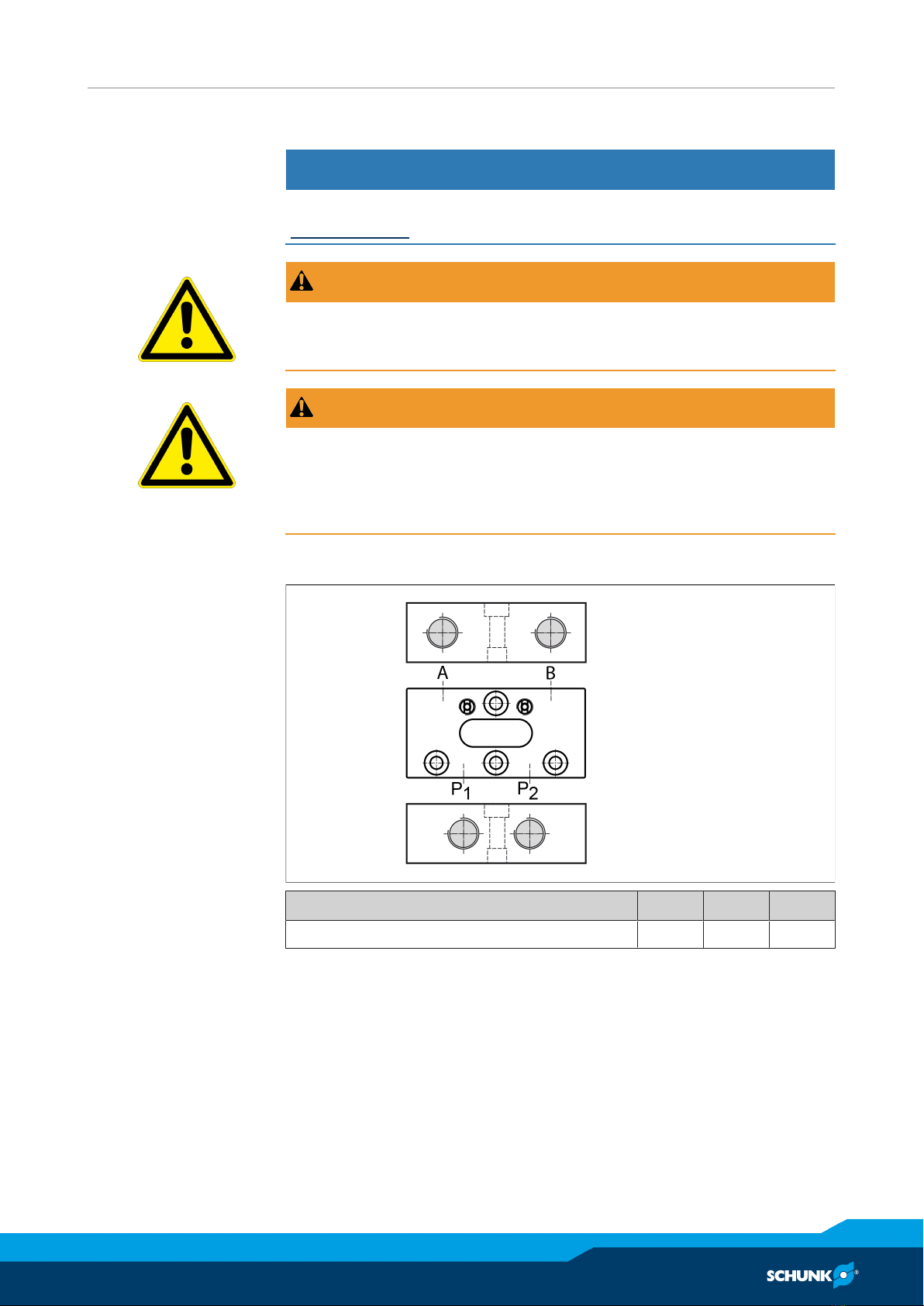

5.2 Air connection .................................................................................................... 13
6 Operation ...............................................................................................................16
6.1 Manual air vent (SDV-P-E, SDV-P-E-P) ................................................................ 16
7 Troubleshooting .....................................................................................................17
8 Maintenance and care ............................................................................................18

General
4
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
1 General
1.1 About this manual
This manual contains important information for a safe and
appropriate use of the product.
This manual is an integral part of the product and must be kept
accessible for the personnel at all times.
Before starting work, the personnel must have read and
understood this operating manual. Prerequisite for safe working is
the observance of all safety instructions in this manual.
Illustrations in this manual are provided for basic understanding
and may differ from the actual product design.
In addition to these instructions, the documents listed under
Applicable documents [}4] are applicable.
1.1.1 Presentation of Warning Labels
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Danger for persons!
Non-observance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons!
Non-observance can lead to irreversible injury and even death.
CAUTION
Dangers for persons!
Non-observance can cause minor injuries.
NOTICE
Material damage!
Information about avoiding material damage.
1.1.2 Applicable documents
• General terms of business*
• Catalog data sheet of the purchased product *
The documents marked with an asterisk (*) can be downloaded on
our homepage schunk.com

General
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
5
1.1.3 Variants
This operating manual applies to the following variations:
• Pressure maintenance valve SDV-P
• Pressure maintenance valve SDV-P-E
• Pressure maintenance valve SDV-P-E-P
1.2 Warranty
If the product is used as intended, the warranty is valid for 24
months from the ex-works delivery date under the following
conditions:
• Observe the applicable documents, Applicable documents [}4]
• Observe the ambient conditions and operating conditions,
Ambient conditions and operating conditions [}6]
1.3 Scope of delivery
The scope of delivery includes
• Pressure maintenance valve SDV-P / SDV-P-E / SDV-P-E-P in the
version ordered

Basic safety notes
6
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
2 Basic safety notes
2.1 Intended use
The pressure maintenance valve was designed for installation in a
machine to temporarily prevent the venting of the pneumatic
consumer through the valve at a pressure failure of the supply
line. Thus, a temporary force- or position maintenance can be
realized at different actuators. Especially suited fo grippers, which
can not be equipped with a mechanical gripping force
maintenance.
The product is intended for installation in a machine/system. The
requirements of the applicable guidelines must be observed and
complied with.
The product may be used only in the context of its defined
application parameters Technical data [}9].
The product is designed for industrial use.
To use this unit as intended, it is also essential to observe the
technical data and installation and operation notes in this manual
and to comply with the maintenance intervals.
2.2 Ambient conditions and operating conditions
Required ambient conditions and operating conditions
Incorrect ambient and operating conditions can make the product
unsafe, leading to the risk of serious injuries, considerable material
damage and/or a significant reduction to the product's life span.
• Make sure that the product is used only in the context of its
defined application parameters, Technical data [}9].
• Make sure that the product is a sufficient size for the
application.
• Make sure that the environment is free from splash water and
vapors as well as from abrasion or processing dust. Exceptions
are products that are designed especially for contaminated
environments.

Basic safety notes
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
7
2.3 Product safety
Dangers arise from the product, if:
• the product is not used in accordance with its intended
purpose.
• the product is not installed or maintained properly.
• the safety and installation notes are not observed.
Avoid any manner of working that may interfere with the function
and operational safety of the product.
Wear protective equipment.
NOTE
More information is contained in the relevant chapters.
2.3.1 Protective equipment
Provide protective equipment per EC Machinery Directive.
2.3.2 Constructional changes
Implementation of structural changes
By conversions, changes, and reworking, e.g. additional threads,
holes, or safety devices can impair the functioning or safety of the
product or damage it.
• Structural changes should only be made with the written
approval of SCHUNK.
2.4 Personnel qualification
Inadequate qualifications of the personnel
If the personnel working with the product is not sufficiently
qualified, the result may be serious injuries and significant
property damage.
• All work may only be performed by qualified personnel.
• Before working with the product, the personnel must have read
and understood the complete assembly and operating manual.
• Observe the national safety regulations and rules and general
safety instructions.

Basic safety notes
8
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
The following personal qualifications are necessary for the various
activities related to the product:
Trained electrician Due to their technical training, knowledge and experience, trained
electricians are able to work on electrical systems, recognize and
avoid possible dangers and know the relevant standards and
regulations.
Qualified personnel Due to its technical training, knowledge and experience, qualified
personnel is able to perform the delegated tasks, recognize and
avoid possible dangers and knows the relevant standards and
regulations.
Instructed person Instructed persons were instructed by the operator about the
delegated tasks and possible dangers due to improper behaviour.
Service personnel of
the manufacturer
Due to its technical training, knowledge and experience, service
personnel of the manufacturer is able to perform the delegated
tasks and to recognize and avoid possible dangers.
2.5 Notes on particular risks
The general rule is:
• The pressure maintenance valve temporarily prevents the
venting of the pneumatic module if there is a loss of air
pressure in the supply line. For this reason it is always assumed
that residual energy is stored in the system.
• Therefore the product must be ventilated before carrying out
any assembly, conversion, maintenance or adjustment work.
Here, it must be checked which module and which function is
triggered by this -> It is necessary to ensure that no person can
be harmed.
• For all work, secure the product against accidental operation.
• Any hazards that arise for downstream consumers must be
identified separately and protected against by the operator
• Only qualified personnel may disassemble the product.
• Perform maintenance, modifications, and additions outside the
danger zone.

Technical data
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
9
3 Technical data
Size
SDV-P
04 04-E 07 07-E 10-E
Ambient temperature [°C]
Min.
Max.
-10
80
-10
80
-10
80
-10
80
-10
80
Weight [kg] 0.1 0.1 0.2 0.2 0.4
Flow rate for hose Ø 6mm [l/
min]
200 200 350 350 400
Flow rate for hose Ø 8mm [l/
min]
250 250 500 500 1000
Flow rate for hose Ø 10mm [l/
min]
340 340 600 600 1400
Min. pressure [bar] 2 2 2 2 2
Max. pressure [bar] 10 10 10 10 10
Pressure loss /hrs [bar]* 0.1 0.1 0.1 0.1 0.1
Reference volume [cm³] 30 30 100 100 500
Switching time [s] 0.01 ±0.015 0.010 0.010 0.010
Pressure medium Compressed air, compressed air quality according to ISO
8573-1:7 4 4
Noise emission [dB(A)] ≤ 70
Size
SDV-P
64-E-P 80-E-P 100-E-P 125-E-P
Max. flow rate [l/min] 150 150 180 200
Ambient temperature [°C]
Min.
Max.
-10
80
-10
80
-10
80
-10
80
Weight [kg] 0.12 0.16 0.23 0.33
Min. pressure [bar] 2 2 2 2
Max. pressure [bar] 9 9 9 9
Pressure loss /hrs [bar]* 0.1 0.1 0.1 0.1
Switching time [s] 0.01 0.02 0.02 0.03
Pressure medium Compressed air, compressed air quality according to ISO
8573-1:7 4 4
Noise emission [dB(A)] ≤ 70
* at a defined reference volume and constant temperature [20° C]
More technical data is included in the catalog data sheet.
Whichever is the latest version.

Description
10
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
4 Description
The SDV-P consists of two check valves connected in parallel,
which open when pressure is applied and reciprocal vent the
return direction.
At a pressure failure of the supply line, the check valves close and
prevent a pressure drop.

Assembly
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
11
5 Assembly
5.1 Mechanical connection
WARNING
Risk of injury during assembly!
•Switch off the energy supply.
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Mounting
SDV-P
SDV-P-E
1 Optional mounting:
• Screw M5 into the thread
• Screw M4 for screw through
2 screws are sufficient for fastening

Assembly
12
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
SDV-P-E-P
Size 64 80 100 125
l [mm] 23.5 22 22.5 23
x [mm] Ø 5.2 Ø 5.2 Ø 6.6 Ø 8.5
1 Centering sleeve SDV-P-E-P
2 Centering sleeveGripper
The centering sleeves are included in the respective accessory kit
(SDV-P / Gripper).

Assembly
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
13
5.2 Air connection
NOTICE
Observe the requirements for the air supply
Technical data [}9].
WARNING
Risk of injury during connection!
•Switch off the energy supply.
WARNING
Risk of injury when removing the air hoses!
•The air hoses at the outputs must be removed carefully
because even after switching off the power supply they are
still under pressure.
Connections
SDV-P
SDV-P-E
Output
Input
Size 04 07 10
Thread diameter of the air connections G 1/8" G 1/4" G 3/8"

Assembly
14
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
SDV-P-E-P
Output
Input
Input
Size 64 80 100 125
P1 / P2 Main connections (Hose
connection)
M5 M5 G 1/8" G 1/8"
p1 /p2 Hose-free direct connection
at the base
M3 M3 M3 M5
a / b Hose-free direct connection
Gripper
M3 M3 M3 M5

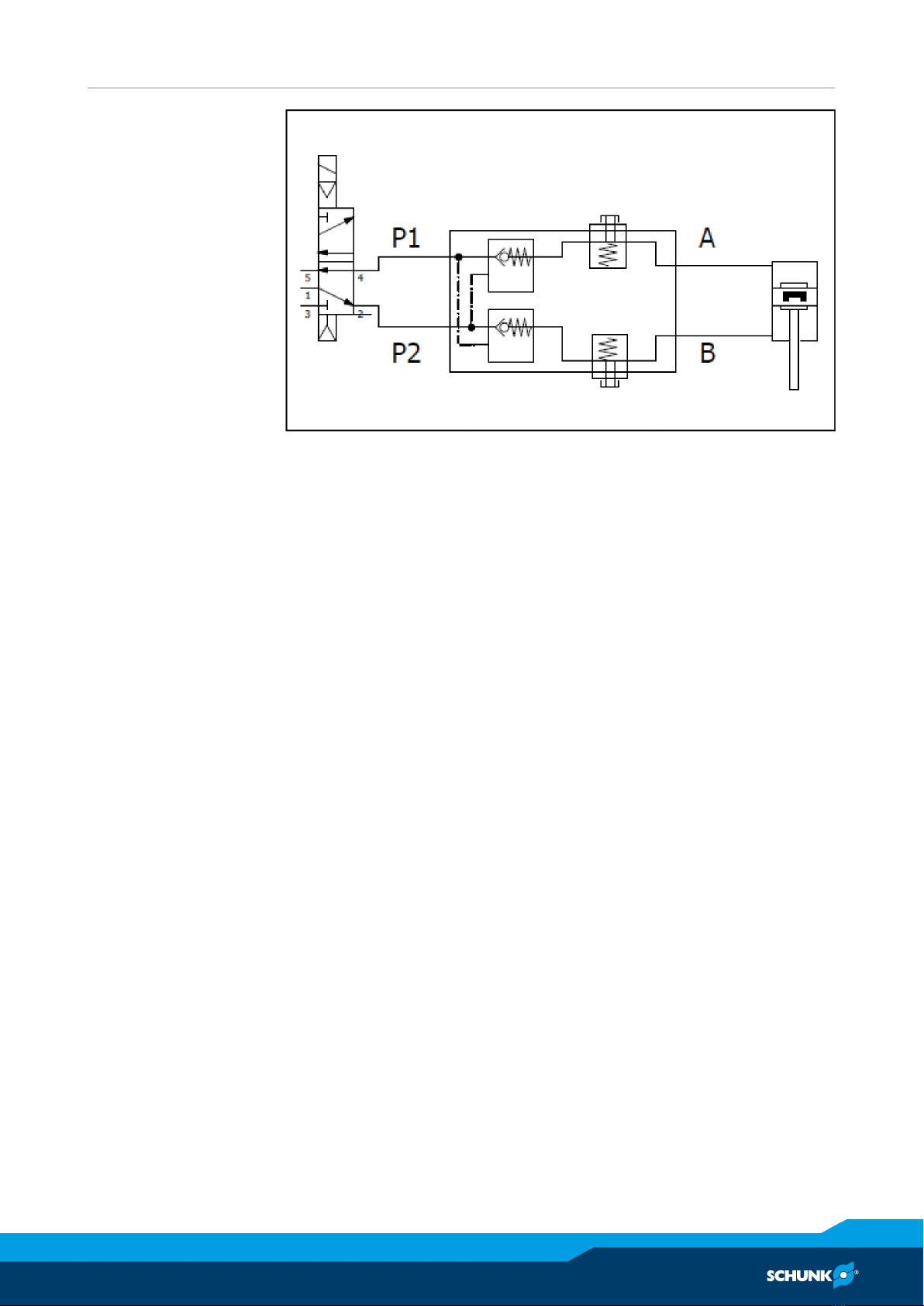

Connection diagram
SDV-P

Assembly
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
15
SDV-P-E
SDV-P-E-P

Operation
16
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
6 Operation
6.1 Manual air vent (SDV-P-E, SDV-P-E-P)
The pressure maintenance valve I in the SDV-P-E and SDV-P-E-P
version is equipped with two buttons to ventilate the product if
necessary (e.g. during servicing).
The connections A, a and B, b can be ventilated separately.
CAUTION
Dust may get into your eyes.
If the compressed air escapes, dust particles can escape the
pressure maintenance valve and irritate your eyes.
•Wear protective goggles when carrying out manual
ventilation.
WARNING
Risk of injury from falling workpieces
The gripper fingers can open up and clamped workpieces can fall
out when the pressure maintenance valve is being ventilated
manually.
•Ensure that no danger may arise from the ventilation before
pressing the button.
ØPress button (1) to ventilate connection A, a.
ØPress button (2) to ventilate connection B, b.
✔The sealed compressed air escapes while the button is being
pressed.

Troubleshooting
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
17
7 Troubleshooting
Possible cause Corrective action
Performance loss (pressure loss): Check seal tightness of the vent
Check line pressure

Maintenance and care
18
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
8 Maintenance and care
The Pressure maintenance valve SDV-P / SDV-P-E / SDV-P-E-P is
maintenance-free.
If there is leakage or a defect of the mechanical part, sent the
valve with a repair order to SCHUNK.
Repair work may only be carried out by SCHUNK.

Notes
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
19
Notes

20
06.00 | SDV-P / SDV-P-E / SDV-P-E-P | Assembly and Operating Manual | en | 389561
