AIR CURTAIN – 1200 SERIES
INSTALLATION MANUAL
AC-1036-12-BK
AC-1048-12-BK
AC-1060-12-BK
Schwank:
USA Canada
2 Schwank Way 5285 Bradco Blvd.
Waynesboro, GA 30830 Mississauga, ON L4W 2A6
Tel: 1-877-446-3727
Fax: 1-866-361-0523
www.schwankair.com
csr@schwankgroup.com
IM010919
1200 Series User Manual
September 1, 2019
RL: 1A

READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING THIS AIR
CURTAIN.
1. PRODUCT INTRODUCTION
Schwankair's newest top of class high efficiency air curtain provides excellent control of heat/cool
loss in conditioned spaces allowing for lower energy costs. This new series also prevents flying insect
protection. Common uses are retail doors such as restaurants, hotels, shopping malls, storage facilities.
These products are easy to install and comes with a 120V plug, 2 speeds, a remote control and door
switch, coverage for doors 3', 4' & 5' or double up for wider applications.
2. IDENTIFICATION & INSTALLATION DIMENSIONS
MODEL
A
inches
[mm]
B
inches
[mm]
C
inches
[mm]
D
inches
[mm]
E
inches
[mm]
F
inches
[mm]
H
inches
[mm]
I
inches
[mm]
J
inches
[mm]
AC-1036-12-BK
37.20
[945] 17.33
[440]
- - - - - -
2.05
[52]
5.71
[145]
10.24
[260]
8.66
[220]
5.12
[130]
AC-1048-12-BK
49.21
[1250]
- - - - - -
AC-1060-12-BK
61.18
[1554]
33.07
[840]
- - -
- - -
SIDE

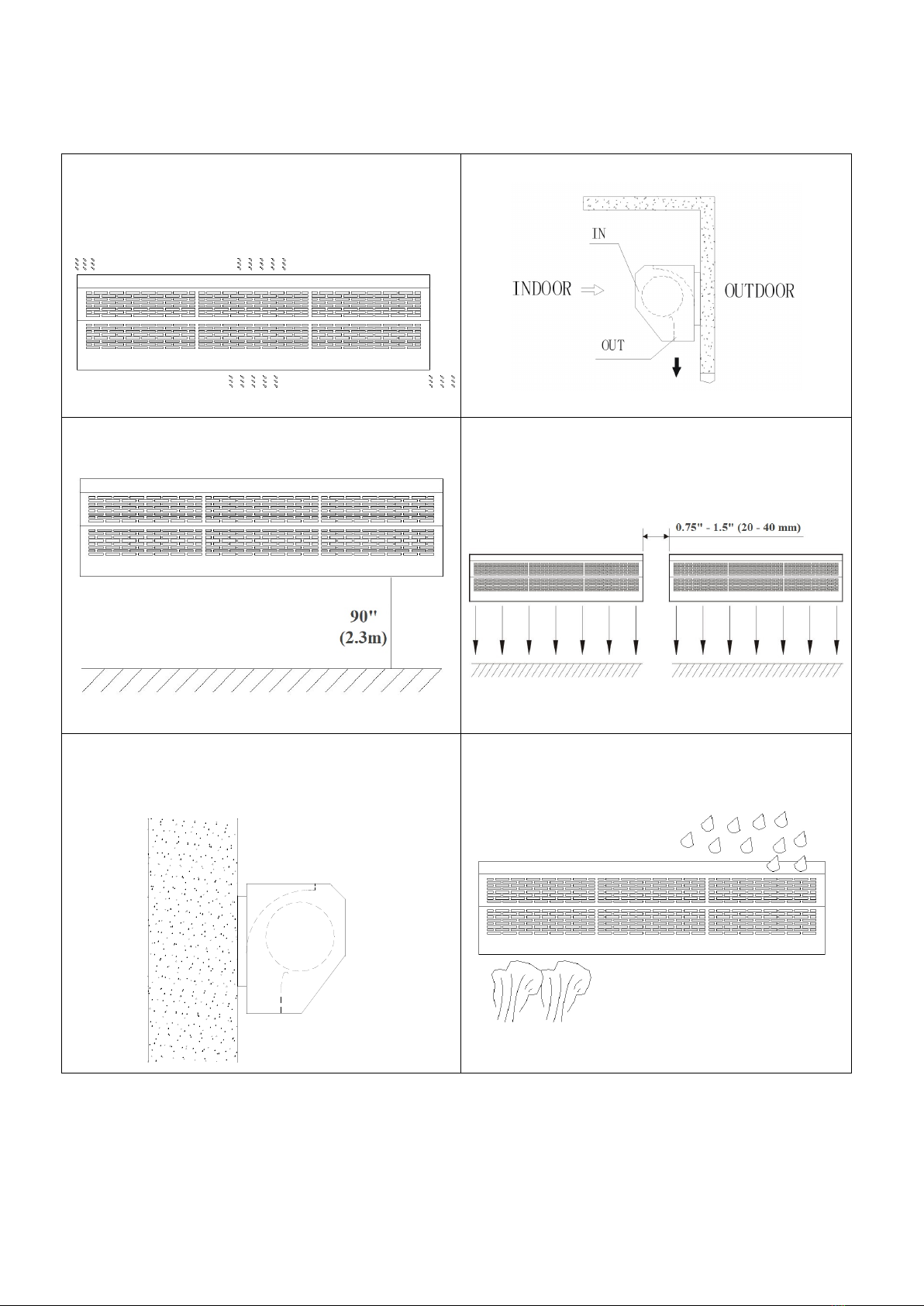

3. INSTALLATION CAUTION
Must follow the following steps to install the 1200 series air curtain:
3.1 Install the unit to a rigid and sturdy structure to
avoid shaking. Improper installation location may
cause excessive vibration and noise.
3.2 Units for indoor use only.
3.3 Do Not install the unit too low, no less than 90
inches (2.3 meters) from the ground.
3.4 When the entrance is wider than the unit, it is
recommended to install two or more units.
Provide a gap of 0.75"–1.5" (20–40 mm) between
units.
3.5 Do Not leave gaps between the unit and the
wall. When hanging the unit from the ceiling, use
the enclosed ceiling brackets.
3.6 Do Not install where unit may be splashed by
liquid, exposed to excessive steam, or explosive /
corrosive gas.

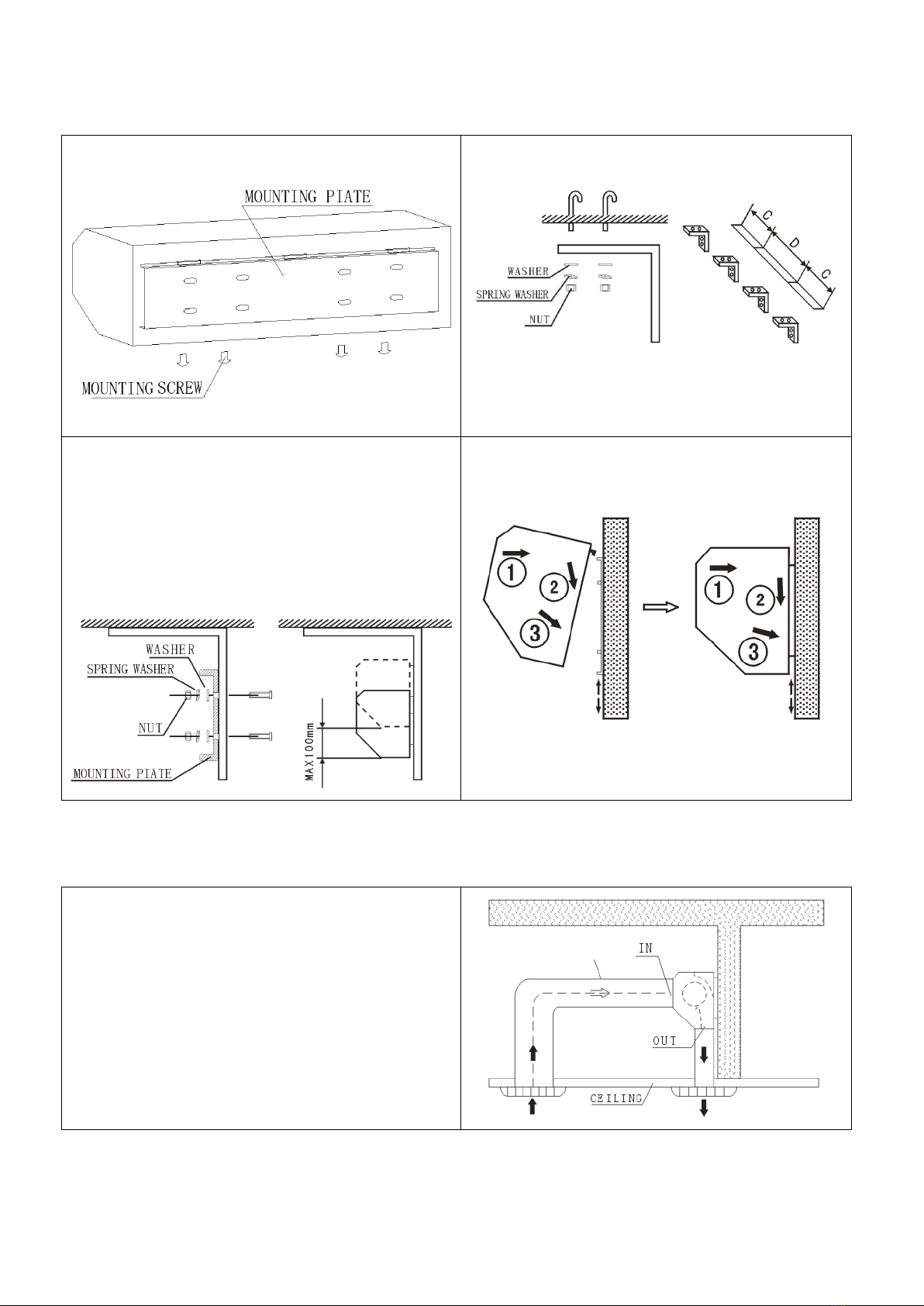

4. INSTALLATION
A. Installing on a concrete wall:
4.1.1 Remove the mounting plate from the back of
the air curtain by removing the mounting screws at
the bottom flange. Retain the mounting screws
4.1.2 Drill anchor points in the wall and fix the
bolts in the proper position. Use the mounting
plate as a template to mark the fastener locations.
4.1.3 After anchoring the mounting bolts, fit the
mounting plate (use the washer and nut according
to the Figure below).
4.1.4 Install the main body.
Put the main body on the upper end of the
mounting plate and clamp it as shown.
B. Installing on a wood wall:
4.2.1 Fix the mounting plate in the proper position
with tapping screw.
4.2.2 Same as step 4 of A

C. Hanging from the ceiling:
4.3.1 Remove the mounting plate from the main
body (Same as step 4.1.1)
4.3.2 Fix ceiling brackets as Figure below
4.3.3 Set the mounting plate on the ceiling
brackets and ensure safe installation (use the bolts
attached to the ceiling brackets as Figure below).
Use the ceiling brackets to h
ang from the ceiling;
the position of the mounting plate can be adjusted
within the limit of 4 inches (100 mm).
4.3.4 Do the same as step A to install the main
body.
D. For above ceiling:
4.4.1 Fix the air curtain same as the procedure for
installing on the concrete wall.
4.4.2 The air duct must be connected to the air
curtain.
AIR DUCT

5. TECHNICAL PARAMETER
MODEL Vo l t .
(V~)
Freq
(Hz)
Max input
power
(W)
Max air
speed
(m/s)
Air volume
(cfm)
Noise
(dB) Net weight
H L H L H L H L lb. kg
AC-1036-12-BK
120 60
380 300
13 10
1177 942 67 65 29.8 13.5
AC-1048-12-BK 530 450 1648 1295 69 67 37.5 17
AC-1060-12-BK 690 610 2119 1648 71 69 46.3 21

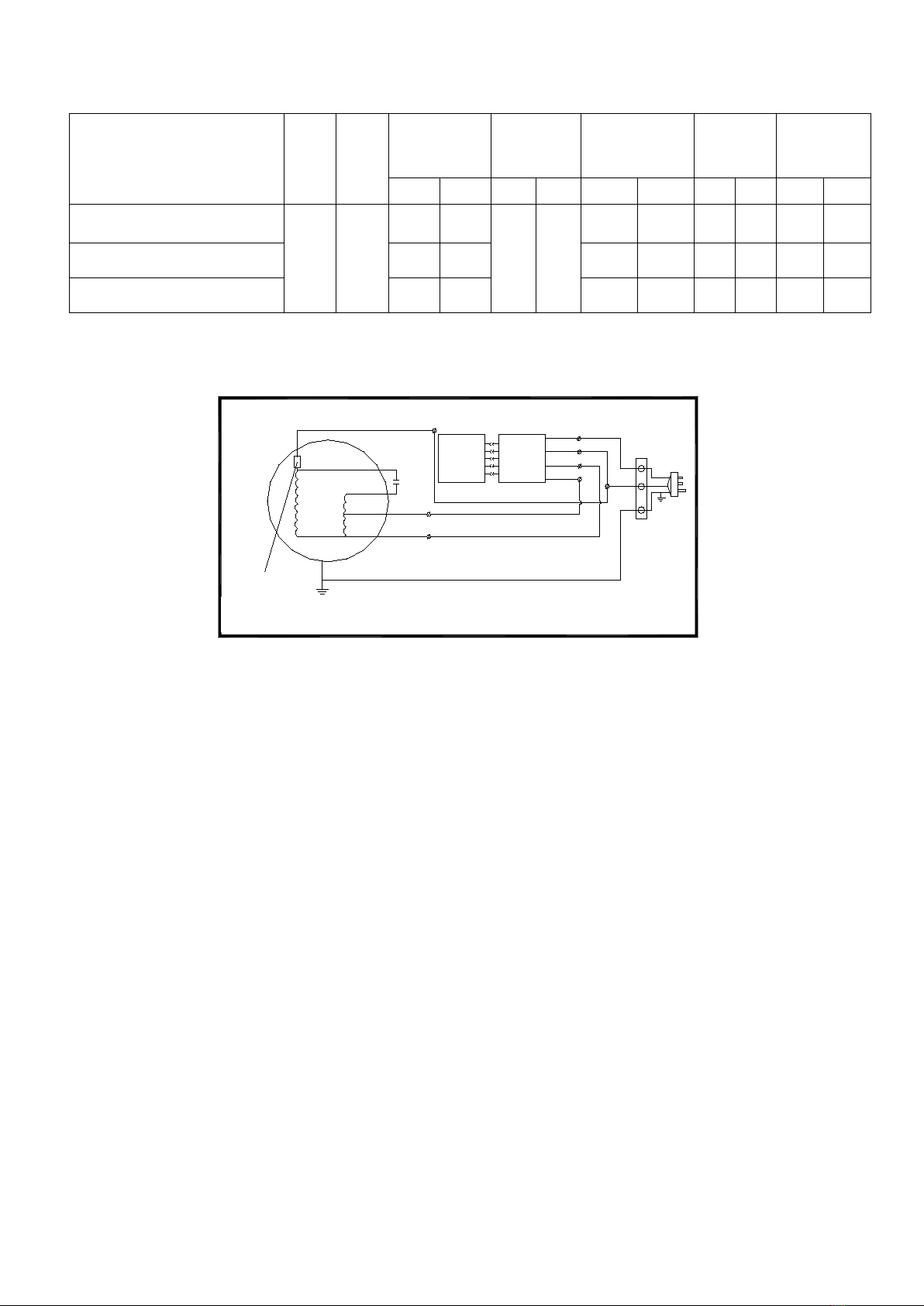

6. WIRING DIAGRAM
DOUBLE SPEED INFRARED REMOTE CONTROLLED WIRING DIAGRAM
THERMAL CUT-OUT YELLOW-GREEN
WHITE
RECEIVER
I/O
BLUE(BROWN/RED)
C
YELLOW
BLACK
(YELLOW)
ORANGE
RECEIVER
I/C
GREY
WHITE
N
L
BLUE
BROWN
7. OPERATION
7.1 Turn on the power switch
7.2 Select the desired speed:High[H]、Low[L]
7.3 Adjust the directional vane for optimal effect.
8. CAUTIONS
a) Use the unit at the rated voltage and frequency indicated on the nameplate.
b) Always disconnect the main electrical supply before installing, maintaining, or repairing this equipment.
c) Routine maintenance must be done every year.
d) Never use petrol, benzene, thinner or any other such chemical for clearing the unit.
e) Do Not install the unit within proximity of water or excessive amount of moisture.
f) All electrical wiring and connections MUST be performed by qualified personnel in accordance with the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CSA Standard C22.1, and
local codes and regulations.
2 SPEED INFRARED REMOTE CONTROL WIRING DIAGRAM

9. REPLACEMENT PARTS LIST
Items Item Description Parts Number For Model Number
1
Face plate
N/A
N/A
2
Casing
N/A
N/A
3
Air guide grill
N/A
N/A
4
Motor (36”) JC-0163-36 AC-1036-12-BK
Motor (48”)
JC-0163-48
AC-1048-12-BK
Motor (60”)
JC-0163-60
AC-1060-12-BK
5
Bearing block
JC-0141-XX
ALL MODELS
6 Bearing JC-0143-XX ALL MODELS
7
Left wind wheel (36”)
JC-0166-36
AC-1036-12-BK
Right wind wheel (36”)
JC-0165-36
AC-1036-12-BK
Left wind wheel (48”)
JC-0166-48
AC-1048-12-BK
Right wind wheel (48”)
JC-0165-48
AC-1048-12-BK
Left wind wheel (60”)
JC-0166-60
AC-1060-12-BK
Right wind wheel (60”)
JC-0165-60
AC-1060-12-BK
8
Installation plate
N/A
N/A
9
Remote
controller-Receiver
JC-0122-XX ALL MODELS
10
Remote controller-Sender
JC-0120-XX
ALL MODELS
11 Control Board – PCB JC-0110-XX ALL MODELS

10. WARRANTY
The Manufacturer warrants that this product is free from defects in material or workmanship under normal
use and service subject to the terms of this document.
ONE YEAR WARRANTY
Subject to the conditions and limitations stated herein, during the term of this limited warranty, we will
supply any component part (at our option a new or repaired component part) of the heater as defined below,
which the Manufacturer’s examination determines to be defective in workmanship or material for a period
of one (1) years from the date of installation, unless otherwise specified below. This warranty applies to the
heater’s original owner, and subsequent transferees and only if the unit is installed, operated, and
maintained in accordance with the printed instructions accompanying the unit and in compliance with all
applicable installation codes and good trade practices.
WHAT IS NOT COVERED
The Manufacturer shall not be responsible for any expenses, including service, labor, diagnosis, analysis,
material or transportation charges incurred during removal or reinstallation of this product, or any of its
components or parts. All labor or service charges shall be paid by the owner. This warranty does not
cover products improperly installed, misused, exposed to or damaged by negligence, accident, corrosive or
contaminating atmosphere, water, excessive thermal shock, impact, abrasion, normal wear due to use,
alteration or operation contrary to the owner’s manual or if the serial number has been altered, defaced or
removed. This warranty shall not apply if the electrical input to the product varies by more than ±10% of
the rated input on the rating plate. The Manufacturer shall not be liable for any default or delay in
performance by its warranty caused by any contingency beyond its control, including war, government
restrictions, or restraints, strikes, fire, flood, acts of God, or short or reduced supply of raw materials or
products.
LIMITATIONS AND EXCLUSIONS
This document contains all warranties made by the Manufacturer and may not be varied, altered or
extended by any person. There are no promises, or agreements extending from the Manufacture other
than the statements contained herein. THIS WARRANTY IS IN LIEU OF ALL WARRANTIES
EXPRESSED OR IMPLIED, TO THE EXTENT AUTHORIZED BY THE LAWS OF THE
JURISDICTION, INCLUDING SPECIFICALLY THE WARRANTIES OR MERCHANTIBILITY OF
FITNESS FOR A PARTICULAR PURPOSE.
It is understood and agreed that the Manufacturer’s obligation hereunder is limited to repairing or replacing
parts determined to be defective as stated above. In no event shall the Manufacturer be responsible for any
alleged personal injuries or other special, incidental or consequential damages. As to property damages,
contract, tort or other claim the Manufacturer’s responsibility shall not exceed the purchase price paid for
the product.
All replacement parts will be warranted for the unused portion of the warranty coverage period remaining
on the applicable unit.
Some Authorities do not allow certain warranty exclusions or limitations on duration of warranty or the
exclusions or limitations of incidental or consequential damages. In such cases, the above limitations or
exclusions may not apply to you and are not intended to do so where prohibited by law. This warranty
gives you specific legal rights. You may also have other rights which vary by jurisdiction.
