1.1. RS232
1. Connect the Enviro-Genie incubator with a laptop or
a desktop PC via a 9 pin RS232 cable compatible with
the Enviro-Genie incubator.
A DB9 to DB9 straight through serial cable is available
from Scientific Industries, Inc. Part number ECP009
2. Open the EnviroApp and click Settings from the
Home screen.
Chapter 1: PC Connection
Chapter 14: Wireless PC Connection (FC Models Only)

3
Enviro-Genie - PC Connection and Calibration –Instruction Manual
3. Select the COM port number used for the RS232 connection, or click Auto Detect to automatically detect the
port number in use.
4. If the port is unknown and the EnviroApp was unable to detect the port automatically, use the Windows Device
Manager to verify the COM port used for the RS232 connection.
5. To access Windows Device Manage, right-click on the Windows icon located in the lower left corner of the PC
desktop, and select Device Manager.
6. In the Device Manager list, click on Ports (COM & LPT) to obtain the COM port used for the Enviro-Genie
connection.

4
Enviro-Genie - PC Connection and Calibration –Instruction Manual
1.2. USB
1. Connect a compatible 9 pin RS232 cable
to the RS232 port located on the left
side of the Enviro-Genie incubator.
2. Attach an RS232-to-USB convertor to
the RS232 cable connected to the
Enviro-Genie
3. Plug in the USB cable to an available USB
slot in your PC or laptop. Windows will
begin automatic installation of device driver
software. During driver installation observe
the Device Setup window and note the
COM port number assigned to the
convertor.

5
Enviro-Genie - PC Connection and Calibration –Instruction Manual
4. Open the EnviroApp, and click Settings from the Home screen.
5. From the Port Name list select the COM port number used for the USB connection, or click Auto Detect to
automatically detect the port number in use.

6
Enviro-Genie - PC Connection and Calibration –Instruction Manual
6. If the port is unknown and the EnviroApp was unable to detect the port automatically, use the Windows Device
Manager to verify the COM port used for the USB connection.
7. To access Windows Device Manage, right-click on the Windows icon located in the lower left corner of the PC
desktop, and select Device Manager.
8. In the Device Manager list, click on Ports (COM & LPT) to obtain the COM port used for the Enviro-Genie
connection. The COM port assigned to the USB convertor will be labeled Prolific USB-to-Serial Comm Port.

7
Enviro-Genie - PC Connection and Calibration –Instruction Manual
1.3. Wireless

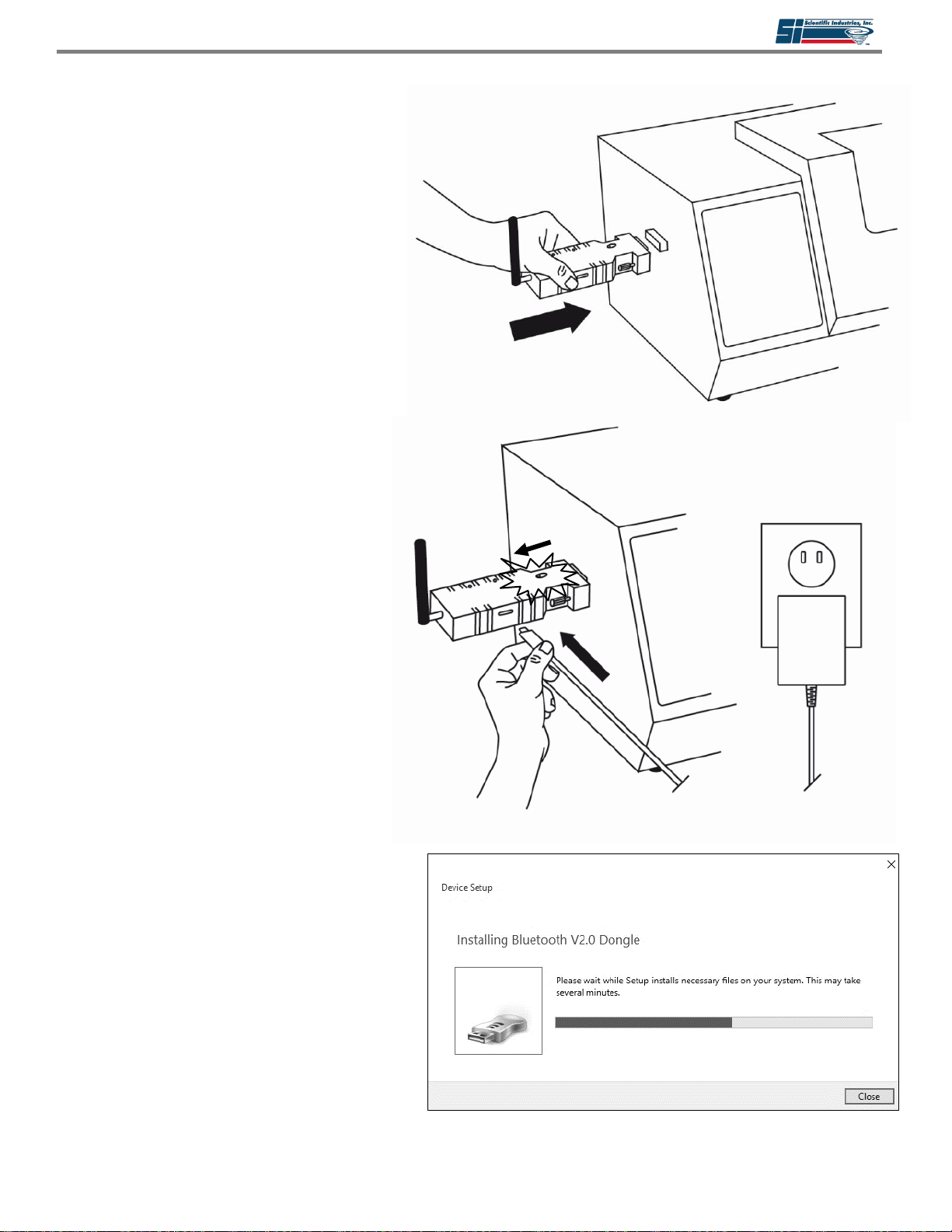

1. Attach the wireless adapter to the
RS232 port on the Enviro-Genie
incubator. Fasten the adapter port
screws to secure it firmly in place, and
connect the antenna.
2. Plug in the power supply cable to
adapter socket marked “5VDC”, and
verify that slide switch on the adapter
is in the “SEND” position, pointing
towards the antenna connector.
3. Make sure your PC is connected to the
internet and allows drivers to be installed
automatically. Plug in the Bluetooth
dongle supplied with the wireless adapter
to an available USB slot in your PC.
Windows will begin automatic installation
of device driver software.
Note: Skip this step if your computer or
tablet already has a Bluetooth connection.

8
Enviro-Genie - PC Connection and Calibration –Instruction Manual

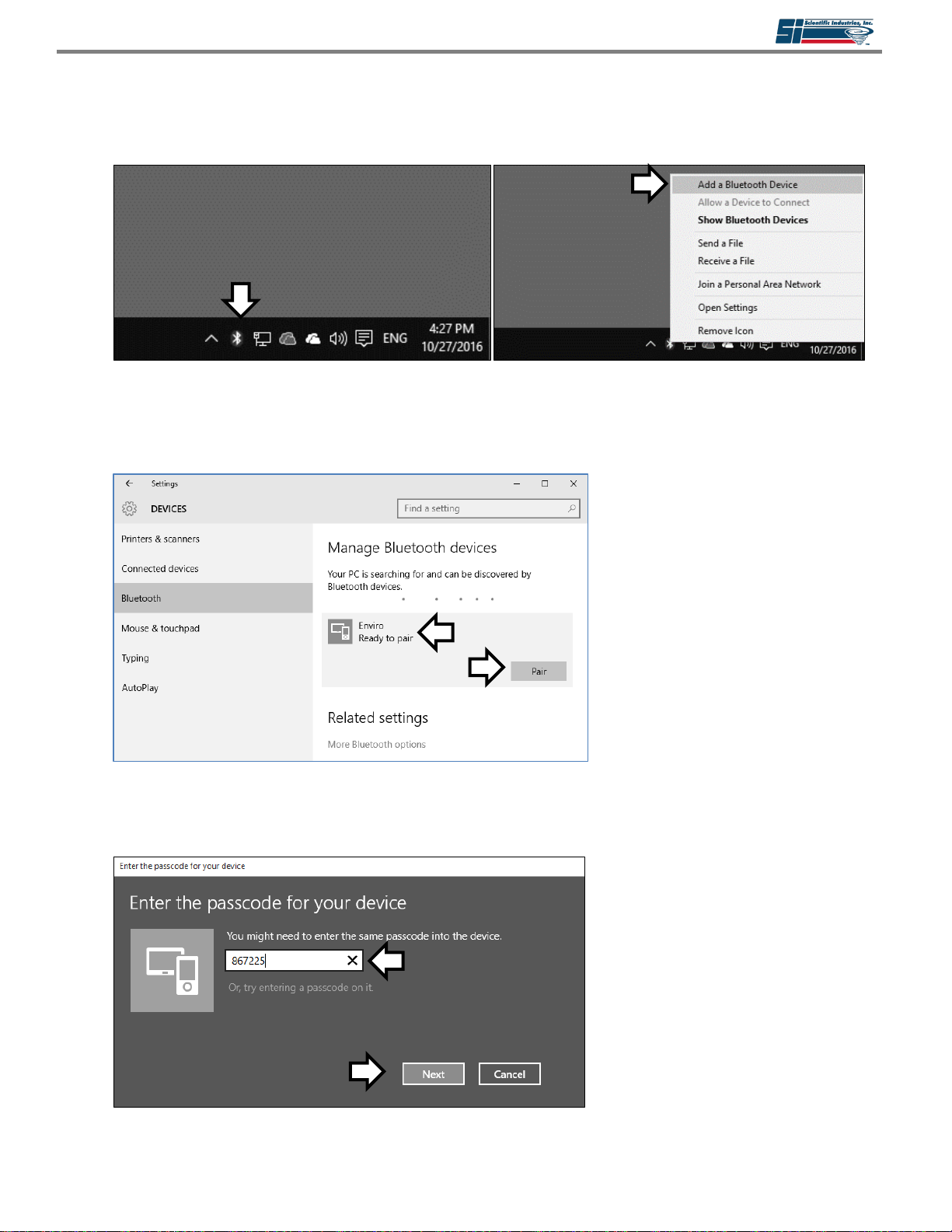

4. Once the driver is installed, a Bluetooth icon will be visible in the task bar. Right click on the Bluetooth icon. The
icon may be hidden, in which case expand your task bar to show all inactive icons. From the icon function menu
select “Add a Bluetooth Device” to start the pairing wizard.
5. Device window with available devices will appear on the PC screen. Locate device “Enviro”, click once to select
it, and click on Pair to proceed.
6. Key in the paring code: 867225. Click next to pair the Enviro-Genie incubator with your computer.

9
Enviro-Genie - PC Connection and Calibration –Instruction Manual
7. Click on the Bluetooth icon located in your task bar and select “open settings”.
8. For convenience check off option “show the Bluetooth icon in the notification area” in the Options tab. Click on
the tab “COM ports”, the serial COM ports used by your computer for Bluetooth connections will be displayed.
Note the outgoing COM port number for “Enviro ‘Dev B’”. This is the COM port used by the PC computer to
transmit data between the Enviro-Genie incubator and the PC.

10
Enviro-Genie - PC Connection and Calibration –Instruction Manual
9. Once the COM port number assigned to the Enviro-Genie Bluetooth has been verified, open the EnviroApp, and
click Settings from the Home screen.
10. From the Port Name list select the COM port number used for the Bluetooth connection.
Auto Detect is for hardwired connection only and cannot be used
to detect wireless Bluetooth ports.

11
Enviro-Genie - PC Connection and Calibration –Instruction Manual
Calibration is a sensitive process and should be performed only with a trusted high
accuracy reference device. Before calibration, verify the accuracy of your
temperature sensor or tachometer. It is strongly recommended to calibrate with
devices that have a valid traceable NIST certificate.
1. Before starting calibration, open the
Enviro-Genie chamber and allow sufficient
time for the incubator temperature to
stabilize, and reach ambient room
temperature.
2. Install or place a reference temperature
sensor as close as possible to the fan
located inside the Enviro-Genie chamber.
This fan is the exhaust from the chamber,
and a probe directly in front of it will give
the most representative temperature
reading.
3. Carefully close the chamber and verify
that the temperature sensor cable is not
causing large gaps or opening in the
incubator seal.
4. Set the Enviro-Genie to a desired
temperature and verify the reading.
Chapter 2: Temperature Calibration
Chapter 14: Wireless PC Connection (FC Models Only)

12
Enviro-Genie - PC Connection and Calibration –Instruction Manual

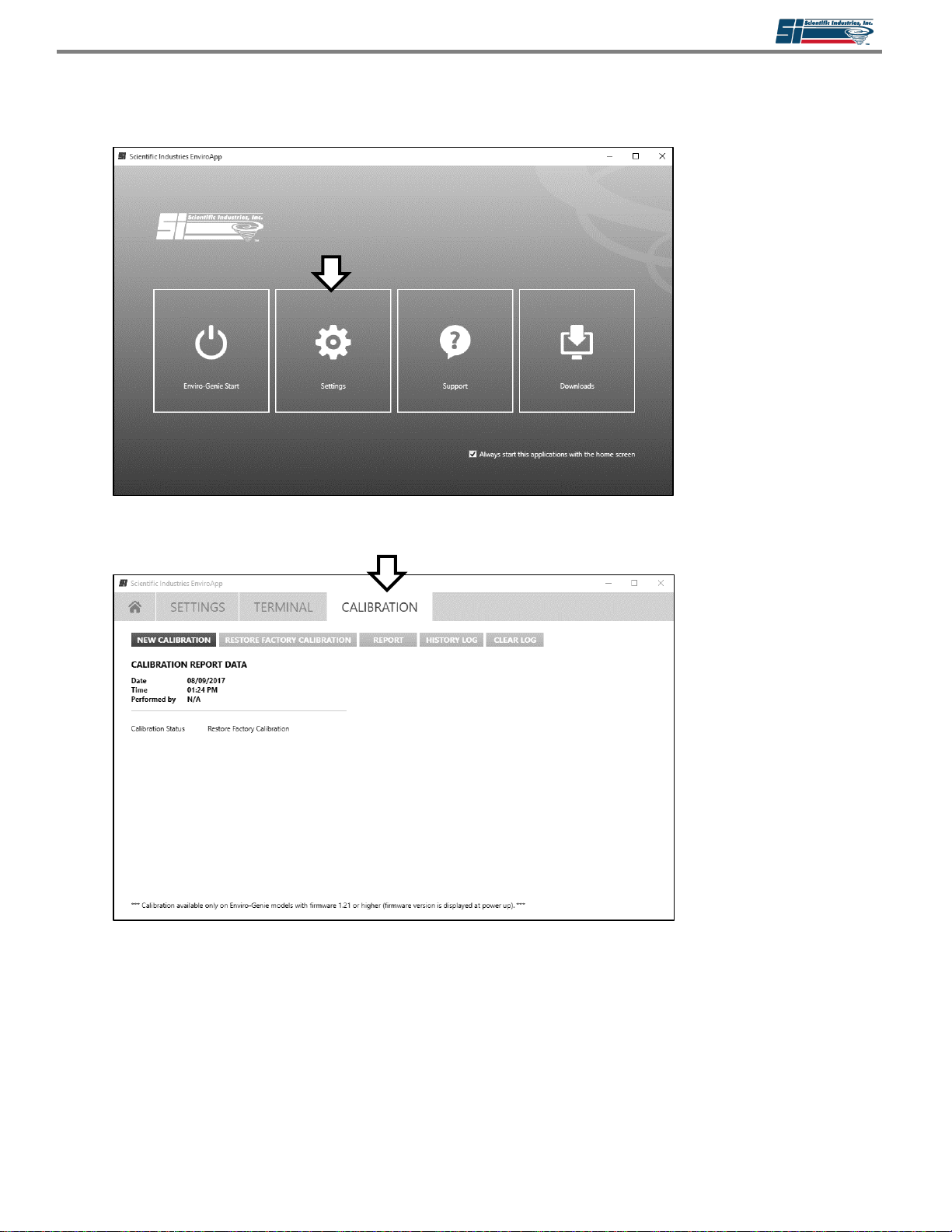

5. If calibration is required, open the EnviroApp and click Settings from the Home screen.
6. Select the Calibration tab and click on New Calibration.

13
Enviro-Genie - PC Connection and Calibration –Instruction Manual

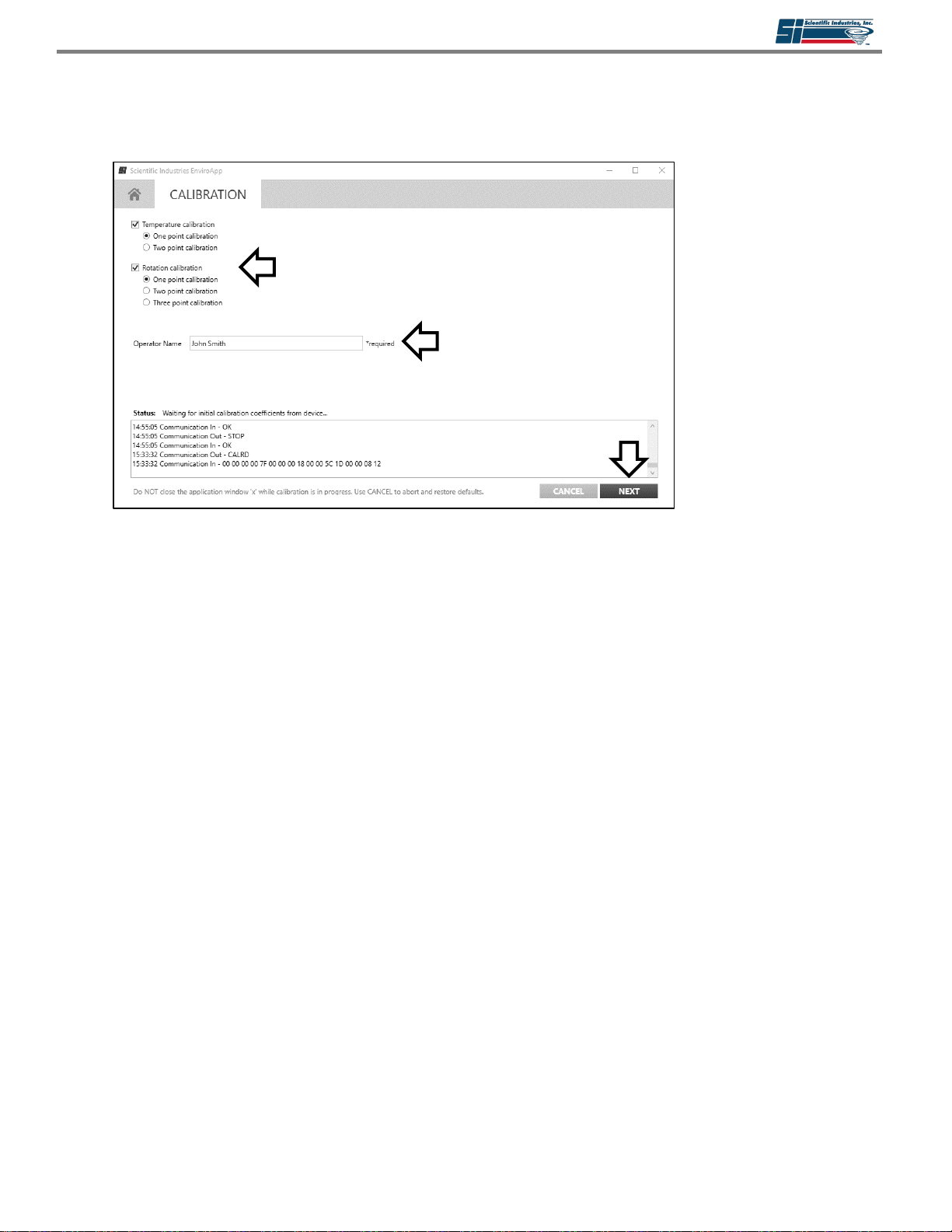

7. Wait for the Enviro-Genie incubator to start. Select the Calibration type, enter the name of the user performing
the calibration, and click Next to continue.

14
Enviro-Genie - PC Connection and Calibration –Instruction Manual
2.1. One Point Calibration
1. Enter a preferred Temperature Setpoint and
click SET. “Please Wait” will flash in red
while the Enviro-Genie reaches the set
temperature.
2. Wait until the Enviro-Genie temperature
reaches the Setpoint and stabilizes. Once
the temperature setpoint is reached
“Please Wait” will change to green and
remain solid for 5 minutes. If necessary
allow more time for the reference device
to stabilize.
3. Once the reference device field becomes
available, enter the reference device
temperature exactly as indicated by the
reference device and click SAVE.
4. Click NEXT to proceed and save calibration
Don not close the application window “x” while calibration
is in progress. Use CANCEL to abort and restore defaults.

15
Enviro-Genie - PC Connection and Calibration –Instruction Manual
2.1. Two Point Calibration
1. Enter Low Temperature Setpoint One and
click SET. “Please Wait” will flash in red
while the Enviro-Genie reaches the set
temperature.
2. Wait until the Enviro-Genie temperature
reaches the Low Temperature Setpoint One
and stabilizes. Once the temperature is
reached “Please Wait” will change to green
and remain solid for 5 minutes. If necessary
allow more time for the reference device to
stabilize.
3. Once the reference device filed becomes
available, enter the reference device
temperature exactly as indicated by the
reference device and click SAVE.
4. Repeat steps 1 to 3 for High Temperature
Setpoint Two.
5. Click NEXT to proceeds and save calibration
Don not close the application
window “x” while calibration is
in progress. Use CANCEL to abort
and restore defaults.

16
Enviro-Genie - PC Connection and Calibration –Instruction Manual
1. Open the Enviro-Genie incubator chamber and
remove the magnetic platform as well any
installed accessories.
2. Attach a precision tachometer to the tray shaft
located on the left wall of the incubator
chamber. Set the Enviro-Genie to a desired
speed and verify the RPM speed of the
incubator.
If you don’t have a tachometer available,
install the magnetic platform and use a
stopwatch to accurately measure 360°
rotations of the platform per minute. Use
masking tape to mark a reference point on
the front side of the platform and a
connecting point on the incubator wall. This
will assist in keeping track of the tray
rotations.
Calibration is a sensitive process and should be performed only with a trusted high
accuracy reference device. Before calibration, verify the accuracy of your
temperature sensor or tachometer. It is strongly recommended to calibrate with
devices that have a valid traceable NIST certificate.
Chapter 3: Rotation Calibration
Chapter 14: Wireless PC Connection (FC Models Only)

17
Enviro-Genie - PC Connection and Calibration –Instruction Manual
3. If calibration is required, open the EnviroApp and click Settings from the Home screen.
4. Select the Calibration tab and click on New Calibration.

18
Enviro-Genie - PC Connection and Calibration –Instruction Manual
5. Wait for the Enviro-Genie incubator to start. Select the Calibration type, enter the name of the user performing
the calibration, and click Next to continue.

19
Enviro-Genie - PC Connection and Calibration –Instruction Manual
3.1. One Point Calibration
1. Enter a desired Enviro-Genie Speed
Setpoint and click SET. (Low: 1 to 17 |
High: 18 to 35).
2. Verify the Enviro-Genie rotation speed
with an accurate reference device.
3. Adjust the speed as needed by clicking
UP or DOWN, until the set speed of the
Enviro-Genie is the same as indicated
by the reference device
4. Click FINISH to proceed and save
calibration.
