Scientific 401 User manual

4-INS-401
INSTALLATION,
OPERATION AND
CARE MANUAL
Laboratory Equipment
REMEMBER TO COMPLETE THE ONLINE
WARRANTY REGISTRATION TO
RECEIVE YOUR FULL TWO YEAR WARRANTY.
MANUFACTURED
IN SOUTH AFRICA
www.scientific.co.za
All Scientific equipment comes with a standard ONE year warranty, The 1 Year
Extended Warranty is only valid for customers who have registered their warranty
online at www.scientific.co.za within the first year after making their purchase.
WARRANTY

THANK YOU FOR PURCHASING
A SCIENTIFIC PRODUCT!
REGISTER ONLINE TODAY
Register your warranty on-line at www.scientific.co.za today and learn how to get
the best out of your Scientific product.
NO WEB ACCESS?
If you do not have access to the Web, register by completing this form and Email it
to the Scientific head oce in South Africa. Email: sales@scientific.co.za
Company
Name
Surname
Telephone
Cellphone
Email Address
Country
Postal address
Scientific products purchased
Product Code (see box label)
Serial number (see back of machine)
ONLY COMPLETE IF YOU DO NOT HAVE WEB ACCESS
INTENDED USE
Agriculture
Automotive
Biochemistry
Botony
Chemistry
Cosmetics
Electronics
Food
Genetics
Industrial
Medical
Microbiology
Mining
Nuclear
Paper/Packaging
Petrochemical
Pharmaceutical Physics
Power Generation
Special Metals
Sugar
Water
Zoology
Other (Specify):
ALL SCIENTIFIC EQUIPMENT COMES WITH A TWO
YEAR WARRANTY ON COMPONENTS AND
DEFECTIVE WORKMANSHIP - Ts & Cs APPLY.
QUALITY
GUARANTEED
ALL SCIENTIFIC EQUIPMENT COMES WITH A TWO
YEAR WARRANTY ON COMPONENTS AND
DEFECTIVE WORKMANSHIP - Ts & Cs APPLY.
QUALITY
GUARANTEED
Laboratory
Equipment
www.scientific.co.za

4-INS-401
INSTALLATION OPERATION AND CARE OF
STEAM BATH
MODEL: 401/402
STEAM BATH
LIMITED WARRANTY
The manufacturer guarantees that this unit is free from defect in
materials and workmanship when it leaves the factory and undertakes
to replace or repair the unit if it proves defective in normal use or
during servicing for a period of 1(one) year from the date of original
installation and is for the benet of the original purchaser only. The
liability under this warranty is limited to repairing the defective unit or
any part of the unit provided it is sent carriage paid to an authorized
dealer. All other Warranties ,expressed or implied , statutory or other-All other Warranties ,expressed or implied , statutory or other-
wise, including without limitations any implied Warranty of Merchant-
ability or tness for purpose are excluded .The Seller shall in no event
be liable for direct,indirect or consequential damages in connection
with the products.
This unit is at all times to be used according to the instruction manual
and for its normal purpose.
This Warranty is not effective if damage occurs because of accident,
carelessness,improper installation,lack of proper set-up,supervision
when required or if the equipment is installed or operated in any
manner contrary to the installation and operating instructions. In
these cases,repairs will be made at a reasonable cost. Work per-
formed by unauthorized personnel or unauthorized service agencies
voids this Warranty.

PRODUCT DESCRIPTION
THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO
GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR
PROTECTING AGAINST LOSS FROM CONCEALED DAMAGE.
THE FORM FOR FILING SUCH A CLAIM WILL BE PROVIDED
BY THE CARRIER.
UNPACKING
Unpack the product and check for any damage incurred during
transit. This should be reported to the responsible carrier, railway or
postal authority, and a request for a damage report should be made.
GENERAL INSTALLATION AND OPERATION INFORMATION
• Install the unit in the most convenient location for ease of clean-
ing, maintenance and general operation.
• Ensure that the surface is level.
• If the appliance is to be positioned in close proximity to a wall,
partition, etc, it is recommended that they are of non-combusti-
ble heat insulating material, and the closest attention paid to re
prevention regulations.
• The units are provided with a simple device for automatic control
of water level.
• The manual reset safety thermostat protects the element should
the bath run dry.
Part
No.
1 RING KNOB
2 CENTRE RING
3 65MM RING
4 85MM RING
5 105MM RING
6 THERMOSTAT
7 CABLE GRIP
8 POWER CORD
9 TANK ASSEMBLY
10 STEAMBATH INLET CONTROL
11 STEAMBATH LEVEL CONTROL
12 ELEMENT 2000W 230V
13 12 STATION STEAMBATH TRAY
14 PILOT LIGHT
15 SAFETY CAP
16 SAFETY FACIA
Description
MODEL : 12 STATION STEAM BATH
MODEL CODE : 402

WARNING
Burn Hazard.
Do not touch hot,liquid or heating surfaces
while equipment is heating or operating
Hot surfaces and liquid can burn skin. Allow the hot surfaces to cool
before handling
CLEANING
BEFORE CLEANING THE UNIT, DISCONNECT THE POWER PLUG FROM
THE MAINS SOCKET!
• Clean the unit using a damp cloth with soapy water.
• Do not submerse in water or subject the unit to water spray.
• The steam bath is designed for continuous operation. Periodic
maintenance is not required.
CLEAN THE STAINLESS STEEL PARTS WITH WATER
AND SOAP. AVOID THE USE OF DETERGENTS
CONTAINING ABRASIVE SUBSTANCES. ALWAYS
RINSE WELL AND DRY CAREFULLY AFTER
CLEANING. DO NOT USE PRODUCTS CONTAINING
AGGRESSIVE CHEMICALS, ACIDS OR PRODUCTS
WITH CHLORINE TO CLEAN THE STAINLESS STEEL
EVEN IF DILUTED
EXPLODED DIAGRAM
STEAM BATH
MODEL: 402
2
3
1
12
14 15
13
11
10
9
7
8
6
5 4
Model: 12 Station Steam bath
Model Code: 402
16

SAFETY
READ ALL INSTRUCTIONS BEFORE USE. FAILURE TO
FOLLOW THESE PRECAUTIONS COULD RESULT IN INJURY TO
YOURSELF AND OTHERS
1. Use the steam bath on an individual 15A mains outlet
only. DO NOT OVERLOAD THE CIRCUIT.
2. Ensure that the equipment and the power supply cord does not
come into contact with hot surfaces.
3. This unit is only to be used by properly trained laboratory staff.
4. If the supply cord is damaged, it must be replaced with a new
cord assembly available from the suppliers agent.
5. Use only earthed outlets matching the serial plate voltage.
6. Have equipment installed by a qualied personnel in accordance
with local codes and ordinances.
7. Use equipment in a at level position.
8. Do not operate if equipment has been damaged or is malfunc-
tioning in any way.
9. These units are designed to run only on alternating current
(A.C.) DO NOT CONNECT TO DIRECT CURRENT (D.C)
WARNING
Electric Shock Hazard.
Keep water and other liquids from entering the inside
of the equipment. Liquid inside the equipment could
cause an electrical shock
Do not spray water or cleaning products. Liquid could contact the
electrical components and cause a short circuit or an electrical shock.
Do not use equipment if power cord is damaged or has been modied
Part
No.
1 RING KNOB
2 CENTRE RING
3 65MM RING
4 85MM RING
5 105MM RING
6 CABLE GRIP
7 POWER CORD
8 TANK ASSEMBLY
9 STEAMBATH INLET CONTROL
10 STEAMBATH LEVEL CONTROL
11 ELEMENT 2000W 230V
12 6 STATION STEAMBATH TRAY
13 SAFETY CAP
14 SAFETY FACIA
15 PILOT LIGHT
16 THERMOSTAT
Description
MODEL : 6 STATION STEAM BATH
MODEL CODE : 401

POSITIONING DIAGRAM
STEAM BATH
MODEL: 401/402
MODEL A B C
401 410 110 280
402 530 110 405
C
A
B
EXPLODED DIAGRAM
STEAM BATH
MODEL: 401
2 1
13
12
9
10
11
8
7
6 5
15
4
3
Model: 6 Station Steam Bath
Model Code: 401
16
14

IT IS ESSENTIAL TO MAKE SURE THAT THE INCOMING
VOLTAGE IS THE SAME AS THE RATED VOLTAGE OF
THE OF THE UNIT AS FOUND ON THE SERIAL PLATE.
THE SERIAL PLATE IS LOCATED AT THE REAR OF THE
UNIT ADJACENT TO THE INCOMING CABLE ENTRY.
ELECTRICAL CONNECTION INFORMATION
THE CONTROL COMPARTMENT OF THIS UNIT CON-
TAINS DANGEROUS VOLTAGES. MAINTENANCE AND
SERVICING REQUIRING THE REMOVAL OF ANY PAN-
ELS OR COVERS SHOULD BE DONE BY QUALIFIED
SERVICE PERSONNEL ONLY.
MODEL DESCRIPTION VOLTS
(V/Hz)
POWER
(WATTS)
401 6 STATION STEAM BATH 230/50 2000
402 12 STATION STEAM BATH 230/50 2000

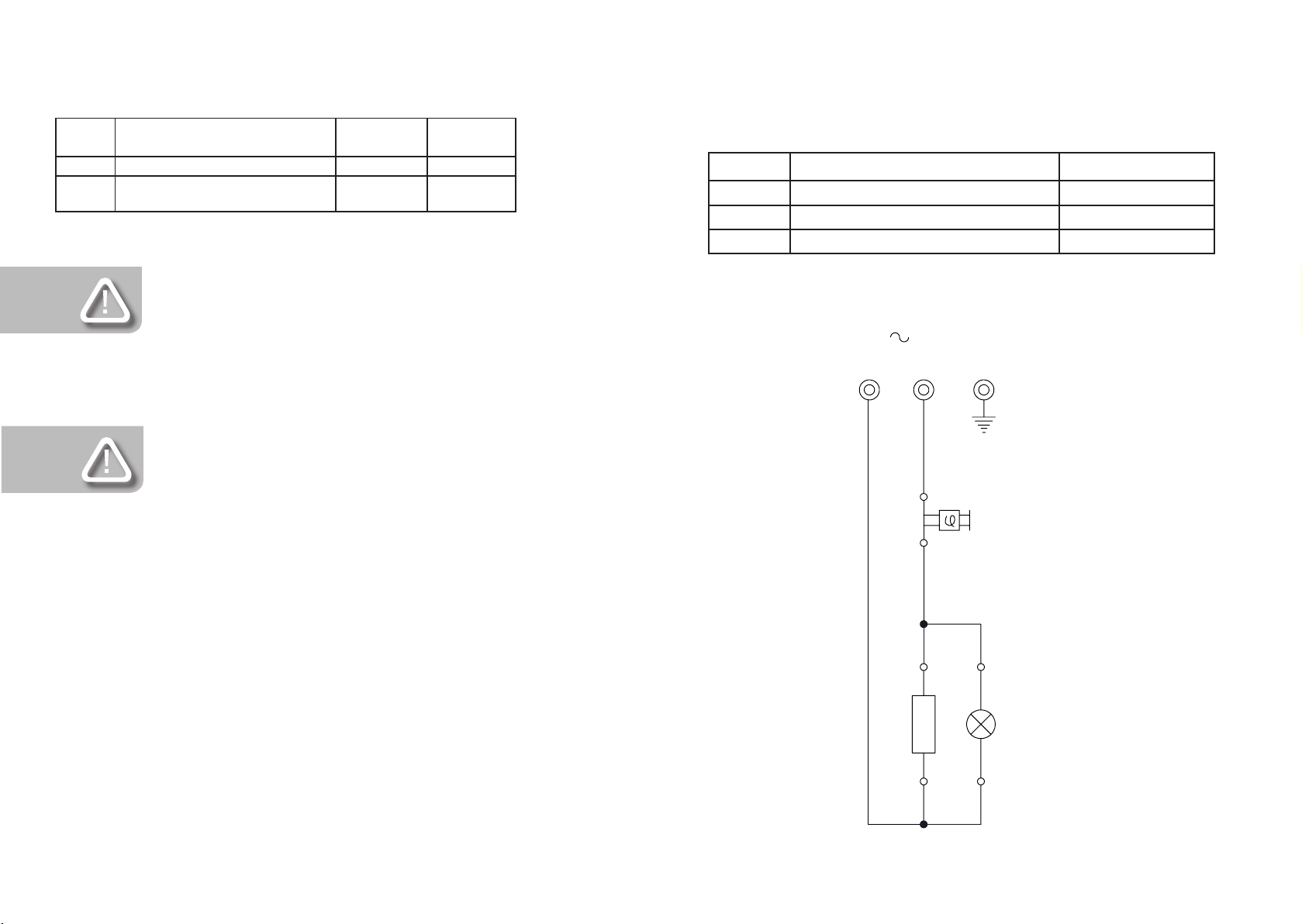

WIRING DIAGRAM
MODEL: STEAM BATH
MODEL CODE: 401/402
LEGEND DESCRIPTION PART NUMBER
B1 CONTROL THERMOSTAT 1-THERM-URB0012
H1 PILOT LIGHT 1-PL-GP
E1/E2 ELEMENT 1000W/230V 5-2000W-401
230V
E1
E L
N
5-2000W-401
1-THERM-URB0012
1-PL-GP
PILOT LIGHT
ELEMENT 2300W/230V
SAFETY THERMOSTAT
H1
E1
B1
PART NUMBER
DESCRIPTION
LEGEND
B1
H1
WIRING DIAGRAM
MODEL CODE: STEAM BATH
CODE: 401/402
DATE SIGN
PROD ELEC
DIR
DWG ADMIN
DEPARTMENT
REV-10/11/2008
