Scosche IPBTT User manual

IPBTT
BOTTOM DOCK BLUETOOTH TRANSMITTER FOR IPOD
®
IPBTT OVERVIEW
Congratulations on your purchase of the IPBTT. This unit incorporates the latest Bluetooth
technology for seamless integration with most Bluetooth A2DP enabled products. Before
using, please read this manual carefully.
®
FEATURES/SPECS
Lithium-ion 10 hour Rechargeable Battery (450mAh capacity)
Designed with 30-pin iPod bottom dock (All iPods EXCEPT Shuffle, Gen 1, Gen 2)
Wireless Range: Up to 30 Feet (10 Meters)
Bluetooth ® V1.2
Transmitter Power < 3dbm
Receiver Sensitivity: -78+4dm
Supported Profiles: Advanced Audio Distribution Profile (A2DP) / Audio Video Remote
Control Profile (AVRCP)
Frequency Range: 2.4Ghz - 2.4835Ghz
Dimensions: 55x40x10mm
Weight: 16 grams
Certifications: FCC
Dual RED/BLUE
LED Indicators
Power Button
CHARGING THE BATTERY
NOTE:
Before using the IPBTT for the first time, charge the battery a full 3 hours.
The IPBTT will also charge your iPod battery through the IPBTT power port.
1. Plug the Mini Connector on charger into the charging jack as shown in illustration.
2. Connect USB Cable to an available PC or Laptop USB port.
3. Charge Battery for 3 hours (LED will illuminate RED when charging)
4. The RED LED will turn off when charging is complete. Unplug the IPBTT
and enjoy up to 10 hours of use.
5. Purchase wall and car adapters to charge at home and/or on the road.
(IPPWR / IP2IN1 - Sold Separately)
PAIRING NOTES:
The IPBTT transmitter must be paired with a Bluetooth receiving device before use.
It is designed for AUTO-Pairing functionality. (Passcode = 0000)
Keep the IPBTT and Bluetooth receiving device within a distance of 3ft. (1 Meter)
during pairing.
Compatible devices must be Bluetooth V1.2 supporting A2DP profile.
1. Power up your Bluetooth ® receiving device (such as Scosche wireless headphones or
Scosche Bluetooth ® receiver) to place it into pairing mode. If needed, consult your
Bluetooth ® products manual for information on pairing or discovering other
Bluetooth ® devices.
2. While the Bluetooth ® receiver LED is flashing, press and hold the power button on the
IPBTT for 3 seconds. The Blue LED indicator light will flash indicating the unit is in
pairing mode.
3. Initial pairing can take a few minutes. If pairing is successful, the IPBTT's LED will switch
from flashing quickly to flashing slowly.
4. Test the connection by plugging the IPBTT into your iPods bottom dock connection with
an audio selection playing. You should hear the audio through your Bluetooth ® receiving
device.
5. If pairing is not successful, repeat steps 1-4 above. Make sure both
devices enter pairing mode at or near the same time. Power off any other Bluetooth ®
device that you do not intend to pair with the IPBTT as these units may interfere or
prevent pairing of other nearby devices. If you still cannot successfully pair two devices,
call Tech Support at (1-800-621-3695 Ext.3)
Mini Connector
Charging Dock
PAIRING THE TRANSMITTER WITH BLUETOOTH DEVICES
*
*
*
*
SCOSCHE
UBHP
(Not Included)
SCOSCHE
UBR/UBRH
(Not Included) NOT TO SCALE
IPBTT
If you have any further questions, call our TOLL FREE number:
TECHNICAL HELP LINE 1-800-361-3695 Ext.3
1 2
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:1) This device may not
cause interference, and 2) this device must accept any interference that may be received, including interference that may
cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. Such modification could void the user's authority to operate the equipment
®
®
®
®

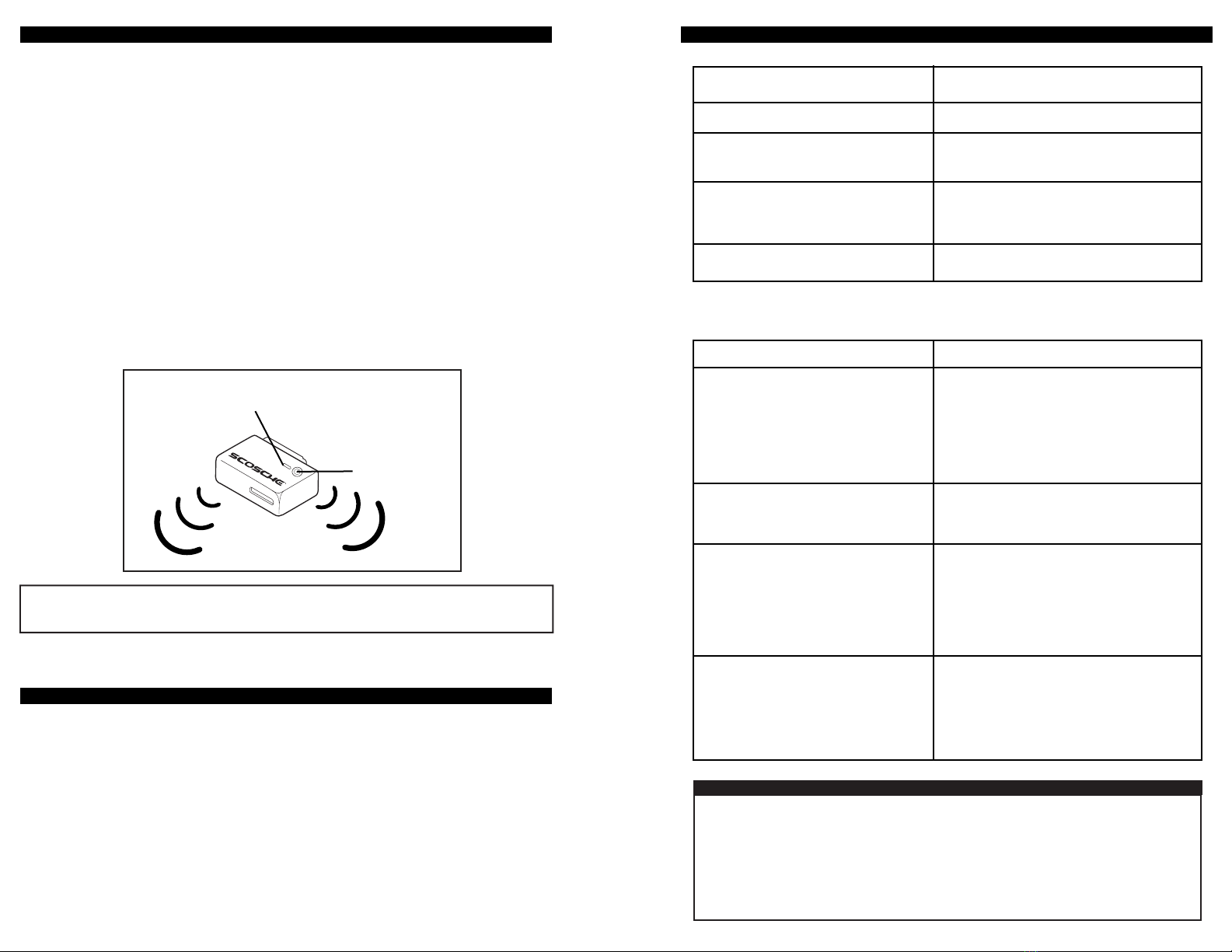

IPBTT
®

Dual RED/BLUE
LED Indicators
Power Button
OPERATION
POWER ON/OFF
Press the Power Button for 3 seconds to turn the transmitter ON or OFF.
CONNECTION
Connect IPBTT to the bottom dock of your iPod. Turn the IPBTT on, then turn on your
Bluetooth ® headphones or receiving device. Once the two devices are paired, enjoy the audio.
REMOTE CONTROL SOURCE FUNCTIONS
ONLY when used with a receiving device that also supports the AVCRP profile for remote
control functions. ( Scosche Bluetooth ® headphones - UBHP)
- PLAY/PAUSE
Press the power button on your Bluetooth ® headphones (or other receiving devices)
to PLAY or PAUSE the current track. Do not hold down the power button for
for more than 1 second or it may turn off the pwer.
(NOTE: Volume control will no longer be controlled through iPod wheel, only
through Bluetooth ® device controls).
- TRACK UP/DOWN
1. Press and hold the volume up button to skip forward to the next track.
2. Press and hold the volume down button to skip back to the beginning of the song.
3. Press and hold the volume down button a second time to skip backward to the previous track.
1. Keep this IPBTT unit away from moisture. Sources of humidity and all types of liquids will
corrode electronic circuits.
2. Keep this IPBTT unit away from high heat. Extreme temperatures will shorten the life of
electronic circuits and could possibly melt the plastic case. For example, do not store unit
in direct sunlight on a vehicle dashboard.
3. Do not attempt to open or repair the transmitter. Non-expert handling may damage it and
void any all possibly warranty claims.
4. Don't use harsh chemicals, cleaning solvents or detergents to clean the unit.
CARE AND MAINTENANCE
LED CHART
LED COLOR
Blue LED fast blinking
Blue LED slow blinking
Red ON and/or Blue Slowly Blinking
Red LED Solid
Red LED off
Red LED indicator light is bright
Unit drops wireless link
Unit loses wireless for no reason
IPBTT won't pair with my device
No audio heard from transmitter
STATUS
Pairing Mode
Connected with Bluetooth ® device
Charging and/or connected with
Battery is currently charging or LOW
Charging Complete
Low Battery - Recharge Necessary
on battery life
Bluetooth ® device
The connection range varies on the
surrounding environment. Range is
not guaranteed to be 30 feet in all
situations. Range can be reduced by
other electronic devices, include cordless
phones, microwaves and typical household
electronics.
Check for other competing Bluetooth ®
or 2.4Ghz electronic devices in close proximity
to the IPBTT. Power down these devices.
Make sure both devices enter pairing mode
at or near the same time. Make sure your
Bluetooth ® device allows auto-pairing.
Make sure your Bluetooth ® device uses a
Passcode of "0000" and has A2DP profile
enabled.
Check to make sure the two products
successfully pair and both devices are
powered ON. Make sure you are within
range of the IPBTT. Make sure source
volume is not muted.
PROBLEM TIPS/SOLUTION
Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days from purchase. This
Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty
is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subject to negligence
or misuse, abuse, alteration, accident, or an act of GOD. This warranty does not apply to product which has water or physically damaged by
accident or which has been miss used, disassembled or altered.
The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective within the warranty period,
return the product with proof of purchase to Scosche Industries Inc. Scosche, at its option, will replace or repair the product free of charge and
return the product postage paid.
In no event shall Scosche Industries, Inc. be responsible for claims beyond the replacement value of the defective product, or in any way be liable
or responsible for consequential or incidental damages. No empress warranties and no implied warranties, whether for fitness or any particular use
or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Scosche. Scosche
Industries cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes or option.
LIMITED WARRANTY
3 4
This product may not be compatible with all Bluetooth®features on all Bluetooth® enabled devices. This may
or may not include send/end control functions, volume adjustment and voice dialing. Please consult your
Bluetooth®enabled cell phone operation manual for specific features and instructions.
