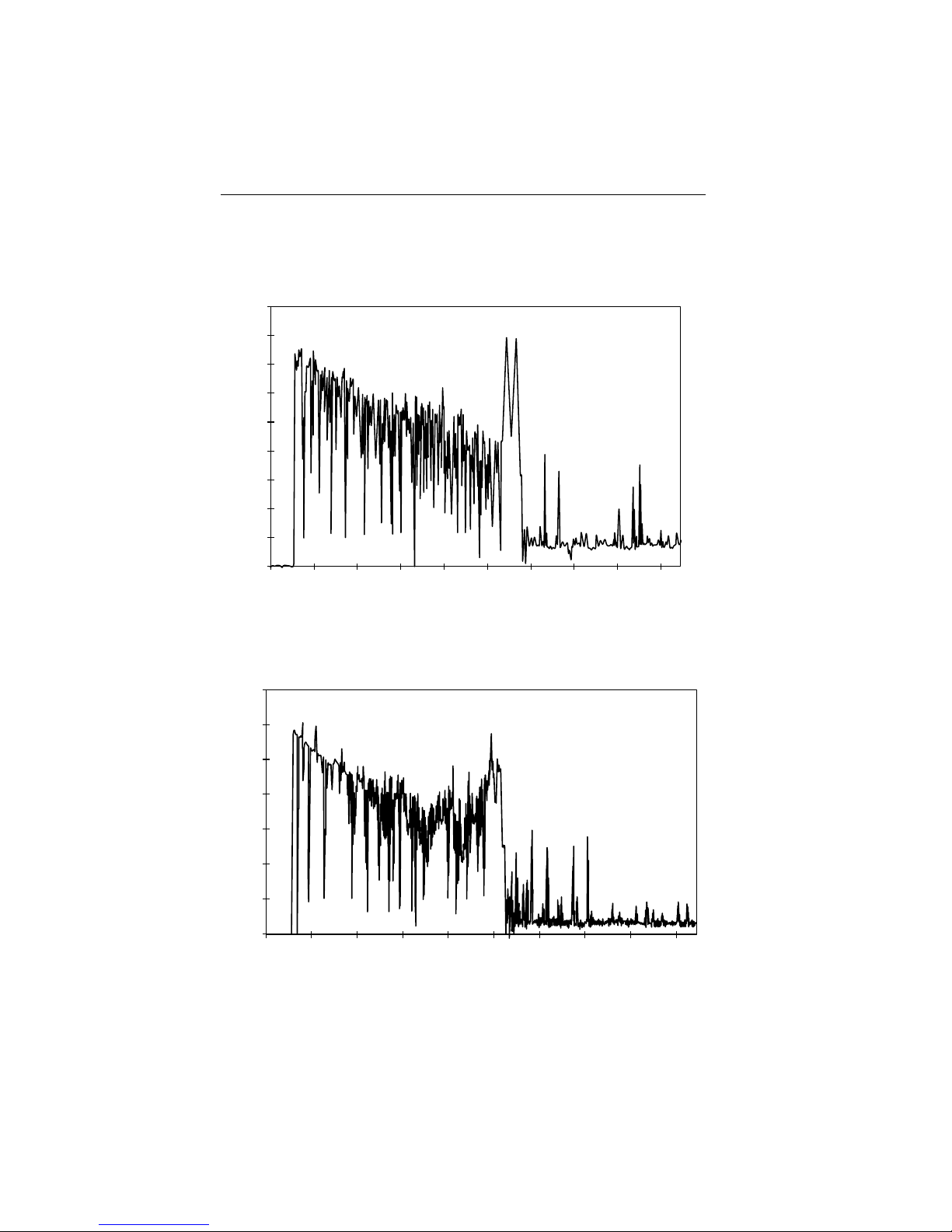

Figure 1. Typical startup and operation current profile for the
ST34340A and ST33230A . . . . . . . . . . . . . . . . 10
Figure 2. Typical startup and operation current profile for the
ST32120A, ST31721A and ST31010A . . . . . . . . . . 10
Figure 3. Alternate capacity jumper and master/slave jumpers . . 18
Figure 4. Mounting dimensions—top, side and end view . . . . . . 19
Figure 5. I/O pins and supported ATA signals . . . . . . . . . . . 22
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A v

vi Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

Introduction
The Medalist4340 (ST34340A), Medalist 3230 (ST33230A), Medalist
2120 (ST32120A), Medalist 1721 (ST31721A) and Medalist 1010
(ST31010A) provide the following key features:
•Low power consumption
•Quiet operation
•Support for S.M.A.R.T. drive monitoring and reporting
•High instantaneous (burst) data-transfer rates (up to 16.7 Mbytes per
second) using PIO mode 4 and DMA mode 2
•Full-track multisector transfer capability without local processor inter-
vention
•128-Kbyte adaptive multisegmented cache
•State-of-the-art caching and on-the-fly error-correction algorithms
•Support for Read/Write Multiple commands
•Support for autodetection of master/slave drives that use cable select
(CSEL)
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 1

Specification summary table
The specifications listed in this table are for quick reference. For details
on specification measurement or definition, see the appropriate section
of this manual.
Drive
Specification
ST34340A ST33230A ST32120A ST31721A ST31010A
Guaranteed Mbytes
(×106bytes) 4,303 3,227 2,111 1,704 1,082
Guaranteed sectors 8,404,830 6,303,024 4,124,736 3,329,424 2,114,784
Bytes per sector 512
Default sectors per
track 63
Default read/write
heads 15 16 16 16 16
Default cylinders 8,894 6,253 4,092 3,303 2,098
Physical read/write
heads 8 6 4 4 2
Discs 4 3 2 2 1
Recording density
(bits/inch max) 115,100
Track density
(tracks/inch) 5,950
Areal density
(Mbits/inch2)685
Spindle speed (RPM) 4,500
Internal data-transfer
rate (Mbits/sec max) 87.8
I/O data-transfer rate
(Mbytes/sec max) 16.7
ATA data-transfer
modes supported PIO modes 0, 1, 2, 3, 4; Multiword DMAmodes 0, 1, 2
Cache buffer
(Kbytes) 128
Height (mm max) 26.2
Width (mm max) 102.4
Length (mm max) 146.8
2 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

Drive
Specification
ST34340A ST33230A ST32120A ST31721A ST31010A
Weight
(grams typical) 540 510 500
Track-to-track seek
time (msec typical) 2 (seek), 2.5 (read), 3.5 (write)
Average seek time
(msec typical) 12 (seek), 12.5 (read), 14.5 (write)
Full-stroke seek time
(msec typical) 21.5 (seek), 22.0 (read), 23.0 (write)
Average latency
(msec) 6.67
Power-on to ready
(sec typical) 14
Standby to ready
(sec typical) 10
Startup current:
12V (peak)
5V (RMS) 1.8 amps 0.675 amps 1.5 amps 0.6 amps
Seek power
(typical) 6.8 watts 5.6 watts
Operating power
(typical) 5.2 watts 4.2 watts
Idle mode power
(typical) 4.8 watts 3.8 watts
Standby mode
power (typical) 1.0 watts
Sleep mode power
(typical) 0.7 watts
Voltage tolerance
(including noise) ±5% +5V
±10% +12V
Ambient tempera-
ture (°C) 5 to 55 (op.), –40 to 60 (nonop.)
Temperature
gradient (°C per
hour max) 20
Relative humidity
(op. and nonop.) 8% to 80%
Relative humidity
gradient 10% per hour max
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 3

Drive
Specification
ST34340A ST33230A ST32120A ST31721A ST31010A
Wet bulb tempera-
ture (°C max) 28.9 (op.), 28.9 (nonop.)
Altitude (meters
above mean sea
level, max) –61 to 3,048 (op.) –61 to 12,192 (nonop.)
Shock, operating
(Gs max at 11 msec) 5
Shock, nonoperating
(Gs max at 11 msec) 75
Vibration, operating 0.50 G (0 to peak, 5–350 Hz)
Vibration, nonoperat-
ing 5.0 Gs (0 to peak, 5-350 Hz)
Drive acoustics
(bels—sound power)
Idle mode (dBA—
sound pressure)
3.7 (typical), 4.1 (max)
34 (typical)
Drive acoustics
(bels—sound power)
Read/Write mode 4.3 (typical), 4.6 (max)
Nonrecoverable
read errors 1 per 1014 bits read
Mean time between
failures
(power-on hours) 300,000
Contact start-stop
cycles
(25°C, 40% relative
humidity)
40,000
Service life (years) 5
4 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

1.0 Drive specifications
Unless otherwise noted, all specifications are measured under ambient
conditions, at 25°C, and nominal power. For convenience, the phrases
the drive
and
this drive
are used throughout this manual to indicate the
ST34340A, ST33230A, ST32120A, ST31721A and the ST31010A.
1.1 Formatted capacity
Drive
Model Guaranteed Mbytes (1 Mbyte = 106 bytes) Guaranteed
sectors (
n
)Bytes per sector
ST34340A 4,303 8,404,830 512
ST33230A 3,227 6,303,024 512
ST32120A 2,111 4,124,736 512
ST31721A 1,704 3,329,424 512
ST31010A 1,082 2,114,784 512
Note. DOS systems cannot access more than 528 Mbytes on a drive un-
less 1) the host system supports and is configured for LBAaddress-
ing or for extended CHS addressing, 2) the host system contains a
specialized drive controller, or 3) the host system runs BIOS trans-
lation software. Contact your Seagate®representative for details.
1.1.1 Default logical geometry
CHS Mode Cylinders Read/Write heads Sectors per track
ST34340A 8,894 15 63
ST33230A 6,253 16 63
ST32120A 4,092 16 63
ST31721A 3,303 16 63
ST31010A 2,098 16 63
LBA Mode
When addressing your drive in LBA mode, all blocks (sectors) are
consecutively numbered from 0 to
n – 1,
where
n
is the number of
guaranteed sectors as defined in the table above.
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 5

1.1.2 Supported CHS translation geometries
These drives support any translation geometry that satisfies
all
of the
following conditions:
Drive
Model Sectors per track Read/Write heads
(sectors per track)
×(read/write heads)
× (cylinders)
ST34340A ≤63 ≤ 15 ≤ 8,404,830
ST33230A ≤63 ≤ 16 ≤ 6,303,024
ST32120A ≤63 ≤ 16 ≤ 4,124,736
ST31721A ≤63 ≤ 16 ≤ 3,329,424
ST31010A ≤63 ≤ 16 ≤2,114,784
1.2 Physical organization
Drive Model Read/Write heads Number of Discs
ST34340A 8 4
ST33230A 6 3
ST32120A 4 2
ST31721A 4 2
ST31010A 2 1
1.3 Recording and interface technology
Interface ATA
Recording method 2/3 (1,7) RLL
Recording density (bits/inch) 115,100
Track density (tracks/inch) 5,950
Areal density (Mbits/inch2) 685
Spindle speed (RPM)
( ±0.5%) 4,500
6 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

Internal data-transfer rate
(Mbits per second max) 87.8
I/O data-transfer rate
(Mbytes per second max) 16.7 (PIO mode 4 with IORDY) 16.7 (multiword DMA mode 2)
Interleave 1:1
Cache buffer (Kbytes) 128
1.4 Physical characteristics
ST34340A
ST33230A ST32120A ST31721A ST31010A
Maximum height (mm)
(inches) 26.2 1.03
Maximum width (mm)
(inches) 102.4 4.03
Maximum length (mm)
(inches) 146.8 5.78
Typical weight (grams)
(ounces) 540 19.04 510 17.98 500 17.68
1.5 Seek time
All seek times are measured using a 486 AT computer (or faster) with a
8.3 MHz I/O bus. The measurements are taken with nominal power at
25°C ambient temperature. All times are measured using drive diagnos-
tics. The specifications in the table on page 8 are defined as follows:
•Track-to-track seek time is an average of all possible single-track
seeks in both directions.
•Averageseektimeisatruestatisticalrandomaverageofatleast5,000
measurements of seeks between random tracks, less overhead.
•Full-stroke seek time is one-half the time needed to seek from the first
data cylinder to the maximum data cylinder and back to the first data
cylinder. The full-stroke typical value is determined by averaging 100
full-stroke seeks in both directions.
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 7

Seek type Seek (msec, typ.) Read (msec, typ.) Write (msec, typ.)
Track-to-track 2.0 2.5 3.5
Average 12.0 12.5 14.5
Full-stroke 21.5 22.0 23.0
Average latency: 6.67 msec
Note. These drives are designed to consistently meet the seek times
represented in this manual. Physical seeks, regardless of mode
(such as track-to-track and average) are expected to meet or ex-
ceed the noted values. Due to the manner in which these drives
are formatted, however, benchmark tests that include command
overhead or measure logical seeks may produce results that
vary from these specifications.
1.6 Start/stop times
Power-on to Ready (sec) 14 (typical)
Standby to Ready (sec) 10 (typical)
Ready to spindle stop (sec) 8 (typical)
1.7 Power Specifications
The drive receives DC power (+5V or +12V) through a four-pin standard
drive power connector.
1.7.1 Power consumption
Power requirements for the drives are listed in the table on page 9. Typical
power measurements are based on an average of drives tested under
nominal conditions, using 5.0V input voltage at 25°C ambient temperature.
Spinup power is measured from the time of power-on to the time that the
drive spindle reaches operating speed.
During seek mode, the read/write actuator arm moves toward a specific
position on the disc surface before executing a read or write operation.
Servo electronics are active. Seek mode poweris measuredthrough the
drive’s serial port while the drive executes a series of sequential seeks.
Read/Write power and current are measured with the heads on track,
basedona16-sectorwritefollowedbya32-msecdelay,thena16-sector
read followed by a 32-msec delay.
8 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

Operating power and current are measured using 40% random seeks,
40% read/write mode (1 write for each 10 reads), and20% drive inactive.
Idle mode power is measured with the drive up to speed, servo electron-
ics are active, and the heads are left in a random track location.
During Standby mode, the drive accepts commands, but the drive is not
spinning, andtheservoand read/writeelectronicsare inpower-downmode.
Models ST34340A and ST33230A
Mode Typical Watts (RMS) Typical Amps (RMS)
5V 12V
Spinup 0.675 1.8 (Peak)
Seek 6.8
(Random, no read/write) 0.40 0.40
Read/Write 4.9 0.45 0.22
Operating 5.2 0.47 0.24
Idle 4.8 0.41 0.23
Standby 1.0 0.20 —
Sleep 0.7 0.14 —
Models ST32120A, ST31721A and ST31010A
Mode Typical Watts (RMS) Typical Amps (RMS)
5V 12V
Spinup 0.6 1.5 (Peak)
Seek 5.6
(Random, no read/write) 0.37 0.31
Read/Write 3.9 0.40 0.16
Operating 4.2 0.41 0.18
Idle 3.8 0.38 0.16
Standby 1.0 0.20 —
Sleep 0.7 0.14 —
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 9

1.7.1.1 Typical current profile
Figures 1 and 2 show typical current profiles.
1400
1200
1000
800
600
400
200
00123456789
Time (seconds)
Current (mA)
Figure 2. Typical startup and operation current profile for the
ST32120A, ST31721A and ST31010A
1800
1600
1400
1200
1000
800
600
400
200
00123456789
Time
(
seconds
)
Current (mA)
Figure 1. Typical startup and operation current profile for the
ST34340A and ST33230A
10 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A

1.7.2 Conducted noise
Input noise ripple is measured at the host system power supply across
an equivalent 80-ohm resistive load on the +12 volt line or an equivalent
15-ohm resistive load on the +5 volt line.
•Using 12-volt power, the drive is expected to operate with a maximum
of 120 mV peak-to-peak triangular-wave injected noise at up to 25
MHz.
•Using 5-volt power, the drive is expected to operate with a maximum
of 100 mV peak-to-peak triangular-wave injected noise at up to 25
MHz.
Note. Equivalent resistance is calculated by dividing the nominal volt-
age by the typical RMS read/write current.
1.7.3 Voltage tolerance
Voltage tolerance (including noise): 5V ±5%, 12V ± 10%
1.7.4 Power-management modes
These drives provide programmable power management to provide
greater energy efficiency. In most systems, you can control power
management through the system setup program. These Seagate drives
feature several power-management modes, which are summarized in
the following table and described in more detail below:
Mode Heads Spindle Buffer
Active Moving Rotating Enabled
Idle Moving Rotating Enabled
Standby Parked Stopped Enabled
Sleep Parked Stopped Disabled
Active mode. The drive is in Active mode during the read/write and seek
operations.
Idle mode. The spindle remains up to speed. The buffer remains
enabled, and the drive accepts all commandsand returns to Active mode
any time disc access is necessary.
Standby mode. The drive enters Standby mode when the host sends a
Standby Immediate command. If the host has set the standby timer, the
drive can also enter Standby mode automatically after the drive has been
inactiveforaspecifiablelengthoftime. InStandbymode,thebufferremains
Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A 11

enabled, the heads are parked and the spindle is at rest. The drive
accepts all commands and returns to Active mode any time disc access
is necessary.
Sleep mode. The drive enters Sleep mode after receiving a Sleep
Immediate command from the host. The heads are parked and the
spindle is at rest. The drive leaves Sleep mode after it receives a Hard
Reset or Soft Reset command from the host. After receiving the reset,
the drive exits Sleep mode and enters Idle mode with all current emula-
tion and translation parameters intact.
Standbytimer.EachtimethedriveperformsanActivefunction(read,write
or seek), the standby timer is reinitialized and begins counting down from
its specified delay times to zero. If the standby timer reaches zero before any
driveactivityisrequired,thedrivemakesatransitiontoStandbymode.Inboth
IdleandStandbymode,thedriveacceptsallcommandsandreturnstoActive
mode when disc access is necessary.
1.8 Environmental tolerances
1.8.1 Ambient temperature
Operating 5° to 55°C (41° to 131°F)
Nonoperating –40° to 60°C (–40° to 140°F)
Note. Above 1,000 feet (305 meters), the maximum temperature is der-
ated linearly to 112 °F (44°C) at 10,000 feet (3,048 meters). Oper-
ating ambient temperature is defined as the temperature of the
environment immediately surrounding the drive.
1.8.2 Temperature gradient
Operating 20°C/hr (36°F/hr) max, without condensation
Nonoperating 20°C/hr (36°F/hr) max, without condensation
1.8.3 Humidity
1.8.3.1 Relative Humidity
Operating 8% to 80% noncondensing (10% per hour max)
Nonoperating 8% to 80% noncondensing (10% per hour max)
12 Medalist 4340, 3230, 2120, 1721 and 1010, Rev. A
