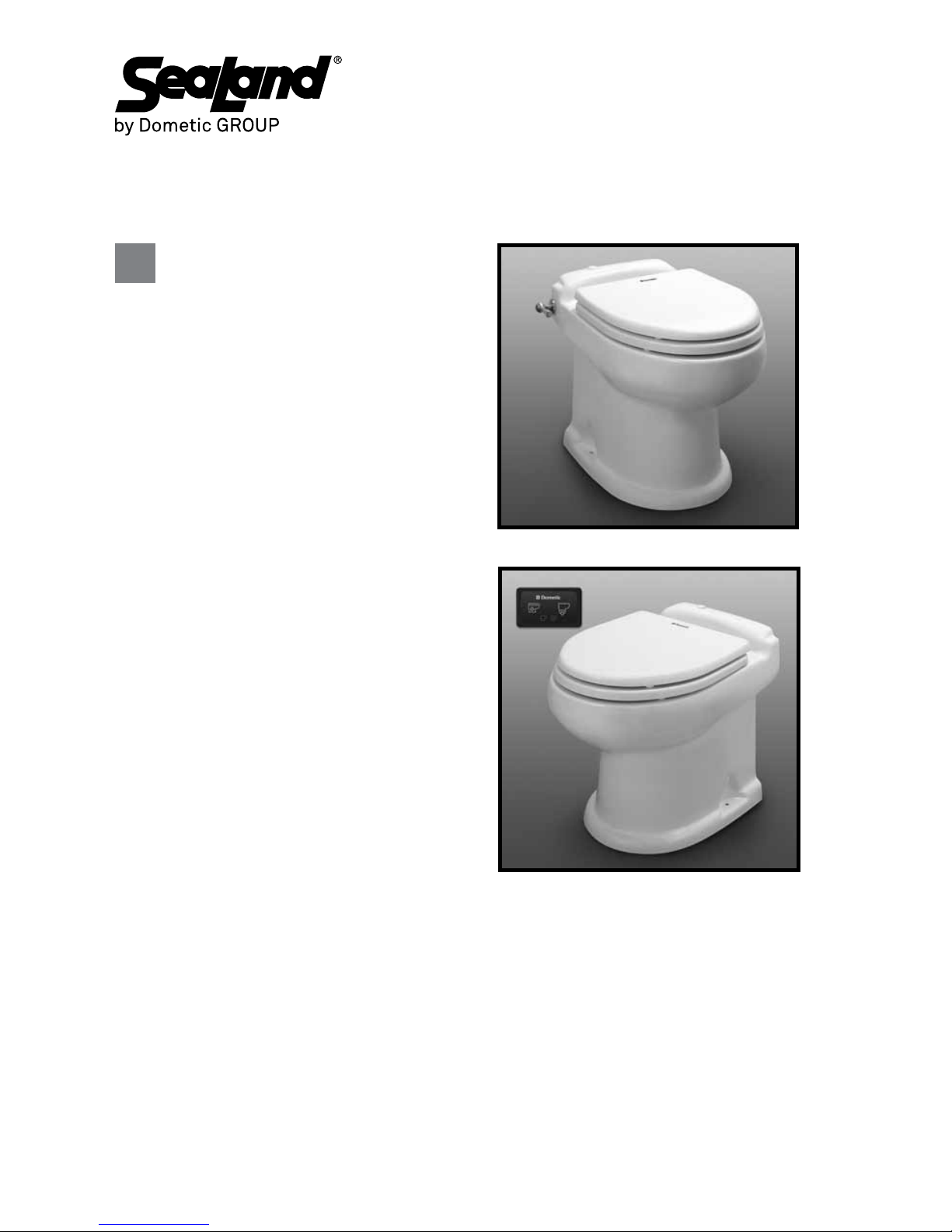

SeaLand VacuFlush 4700 Series User manual

1
Vacuum toilet system
Operation manual
EN
Abwasser-Auslasspumpe
Bedienungsanweisung . . . . . . . . . . . 12
DE
Pompe d’évacuation
Mode d’emploi . . . . . . . . . . . . . . . . . 12
FR
Bomba de descarga
Manual de instrucciones . . . . . . . . . . 12
ES
Aftappomp
Instructihandleiding. . . . . . . . . . . . . . 12
NL
Pompa di scarico
Manuale di istruzioni . . . . . . . . . . . . . 12
IT
Tyhjennyspumppu
Käyttöohje .................... 12
FI
Avloppspump
Handbok ..................... 12
SV
Udledningspumpe
Instruktionsmanual . . . . . . . . . . . . . . 12
DA
Tømmepumpe
Bruksanvisning . . . . . . . . . . . . . . . . . 12
NO 4700 Series
VacuFlush®
Toilets

2
Dometic 4700 Series VacuFlush Toilet
A
D
B C
4
12
1
1
2
3
4
5
6
7
8
9
10
7
8
11
910
4 2
3
6
5
A
BC
D
E
G
3
F

3
Dometic 4700 Series VacuFlush Toilet Notes on using the manual
Table of contents
1 Notes on using the manual .................................................3
2 General safety instructions ..............................................3 - 4
3 Intended use .........................................................4 - 5
4 Components .........................................................5 - 6
5 Specications ........................................................6 - 7
6 Operation............................................................7 - 8
7 Maintenance/winterizing/service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 15
8 Warranty ..........................................................16 - 17
9 Customer service........................................................18
1 Notes on using the manual
Caution!
Safety Instruction: Failure to observe this instruction can cause material damage and impair
the function of the device.
Note
Supplementary information for operating the device.
g. 1 2, page 2 : This refers to an element in an illustration. In this example, item 2 in gure
1 on page 2.
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from the following:
• Faulty installation or connection
• Damage to the unit from mechanical inuences, misuse or abuse
• Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in this manual
2.1 Warnings – marine applications
The following statements must be read and understood before installing, servicing and/or
operating this product on a boat. Modication of this product may result in property damage.
Dometic recommends that a qualied marine technician or electrician install or service this product.
Equipment damage, injury to personnel or death could result from improper installation. DOMETIC
ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR
DEATH TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR
OPERATION OF THIS PRODUCT.
Caution! Hazard of Flooding
If the toilet is connected to ANY through-the-hull ttings, properly installed seacocks MUST
be installed in all piping connected to through-the-hull ttings. Seacocks MUST be easily
accessible to all users of the toilet or secondary valves tted in hoses where they are easily
accessible. All valves MUST be full bore valves and of marine quality. Screw-to-close gate
valves are not recommended. Failure to do so can result in ooding which can cause loss
of property and life.
EN

4
Dometic 4700 Series VacuFlush ToiletGeneral safety instructions
Caution! Hazard of Flooding
If toilet is connected to ANY through-the-hull ttings, ALWAYS close seacocks when
toilet is not in use (even if boat is unattended for a brief period). All passengers MUST be
instructed on how to close valves when the toilet is not in use. Failure to do so can result in
ooding which can cause loss of property and life.
Caution! Hazard of Flooding
If toilet is connected to ANY through-the-hull ttings, ALL exible hoses must be of marine
sanitation quality and must be secured to ANY ttings (such as those at seacock, vented
loop or toilet) with two stainless steel, worm-drive hose band clamps at each connection.
Connections MUST be checked frequently for integrity. Failure to comply can result in
ooding which can cause loss of property and life.
Caution! Hazard of Flooding
If toilet rim is below the waterline at ANY time (during any conditions of heel, load or trim)
and is connected to ANY through-the-hull ttings, properly positioned ventilated (vented)
loops MUST be installed in intake* or discharge piping to prevent potential back siphonage
of seawater into the boat. Failure to do so can result in ooding which can cause loss of
property and life.
* if connected to raw water
Caution! Hazard of Flooding
If the toilet uses fresh water for ushing and is connected directly or indirectly to a shore-
side municipal water system at ANY time, shoreside water connections MUST be discon-
nected if the boat is unattended (even if boat is unattended for a brief period). Failure to do
so can result in ooding which can cause loss of property and life.
Caution! Hazard of Flooding
If toilet uses raw water for ushing at ANY time, a raw water pump controlled by an auto-
matically operating demand switch MUST NOT be installed. If the onboard water valve or
any plumbing connections were to leak, the automatically operated pump would start and
could ood the boat. Failure to comply can cause loss of property and life.
Caution! Hazard of Flooding
Before beginning any work on this product, be sure that all electrical power to the unit has
been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can
result in ooding which can cause loss of property and life.
Caution!
Overlling the holding tank can create serious damage to the sanitation system, such as
rupturing the holding tank and releasing tank contents into the bilge. To prevent this pos-
sibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s electronic
control module. The “full” signal from the holding tank can be generated by an optional
Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.
3 Intended use
The Dometic 4700 series VacuFlush toilet provides an electric-ush toilet that vacuums waste from
the bowl and pumps it to a holding tank or other efuent storage/disposal system. Operated by a
wall-mounted ush switch or electronic ush handle, the toilet allows the user to add water to the
bowl (before using or ushing) and to ush the toilet. A status panel activates lights to indicate when
the toilet is ready to ush, when the toilet is operating, and when the toilet is not ready to ush due
to recharging vacuum or a full holding tank.

5
Dometic 4700 Series VacuFlush Toilet Intended use
3.1 Benefits
Convenient electronic flush. Add water or ush with the touch of a button or by operating the
ush handle. No need to continue pressing button or handle for full ush to occur.
Choice of two water consumption settings. “Normal” ush uses 2 quarts (1.9 liters) per ush and
adds water to bowl after ush; “Dry Bowl” setting uses only 1 pint (0.5 liter) per ush and does not
add water to the bowl – ideal for marine applications when boat is underway.
“OK to Flush” and “Do Not Flush” indicator lights. Green light indicates “OK to Flush” when
proper vacuum is achieved and toilet is ready to ush. Red light indicates “Do Not Flush” when
vacuum level is too low for a ush to occur. Vacuum recharges in about one minute after ushing.
Integrated fuse. Toilet circuitry includes built-in resettable fuse. If toilet fuse ever trips, just turn
off electrical power to toilet for about 60 seconds, then turn electrical power on.
Automatic “full tank” shut-down. When connected to a holding tank level indication system and
the tank reaches full level, electrical power to the toilet will become interrupted. This safety feature
prevents overlling the holding tank, which may cause damage to the boat or vehicle.
Three-second “rough seas” shut-down delay. If motion of rough sea causes “full tank” indica-
tor to activate toilet shut-down, a three-second signal delay allows tank contents to settle before
completing shut-down process.
Service mode. Service mode keeps ush ball open for easier toilet cleaning or other service
function.
4 Components
4.1 4700 series VacuFlush toilet
(g. 1 , page 2) (g. 2 , page 2)
Ref. Description
1 Anti-siphon vacuum breaker
2 Electric water valve
3 Water supply line
4 Status panel cable connector *
5 Vacuum generator cable connector
6 Flush switch cable connector
7 Circuit board
8 Flush ball motor/drive linkage
9 Flush handle (alternate model) *
10 Flush handle switch *
11 Service mode switch
* Component of ush handle toilet model only.
Refer to complete parts list (packed separately) for
additional information.
Ref. Description
A Dometic ush switch/status panel
B Vimar ush switch/status panel
C Gewiss ush switch/status panel
D VacuFlush status panel
(for ush handle model only)
4700 series VacuFlush toilets operate with selection of
Dometic, Vimar and Gewiss ush switches.
Models vary.

6
Dometic 4700 Series VacuFlush ToiletComponents
4.2 Typical VacuFlush toilet system (marine)
(g. 4 , page 2)
Ref. Description
1 4700 series VacuFlush toilet
2 Flush switch/status panel
3 Vacuum generator
4 Holding tank status panel
5 Holding tank (waste)
Ref. Description
6 Vent lter
7 Discharge pump
8 Overboard discharge tting
9 Air vent tting
10 Dockside discharge tting
Some VacuFlush toilet systems combine the vacuum generator (3) and holding tank (5) into one unit (VacuFlush holding tank system).
Contact boat or vehicle manufacturer for complete information on your toilet system.
5 Specifications
5.1 Materials
Toilet body: vitreous ceramic
Toilet seat: thermoset plastic resin or wood (seats vary according to toilet model)
Discharge fitting: PVC
5.2 Approvals
CE, REACH and ROHS compliant components
5.3 Toilet installation specifications
Electrical Amp draw (average) 2 amps at 12 V DC; 1 amp at 24 V DC
Fuse 2-amp internal fuse (resettable)
Water
Supply
Fitting 0.5 in. NPT
Flow rate 4.0 gpm/15 lpm minimum required at toilet
Discharge
Size 1.5 in./38 mm ID PVC pipe or sanitation hose
Horizontal run 50 ft./15 m maximum to vacuum source
Vertical run 6 ft./1.8 m maximum to vacuum source
Required
components
Electric ush switch Dometic, Vimar or Gewiss (purchased separately)
(wall switch toilets only)
Status panel VacuFlush status panel (for ush handle toilets only)
Vacuum source VacuFlush vacuum generator or
VacuFlush holding tank system (purchased separately)
Specications subject to change without notice.

7
Dometic 4700 Series VacuFlush Toilet Specifications
5.4 Dimensions (g. 3 , p. 2) All dimensions may vary ±3/8 inch (10 mm)
Ref. Dimension
A 19 in. / 483 mm
B 14.75 in. / 375 mm
C 21.5 in. / 546 mm
D 17.75 in. / 451 mm - seat height
E 17.125 in. / 435 mm
F 10 in. / 254 mm - centerline
rough-in
G 33.75 in. / 857 mm - seat lid up
Ref. Dimension
A 19 in. / 483 mm
B 15.875 in. / 403 mm
C 21.5 in. / 546 mm
D 17.75 in. / 451 mm - seat height
E 17.125 in. / 435 mm
F 10 in. / 254 mm - centerline
rough-in
G 33.75 in. / 857 mm - seat lid up
Models with wall-mounted flush
switch Models with flush handle
6 Operation
6.1 Toilet system start-up
1. Fill freshwater tank.
2. Turn on electrical power and water supply to toilet.
3. Flush water through toilet system by ushing toilet ve times (allow each ush cycle to complete
until green light indicates system is ready for next ush). Each cycle takes about one minute.
6.2 Normal toilet operation
ADD WATER TO TOILET BOWL
Press “Add Water” switch or raise ush handle until desired
water level is achieved. More water is usually added only when
ushing solids. (If switch is pressed too long, water ow will
shut off automatically to avoid overow.)
FLUSH TOILET
Press “Flush” switch or press ush handle down for a moment,
then release it. Flush only when the green “OK to Flush” light is
on. Toilet will not ush until the green light is on. It takes about
one minute for vacuum to recharge for the next ush.
If the red “Do Not Flush” light is on, the system is either
recharging the vacuum, or the holding tank is full. The toilet
will not ush while the red light is on.
DO NOT FLUSH FOREIGN OBJECTS
CAUTION! Flush only water, bodily wastes and rapid-dissolving tissue paper. Do not
ush wet wipes, sanitary napkins, condoms, diapers, razor blades paper cups, cotton
swabs food, hair or liquids such as oils or solvents. Clogging or damage to the toilet
system may occur.
FLUSH HANDLE
CONTROL
Add water
Flush

8
Dometic 4700 Series VacuFlush ToiletOperation
Note
Make sure all guests understand toilet operation before use.
6.3 Changing flush modes
Dometic 4700 series VacuFlush toilets offer two ush settings to help manage water consumption:
Normal flush – Uses 2 quarts (1.9 liters) per ush. Adds water to bowl after every ush.
Dry Bowl flush – Uses 1 pint (0.5 liter) per ush. Does not add water to bowl after ush.
To change from Normal to Dry Bowl ush setting, press “Flush” switch or ush handle for about ve
seconds. When green light on status panel begins ashing, release “Flush” switch. Flush mode has
been changed to Dry Bowl setting. Change mode to Normal ush by following the same procedure.
6.4 Indicator lights
“OK TO FLUSH” GREEN INDICATOR
On the Dometic, Vimar and Gewiss status panels, a steady green “OK to Flush” light
indicates when the toilet is ready to ush. A momentary ashing green light indicates
when ush mode is changing.
“DO NOT FLUSH” RED INDICATOR
The Dometic, Vimar and Gewiss status panels include a red “Do Not Flush” red light to
indicate two toilet system conditions:
1. Vacuum level in toilet system is not sufcient for complete ush.
2. Holding tank is full and should be pumped out (tank must be equipped with “full tank” sensor).
When the red light is on, electrical power to the toilet is interrupted to prevent possible overlling of
the holding tank. Flush ball will open only in “Service” mode.
6.5 Service mode
To clean the toilet bowl or perform other service that requires
keeping the ush ball open without running water, use the
Service Mode switch (g. 1 11, p. 2) on top of the toilet.
1. Open cap, then insert pencil or screwdriver to push button.
This opens ush ball.
2. Perform the service operation. To close the ush ball and
return to Normal operation, push the button again.
7 Maintenance / winterizing / service
7.1 Cleaning the toilet
To maintain the toilet’s original, lustrous appearance, use
SeaLand® Toilet Bowl Cleaner or other non-abrasive bathroom
and toilet bowl cleaners. Please follow label directions.
Caution
To avoid damaging the toilet system’s seals and
valves, do not clean toilet with abrasive cleaners,
caustic chemicals, or lubricants and cleaners that
contain alcohols or petroleum distillates.

9
Dometic 4700 Series VacuFlush Toilet Maintenance/winterizing/service
7.2 VacuFlush system maintenance
Maintenance procedures vary widely and depend on factors such as frequency of use, quality of
ushing water, etc. The chart provides a general guideline for keeping your toilet system ready for
use at any time.
Maintenance procedure Service interval Notes
ROUTINE
Check all clamped hose joints
below water line for leaks.
Monthly —
Check lter screen in water valve. After rst year of service, then as
needed if water ow is noticeably
slower.
Screen is located inside water
valve inlet.
Replace vent lter (if installed in
holding tank vent line).
Annually —
MAJOR SYSTEM MAINTENANCE
Replace duckbill valves in vacuum
generator or vacuum pump.
Every three years See vacuum generator or
vacuum pump parts list for
replacement kit part number.
Replace ush ball seal and ush
ball (if required).
Every three years See toilet parts list for replace-
ment kit part number.
7.3 Recommended spare parts
When operating boat or other vehicle in remote areas, keep the following spare parts on hand to
assure continuous toilet system operation.
Description Where used
Flush ball seal 4700 series toilet. See parts list.
Flush ball 4700 series toilet. See parts list.
Electric water valve 4700 series toilet. See parts list.
Vacuum switch kit Vacuum tank or vacuum generator. See parts list.
Duckbill valves Vacuum tank or vacuum generator. See parts list.
To order spare parts, refer to Customer Service section.
7.4 During extended periods of non-use
Toilet system sanitation hoses should be cleared if toilet will not be needed for an extended period of
time (more than two weeks).
1. Fill toilet bowl with water and add 4 oz. (120 ml) of liquid biodegradable laundry detergent
(should NOT contain bleach).
2. Open ush ball in Service Mode (see directions in Section 6.5). Press the “Add Water” switch
down, or raise ush handle up, until water stops owing. Push Service Mode button to return to
Normal mode, then push again to return to Service Mode. Repeat “Add Water” process about
12 times. Return to Normal mode.
3. Turn off water supply to toilet.
4. Flush the toilet without water, allowing the vacuum pump to shut off after the ush. Repeat three
times. (This procedure will minimize any remaining water in the sanitation hoses.)
5. Turn off power to the vacuum pump. (continued on next page)

10
Dometic 4700 Series VacuFlush ToiletMaintenance/winterizing/service
6. Completely pump out holding tank.
If system will be subjected to freezing temperatures, please follow above procedure, then winterize
system as described in Section 7.7.
TURN OFF ELECTRICITY AND WATER TO TOILET IF IDLE FOR LONG PERIODS OF TIME
If people will not be using the boat for a long time (vacation, maintenance, off-season, etc.), or in
the event of a long electrical power interruption, electrical power and water supply to the toilet and
vacuum generator should be shut off.
7.5 Clearing blockage in toilet base
1. Open the ush ball in Service Mode.
2. Pull the foreign material from the 1-inch diameter orice at the bottom of the base or, using a
small diameter blunt rod, attempt to push the blockage through the orice.
7.6 Locating potential vacuum leaks in base assembly
The VacuFlush toilet is part of a vacuum system that includes a vacuum pump and vacuum tank (or
a vacuum generator) and discharge plumbing lines. If a vacuum leak is suspected, special equip-
ment will isolate the source of the leak. If the toilet is determined to be the source of the leak, there
are three possible areas to investigate:
1. Flush ball and ush ball seal. See Problem 11 in Troubleshooting Guide.
2. O-rings on the rotor shaft.
3. O-rings around bottom of toilet base assembly.
Sources 1 and 2 will require the base assembly to be removed from the toilet and partially
disassembled.
7.7 Winterizing
At the end of each season, the VacuFlush toilet system should be winterized for storage. Follow this
procedure:
1. Pump out holding tank.
2. Thoroughly ush system with fresh water.
3. Drain freshwater tank.
4. Add freshwater antifreeze to freshwater tank.
5. Flush freshwater water antifreeze and water mixture through toilet and into the waste holding
tank. Each installation is different, so amounts may vary. User discretion is required to assure
adequate protection.
6. Empty holding tank.
Note
Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle
owner’s manual.)
Caution
Never use automotive-type antifreeze in freshwater systems.

11
7.8 Troubleshooting guide
Toilet base assembly
Electric
ush
handle
Vacuum
Breaker
Electric Water
Valve
Filter
Screen
Drive Arm
Linkage
Flush
Spring
Circuit Board
Cam Switch
Rotor Shaft Cam
Flush Ball
Retaining Ring
Flush Ball Seal
Bowl Seal
Motor
Caution
Use an ohmmeter and wiring diagrams of toilet and vacuum system when troubleshooting
electrical problems.
Problem Possible Cause Service Instruction
1. Water does not enter bowl
and toilet does not ush.
a. Toilet fuse or circuit breaker is
tripped.
b. Loose wire connections.
c. Incorrect wiring of toilet to
incoming power.
d. Defective circuit board on toilet.
a. To check toilet fuse, turn off
electrical power to toilet, wait
60 seconds, then turn on power
to toilet. Check circuit breaker at
main distribution panel.
b. Check for loose or defective wire
at circuit board pins 8 and 9.
c. Check for reverse polarity of in-
coming power at circuit board –
pin 8 (positive) and 9 (negative).
d. Replace circuit board on toilet.
Dometic 4700 Series VacuFlush Toilet Maintenance/winterizing/service

12
Dometic 4700 Series VacuFlush ToiletMaintenance/winterizing/service
Problem Possible Cause Service Instruction
2. Water enters toilet bowl, but
toilet does not ush.
a. Green “OK to Flush” light is not
lit on status panel.
b. Electrical failure from ush
switch or ush handle to toilet.
c. Flush switch or handle may be
defective.
d. Loose ush ball motor wires.
e. Defective ush ball motor.
f. Flush ball motor drive arm
failure.
g. Drive linkage failure.
a. Check for loose/defective wires
between vacuum switch (on
vacuum generator) and wire 6 of
toilet circuit board.
b. Check for loose/defective wires
between ush switch or handle
and pins 2 and 4 of toilet circuit
board.
c. Replace if necessary.
d. Check for loose wires between
motor and toilet circuit board
pins 17 and 18.
e. Replace if necessary.
f. See page 15 for replacement
instructions.
g. See page 15 for replacement
instructions.
3. Water does not enter toilet bowl,
but toilet ushes.
a. Blocked water supply.
b. Loose/defective wires.
c. Defective water valve.
d. Defective circuit board on toilet.
a. Clear blockage in water line or
lter screen at water valve inlet.
b. Check wires between water
valve and toilet circuit board pins
15 and 16.
c. Replace water valve.
d. Replace toilet circuit board.
4. Water does not enter toilet when
pressing “Add Water” switch or
raising ush handle.
a. Electrical failure.
b. Defective ush switch or handle.
c. Defective circuit board on toilet.
a. Check wires between “Add
Water” switch or ush handle and
toilet circuit board pins 1 and 4.
b. Replace ush switch or handle.
c. Replace toilet circuit board.
5. Water does not shut off and
toilet bowl overows.
a. Debris inside water valve or
defective water valve.
b. Defective circuit board on toilet.
a. Replace water valve.
b. Replace toilet circuit board.
6. Flush ball cycles constantly
between open and closed
position.
a. Cam switch needs adjusted to
align ush ball.
b. Defective cam switch.
c. Defective drive linkage.
d. Defective rotor shaft cam.
a. See page 14 for cam switch
adjustment instructions.
b. Replace cam switch.
c. Replace drive linkage. See page
15 for instructions.
d. Replace rotor shaft cam. See
page 15 for instructions.
7. Flush ball opens slowly. a. Excessive drag between ush
ball and seal.
b. Defective spring assembly.
a. Clean surface of ush ball and
under edge of seal. Lubricate
with silicone grease or alcohol-
free cooking spray.
b. Replace spring.
8. Flush ball does not close
completely.
a. Cam switch needs adjustment/
ush ball alignment or
replacement.
b. Rotor shaft cam is loose or
defective.
a. See adjustment/alignment or re-
placement instructions on pages
14-15.
b. See replacement instructions on
page 15.

13
Dometic 4700 Series VacuFlush Toilet Maintenance/winterizing/service
Problem Possible Cause Service Instruction
9. Flush ball does not open
completely.
a. Rotor shaft cam is loose or
defective.
b. Weak or defective spring
assembly.
c. Excessive drag between ush
ball and seal.
a. See instructions for repair or
replacement on pages 14-15.
b. Replace spring.
c. Clean surface of ush ball and
under edge of seal. Lubricate
with silicone grease or alcohol-
free cooking spray.
10. Squeaky noise occurs during
ush cycle.
a. Lubrication needed between
ush ball and seal.
b. Lubrication needed between
drive arm/linkage joint.
a. Lubricate with silicone grease or
alcohol-free cooking spray.
b. Lubricate joint with silicone
grease.
11. Water does not stay in toilet
bowl (leaks between ush ball
and seal).
a. Flush ball seal is worn and
needs replaced.
b. Flush ball is scratched or worn
and needs replaced.
c. Cam switch/ush ball alignment
needs adjustment.
d. Bolts that hold base to toilet
need tightened to 20-25 in.-lbs.
a. See instructions on page 14 for
replacement.
b. See instructions on page 15 for
replacement.
c. See instructions on page 14 for
adjustment.
d. DO NOT OVERTIGHTEN or
damage to toilet may occur.
12. Toilet ushes in both “Add
Water” and “Flush” positions.
a. Defective circuit board on toilet. a. Replace toilet circuit board.
13. Water leaks from toilet onto
oor.
a. Loose water line connection.
b. Defective water valve.
c. Toilet bowl seal is defective.
d. Mounting bolts holding base to
toilet need tightened to 20-25
in.-lbs.
a. Tighten water line connections.
b. Replace water valve.
c. Replace bowl seal. See
instructions on page 14.
d. DO NOT OVERTIGHTEN or
damage to toilet may occur.
14. Green “OK to Flush” light does
not illuminate, but toilet ushes.
a. Loose wire at circuit board on
toilet.
b. Loose wire at status panel.
c. Defective green light.
d. Defective circuit board on toilet.
a. Check wire connected to pin 3
of toilet circuit board.
b. Check green wire at status
panel.
c. Replace status panel.
d. Replace toilet circuit board.
15. Red “Do Not Flush” light does
not illuminate.
a. Loose wire at circuit board on
toilet.
b. Loose wire at status panel.
c. Loose or defective wire from
“full tank” shut-down relay.
d. Defective circuit board on toilet.
a. Check wires connected to pins 5
and 7 of toilet circuit board.
b. Check red wire at status panel.
c. Repair or replace wire.
d. Replace toilet circuit board.
16. Flush ball opens and closes,
but waste does not leave
bowl (no vacuum).
a. No electrical power to vacuum
pump.
b. “Full Tank” shut-down relay
prevents vacuum pump from
operating.
c. Blockage inside bottom of toilet
base.
a. Check power wires, fuse or
circuit breaker to vacuum pump.
b. Pump out holding tank.
c. See instructions to clear
blockage (section 7.5, p.10).

14
Dometic 4700 Series VacuFlush ToiletMaintenance/winterizing/service
7.9 Servicing toilet base components
ALIGNING CAM SWITCH/FLUSH BALL
The ush ball should be properly positioned so that
the “A” and “B” distances are equal (see illustration at
right). If the ush ball becomes misaligned (resulting in
water leaking from bowl or other ushing problems),
follow instructions below to resolve problem.
REMOVING TOILET FROM FLOOR
1. Turn off water and electrical power to
toilet.
2. Remove water inlet hose from toilet.
3. Remove toilet from oor and turn it upside down.
MAKE SURE POWER WIRES REMAIN SECURE.
4. Loosen cam switch mounting screws with 3/32-
inch hex tool and 1/4-inch box-end wrench. Slide
cam switch up or down (see illustrations below)
depending on ush ball position.
5. Tighten cam switch mounting screws, apply
electrical power and check adjustment. Repeat as
necessary.
6. After cam switch and ush ball are properly
positioned, connect water line and reinstall toilet.
Over-travel
condition
Slide
cam switch
DOWN
Slide
cam switch
UP
Under-travel
condition
REPLACING THE FLUSH BALL SEAL
1. Turn off water and electrical power to toilet.
2. Remove water inlet hose from toilet.
3. Remove toilet from oor and turn it upside down. Disconnect Service Switch wires at in-line connectors.
4. Remove three nuts and at washers securing base assembly to toilet bowl using a 1/4-inch drive ratchet
wrench, 7/16-inch deep-well socket and extension.
5. Pull vacuum breaker out of the sealing grommet located in rear of toilet bowl.
6. Lift base assembly from toilet.
7. Replace old seals with a complete seal kit.
8. Reconnect base assembly to toilet with new mounting bolts (L-shaped) included with seal kit. Tighten nuts to
20-25 in.-lbs. torque.
9. Reconnect Service Switch wires. Reattach water inlet hose to toilet.
10. Reinstall toilet to oor.

15
Dometic 4700 Series VacuFlush Toilet Maintenance/winterizing/service
REPLACING THE FLUSH BALL
1. Turn off water to toilet.
2. Open ush ball in Service Mode, then turn off
power to toilet.
3. Disconnect water inlet hose.
4. Remove toilet from oor and turn upside down,
and disconnect Service Switch wires at in-line
connectors.
5. Pull vacuum breaker out of the sealing grommet
located in rear of toilet bowl.
6. Remove three nuts and at washers securing base
assembly to ceramic toilet bowl using a 1/4-inch
drive ratchet wrench, 7/16-inch deep-well socket
and extension.
7. Lift base assembly from toilet.
8. Remove bowl seal, ush ball seal, and retainer
plate to expose ush ball.
9. Loosen set screw in the rotor shaft cam using
a 1/8-inch hex tool.
10. Remove the #8 x 1/4-inch long screw and at
washer from linkage slot.
11. Remove the four screws securing the mounting
bracket to base.
12. Pull mounting bracket and rotor cam off base.
13. Rotate ush ball forward and remove ush ball
retaining screw.
14. Replace ush ball and reverse disassembly
through step 10.
15. Push rotor cam all the way onto rotor shaft.
Tighten set screw.
16. Lubricate moving parts with silicone grease.
17. Before reassembling entire toilet, the cam switch
may require adjustment. See “Aligning Cam
Switch” on page 14.
REPLACING THE ROTOR SHAFT
1. Follow disassembly steps 1 through 14 under
“Replacing the Flush Ball”.
2. Pull rotor shaft out from inside of the base.
3. Lubricate O-rings on new shaft with silicone
grease.
4. Align at section on rotor shaft with at section in
cam during assembly. Push rotor shaft cam fully
onto rotor shaft. Tighten set screw.
5. Lubricate moving parts with silicone grease.
6. Reverse the disassembly procedure.
7. Before attaching base to toilet, the cam
switch may require adjustment. See
“Aligning Cam Switch” on page 14.
REPLACING THE ROTOR SHAFT CAM
1. Follow disassembly steps 1 through 14 under
“Replacing the Flush Ball”.
2. Remove linkage pin clip and pin.
3. Attach new rotor shaft cam to linkage using
pin and clip.
4. Lubricate moving parts with silicone grease.
5. Reverse the disassembly procedure.
6. Before attaching base to toilet, the cam
switch may require adjustment. See
“Aligning Cam Switch” on page 14.
REPLACING THE MOTOR DRIVE ARM
1. Follow disassembly steps 1 through 11 under
“Replacing the Flush Ball”.
2. Remove the four motor mounting screws.
3. Remove the motor from the mounting bracket.
4. Loosen the Drive Arm set screw using a 3/32-inch
hex tool, then remove old Drive Arm.
5. Install new Drive Arm and push onto motor shaft
as far as possible. Tighten the set screw.
6. Lubricate moving parts with silicone grease.
7. Reverse disassembly procedure.
8. Before attaching base to toilet, the cam
switch may require adjustment. See
“Aligning Cam Switch” on page 14.
REPLACING THE DRIVE LINKAGE
1. Follow disassembly steps 1 through 13 under
“Replacing The Flush Ball”.
2. Remove linkage pin clip and pin at rotor shaft cam.
3. Remove the ush spring retaining screw and
washer from the retaining post.
4. Remove the ush spring from the old linkage.
5. Insert the ush spring into the new linkage
and reattach the spring to the retaining post.
6. Attach linkage to rotor shaft cam using pin
and clip.
7. Lubricate moving parts with silicone grease.
8. Reverse the disassembly procedure.

16
Dometic 4700 Series VacuFlush ToiletWarranty
North America and Rest of the World:
Manufacturer’s One-Year and Five-Year Limited Warranty
Dometic Corporation, Sanitation Division warrants to the original purchaser only that this product (certain
Dometic products, listed below, have a longer warranty period), if used for personal, family or household pur-
poses, is free from defects in material and workmanship for a period of one year from the date of purchase.
Dometic Corporation, Sanitation Division also warrants to the original purchaser only that the following
products will not leak liquid sewage or malodorous gases for a period of ve (5) years if used for personal,
family or household purposes:
• OdorSafe branded sanitation hose
• Thermoplastic pump bellows installed in the Dometic T series discharge pump
• Dometic DHT-L series holding tanks
If this Dometic product is placed in commercial or business use, it will be warranted to the original
purchaser only to be free of defects in material and workmanship for a period of ninety (90) days
from the date of purchase.
Dometic reserves the right to replace or repair any part of this product that proves, upon inspection
by Dometic, to be defective in material or workmanship. All labor and transportation costs or
charges incidental to warranty service are to be borne by the purchaser-user.
EXCLUSIONS
IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR
DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT,
ABUSE, ALTERATION OR USE OF UNAUTHORIZED COMPONENTS. ALL IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE, ARE LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF PURCHASE.
IMPLIED WARRANTIES
No person is authorized to change, add to, or create any warranty or obligation other than that
set forth herein. Implied warranties, including those of merchantability and tness for a particular
purpose, are limited to one (1) year from the date of purchase for products used for personal, family
or household purposes, and ninety (90) days from the date of purchase for products placed in com-
mercial or business use.
OTHER RIGHTS
Some states do not allow limitations on the duration of an implied warranty and some states do not allow
exclusions or limitations regarding incidental or consequential damages; so, the above limitations may
not apply to you. This warranty gives you specic legal rights, and you may have other rights which vary
from state to state.
To obtain warranty service, rst contact your local dealer from whom you purchased this product or go to
http://www.dometic.com/enus/Americas/USA/Customer-Support/ for a dealer near you.
® Registered; ™ Trademark of Dometic Corporation
8 Warranty and product liability

17
Dometic 4700 Series VacuFlush Toilet Warranty
Europe:
Warranty and Customer Service
Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions
applicable for the country concerned. For warranty or other service, please contact our Dometic
Customer Service department. Any damage due to improper use is not covered by the warranty.
The warranty does not cover any modications to the product or the use of non-original Dometic
parts; the warranty does not apply if the installation and operating instructions are not adhered to
and no liability shall be entertained.
Dometic also warrants to the original purchaser only that the following products will not leak liquid sewage
or malodorous gases for a period of ve (5) years if used for personal, family or household purposes:
• OdorSafe branded sanitation hose
• Thermoplastic pump bellows installed in the Dometic T series discharge pump
• Dometic DHT-L series holding tanks
Product Liability
Product liability of Dometic Group and its subsidiary companies does not include damages which may
arise from: faulty operation; improper alterations or intervention in the equipment; adverse
effects from the environment which may impact the equipment itself or the direct vicinity of the equip-
ment or persons in the area.
To obtain warranty service, rst contact your local dealer from whom you purchased this product or
go to http://www.dometic.com/enuk/Europe/United-Kingdom/Customer-Center/ for a dealer near
you.

18
Dometic 4700 Series VacuFlush ToiletCustomer service
There is a strong, worldwide network to assist
in servicing and maintaining your sanitation
system. For the Authorized Service Center near
you, please call from 8:00 a.m. to 5:00 p.m. (ET)
Monday through Friday.
You may also contact or have your local
dealer contact the Parts Distributor nearest
you for quick response to your replacement
parts needs. They carry a complete inventory
for the SeaLand product line.
Telephone: [phone] U.S.A. and Canada
330-496-3211 International
Fax: [phone] U.S.A. and Canada
330-496-3220 International
Web site: http://www.Dometic.com
9 Customer service

19
Dometic 4700 Series VacuFlush Toilet
Notes

20
DOMETIC CORPORATION
SANITATION DIVISION
13128 SR 226 | PO BOX 38
BIG PRAIRIE, OHIO 44611 USA
www.dometic.com
® Registered; ™ Trademark of Dometic Corporation
© Dometic Corporation
600346465 04/10
Dometic 4700 Series VacuFlush Toilet
Dometic Group is a customer-driven, world-leading provider of leisure
products for the RV, automotive, truck and marine markets. We supply
the industry and aftermarket with a complete range of air conditioners,
refrigerators, awnings, cookers, sanitation systems, lighting, mobile
power equipment, comfort and safety solutions, windows, doors and
other equipment that make life more comfortable away from home.
Dometic Group supplies a wide range of workshop equipment for
service and maintenance of built-in air conditioners. Dometic Group
also provides specially designed refrigerators for hotel rooms, ofces,
wine storage and transport and storage of medical products.
Our products are sold in almost 100 countries and are produced mainly
in wholly-owned production facilities around the world.
