Coway Range of Bidets (PR01284)
https://ilcaustralia.org.au/products/1284
A range of bidet units which replace a conventional toilet
seat. They fit most standard toilets and can be installed onto
a specific over toilet frame. Available in electric and non-
electric. The electric models provide adjustable temperature,
pressure and range for the cleansing spray jet, adjustable
warm air drying and seat temperature. An elongated seat (for
larger users) is available for on some models. We
recommend checking your state or territory regulations as
some products must be installed by a licensed plumber to
comply with legislative requirements. Toilet raiser and
support arm options are available to attach to bidet.
General Details
Caution
Do not climb on the seat cover or body
Do not lean against the seat cover.
Do not insert a steel wire or sharp items into any part of the unit as it may cause electrical
hazards or damage.
Do not place a stove or heater close to the product as it may distort or catch fire.
Do not expose the product directly to the sun as the plastic could become discoloured.
The water pressure level should be set at 1 to protect the anal region.
To protect against low temperature burns, the temperature setting of the toilets, water and
air dryer should be set to Low or Off.
Method of Use
POWER: Plug the cord into the wall outlet. Press the Power button on the side control
panel.
CLEANING CYCLES:
Rear Cleansing (anal hygiene): Press the "Rear Cleansing" button while sitting on the
seat. Duration of wash cycle is pre set at 60 seconds. You can adjust nozzle position,
spray ranges, water temperature and pressure and move function.
Front Cleansing (feminine hygiene): Press the "Front Cleansing" button while sitting on
the seat. Duration of wash cycle is pre set at 60 seconds. You can adjust nozzle position,
water temperature, pressure and move function.
DRYING: Press the "Air Dryer" button and warm air blows out for 2 minutes. The
1300 885 886
Independent Living Centres Advisory

temperature is able to be adjusted using the up and down arrows.
Cleaning Requirements
Exterior Cleaning:
Wipe the exterior parts with a soft sponge or cloth applying a small amount of neutral
detergent. Do not use any detergents containing hydrochloric acid, solvents or benzene.
Cleaning of Nozzles:
Push "Nozzle Cleaning" button for three seconds or more. Front cleansing nozzle extend
forward and stops. Scrub the nozzle with a toothbrush. Once clean push the "nozzle
cleaning" button again. The Front nozzle returns and the the rear nozzle extends forwards
and stops. Scrub the nozzle with a toothbrush. Once clean, push the "Stop" button and
the rear nozzle will return.
Hold the nozzle lightly while cleaning as excessive force may damage it.
The nozzle returns automatically if no button is pushed for two minutes.
Extra product information
Please ask supplier for the questionnaire/evaluation form that is required to be completed
prior to installation.
===
The bidet is made of anti-bacterial plastic and has an operating unit, an ergonomic plastic
toilet seat and a hydraulic lid. The unit, toilet seat and lid are secured on to the original
porcelain toilet bowl, replacing the original toilet seat and lid. The system has a filter for
water purification with a life span of 6 months. The unit has a self diagnosis system to
assist with detecting faults.
Adjustable angle spray jets are located at the rear and front of the toilet bowl. The spray
jets automatically retract at the end of use to maintain hygiene. The warm air blow drier is
located at the rear of the toilet bowl.
The unit has a side control panel with push button controls to activate or adjust the
following:
Washing spray jets
Nozzle position
Water pressure
Warm air drier
Wide spray range
Nozzle cleaning
Water temperature
Seat temperature
Nozzle move mode.
The nozzle adjustment has five positions and the nozzles are self cleaning.
The water pressure and air dryer temperature have three levels.
You can adjust spray ranges for 3 different levels.
Seat temperature has low (34 degrees C), moderate (37 degrees C), high (40 degrees
C)and off levels.
Water temperature has low (32 degrees C), moderate (36 degrees C), high (38 degrees
C) and off levels.
An automatic power saving mode is available . If the seat sensor is not activated within a

minute, water and seat temperature change to Low and after 30 minutes water, seat
heater and LED lamps are turned off.
Arm supports and seat raisers:
Throne toilet seat spacers (50mm and 80mm), Throne 3-in-1 toilet support arms and
Throne bariatric toilet rails can be used with the bidets. Note - the Coway bidets raise the
seat height by 50mm when installed.
Installation
We recommend checking your state or territory regulations as some products must be
installed by a licensed plumber to comply with legislative requirements.
This bidet is able to be self installed. A power point is needed within 2.5m of the bidet.
1. Remove the existing toilet seat and seat lid
2. Install the T valve: Turn off the water supply valve, separate the toilet cistern hose from
the water main pipe, then fix the T shape connector to existing water main pipe.
Connect both the toilet cistern hose and bidet hose to the T shape connector.
3. Connect the Filter: Open the filter cap on the upper left of the body, put it inside the
groove and turn it clockwise.
4. Placing the fixing plate: Push and fit the rear part of the main body of the bidet into the
fixing plate and tighten the bolts.
5. Install the body: Place fixing plate, push fixing bolts into the fixing plate, and tighten the
nuts until the fixing plate doesn't move.
6. Connect the bidet hose: Connect the bidet hose joined with the T shape connector to
the main body of the unit.
Manufacturer/Country
United States of America.
Websites
The Bidet Shop - http://www.thebidetshop.com.au/categories/Coway-Bidet/
Models / Specifications
Model BA 11: Electronic bidet with wireless remote control unit. Features as per BA
07, with built in MP3 player, one-touch automatic lid, instant heating system and
memory function to save preferred settings. Only available in elongated seat
design.
Model BA 12: Non-electric bidet using room temperature filtered and aerated water
stream via two self cleaning nozzles. Water pressure is adjustable. Jog-dial
controller located on right of seat. No drier function. Available with black or white
control.
Model BA 13: Electronic bidet with wireless remote control unit. Features as per BA
07, with stainless steel nozzles, air and water stream and ultra streamline design.
Includes instant heating system and power save function. Available in regular and
elongated seat.
Model BA 15: Electronic bidet with wireless remote control unit. Features as per BA
07, with power save function and gentle aerated water stream.

Model BA 08: Electronic bidet with wireless remote control unit. Features as per BA
07, with enema function and aerated water stream. Available with child seat that
includes safety arms/handles. Also available in regular and elongated seat size.
Load Capacity (supplier stated) 200 kg
Model BA 07 : Electronic bidet with side control unit. It features cold or warm water
rear cleansing with a range of nozzle position adjustments, the option of wide or
moving spray, massage cleansing and drier function. Available in regular and
elongated seat size.
Load Capacity (supplier stated) 150 kg
Suppliers (3)
Aidacare - https://ilcaustralia.org.au/suppliers/12912
See supplier website or your telephone directory for location of your nearest store.
Head office : 1300 216 898
Aidacare https://www.aidacare.com.au/
Online shop Mobility HQ https://www.mobilityhq.com.au/
Reece Plumbing Centres - https://ilcaustralia.org.au/suppliers/2212
See supplier website or your telephone directory for location of your nearest store.
Sales : 03 9274 0000
Fax : [phone]
Toll free : 1800 032 566
Reece Plumbing Centres www.reece.com.au
Reece Plumbing Centres Store Locator www.reece.com.au/storefinder/
Tradelink (Head Office) - https://ilcaustralia.org.au/suppliers/1118
See supplier website or your telephone directory for location of your nearest store.
Fax : [phone]
Sales : 07 3260 9777
Toll free : 1800 228 476
Tradelink www.tradelink.com.au
Tradelink Showroom Locator http://www.tradelink.com.au/showroom-locator
Agents (0)
Importers (0)
Manufacturers (0)

Images

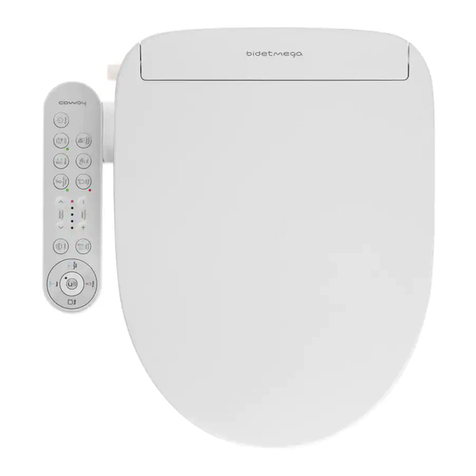

Coway BA 08 Bidet
Coway BA 08 Bidet
Coway with toilet raiser (50 or 80mm height
available) and arms
Measurements of Coway bidet with 80mm
toilet raiser
Coway with toilet raiser and bariatric arms
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety
warnings.
