SeaLevel E Series User manual

SeaI/O OEM User Manual
www.sealevel.com PO Box 830 – Liberty, SC 29657 864.843.4343
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htmhttps://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

TableofContents
INTRODUCTION......................................................................................................................... 1
BEFORE YOU GET STARTED................................................................................................. 3
WHAT’S INCLUDED...................................................................................................................... 3
SEAI/O HARDWARE DESCRIPTION..................................................................................... 4
SEAI/O BASE AND EXPANSION MODULES.................................................................................... 4
SEAI/O MODULE COMMON FEATURES ........................................................................................ 5
SEAI/O CONFIGURATIONS &SPECIFICATIONS ............................................................................. 6
410 Series – 16 Optically Isolated Inputs/16 Reed Relay Outputs......................................... 6
420 Series – 16 Optically Isolated Inputs/8 Form C Outputs................................................. 7
430 Series – 32 Optically Isolated Inputs............................................................................... 8
440 Series – 32 Reed Relay Outputs....................................................................................... 9
450 Series – 16 Form C Relay Outputs ................................................................................ 10
462 Series – 96 Channel TTL DB-78.................................................................................... 11
463 Series – 96 Channel TTL 50-Pin.................................................................................... 13
470 Series – 16 A/D, 2 D/A, 8 24V Outputs, 8 Isolated Inputs............................................. 16
520 Series – 8 Optically Isolated Inputs/8 High-Current Form C Outputs.......................... 17
POWER OPTIONS .................................................................................................................... 18
BASE MODULE POWER CONNECTION......................................................................................... 18
SEAI/O EXPANSION POWER CONNECTION ................................................................................. 18
SEAMAX APPLICATION SUITE........................................................................................... 20
SEAMAX OVERVIEW ................................................................................................................ 20
COMMUNICATING VIA MODBUS ................................................................................................ 21
SEAMAX SOFTWARE INSTALLATION ........................................................................................ 22
MAXSSD CONFIGURATION &DIAGNOSTICS UTILITY ............................................................... 23
TROUBLESHOOTING SEAMAX................................................................................................... 34
HARDWARE CONFIGURATION .......................................................................................... 36
DEVICE ADDRESS CONFIGURATION ........................................................................................... 36
CONFIGURING THE “BASE”SEAI/O MODULE............................................................................. 38
CONFIGURING N-SERIES EXPANSION MODULES........................................................................ 39
CONFIGURING AN ETHERNET MODULE (E-SERIES).................................................................... 40
SEAI/O-470 JUMPER AND DIPSWITCH SETTINGS........................................................................ 43
WIRING OPTIONS ................................................................................................................... 45
SEAI/O PASS-THROUGH CONNECTOR........................................................................................ 45
I/O WIRING –SEAI/O-410, 420, 430, 440, AND 450 MODULES ................................................. 46
I/O WIRING –SEAI/O-462 AND 463 MODULES.......................................................................... 47
I/O WIRING –SEAI/O-470 MODULES ........................................................................................ 50
I/O WIRING –SEAI/O-520 MODULES ........................................................................................ 53
CONNECTOR PIN OUTS............................................................................................................... 54
ACCESSORIES .......................................................................................................................... 55
© Sealevel Systems, Inc.
SL9176 Revision 7/2008 SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

© Sealevel Systems, Inc.
SL9176 Revision 7/2008 SeaI/O OEM User Manual
APPENDIX A – HOW TO GET ASSISTANCE ..................................................................... 57
APPENDIX B – CAD DRAWING ............................................................................................ 58
APPENDIX C – COMPLIANCE NOTICES........................................................................... 59
FEDERAL COMMUNICATIONS COMMISSION STATEMENT ........................................................... 59
WARRANTY............................................................................................................................... 60
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

Introduction
SeaI/OTM OEM modules provide a powerful way to add I/O to a variety of computers,
controllers, and PLCs. Each SeaI/O board model is designed for maximum flexibility
and easy field wiring. Ordering options allow connection to the host device via
Wireless 802.11b/g (Coming Soon!), Ethernet, USB, RS-485, or RS-232, and
multiple units can be daisy chained together using convenient pass-through
connectors. For easy software integration, application programs or 3rd party software
can use the Sealevel SeaMAXTM library or industry standard Modbus protocol.
This manual covers the installation and operation of these SeaI/O products:
Ethernet 10/100 BaseT
SeaI/O-410E – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-420E – 16 Optically Isolated Inputs/8 Form C Outputs
SeaI/O-430E – 32 Optically Isolated Inputs
SeaI/O-440E – 32 Reed Relay Outputs
SeaI/O-450E – 16 Form C Relay Outputs
SeaI/O-462E – 96 Bit TTL I/O (DB-78)
SeaI/O-463E – 96 Bit TTL I/O (50-Pin IDC)
SeaI/O-470E – 8 Inputs/8 Outputs/2 D/A & 16 A/D
SeaI/O-520E – 8 Optically Isolated Inputs/8 High-Current Form C Outputs
USB
SeaI/O-410U – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-420U – 16 Optically Isolated Inputs/8 Form C Outputs
SeaI/O-430U – 32 Optically Isolated Inputs
SeaI/O-440U – 32 Reed Relay Outputs
SeaI/O-450U – 16 Form C Relay Outputs
SeaI/O-462U – 96 Bit TTL I/O (DB-78)
SeaI/O-463U – 96 Bit TTL I/O (50-Pin IDC)
SeaI/O-470U – 8 Inputs/8 Outputs/2 D/A & 16 A/D
SeaI/O-520U – 8 Optically Isolated Inputs/8 High-Current Form C Outputs
RS-485
SeaI/O-410M – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-420M – 16 Optically Isolated Inputs/8 Form C Outputs
SeaI/O-430M – 32 Optically Isolated Inputs
SeaI/O-440M – 32 Reed Relay Outputs
SeaI/O-450M – 16 Form C Relay Outputs
SeaI/O-462M – 96 Bit TTL I/O (DB-78)
SeaI/O-463M – 96 Bit TTL I/O (50-Pin IDC)
SeaI/O-470M – 8 Inputs/8 Outputs/2 D/A & 16 A/D
SeaI/O-520M – 8 Optically Isolated Inputs/8 High-Current Form C Outputs
RS-232
SeaI/O-410S – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-420S – 16 Optically Isolated Inputs/8 Form C Outputs
SeaI/O-430S – 32 Optically Isolated Inputs
SeaI/O-440S – 32 Reed Relay Outputs
SeaI/O-450S – 16 Form C Relay Outputs
SeaI/O-462S – 96 Bit TTL I/O (DB-78)
SeaI/O-463S – 96 Bit TTL I/O (50-Pin IDC)
SeaI/O-470S – 8 Inputs/8 Outputs/2 D/A & 16 A/D
SeaI/O-520S – 8 Optically Isolated Inputs/8 High-Current Form C Outputs
Expansion Units (Connect to Base Unit via RS-485)
SeaI/O-410N – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-420N – 16 Optically Isolated Inputs/8 Form C Outputs
SeaI/O-430N – 32 Optically Isolated Inputs
SeaI/O-440N – 32 Reed Relay Outputs
SeaI/O-450N – 16 Form C Relay Outputs
SeaI/O-462N – 96 Bit TTL I/O (DB-78)
SeaI/O-463N – 96 Bit TTL I/O (50-Pin IDC)
SeaI/O-470N – 8 Inputs/8 Outputs/2 D/A & 16 A/D
SeaI/O-520N – 8 Optically Isolated Inputs/8 High-Current Form C Outputs
© Sealevel Systems, Inc.
- 1 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

Overview
Sealevel SeaI/O OEM modules are available in various I/O configurations, each
designed for maximum flexibility and easy field wiring. Host devices can
communicate with SeaI/O OEM modules using Modbus TCP (Ethernet) or Modbus
RTU (RS-232, RS-485, and USB). Up to 246 expansion modules can be daisy
chained together via RS-485 using convenient pass-through connectors. Coupled
with the SeaMAX Suite, Sealevel SeaI/O OEM modules offer powerful data
acquisition solutions that are perfect for a wide range of applications and
environments with easy interfacing to computers, controllers, and PLCs.
Industry Segments
SeaI/O OEM modules are perfect for a wide variety of applications and environments
including:
Process Control
Data Acquisition
Broadcast Automation
Security
Facility Management
Features
Choice of Connectivity:
oWireless (802.11b/g) – coming soon!
oEthernet
oUSB
oRS-485
oRS-232
Supports Industry Standard Modbus TCP & RTU Protocols
Models Offering Choice of:
oOptically Isolated Inputs
oReed Relay Outputs
oForm C Relay Outputs
oTTL Interfaces
oAnalog A/D & D/A
Status Indicator LEDs for Communication, Fault, and Status
Field Removable Terminal Block Connectors (most models)
9-30VDC Power Input
Power Input via Terminal Block or DC Jack
Daisy Chain up to 247 Modules
Metal Standoffs Allow Variety of Mounting Options
Extended Temperature Available (-40°C to +85°C)
Compact Size - 7.5"(L) x 5.0"(W) x 0.8"(H)
© Sealevel Systems, Inc. - 2 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

Before You Get Started
What’s Included
All SeaI/O OEM modules are shipped with the following items. If any of these items
is missing or damaged please contact Sealevel for a replacement.
SeaI/O OEM Board – Data Acquisition Module
Sealevel SeaMAX Software CD
(4) ¾” Metal Standoffs with Nuts
Accessories (Model Dependent)
NOTE:
Depending on the interface type, your SeaI/O OEM module may
include additional accessories, which are listed below.
Additional useful items can be found in the Accessories section on
this manual.
Included Communications and Expansion Accessories
SeaI/O OEM modules are shipped with the following accessories:
E-Series (Ethernet) Item# CA246 – 1 x 7’ straight through Ethernet cable, for
connection to a hub or switch.
Item# CA251 – 1 x 7’ crossover cable, for direct connection to a
computer’s Ethernet port.
DO NOT connect the yellow crossover cable to the RJ45 RS-485
pass-through connectors on the left side of the SeaI/O module!
U-Series (USB) Item# CA179 – 6’ A to B USB cable.
M-Series (RS-485) No cable is included. RS-485 twisted-pair wiring connects to screw
terminals.
S-Series (RS-232) Item# KT119 – RS-232 DB9/RJ45 Kit, includes a DB9F to RJ45
adapter with RS-232 pinout (Item# DB109) and a 7’ CAT5 patch
cable (Item# CA246) for connecting SeaI/O OEM modules to both
Sealevel and standard RS-232 serial ports.
N-Series (Expansion) CA239 – 5” CAT5 RS-485 interconnect cable, for connecting two
or more SeaI/O boards together in a “stack”.
All Models Each SeaI/O OEM module is shipped with four (4) ¾” metal
standoffs and nuts, which provides a variety of mounting options in
custom enclosures.
© Sealevel Systems, Inc. - 3 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

SeaI/O Hardware Description
SeaI/O Base and Expansion Modules
Base OEM modules connect to the host via one of the following interfaces:
E-Series - Ethernet Modbus TCP
U-Series - USB Modbus RTU
M-Series - RS-485 Modbus RTU
S-Series - RS-232 Modbus RTU
After the Base unit is installed, up to 246 additional SeaI/O N-Series Expansion
Modules can be added to create an I/O network. These expansion modules interface
via RS-485 and can be located local to the Base SeaI/O device or remotely located up
to 4000 feet away. Local installations should use the 5” CAT5 RS-485 pass-through
cable (Item# CA239) shipped with each N-series module to connect. Remote
expansion modules should use RS-485 twisted pair wiring from the Base unit
connected via the removable screw terminal connector.
For local installations power to the expansion modules is supplied from the Base unit
via the pass-through connectors. For remote devices, separate power is required at
each expansion unit. Refer to the Power Options section of this manual for more
information on SeaI/O power requirements and power supply sizing.
© Sealevel Systems, Inc. - 4 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

SeaI/O Module Common Features
All SeaI/O OEM modules include the same connectors and configuration options on
the side of the unit:
NOTE:
RS-485 networks should have termination enabled on each end of
the network. Pull-up and pull-down resistors should also be enabled
on the last device on the network.
The 9-30VDC input barrel connector is center positive.
Status LEDs are also included on the front of all SeaI/O OEM modules to indicate the
following information:
Communication (Yellow) – Blinks when data is transmitted
Fault (Red) – Lights when there is a problem with the device
Status (Green) – See Device Address Configuration section of this manual
oBlinks when the rotary “ADDR” switch is set to “0” and the default
Slave ID is set to 247
oLights steady when module is properly configured from the factory
defaults
© Sealevel Systems, Inc. - 5 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

SeaI/O Configurations & Specifications

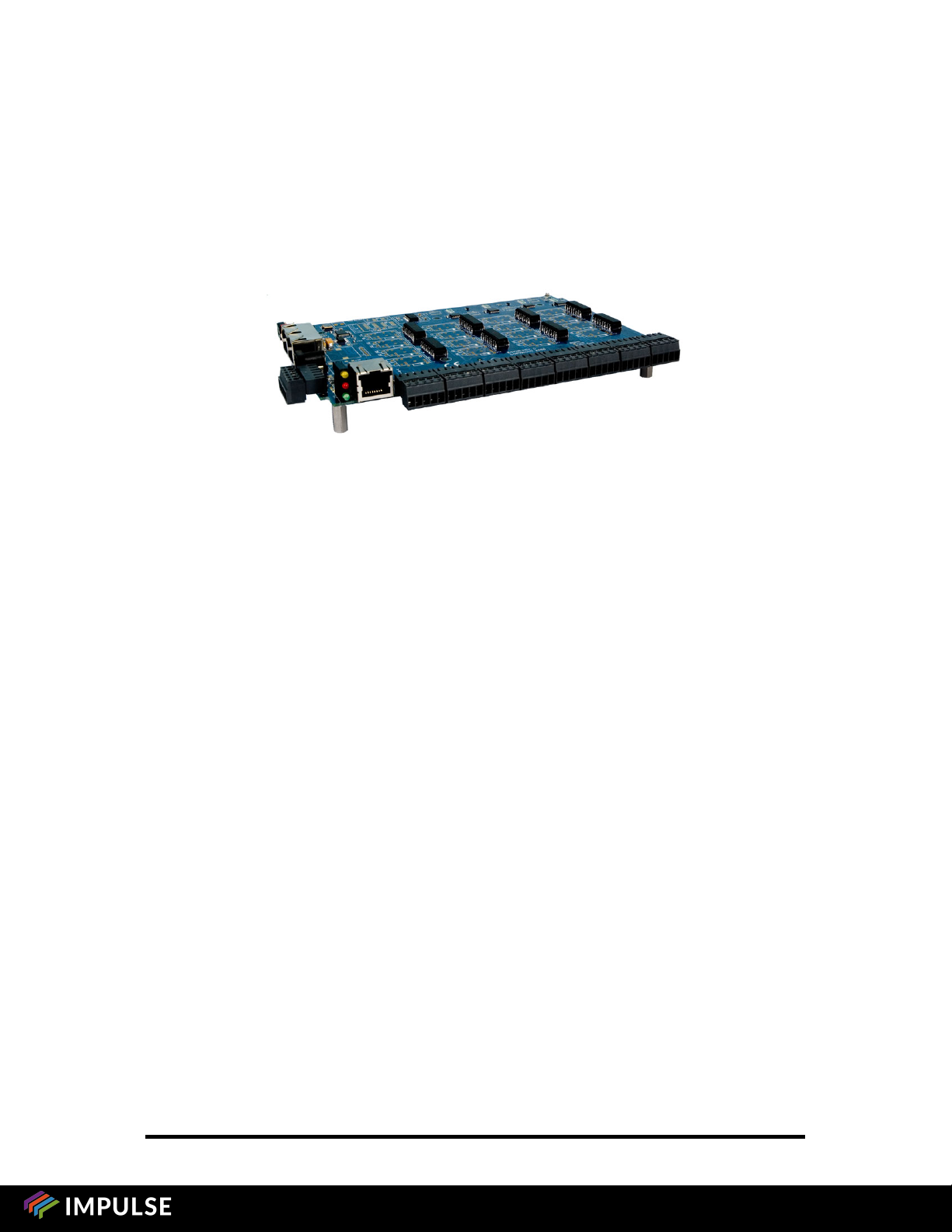

410 Series – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-410 modules provide 16 optically isolated inputs and 16 Reed relay outputs.
Inputs can range from 5-30VDC, while the Reed relays provide long life switch
closures that are well suited for low current applications. Inputs and outputs are
grouped into four-bit segments. Each group shares a common for easy wiring via
removable 3.5mm terminal blocks. (Ethernet version shown)
Inputs
Type: 16 non-polarized optically isolated inputs
Voltage Range: 5-30VDC
Isolation: 300V
Input Resistance: 6.2K Ohms in series
Response Time: 4 microseconds
Outputs
Type: 16 SPST Form A Reed relays
Power: 10VA max.
Contact Voltage: 60VDC max.
Contact Current: 500mA max.
Operate Time: 0.5ms max.
Bounce Time: 0.5ms max.
Release Time: 0.2ms max.
© Sealevel Systems, Inc. - 6 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm

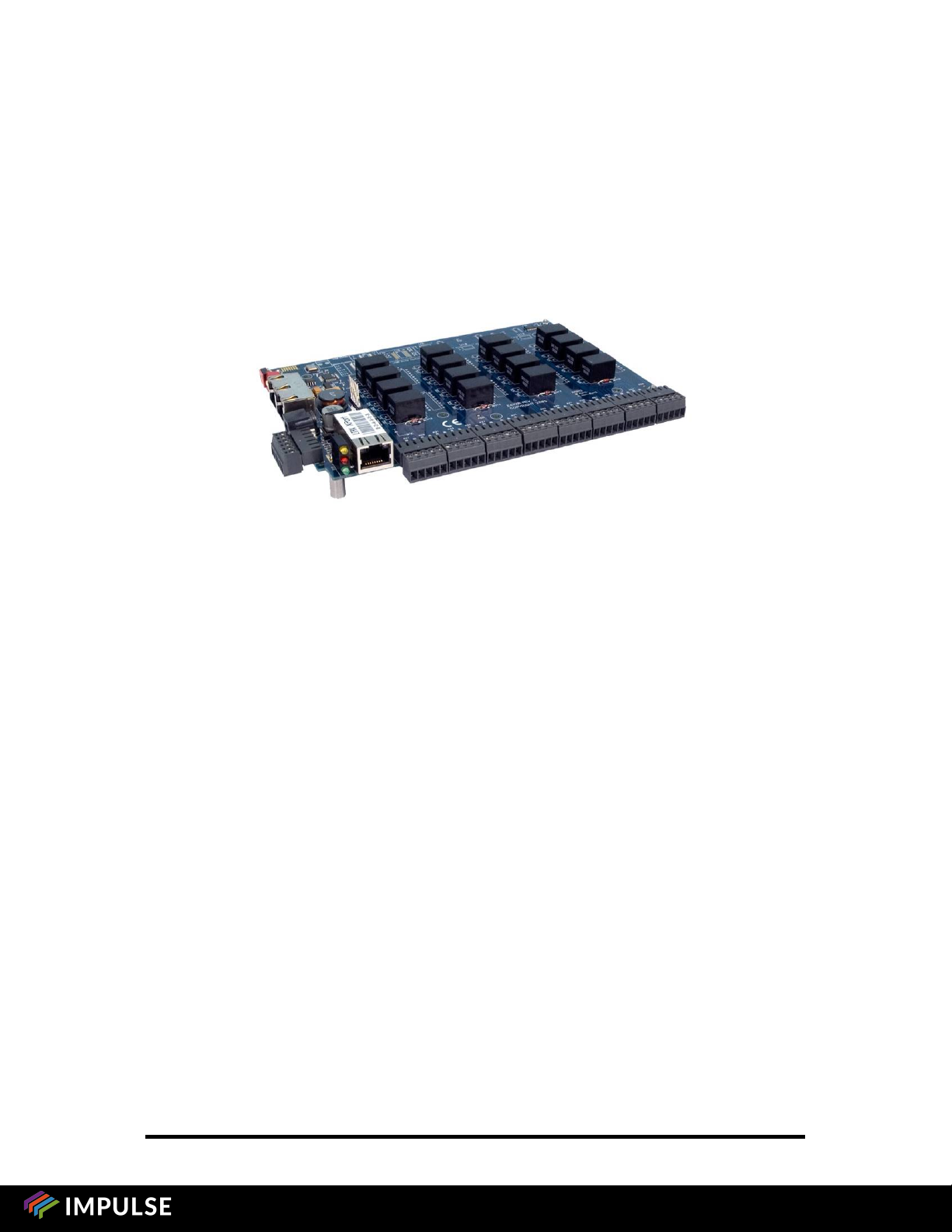

420 Series – 16 Optically Isolated Inputs/8 Form C Outputs
The SeaI/O-420 provides 16 optically isolated inputs and 8 SPDT Form C relay
outputs. Inputs can range from 5-30VDC and provide 300V isolation to ground. Each
output offers normally open and normally closed contact connections via 3.5mm field
removable terminal blocks. (USB version shown)
Inputs
Type: 16 non-polarized optically isolated inputs
Voltage Range: 5-30VDC
Isolation: 300V
Input Resistance: 6.2K Ohms in series
Response Time: 4 microseconds
Outputs
Type: 8 SPDT Form C relays
Power: DC 30W/ AC 60 VA
Contact Voltage: 60VDC max.
Contact Current: 2A max.
Operate Time: 2ms max.
Bounce Time: 7ms max.
Release Time: 1ms max.
© Sealevel Systems, Inc. - 7 - SeaI/O OEM User Manual
https://www.impulse-embedded.co.uk/products/420u_oem--Digital-Input-Relay-Output-OEM-board.htm
