Sealey SUPERBOOST150D User manual

6/12V 150A STARTER/15A AUTOMATIC
BATTERY CHARGER & MAINTAINER
MODEL NO: SUPERBOOST150D
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is
replaced immediately by a qualied electrician.
This product is tted with a BS1363/A 3 pin plug.
If the cable or plug is damaged during use, switch o󰀨 the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 3 pin plug. If in doubt contact a qualied electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
▲DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION.
FOR THIS REASON, IT VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY, EACH TIME YOU USE
THE CHARGING EQUIPMENT.
9Follow these instructions and those published by the battery and vehicle manufacturers, and the maker of any equipment you intend to
use in the vicinity of the battery. Remember to review warning marks on all products and on engines.
WARNING! Modern vehicles contain extensive electronic systems.
You are required to check with the vehicle manufacturer, for any specic instructions regarding the use of this type of equipment on
each vehicle.
9 No liability will be accepted for damage / injury, where this product is not used in accordance with all instructions.
1.3. PERSONAL PRECAUTIONS
9Ensure there is another person within hearing range of your voice and close enough to come to your aid, should a problem arise when
working near a lead-acid battery.
9Wear safety eye protection and protective clothing. Avoid touching eyes while working near battery.
9Have fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
9 Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool, clean
running water for at least 15 minutes and seek immediate medical attention.
9Remove personal metallic items such as rings, bracelets, necklaces and watches. A lead-acid battery can produce a short-circuit current
which is high enough to weld a ring or the like to metal, which would cause severe burns.
9Ensure hands, clothing (especially belts) are clear of fan blades and other moving or hot parts of engine, remove ties and contain long hair.
8DO NOT smoke or allow a spark or flame in the vicinity of battery or engine.
1.4. CHARGING SAFETY INSTRUCTIONS
9Familiarise yourself with the application and limitations of the charger as well as the potential hazards. Also refer to the vehicle
manufacturer’s hand book. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
9Ensure the charger is in good order and condition before use. If in any doubt do not use the unit, contact your Sealey stockist.
9 Use the starter/charger in the horizontal position only and ensure it is placed on a stable surface which will adequately support its weight.
9 Ensure the charger is disconnected from the mains supply before attaching/detaching the power clamps to/from the battery.
Original Language Version
© Jack Sealey Limited
Wear
protective
gloves
Warning:
electricity Protect
from
rain
Use in
well
ventilated
areas
Keep away
from sources
of ignition:
battery could
explode
Refer to
instruction
manual
Warning:
explosive
material
Wear eye
protection Warning: corrosive
substance
Recommended fuse
rating:
13A
SUPERBOOST150D Issue 2 (3) 12/12/22

9Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.
9Ensure the output of the charger is the same voltage as the battery.
9Ensure that during charging, the charger is placed in a location where there is sufficient ventilation to prevent the build up of explosive
gases from a lead acid battery, and DO NOT cover or obstruct the charger ventilation louvres.
9If battery has caps to access the battery fluid, remove the caps and check the fluid level before connecting the power clamps.
9If necessary top-up the battery with distilled water by referring to the battery manufacturer’s instructions (Apply the personal safety
9 precautions described in part 1.3).
9If the charger receives a sharp knock or blow the unit must be checked by a qualified service agent before using.
9If the battery terminals are corroded or dirty clean them before attaching the power clamps.
9Keep children and unauthorised persons away from the working area.
8DO NOT dis-assemble the charger for any reason. The charger must only be checked by qualified service personnel.
8DO NOT try to charge a non-rechargeable battery.
8DO NOT try to charge battery if battery fluid is frozen.
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow
them to touch the battery terminals.
8DO NOT allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
8DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to negative.
8DO NOT pull the cables or clamps from the battery terminals.
8DO NOT use the charger outdoors, or in damp, or wet locations and DO NOT operate within the vicinity of flammable liquids or gases.
8DO NOT use charger inside vehicle or inside engine compartment.
9Ensure there is effective ventilation to prevent a build-up of explosive gases, and DO NOT cover or obstruct charger ventilation louvres.
8DO NOT use the charger for a task for which it is not designed.
WARNING! DO NOT simultaneously charge batteries of different capacities or discharge levels.
WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating. Use only Sealey genuine parts.
9 When not in use, store the charger carefully in a safe, dry, childproof location.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
2. i INTRODUCTION
Automatic battery charger & starter, designed for charging, maintaining, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium
LiFePO4 batteries up to 300Ah. Intuitive digital display and 150A peak engine start function, makes this unit ideal for every workshop. Features
overcharge, short circuit, and reverse polarity protection. Dedicated charging programs for AGM, GEL and conventional lead acid batteries with fully
automated charging algorithms. Fast charge program for larger batteries. Automatic boost/engine start function once 12V mode is selected and
battery voltage is over 4V. Portable design with carry handle and cable management system which allows the clips to be stored neatly away when
not in use.
3. i SPECIFICATION
Model No: Superboost150D
Supply: 230V
Output Charge: 6V - 2A, 12V - 2A(L)/15A(H) (15A LiFePO4)
Start Current: 12V - 75A (5s on 180s o󰀨)
Peak Current: 150A
Battery Range: 30-300Ah
Cable & Clamp Length: 1.2m
Insulation Class: IP20
4. i OPERATION
4.1. DISPLAY
Original Language Version
© Jack Sealey Limited SUPERBOOST150D Issue 2 (3) 12/12/22

4.2. HOW TO CONNECT
4.2.1. The charger’s output leads have colour-coded battery clips (RED-POSITIVE and BLACK-NEGATIVE). Determine which post of battery
is grounded (connected) to the chassis.
4.3. OPERATING INSTRUCTIONS: CHARGING BATTERY IN VEHICLE
4.3.1. If negative post is grounded to chassis (as in most vehicles):
Connect the red clamp to the battery’s positive pole.
Connect the black clamp to the vehicle chassis remote from the fuel pipe and the battery.
Connect the charger to mains supply.
4.3.2. If positive post is grounded to the chassis:
Connect the black clamp to the battery’s negative pole.
Connect the red clamp to the vehicle chassis remote from the fuel pipe and the battery.
Connect the charger to mains supply.
4.3.3. When disconnecting charger, rst disconnect from mains supply, remove clamp from vehicle chassis, and then remove clamp from the
battery terminal.
8DO NOT charge the battery whilst engine is running.
4.4. CHARGING
Note: During charging, the display defaults to show voltage. Press “DISPLAY” button, switching “V” to “A” or “%” to show charging
current or battery charged percentage.
• V = charging voltage • A = charging current • % = battery charge condition
4.4.1. To stop charging, disconnect mains plug or remove clamp from battery terminal.
Original Language Version
© Jack Sealey Limited
STEP 1: Connect the battery and mains
supply. The display shows the battery’s
voltage.
STEP 4: Press “SELECT” button
To select battery type
(STD / AGM / GEL) (orange light).
STEP 5: The charger starts to charge the battery automatically and the
“Charge” light turns orange. When the battery is fully charged
the “Full” light turns green.
STEP 2: Press “MODE” button
To select charging voltage (6V/12V)
(orange light, except 12V START).
STEP 3: Press “CURRENT” button
to select “Slow” or “Fast” charging
current (“Slow”-green light, “Fast”-
red light) (6V/2A,12V 2A/15A). If
you choose 12V LiFePO4 in STEP
2, the default current will be “Fast”.
You don’t need to select charging
current and battery type.
SUPERBOOST150D Issue 2 (3) 12/12/22

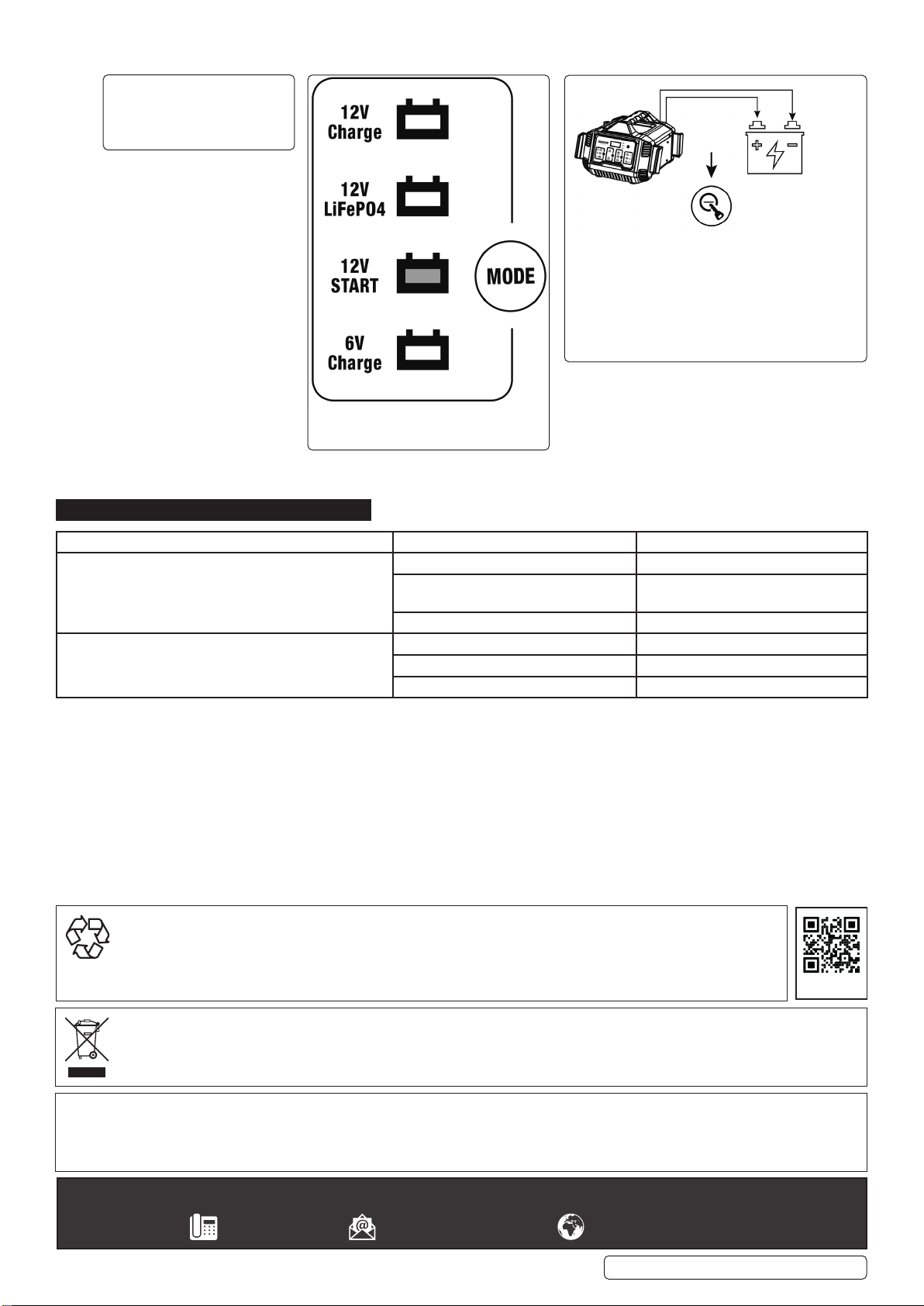

4.5. HOW TO BOOST
Note: The maximum of boosting time is 5 seconds and after each boost, it takes 180 seconds to cool down.
5. TROUBLESHOOTING
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste.All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
STEP 1: Connect the battery
and mains supply. The display
shows the battery’s voltage.
STEP 2: Press “MODE” button to select
12V START (orange light).
STEP 3: The charger starts to charge the battery
automatically.
When the charger detects that the battery voltage is
over 4V, it will automatically enter the startup
Program (charge the battery and wait for
The startup signal). As long as the user starts
ignition, the product will provide the startup current
and start the vehicle.
Problem Cause Solution
Error light turns red and buzzer sounds Clamps are reverse connected Connect clamps correctly
Battery voltage is less than 1V Check clamps are correctly connected
or replace battery
6V selected for 12V battery Change to 12V mode
During the charging/starting process, the display
Automatically returns to standby condition and displays
the battery voltage
Charger is over temperature Switch o󰀨 machine and allow to cool
The clamps are loose Check connections
The output is short circuited Connect clamps correctly
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
REGISTER YOUR
PURCHASE HERE
SUPERBOOST150D Issue 2 (3) 12/12/22
