Sealey Electrostart e/start1100.v2 User manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Original Language Version

Refer to

instruction

manual

Wear eye

protection

Keep away

from rain

Wear

protective

gloves

ELECTROSTART®

BATTERYLESS POWERSTART 1100A 12V

MODEL NO: E/START1100.V2

Use in well

ventilated

areas

Keep sources of

ignition away

from vehicle

battery: risk of

explosion

1. SAFETY

Modern vehicles contain extensive electronic systems.

 Youarerequiredtocheckwiththevehiclemanufacturer,foranyspecicinstructionsregardingtheuseofthistypeof 

equipment on each vehicle. No liability will be accepted for damage/injury, where this product is not used in accordance

with all instructions.

9Ensure that the vehicle is in a well ventilated area.

9Apply the handbrake and select neutral or ‘park’ before attempting to start.

9Ensure that the ignition switch and all ancillary electrical equipment is switched off.

9Keep clear of any pulleys, belts etc. that will move once the engine starts.

9Take care to ensure correct connection polarity; red clamp to positive, black clamp to negative.

9Energise the E/START1100.V2 only at ambient temperatures between -30°C and 40°C.

9When not in use, switch off and store in a cool, dry place out of the reach of children.

8DO NOT allow this power pack to become wet.

8DO NOT dismantle this E/START1100.V2, there are no user serviceable parts inside.

8DO NOT use in explosive atmospheres (e.g. the presence of flammable liquids, gases or dust).

8DO NOT use the E/START1100.V2 if it appears damaged in any way.

8DO NOT leave in direct sunlight or expose to heat.

8DO NOT use abrasive or solvent cleaners on this product.

8DO NOT allow children to play with this product

1.1. CHARGING SAFETY INSTRUCTIONS

9Familiarise yourself with the application and limitations of the charger as well as the potential hazards. Also refer to the vehicle

manufacturer’s hand book.

9Ensure the charger is in good condition before use. If in any doubt do not use the unit, contact your Sealey stockist.

9Ensure that the starter/charger is placed on a stable surface which will adequately support its weight.

9Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.

9Ensure the output of the charger is the same voltage as the battery.

9Ensure that, during charging, the charger is placed in a location where there is sufficient ventilation to prevent the build up of explosive

gases from the vehicle’s lead acid battery.

9If battery has caps to access the battery fluid, remove the caps and check the fluid level. Replace caps before connecting the power

clamps.

9If necessary top-up the battery with distilled water by referring to the battery manufacturer’s instructions. If the charger receives a sharp

knock the unit must be checked by a qualified service agent before using.

9If the battery terminals are corroded or dirty, clean them before attaching the power clamps.

9Keep children and unauthorised persons away from the working area.

8DO NOT try to charge a non-rechargeable battery.

8DO NOT try to charge battery if battery fluid is frozen.

8DO NOT allow power clamps to make contact with any metallic part of the vehicle.

8DO NOT cross connect power leads from charger to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to negative.

8DO NOT pull the cables or clamps from the battery terminals.

8DO NOT use the charger in wet locations and DO NOT operate within the vicinity of flammable liquids or gases.

8DO NOT use the charger for a task for which it is not designed.

WARNING! DO NOT simultaneously charge batteries of different capacities or discharge levels.

WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating. Use only Sealey genuine parts.

Original Language Version E/START1100.V2 Issue: 2 - 01/02/19

2. INTRODUCTION

Vehicle jump starting made easy with innovative technology, which unlike traditional boosters does not require an internal battery. Simply

connect to a at vehicle battery and the unit will draw power from it and energise itself in a matter of minutes. It then pushes full power safely

back through the starting system, jump starting the vehicle. If the vehicle battery is faulty or is holding less than 5 volts the ElectroStart® can be

pre-charged via a Micro USB charging cable (not supplied) or the 12V accessory lead (*excludes E/START1224). No internal battery means no

storage issues. Compact and lightweight for easier handling and storage, yet still delivers the same result as heavy, bulky, lead acid equivalents.

Ideal for professional mechanics and DIY users. Supplied in storage bag.

3. SPECIFICATION

Model No:................................................................ E/START1100.V2

Output: ..................................................................... 12V

Output start Peak(EN): ............................................. 1100A(550A)

Maximum Starting Capacity:..................................... Petrol: 5ltr, Diesel: 3ltr

Weight...................................................................... 1.81kg

Accessory................................................................. E/START2A Digital ElectroStart Smart Charger Adaptor 15V 2A

4. CONTROL PANEL

5. OPERATION

5.1. DUTY CYCLE

After 5 starts let the unit rest for 15 minutes.

5.2. PREPARATION

Turn off headlights, air conditioning, heated screens, audio etc.

5.3. BUZZER

5.3.1. Intermittent buzzing indicates the E/START is ready to start vehicle .

5.3.2. Continuous buzzing means there is an error.

5.4. STANDARD MODE

In most situations a weak battery on the vehicle can fully recharge the E/START.

Connect clamps to the battery terminals, E/START will turn on automatically and the display will show the voltage of the vehicle’s

battery, see g.1.

5.4.1. Press ON/OFF and the E/START starts to recharge itself. The display shows the E/START’s percentage, see g.2.

5.4.2. After the ignition sign appears, see g.3, turn on the engine.

When the engine res, remove the E/START as soon as possible.

Original Language Version

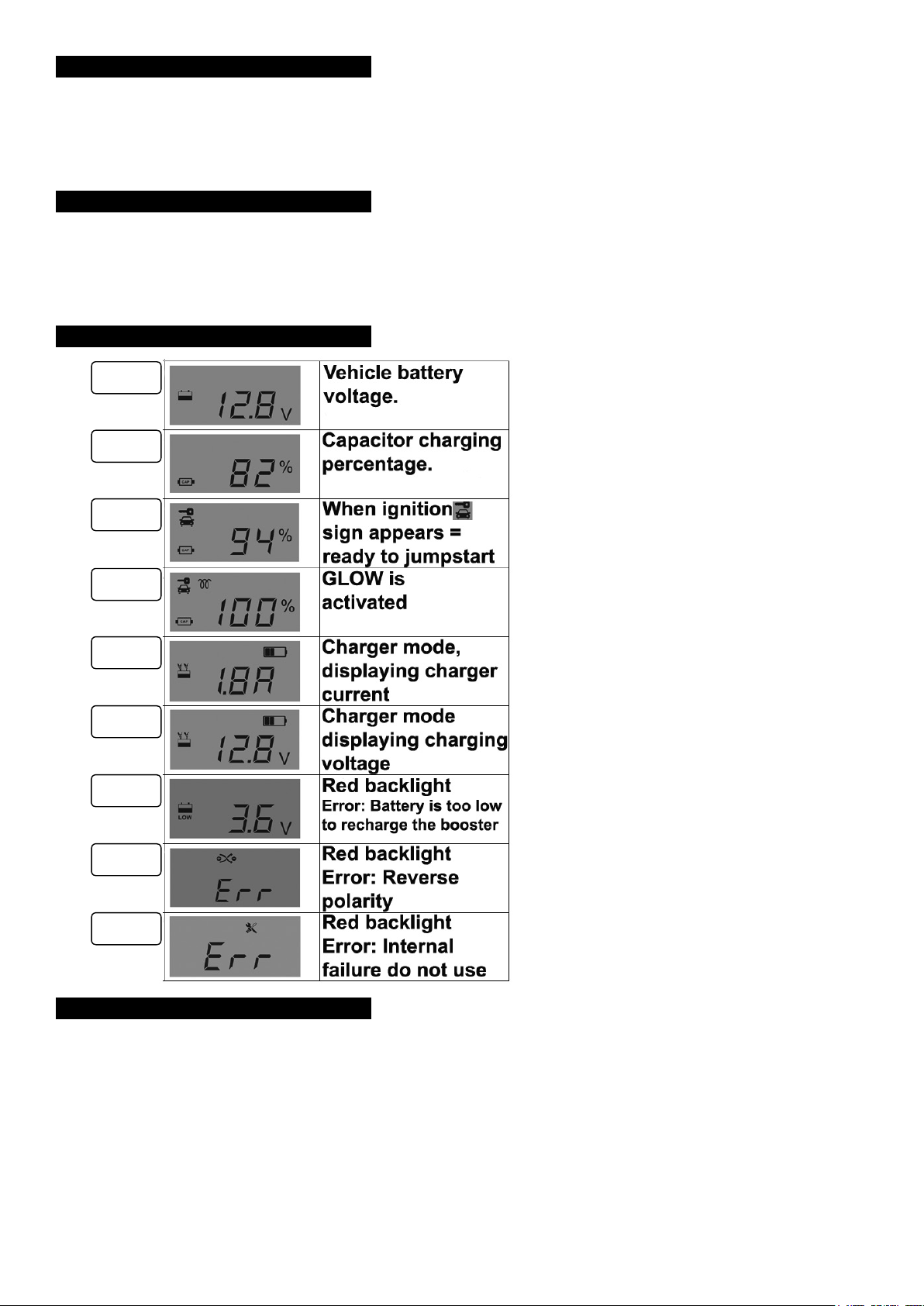

fig.1

fig.2

fig.3

fig.4

fig.5

fig.6

fig.7

fig.8

fig.9

E/START1100.V2 Issue: 2 - 01/02/19

5.5. BYPASS MODE

5.5.1. In some situations the E/START may fail to start the car because the vehicle’s battery is too weak. Press ON/OFF for a few

seconds to activate Bypass MODE.

5.5.2. After the ignition sign, g.3 appears, turn on the engine as soon as possible.

5.6. PRE-CHARGE MODE

5.6.1. If the battery is too weak to charge the E/START, g.7 will appear.

5.6.2. Connect the E/START to a good battery until the unit is fully charged, then remove.

5.6.3. Connect the E/START to the weak battery, the display shows the voltage in that battery.

5.6.4.. Press the ON/OFF switch to activate. Fig.3 is now displayed.

5.6.5. Turn the engine on.

5.6.6. Remove the unit as soon as the engine res.

5.7. ALTERNATIVE CHARGING METHODS

In addition to using a 12V battery, as in 5.6.2., three additional charging methods may be used:

1) The E/START2A Digital ElectroStart Smart Charger Adaptor 15V 2A, (not supplied, available as an accessory).

2) A 5V USB lead (not supplied).

3) A 12V pin jack lead from a vehicle accessory socket (supplied).

The USB and pin jack sockets are located under a rubber ap in the base of the E/START unit.

5.8. OVERRIDE MODE

5.8.1. If the pre-charge mode fails, use the override mode.

5.8.2. Charge the E/START as in 5.6.2./5.7.

5.8.3. Connect E/START to the vehicle with the battery lead disconnected from the battery, POSITIVE E/START lead connected to

VEHICLE BATTERY POSITIVE lead, see g.10.

5.8.4. Press the ON/OFF for a few seconds to activate OVERRIDE MODE.

5.8.5. Turn on the engine.

5.8.6. Put the POSITIVE E/START LEAD and VEHICLE BATTERY POSITIVE onto the BATTERY POSITIVE TERMINAL. Remove the

E/START’s POSITIVE lead after it is fastened to the battery terminal, see g.11.

WARNING: DO NOT leave the engine running without the E/START or battery being connected securely.

WARNING: Make sure that the terminals are not cross connected: there is no cross connection protection in the Override Mode.

5.9. GLOW MODE (Only use if the glow plug symbol appears on the vehicle instrument panel).

5.9.1. In cold weather the glow plugs in most diesel vehicles will be rst energised to heat up the engine before it is started, as indicated by a

symbol on the instrument panel.

5.9.2. If this is the case, after the E/START is fully recharged and connected to the vehicle, press GLOW button and turn on the ignition.

5.9.3. When the glow light on dashboard goes out, start the vehicle.

NOTE: GLOW is deactivated in OVERRIDE mode (5.8 above).

fig.11

fig.10

Original Language Version

5.10. BATTERY CHARGE MODE

5.10.1. Connecting a 5V USB supply to the micro USB socket will provide a 12V 0.8A output.

5.10.1.1. Connect the E/START as in g.12 and press the CHARGER button to commence charging or maintaining battery voltage.

5.10.1.2. Whilst in the CHARGER mode, the display will alternate between charging current (g.5) and charging voltage (g.6).

5.10.1.3. Disconnect from the battery and power supply when charging is complete, unless being used as battery maintainer.

5.10.2. Connecting the optional 15V charger (E/START 2A) will provide a 12V 2A output.

5.10.2.1. Connect the E/START as in g.13 and press the CHARGER button to commence charging.

5.10.2.2. Whilst in the CHARGER mode, the display will alternate between charging current (g.5) and charging voltage (g.6).

5.10.2.3. Disconnect from the battery and power supply when charging is complete.

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice.

Important: No Liability is accepted for incorrect use of this product.
