Sealey BS103 User manual
INSTRUCTIONS FOR:
WORKSHOP CYCLE STAND
MODEL No: BS103
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
give complete satisfaction.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
FAILURE TO DO SO MAY CAUSE DAMAGE OR SERIOUS PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
PLEASE KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Maintain the stand in good condition, replace or repair damaged parts. Use recommended parts only. Non authorised parts may be
dangerous and will invalidate the warranty.
Before use ensure that all stand nuts, bolts and clamps are tight and that moveable and clamping parts are in good working order.
Place stand on a sound, level surface offering adequate working clearance for its function.
Keep area clean, tidy and free from unrelated materials. Ensure there is adequate lighting.
Removeillttingclothing.Removeties,watches,rings,andotherloosejewellery,andcontainlonghair.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
Keep children, pets and unauthorised persons away from the working area.
7 DO NOT use the stand for any purpose other than for which it is designed.
7 DO NOT get the stand wet or use in damp or wet locations or areas where there is condensation.
When not in use, store the stand in a safe, dry, child proof area.
Avoid damage to the bicycle frame and cables etc. when tightening clamps.
7DO NOT exceed the maximum load of 30kg.
NOTE: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
1. SAFETY INSTRUCTIONS
2. INTRODUCTION
Heavy-dutycyclestandwithadjustableworkheight.Idealforhomeandworkshopuse.Fittedwitharticulatedrubbercoatedframeclamppreventing
damage to paintwork. Features four folding legs with a 1370mm span for added stability and multi-position tool tray to ensure tools are always close
tohand.Adjustablecyclelockingstraptopreventwheelmovementavailableseparately-orderModelNo.BS102S(seefig.3).
3. SPECIFICATION
4. ASSEMBLY / OPERATION
Model No: .........................................................BS103
Minimum Working Height: .............................1050mm
Maximum Working Height: ............................1750mm
Weight: ...............................................................6.2kg
Maximum Load:...................................................30kg
Cycle Frame Sizes: ............................35mm to 65mm
4.1. Unpack the contents, should there be anything damaged or missing contact
your supplier.

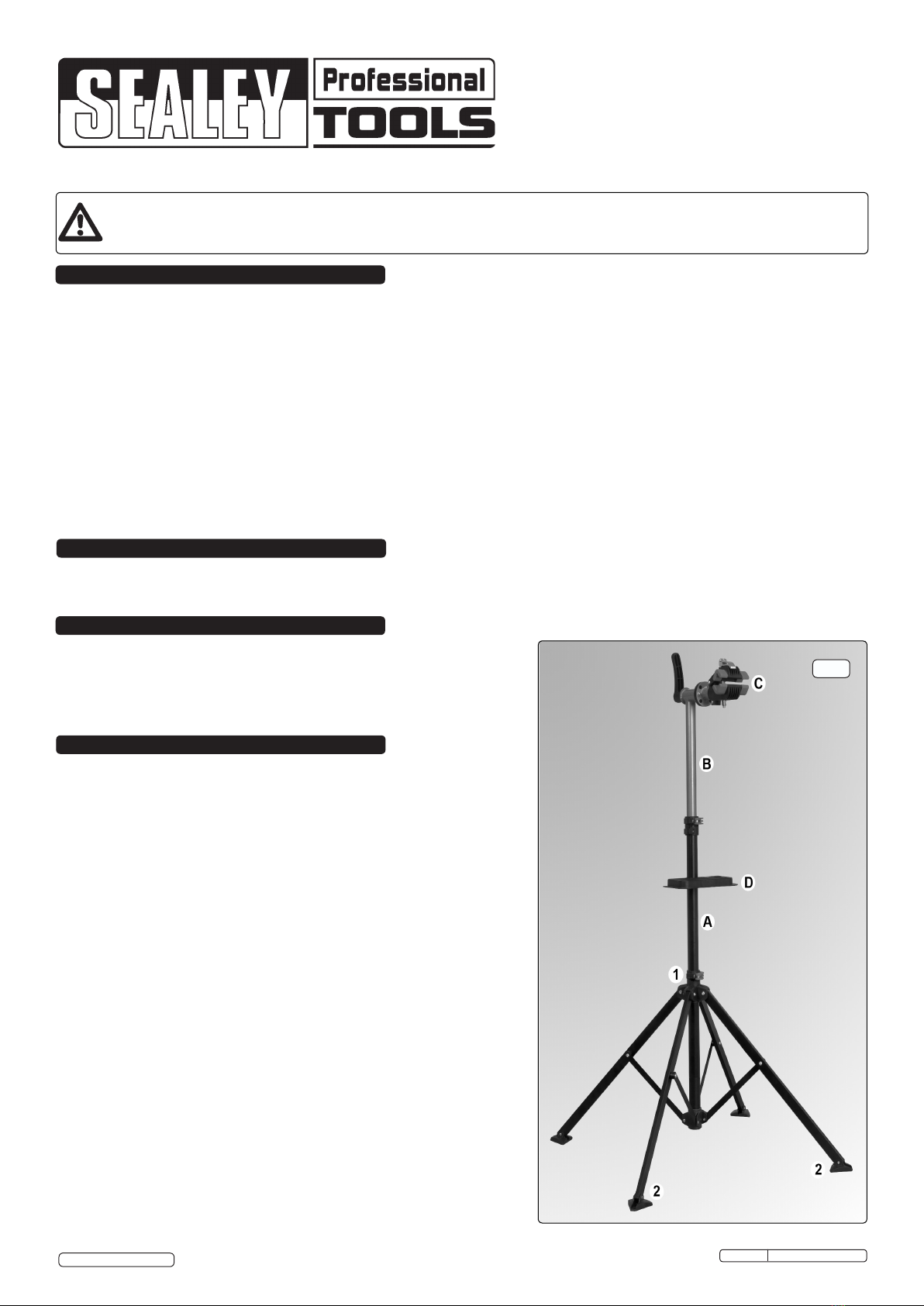

4.1.1. Release the quick release clamp (1) hold the tube (A) and push down on the
clamp so that the legs spread out fully. Tighten the quick release clamp. The
legs can be spread out less wide, but this may compromise the stability of the
stand, depending on the position/weight of the cycle when mounted on the
stand.
4.1.2. Ensurethefourfeet(2)areplacedatontheoorsurface,whichshouldbe
stableandlevel.Thestandcanbepermanentlyxedtotheoorifrequired.
4.1.3. Insert the telescopic shaft (B) into tube (A) and lock into place.
4.1.4. Attach the bike support clamp head (C) onto the telescopic bar.
4.1.5. Attach the tool storage tray (D) to the tube (A) and tighten the two hex. bolts.
4.1.6. Checkallxingsforstabilityandadjustand/orre-tightenthemifnecessary.
4.1.7. Lift a cycle onto the stand, making sure that it is mounted centrally for
maximum stability and to avoid straining the clamp.
4.1.8. Secure it on the stand by positioning the top frame tube into the clamp and
tighteningitusingthequickreleaseclamp(g.2).
4.1.9. Toadjusttheangleofthecycle,itisadvisabletoremovethecyclefromthe
standandtomaketherequiredadjustments.Ifadjustingwiththecyclestill
mounted on the stand, it is recommended that two people are utilised.
Releasetheadjustmentclampjustenoughsothatthecyclecanbemoved
to the required angle and then re-tighten the clamp.

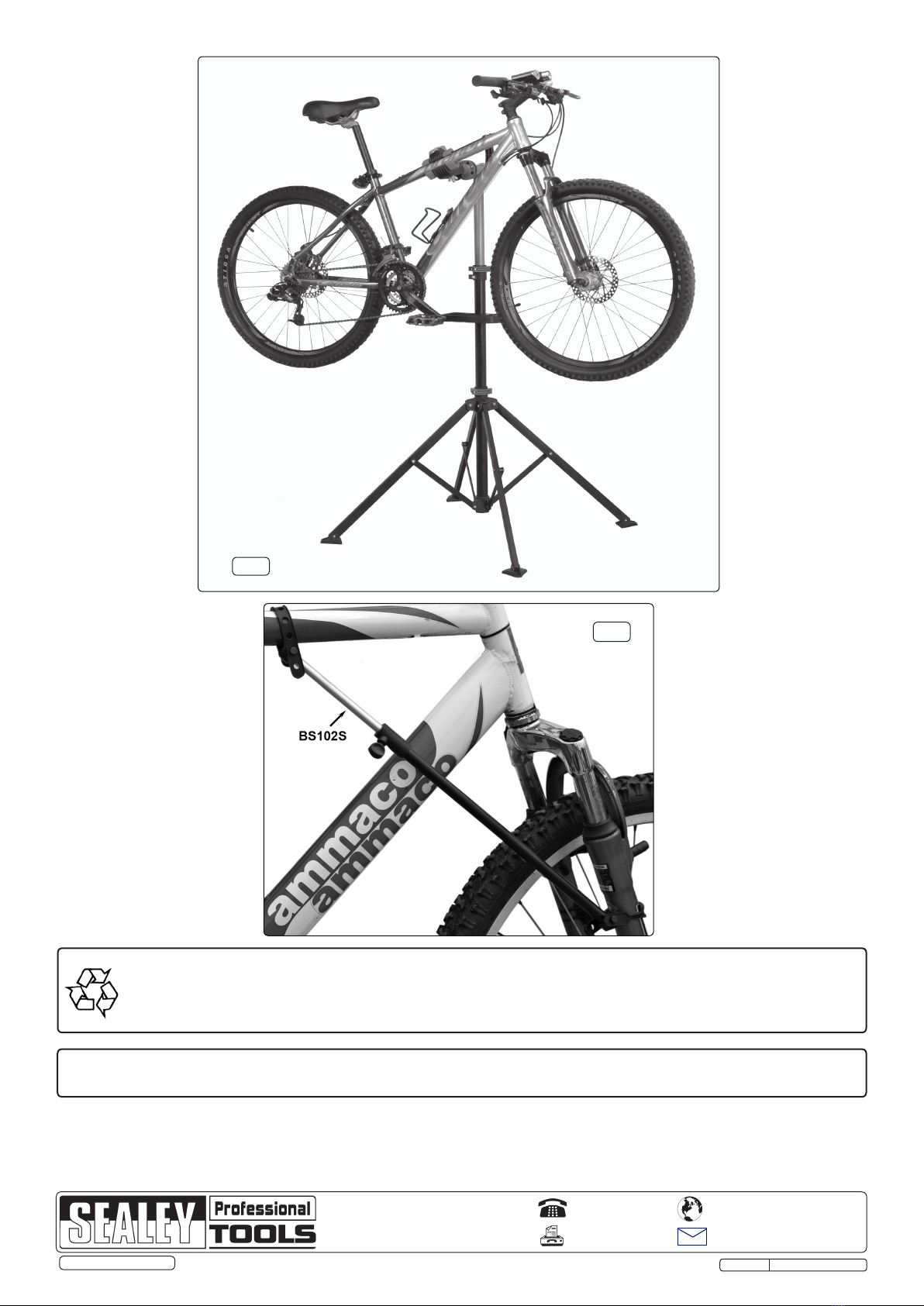

4.1.10.Toholdthefrontwheelinthecorrectposition,useBS102S(g.3).
4.1.11. Do not exceed the maximum extension height of shaft (B), there is a mark on
the shaft.
4.1.12.Alwaysensurethatafterrepositioningthecycleonthestand,thatthestand/
cycle are stable before carrying out any work.
4.1.13.After use, clean the stand, if required, with warm water and then dry with a
clean cloth. Store the stand in a safe, dry, child proof location.
© Jack Sealey Ltd Original Language Version BS103 Issue:1-12/03/13
Fig.1
01284 757500
01284 703534
sales@sealey.co.uk
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP327AR
www.sealey.co.uk
Web
email
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guaranteeis12monthsfrompurchasedate,proofofwhichwillberequiredforanyclaim.
INFORMATION:Foracopyofourlatestcatalogueandpromotionscalluson01284757525andleaveyourfullnameandaddress,includingpostcode.
© Jack Sealey Ltd Original Language Version
Fig.3
Fig.2
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
Environmental Protection.
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should
be sorted, taken to a recycle centre and disposed of in a manner which is compatible with the environment.
BS103 Issue:1-12/03/13
