Sealey AK292 User manual

1.1 ELECTRICAL SAFETY
p p
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any
other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate
safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend
that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a
supply which is not protected by an RCCB. If in any doubt consult a qualified
electrician. You may obtain a Residual Current Device by contacting your Sealey dealer. You must also read and understand the
following instructions
concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and
the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1 and 1.1.2 and
use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply to be
used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item
repaired or replaced by a qualified electrician. When a BS 1363/A UK 3 pin plug is damaged,
cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal E.
b) Connect the BROWN live wire to the live terminal L.
c) Connect the BLUE neutral wire to the neutral terminal N.
d) After wiring, check that there are no bare wires, that all wires have been
correctly connected, that the cable outer insulation extends beyond the cable restraint and that the restraint is tight. Double insulated
products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only. To rewire, connect the
wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10 Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with
your electrician.
1.1.11 If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use of
2.5mm² section cable.
1.2 GENERAL SAFETY
3Familiarise yourself with this products application and limitations, as well as the specific potential hazards peculiar to the glue gun.
pWARNING! Disconnect the glue gun from the mains power before changing accessories, servicing or performing any maintenance.
3Maintain the glue gun in good condition (use an authorised service agent).
3Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
pWARNING! Always wear approved eye or face protection when operating the glue gun.
3Keep the work area clean, uncluttered and ensure there is adequate lighting.
3Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
3Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes,
3Secure non stable workpiece with a clamp, vice or other adequate holding device.
7DO NOT use the glue gun for a task it was not designed to perform.
7DO NOT operate the glue gun if any parts are damaged or missing as this may cause failure and/or possible personal injury.
7DO NOT hold the workpiece by hand. Use clamps or a vice (not included) to secure the workpiece. Available from your Sealey dealer.
7DO NOT get the glue gun wet or use in damp or wet locations or areas where there is condensation.
7DO NOT place nozzle close to your face (especially eyes, ears, etc) or other persons or animals.
7DO NOT allow children or untrained persons to operate the glue gun.
7DO NOT operate the glue gun when you are tired or under the influence of alcohol, drugs or intoxicating medication.
7DO NOT get glue on your skin.
7DO NOT inhale any vapour given off by the glue.
7DO NOT carry the glue gun with your finger on the power switch, or carry by the power cable.
7DO NOT use the glue gun where there are flammable liquids, solids or gases such as paint solvents, etc.
7DO NOT leave the glue gun operating unattended.
3When not in use switch the glue gun off, remove plug from the power supply, store the tool in a safe, dry child proof area.
1. SAFETY INSTRUCTIONS
FUSE RATING 13 AMP
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire
AK292 - 2 - 070305

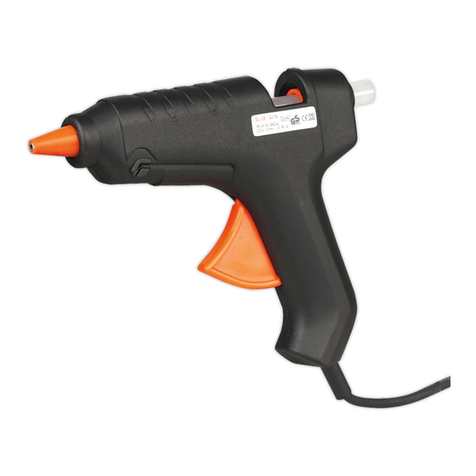

INSTRUCTIONS FOR:
ELECTRIC GLUE GUN
MODEL NO: AK292
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

Composite housing with trigger feed. GS/TUV approved. Fitted with 1.5mtr of cable with BS approved 3 pin 230V non-rewirable fused plug.
Includes three glue sticks.
3. OPERATION
4. ENVIRONMENTAL INFORMATION
2. INTRODUCTION
3.1 PREPARATION
3.1.1 Ensure the work surface is clean and clear before engaging in the task in hand.
3.1.2 Steady the workpiece with an appropriate vice or clamp.
3.1.3 Insert the glue stick firmly into the inlet and plug the glue gun into the mains.
3.2 USING THE GLUE GUN
3.2.1 Squeeze the trigger several times to set the stick into the gun.
3.2.2 Leave the gun to warm up for approxiamateley 5 minutes.
3.2.3 Squeeze the trigger firmly until glue flows from the nozzle.
3.2.4 When the task is complete, unplug the gun and leave to cool.
3.2.5 No cleaning is required. DO NOT attempt to remove the glue stick from the gun as this may cause damage to the product and/or
personal injury.
4.1 CHEMICAL COMPOSITION
4.1.1 Material: EVA (70%), Resin (30%)
4.2 TECHNICAL SPECIFICATIONS
4.2.1 Softening Point: > = 82°C
4.2.2 Solidify Time: 4-10 seconds
AK292 - 2 - 070305
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts
without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12 months from
purchase date, proof of which will be required for any claim. INFORMATION: For a copy of our latest catalogue and promotions call us on
01284 757525 and leave your full name and address, including postcode.
www.sealey.co.uk
01284 757500 01284 703534 [e-mail]
Web email
Sole UK Distributor, Sealey Group, Bury St. Edmunds, Suffolk.
Declaration of Conformity We, the sole importer into the UK, declare that the product listed here is in conformity with the following standards and directives.
The construction file for this product is held by the Manufacturer and may be inspected, by a
national authority, upon request to Jack Sealey Ltd.
For Jack Sealey Ltd.
Sole importer into the UK
of Sealey Professional Tools.
Signed by Mark Sweetman 3rd March 2005
ELECTRIC GLUE GUN
Model: AK292
89/336/EEC EMC Directive
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive
