Sealey SL32S.V2 User manual

JUMP STARTER POWER PACK LITHIUM-ION
PHOSPHATE 12/24V 1200/600 PEAK AMPS
MODEL NO: SL32S.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURYAND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY FOR USE OF CHARGER
WARNING! It is the user’s responsibility to read, understand and comply with the following electrical instructions:
You must ensure the risk of electric shock is minimised by the installation of appropriate safety devices.
An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products, particularly portable equipment which is plugged into an electrical
supply not protected by an RCCB.
9You must also read and understand the following instructions concerning electrical safety.
 TheElectricityAtWorkAct1989requiresallportableelectricalappliances,ifusedonbusinesspremises,tobetestedbyaqualied
electrician, using a Portable Appliance Tester (PAT).
9The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
 thesafetyoftheapplianceoperator.Ifinanydoubtaboutelectricalsafety,contactaqualiedelectrician.
You must ensure that you:
9Inspect the Jump Starter, charger plug, cable and connector for wear and damage to ensure items are safe before connecting to the
mains power supply. If worn or damaged DO NOT use.
9Uncoil the cable between charger and the lamp.
8DO NOT pull the charger plug from the mains socket by the lead.
WARNING! DO NOT use any other type of charger with this product, other than the supplied mains or car charger. Failure to observe
 thiswarningcouldresultininjuryandorreandwillinvalidatethewarranty.
8DO NOT try to take the charger plug apart.
8DO NOT use the charger plug to charge or power any other electrical item.
8DO NOT get the charger wet, or use in wet, damp conditions (for indoor use only).
1.2. BATTERY SAFETY
WARNING!Toreducetheriskofburnsorre:
8DO NOT attempt to open, disassemble, modify or service the battery pack.
8DO NOTcrush,puncture,shortexternalcontactsordisposeofinreorwater.
8DO NOT expose to temperatures above 60°C (140°).
9Replace only with the battery pack designated for this product.
9Recycle or dispose of used battery as stipulated by local regulation.
9If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool
water and seek immediate medical attention.
9Ensure the internal battery is fully charged before initial use.
8DO NOT move/handle/use the Jump Starter when it is being charged.
8DO NOT leave battery in a discharged state, recharge battery immediately. Before storage, fully recharge the battery, subsequently
recharge the battery at least once every six months of non-use.
▲DANGER! BE AWARE, LEAD-ACID BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY OPERATION.
FOR THIS REASON, IT VERY IMPORTANT TO READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY, EACH TIME YOU USE
THE JUMPSTARTER.
Follow these instructions and those published by the battery and vehicle manufacturers, and the maker of any equipment you intend to
use in the vicinity of the battery. Remember to review warning marks on all products and on engines.
SL32S.V2 Issue 1 22/09/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions Electrical
shock
hazard
Wear eye
protection Wear protective
gloves Warning
corrosive
substance
Warning:
explosive
material
Keep away
from sources of
ignition
Use in well
ventilated areas
Keep in dry area
protect from rain

WARNING! Modern vehicles contain extensive electronic systems.
 YouarerequiredtocheckwiththevehicleManufacturer,foranyspecicinstructionsregardingtheuseofthistypeof
equipment on each vehicle. No liability will be accepted for damage / injury, where this product is not used in accordance with
all instructions.
1.3. Personal Precautions
9Ensure there is another person within hearing range of your voice and close enough to come to your aid, should a problem arise when
working near a lead-acid battery.
9Wear safety eye protection and protective clothing.Avoid touching eyes while working near battery.
9Have fresh water and soap nearby in case battery acid contacts skin, clothing or eyes.
9Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool, clean
running water for at least 15 minutes and seek immediate medical attention.
9Remove personal metallic items such as rings, bracelets, necklaces and watches. A lead-acid battery can produce a short-circuit current
which is high enough to weld a ring or the like to metal, which would cause severe burns.
9Ensure hands, clothing (especially belts) are clear of fan blades and other moving or hot parts of engine, remove ties and contain long hair.
8DO NOT smoke or allow a spark or flame in the vicinity of battery or engine.
1.4. General Safety Instructions
9Familiarise yourself with the application and limitations of the Jump Starter as well as the potential hazards.
9Use the Jump Starter in the upright position only and ensure it is placed on a stable surface which will adequately support its weight.
9Keep tools and other items away from the engine and ensure you can see the battery and working parts of engine clearly.
9Keep children and unauthorised persons away from the working area.
8DO NOT allow power clamps to touch each other or to make contact with any metallic part of the vehicle.
8DO NOT cross connect power leads from Jump Starter to battery. Ensure positive (+/RED) is to positive and negative (-/BLACK) is to
negative.
8DO NOT pull the cables or clamps from the battery terminals.
8DO NOT use the charger outdoors, or in damp, or wet locations and DO NOT operate within the vicinity of flammable liquids or gases.
8DO NOT use for a task for which it is not designed.
9When not in use, store carefully in a safe, dry, childproof location.
9Only use for starting vehicles with 12/24V systems. DO NOT use for other vehicles such as aircraft , ships etc.
8DO NOT use in place of a vehicle battery or as a battery charger.
9Use the jumper cable provided with this unit only.
8DO NOT Jump Start more than 3 times in a row. It could damage the unit by overheating. Give two minutes between attempts.
9Remove the product from the vehicle battery within 30 seconds of Jump Starting. If not, it could lead to damage.
8DO NOT modify or disassemble Jump Starter. Only a repair technician may repair this unit.
8DO NOTdropunit.Ifunitreceivesasharpbloworisotherwisedamagedinanywayhaveitcheckedbyaqualiedtechnician.
8DO NOT use the unit to jump start a vehicle while charging the internal battery.
NOTE:This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. INTRODUCTION
Fully protected against reverse charging and overload. Compact, lightweight unit that also provides high amperage output. Capable of starting all
12V vehicles and up to 400-450hp, 24V, 4.5L light commercial vehicles.As well as being light, Lithium-ion batteries have numerous advantages
overleadacid,includingaatdischargecurve.Thisensuresagreaterandextendedperformanceandholdsthechargeforuptovetimeslonger
with high energy density levels giving more battery power per gram. Includes an integral 3W work light for use at night. Fitted with a 32000mAh
@ 3.2V battery and two USB (5V/1A & 5V/2A) outlets, this unit can also supply up to ten full charges for smartphones and MP3 players or one full
charge for your tablet computer. Includes a 12V port to be used with accessory socket adaptor supplied and three mobile phone or tablet charging
cables. The unit can act as a memory saver during vehicle diagnostics (also requires Model No. VS2073, for details visit www.sealey.co.uk.)
3. SPECIFICATIONS
Model No..................................................................... SL32S
Starting Current:....................................12V-600A, 24V-300A
Voltage:..................................................12V/24V Switchable
Auxiliary Output:...................USB (5V/1A & 5V/2A), 12V Port
Cable & Clamp Length:.........565mm cable (clamp - 135mm)
................................................................ USB cable: 227mm
Size (W x D x H):.......................................292 x 233 x 79mm
Maximum Starting Capacity:
..................................12V; 5L Petrol/3.6L Diesel, 24V; 450hp
Battery Capacity:
.................32,[email protected], 800mAh@12V, 400mAh@24V
Peak Amps:.........................................12V-1200A, 24V-600A
Light Output: .....................................................................3W
SL32S.V2 Issue 1 22/09/21
Original Language Version
© Jack Sealey Limited

SL32S.V2 Issue 1 22/09/21
Original Language Version
© Jack Sealey Limited
4. OPERATION
4.1. CHECK BATTERY CHARGE LEVEL
4.1.1. Press main power button, the digital display will show the battery’s percent of charge.
NOTE: If the percent of charge is below 20%, the display will show “LOW BATTERY RECHARGE NOW.” You need recharge the jump
starter before use.
4.2. Charging internal battery
WARNING!Alwayschargeonanon-ammablesurfaceinawell-ventilatedarea.
NOTE:Duringcharging,thedisplaywillreectthecurrentcharge.Thedisplaywillshow“100%”oncetheinternalbatteryisfully 
charged.
4.2.1. Insert the adapter’s charging connector into the Charging Input Socket on the control panel of the Jump starter.
4.2.2. Plug the charger into a power socket and turn on power.
4.2.3. Digital display will show “CHARGING BATTERY”.
4.2.4. The display will show “100%” once the internal battery is fully charged.
4.2.5. When charging is complete, unplug the wall charger from it’s outlet and disconnect it from the jump starter.
4.3. USING THE LED WORK LIGHT
4.3.1. Press and hold the Main Power Button about 2 seconds to turn the light on. Screen will show “LIGHT”.
4.3.2. Foraashlight,presstheMainPowerButtonagain.Screenwillshow“FLASH”.
4.3.3. For an SOS signal, press the Main Power Button again. Screen will show “SOS”.
4.3.4. To turn off the light, press the Main Power Button again.
4.4. RUNNING/CHARGING USB DEVICES
4.4.1. The jump starter has two standard USB ports to 3A at 5V DC.
4.4.2. Press the Main Power Button. Screen will show “USB 12V ON”
4.4.3. Plug the USB connector into the USB output port on the front panel of the jump starter.
4.4.4. Plug the appropriate connector on the USB cable into the device.
4.4.5. Turn device on, if necessary.
4.4.6. Whennishedusing,turnoffthedeviceandunplugthedevicefromtheUSBcable.
4.5. RUNNING/CHARGING DC APPLIANCES12V DC OUTPUT:
The standard cigarette lighter socket provides continuous 12V output, at Maximum 10Amp load, to power up 12V DC devices such as
 inater,cooler,OBDIImemorysaver,etc.
4.5.1. Verify the Jump starter is fully charged and recharge as needed.
4.5.2. Make sure that the appliance to be powered is turned off and it’s power requirement does not exceed 10A.
4.5.3. Plug the appliance into the 12V Cigarette lighter socket.
4.5.4. Turn on the appliance.
4.5.5. Whennishedusing,turnoffandunplugtheappliance.
4.5.6. Recharge the jump starter.
4.6. JUMP START A VEHICLE
NOTE: To avoid damage to the vehicle’s electrical system, do not use the jump starter on a vehicle that has no battery installed.
4.7. INTELLIGENT DIAGNOSIS
WARNING! DO NOT PRESS OVERRIDE BUTTON AS IT WILL CAUSE PERMANENT DAMAGE TO VEHICLES’ ELECTRICAL
SYSTEM.
WARNING! DO NOT TOUCH POSITIVE AND NEGATIVE BATTERY CLAMPS TOGETHER.
4.7.1. Verify the Jump starter is fully charged and recharge as needed.
4.7.2. Turn off the vehicle ignition switch and all accessories (lights, radio, climate control, etc.)
4.7.3. Connect the red Positive Battery Clamp to vehicle’s positive battery terminal. Then connect the black Negative Battery Clamp to the
vehicle’s negative battery terminal.
4.7.4. When correct connection has been made, the screen will show “12V JUMPSTARTREADY” or “24V JUMPSTARTREADY”
4.7.5. Crank the engine.
4.7.6. If the vehicle does not start after 5 to 8 seconds, stop and try again.
4.7.7. Afterthevehicleisstarted,removetheblackNegativeBatteryClamprst,andthentheredPositiveBatteryClamp.
4.7.8. Recharge the jump starter.
WARNING! When the unit sends out a buzzer sound and the screen shows “OUTPUTS LOCKED” “SHORT CIRCUIT” and “CHECK
ALL CONNECTIONS” Clamps are touching, You need to disconnect clamps immediately.
Correct Clamp connections. Turn unit back on and resume operation.

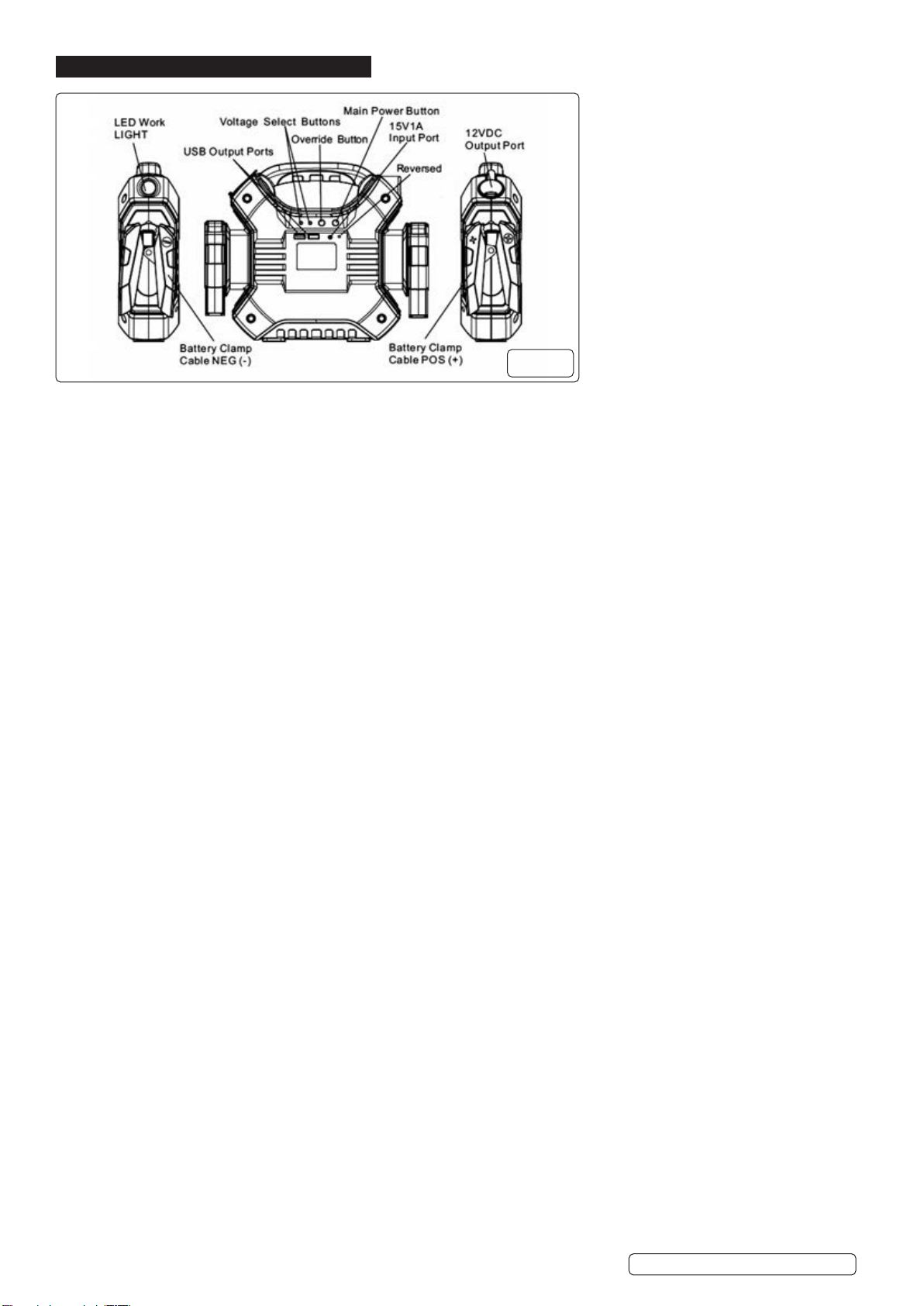

g.1

SL32S.V2 Issue 1 22/09/21
Original Language Version
© Jack Sealey Limited
WARNING! If the unit sends out a buzzer sound and the reversed connection LED light on the front of the case illuminates red, the
polarity is reversed. You need to disconnect the unit and reverse the clamps so that the red clamp is connected to positive (+) and
black clamp is connected to negative (-).
Correct Clamp connections. Turn unit back on and resume operation.
4.8. USING THE OVERRIDE BUTTON
WARNING! DO NOT use Override Button unless the jump starter failed to detect vehicle’s battery working voltage.
NOTE: When vehicle’s battery is completely dead, the jump starter will not detect battery voltage automatically. You will need to
determine the working voltage and “override” the jump start.
4.8.1. Determine the voltage of the battery by referring to the vehicle owner’s manual and make sure that the output voltage of the jump
starter is correct.
4.8.2. Conrmthecorrectvoltageofelectricalsystemyouaregoingtojump-startingis12Vor24V.
4.8.3. Turn off the vehicle ignition switch and all accessories (lights, radio, climate control, etc.)
4.8.4. Connect the red Positive Battery Clamp to vehicle’s positive battery terminal. Then connect the black Negative Battery Clamp to
the vehicle’s negative battery terminal.
4.8.5. Press the Override Button.
4.8.6. Press and hold the correct voltage button that matches your vehicle for about 2 seconds.
4.8.7. Screen will show “JUMP START READY”, at the voltage you have chosen.
4.8.8. Crank the engine within 30 seconds.
4.8.9. If the vehicle does not start after 5 to 8 second, stop and try again.
4.8.10. Afterthevehicleisstarted,removetheblackNegativeBatteryClamprst,thentheredPositiveBatteryClamp.
4.8.11. Recharge the jump starter.
5. TROUBLESHOOTING
Problem Possible Causes Likely Solutions
Unit beeps and Screen shows “OUTPUT
LOCKED” Battery Clamps are connected backwards
(reverse polarity) or there is a short circuit Disconnect clamps immediately. Correct
Clamp connections. Turn unit back on and
resume operation.
Unit failed to jump start vehicle.1) Battery Clamp Cable malfunctions.
2) Low battery
3) Internal components damaged.
1) Repair or replace clamps or cord.
2) Recharge the jump starter to full battery
level.
3) Check with your local stockist.*Service
mustbeperformedonlybyaqualied
technician.
Screen showed ”OUTPUT LOCKED”and kept
ashing.
You attempted to jump starting for more than
3 times within short time. The jump starter turned to protection mode in case of overheating. With for two minutes for
battery to cool. Then resume operation.
Screen turned to Blank. No message shown 1) USB output or 12V DC output overload or
there is a short circuit. Protection is tripped.
2) Low battery
1) Press Main Power Button to unlock the unit
and resume operation.
2) Recharge the jump starter
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on [e-mail] or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
BATTERY REMOVAL
Thebatteryshouldberemovedfromthisproductbyaqualiedtechnician.
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey Ltd’s Batteries Producer Registration Number (BPRN) is BPRN00705.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
