INSTRUCTIONS FOR:

DUAL ACTION SANDER

MODEL No: DAS150T.V4

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained, give you

years of trouble free performance.

IMPORTANT: PLEASE READ INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE

THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE

AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY INSTRUCTIONS

1.1. Electrical Safety

WARNING! It is the user’s responsibility to read, understand and comply

with the following:

You must check all electrical equipment and appliances to ensure they

are safe before using.

You must inspect power supply leads, plugs and all electrical connections

for wear and damage.

You must ensure the risk of electric shock is minimised by the installation

of appropriate safety devices. An RCCB (Residual Current Circuit Breaker)

should be incorporated in the main distribution board. We also recommend

that an RCD (Residual Current Device) is used with all electrical products.

It is particularly important to use an RCD with portable products that are

plugged into an electrical supply not protected by an RCCB. If in doubt

consult a qualified electrician. You may obtain a Residual Current Device

by contacting your Sealey dealer. You must also read and understand the

following instructions concerning electrical safety.

1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances,

if used on business premises, to be tested by a qualified electrician, using

a Portable Appliance Tester (PAT), at least once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical

appliances responsible for the safe condition of the appliance and the

safety of the appliance operator. If in doubt about electrical safety, contact

a qualified electrician.

1.1.3. Ensure the insulation on all cables and the product itself is safe before

connecting to the mains power supply. See 1.1.1. & 1.1.2. above and use

a Portable Appliance Tester (PAT).

1.1.4. Ensure that cables are always protected against short circuit and overload.

1.1.5. Regularly inspect power supply leads and plugs for wear and damage

and all electrical connections to ensure that none is loose.

1.1.6. Important: Ensure the voltage marked on the product is the same as the

electrical power supply to be used and check that plugs are fitted with the

correct capacity fuse. A 13 amp plug may require a fuse smaller than 13

amps for certain products, see fuse rating below.

1.1.7. DO NOT pull or carry the appliance by the power supply lead.

1.1.8. DO NOT pull power plugs from sockets by the power cable.

1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately

replace or have repaired by a qualified electrician. A U.K. 3 pin plug

with ASTA/BS approval is fitted. In case of damage, cut off and fit a

new plug according to the following instructions, discard old plug safely

(UK only - see diagram at right).

Ensure the unit is correctly earthed via

a three-pin plug.

a) Connect the green/yellow earth

wire to the earth terminal ‘E’.

b) Connect the brown live wire to live

terminal ‘L’.

c) Connect the blue neutral wire to the

neutral terminal ‘N’.

After wiring, check that there are no

bare cores, that all wires have been

correctly connected, that the cable

external insulation extends beyond the

cable restraint and that the restraint is

tight. Double insulated products are fit

ted with live (BROWN) and neutral

(BLUE) wires only. Double insulated

products are always marked with this

symbol . Check your model carefully to see which type of product your

have. To rewire a double insulated item, connect the brown and blue wires

as indicated above. DO NOT connect brown or blue to the earth terminal.

1.1.10. Cable extension reels. When a cable extension reel is used it should be

fully unwound before connection. A cable reel with an RCD fitted is

recommended since any product which is plugged into the cable reel will

be protected. The section of the cores of the cable is important and should

be at least 1.5mm2, but to be absolutely sure that the capacity of the cable

reel is suitable for this product and for others that may be used in the other

output sockets, we recommend the use of 2.5mm2 section cable.

1.2. General Safety

 WARNING! Ensure Health & Safety, local authority, and general work

shop practice regulations are adhered to when using this equipment.

 WARNING!Disconnect from mains power before changing accessories

or servicing.

 Maintain the sander in good condition (use an authorised service agent).

 Replace or repair damaged parts. Use genuine parts only.

Unauthorised parts may be dangerous and will invalidate the warranty.

LEAD PAINT WARNING!

Paint once contained lead as a traditional ingredient. The dust from the

removal of such paint is toxic if inhaled or ingested and must, therefore, be

avoided. The following action must be taken before using the sander on a

surface that you suspect may have contained lead in the paint.

1. User must determine potential hazard relating to age of paint to be

removed. (Modern paints do not contain lead).

2. DANGER! Keep all persons and pets away from the work area. The

following are particularly vulnerable to the effects of lead paint dust:

Expectant women, babies and children.

3. We recommend personal protection by using the following safety items:

a) Paint Spray Respirator (Sealey ref: SSP1699)

b) PE Coated Hooded Coverall (Sealey ref: SSP267)

c) Latex Gloves (Sealey ref: SSP24)

4. Take adequate measures to contain the paint dust, flakes, and scrapings.

5. Continue to wear safety equipment as in 3 above, and thoroughly clean all

areas when task is complete. Ensure that paint waste is disposed of, in

sealed bags or containers, according to local authority regulations.

 Use sander in a suitable work area. Keep area clean, tidy and free from

unrelated materials. Ensure that there is adequate lighting.

 Before use, check abrasive pad condition. If worn or damaged replace

immediately.

 WARNING! Always wear approved eye or face protection when operating the

sander.

 If dust is generated, use face, dust, or respiratory protection in accordance

with COSHH regulations.

 Depending on use, sander noise level may exceed 85dB - in which case wear

safety ear defenders.

 Remove ill fitting clothing, ties, watches, rings, other loose jewellery and

contain and/or tie back long hair.

 Wear appropriate protective clothing and keep hands and body clear of

moving parts.

 Maintain correct balance and footing. Ensure the floor is not slippery and wear

non-slip shoes.

 Keep children and unauthorised persons away from the work area.

 Always use the sander with the side handle securely screwed in.

 Ensure the workpiece is correctly secured before operating the sander. Never

hold workpiece by hand and check the workpiece to ensure there are no

protruding nails, screws, rivets, etc.

 Avoid unintentional starting.

 DO NOT use the sander for a task it is not designed to perform.

 DO NOT operate sander if any parts are damaged or missing. This may cause

failure and/or injury.

 WARNING! DO NOT sand any materials containing asbestos.

 DO NOT carry the sander by the electrical cable.

 DO NOT connect to a standard vacuum cleaner to extract dust as damage to

the cleaner may result.

 DO NOT get the sander wet or use in damp or wet locations.

 DO NOT use sander with water, the sander is for dry use only.

 DO NOT operate sander if you are tired or under the influence of alcohol,

drugs or intoxicating medication.

 DO NOT use where there are flammable liquids, solids or gases such as paint

solvents or waste wiping or cleaning rags.

 DO NOT leave the sander running unattended.

 DO NOT carry the sander with your finger on the power switch.

 When not in use disconnect from power supply and store in a safe, dry,

childproof area.

Risk of Hand Arm Vibration Injury.

The DAS150T.V4 Dual Action Sander, when operated in accordance with these

instructions and tested in accordance with EN 28662-2: 1994

Results in the vibration emission declared in accordance with BS EN12096: 1996

Measured vibration emission value: ...........21.15m/s²

Uncertainty: .............................29.61m/s²

These values are suitable for comparison with emission levels of other tools

that have been subject to the same test. This tool may cause hand-arm

vibration syndrome if its use is inadequately managed.

Recommended Measures to reduce risk of hand-arm vibration syndrome:

This tool should not be used by an individual regularly for more than 13.69 minutes

in any 8 hour period. This duration of use should be reduced if the individual is

exposed to hand-arm vibration from other sources.

FUSE RATING

THIS PRODUCT MUST BE

FITTED WITH A

3 AMP FUSE

Yellow & Green

Earth Wire

Brown

Live

Wire

Blue

Neutral

Wire

Cable

Restraint

Original Language Version DAS150T.V4 Issue: 2 - 12/10/09

Patented eccentric assembly with sealed double bearings give 8mm orbital

diameter. Variable speed control from 2500-6500rpm. Alloy bevel gear head with

smooth composite motor housing for added comfort. Side mounted slider type

power control with power lock. Supplied with Ø150mm hook & loop pad and side

handle.

2.1. Specification:

Power .............230V - 500W

No load speed ....2500 - 6500rpm PADS: DAS150T.V4

Orbit size .................8mm PTC/150A............Stick-on (Firm)

Pad .................. Ø150mm PTC/150SA (supplied) ...Stick-on(Soft)

Thread ...............5/16”UNF PTC/150VA ........... Hook & Loop

Weight ..................2.2 kg

Vibration ..............21.15m/s²

Sound power level ........90.7dB

Sound pressure ..........79.7dB

2. INTRODUCTION & SPECIFICATIONS

 WARNING!Disconnect sander from power supply before changing

accessories, servicing or performing maintenance.  

Replace or repair any damaged parts. Use genuine parts only,

unauthorised parts may be dangerous and will invalidate the warranty.

5.1. After each 50 hours use (or as required), remove dust by blowing

air through the side vents and around the pad bearing. Periodic cleaning

will prolong machine life.

5.2. Change pads when required. Ensure pad and disc RPM ratings are equal

to, or exceed the machine rating. If the disc becomes unbalanced, it will

cause the bearings to wear.

5.3. When not in use store in a safe, dry, childproof location.

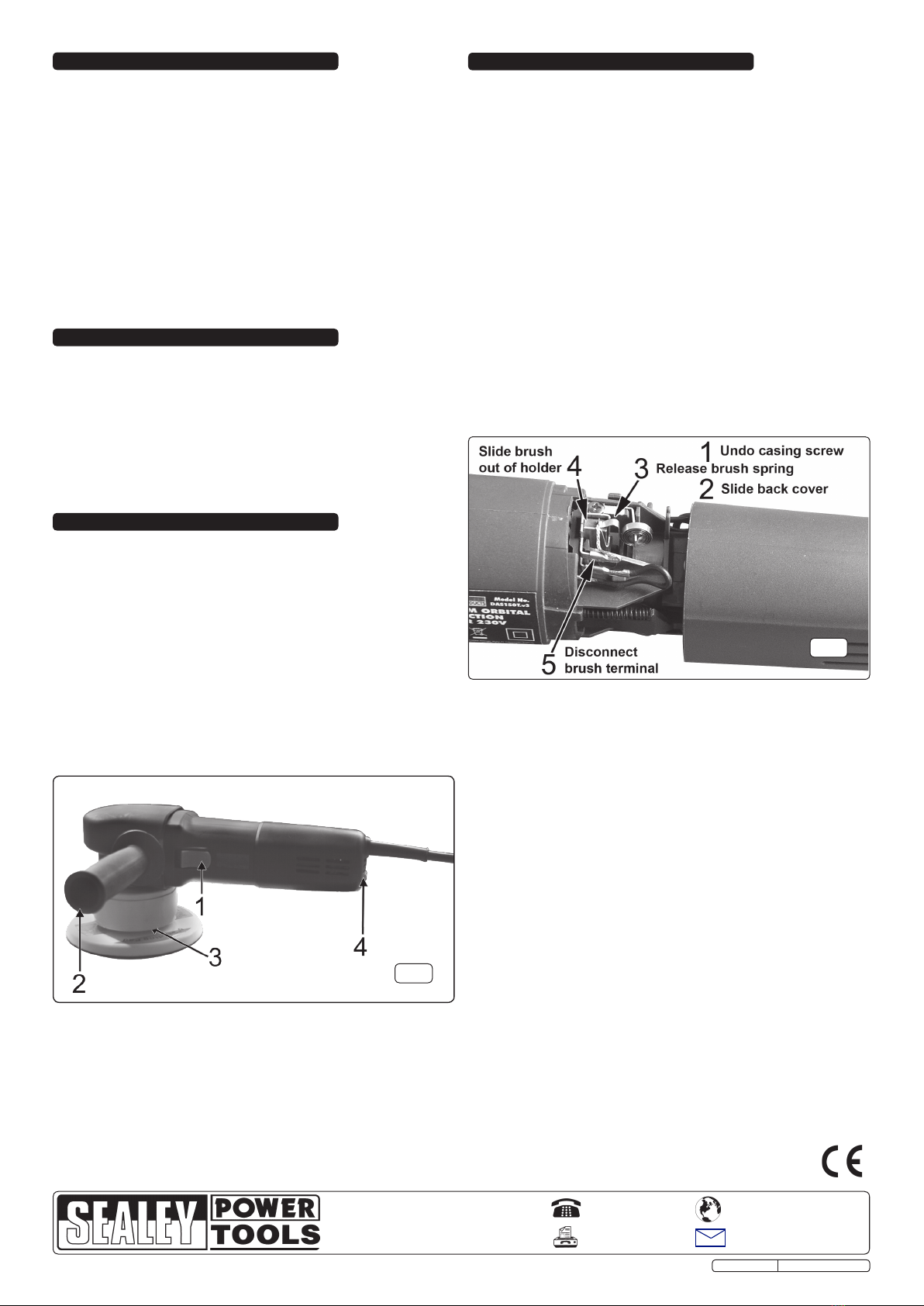

5.4. Check brushes every 200 hours of use. To access the brushes refer to

fig.2. Undo the screw in the end of the motor casing (fig.2.1) and slide

back the cover (fig.2.2). Using a small screwdriver lift the brush spring to

one side (fig.2.3) and slide the brush out of its holder (fig.2.4). If the brush

is worn to half of its original length it should be renewed. Using thin nosed

pliers pull the brush connector off its terminal (fig.2.5). Slide the new brush

into its holder. Slide the connector onto the terminal (fig.2.5). Position the

spring so that it bears down onto the end of the brush. Remember to

renew brushes as a pair.

Slide rear cover back into place and retain it with the screw.

5.5. All other service and maintenance must be carried out by an authorised

service agent.

4. OPERATING INSTRUCTIONS

5. MAINTENANCE

WARNING! Before use, ensure that you have read and understood

Section 1 Safety Instructions.

4.1. Attach the correctly rated sanding disc (not supplied) to the sanding pad.

4.2. Plug the sander into the mains power supply.

4.3. Ensure that the speed scroll switch is set to the lowest setting before

starting the sander (fig.1.4). Grip the side handle and turn on by pushing

switch (fig.1.1) forward. Let go of the switch and the machine will continue

running. Increase the speed of the sander using the variable switch

located at the rear of the sander (fig.1.4).

4.4. To release the switch, and stop the sander, press down on the rear section

of the switch - it will spring to the Off position.

4.5. Ensure that the above features are working correctly prior to use.

Note: The sander is designed for dry use only. DO NOT use with water or any

other liquids.

fig.1

fig.2

3. ASSEMBLY

3.1. Assembly

WARNING! DO NOT plug sander into the mains power supply before it is fully

assembled.

Unpack the sander and check contents. The contents should include a spanner,

side handle and backing pad, should there be any damaged or missing parts con-

tact your supplier immediately. Screw handle (fig.1.2) into the hole (right or left

side, as required) in the head. Screw the sanding pad onto the spindle (fig.1.3).

To remove pad, hold spindle with the spanner supplied whilst unscrewing the pad.

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
