Sealey PC460 User manual

60LTR WET & DRY VACUUM CLEANER 1600W
STAINLESS STEEL DRUM
MODEL NO: PC460
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is
replaced immediately by a qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
9Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
9 Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate your warranty.
9
Maintain the cleaner in good condition. Use an authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
9For dry vacuuming ensure the cartridge filter is firmly in place before operating the cleaner.
8DO NOT operate the unit without the cartridge filter in place (except when wet vacuuming). Using the cleaner without a cartridge
filter will cause machine faults and will invalidate your warranty.
9 Wear protective clothing and gloves.
8DO NOT allow children or untrained persons to operate the cleaner.
8DO NOT place attachments close to your face (especially eyes, ears, etc). DO NOT point the hose end at other persons or animals.
▲DANGER! DO NOT vacuum hot or glowing ash, cigarette ends, inflammable, explosive, corrosive or other dangerous substances.
8DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has come to a
complete stop.
8DO NOT operate the cleaner while under the influence of drugs, alcohol or impairing medication, or if you are tired.
8DO NOT use the cleaner in the rain or in very damp conditions.
8DO NOT use the cleaner for a task it is not designed to perform.
9 When not in use, store the cleaner in a safe, dry, childproof location.
2. INTRODUCTION
Industrial stainless steel drum with tough composite base and head. Supplied with 3.5mtr EVA crush resistant hose, combo nozzle,
crevice tool, 380mm squeegee, vac brush, accessory tool tidy, stainless steel rigid tubes, cartridge lter and foam lter. Tank has
easy empty drain cap with screw on hose. Fitted with two castors and two xed wheels. Cable storage hooks mounted on
frame, accessories and extension tube holders on base.
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Indoor use only Wear protective
clothing
Wear protective
gloves
PC460 Issue 3 (HF) 31/07/19
Recommended fuse rating
13 Amp

3. SPECIFICATION
Motor power ................................................................. 1600W
Drum size ..........................................................................60ltr
Filter type....................................................................Cartridge
Supply .............................................................................. 230V
Vac Accessories Ø...........................................................38mm
Cartridge filter..........................................................PC200CFL
Foam lter ..........................................................PC460ACC7
4. CONTENTS
4.1. CARTON CONTENT
4.1.1. Carefully unpack the carton.
4.1.2. Locate the two side clasps (g.1.6) which hold the motor head
(g.1.3) in place.
4.1.3. Undo the clasps, remove the motor head and take out the items in
the drum.
4.1.4. Check and identify each component as listed below. If anything is
missing or damaged please contact your supplier immediately.
5. ASSEMBLY
5.1. Ensure the mains plug is disconnected. (fig.2.1)
5.2. Undo clasps. (fig.2.2)
5.3. Lift off the motor head assembly. (fig.2.3)
5.4. Remove contents from inside the drum. (fig.2.4)
5.5. Turn the drum upside down and insert the castors ensuring they are
pushed all the way in. (fig.2.5a)
5.5.1. Insert the rear wheel shaft (N) into the rear support block. Insert
washer (M) on the shaft, then insert rear wheel (K) on the shaft. Insert
the lock pin (R) into the hole on the end of the shaft to lock the wheel.
Snap the hub cap (O) on to the wheel. Repeat the same steps
at the other end of the shaft. (fig.2.5b)
5.6. Insert the frame into the drum (fig.2.6) to be used as the tool tidy
frame and handle to manoeuvre the vacuum.
5.7. For dry vacuum cleaning fit the cartridge filter supplied. (fig.2.7)
5.8. For dry vacuum cleaning the dust bags can also be used. (fig.2.8)
5.9. For wet vacuum cleaning use the foam filter supplied. (fig.2.9)
NOTE: DO NOT operate the cleaner without a cartridge filter fitted as
this will damage the machine and invalidate your warranty.
5.10. Replace the motor head onto the drum. (fig.2.10)
5.11. Align up the motor head with the clasps and snap into place, by
applying pressure at the mid point of the clasps. (fig.2.11)
5.12. Insert the large end of the hose into the front inlet of the drum and lock in place by turning fully clockwise. (fig.2.12)
5.13. Choose the desired nozzle and push it onto the suction tube. (fig. 2.13)
6. DRY VACUUM CLEANING
WARNING! Ensure you read, understand and apply Section 1
‘Safety Instructions’.
WARNING! DO NOT vacuum hazardous substances. Use of an
incorrect cartridge filter will invalidate your warranty.
6.1. Ensure the machine is unplugged from the power supply. (fig.3.1)
6.2. Remove the motor head assembly and fit the cartridge filter
down over the filter basket and push fully home. (fig.3.2) For
better dust free cleaning you can put the orange filter bag over
the cartridge filter. (fig.3.3)
6.3. The supplied dust bag can also be used when dry cleaning.
(fig.3.4)
6.4. Reposition the head onto the drum, and clip in place. (fig.3.5)
6.5. Insert the larger end of the flexible hose into the front inlet on the
drum and lock in place. Push the required attachment/suction tube onto the free end of the hose. (fig.3.6)
Item Description
1 Handle
2 ON/OFF switch
3 Motor head assembly
4 Filter basket
5 Safety float valve
6 Clasp
7 Drum, (Stainless Steel)
8 Vacuum hose connection
9 Drain plug
10 Flexible vacuum hose
11 Suction tubes
12 Tool holder frame/handle
Item Description
13 Combination brush
14 Air regulator handle
15 Dust Bag
16 Crevice nozzle
17 Cartridge filter
18 Cartridge filter bag
19 Combination nozzle
20 Foam filter
21 Liquid drain hose
22 Brush tool
23 Attachment bag g.1
g.2
g.3
Original Language Version
© Jack Sealey Limited PC460 Issue 3 (HF) 31/07/19

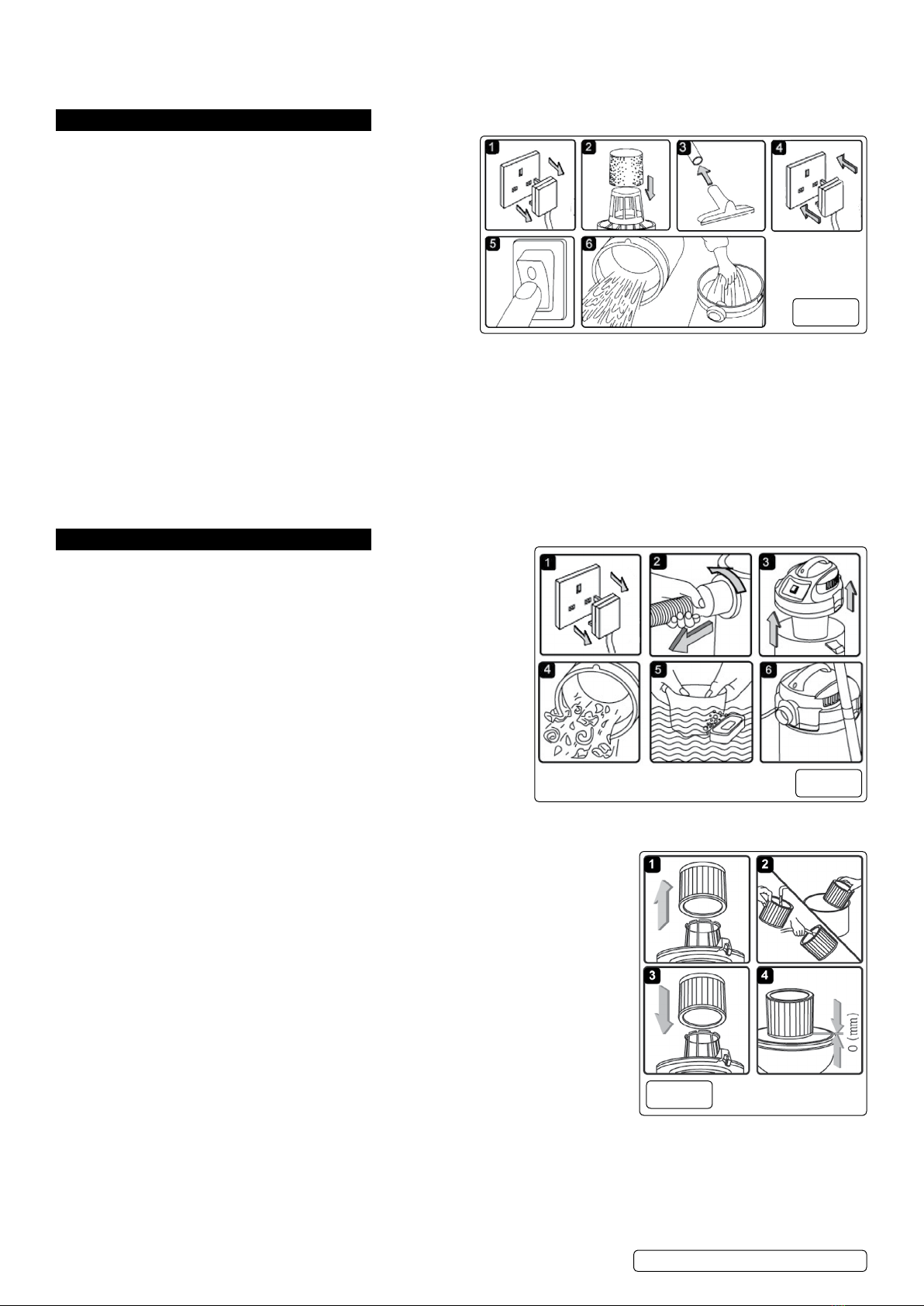

6.6. Plug in the power supply. (fig.3.7)
6.7. Switch to the ‘On’ (position ‘I’). (fig.3.8)
6.8. When you have completed vacuuming, press the switch to ‘Off’.
7. WET VACUUM CLEANING
WARNING! Ensure you read, understand and apply
Section 1 ‘Safety Instructions’. Reminder: Remove plug
from power supply before opening unit. DO NOT vacuum
solvents, explosives, inflammable and/or hazardous
liquids such as petrol, oil, spirits, paint, thinners,
acids etc.
7.1. Ensure the machine is unplugged from the power supply.
(fig.4.1) Make sure the tank is clean and free from
dust and dirt.
7.2. Remove the cartridge filter and fit a foam filter over the filter
basket. (fig.4.2) Replace the motor head assembly
onto the drum.
7.3. Fit the desired nozzle (fig.4.3) (to the same flexible hose used
in dry cleaning).
7.4. Ensure the switch is in the ‘Off’ (position ‘0’) before plugging into the power supply.
7.5. Press the switch to the ‘On’ (position ‘I’). (fig.4.5)
Note: To vacuum large quantities of liquid, from a sink or tank etc, DO NOT immerse the nozzle completely in the liquid, leave a gap at the
top of the nozzle opening to allow an air inflow. The machine is fitted with a float valve which stops the suction action when the tank
has reached its maximum capacity. The user will notice an increase in motor speed. When this happens, turn off the machine,
disconnect from power supply, remove the motor head assembly from the drum and empty the liquid into a suitable receptacle or
drain. (fig.4.6). To continue vacuuming, refit the head and proceed. After wet vacuuming, turn the machine off and unplug from power
supply. Empty the drum and clean and dry the inside and outside before storage.
WARNING! After wet vacuuming the foam filter must be removed and a cartridge filter must be fitted before dry vacuuming again.
WARNING! Not designed for liquid storage. Always empty liquids after use and before storing.
8. MAINTENANCE
8.1. GENERAL MAINTENANCE.
8.1.1. Ensure the machine is unplugged from the power supply.
8.1.2. Disconnect the hose from the drum.
8.1.3. Undo the clasps and remove motor head assembly from the drum.
8.1.4. Clear out any dirt or debris from the drum and hose.
8.1.5. Clean the foam filter by washing it in a mild soapy solution.
8.1.6. Check that the suction tube operates smoothly and check the power
cable to make sure it has not received any damage.
8.2. CARTRIDGE FILTER MAINTENANCE.
8.2.1. Handle the filter carefully when cleaning or installing.
8.2.2. Carefully remove the cartridge filter (fig.6.1) and inspect it for damage.
8.2.3. A filter that has small holes or tears in it will not perform efficiently and
should be replaced.
8.2.4. To clean a dry filter, tap it inside a waste bin. (fig.6.2)
8DO NOT use the filter if it becomes wet as the filter will clog quickly and be
very difficult to clean. (The cartridge filter is designed for dry vacuuming only.) Should the filter be inadvertently wetted it should be
rinsed from the inside (fig.6.2) and allowed to air dry for 24 hours.
8.2.5. To fit a new/cleaned filter slide it over the filter basket (fig.6.3) and push it fully home (fig.6.4).
g.4
g.5
Original Language Version
© Jack Sealey Limited PC460 Issue 3 (HF) 31/07/19
g.6

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
PC460 Issue 3 (HF) 31/07/19
Original Language Version
© Jack Sealey Limited
Problem Cause Solution
Cleaner will not operate. 1. No power supply.
2. Faulty power cable, switch or motor.
3. Drum full of liquid.
1. Check supply.
2. Check and repair or replace faulty item.
3. Empty drum.
Dust comes from the
motor cover.
1. Cartridge filter missing or
damaged.
1. Fit or replace cartridge filter.
Reduced efficiency and
increased motor speed/
vibration.
1. Dust drum full.
2. Filter clogged.
3. Nozzle, hose or drum inlet blocked.
1. Empty drum.
2. Clean or replace cartridge filter.
3. Check nozzle, hose and drum inlet for blockage.
9. TROUBLESHOOTING
