Sealey PC200SD110V.V2 User manual

PC200SD110V.V2 Issue No.2 22/10/09
Original Language Version
INSTRUCTIONS
INDUSTRIAL VACUUM CLEANER 20LTR
FOR MODEL: PC200SD110V.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets
and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board.
We also recommend that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable
products that are plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. You
may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are
tested by a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of
those appliances and the safety of the appliance operators. If in any doubt about electrical safety, contact a
qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See
1.1.1. and 1.1.2. and use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none are loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse.
1.1.7 Ensure the 110 volt transformer or generator is of an adequate rating for the cleaner.
1.1.8 DO NOT pull or carry the appliance by its power supply lead.
1.1.9 DO NOT pull the plug from the socket by the power cable.
1.1.10 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any
faulty item repaired or replaced by a qualified electrician.
Ensure the unit is correctly earthed via a three-pin 110V plug.

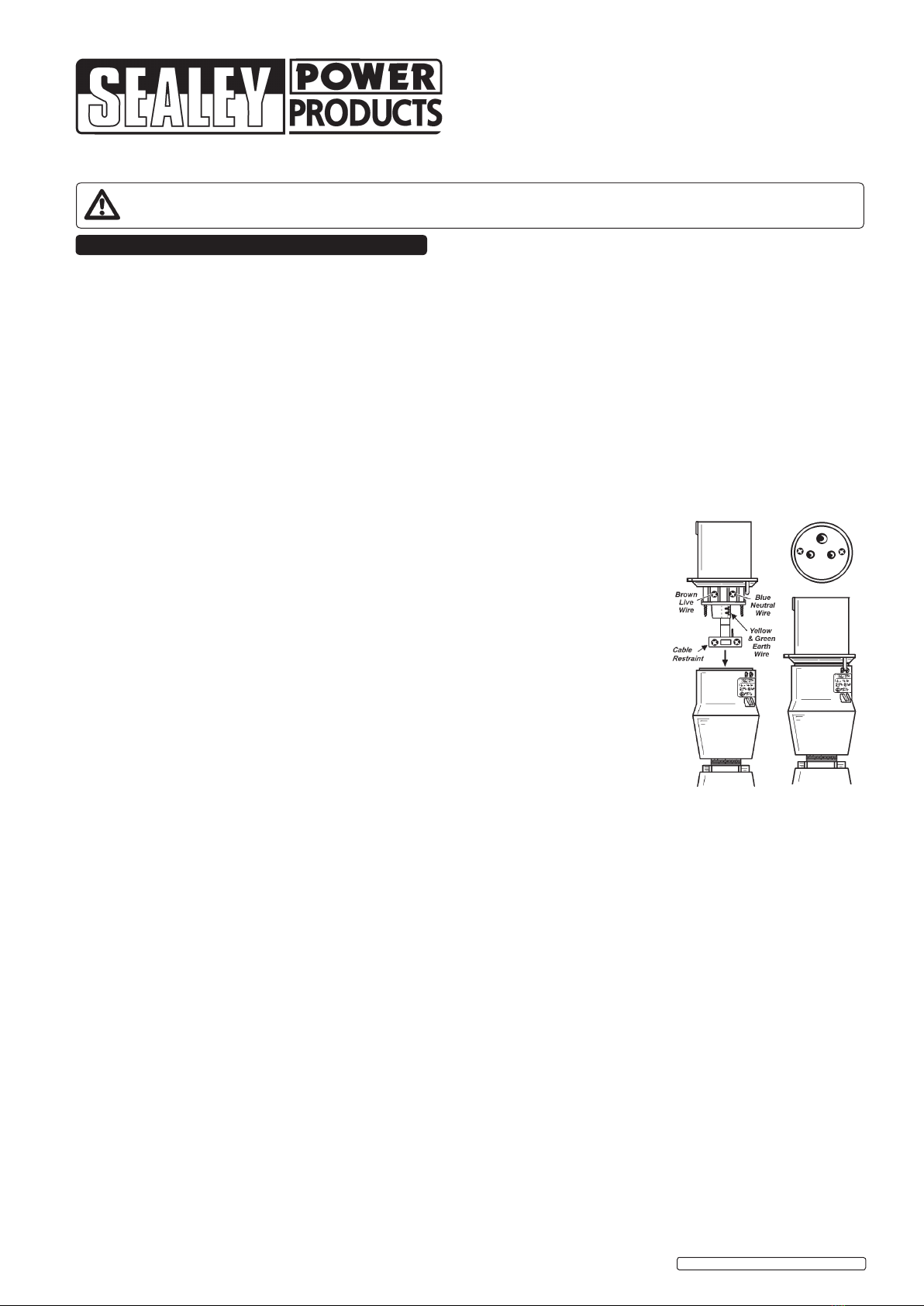

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘PE’.
b) Connect the BROWN live wire to the live terminal ‘L/+’.
c) Connect the BLUE neutral wire to the neutral terminal.
d) After wiring, check that there are no bare wires, that all wires have been
correctly connected, that the cable outer insulation extends past the cable
restraint and that the restraint is tight.
1.1.11 If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is recommended
since any appliance plugged into it will be protected. The cable core section is important and should be at least
1.5mm², but to be absolutely sure that the capacity of the reel is suitable for this product and for others which may be
used in the other output sockets, we recommend the use of 2.5mm² section cable.
1.2 GENERAL SAFETY
 Disconnect the cleaner from the power supply before servicing, changing accessories, or performing any maintenance.
 Use only genuine parts and accessories. Unauthorised parts and accessories may be dangerous and will invalidate
your warranty.
 Maintain the cleaner in good condition. Use an authorised agent for servicing. Keep machine clean, but DO NOT use solvents.
 For dry vacuuming ensure the locking cartridge filter is firmly in place before operating the cleaner.
 DO NOT operate the unit without the locking cartridge filter in place (except when wet vacuuming).
Using the cleaner without a locking cartridge filter will cause machine faults and will invalidate your warranty.
 Wear protective clothing and gloves.
 DO NOT allow children or untrained persons to operate the cleaner.
 DO NOT place attachments close to your face (especially eyes, ears, etc). Do not point the hose end at other persons
or animals.
DANGER! DO NOT vacuum hot or glowing ash, cigarette ends, inflammable, explosive, corrosive or other dangerous
substances.
 DO NOT operate the unit without the locking cartridge filter or optional dust bag (except when wet vacuuming).
 DO NOT leave machine running unattended. Turn power supply OFF, and DO NOT leave the vicinity until motor has
come to a complete stop.
 DO NOT operate the cleaner while under the influence of drugs, alcohol or impairing medication, or if you are tired.
 DO NOT use the cleaner in the rain or in very damp conditions.
 DO NOT use the cleaner for a task it is not designed to perform.
 When not in use, store the cleaner in a safe, dry, childproof location.
Fuse rating: 16 Amp

PC200SD110V.V2 Issue No.2 22/10/09
Original Language Version
2.1 Carton content
2.1.1 Carefully unpack the carton.
2.1.2 Locate the two side clasps (fig.1.6) which hold the
top section (fig.1.3) in place.
2.1.3 Undo the clasps, remove the power head and take
out the items in the container.
2.1.4 Check and identify each component as listed below.
If anything is missing or damaged please contact
your supplier immediately.
2.2 Specification
Motor...................................................................110V 1250W
Max. Vacuum Pressure............................................. 125mbar
Air Flow................................................................... 172.8m³/h
Container .........................................................................20ltr
Weight................................................................................5kg
Vac Accessories Ø.........................................................35mm
Filter (See Sect.9 ‘Consumables’) - Dry ..........Cartridge Filter
Filter (See Sect.9 ‘Consumables’) - Wet ....................... Foam
2. CONTENTS AND SPECIFICATIONS
3. ASSEMBLY
3.1 Ensure the mains plug is disconnected. (fig.2.1)
3.2 Undo clasps. (fig.2.2)
3.3 Lift off the power head assembly. (fig.2.3)
3.4 Locate contents for assembly if not already done so,
remove from inside of vacuum drum and check
against contents list above.
3.5a Turn the drum upside down and insert the castor
assembly mouldings into the slots in the base either
side of the drain cap. Ensure they are pushed all
the way in and fix them with the self tapping screws
provided. Do not overtighten. (fig.2.4a)
3.5b The wheel assembly mouldings are marked 1 and 2.
Insert the wheel assembly mouldings into the two
remaining slots in the base ensuring that the number
on each moulding matches the number to be found on
the base. Ensure they are pushed all the way in and
fix them with the self tapping screws provided
(fig.2.4b). Do not overtighten.
3.6 For dry vacuum cleaning use the locking cartridge filter
supplied and push it fully down onto the filter basket.
and lock in place (fig.2.5).
3.7 For wet vacuum cleaning fit the supplied foam filter.
(fig.2.6)
NOTE:Do not operate the cleaner without a cartridge filter
fitted as this will damage the machine and invalidate your
warranty. Ensure filter is correctly fitted before every use
3.8 Replace the power head assembly onto the drum
ensuring that the on/off switch is above the vacuum
hose connector. (fig.2.7)
3.9 Align the ridges on the rim of the power head with the
two side clasps. Place the upper part of each clasp
over the ridges and snap the clasps into place by
pressing on the lower part of each clasp in turn. (fig.2.8)

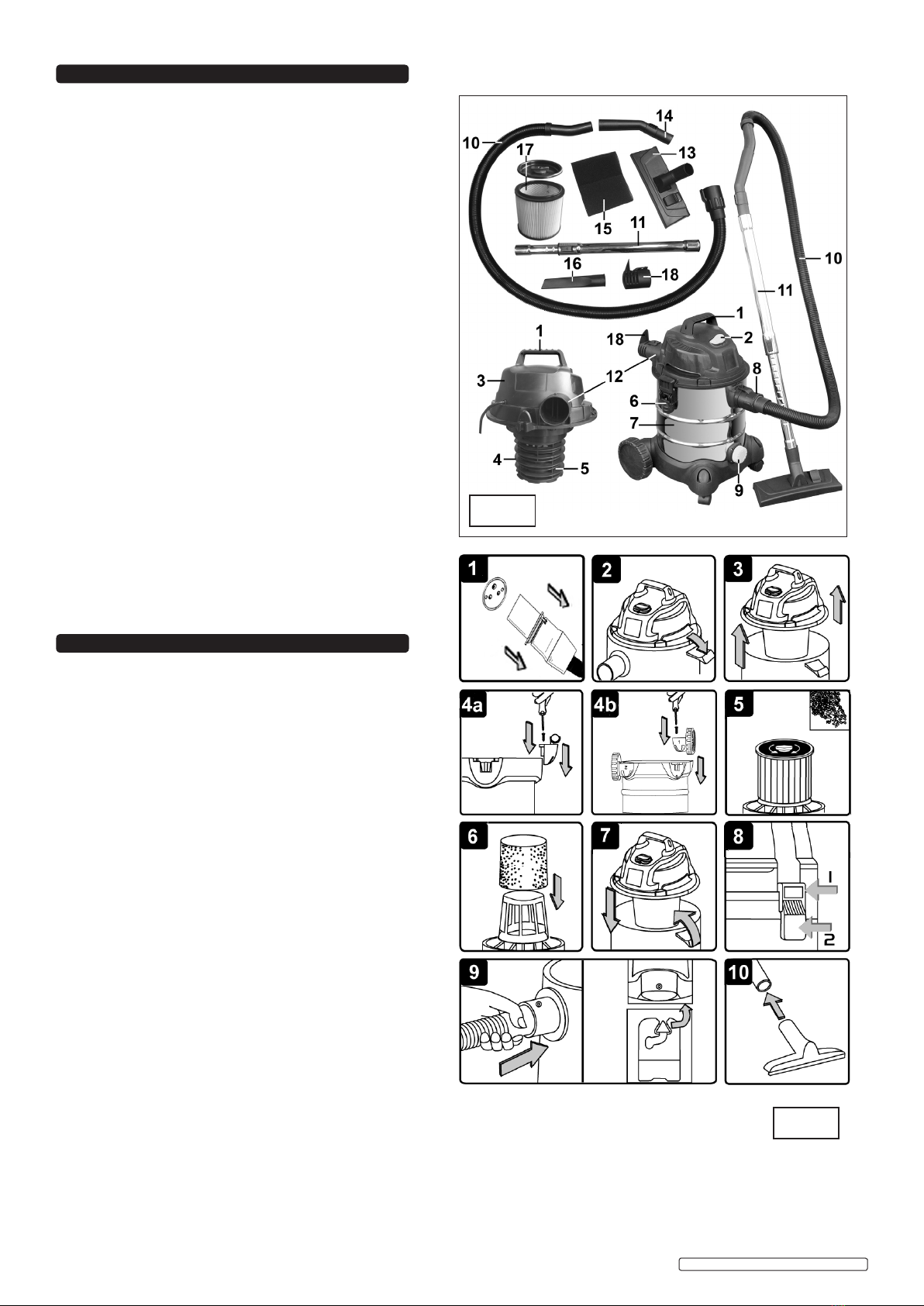

fig.1
Item Description
1 Handle
2 ON/OFF switch
3 Top section
4 Filter basket
5 Safety float valve
6 Clasp
7 Stainless Steel drum
8 Hose connection
9 Drain Cap
10 Flexible vacuum hose
Item Description
11 Telescopic suction tube
12 Blow connection
13 Combination nozzle
14 Air regulator handle
15 Foam filter
16 Crevice nozzle
17 Locking Cartridge filter
(fitted as standard)
18 Noise muffler
fig.2

PC200SD110V.V2 Issue No.2 22/10/09
Original Language Version
5. WET VACUUM CLEANING
WARNING! Ensure you read, understand and apply Section 1 ‘Safety
Instructions’. Reminder: Remove plug from power supply before
opening unit. DO NOT vacuum solvents, explosives, inflammable and/or
hazardous liquids such as petrol, oil, spirits, paint, thinners, acids etc.
5.1 Ensure the machine is unplugged from the power supply. (fig.4.1) Make sure
the tank is clean and free from dust and dirt.
5.2 Remove the cartridge filter and fit a foam filter over the filter basket. (fig.4.2)
Refit the power head onto the drum.
5.3 To the same flexible hose used in dry cleaning fit the desired nozzle. (fig.4.3)
5.4 Ensure the switch is ‘Off’ (position ‘0’) before plugging into the power supply.
(fig.4.4)
5.5 Press the switch to ‘On’ (position ‘I’). (fig.4.5)
Note: To vacuum large quantities of liquid, from a sink or tank etc, do not immerse
the nozzle completely in the liquid, leave a gap at the top of the nozzle opening to
allow an air inflow. The machine is fitted with a float valve which stops the suction
action when the tank has reached its maximum capacity. The user will notice an
increase in motor speed. When this happens, turn off the machine, disconnect from
power supply, remove the power head from the container and empty the liquid into a
suitable receptacle or drain. (fig.4.6)
To continue vacuuming, refit the power head and proceed. After wet vacuuming, turn
the machine off and unplug from power supply. Empty the container and clean and
dry the inside and outside before storage.
Remember! After wet vacuuming the foam filter must be removed and a cartridge
filter must be fitted before dry vacuuming again.
WARNING! Not designed for liquid storage. Always empty liquids after
use and before storing.
WARNING! Ensure you read, understand and apply Section 1 ‘Safety
Instructions’. Reminder: DO NOT vacuum hazardous substances. Use
of an incorrect cartridge filter will invalidate your warranty.
4.1 Ensure the machine is unplugged from the power supply. (fig.3.1)
4.2 Remove the power head and with the raised rim uppermost fit the cartridge
filter tube down over the filter basket and push fully home. Place the locking
disc onto the top of the filter and turn the locking bar until the latch drops
into the slot in the top of the filter basket. Continue turning until the filter is
fully locked down. (fig.3.2)
4.3 Reposition the power head onto the drum body, and clip in place. (fig.3.3)
4.4 Insert the larger end of the flexible hose into the front inlet on the container
and lock in place. Push the required attachment onto the free end of the
hose. (fig.3.4)
4.5 Plug in the power supply. (fig.3.5)
4.6 Switch to the ‘On’ (position ‘I’). (fig.3.6)
4.7 When you have completed vacuuming, press the switch to ‘Off’.
4. DRY VACUUM CLEANING
6. BLOWING
6.1 Push the large end of the flexible hose into the blow
connection in the top section. (fig.5.1)
6.2 Ensure the power switch is turned off (fig.5.2) and plug in
the power supply. (fig.5.3)
6.3 Switch on the power (position ‘I’). (fig.5.4)
6.4 The unit will now blow through the hose and can be
used to clear obstructions within the pipe. (fig.5.5)
WARNING! If after a few seconds the hose is still
blocked turn off the unit and clear the hose manually.

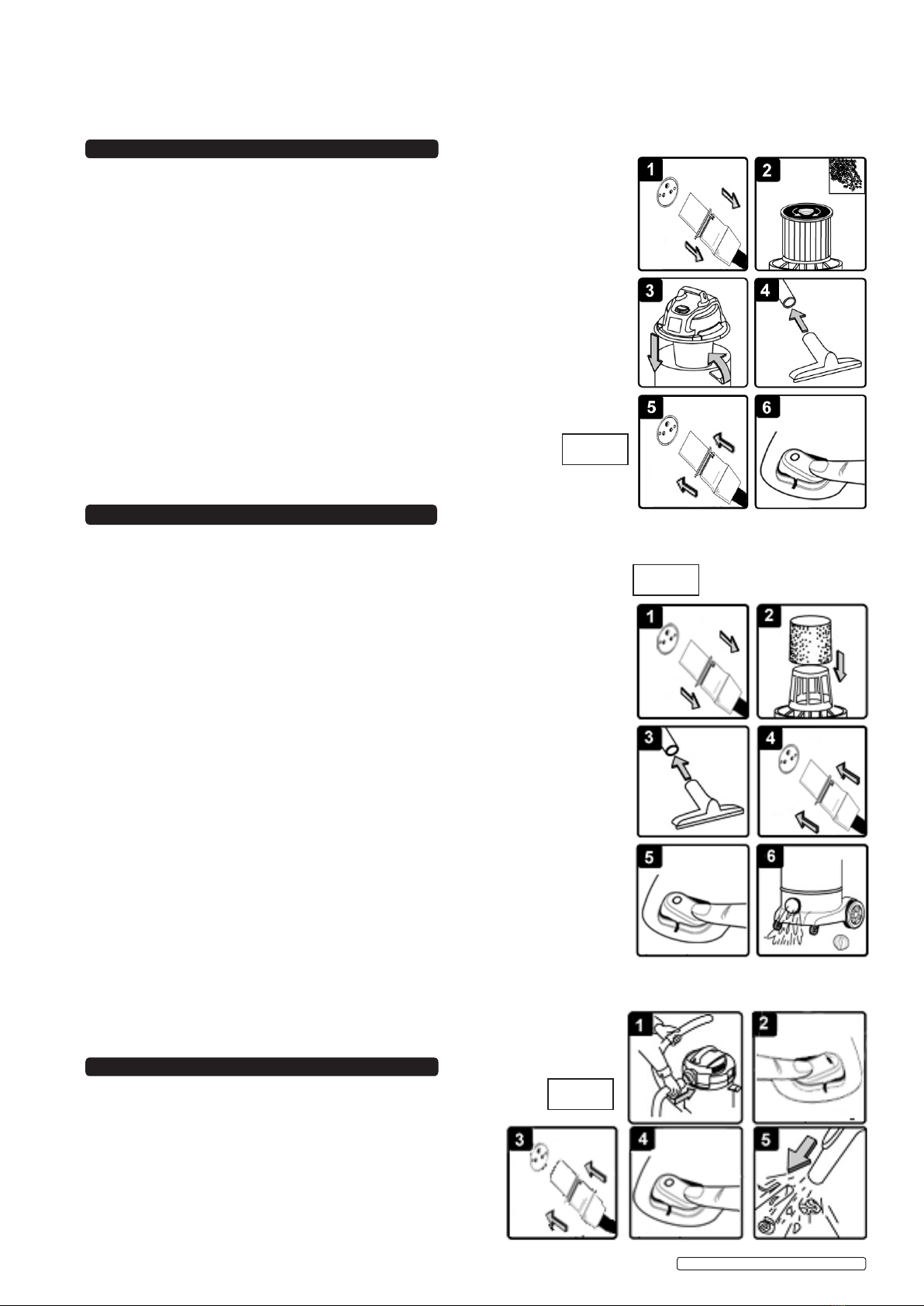

fig.3
fig.5
fig.4
3.10 Align the arrow symbol on the large end of the vacuum hose with the pin on the front inlet of the drum. Push the fitting
into the inlet and lock in place by turning the fitting clockwise. (fig.2.9)
3.11 Choose the desired nozzle and push it onto the telescopic suction tube. (fig.2.10)

PC200SD110V.V2 Issue No.2 22/10/09
Original Language Version

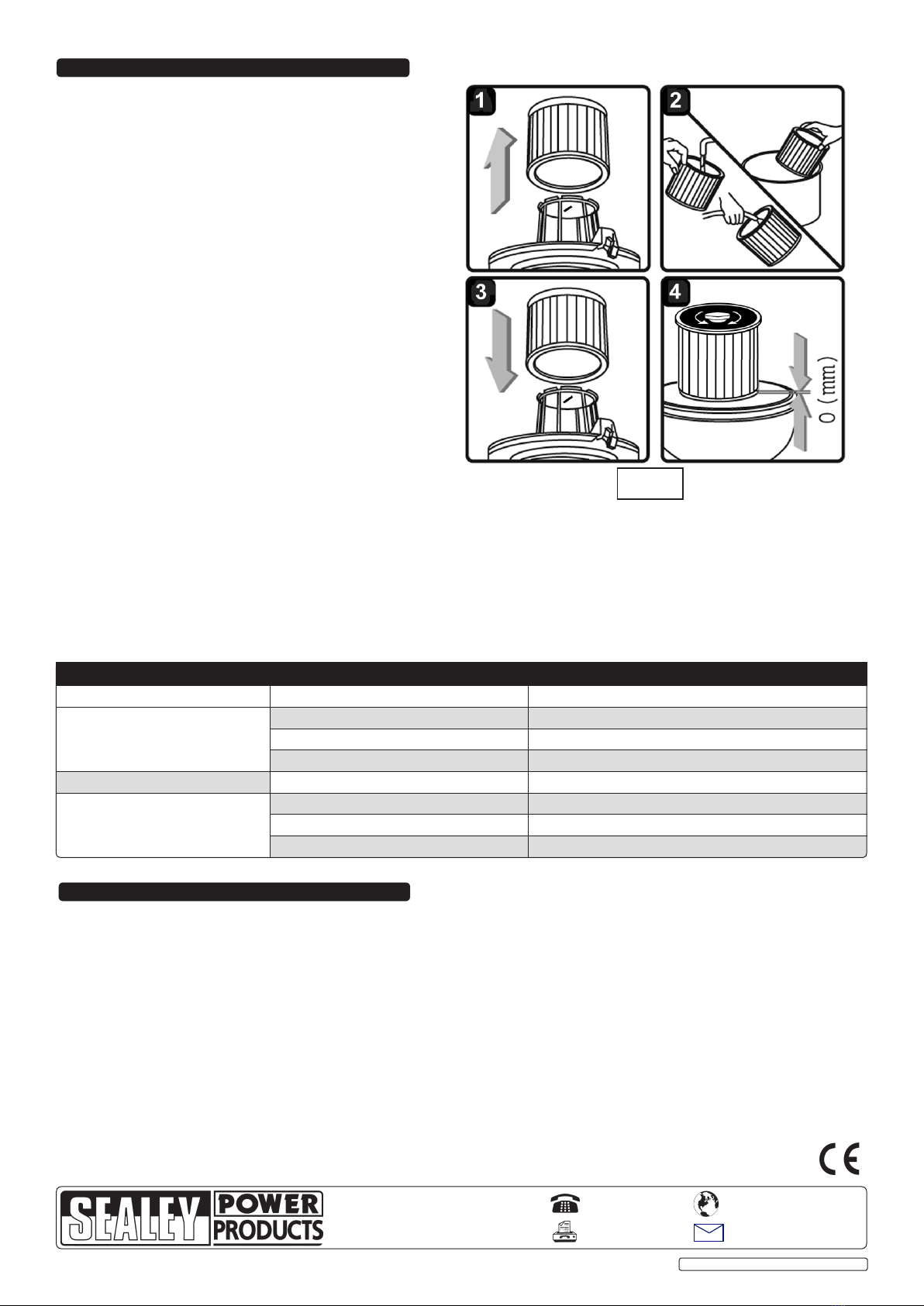

9. CONSUMABLES
Locking Cartridge Filter (Must be used for dry vacuuming)..........Model No. PC200CFL
Foam Filter (Pack of 10) ....................................Model No. PC200FF10
PC200SD Dust Bags (Pack of 5) Optional Extra ..................Model No. PC200PB5
IMPORTANT! IF THE MACHINE IS USED WITHOUT A CARTRIDGE FILTER FITTED THE MOTOR WILL EVENTUALLY BURN
OUT AND YOUR GUARANTEE WILL BE INVALIDATED. ALWAYS KEEP A SPARE CARTRIDGE FILTER HANDY.
7. MAINTENANCE
7.1 GENERAL MAINTENANCE.
7.1.1 Ensure the machine is unplugged from the power
supply.
7.1.2 Disconnect the hose from the container.
7.1.3 Undo the clasps and remove power head from the
container.
7.1.4 Clear out any dirt or debris from the container and hose.
7.1.5 Clean the foam filter by washing it in a mild soapy
solution.
7.1.6 Check that the telescopic suction tube operates
smoothly and check the power cable to make sure it has
not received any damage.
7.2 CARTRIDGE FILTER MAINTENANCE.
7.2.1 Handle the filter carefully when cleaning or installing.
7.2.2 Carefully remove the cartridge filter (fig.6.1) and
inspect it for damage. A filter that has small holes or
tears in it will not perform efficiently and should be
replaced.
7.2.3 To clean a dry filter, tap it inside a waste bin. (fig.6.2)
7.2.4 Do not use the filter if it becomes wet as the filter will
clog quickly and be very difficult to clean. (The cartridge
filter is designed for dry vacuuming only).
Should the filter be inadvertently wetted it should be
rinsed from the inside (fig.6.2) and allowed to air dry for
24 hours.
7.2.5 Fit a new/cleaned filter and with the raised rim
uppermost fit the cartridge filter tube down over the filter
basket and push fully home. Place the locking disc onto
the top of the filter and turn the locking bar until the latch
drops into the slot in the top of the filter basket.
Continue turning until the filter is fully locked down.
(fig.6.4).
8.TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
1) Cleaner will not operate 1a) No power supply Check supply
1b) Faulty power cable, switch or motor Check and repair or replace faulty item
1c) Container full of liquid Empty container
2) Dust comes from the motor cover 2) Cartridge lter missing or damaged Fit or replace cartridge lter
3) Reduced efciency and increased
motor speed/vibration
3a) Dust container full Empty container
3b) Filter clogged Clean or replace cartridge lter
3c) Nozzle, hose or container inlet blocked Check nozzle, hose & container inlet for blockage
fig.6
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
