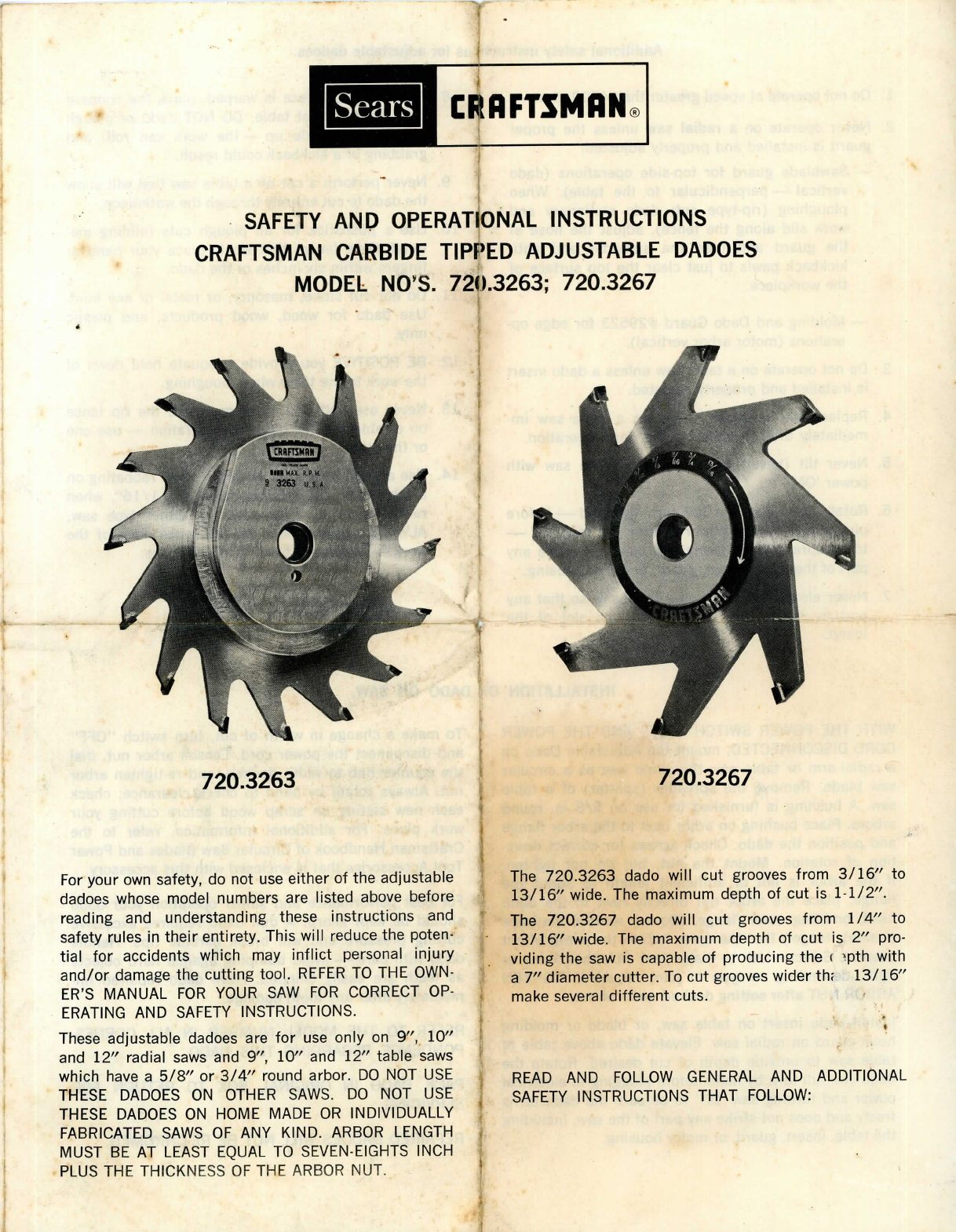

~ SAFETY AND OPERATIONAL INSTRUCTIONS
CRAFTSMAN CARBIDE T|PII’ED ADJUSTABLE DADOES
MODEL NO’S. 720.3263; 720.3267
. I
720.3263
For your own safety, do not use either of the adjustable
dadoes whose model numbers are listed above before
reading and understanding these instructions and
safety rules in their entirety. This will reduce the poten-
tial for accidents which may inflict personal injury
and/or damage the cutting tool. REFER TO THE OWN-
ER’S MANUAL FOR YOUR SAW FOR CORRECT OP-
ERATING AND SAFETY INSTRUCTIONS.
These adjustable dadoes are for use only on 9", 10"
and 12" radial saws and 9", 10" and 12" table saws
which have a 5/8" or 3/4" round arbor. DO NOT USE
THESE DADOES ON OTHER SAWS. DO NOT USE
THESE DADOES ON HOME MADE OR INDIVIDUALLY
FABRICATED SAWS OF ANY KIND. ARBOR LENGTH
MUST BE AT LEAST EQUAL TO SEVEN-EIGHTS INCH
PLUS THE THICKNESS OF THE ARBOR NUT.
I
I
I
I
II
..—-—.--.-.
—-
.._.....s«
.
~.--—-—.—-~
—
-..._-.
..
...-.,_i...
.......u.
..._.....-.
.
.
‘--
.__4@}
720.3267
The 720.3263 dado will cut grooves from 3/16" to
13/16" wide. The maximum depth of cut is 1-1/2".
The 720.3267 dado will cut grooves from 1/4" to
13/16" wide. The maximum depth of cut is 2" pro-
viding the saw is capable of producing the I=.pth with
a 7" diameter cutter. To cut grooves wider th: 13/ 16"
make several different cuts. I
READ AND FOLLOW GENERAL AND ADDITIONAL
SAFETY INSTRUCTIONS THAT FOLLOW:

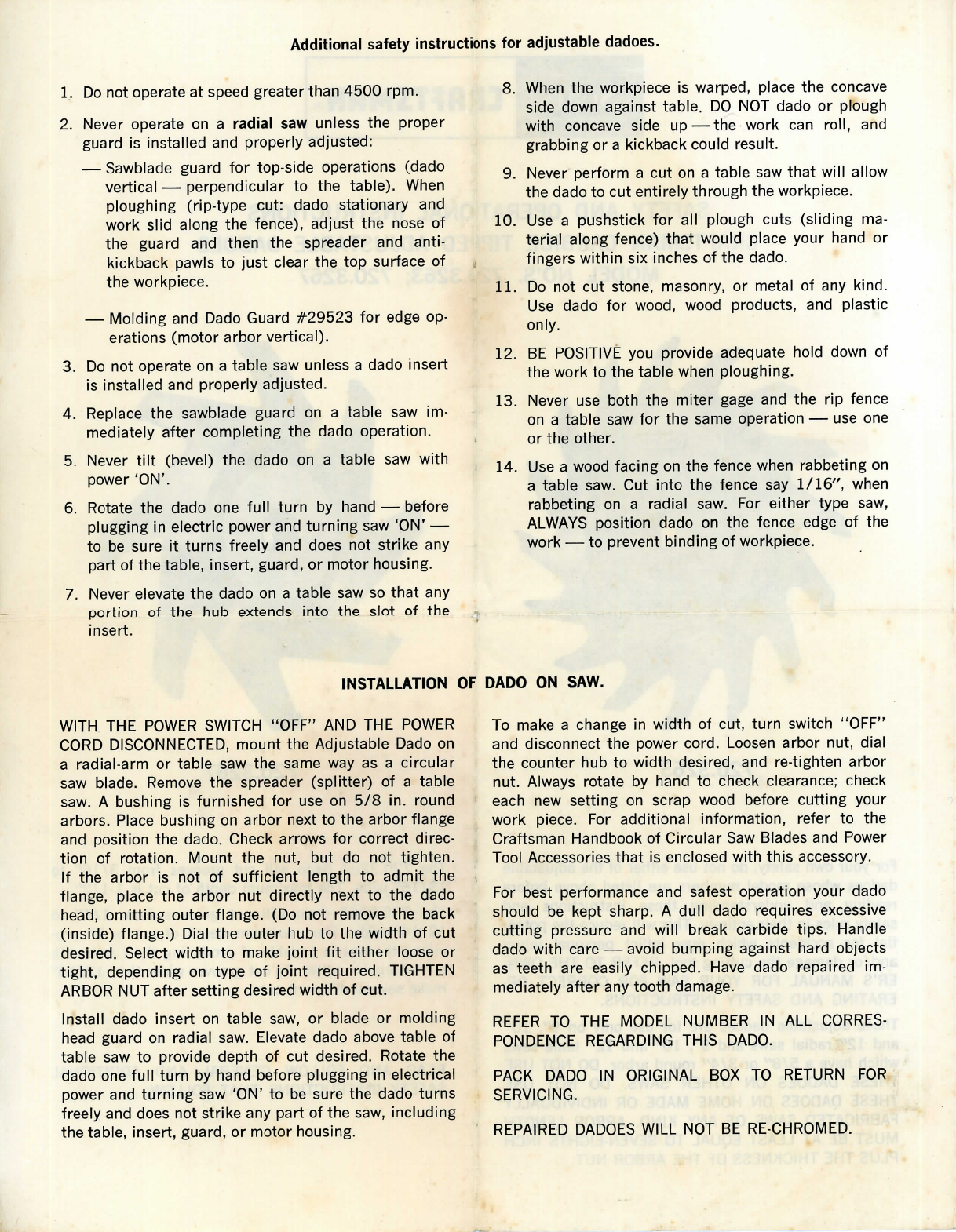

Additional safety instructions for adjustable dadoes.
1_. Do not operate at speed greater than 4500 rpm.
2. Never operate on aradial saw unless the proper
guard is installed and properly adjusted:
—Sawblade guard for top-side operations (dado
vertica|—perpendicu|ar to the table). When
ploughing (rip-type cut: dado stationary and
work slid along the fence), adjust the nose of
the guard and then the spreader and anti-
kickback pawls to just clear the top surface of
the workpiece.
— Molding and Dado Guard #29523 for edge op-
erations (motor arbor vertical).
3. Do not operate on atable saw unless adado insert
is installed and properly adjusted.
4. Replace the sawblade guard on atable saw im-
mediately after completing the dado operation.
5. Never tilt (bevel) the dado on atable saw with
power ‘ON’.
6. Rotate the dado one full turn by hand — before
plugging in electric power and turning saw ‘ON’ —
to be sure it turns freely and does not strike any
part of the table, insert, guard, or motor housing.
7. Never elevate the dado on atable saw so that any
portion of the hub extends into the slot of the
insert.
8. When the workpiece is warped, place the concave
side down against table. DO NOT dado or plough
with concave side up—the work can roll, and
grabbing or akickback could result.
9. Never perform a cut on atable saw that will allow
the dado to cut entirely through the workpiece.
10. Use apushstick for all plough cuts (sliding ma-
terial along fence) that would place your hand or
fingers within six inches of the dado.
11. Do not cut stone, masonry, or metal of any kind.
Use dado for wood, wood products, and plastic
only.
12. BE POSITIVE you provide adequate hold down of
the work to the table when ploughing.
13. Never use both the miter gage and the rip fence
on atable saw for the same operation — use one
or the other.
14. Use awood facing on the fence when rabbeting on
a table saw. Cut into the fence say 1/16", when
rabbeting on aradial saw. For either type saw,
ALWAYS position dado on the fence edge of the
work — to prevent binding of workpiece.
INSTALLATION OF DADO ON SAW.
WITH THE POWER SWITCH “OFF" AND THE POWER
CORD DISCONNECTED, mount the Adjustable Dado on
aradial-arm or table saw the same way as acircular
saw blade. Remove the spreader (splitter) of atable
saw. Abushing is furnished for use on 5/8 in. round
arbors. Place bushing on arbor next to the arbor flange
and position the dado. Check arrows for correct direc-
tion of rotation. Mount the nut, but do not tighten.
If the arbor is not of sufficient length to admit the
flange, place the arbor nut directly next to the dado
head, omitting outer flange. (Do not remove the back
(inside) flange.) Dial the outer hub to the width of cut
desired. Select width to make joint fit either loose or
tight, depending on type of joint required. TIGHTEN
ARBOR NUT after setting desired width of cut.
Install dado insert on table saw, or blade or molding
head guard on radial saw. Elevate dado above table of
table saw to provide depth of cut desired. Rotate the
dado one full turn by hand before plugging in electrical
power and turning saw ‘ON’ to be sure the dado turns
freely and does not strike any part of the saw, including
the table, insert, guard, or motor housing.
To make achange in width of cut, turn switch “OFF”
and disconnect the power cord. Loosen arbor nut, dial
the counter hub to width desired, and re-tighten arbor
nut. Always rotate by hand to check clearance; check
each new setting on scrap wood before cutting your
work piece. For additional information, refer to the
Craftsman Handbook of Circular Saw Blades and Power
Tool Accessories that is enclosed with this accessory.
For best performance and safest operation your dado
should be kept sharp. Adull dado requires excessive
cutting pressure and will break carbide tips. Handle
dado with care—avoid bumping against hard objects
as teeth are easily chipped. Have dado repaired im-
mediately after any tooth damage.
REFER TO THE MODEL NUMBER IN ALL CORRES-
PONDENCE REGARDING THIS DADO.
PACK DADO IN ORIGINAL BOX TO RETURN FOR
SERVICING.
REPAIRED DADOES WILL NOT BE RE-CHROMED.

ABOVE: PHOTOGRAPH SHOWING THE 93263 DADO MOUNTED ON ARADIAL SAW.
(SAW GUARD IS REMOVED FOR PHOTOGRAPHIC CLARITY).
ABOVE: PHOTOGRAPH SHOWING THE 93263 DADO MOUNTED ‘ON TABLE SAW.
(THE DADO TABLE INSERT IS REMOVED FOR PHOTOGRAPHIC CLARlTY).

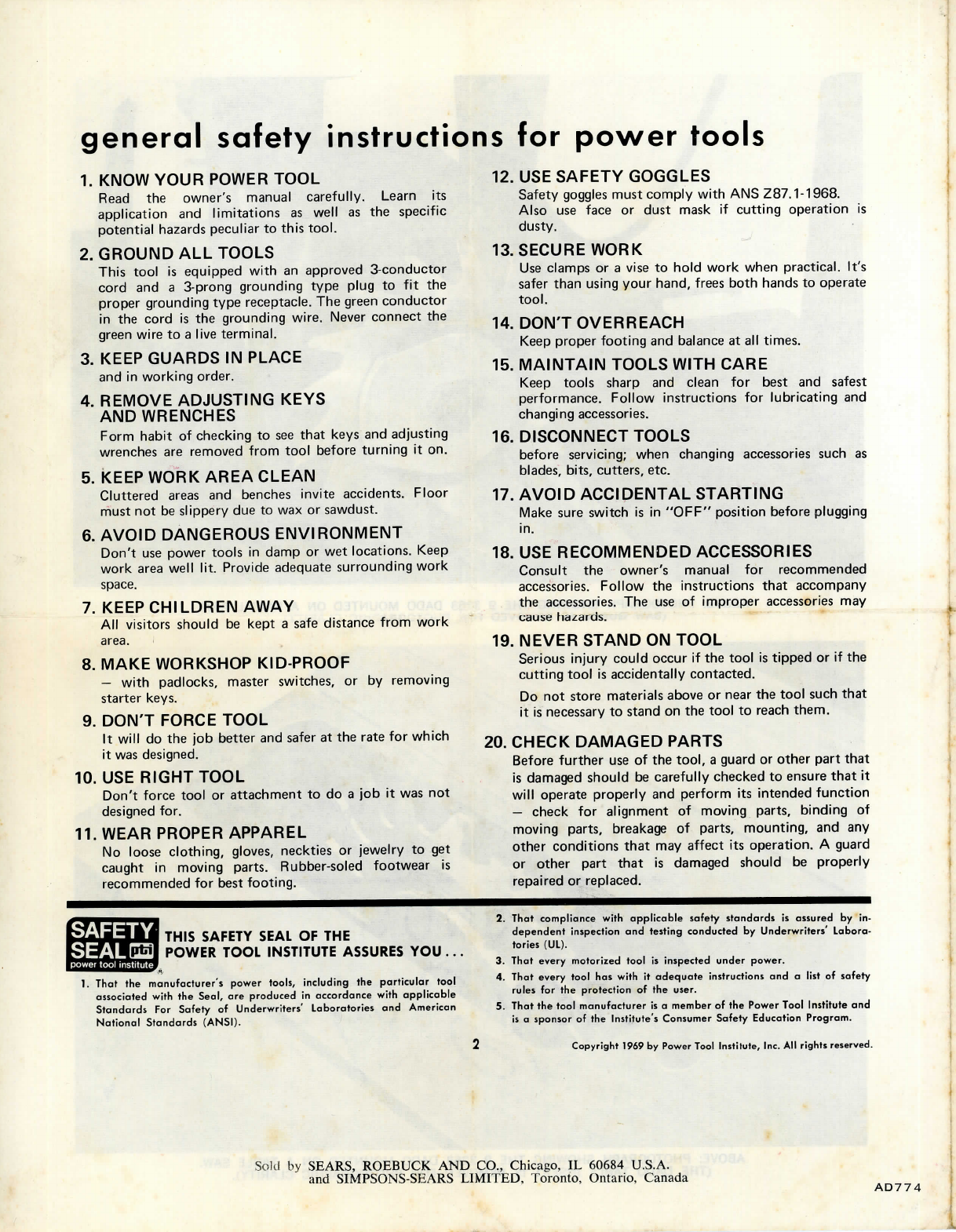

general safety instructions for power tools
12. USE SAFETY GOGGLES
1.
10.
11.
KNOW YOUR POWER TOOL
Read the owner's manual carefully. Learn its
application and limitations as well as the specific
potential hazards peculiar to this tool.
. GROUND ALL TOOLS
This tool is equipped with an approved 3-conductor
cord and a3-prong grounding type plug to fit the
proper grounding type receptacle. The green conductor
in the cord is the grounding wire. Never connect the
green wire to alive terminal.
. KEEP GUARDS IN PLACE
and in working order.
. REMOVE ADJUSTING KEYS
AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents. Floor
must not be slippery due to wax or sawdust.
. AVOID DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet locations. Keep
work area well lit. Provide adequate surrounding work
space.
. KEEP CHILDREN AWAY
All visitors should be kept asafe distance from work
area.
. MAKE WORKSHOP KID-PROOF
— with padlocks, master switches, or by removing
starter keys.
. DON'T FORCE TOOL
It will do the job better and safer at the rate for which
it was designed.
USE RIGHT TOOL
Don't force tool or attachment to do ajob it was not
designed for.
WEAR PROPER APPAREL
No loose clothing, gloves, neckties or jewelry to get
caught in moving parts. Rubber-soled footwear is
recommended for best footing.
SAFETY nus SAFETY SEAL or THE
SEALEEJ rowan TOOL msmurs ASSURES YOU...
power tool institute _
fir
That the manufacturer's power tools, including the particular tool
associated with the Seal, are produced in accordance with applicable
Standards For Safety of Underwriters' Laboratories and American
National Standards (ANSI).
Safety goggles must comply with ANS 287.1-1968.
Also use face or dust mask if cutting operation is
dusty. -
13. SECURE WORK
Use clamps or avise to hold work when practical. It's
safer than using your hand, frees both hands to operate
tool.
14. DON'T OVERREACH
15.
Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories.
16. DISCONNECT TOOLS
17.
18.
19.
before servicing; when changing accessories such as
blades, bits, cutters, etc.
AVOID ACCIDENTAL STARTING
Make sure switch is in "OF F” position before plugging
in.
USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that accompany
the accessories. The use of improper accessories may
cause hazards. ‘
NEVER STAND ON TOOL
Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted.
Do not store materials above or near the tool such that
it is necessary to stand on the tool to reach them.
20. CHECK DAMAGED PARTS
Before further use of the tool, aguard or other part that
is damaged should be carefully checked to ensure that it
will operate properly and perform its intended function
— check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard
or other part that is damaged should be properly
repaired or_ replaced.
. That compliance with applicable safety standards is assured by in-
dependent inspection and testing conducted by Underwriters’ Labora-
tories (UL).
. That every motorixecl tool is inspected under power.
. That every tool has with it adequate instructions and a list of safety
rules for the protection of the user.
. That the tool manufacturer is a member of the Power Tool Institute and
is a sponsor of the Institute's Consumer Safety Education Program.
Copyright 1969 by Power Tool Institute, Inc. All rights reserved.
Sold by SEARS, ROEBUCK AND CO., Chicago, _IL 60684 U.S.A.
and SIMPSONS-SEARS LIMITED, Toronto, Ontario, Canada
