Sears CRAFTSMAN C 151 61580 0 User manual

OWNER’S
MANUAL
MODEL NO.
C 151 61580 0
Caution:
Read and Follow
All Safety Rules
and Instructions
Before Operating
This Equipment
ROTARY BROOM 48" WITH
POLYPROPYLENE BRUSH
FOR CRAFTSMAN TRACTORS
·Assembly
·Operation
·Maintenance
·Repair Parts
Sears Canada, Inc., Toronto, Ontario M5B 2B8
104108 F-07

2
LIMITED ONE (1) YEAR WARRANTY ON CRAFTSMAN
TRACTOR ATTACHMENTS "ROTARY BROOM"
For one (1) year from date of purchase, Sears Canada Inc. will repair or replace free of charge at Sears option any
parts which are defective as a result of defective material or faulty workmanship.
COMMERCIAL OR RENTAL USE:
Warranty on Tractor Attachments "Rotary Broom" used for commercial or rental purposes is limited to 90 days.
This warranty does NOT cover:
* Wear items, such as shear pins and shear bolts, belts
* Repairs due to customer abuse or neglect
* Pre-delivery set-up
* In Home service
Warranty service is available by returning the Craftsman Tractor Attachment to the nearest Sears Service Centre /
Department in Canada. This warranty applies only while this product is in use in Canada.
This warranty is in addition to any statutory warranty and does not exclude or limit legal rights you may have but shall
run concurrently with applicable provincial legislation. Furthermore, some provinces do NOT allow limitation on how
long an implied warranty will last so the above limitations may not apply to you.
SEARS CANADA INC., TORONTO, ONTARIO, M5B 2B8
FOR SERVICE PLEASE CALL
SEARS HOME CENTRAL
1-800-4-MY-HOME®
WARRANTY

TABLE OF CONTENTS
INTRODUCTION ................................................................................................................................................... 2
SAFETY PRECAUTIONS ..................................................................................................................................... 3

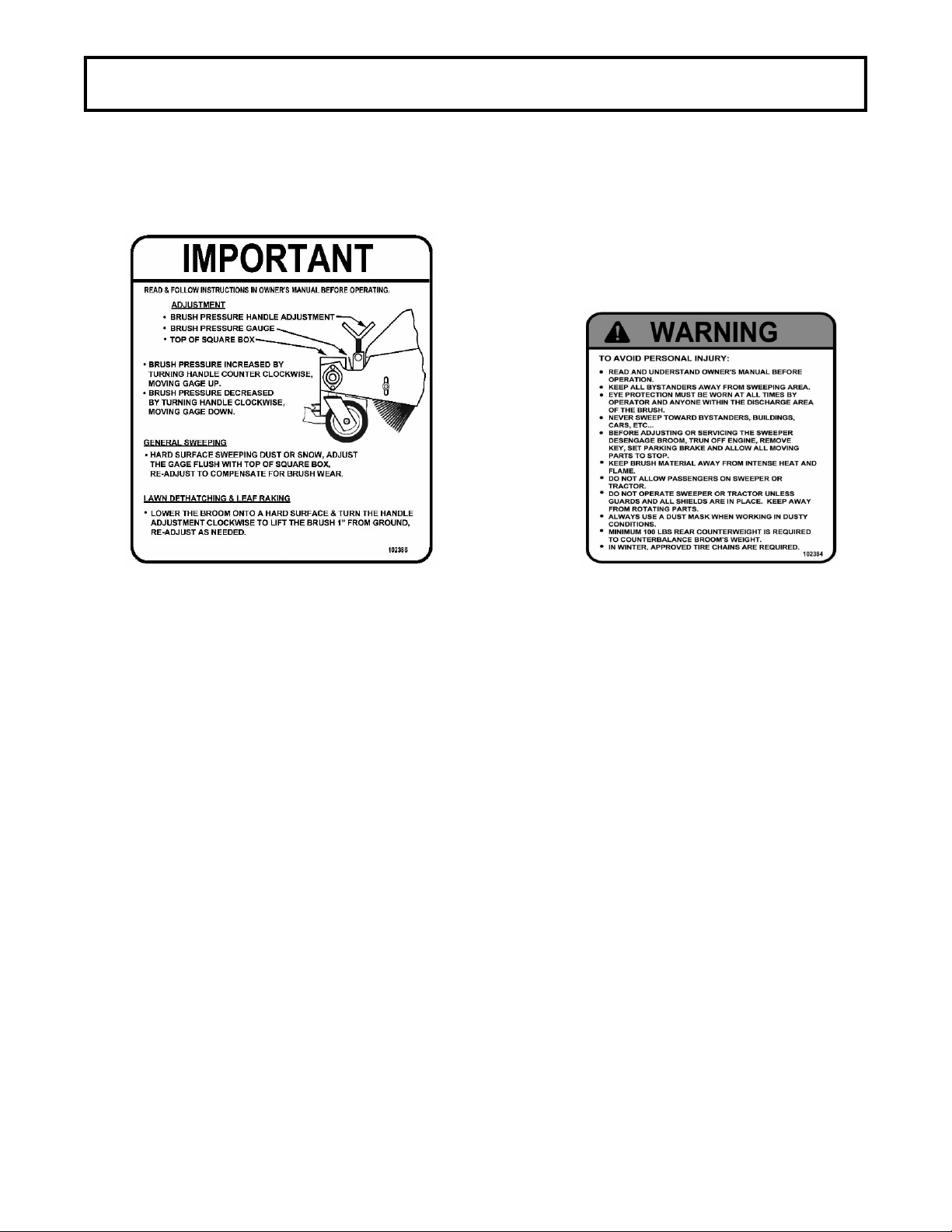

SAFETY DECALS ................................................................................................................................................. 5
ASSEMBLY

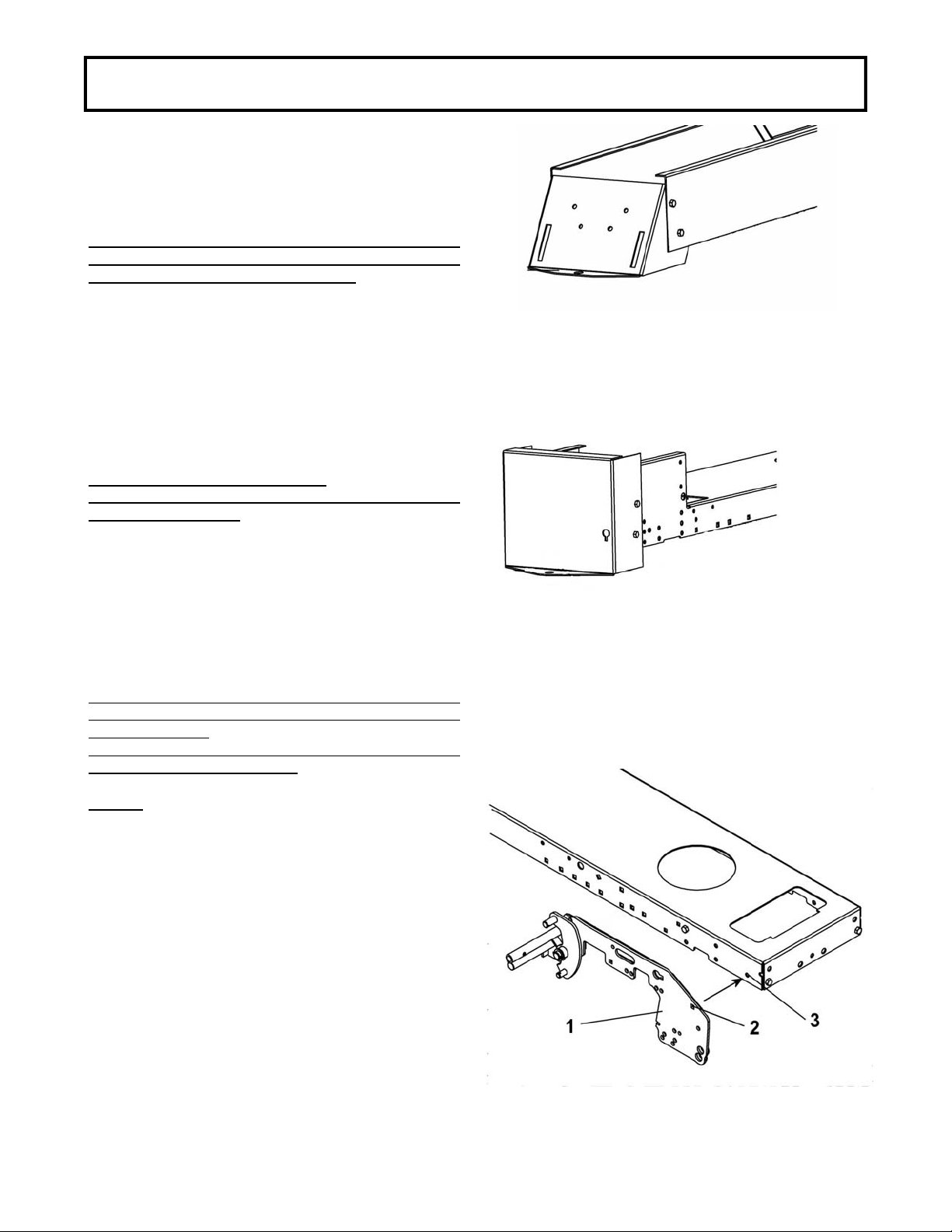

Step 1: Tractor Preparation ..................................................................................................................... 6

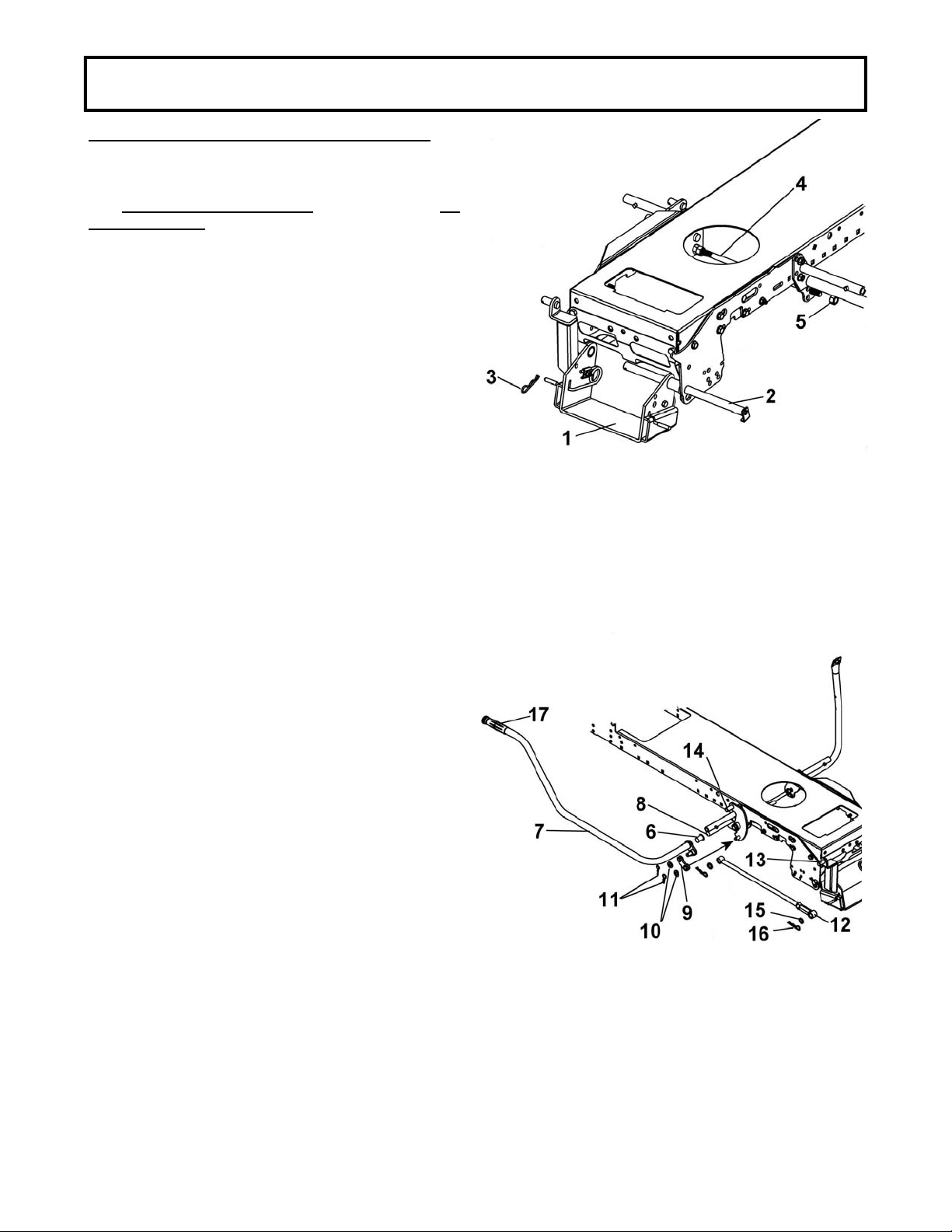

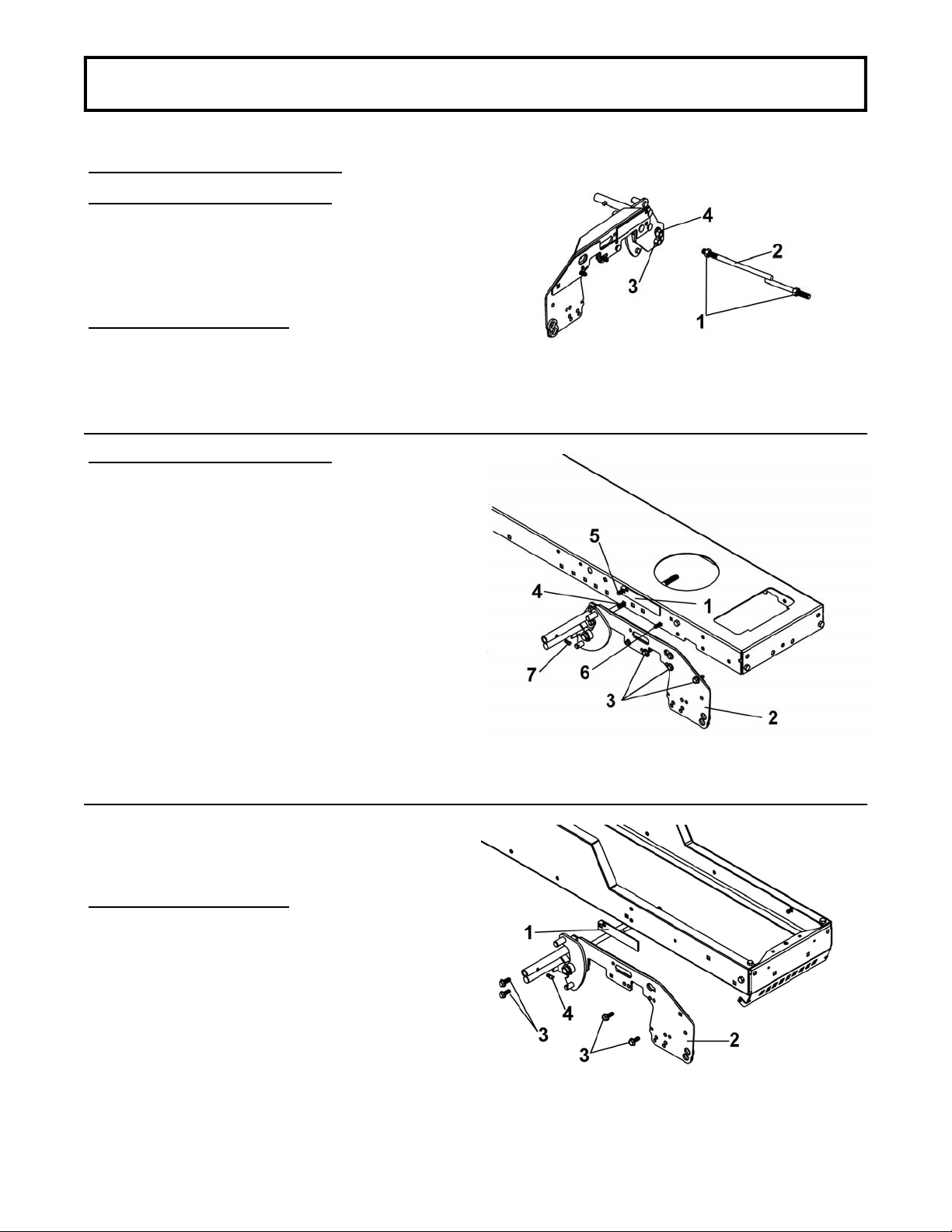

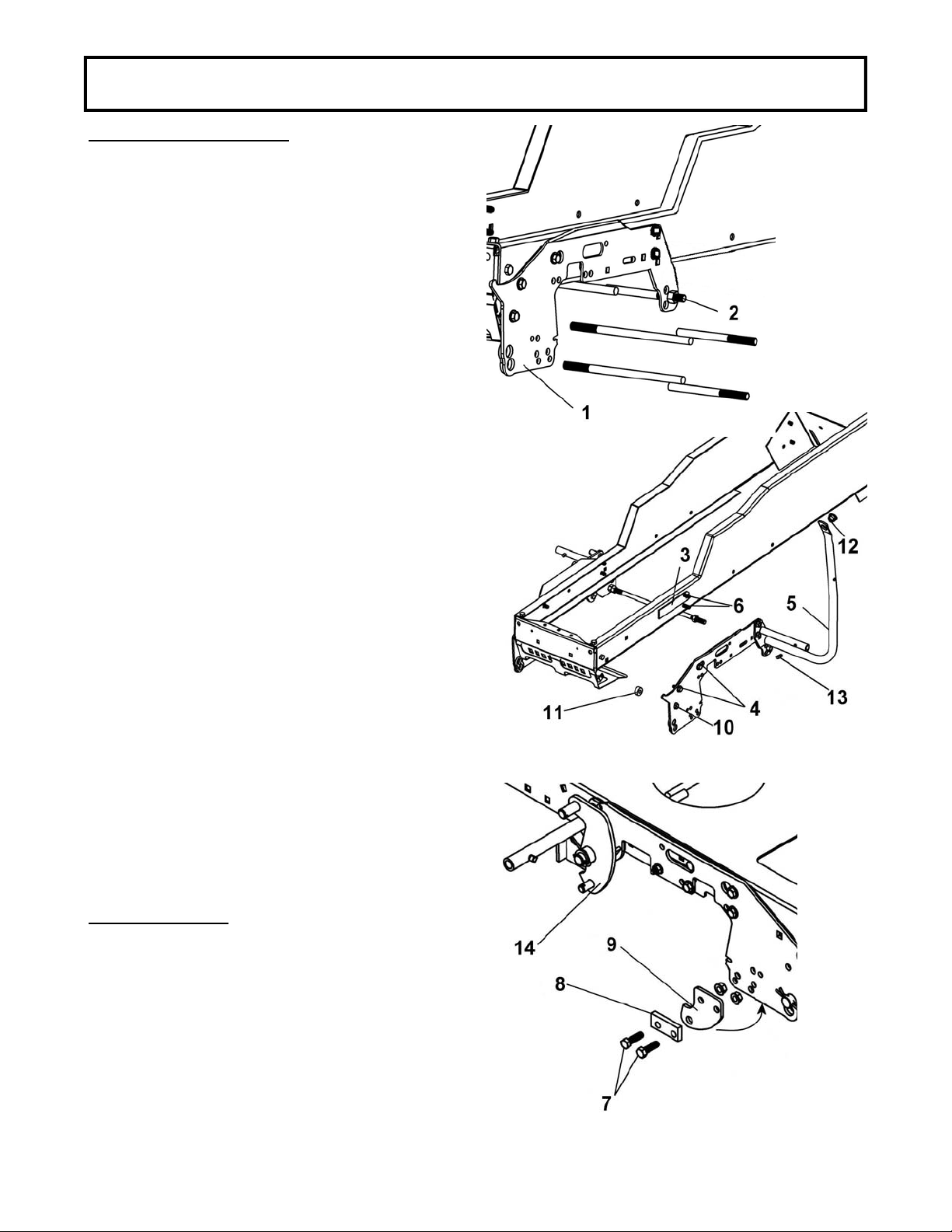

Step 2: Subframe Installation ................................................................................................................. 7

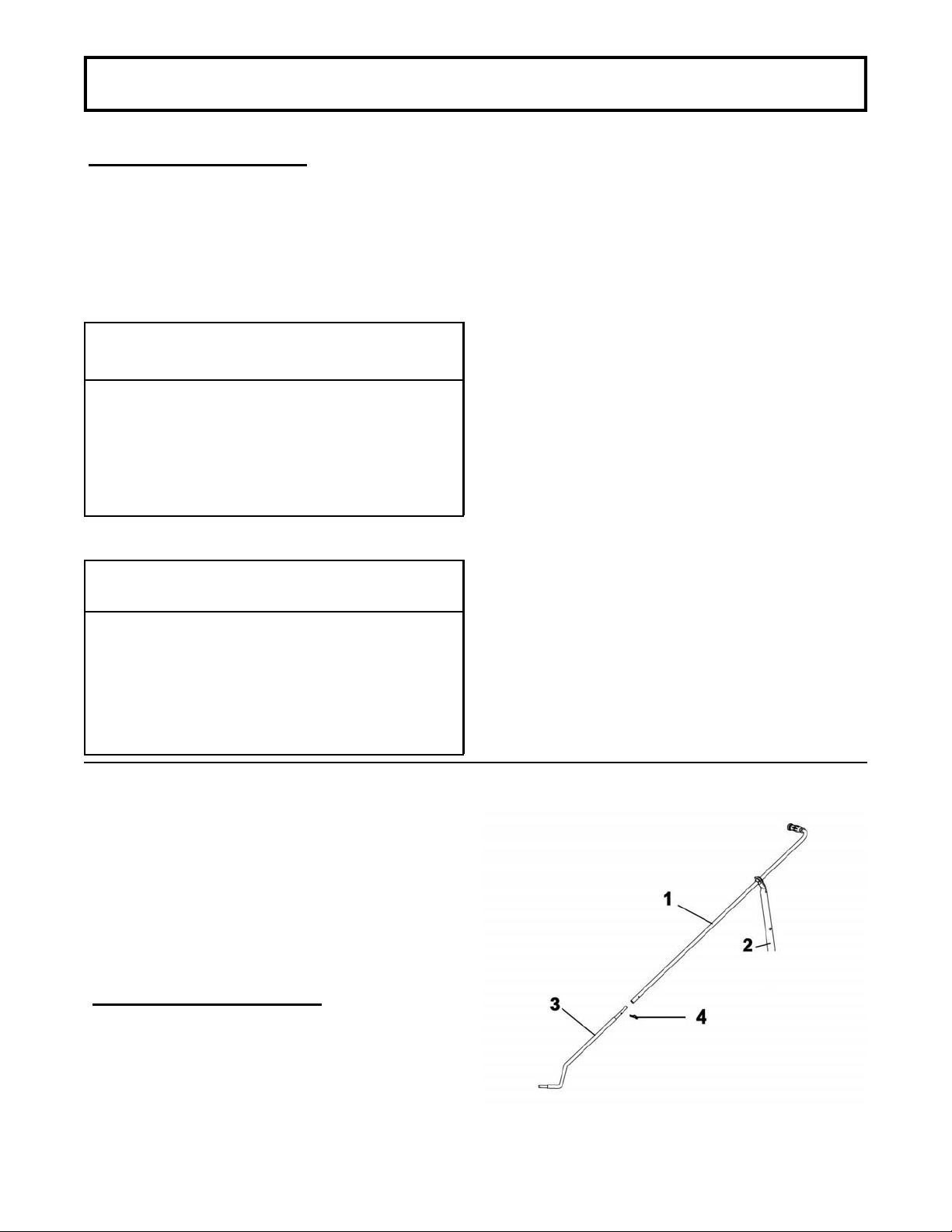

Step 3: Drive Mechanism Preparation ................................................................................................... 11
Step 4: Drive Mechanism Installation ..................................................................................................... 13
Step 5: Rotary Broom Preparation ......................................................................................................... 14
Step 6: Adaptor Installation .................................................................................................................... 15
Step 7: Rotary Broom Installation .......................................................................................................... 15
OPERATION

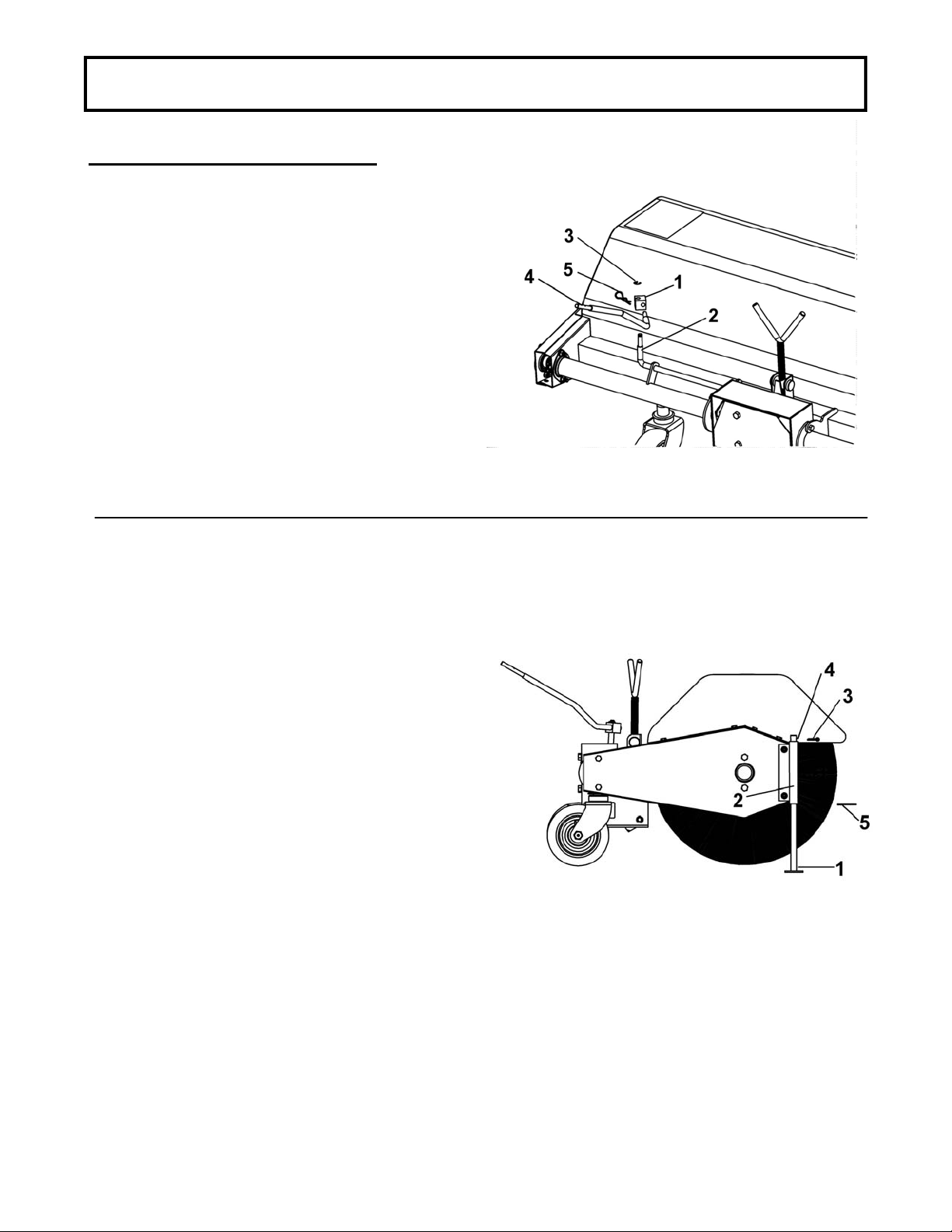

Rotary Broom Angle Adjustments ........................................................................................................... 17
Pressure on the Brush Adjustments ....................................................................................................... 17
General Sweeping ................................................................................................................................... 17
Snow Sweeping ....................................................................................................................................... 17
Lawn dethatching and lawn raking .......................................................................................................... 17
MAINTENANCE

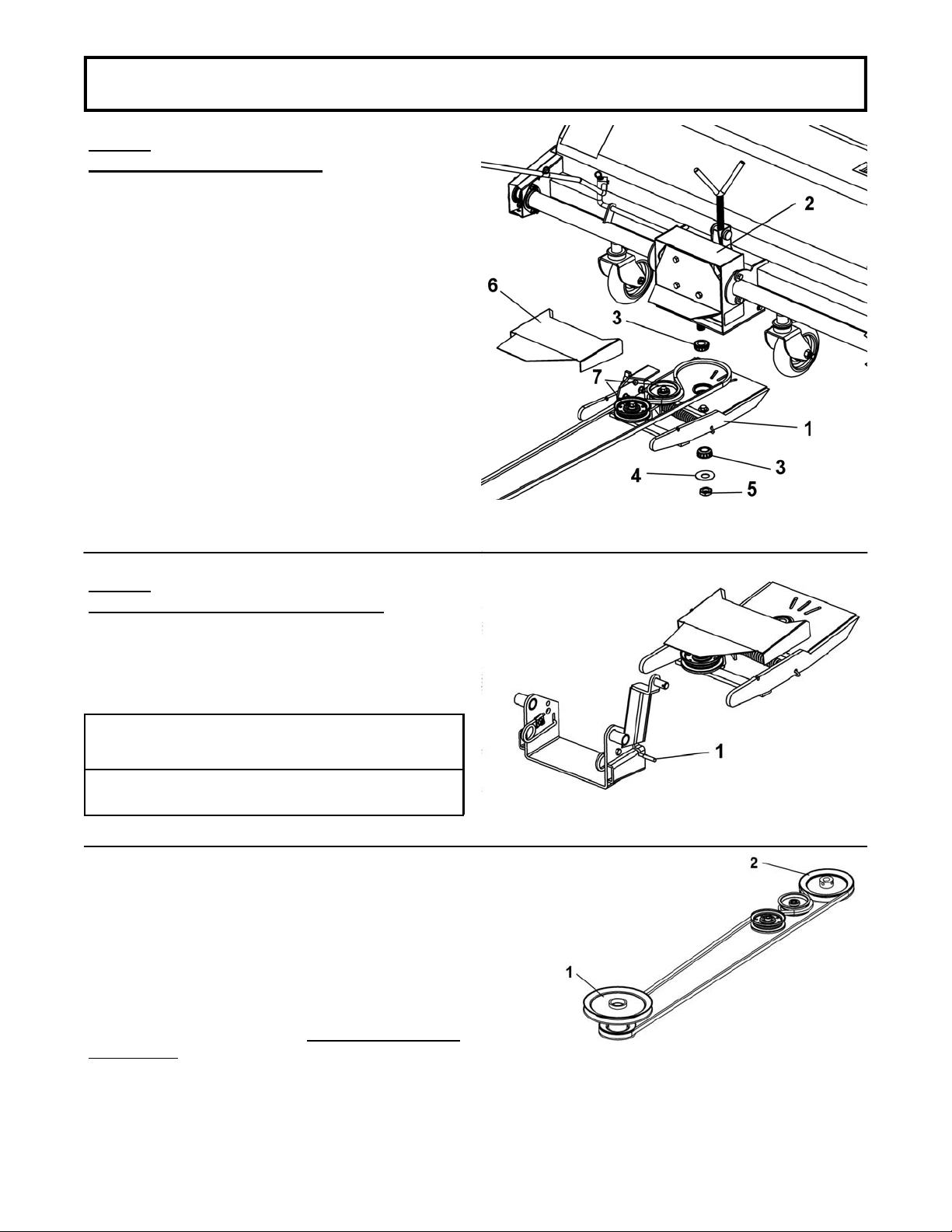

Maintenance ............................................................................................................................................. 18
Brush Replacement ................................................................................................................................. 18
Belt Replacement ..................................................................................................................................... 18
DISMOUNTING
Rotary Broom Dismounting ..................................................................................................................... 19
Drive Mechanism Dismounting ............................................................................................................... 19
End of Season Storage ........................................................................................................................... 19
TROUBLESHOOTING .......................................................................................................................................... 20
TORQUE SPECIFICATION TABLE ..................................................................................................................... 21
PARTS BREAKDOWN AND LISTS
Compact Rotary Broom Adaptor ............................................................................................................. 22
Drive Mechanism Compact ..................................................................................................................... 24
Subframe.................................................................................................................................................... 26
Rotary Broom ............................................................................................................................................ 29
ATTACHMENTS & OPTIONS .............................................................................................................................. 33
CONSUMER INFORMATION ............................................................................................................................... 34
PAGE
1

2
INTRODUCTION
TO THE PURCHASER
This new attachment was carefully designed to give years of dependable service. This manual has been provided to
assist in the safe operation and servicing of your attachment.
NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but
are intended for reference only and are based on the latest product information available at the time of publication.
Familiarize yourself fully with the safety recommendations and operating procedures before putting the machine to use.
Carefully read, understand and follow these recommendations and insist that they be followed by those who will use
this attachment.
THIS SAFETY ALERT SYMBOL IDENTIFIES AN IMPORTANT SAFETY MESSAGE IN THIS MANUAL
THAT HELPS YOU AND OTHERS AVOID PERSONAL INJURY OR EVEN DEATH. DANGER,
WARNING, AND CAUTION ARE SIGNAL WORDS USED TO IDENTIFY THE LEVEL OF HAZARD.
HOWEVER, REGARDLESS OF THE HAZARD, BE EXTREMELY CAREFUL.
DANGER: Signals an extreme hazard that will cause serious injury or death if recommended precautions are
not followed.
WARNING: Signals a hazard that may cause serious injury or death if the recommended precautions are not
followed.
CAUTION: Signals a hazard that may cause minor or moderate injury if the recommended precautions are not
followed.
Record your attachment serial number and purchase date in the section reserved below (there is no serial number on
the subframe). Your dealer requires this information to give you prompt, efficient service when ordering replacement
parts. Use only genuine parts when replacements are required.
If warranty repairs are required please present this registration booklet and original sales invoice to your selling dealer
for warranty service.
This manual should be kept for future reference.
Please check if you have received all the parts for your kit with the list of the
bag and the list of the box.
7
SERIAL NUMBER : ___________________________
PURCHASE DATE : ___________________________
In this manual, right and left sides are determined by sitting on the tractor seat facing forward.
In this manual, "attachment" means accessories that you install on the tractor, such as, snowblower, rotary
broom, blade, rotary tiller, cab, subframe, etc...

3
SAFETY PRECAUTIONS
Careful operation is your best insurance against an accident. Read this section carefully before operating the tractor
and the rotary broom. All operators, no matter how experienced they may be, should read this and other manuals
related to the tractor and rotary broom before operating. It is the owner's legal obligation to instruct all operators in how
to safely operate the rotary broom.
TRAINING
This symbol, "Safety Alert Symbol", is used
throughout this manual and on the attachment’s
safety labels to warn of the possibility of serious
injury. Please take special care in reading and
understanding the safety precautions before
operating the tractor or the rotary broom.
1. Read this owner's manual carefully. Be thoroughly
familiar with the controls and proper use of the
rotary broom. Know how to stop the unit and
disengage the controls quickly.
2. Never allow children to operate the tractor nor the
rotary broom. Never allow adults to operate the
tractor nor the rotary broom without proper
instructions.
3. No one should operate the tractor nor the rotary
broom while intoxicated or while taking medication
that impairs the senses or reactions.
4. Keep the area of operation clear of all persons,
particularly small children and pets.
PREPARATION
1. Thoroughly inspect the area where the rotary broom
is to be used and remove door mats, all foreign
objects and the like.
2. Disengage all clutches and shift into neutral before
starting engine.
3. Do not operate the rotary broom without wearing
adequate outer garments. Avoid loose fitting
clothing that can get caught in moving parts. Wear
footwear that will improve footing on slippery
surfaces.
4. Handle fuel with care, it is highly flammable.
a) Use approved fuel container.
b) Never add fuel to a running engine or hot
engine.
c) Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors.
d) Never fill containers inside a vehicle, or on a
truck or a trailer bed with a plastic liner. Always
place containers on the ground, away from your
vehicle, before filling.
7
OPERATION
1. Do not put hands or feet near or under rotating
parts.
2. Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert
for hidden hazards or traffic. Do not carry
passengers.
3. After striking a foreign object, stop the engine
(motor), disconnect the wire from the spark plug(s)
and keep wire away to prevent accidental starting.
Thoroughly inspect the rotary broom for any
damage and repair damage before using.
4. If the unit should start to vibrate abnormally, stop
the engine (motor) and check immediately for the
cause. Vibration is generally a warning of trouble.
e) When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the
ground. If this is not possible, then refuel such
equipment on a trailer with a portable container,
rather than from a gasoline dispenser nozzle.
f) Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times, until
refuelling is complete. Do not use a nozzle lock-
open device.
g) Replace fuel cap securely and wipe up spilled
fuel.
h) If fuel is spilled on clothing, change clothing
immediately.
4. Never attempt to make any adjustments while the
engine (motor) is running (except when specifically
recommended by manufacturer).
5. Always wear safety glasses or eye shields during
operation or while performing an adjustment or
repair to protect eyes from foreign objects that may
be thrown from the rotary broom.
6. Never modify the rotary broom or any part
without the written consent from the
manufacturer.
