1. Congratulations!
By purchasing the seca 954 electronic
chair scale, you have acquired a highly-ac-
curate and sturdy piece of equipment.
seca has been putting its experience at
the service of health for over 150 years
now, and as market leader in many coun-
tries of the world, is always setting new
standards with its innovative develop-
ments for weighing and measuring.
In accordance with national regulations, the
seca 954 wheelchair scale with standing
aid is used primarily in hospitals, doctors’
surgeries and in-patient nursing facilities.
The weight display can be switched be-
tween kilogrammes (kg), pounds (lbs) and
stones (sts). Weight is determined within a
few seconds.
The seca 954 can be moved on castors
and its low power consumption combined
with its rechargeable batteries mean it will
provide long, mobile service.
The seca 954 chair scale is made for peo-
ple who are not especially steady on their
feet. To give you a safe feeling while
weighing, the chair scale has a solid tubu-
lar frame and a firmly bolted seat. The free-
running casters make the scale very easy
to move. The wheel-locking lever, together
with the swiveling armrests and foot sup-
ports, makes it easier to sit in safety.
The scale is of a very sturdy construction
and will give you long and loyal service. It
is easy to operate and the large display is
easy to read.
2. Safety
Before using the new scale, please take a little time to read the following safety instruc-
tions.
• Follow the safety instructions in the in-
struction manual.
• Keep the operating manual and the
declaration of conformity contained
therein in a safe place.
•Have scale serviced on a regular basis
(see “Servicing” on page 22).
•Be sure to use only the seca mains unit
supplied. Before plugging the mains
unit into a socket, check that the mains
voltage indicated on the mains unit
matches local mains voltage.
•Ensure that the cables are not crushed
and do not come into contact with hot
objects.
•Use only the type of battery stated (see
“Spare parts and accessories” on
page 23).
• Prevent the scale from rolling away ac-
cidentally. Use the wheel brake when
the patient is sitting down or getting up
and assist people who are unsteady on
their feet.
•When using the scale with a mains unit,
ensure that the supply cable is routed in
such a way as to exclude any type of
tripping hazard.

Model 954 15
GB
3. Before you start…
Unpacking
The scope of supply includes:
• Chair scale comes complete or partly assembled
•1seca mains unit
•1set of operating instructions
Assembling

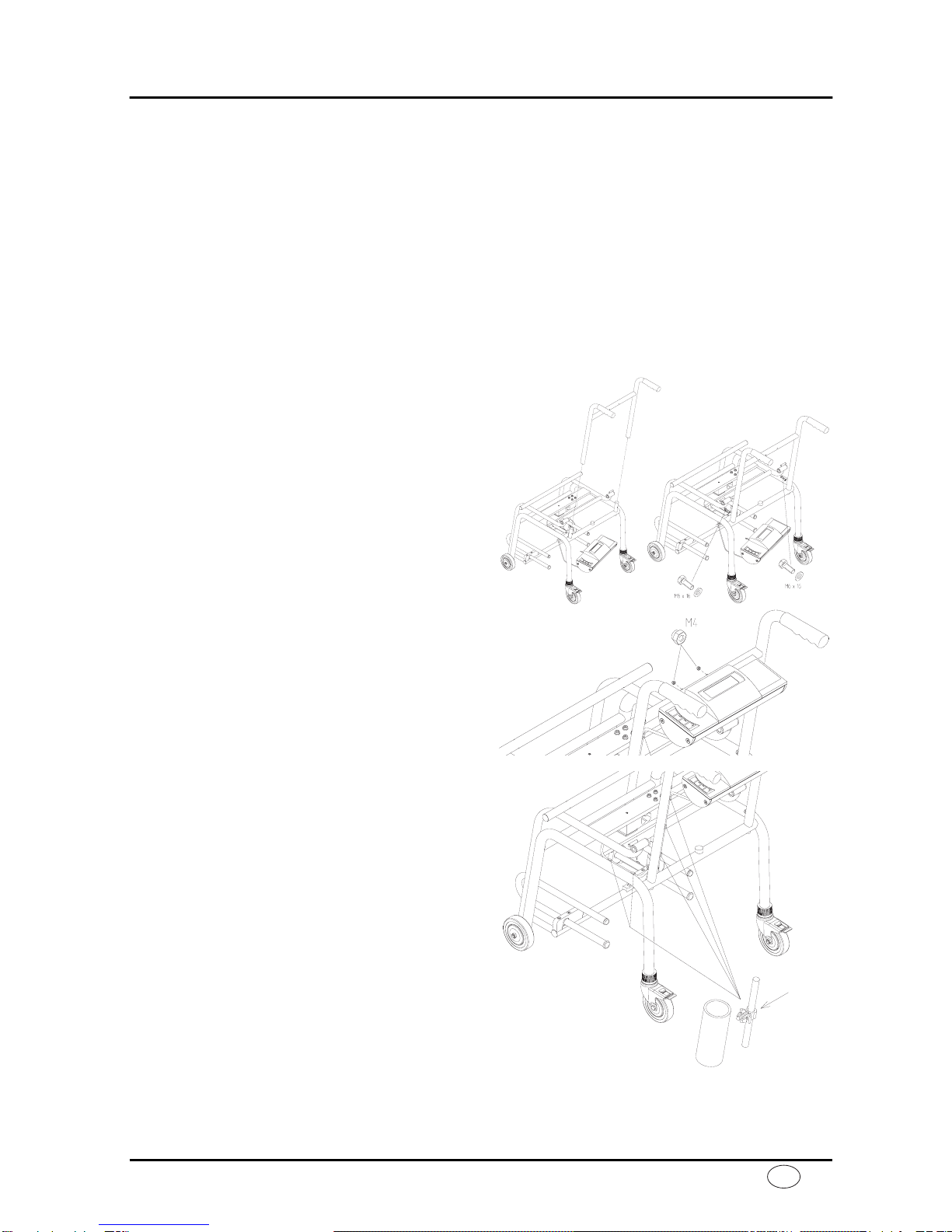

This chair scale is available either fully or partly assembled. To assemble the partly-assem-
bled model, please proceed as follows:
–locate the handles on the journals pro-
vided and bolt in place using the two
M6 x 16 bolts, following the diagrams.
–Thread the mounting bolts for the dis-
play unit through the bores provided in
the handles and screw the display tight-
ly in place using two M4 nuts.
–Attach the weighing cell cable using the
enclosed plastic cable clip by pushing
this into the bores on the handles.

16

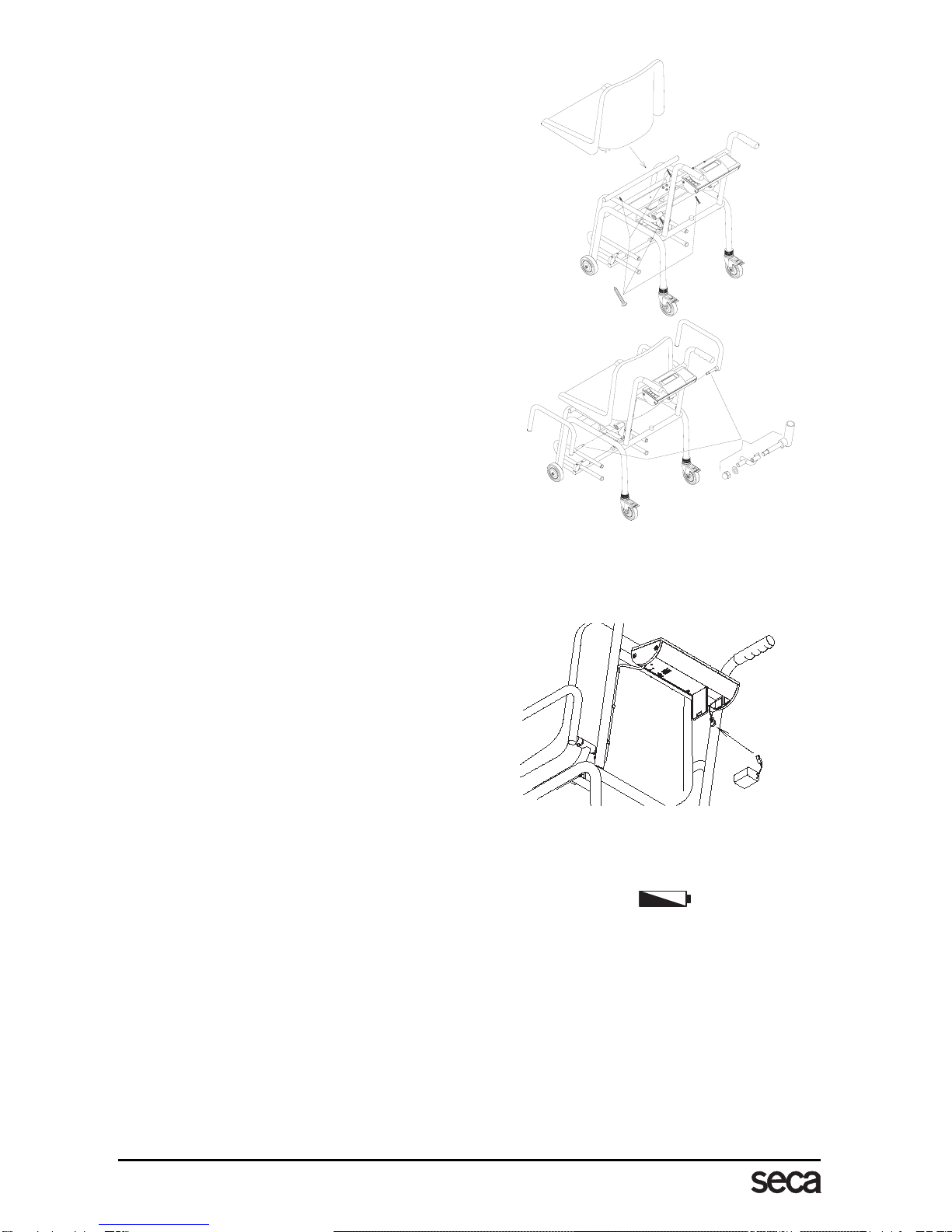

–Fit the seat to the frame using the four
self-tapping plastic screws. Check that
the seat is screwed tightly to the frame
with no play at all.
–Push the hinge bolts for the armrests
through the hinge bushes on the seat
frame. Put on the washer and cap nut
(M10) and screw them tight.
Power supply
The scale is powered by a mains unit and by rechargeable batteries.
Connecting the rechargeable battery pack
–Open the battery compartment in the
base of the display housing.
–Connect the plug contacts to the re-
chargeable battery pack located in the
battery compartment.
–Close the lid of the battery compart-
ment again.
The LC display and the evaluation electronics have a low power consumption – 1,000
weighing operations can be performed with a fully charged battery.
Once battery voltage is no longer adequate, the battery symbol first appears in
the display to indicate that battery power is dropping.
If the batteries are not charged, battery voltage will ultimately not be adequate for error-
free measuring. In this case, bAtt appears in the display and weighing is no longer pos-
sible.

Model 954 17
GB
The rechargeable batteries are charged by
the mains unit supplied. For this purpose,
the mains unit needs to be connected to
the mains for at least 24 hours.
4. Operation

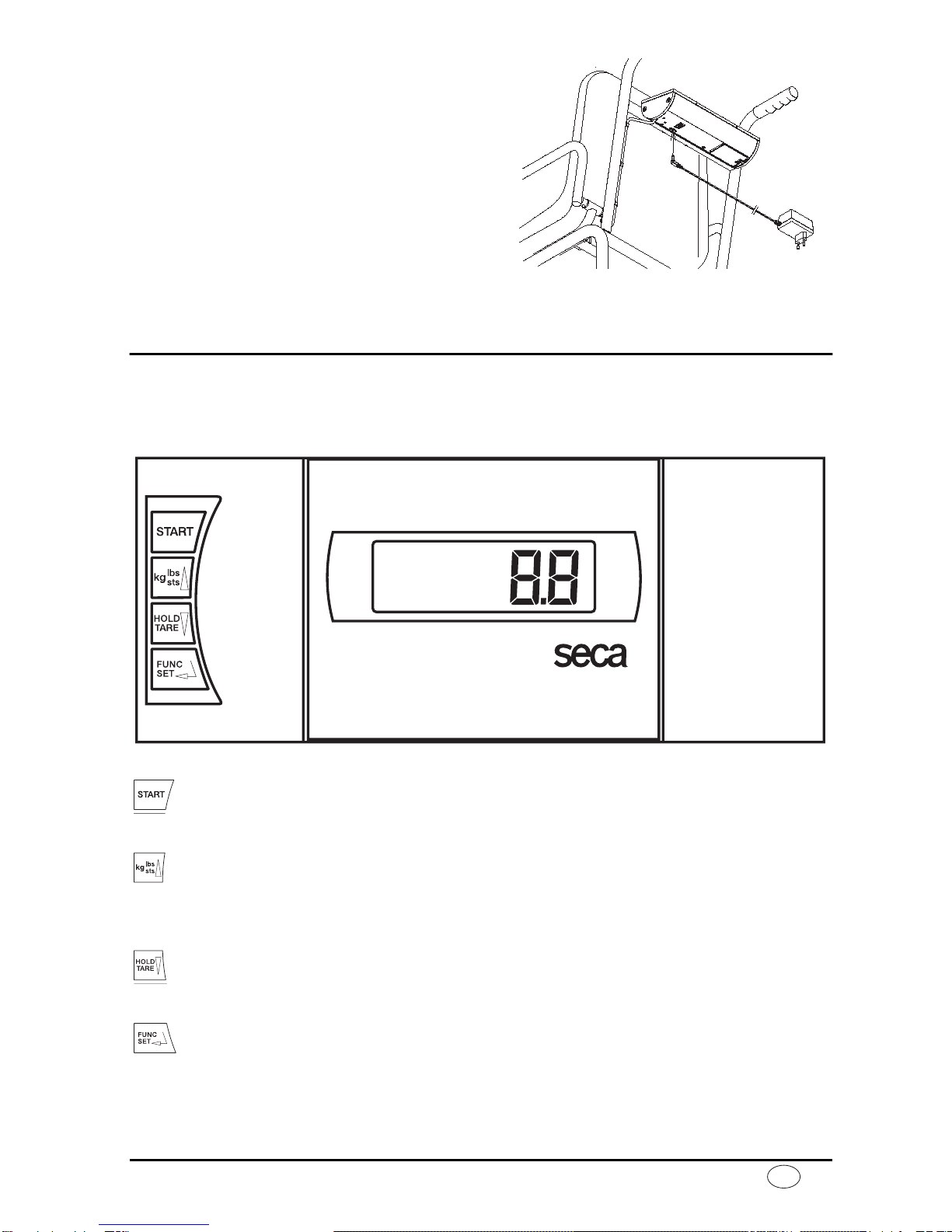

Controls and displays
Controls on the display.
Switch scale on and off
press briefly sswitch between kg and lbs
hold down sswitch between kg and sts
in function menu sincrease value
press briefly sactivate hold function
hold down sset display to zero, activate/deactivate tare function
in function menu sdecrease value
Activating the BMI function, Confirmation

18
Other controls

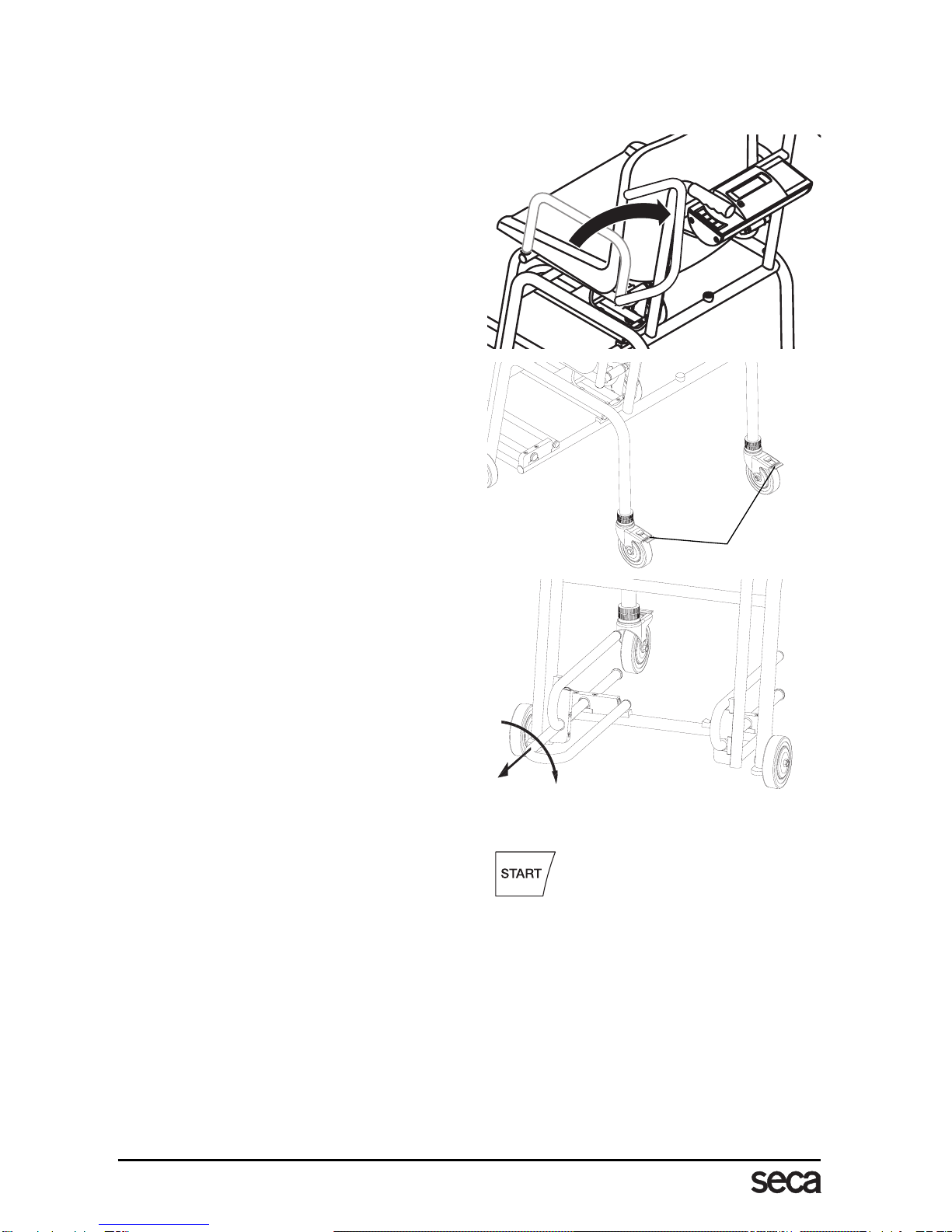

The armrests on the chair scale can be swivelled backwards independently. This is useful
because it makes it easier for the person being weighed to sit down.
–Ensure that you do not trap any part of
the body or pieces of clothing when
folding the rests down.
–The rear casters can be locked if you
push down the two locking levers on
the casters. This device should be used
when the patient is sitting down on the
scale or getting up from it.
–Once the person who is to be weighed
is seated, the foot-rests are pulled out
and tilted downwards. The patient can
now place his or her feet on the foot-
rests.
Correct weighing

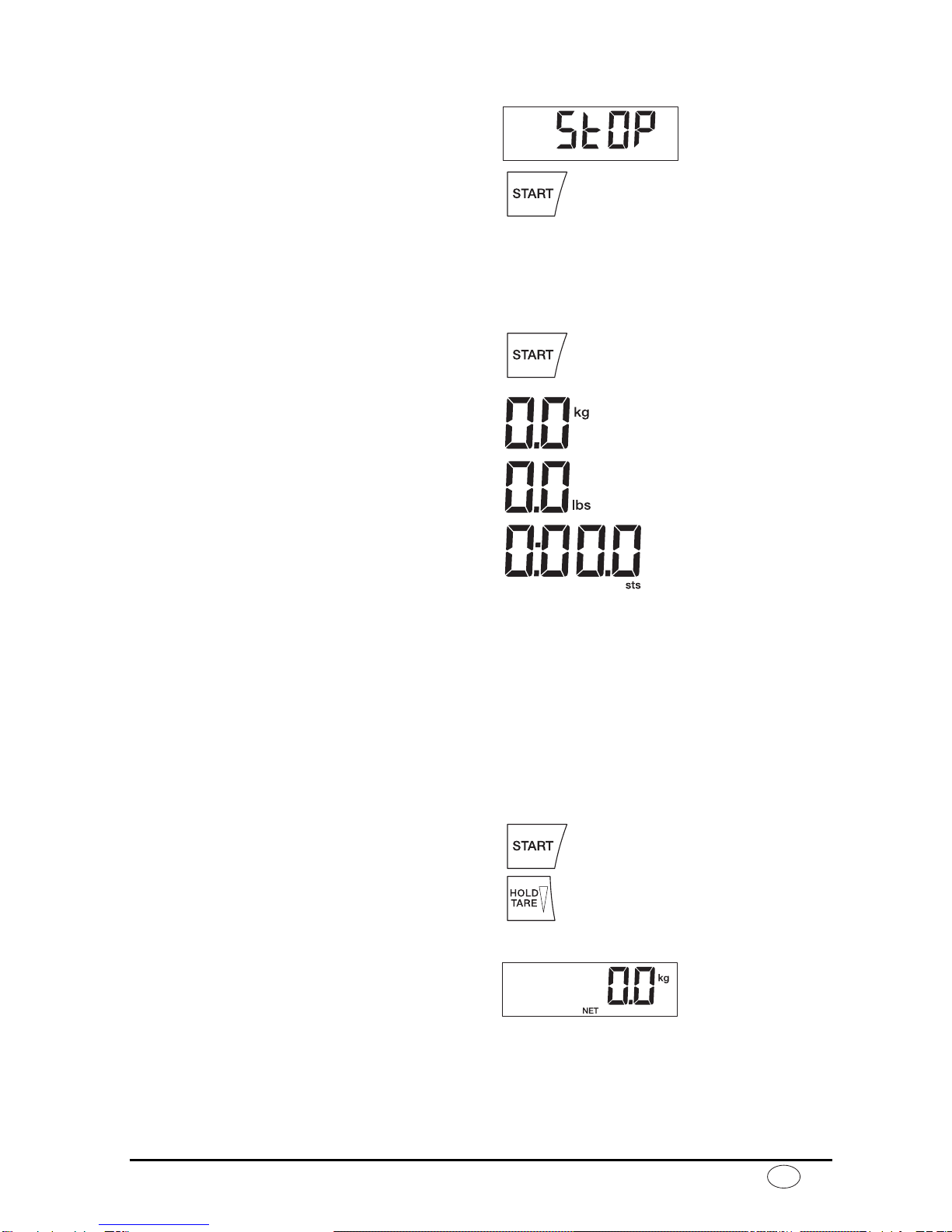

– Press the Start key.
se(a, 8.8.8.8.8. and 0.0 appear consec-
utively in the display. The scale is then
automatically set to zero and ready to
use.
–If necessary, switch the weight display
(see page 19).
– Get the patient to sit on the scale.
–The patient’s weight can only be deter-
mined once he or she is no longer in
contact with the floor. Be sure, there-
fore, that the patient’s feet are on the
foot rest throughout the weighing oper-
ation.
Locking lever

Model 954 19
GB
–Read the weighing result off the digital
display.
–If a load greater than 200 kg or 440 lbs
is placed on the scale, St0P appears in
the display.
–To switch off the scale, press the Start
key again.
Switchingtheweightdisplay
The weight display can be switched between kilogrammes (kg) and pounds (lbs) or be-
tween kilogrammes (kg) and stones (sts).
–Switch on the scale using the green
Start key. Weight is initially displayed in
the last setting selected.
–To switch the weight display between
kilogrammes and pounds, press the kg/
lbs/sts key.
– The kg or lbs display lights up.
–To switch weight display between
pounds and stones, hold down the
kg/lbs/sts key for approx. 2 seconds.
The lbs or sts display lights up.
Automatic switch-off/economy mode
The scale switches off automatically after 5 minutes.
Taring weight display (TARE)
The Tare function is very useful if an additional weight (a blanket, for example) is to be ig-
nored for weighing purposes.
Proceed as follows:
– Press the green Start key.
–First place the additional weight (e.g. a
blanket) on the scale and activate the
Tare function by pressing and holding
the HOLD/TARE key.
The display is reset to zero. 0.0 appears
in the display. The note “NET” appears.
–Now put the patient and the additional
weight on the scale.
The scales calculate the patient’s
weight without the additional weight.
You can now perform as many weigh-
ing operations as you like.

20
–Hold the key down again to deactivate
the Tare function; the scale is then back
in normal weighing mode and the tare
value has been erased.
–The tare value is likewise erased by the
scale being switched off.
Store weight value (HOLD)
You can also continue displaying the weight determined once the load has been removed.
This makes it possible to look after a patient first, before having to note the weight:
–Press the HOLD/TARE key whilst the
load is on the scale.
“HOLD” appears in the digital display. The
value is stored until the scale switches off
automatically.
–The HOLD function can be switched off
by pressing the HOLD key again.
0.0 appears in the display if the scale has
no load on it, otherwise the current weight.
The “HOLD“ display vanishes.
Note:
The HOLD and TARE functions can also be used simultaneously.
Body Mass Index (BMI)
Body Mass Index puts height and weight in relationship to one another, providing more
accurate information than ideal Broca weight, for example. A tolerance range is given
which is considered ideal for health. The Body Mass Index applies only to adults: these
values are not relevant to children and young people.
– Press the Start key.
se(a, 8.8.8.8.8. and 0.0 appear con-
secutively in the display. The scale is
then automatically set to zero and ready
for operation.
– Press the FUNC key.
On the display, you will see the last
height entered.
–You can use the arrow keys to adjust
the value in increments according to the
graduations displayed.
–Once the correct value is set, press the
FUNC key again. The BMI function is
now activated.
– Get the patient to sit on the scale.
–Read off the BMI on the digital display
and compare it with the categories on
page 21.

Model 954 21
GB
–Press an arrow key if you would like to
see the weight briefly.
–To return to normal weighing mode,
press the FUNC key.
–To switch off the scale, press the Start
key again.
Evaluating Body Mass Index:
Compare the value determined with the categories shown below.
• BMI below 18:
Warning, this patient weighs too little. There could be a tendency to anorexia. An in-
crease in weight is recommended to improve well-being and performance. If in doubt,
consult a specialist.
• BMI between 18 and 20:
Patient is at lower weight limit. If he feels well and is completely healthy, his weight can
stay as it is.
• BMI between 20 and 25:
The patient is of a normal weight. He can stay as he his.
• BMI between 25 and 30:
The patient is slightly to moderately overweight. He should cut his weight if he is al-
ready ill (e.g. diabetes, hypertension, gout, fat metabolism disorders).
• BMI over 30:
Weight reduction is essential. Metabolism, cardiovascular system and bones are all un-
der strain. A consistent diet, plenty of movement and behavioural training are all rec-
ommended. If in doubt, consult a specialist.
5. Cleaning
Clean the seat and the housing as required using a domestic cleaning agent or commer-
cially-available disinfectant. Follow the manufacturer’s instructions.
Under no circumstances use abrasive or acid cleaners, white spirit, benzene or the like for
cleaning. Such substances can damage the high-quality surfaces.

22
6. What do I do if…
… no weight display comes on?
– Is the scale switched on?
– Check the mains connection and the connection of the battery pack.
–Switch the scale off for a few seconds. This can be done by opening the plug connect-
ed to the rechargeable battery block and unplugging the mains supply from the scale.
… 0.0 does not appear before weighing?
–Switch off the scale with the Start key and start the scale again – there must not be
any load on the scale – and only its feet should be in contact with the floor.
… one segment is illuminated constantly or not at all?
– The relevant segment has a fault. Inform Servicing.
… the display shows ?
– Battery voltage is dropping. Charge the rechargeable batteries in the next few days.
… batt appears in the display?
–The rechargeable battery is so severely discharged that weighing is no longer possible.
Recharge the battery.
… St0p appears in the display?
– Maximum load has been exceeded.
… the display flashes?
–If you have just activated the Hold or Tare function, please wait until the scale has de-
tected a steady weight value. The display will then stop flashing.
–If there has been no activation of a function beforehand, remove the load from the scale
and wait until 0.0 is displayed, then weigh again.
… the display appears?
–The ambient temperature of the scale is too high or too low. Place the scale in an
ambient temperature between +10 °C and +40 °C. Wait about 15 minutes for the
scale to adapt to the ambient temperature and then weigh again.
… the display Eand a number appear?
–Switch off the scale with the Start key and start the scale again. The scale will then
work normally again.
If this is not the case, disconnect the power supply by briefly removing the batteries. If
this measure is equally unsuccessful, inform the Service department.
7. Servicing
Your seca scale leaves the factory with an accuracy greater than ± 0.1 %. To ensure that
this accuracy is maintained, the product must be carefully set up and regularly maintained.
Depending on the frequency of use, we recommend servicing every 3 to 5 years. Please
ensure that a qualified service agent is used. If in doubt, contact seca Customer Service for
further information.

Model 954 23
GB
8. Technical data
Maximum load 200 kg / 440 lbs / 32 sts
Graduations
0 up to 200 kg 100 g
up to 440 lbs: 0.2 lbs
Dimensions
height: 920 mm
width: 565 mm
depth: 810 mm
Weight approx. 24.5 kg
Temperature range +10 °C to +40 °C
Power supply rechargeable batteries/mains unit
Power consumption approx. 25 mA
EN 60 601-1:
Insulated equipment, Protection Class II:
medical electrical equipment type B:
Accuracy greater than ± 0.1 % / ± 100 g
Functions Switch between units, Tare, Hold, BMI
9. Spare parts and accessories
Power supply
Model dependent mains unit
Description: plug-in mains unit, Euro: 12 V / 130 mA
seca spare part no.: 68-32-10-252
Description: plug-in mains unit, USA: 12 V / 150 mA
seca spare part no.: 68-32-10-259
Description: desk-top mains unit, switchable, Euro
seca spare part no.: 68- 32-10-243
Plug-in mains unit
Use only seca original plug-in mains units with 9 V or controlled 12 V output voltage. Com-
mercially-available mains units may supply a higher voltage than stated and thus lead to
damage to the scale.
Rechargeable batteries seca spare part no.: 68-21-12-721

24
10.Disposal
Rechargeable batteries
Do not throw old rechargeable batteries
into the domestic refuse! Ensure that re-
chargeable batteries are properly dis-
posed of at local collection points.
Disposing of the scale
If the scale can no longer be used, the re-
sponsible waste disposal association will
be glad to advise you on the measures
necessary to dispose of it properly.
11.Warranty
A two-year warranty from date of delivery
applies to defects attributable to poor ma-
terials or workmanship. All moveable parts
- batteries, cables, mains units, recharge-
able batteries etc. - are excluded. Defects
which come under warranty will be made
good for the customer at no charge on
production of the receipt. No further
claims can be entertained. The costs of
transport in both directions will be borne
by the customer should the equipment be
located anywhere other than the custom-
er’s premises. In the event of transport
damage, claims under warranty can be
honoured only if the complete original
packaging was used for any transport and
the scale secured and attached in that
packaging just as it was when originally
packed. All the packaging should there-
fore be retained.
A claim under warranty will not be hon-
oured if the equipment is opened by per-
sons not expressly authorised by seca to
do so.
We would ask our customers abroad to
contact their local sales agent in the event
of a warranty matter.
