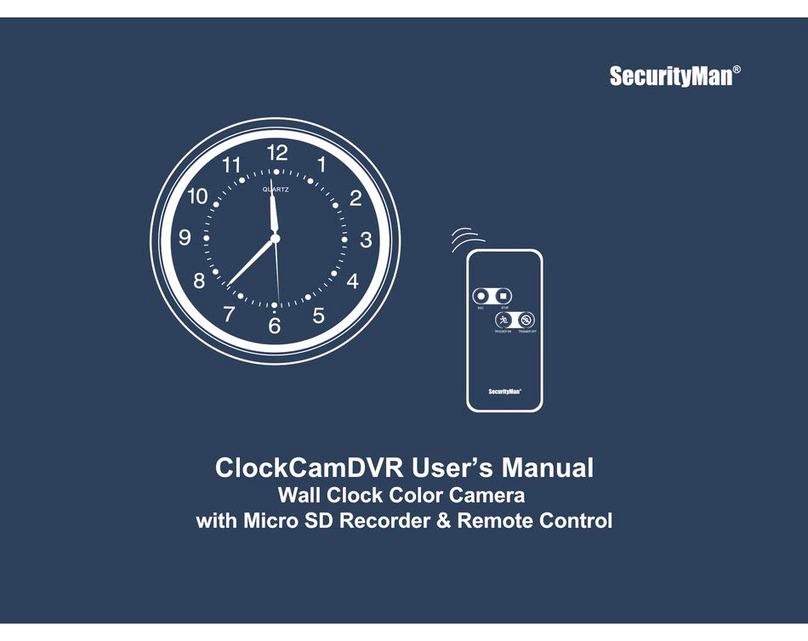

SecurityMan ClockCamDVR User manual

ClockCamDVR User’s Manual
Wall Clock Color Camera
with Micro SD Recorder & Remote Control

© Copyright 2011
This manual is furnished under license and may be used or copied only in accordance
with the terms of such license.
Except as permitted by such license, no part of this publication may be reproduced,
stored in a retrieval system, or transmitted, in any form or any means, electronic, mechanical,
recording, or otherwise, including translation to another language or format, without the
prior written permission of SecurityMan Inc.
The content of this manual is furnished for informational use only, is subject to change
without Notice, and should not be construed as a commitment by SecurityMan Inc.
SecurityMan Inc. assumes no responsibility or liability for any errors or inaccuracies that
may appear in this book.

This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Operation of this equipment in a residential area is likely to cause interference in which
case the user at his/her own risk and expense will be required to correct the interference.
SecurityMan Inc. warrants that this product will be free from defects in title, materials and
manufacturing workmanship for one year from the date of the purchase. If the product is
found to be defective then, as your sole remedy and as the manufacturer’s only
obligation, SecurityMan Inc. will repair or replace the product.
This warranty is exclusive and is limited to this product. This warranty shall not apply to
products that have been subjected to abuse, misuse, abnormal electrical or environmental
conditions, or any condition other than what can be considered normal use.
Warranty
FCC Information

Warranty Disclaimers
SecurityMan Inc. makes no other warranties, express, implied or otherwise, regarding
this product, and specifically disclaims any warranty for merchantability or fitness for a
particular purpose.
The exclusion of implied warranties is not permitted in some states and the exclusions
specified herein may not apply to you. This warranty provides you with specific legal
rights. There may be other rights that you have which vary from state to state.

The liability of SecurityMan Inc. arising from this warranty and sale shall be limited to
a refund of the purchase price. In no event shall SecurityMan be liable for costs of
procurement of substitute products or services, or for any lost profits, or for any
consequential, incidental, direct or indirect damages, however caused and on any theory
of liability, arising from this warranty and sale. These limitations shall apply not
withstanding any failure of essential purpose of any limited remedy.
Limitation of Liability
SecurityMan
4601 E. Airport Drive, Ontario, CA91761, USA
Tel: [phone] or 909-230-6668
Fax: [phone]
Email: [e-mail]
Website: http://www.securitymaninc.com

DO NOT use this product to violate one's privacy. Monitoring one's private activities
without consent is illegal and this product is not designed and manufactured for these
purposes.
DO NOT put this product near any medical equipment. Radio waves might potentially
cause breakdown of electrical medical equipment. This product should be placed at
least 1 foot away from any heart pacemaker. Radio waves might potentially influence
heart pacemaker and lead to respiratory disturbance.
DO NOT use this product for any illegal activities. SecurityMan shall not be
responsible for any consequences of illegal conducts made byusers.
Operating Restrictions
• The temperature should be kept between –10˚C and 50˚C (14˚F to 122 ˚F).
The relative humidity should remain from 20% to 80%.
• Avoid putting the product in places where occur might change rapidly in temperature
or humidity.
• Keep it dry, dustless and avoid exposure in it directly in sunlight.
Conditions

•Do not shake or stricken the product.
•In order to avoid inflammation or electric shock, this camera kit should be kept away
from exposure to rain or moist, and it shall not be put in or near bath-rooms, washing
pools, wash houses , moist basements, or swimming pools, unless it is well shielded.
•In use of sockets set on walls or extension wires, attention should be paid not to
exceed their load capabilities to avoid inflammation or electric shock.
• Do not disassemble the product casings, otherwise the internal parts may get damaged,
or personal injury caused.
• Switch off the power supply in thunder and lightning weather or when not in use for
long periods of time.
• Do not attempt to service the product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
Warning
• Keep product away from heat sources such as electric heater.
• Do not use the wireless camera near aggressive chemicals.

Table of Contents
Introduction
Safety
Features
Package Contents
Product Basics
Remote Control
Setup and Operation
Installation
Playback and Backup File
Troubleshooting
Installation
1
1
2
3
4
5
7
14
17
19
21

Thank you for purchasing SecurityMan’s ClockCamDVR covert product. The ClockCamDVR
is designed for users who want to discreetly monitor their visitors, strangers, and business
activities. ClockCamDVR is a fully functional wall clock with hidden camera and video recorder
that records into a micro SD card, an economical total solution. The video recorder contains
multifunctional features; features such as motion detection recording, pre-recording events
and manual recording. It can be installed in seconds, hassle free of running long video cable.
Simply mount the clock at a desired location, connect the power of the clock-camera, and
ready to record. It is a perfect security product for home and business.
Introduction
Safety
1
Please read these instructions before using the product.
•Since this product is controlled by a microcomputer chip, it is normal that system halt may
occur if users operate it incorrectly. In this such case, restart the device by switching the
power to the off position and then unplug the AC adapter for a few minutes to recover.
•This product is not waterproof, weatherproof or dust proof, therefore it can not be
used outdoors or in adverse environment.

•Do-it-yourself, easy to setup and use
• Hidden color camera with built-in functional wall-clock
• Crystal clear video quality recording with VGA, D1 or HD in AVI format
• Motion and pre-alarm (3 sec.) recording
• Record to micro SD card (not included, up to 32GB/36hrs)
• Overwrite function when Micro SD card is full
• Date/Time stamp video recording
• Easy playback or download on a PC via micro SD or direct PC connection through USB
Features
2
•Please adopt the original DC power supply provided, to avoid causing device damage,
electric shock and fire hazards.
•Unauthorized dismantlement of the device or replacement of device parts is forbidden.
The manufacturer will not be responsible for any loss arising from such actions.
•Do not put the device in fire, oven, or microwave oven.
•User’s manual may change without notice consent, please check our website for the
latest available manual to download or use actual product as standard.

Package Contents
3
ClockCamDVR Remote Control Adapter
Video Cable
* Micro SD card is not included.
USB cable Screws
User manual
Warning Stickers x 2

Product Basics
4
Power LED
Record LED
Buzzer
MD On/Off
SYNC
Micro SD Slot
USB port
Video Out
DVR On/Off
Power Socket
IR for Remote Control
Hour Hand
Minute Hand
Second Hand
Camera
Clock
Mount Hole Clock Adjuster Turner
Battery
Compartment
(Clock)

5
Remote Control
Buttons Description:
REC: Press to initiate manual recording.
STOP: Press to stop manual recording.
TRIGGER ON: Press to enable motion detection mode.
TRIGGER OFF: Press to disable motion detection mode.
Be sure to aim the RC (Remote Control) towards the IR receiver module on the clock-
camera. Press the REC or TRIGGER ON buttons to activate manual
REC
TRIGGER ON
STOP
TRIGGER OFF

6
recording or motion recording accordingly. During activation, clock-camera will make two
beeping sound to indicate activation is successful. Press the STOP or TRIGGER OFF
buttons to disable manual recording or disable motion recording accordingly. During
disabling, the clock-camera will beep once to indicate disabling is successful.
Tips:
•The RC uses infrared signal to communicate with the receiver module by direct line of
site, please ensure objects are not hindering when RC is in use.
•RC distance is 10m direct line of site, if the transmitting distance is short and looses
accuracy it is a sigh of low voltage, please replace the battery.
•If clock-camera is not in use please remove the battery from the RC to avoid circuit
damage.
•To replace battery; reference the diagram illustrated at the back side of the RC.

Insert a Micro SD (not included, support up to 32GB) into the Micro SD slot located at
the back side of the ClockCamDVR as illustrated below. Make sure the Micro SD clicks
in when attempting to insert. Simply press in on the Micro SD again to eject. Insert a
standard AA cell battery (not included) in the clock battery compartment for the clock.
Connect one end of the provided power supply into the “DC 6V” power socket located
at the back side of clock-camera and plug the power transformer into an electrical
power outlet.
Setup and Operation
7
SD Card
Insert

Use the USB cable provided and plugs one end into the USB port of ClockCamDVR and
plug the other USB end into a PC (Windows 2000, Xp, Vista, and 7). Turn the power
switch to “DVR ON” position to power on the ClockCamDVR (For PC connection plug in
the USB cable before power on DVR as instructed below). A red power LED light indicator
will light up to indicate the camera and recorder is turned on as illustrated below.
Open My Computer and look for a mobile hard disk drive called, “Removable Disk”.
Double click on “Removable Disk (Drive:)” to open the directory and then double click on
“CLOCKCAMDVR.EXE” to enter the system setup window as shown below. System
setting consists of Date, Time, Time/Date Stamp, Motion Sensitvity, Video Standard,
Image Quality, OverWrite, and Button Sound settings.
8
DVR ON/OFF switch

9
Date: Click into “2010-01-01” and then click the △or ▽buttons to adjust to current date.
Time: Click into “00:00:08” and then click the △or ▽buttons to adjust to current time.
Time/Date Stamp: Click the ▽button to select a time/date stamp format of YY/MM/DD,
DD/MM/YY or MM/DD/YY (default MM/DD/YY). The Time/Date Stamp is the time/date
format that will display on live video footage and playback video footage.
Motion Sensitivity: Click the ▽button to select the motion sensitivity level ranging from
1 to 5 (1 being the most sensitive, 5 is the lease sensitive, default is level 3). Motion
sensitivity level detection distance is best estimated as follow: level 1 detect up to 25ft,

level 2 detect up to 23ft, level 3 detect up to 20ft, level 4 detect up to 17ft, and level 5
detect less than 14ft.
Video Standards: Click the ▽button to select video standards between NTSC and PAL
(default is NTSC). Please check your local listing for video standards used in your country.
For example:. North America, Japan uses NTSC video standards, China, European uses
PAL video standards.
Image Quality: Click the ▽ button to select between High (HD), Medium (D1), and Low
(VGA) resolutions (default value is Medium).
OverWrite: Click the ▽button to select between overwrite ON or overwrite OFF (default is
ON). When the overwrite setting is set to ON and the memory card is full; the system will
start to overwrite the oldest data that exist in the memory card. This process will continue
for as long as the system is up and running.
10

11
IMPORTANT: Please remember to STOP the recording process if an important event(s)
occurs to prevent overwriting of file(s). The length of time that it take for overwrite to start
varies and depends on the capacity of the TF card used and methods of recording set.
Be sure to test and know the recording duration to prevent the deletion of important data.
Button Sound: Click the ▽button to select between button sound ON or button sound
OFF (default is ON). Button sound set to ON means when the buttons on the remote
control is pressed each time there will be a sound coming from the ClockCamDVR system
or vice versa.
SAVE: Click on the SAVE button to save the settings and then press and hold the SYNC
button located at the back side of the ClockCamDVR for 5 seconds to complete the saving
process.
IMPORTANT: After all the settings are confirmed, click the SAVE button and then press-
hold the SYNC button located at the back side of ClockCamDVR for 5 seconds to save
and synchronize the settings.
EXIT: Click on the EXIT button to exit without saving or changes.

12
To operate the ClockCamDVR use the remote control, press the REC button to start
manual video recording and press the STOP button to stop manual recording (remote
control only).
In manual recording mode, the DVR system will continuously record until the STOP button
is pressed or the system will stop once the Micro SD capacity is full given the Overwrite
option is set to OFF. A new file will automatically be generated when the recorded file
reaches 15 minutes of recording. The DVR will continue to recreate and generate 15
minutes files, non-stop, if the Overwrite option is turned ON.
Press the TRIGGER ON button to initiate motion detection recording based on movement
or motion and press the TRIGGER OFF button turn off motion detection recording. Motion
detection can also be turn ON or OFF by pressing on the DETECT button located at the
back side of the wall clock camera. Press on the DETECT button once to initiate motion
detection recording based on movement or motion and press the DETECT button again
to stop motion detection recording as illustrated below.
In MD (motion detection) mode, the DVR system has a 3 seconds pre-alarm recording
feature. Which means before the alarm trigger and start to record the 15 seconds motion
detection record time, there is a pre 3 seconds recording of the event prior to the start of
the 15 seconds recording, totaling 18 seconds. When detected object(s) is constantly
