SEGUE Sunrise DS Series User manual

www.classicexhibits.com
Step 1
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
VK-1912 - SEGUE Sunrise DS
Plan View
10’
10’

www.classicexhibits.com
Step 2
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
VK-1912 - Backwall Assembly with Wings
Item
1
2
3
4
5
6
7
8
Description
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
45” Double Sided SEG Extrusion
1
4
2
3
56
78
Tighten Knob to secure
Hook keyhole cut
out up bolt
Foot Attachment
Setups:
1) Assembled SEG extrusions together on floor.
2) Apply SEG graphic to assembled frame.
3) Attach feet to both sides of assembled frame
where indicated.
4) Attach wing panels to A10 clips as shown.
Tighten knob to
secure Wing in place.
Screw A10 clamp to
back of vertical extrusion.
A10 Clamp Attachment
**** See attached SEG graphic
installation for graphic attachment
Center
and tighten knob
to secure
Slide connecting
bar between
verticals/horizontals
Squeeze Foam
Corner Bracket A
together and slide
bracket into SEG
extrusion.
Top Corner
*
Clamps should NOT
be removed. Leave
attached when exhibit
is stored.
Double Sided
Extrusion Profile

www.classicexhibits.com
Step 3
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING

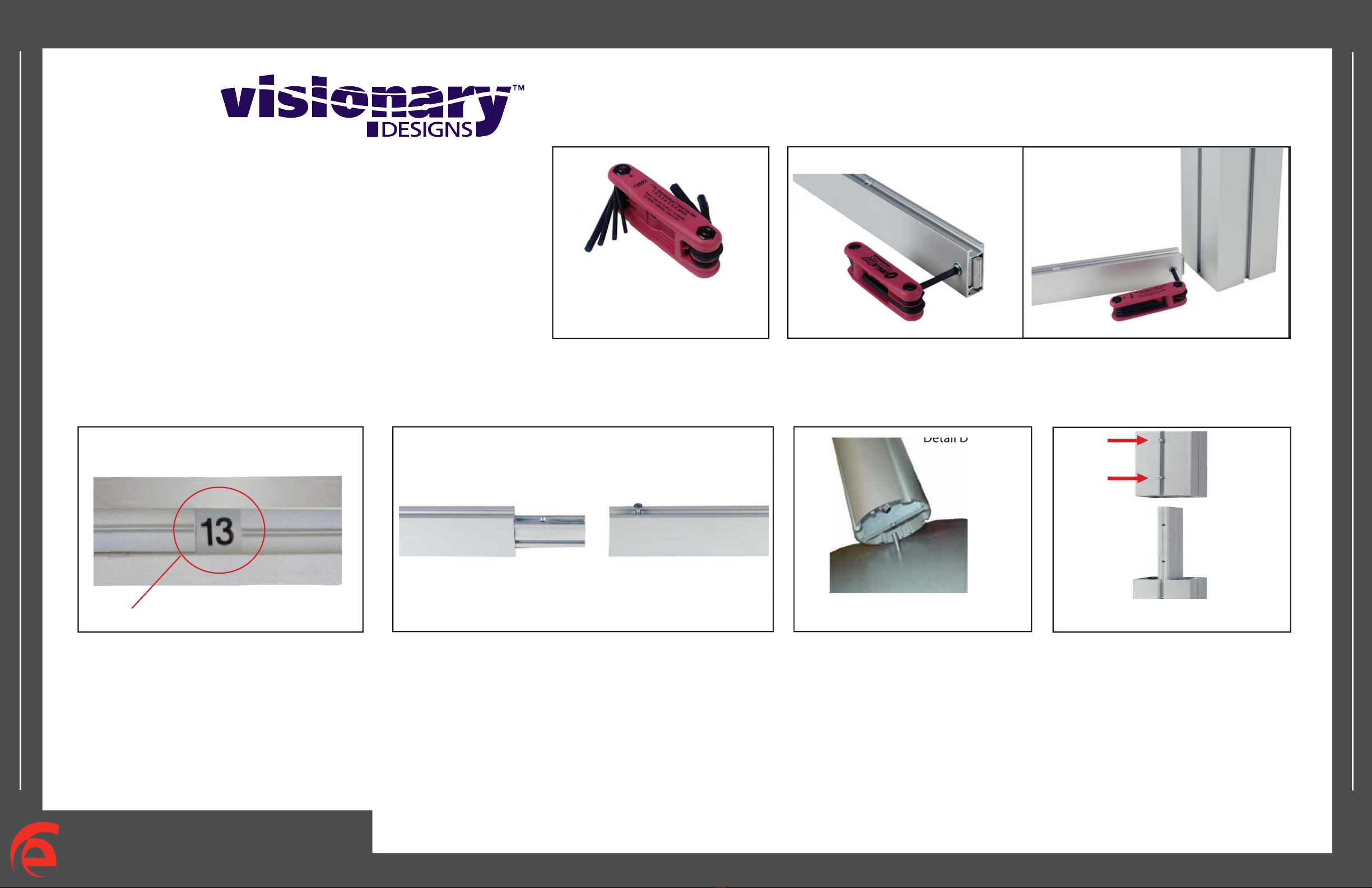

VK-1912 - General Information
The Tool Typical Connection
Horizontal Inline Connection (remove only one setscrew)
Base Plate Connection Vertical Connection
(remove only two setscrews)
Most Visionary Designs exhibits can be
assembled with the supplied Hex Key Tool.
Occasionally, a flat head screwdriver may
be required.
Most horizontal extrusion connections have a patented expandable lock. This lock inserts into
the groove of an opposing extrusion. Tightening the lock with the Hex Key Tool expands the lock
and creates a strong positive connection.
Remove only (1) setscrew when disassembling. Replace setscrew in
extrusion after assembling it. Before packing, replace setscrew in
extrusion to avoid losing it.
Attach base plate to round or square
vertical extrusion using the bolt provided.
Be careful not to strip the threads.
When vertical extrusions are packed in
portable cases rather than crates or
tubs, they must broken down into
smaller sections which then require
assembly.
Remove only (2) setscrews when
disassembling. Replace setscrews in
extrusion after assembling it. Before
packing, replace setscrews in extrusion
to avoid losing them.
Using Your Setup Instructions
The Visionary Designs Setup Instructions are created specifically for your
configuration. They are laid out sequentially, including an exploded view of
the entire display, and then a logical series of detailed steps to assemble the
main structure and components. We encourage you to study the instructions
before attempting to assemble your exhibit.
Each page reminds you to tighten the setscrews after disassembling your
exhibit to prevent loss of the locks and setscrews (see below in RED).
This is VERY IMPORTANT.
Cleaning and Packing Your Display
1) Use care when cleaning aluminum extrusion or acrylic inserts. Use only
non-abrasive cleaners.
2) When cleaning laminate inserts or countertops, use mild cleansers and a
soft material such as cotton.
3) Keep all display components away from extreme heat and long exposure
to sunlight to avoid warping and fading.
4) Retain all packing material. It will make re-packing much easier and will
reduce the likelihood of shipping damage.
Typical Connection (cont’d)
Numbered Label
Each extrusion contains a numbered label which
corresponds with setup instructions.
The label is located within a groove of the extrusion
(when possible). With Visionary Designs the labels
contain Black numbers unless otherwise specified.
Detail C EliateDDliateDDetail B
Detail A
Setscrews

www.classicexhibits.com
Step 4
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
VK-1912 - SEG Graphic Installation
Graphic Removal
SEG Graphic: To Ensure Proper Fit
Corner A
Corner D
Corner B
Corner C
It is important to first insert graphic
into each alternater corner then to
the sides of the frame.
If this is not done, graphic will not fit
into the frame correctly.
Step 1
Insert corner A.
Turn edge of graphic so silicon welt
is perpendicular to face of graphic.
Insert narrow side of welt with fabric
to outside into the channel.
Repeat for other side of this corner.
Step 2
Repeat Step 1 for opposite corner
C, then insert corner B, followed by
corner corner D, to complete the
installation of the corners.
Step 3
Once all corners are inserted, press
one silicon edge into channel from
corners and work toward the center.
Make sure welt is fully inserted into
channel. Continue until all sides are
done. Smooth out edges of graphic.
To remove the graphic from
the frame, locate the fabric
pull tab.
Gently pull up on the tab to
remove the fabric.
