STILFORD STMON160GY User manual

SNOITCURTSNIYLBMESSA
MOON ELECTRIC HEIGHT ADJUSTABLE DESK 1600OA
STMON160GY
.thgirypocottcejbussitelkoobnoitcurtsnidnangisedsihT
ua.moc.skroweciffo.www
For spare parts or hardware call 1300 OFFICE .)3243360031(
1 / 22
2 Cartons

2 / 22
FurnitureAssemblyIns
Estimated Assembly Time:
Assembly Video
To view an assembly video, go to https://www.officeworks.com.au/
Search the product by item code or name:
Click on the icon to watch the video.
Customer Service Contact Details
Spare Parts & Hardware
1300 OFFICE )3243360031(
General Advice
People Required
40 minutes

3 / 22

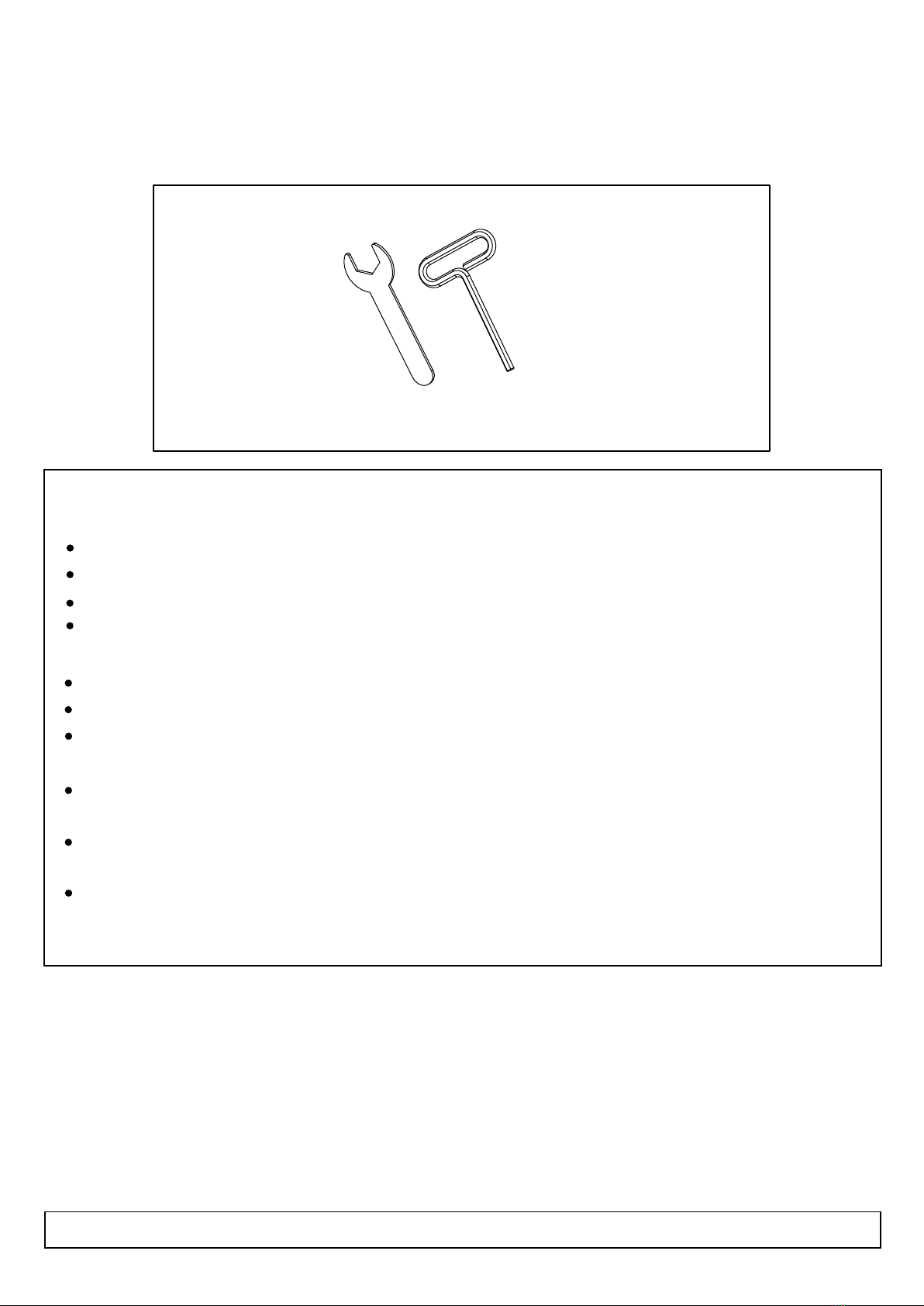

Tools Required
CAUTION: Do not use tools other than those required, as this
can damage your new item.
Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA
NOTE
Please check you have all hardware before assembling.
Please ensure you have the name of the item, required hardware part and quantity.
Please retain your receipt as proof of purchase to validate your warranty.
CAUTION
Do not tighten screws before all screws are in the right place.
Do not use this product unless all bolts and screws are firmly secured.
Check that all bolts and screws are securely tightened at least every 4 months.
WARNING
If parts are missing, broken, damaged or worn, stop using the product until all repairs
are made using manufacturer authorised parts.
Failure to follow these warnings could result in serious injury.
DANGER
CHILDREN MUST BE SUPERVISED.
If you are missing any hardware, please contact 1300 OFFICE (1300 633 423).

4 / 22
Safety and Warnings
•This table complies with the prescribed safety regulations. Inappropriate use may cause damage to persons and
table.
•Please read the operation manual prior to start using the table. It provides you with important information about
safety, use, installation and maintenance of the table, and thus protecting you and your children and avoiding
damage on the table.
•Please guard this operation manual and pass it on to any future owner!
•Do not place any objects above 65.5 cm underneath the table.
•The appliance is only to be used with the unit provided (Power supply).
This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord and supply unit is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Operation time: Max.2min on/18 min off
Max Speed: 35mm/s
Desktop Size: Length 1600mm, Width 800mm, Thickness 18mm
Lowest Position: 733mm
Input Voltage: 230V
Stroke: 650mm
Highest Position: 1376mm
Usage
The electromotive, height-adjustable tables are designed for workstations in dry work environments only. The table
height is infinitely adjustable, so that it can be set to the most ergonomically suitable working level.
They have not been designed for other purpose than those included in this manual, e.g., they are not to be used in
ares of high humidity or dampness, not for lifting people. Any other use is at one's own risk!
Do not crawl, lie or move around under the table frame, and do not sit or stand on the table frame.
Liability: The manufacturer accepts under no circumstances warranty claims or liability claims for damage sarising
from improper use or handling of the table frame other than that described in this operation manual.

5 / 22

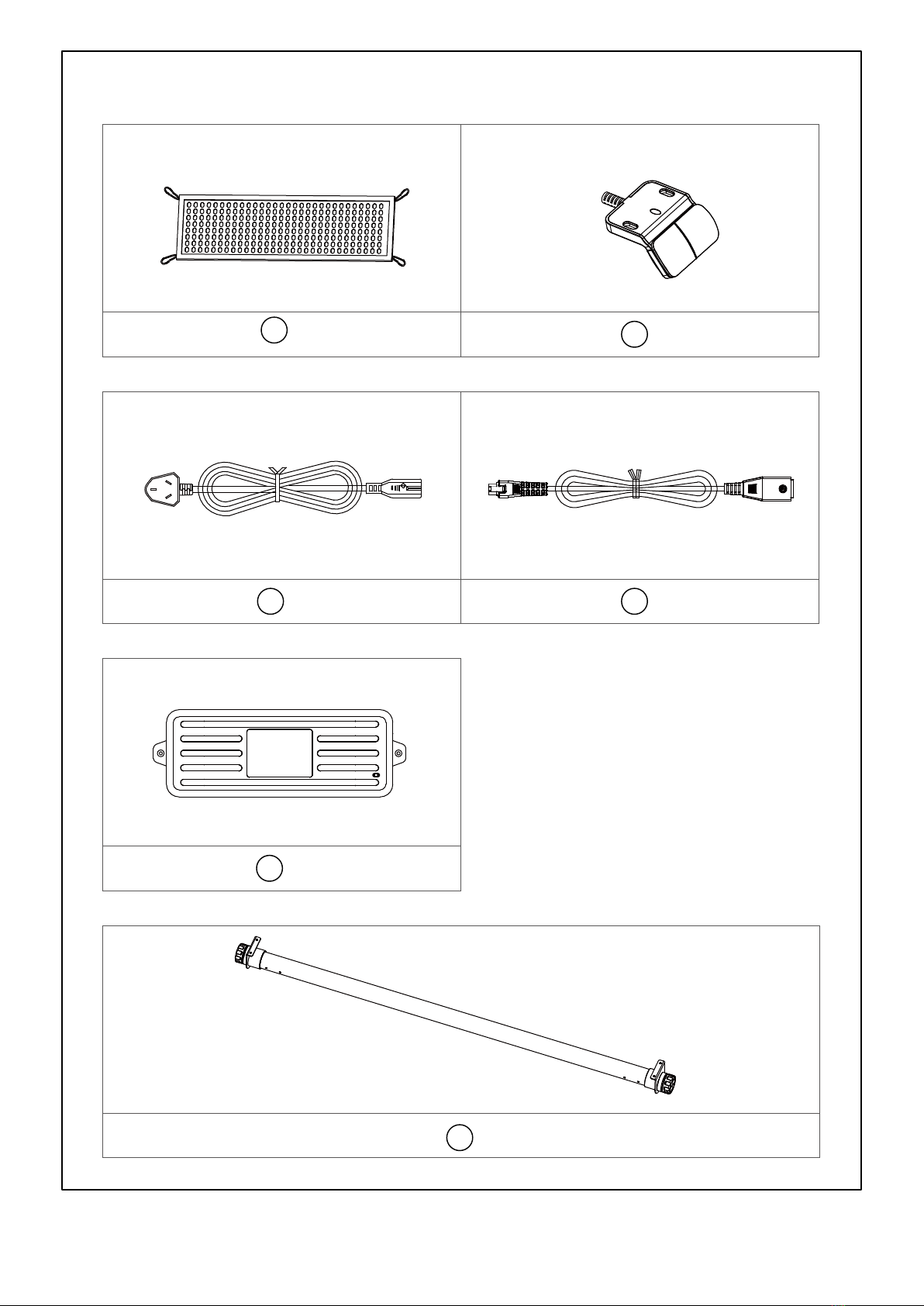

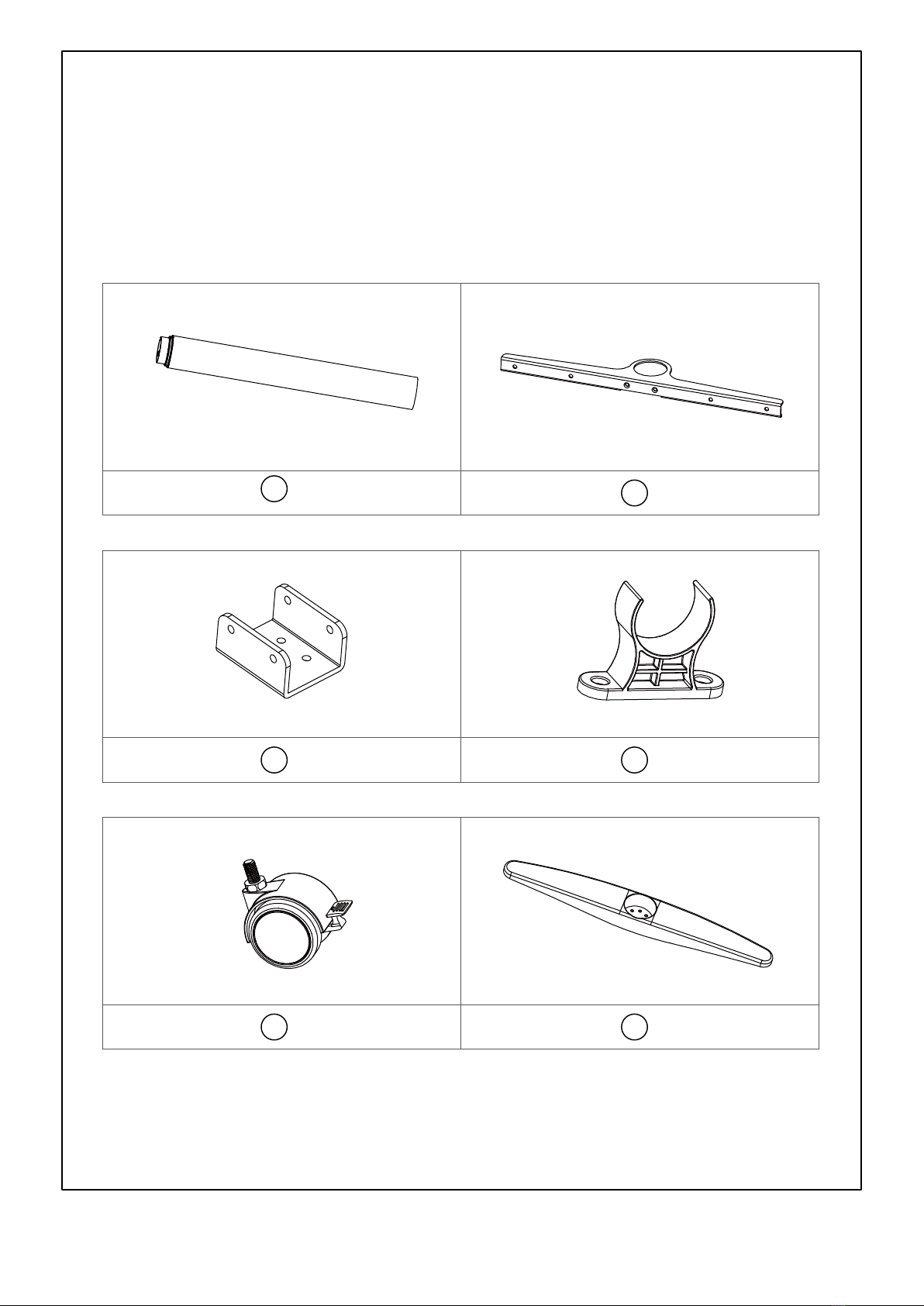

Parts List
x22
x24
x26
x23
x45
x21
Parts Located in Carton - STMON160G1

x112
6 / 22
x18
x210x19
x111
x17
JET
CHING CHENG
F HS M2
M1AC

7 / 22

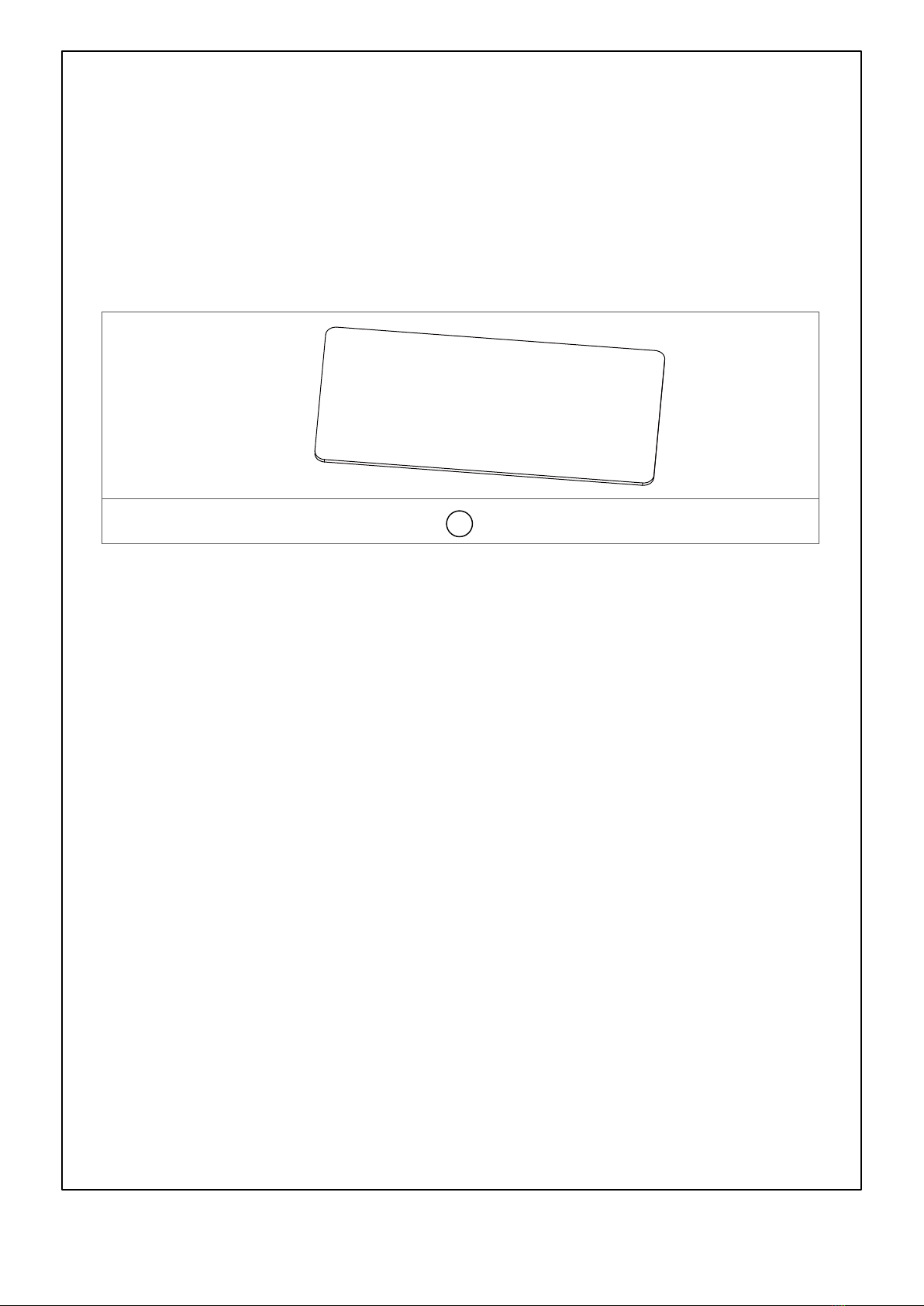

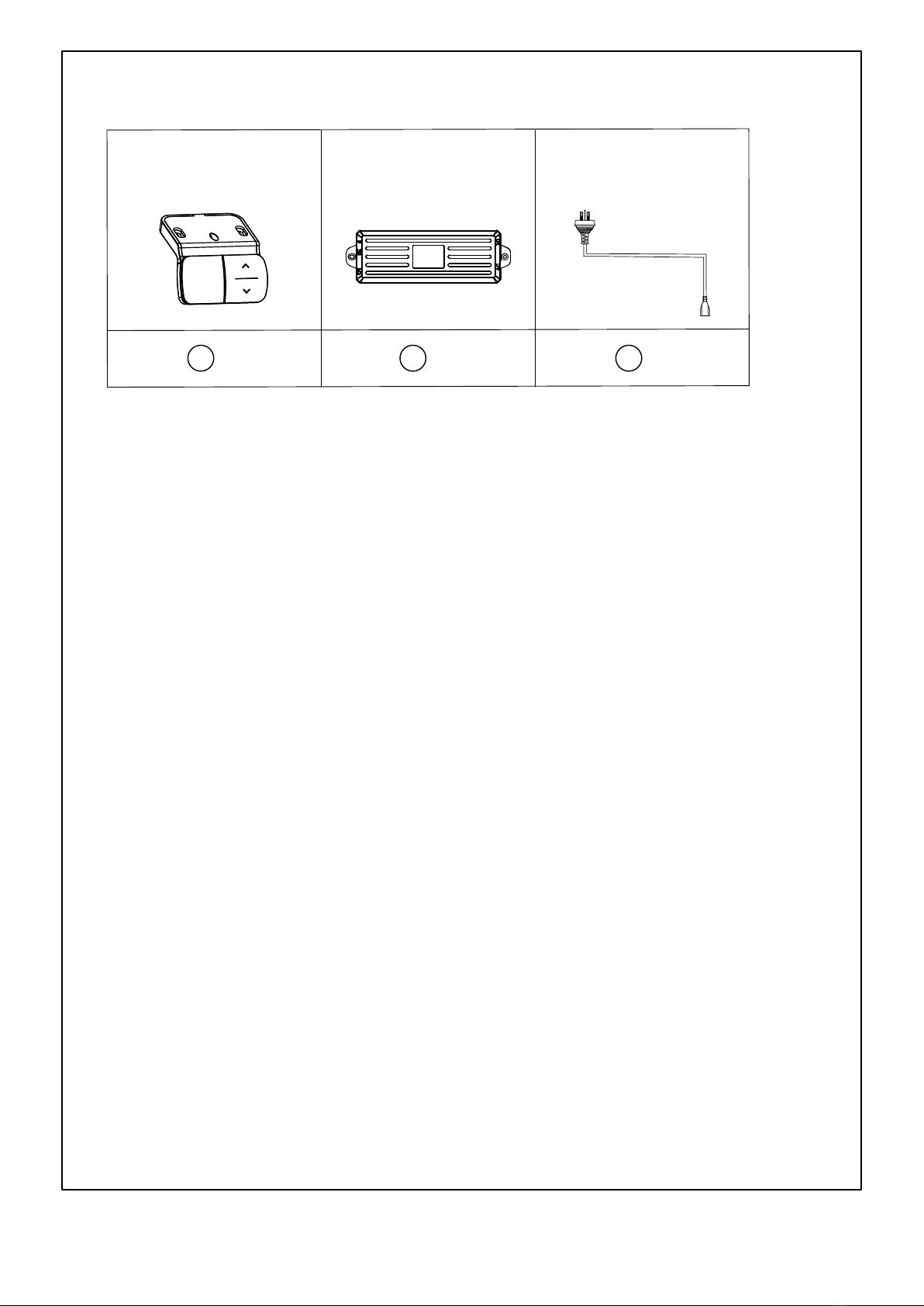

Parts List
Parts Located in Carton - STMON160G2
x113

8 / 22

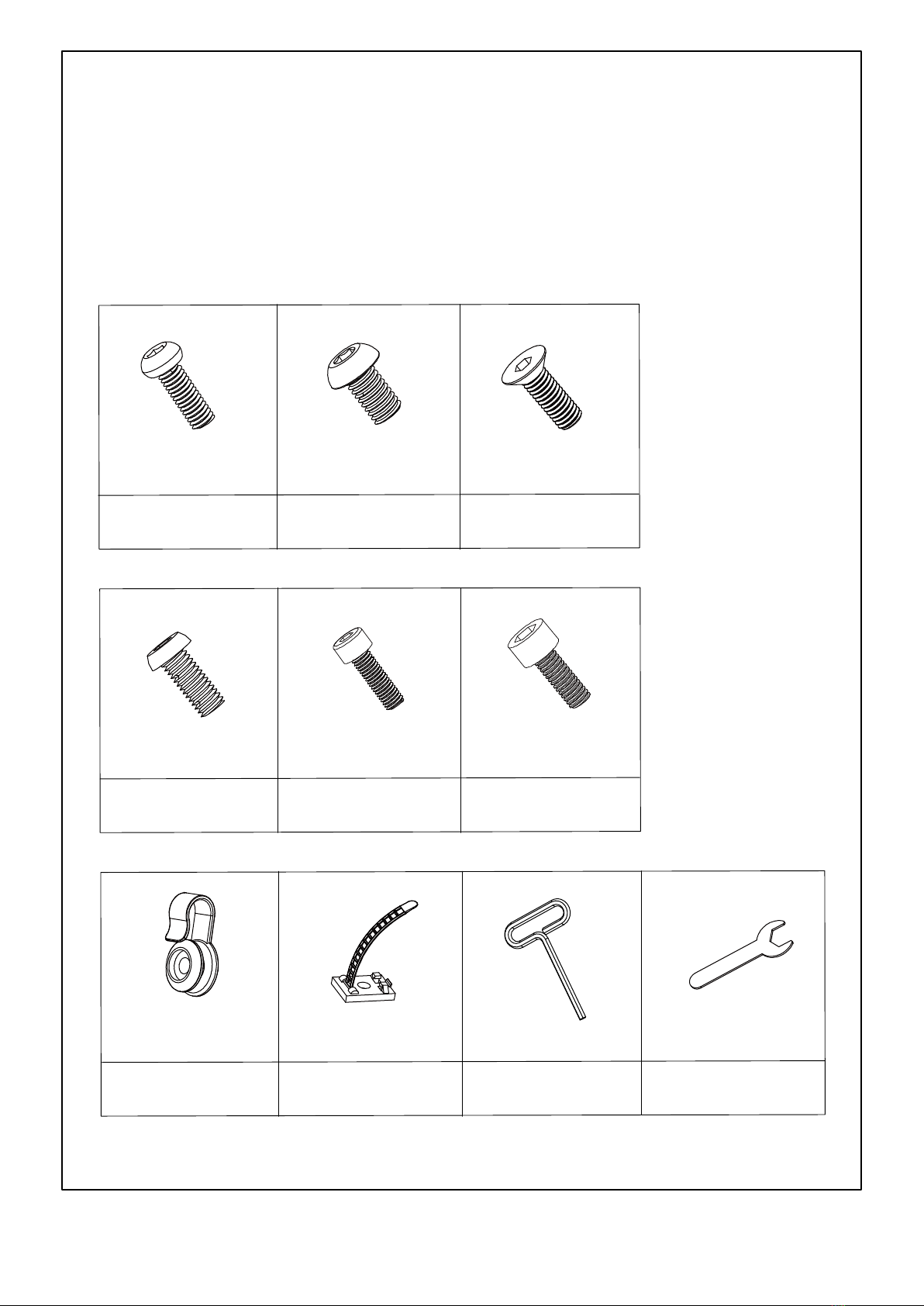

Hardware Located in Carton - STMON160G1
Spare Parts Number-HWPACKMOON
Hardware List
Ax8 Bx16 Cx4
M6x16 M6x10 M6x14
Dx12 Ex6 Fx2
M6x14 M5x16 M5x12
Gx4 Lx6 Mx1
Hook Cable tie Wrench
Nx1
M4

9 / 22
Spare parts number-
HWMOOCNTPN
Spare parts number-
HWMOONTFR
Spare parts number-
HWCABSITST
x111x17x19

10 / 22

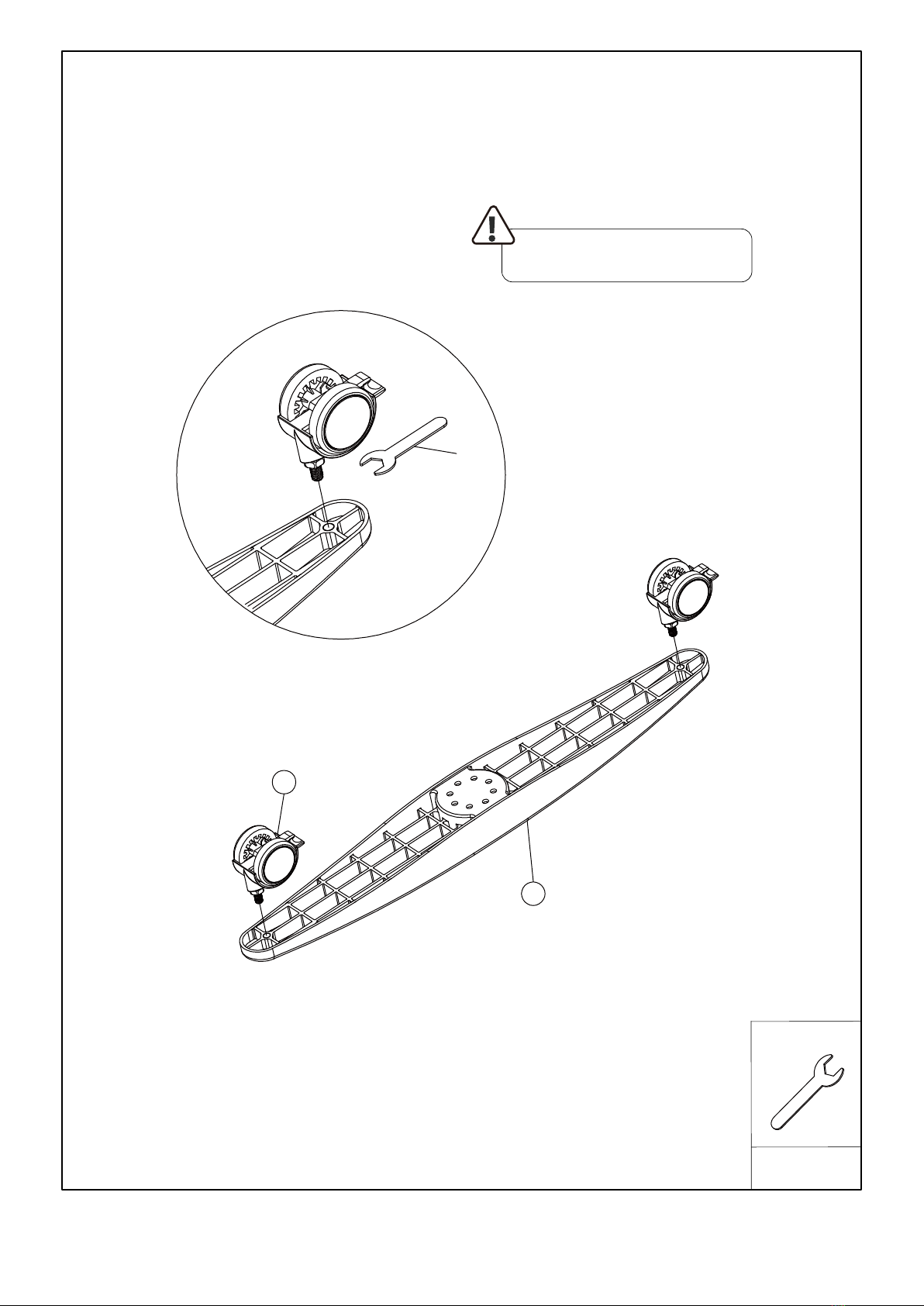

Install castors
Step 1
Use wrench (N) to install
the castors⑤
N
5
6
Jx1

11 / 22

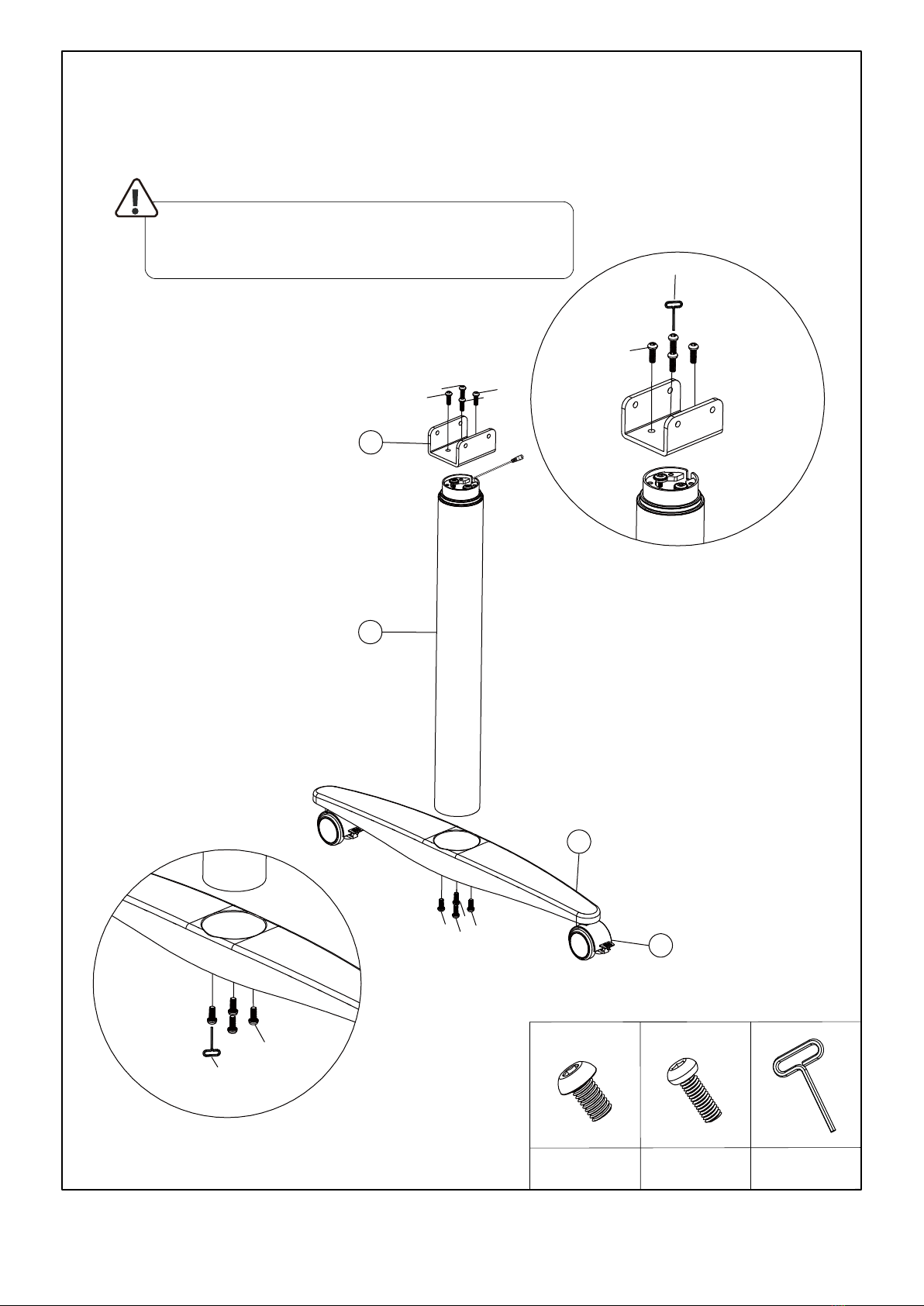

Install legs
Step 2
Put the column ①on the feet ⑥,use 4 screws(B)
to lock,then install the part 3 by 4 screws(A) with
allenkey (M) for both 2 legs.
Ax4 Mx1
Bx4
1
3
6
5
B
AAA
A
M
B
B
B
B
M
A

12 / 22

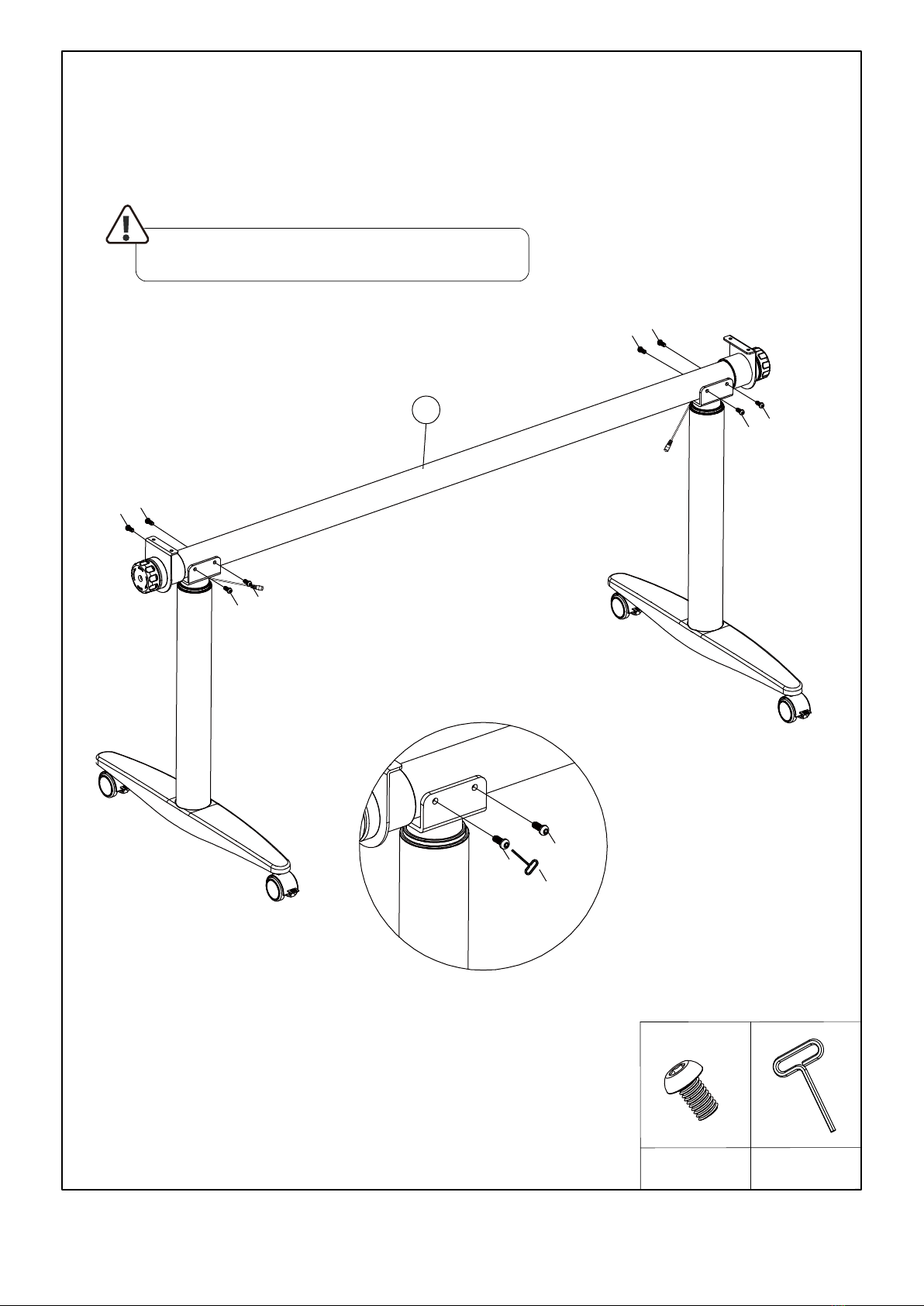

Install the beam
Step 3
Bx8 Mx1
Put the beam on the leg,use 8 screws (B) to
fix it with leg by allen key (M).
M
B
B
B
B
B
B
B
B
BB
12

13 / 22

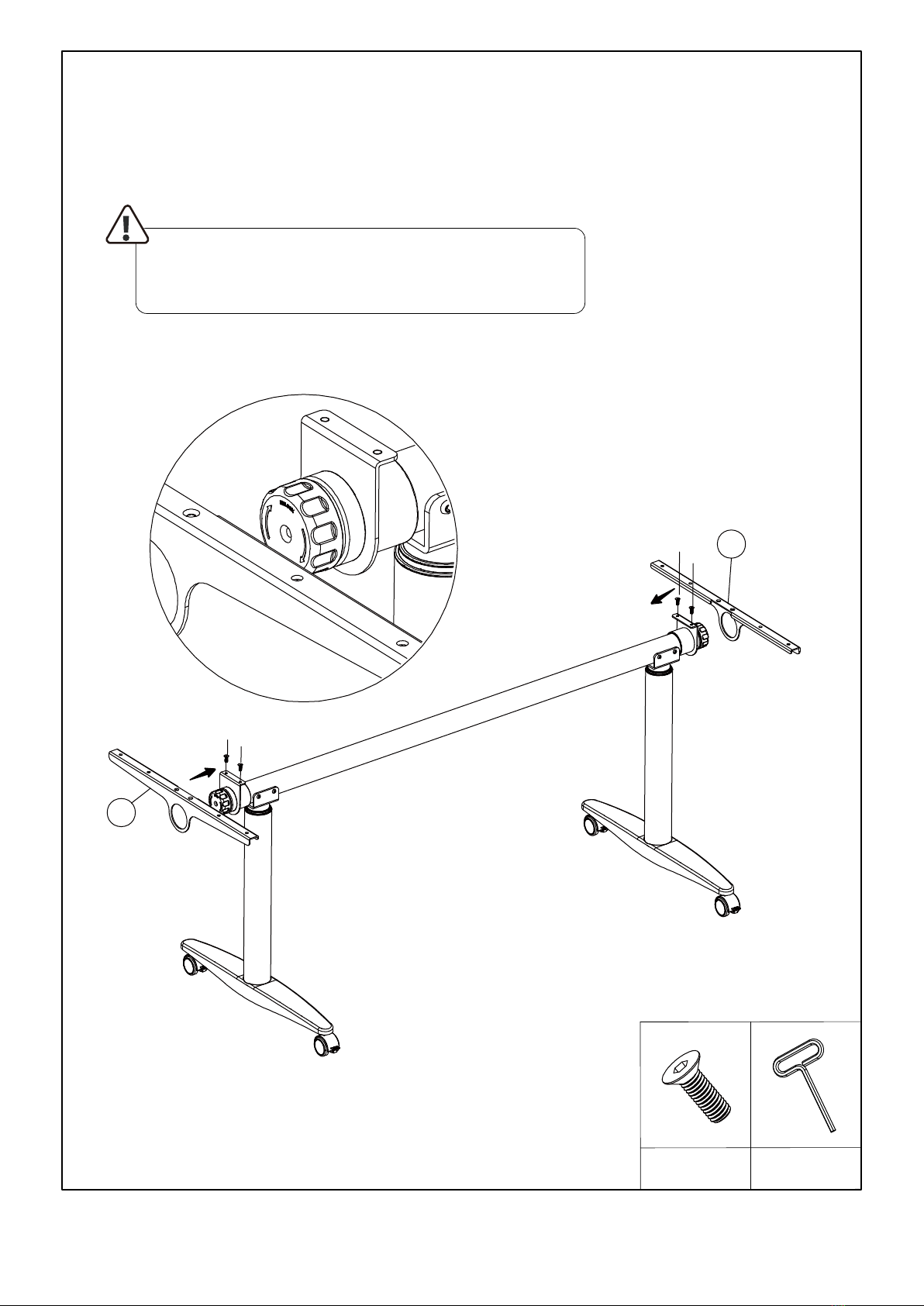

Install the side brackets
Step 4
Cx4 Mx1
Put the side brackets 2 on the beam,
fixed them by 4 screws (C) with Allen key (M).
Please note the arrow direction is the flip direction.
CC
CC
2
2

14 / 22

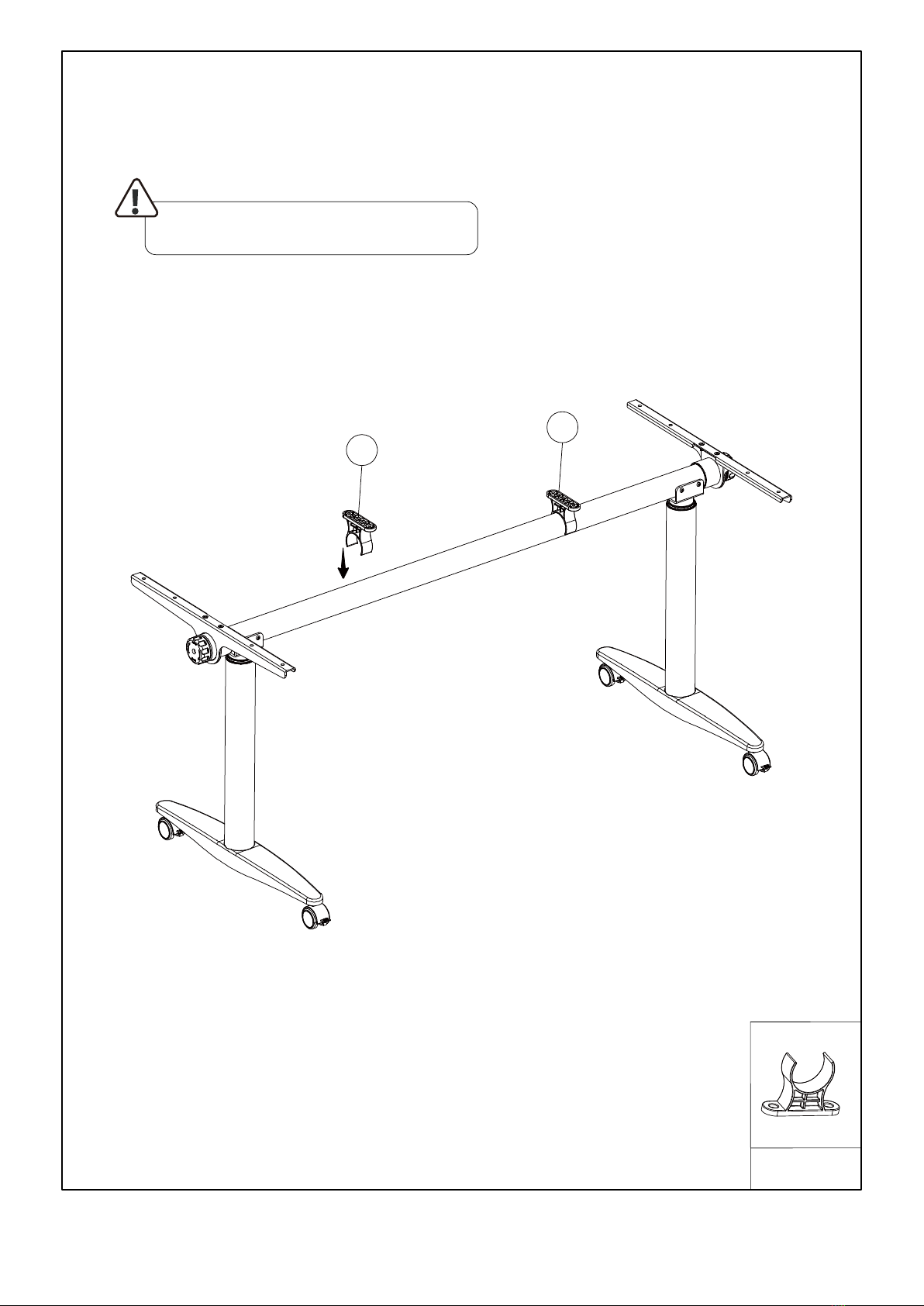

Install the mid brackets
Step 5
Click 2x mid brackets on the beam.
④x2
44

15 / 22

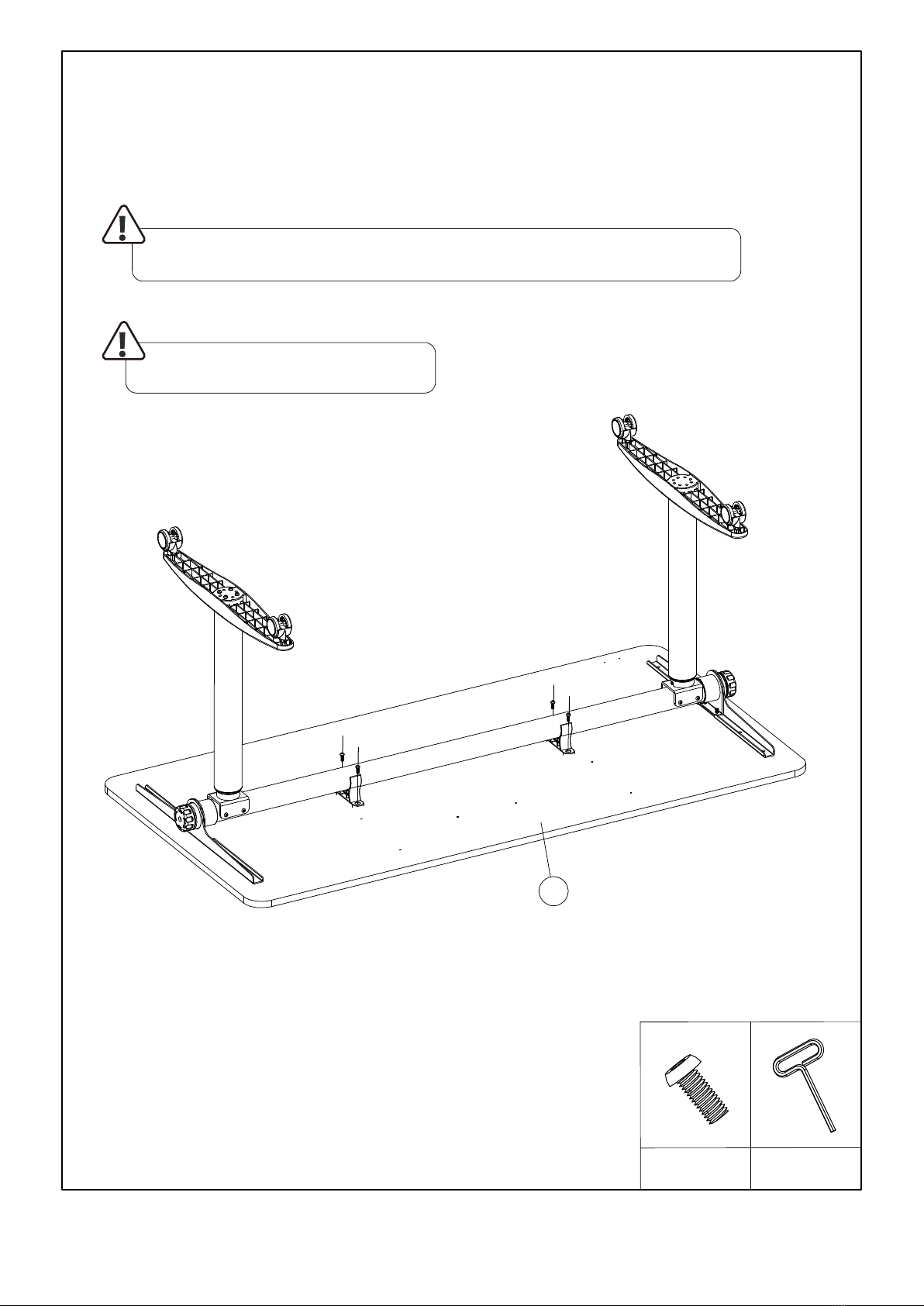

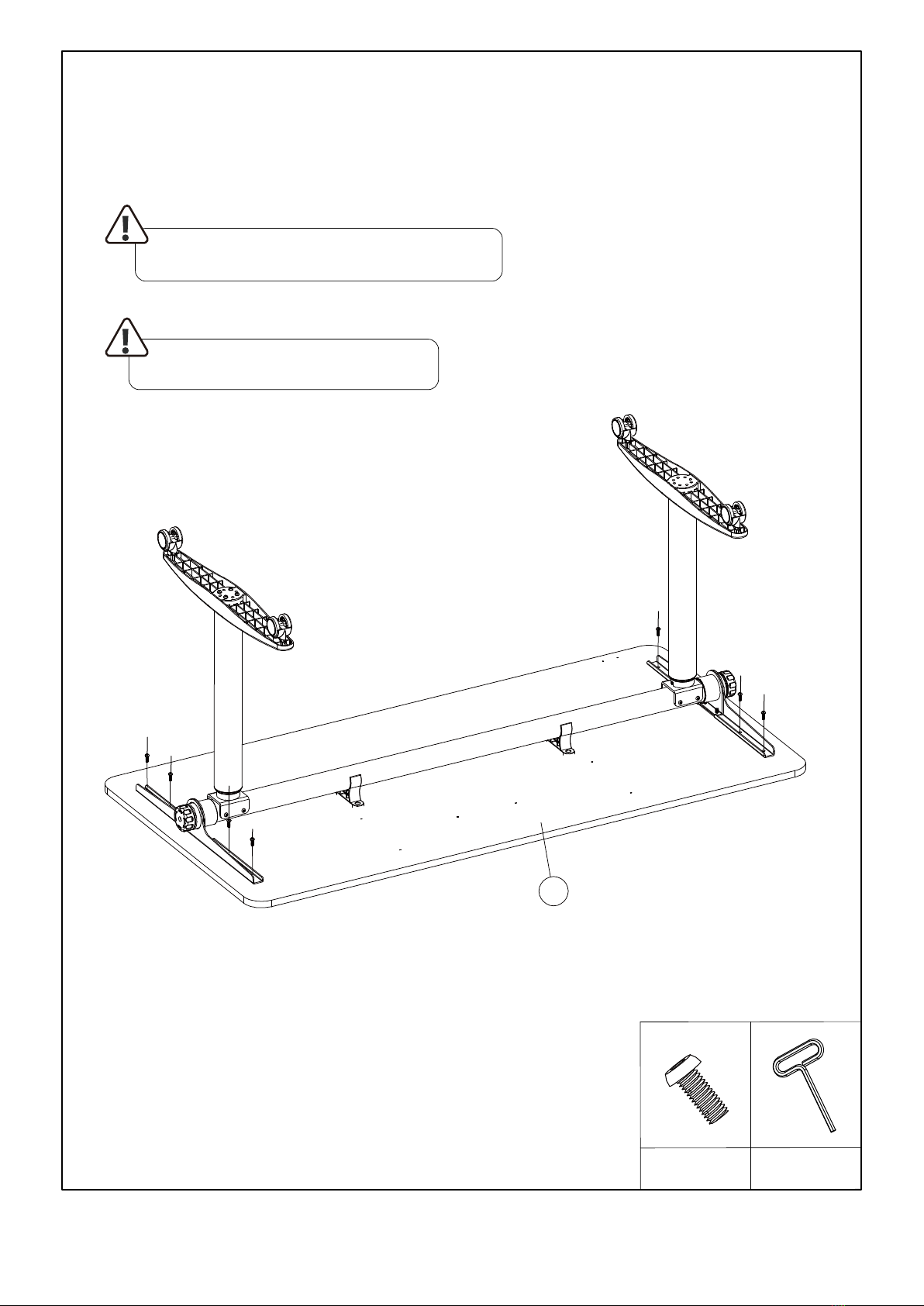

Install the tabletop
Step 6
Dx4 Mx1
Put the frame on the tabletop.Adjust the mid bracket to match the
pre-drilled hole,and fixed it by 4 screws (D) via allenkey (M).
13
DD
DD
Please watch out the feet when you
install the top

16 / 22
Install the tabletop
Step 7
Dx8 Mx1
Fix the side brackets on the tabletop by
8 screws (D) via allenkey (M).
13
D
D
D
D
D
D
D
Please watch out the feet when you
install the top

17 / 22

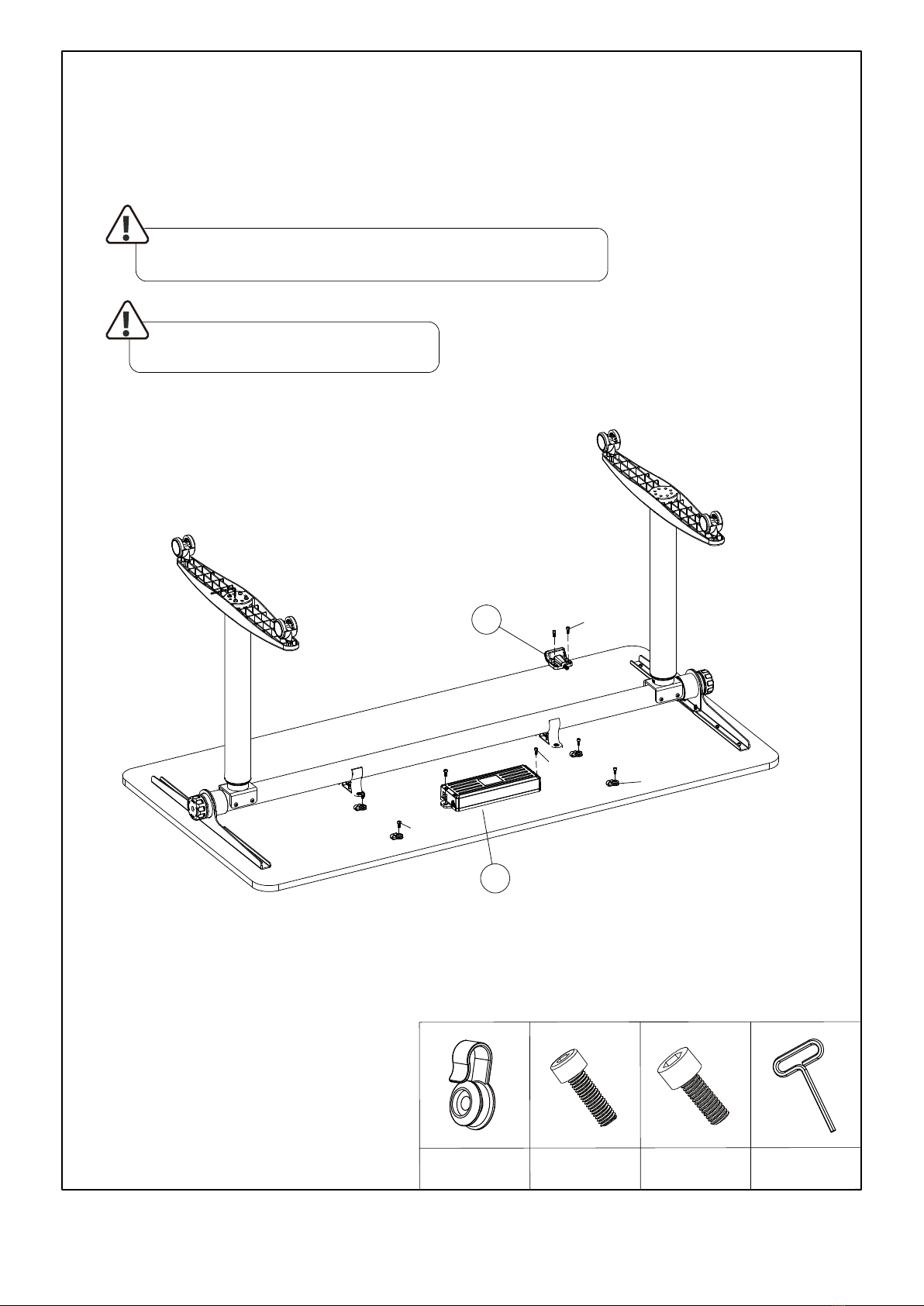

Install the hook and control box& controller
Step 8
Fx2 Mx1
Fix the control box by 2 screws E,fix the hooks G by
4 screws E,fix the controller8 by 2 screws F.
11
8
Gx4 Ex6
E
EG
F
Please watch out the feet when you
install the top

18 / 22

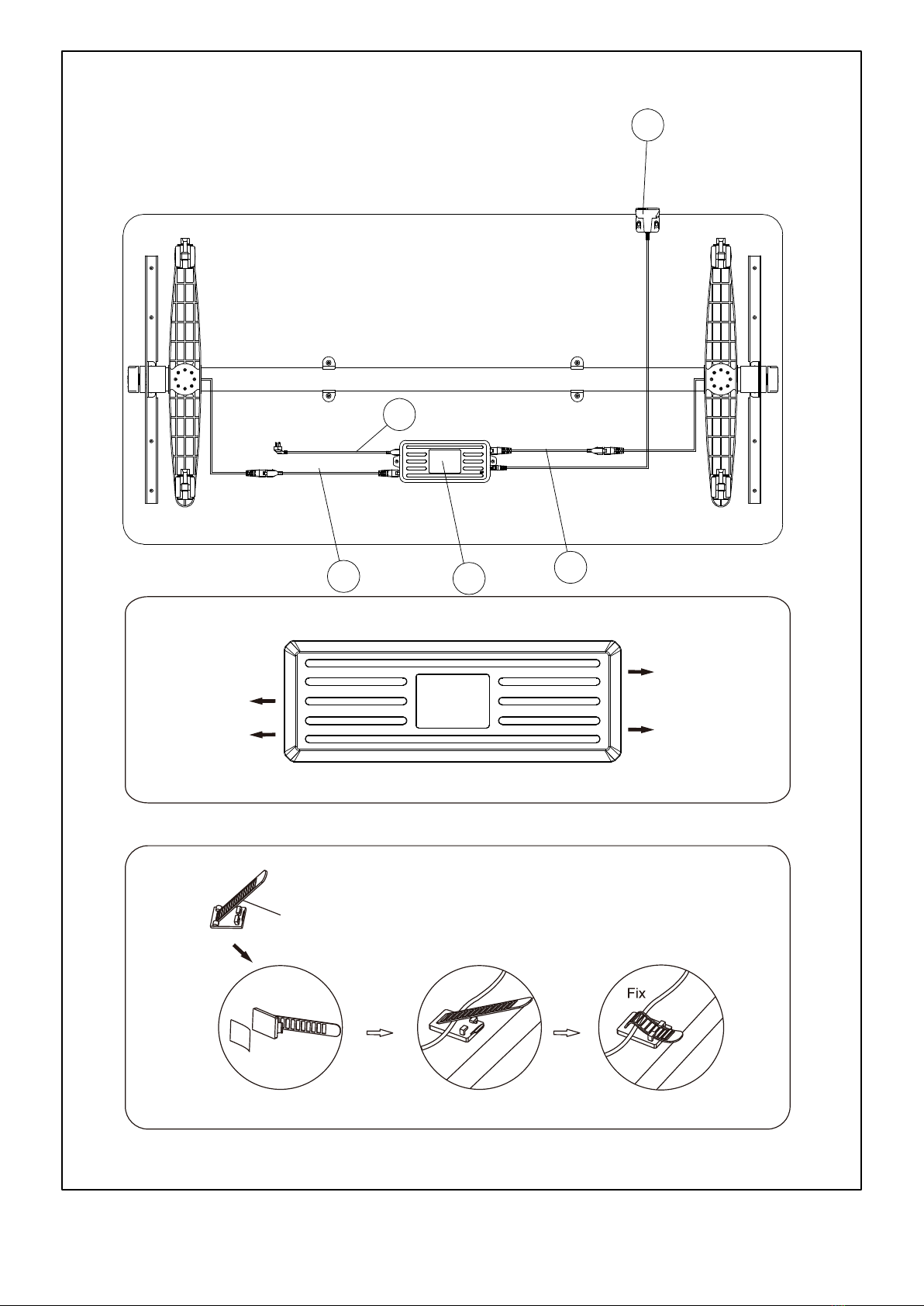

Connect cables
Step 9
Use the cable tie (L) to fix the cable at
proper position and keep cables organized
Tear off Manage CableFix
L
Right column (1)
(9)Power cable
(1)Left column Handset (8)
F HS
AC M1
M2
F HS M2
M1AC
10
8
11
10
9

19 / 22

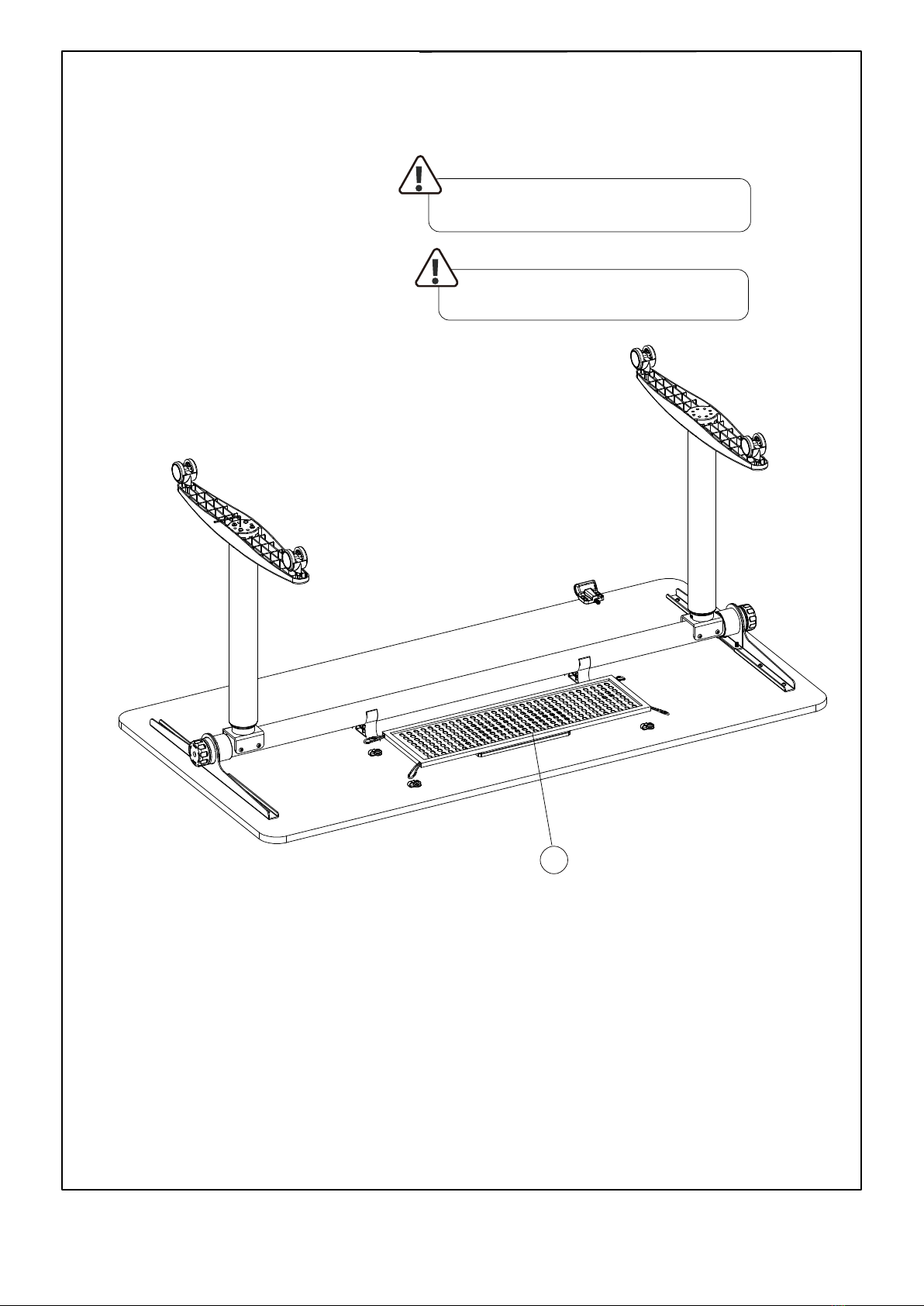

Install the bag
Step 10
7
Hang on the bag⑦to the 4 hooks G.
Please watch out the feet when you
install the top

20 / 22

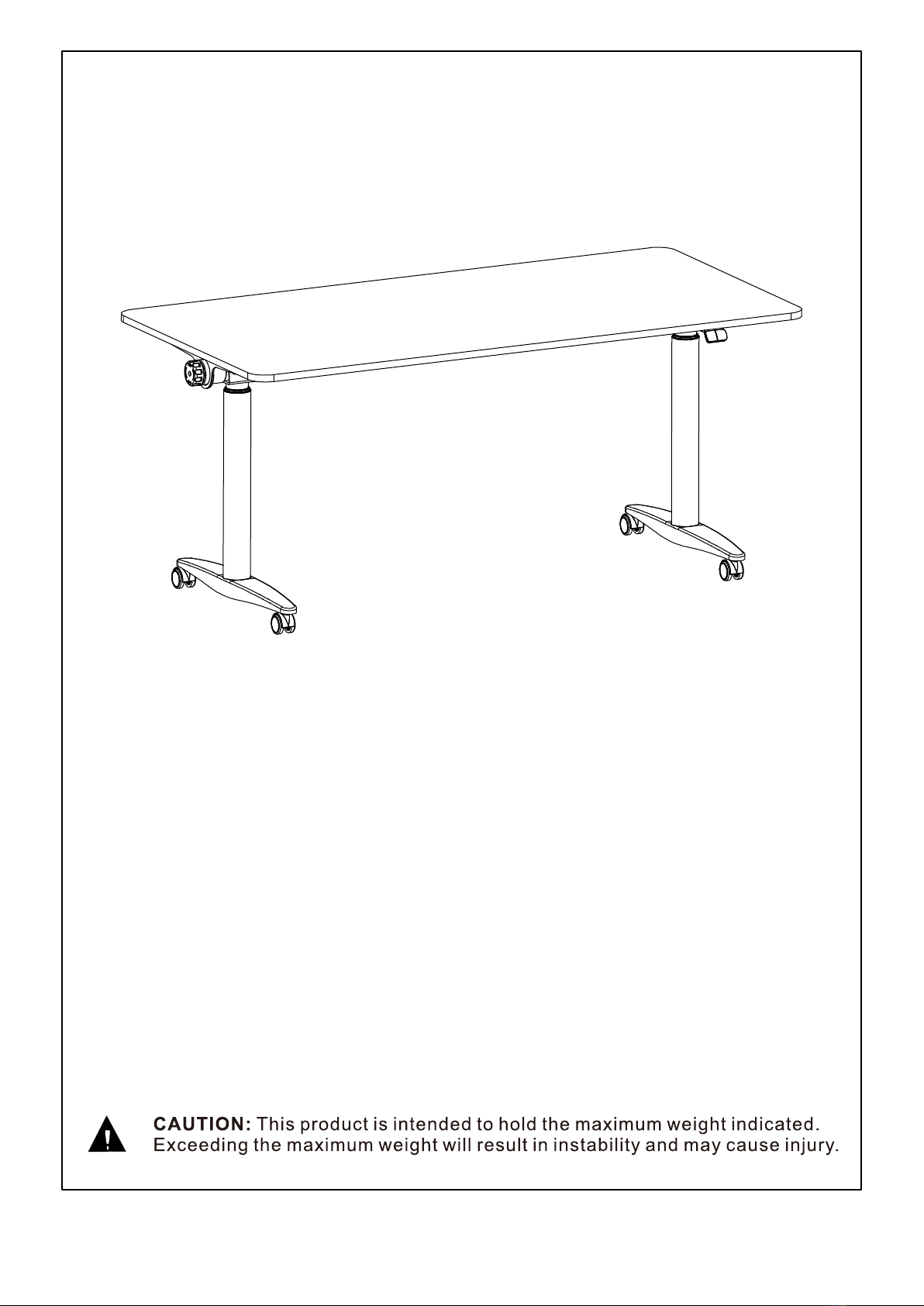

Finished
Step 11
Maximum
weight capacity
120 KG
